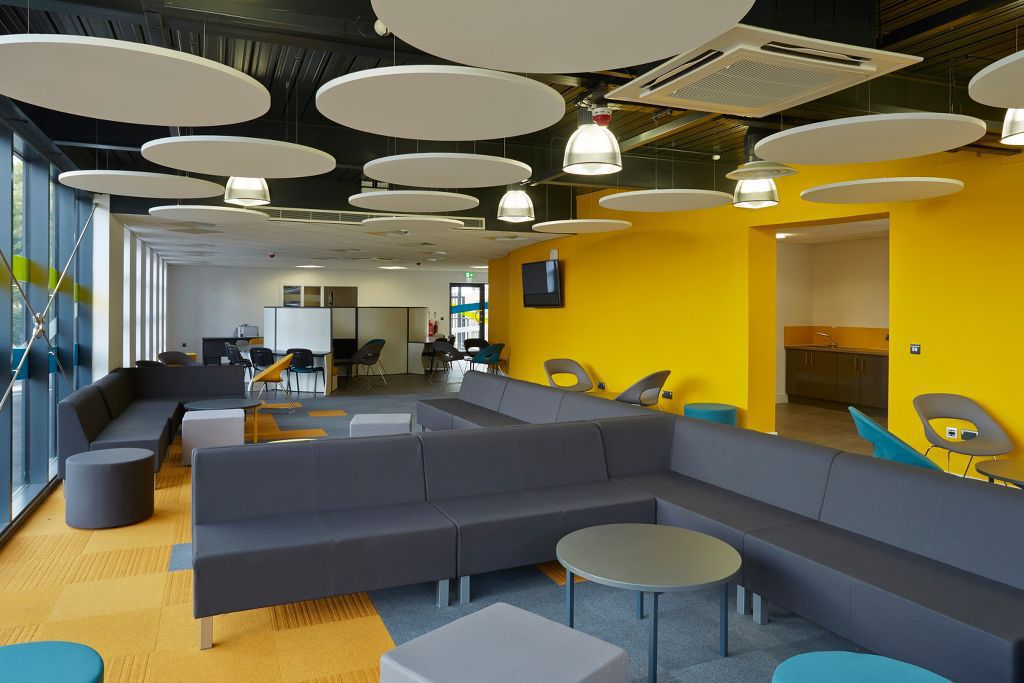

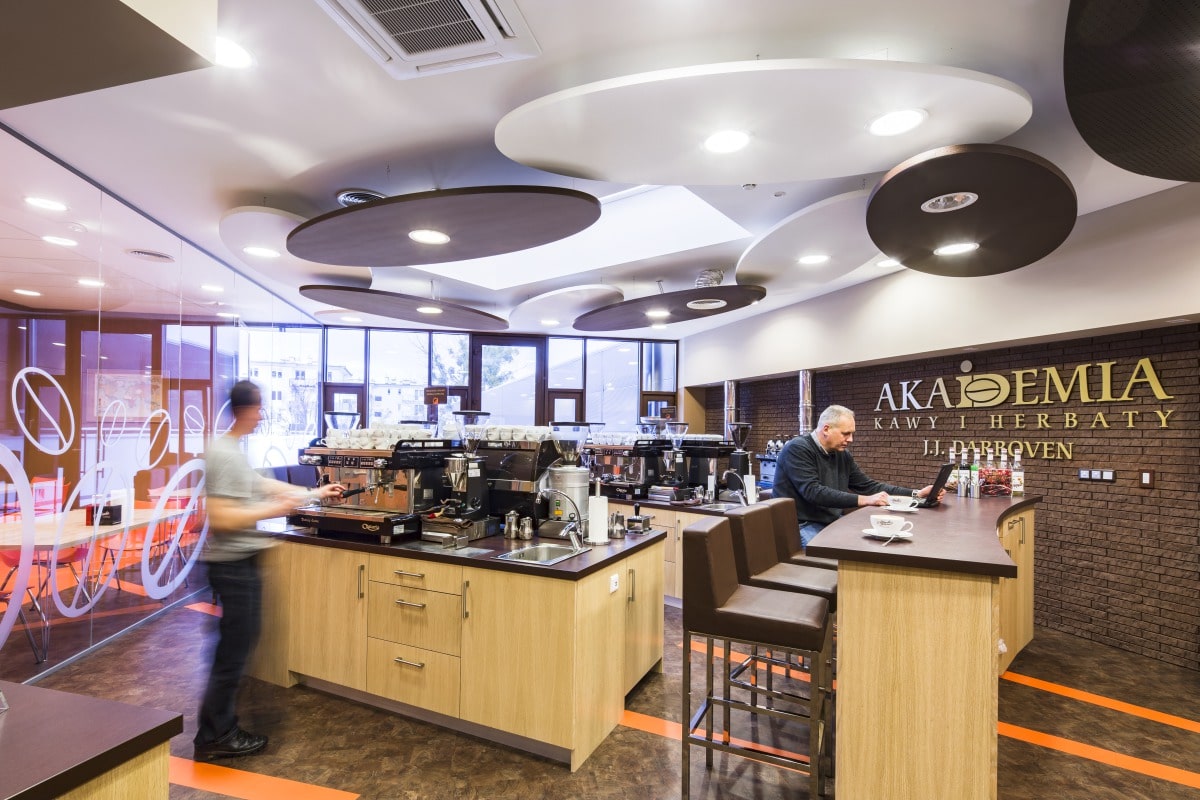

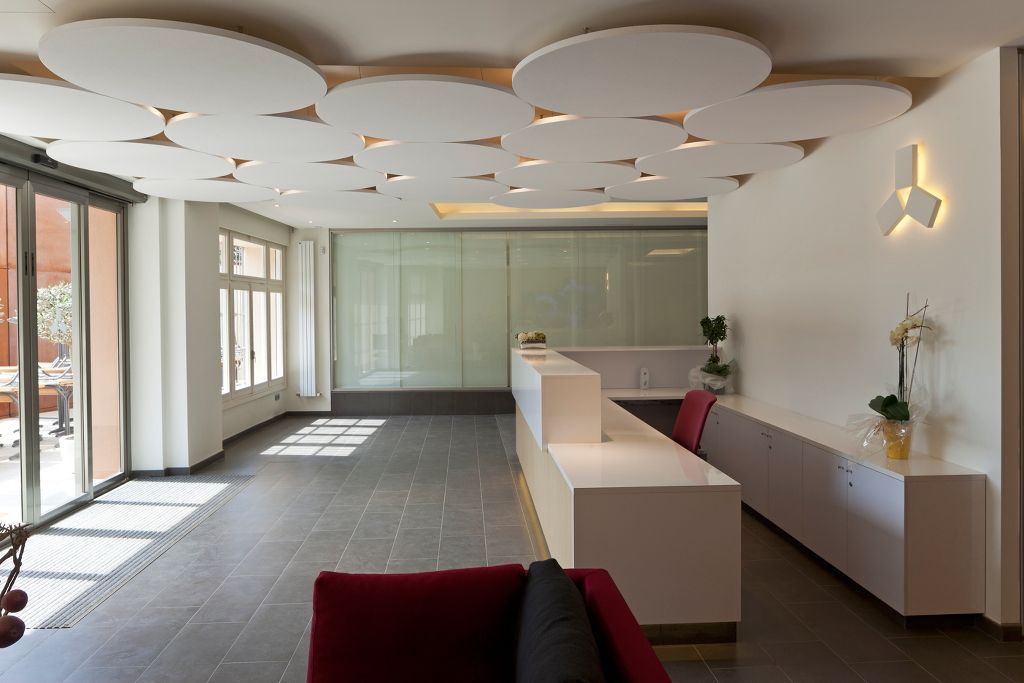

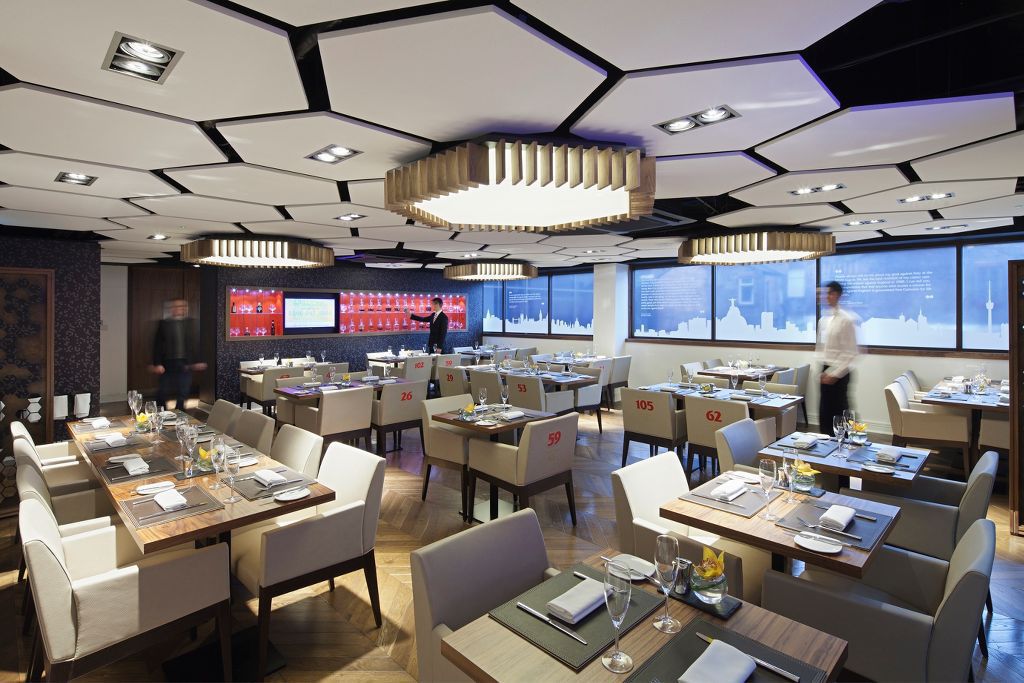

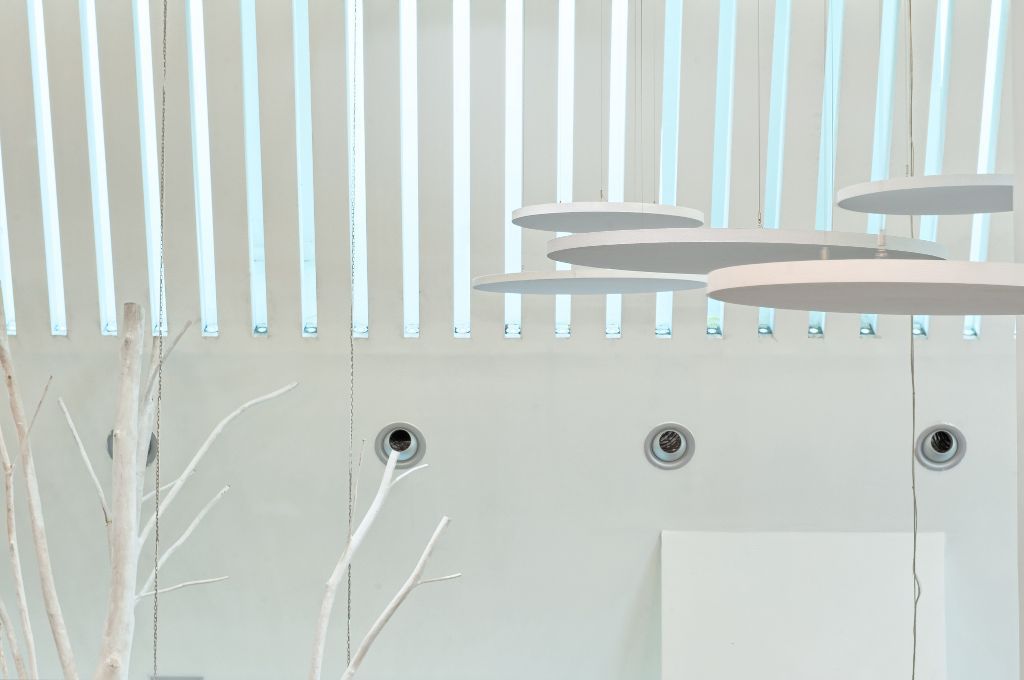

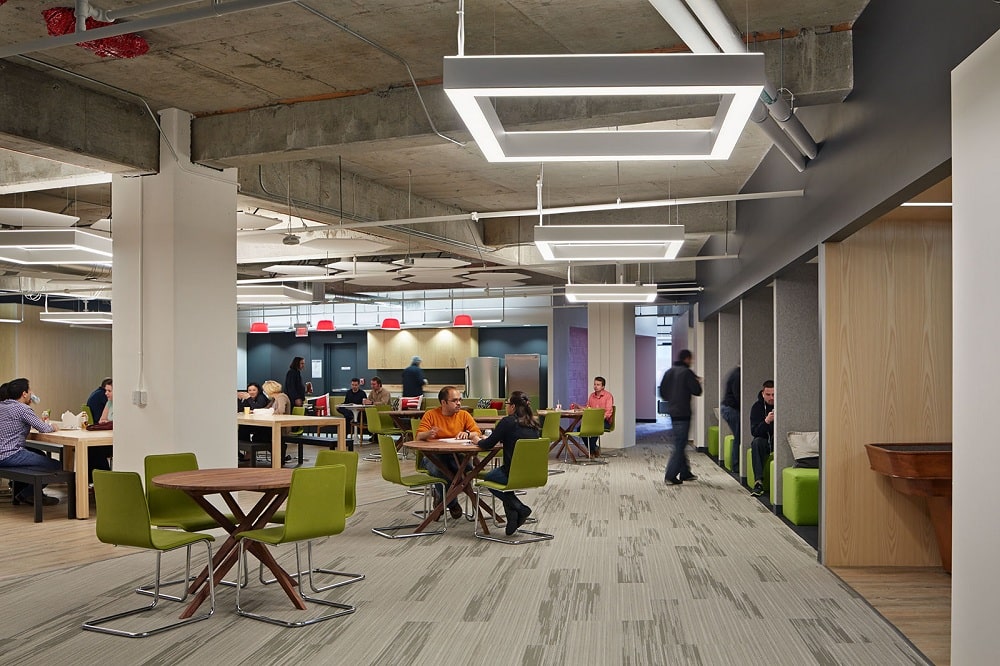

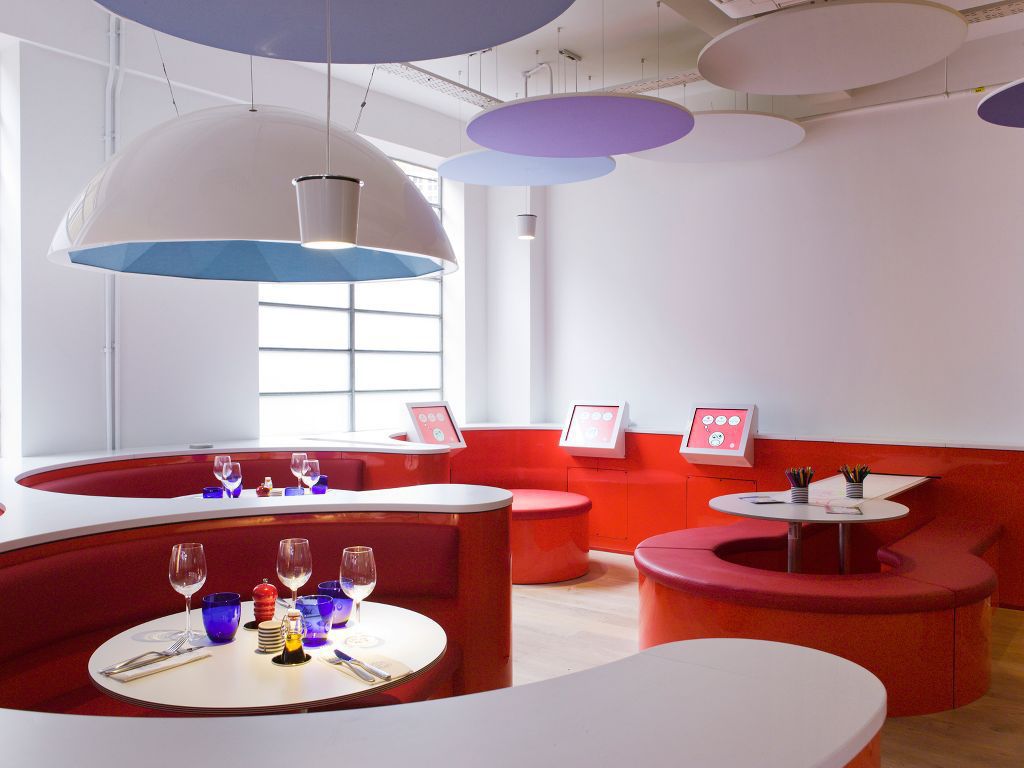

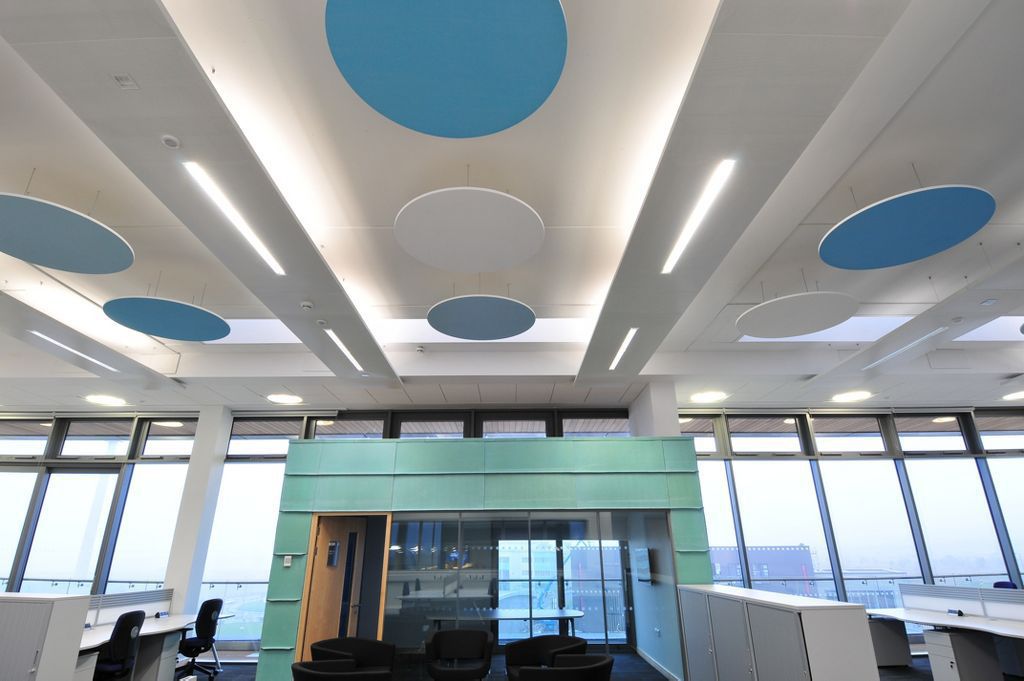

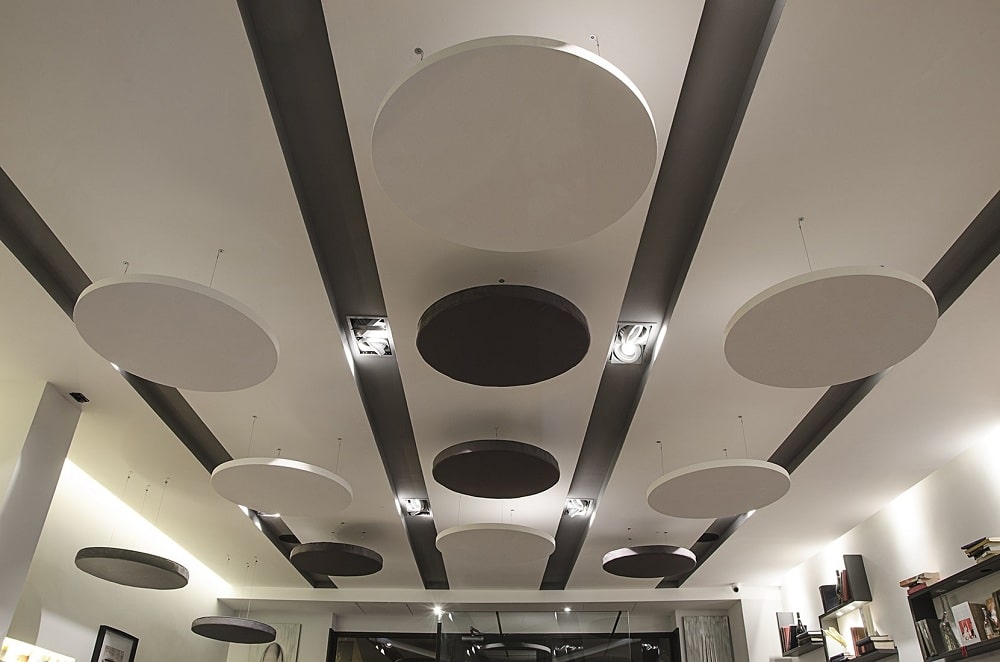

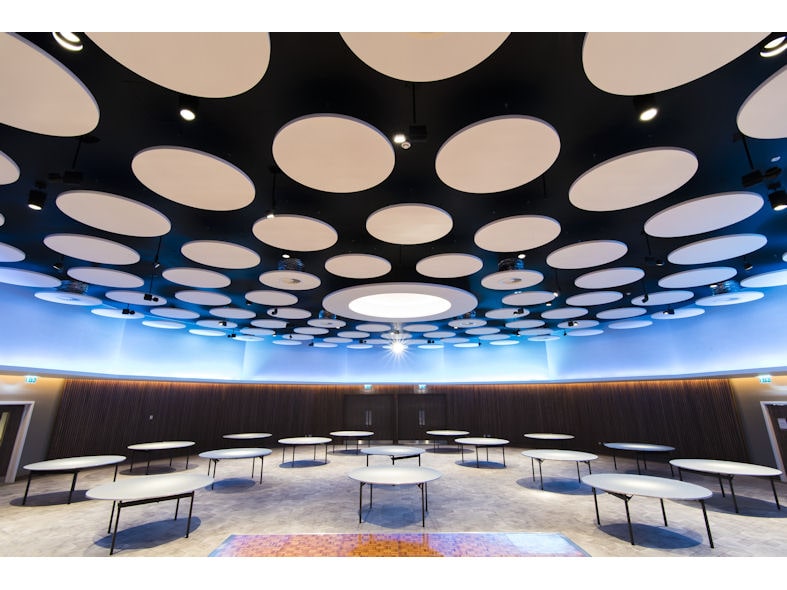

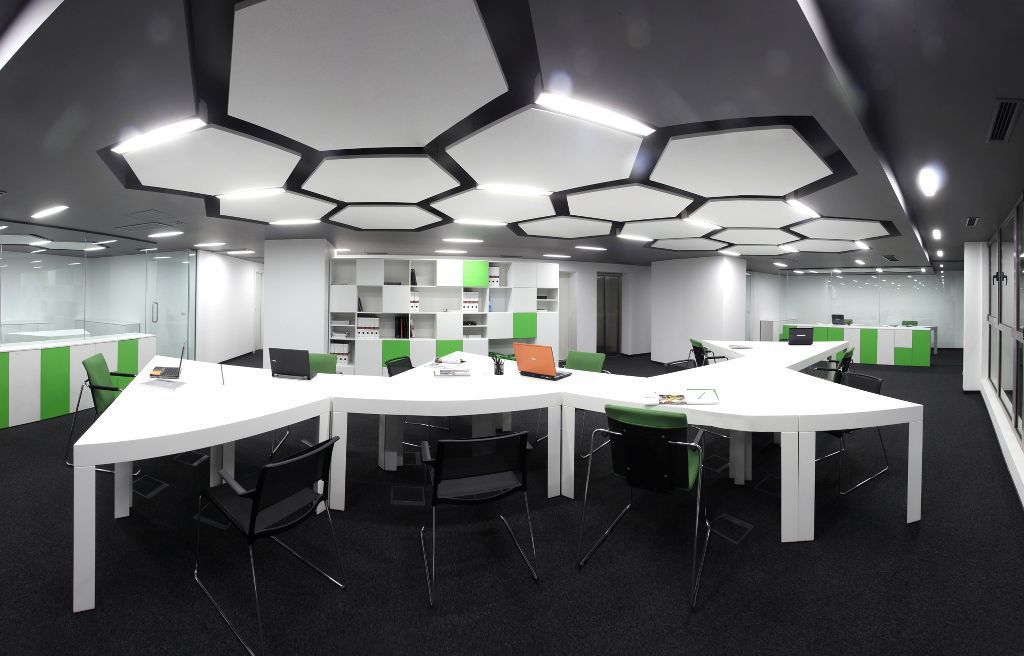

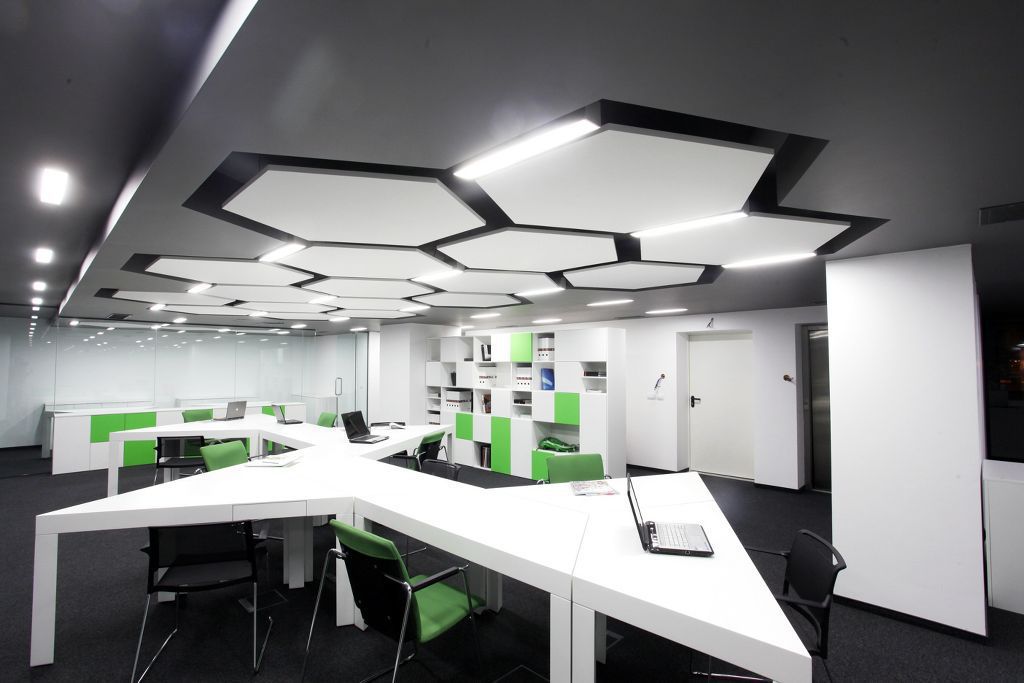

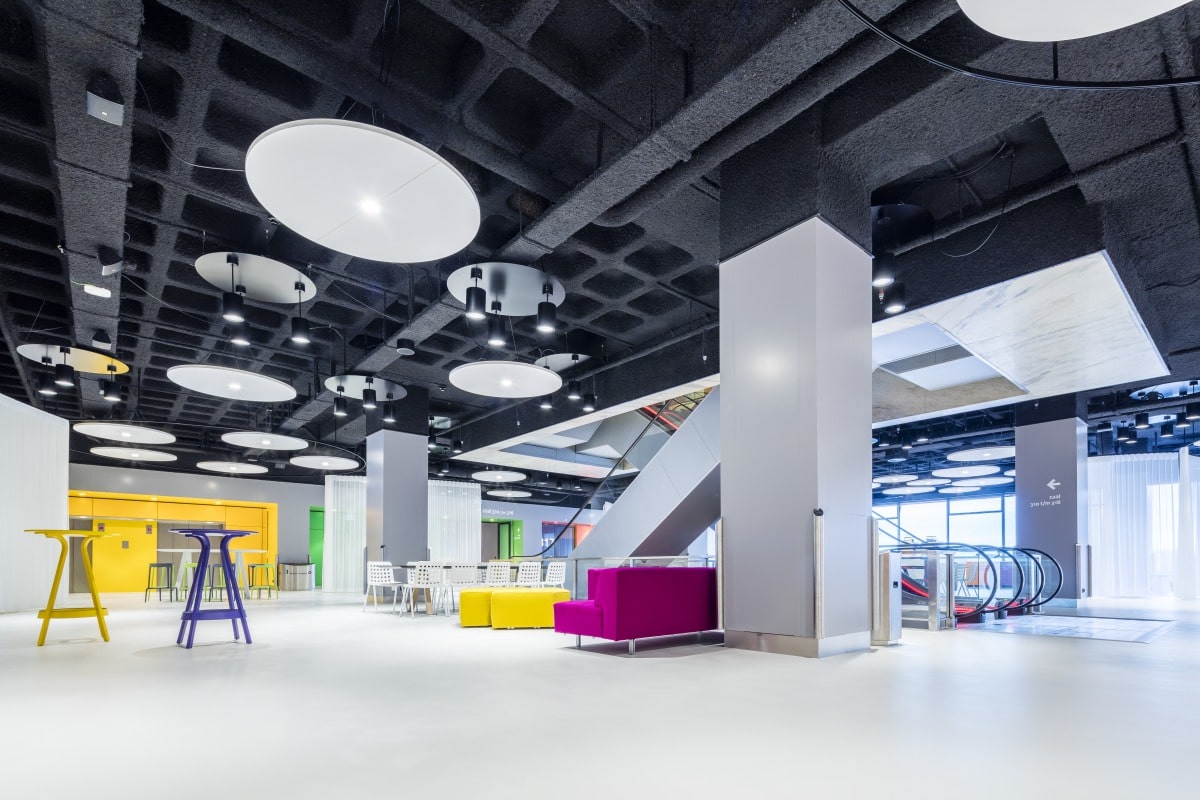

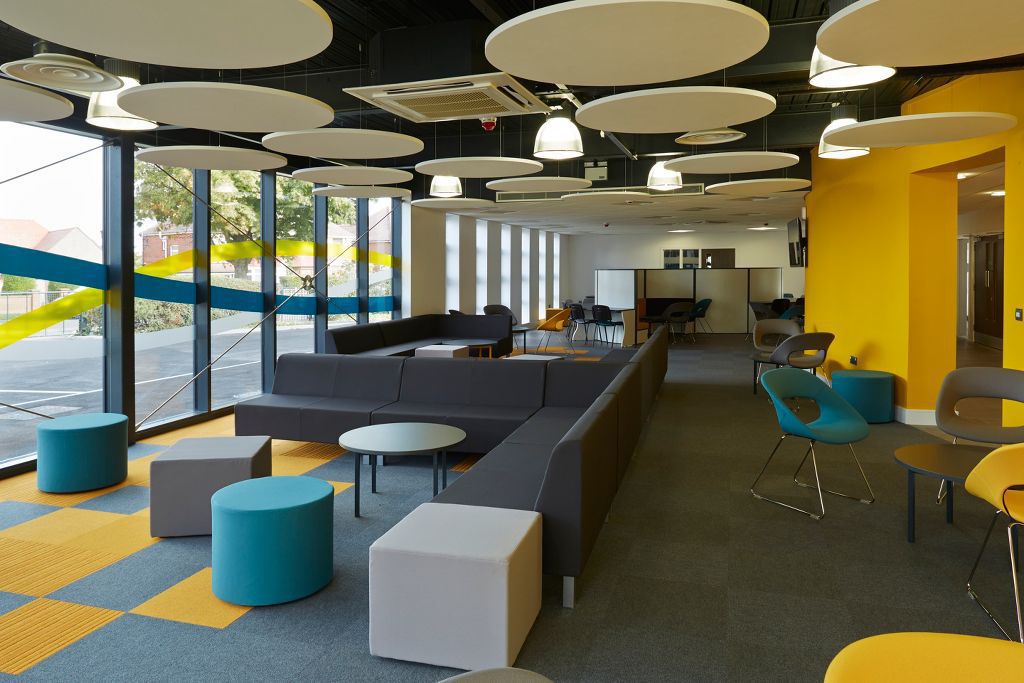

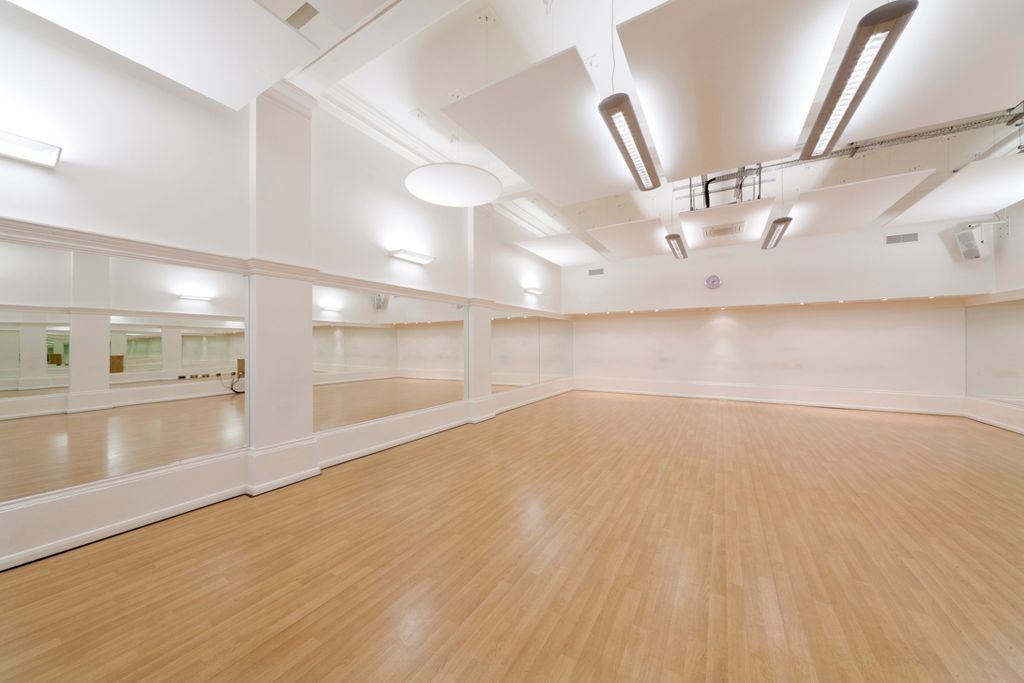

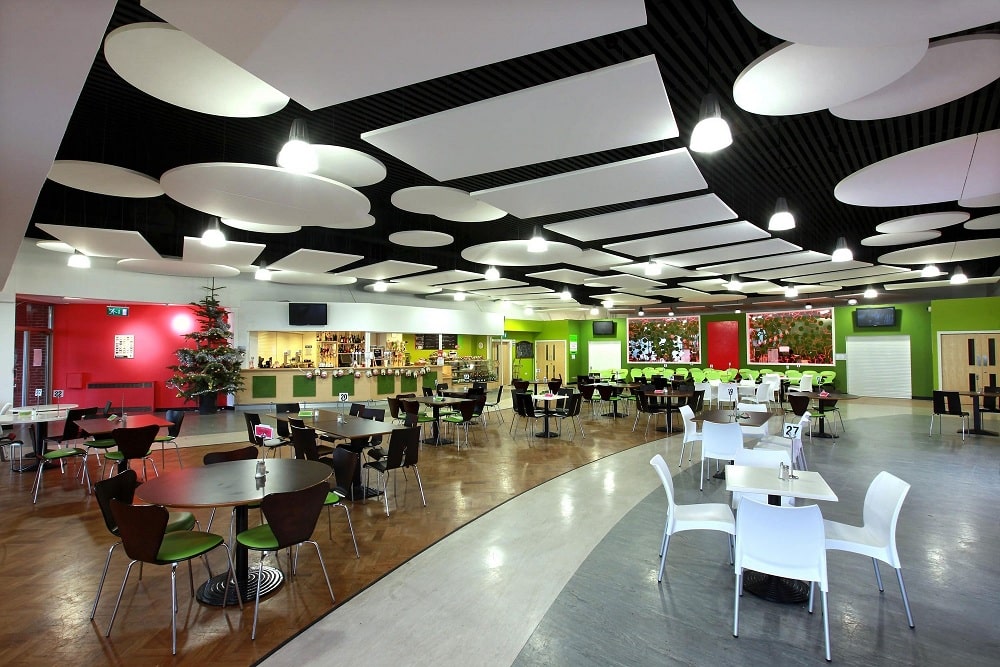

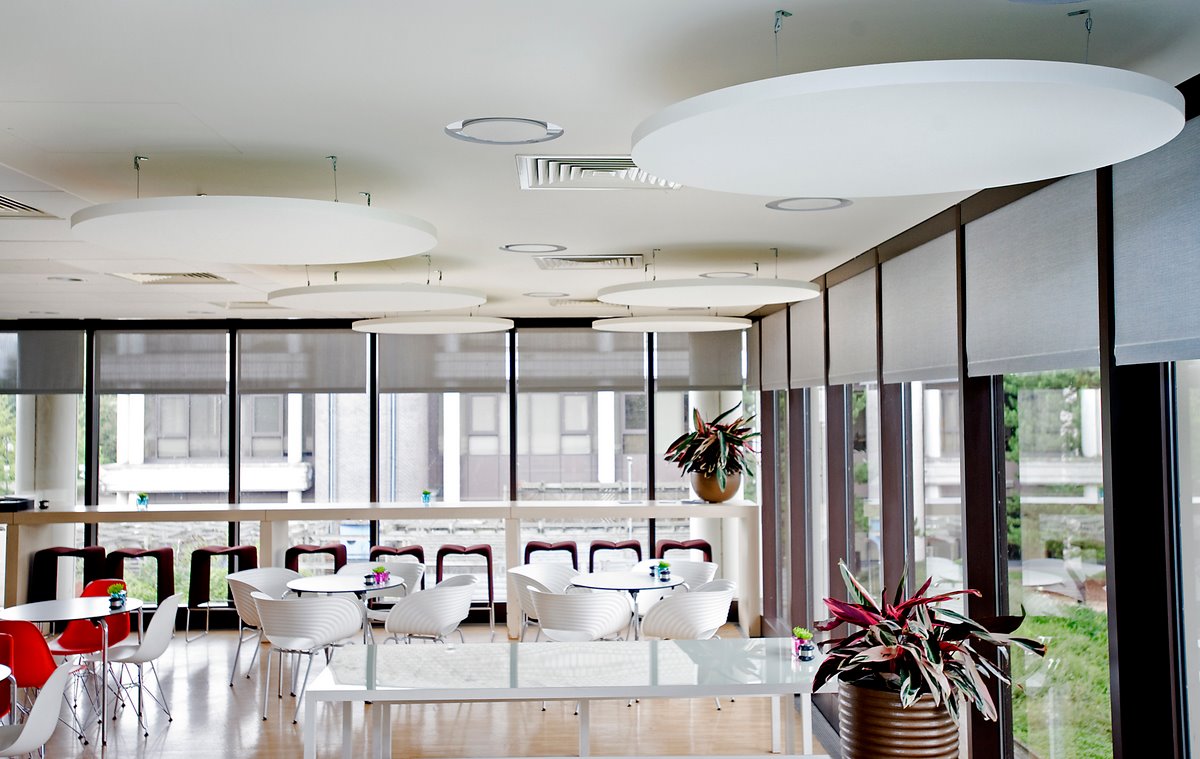

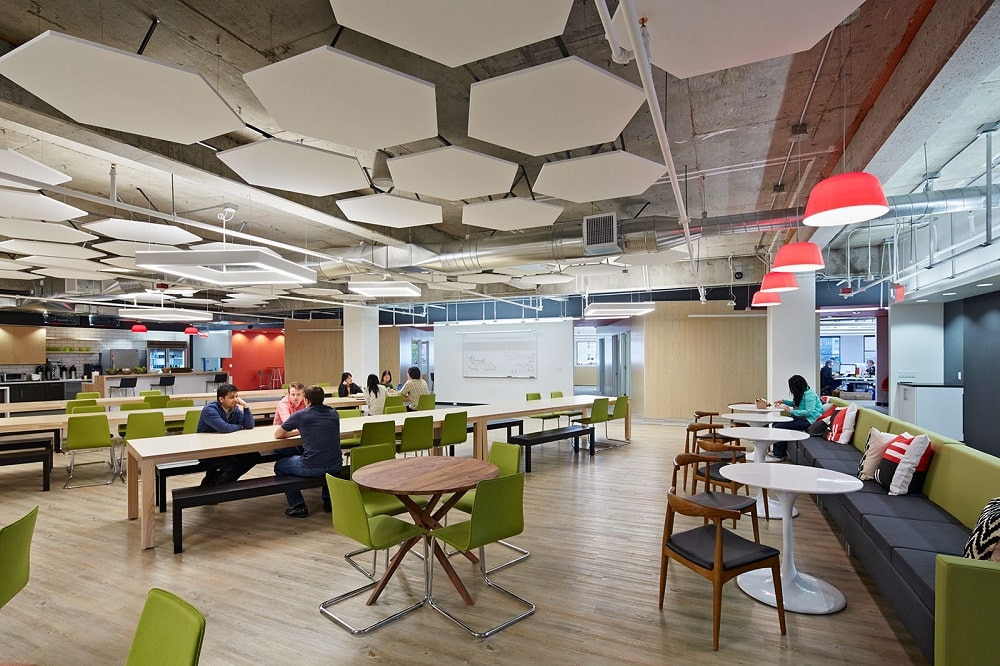

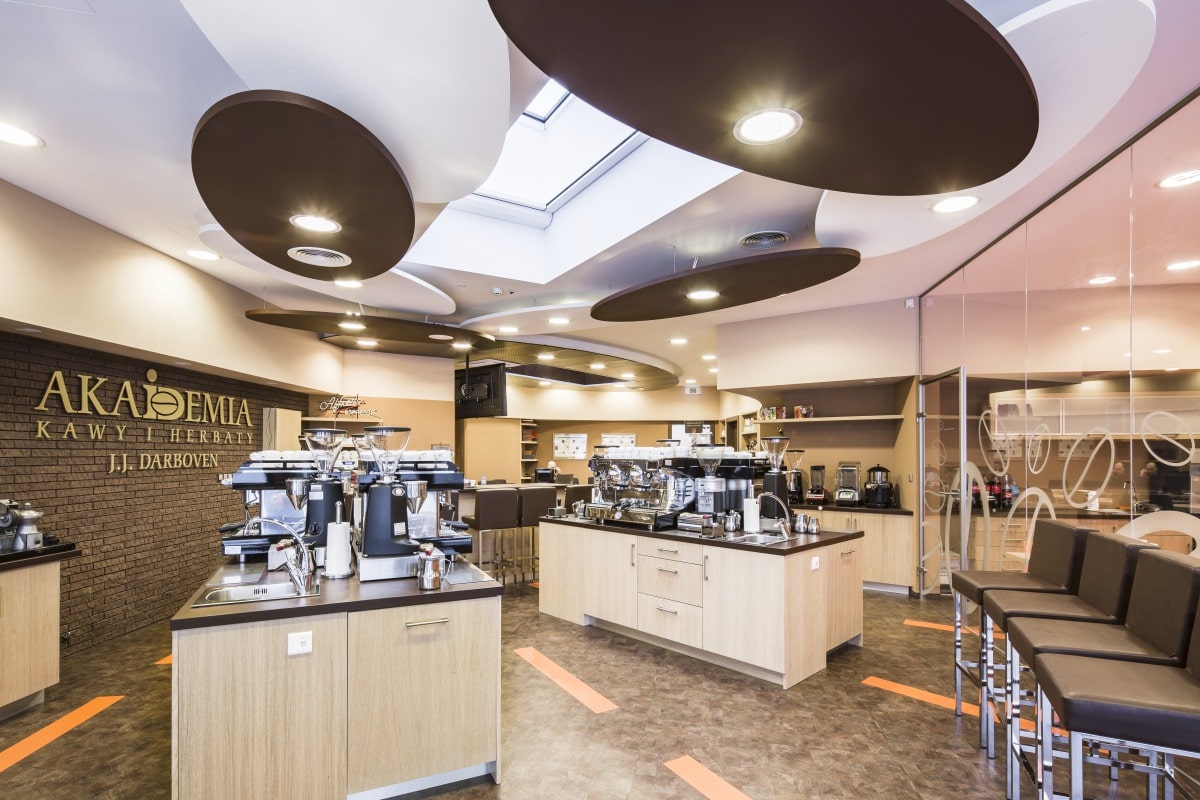

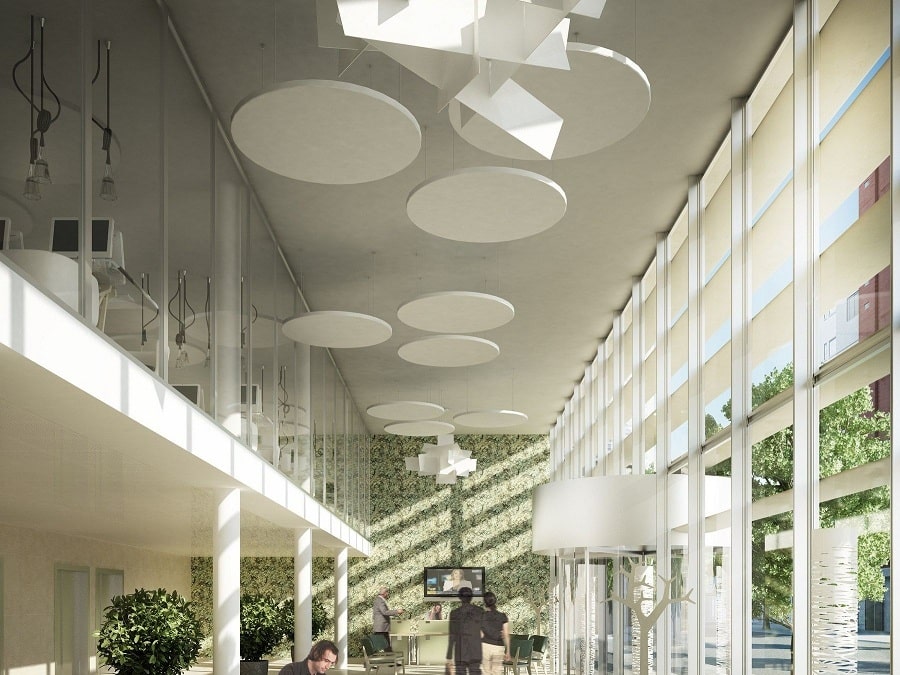

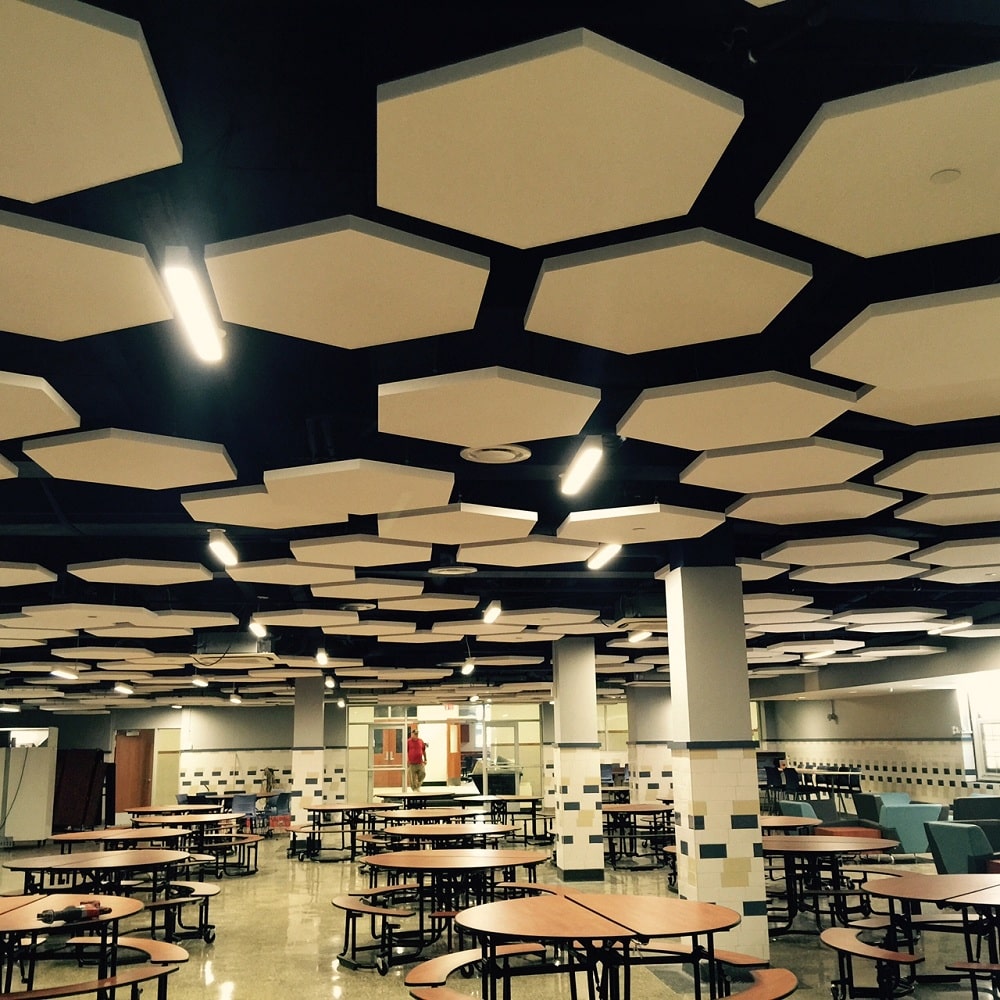

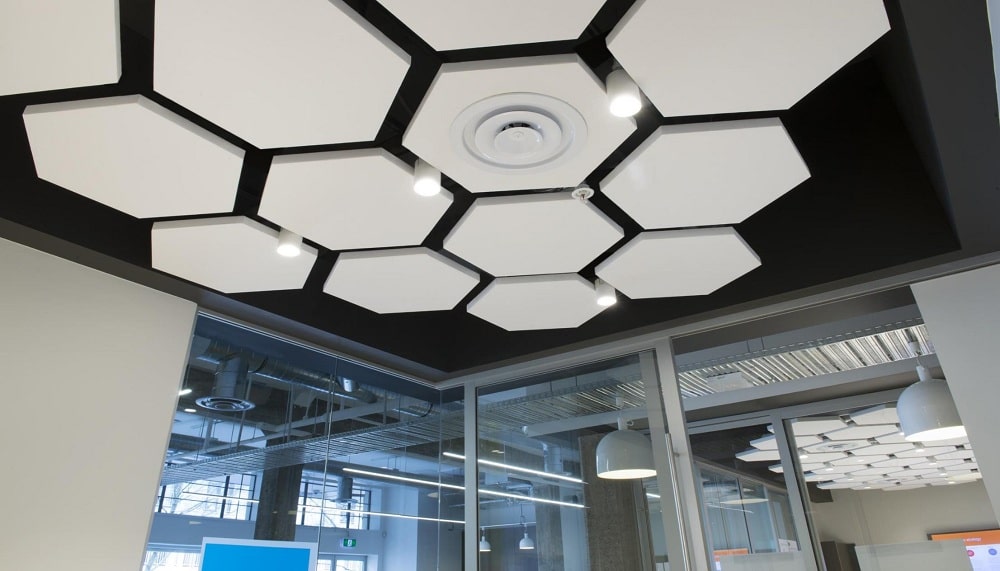

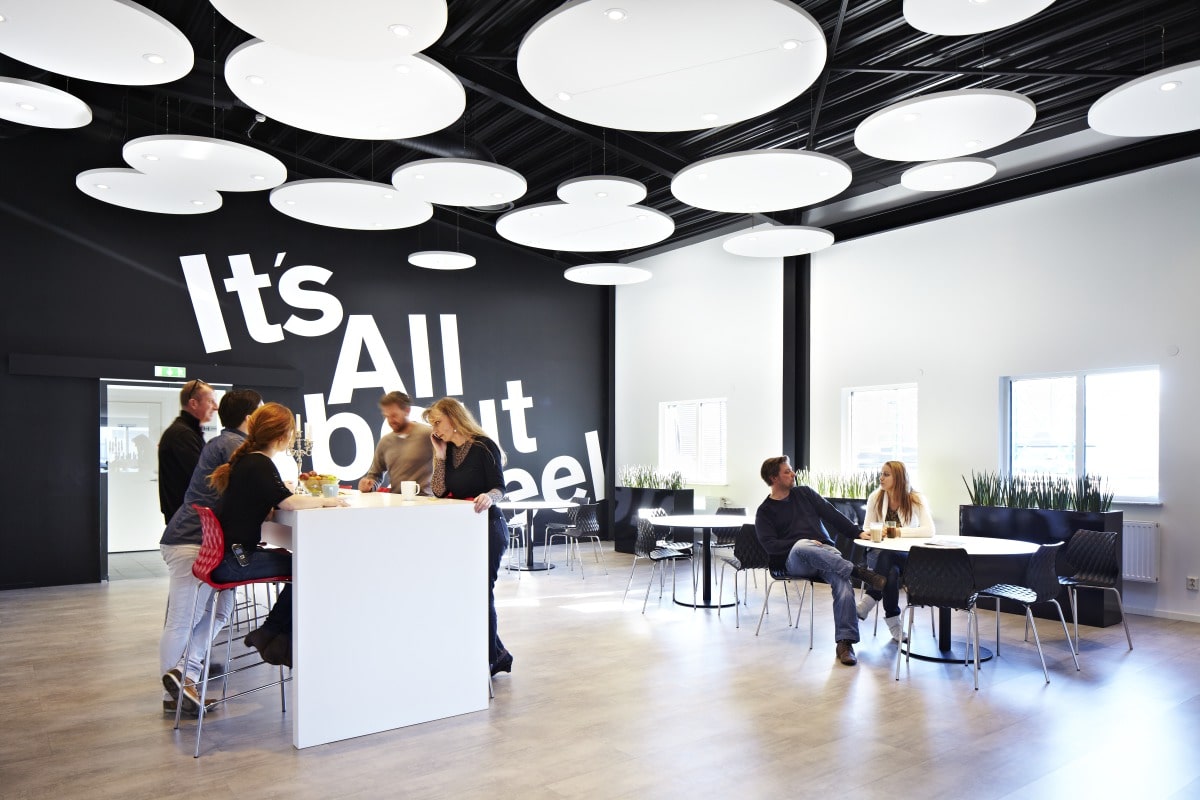

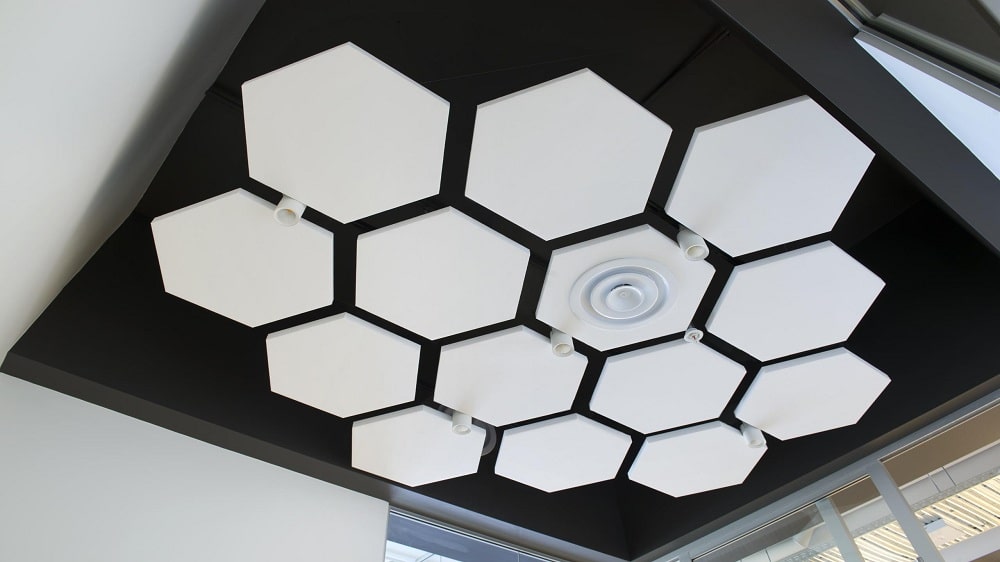

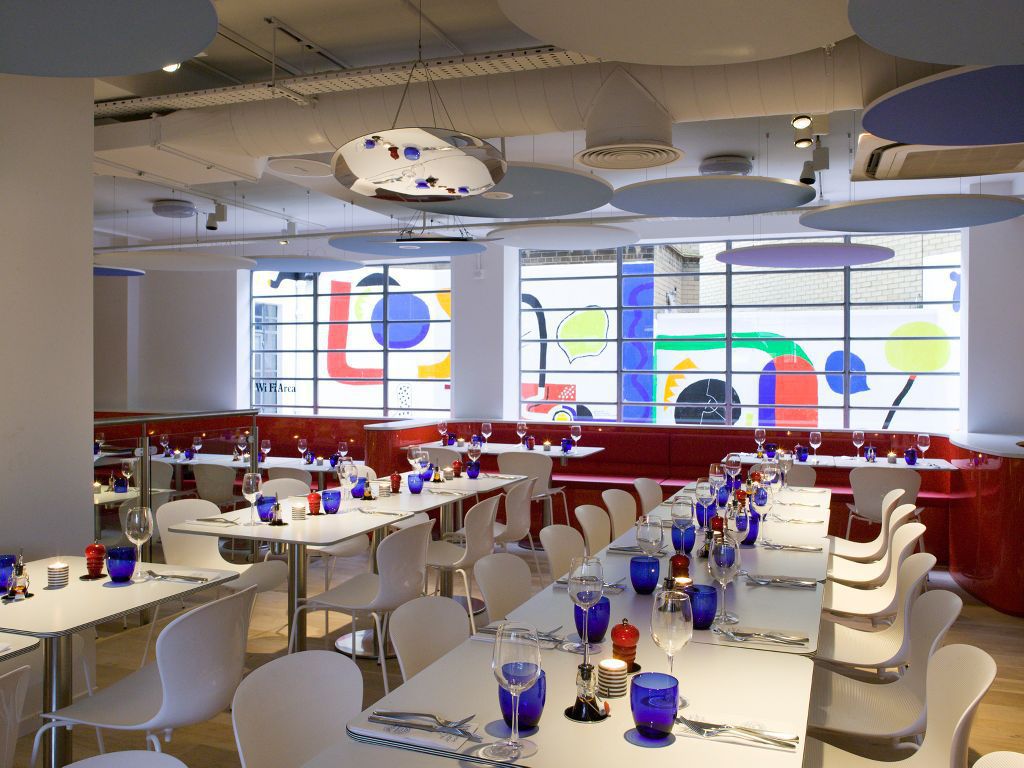

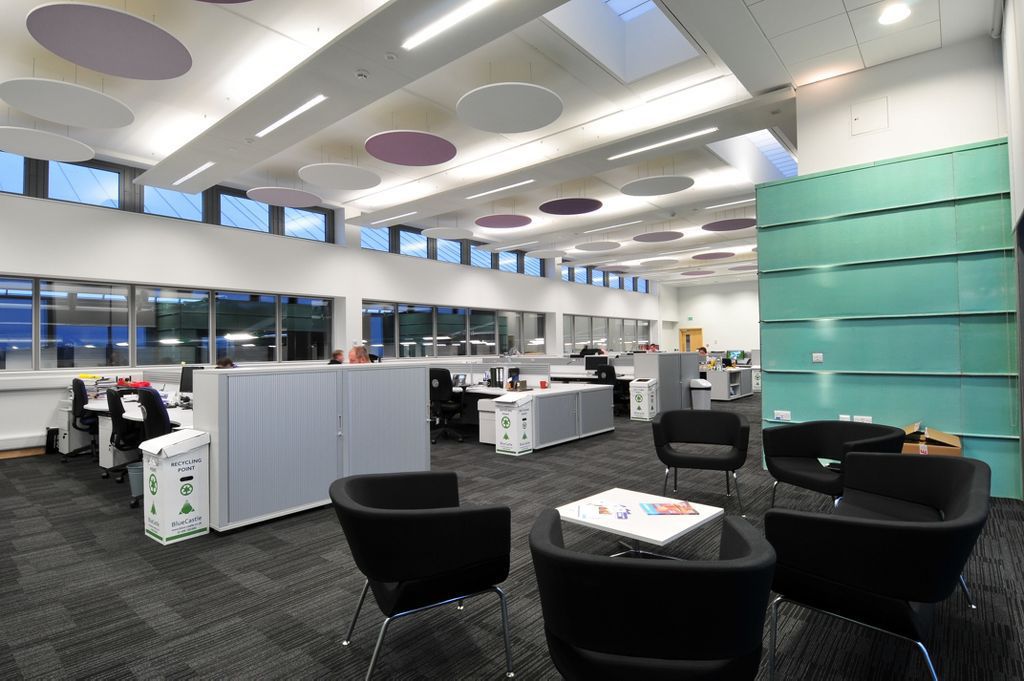

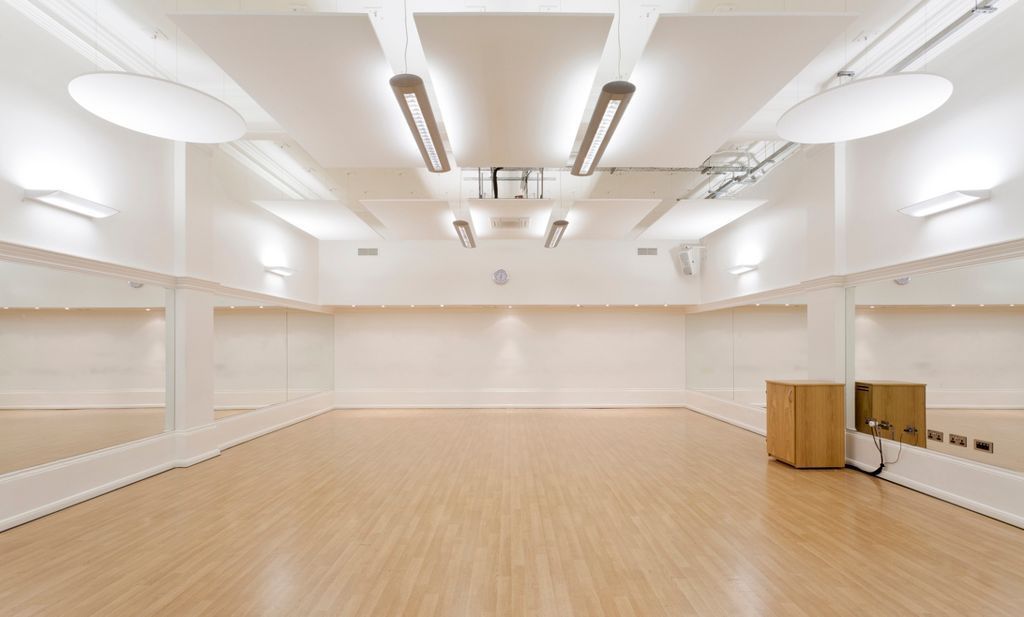

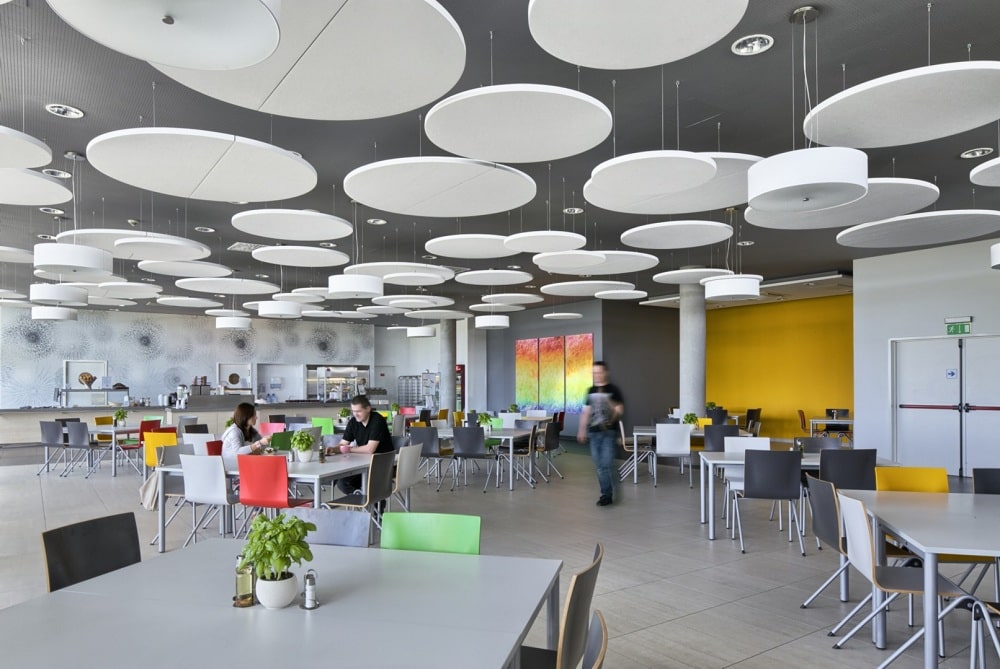

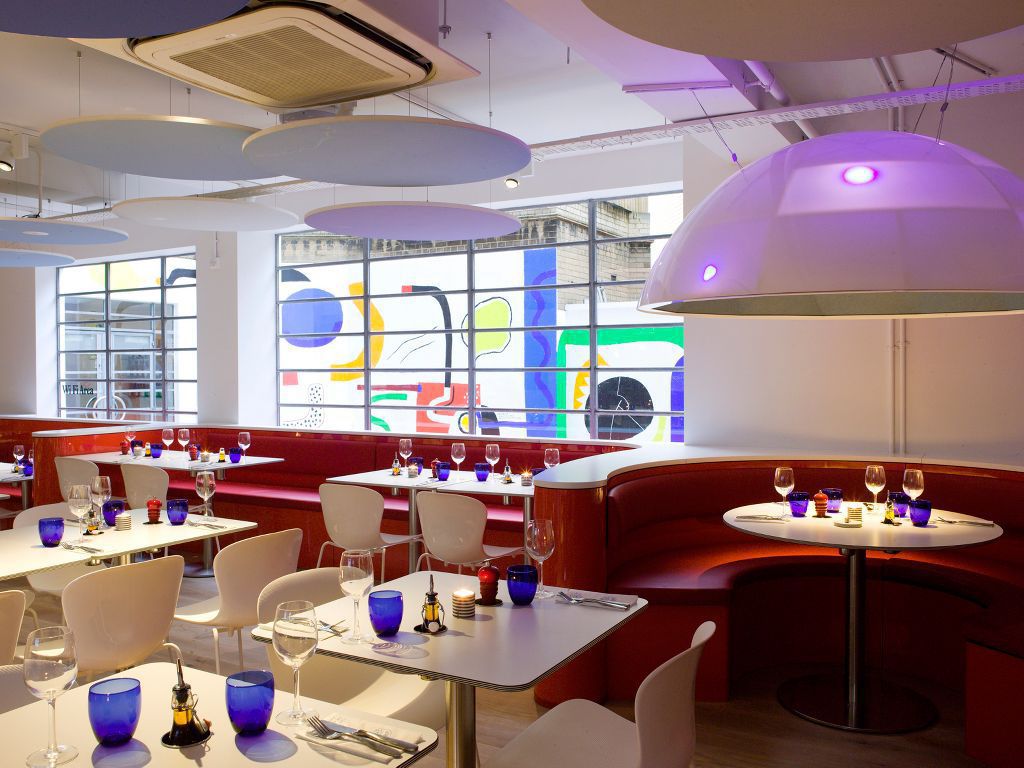

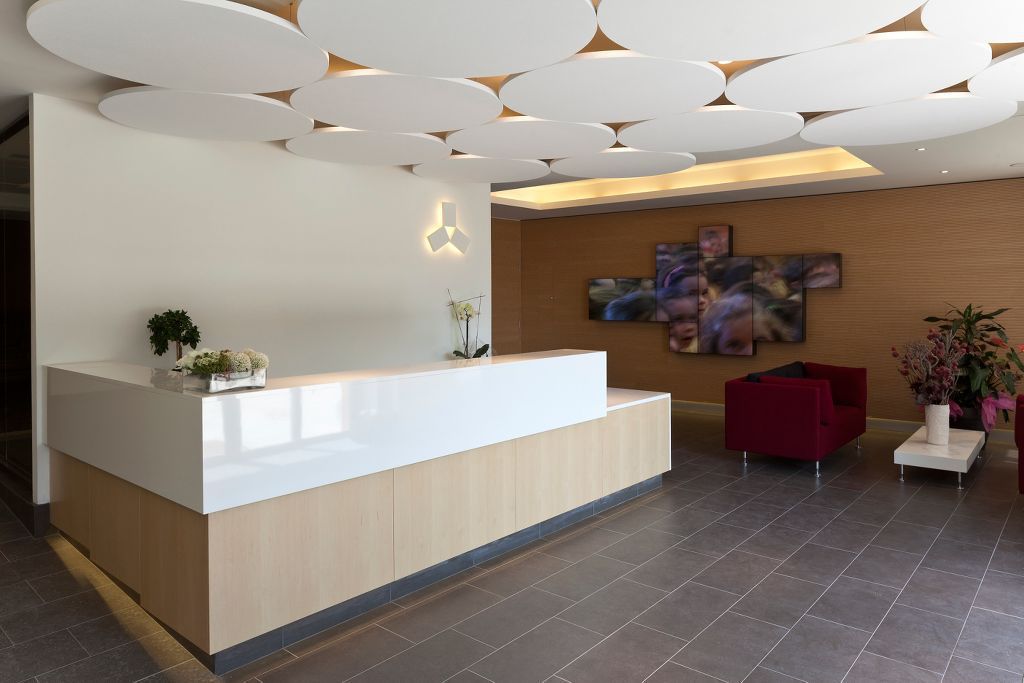

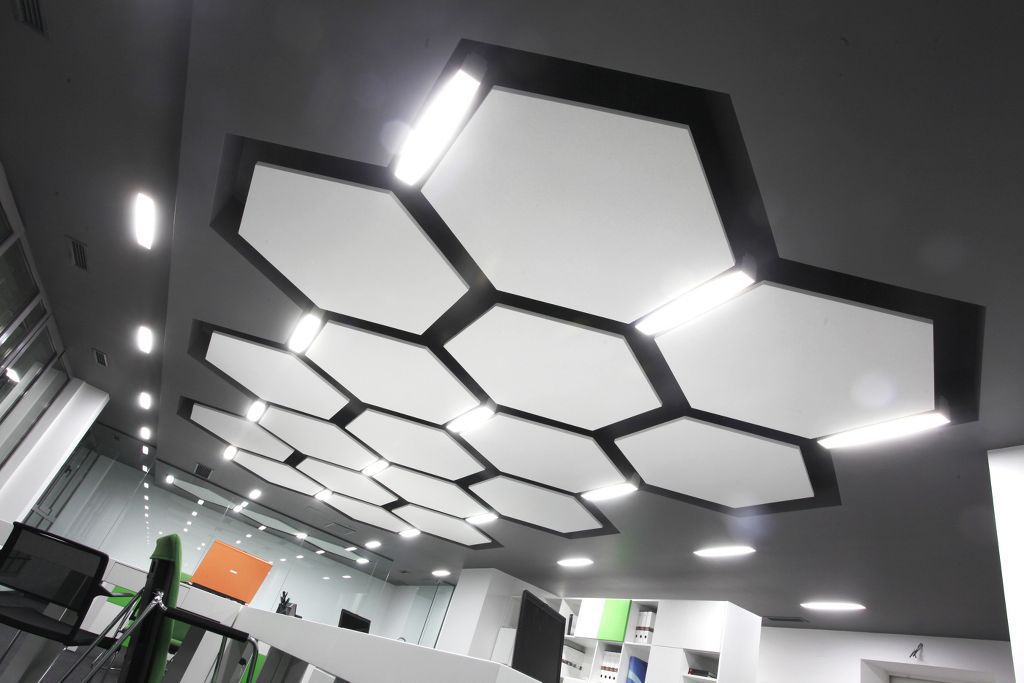

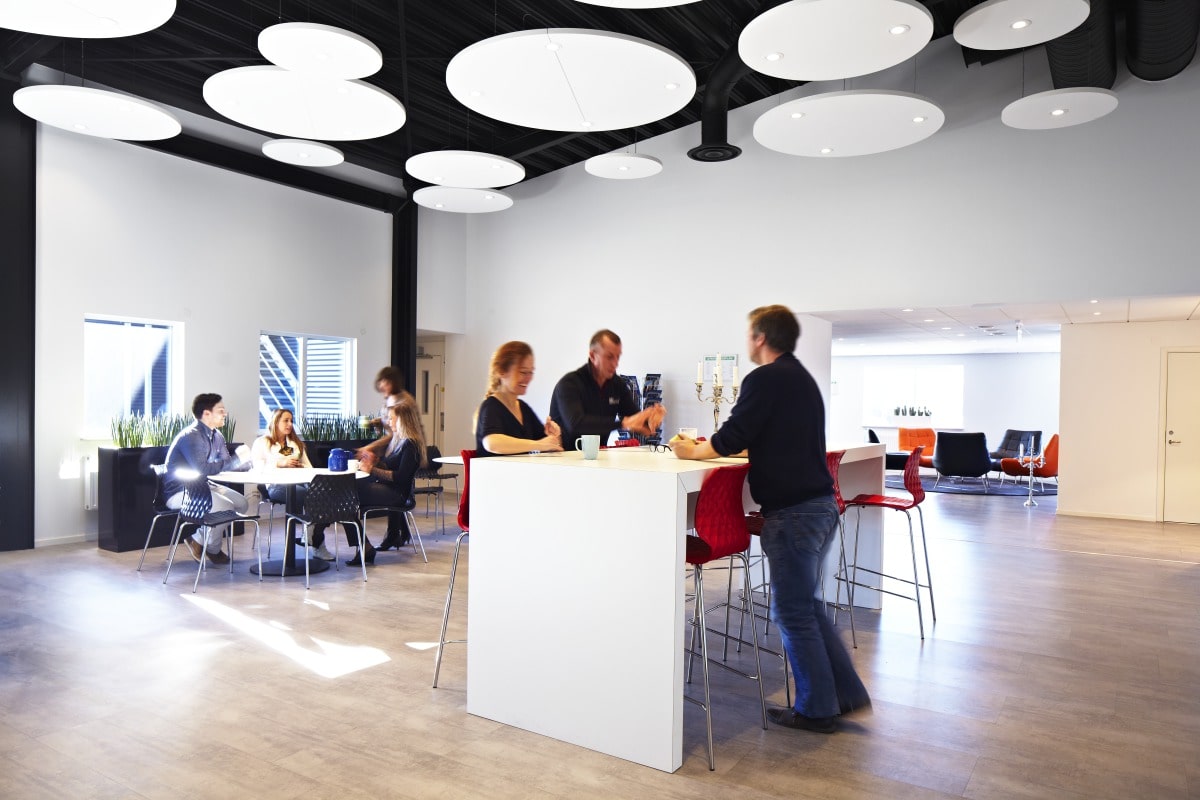

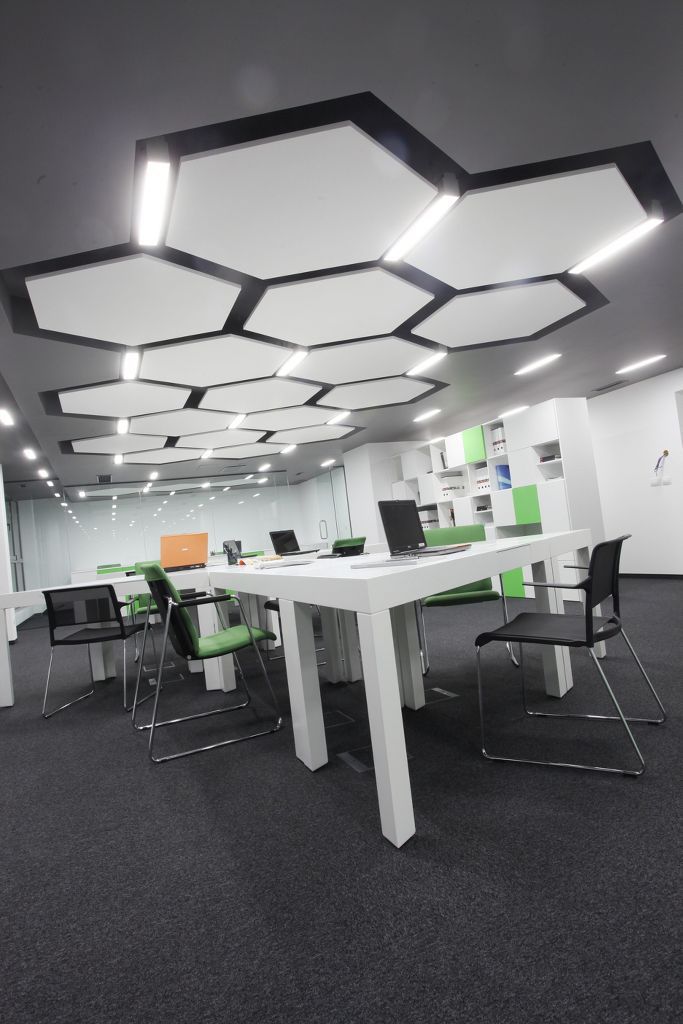

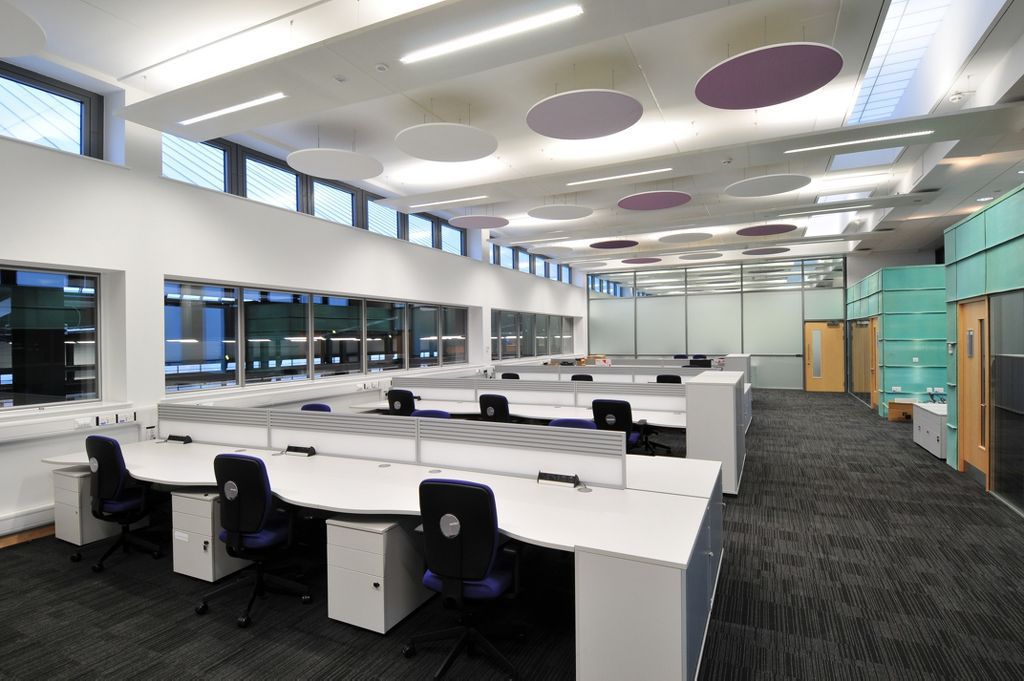

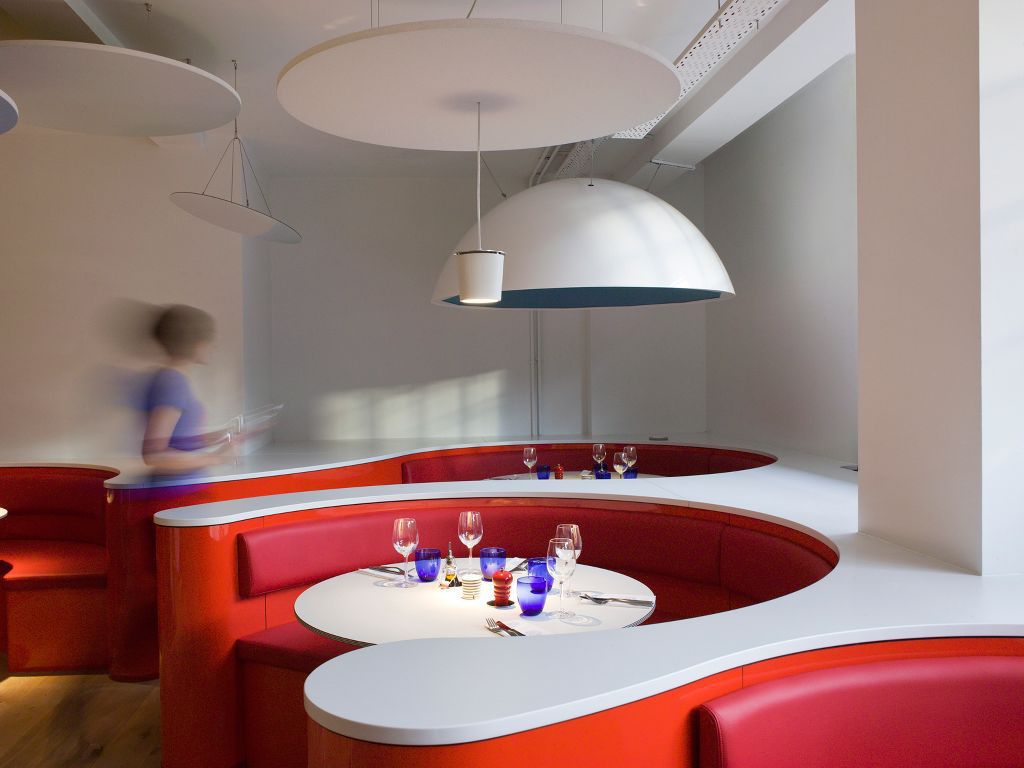

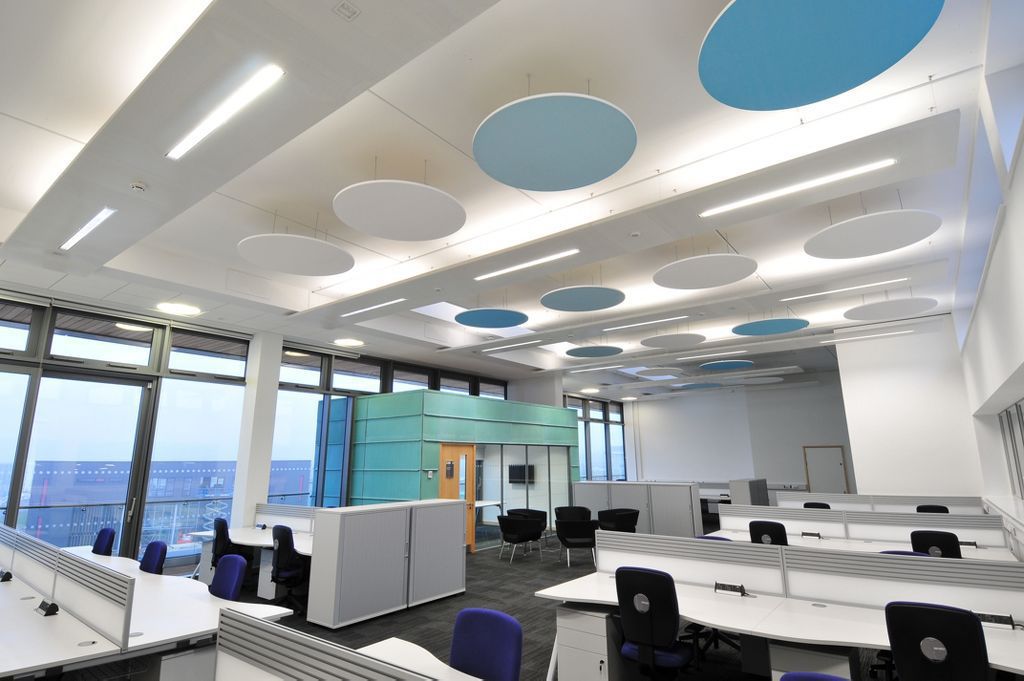

Applıcatıon Images

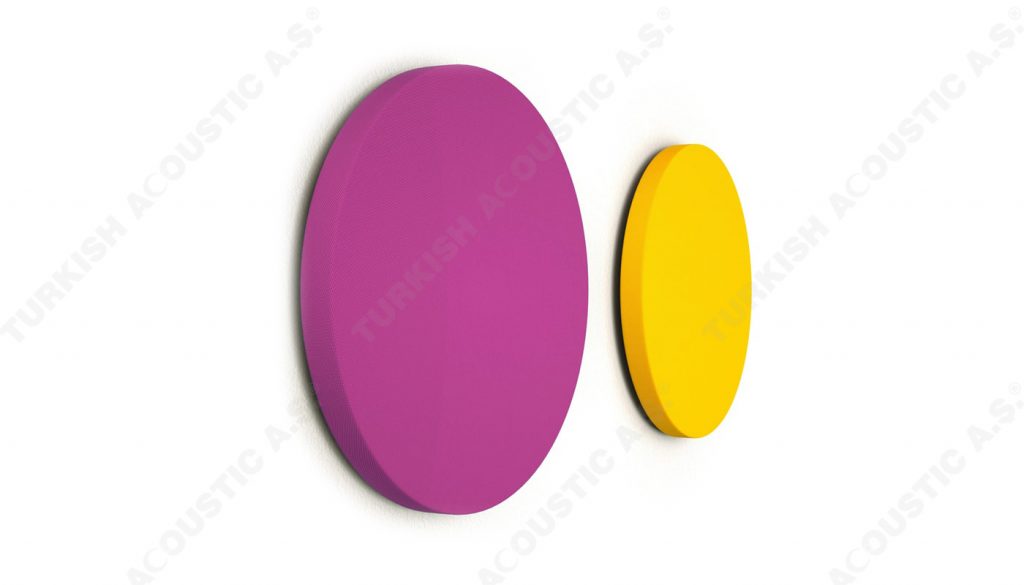

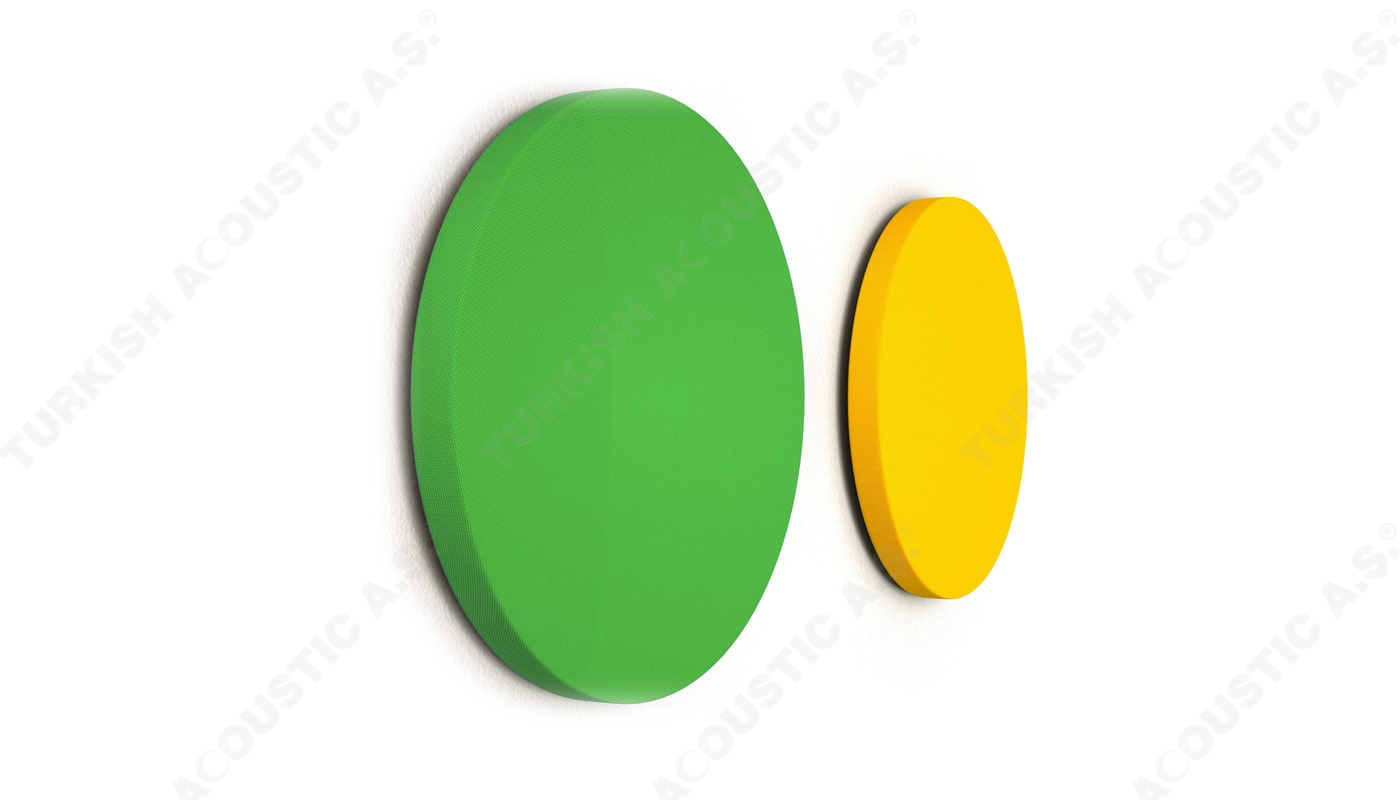

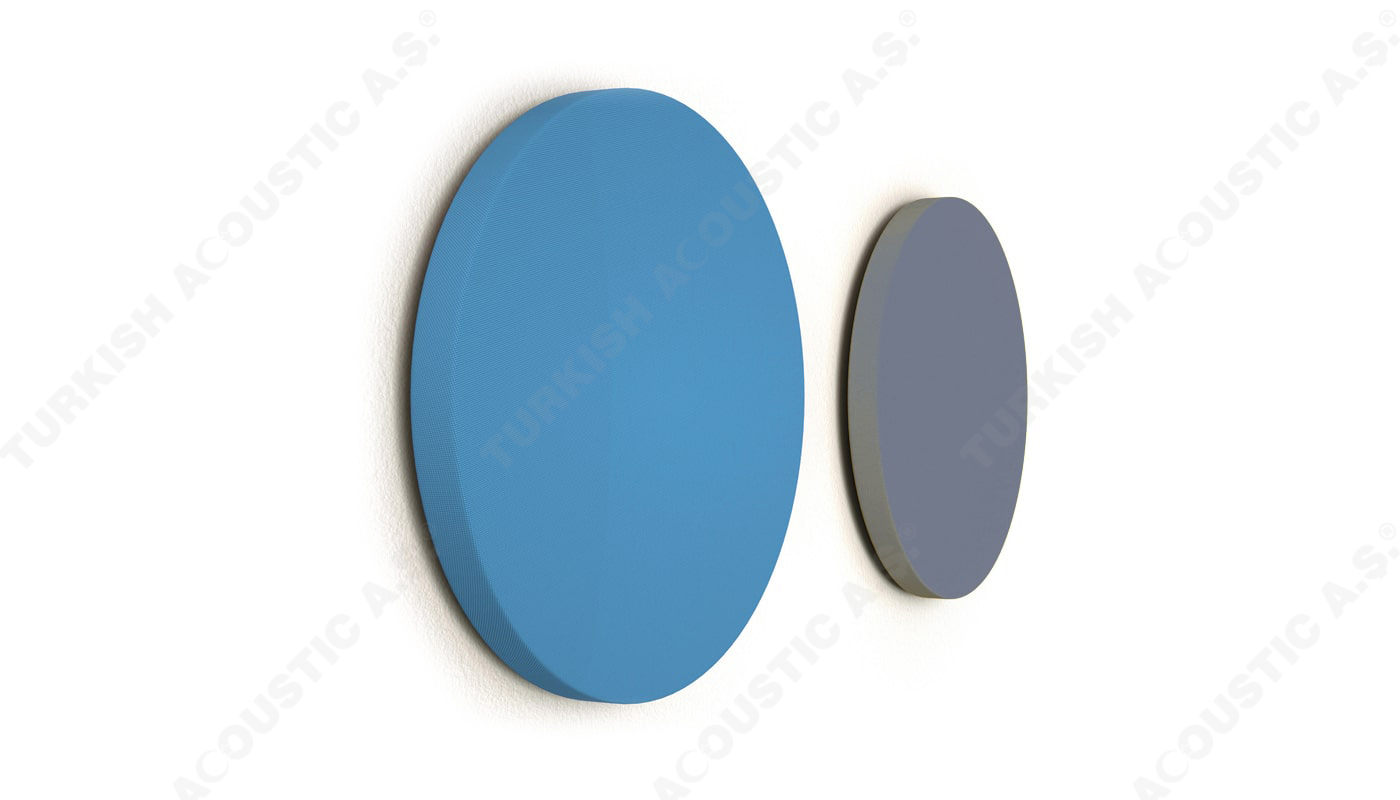

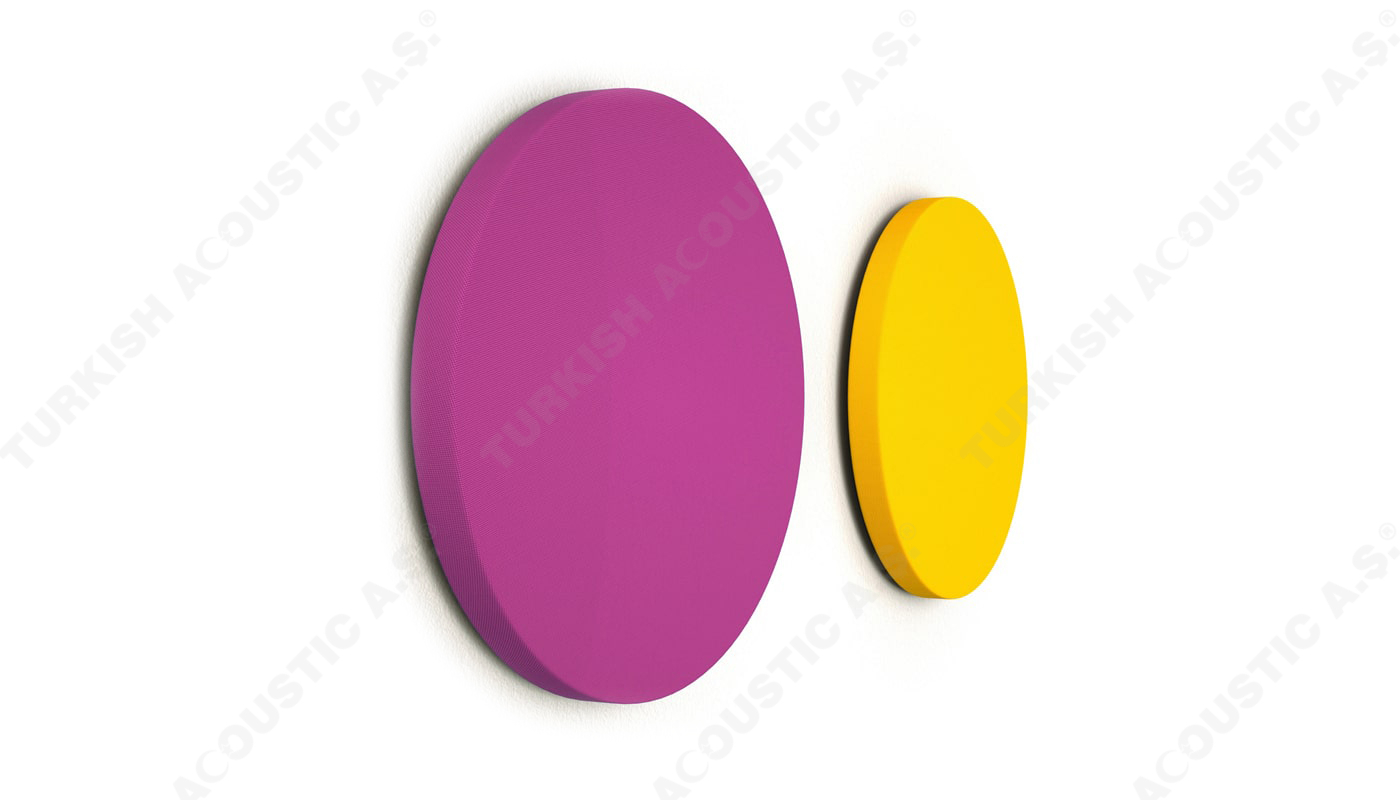

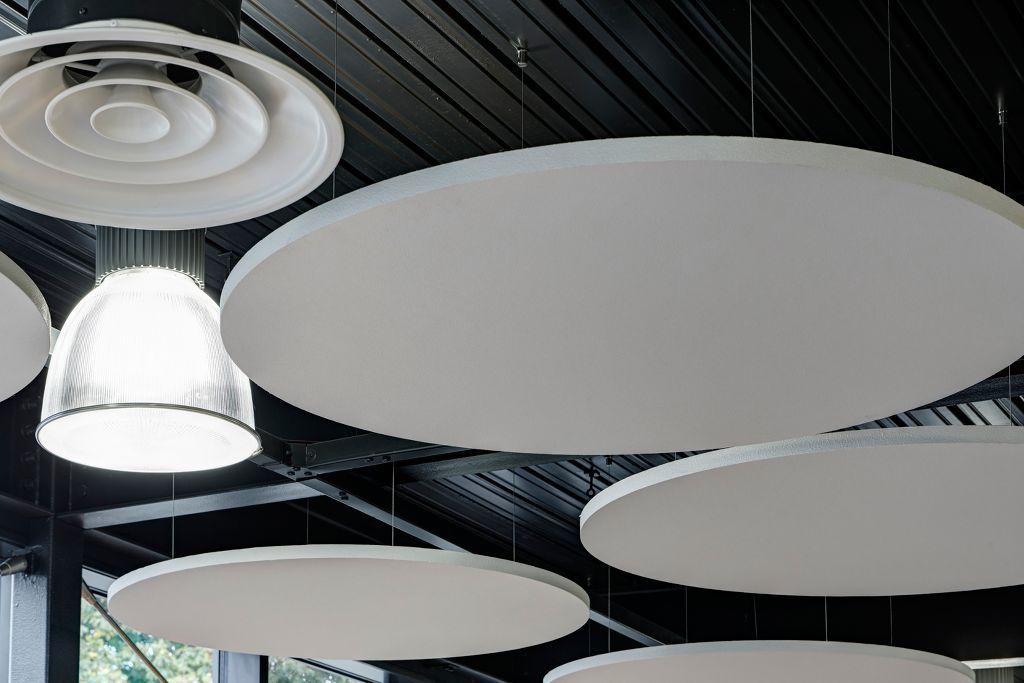

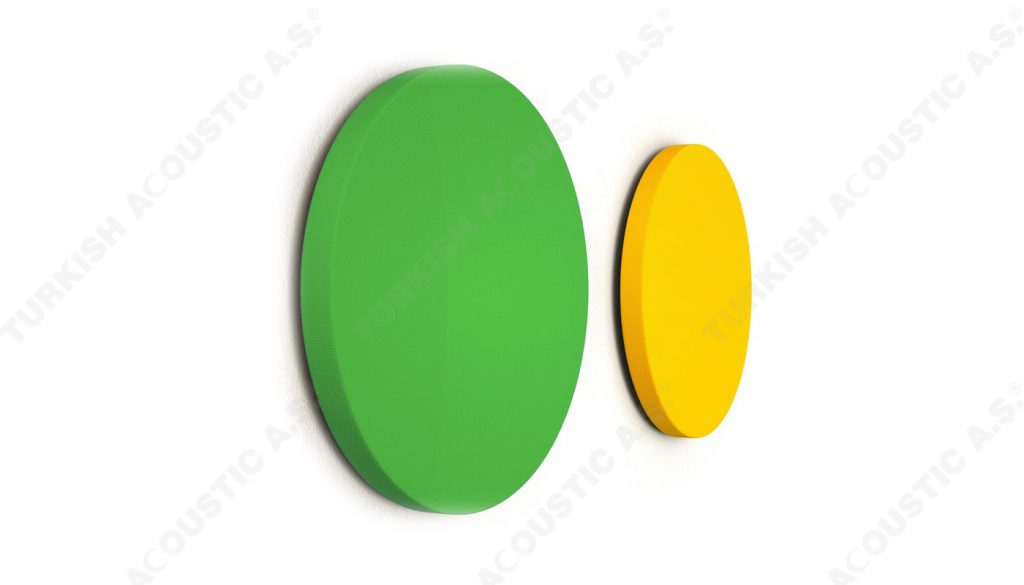

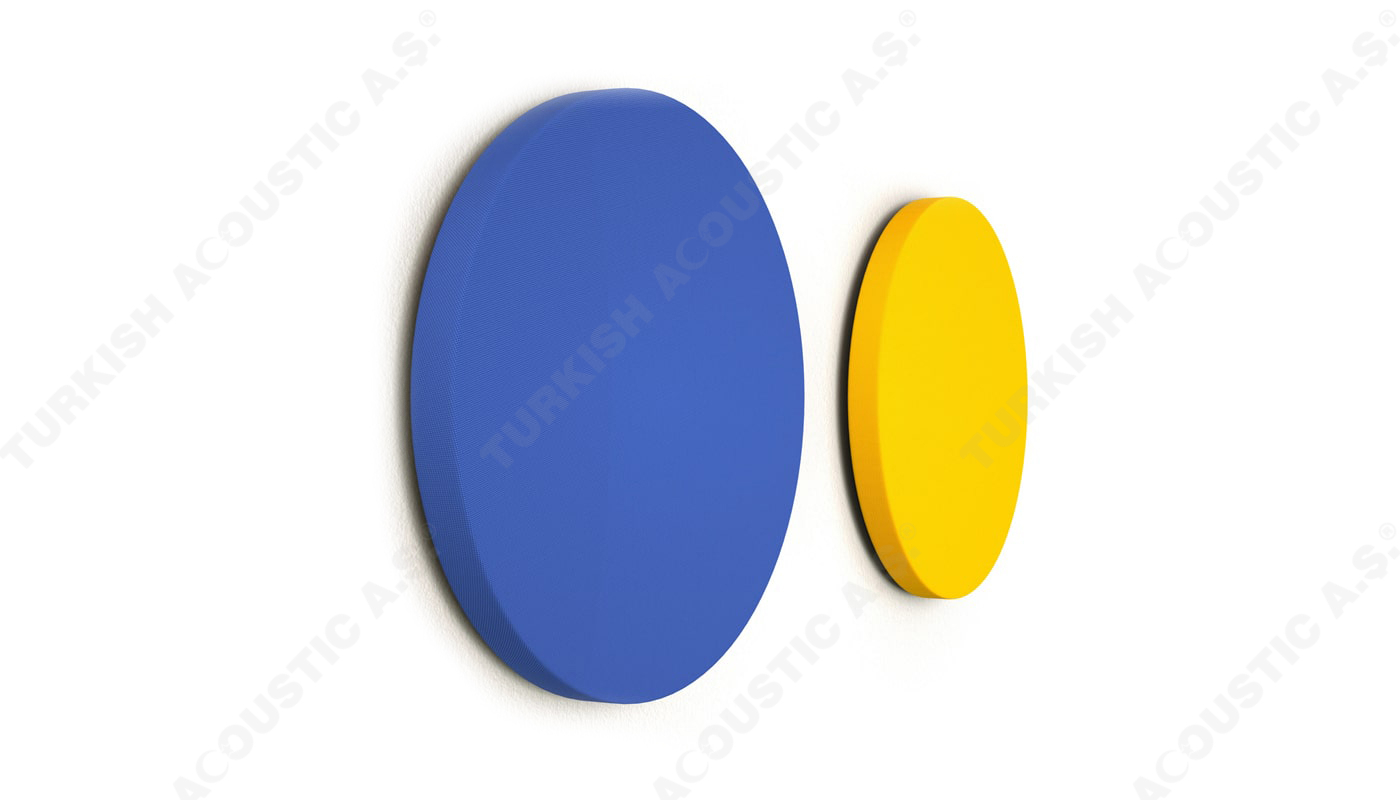

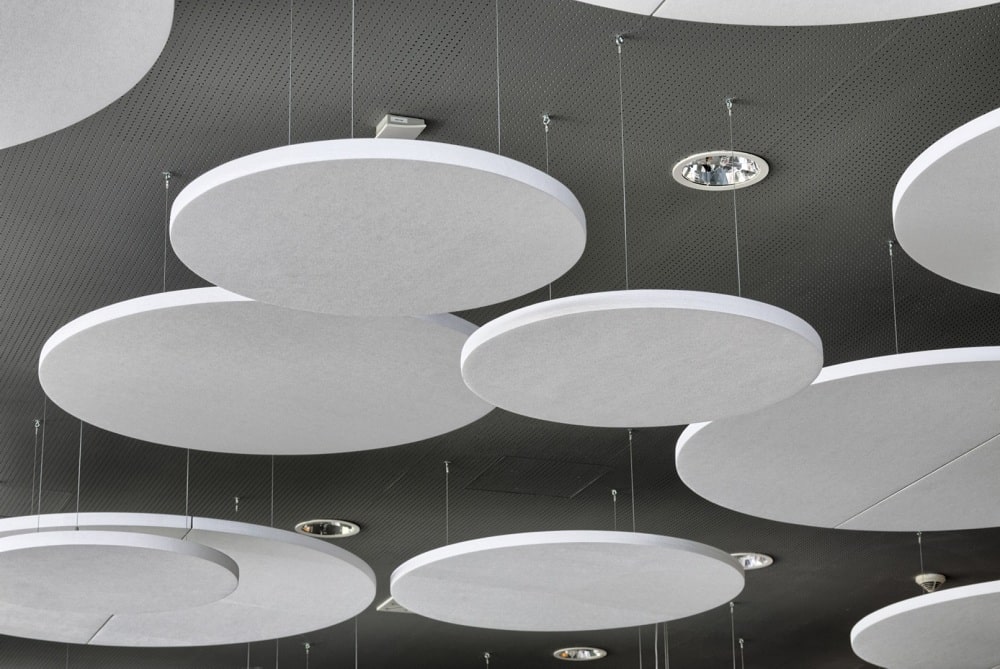

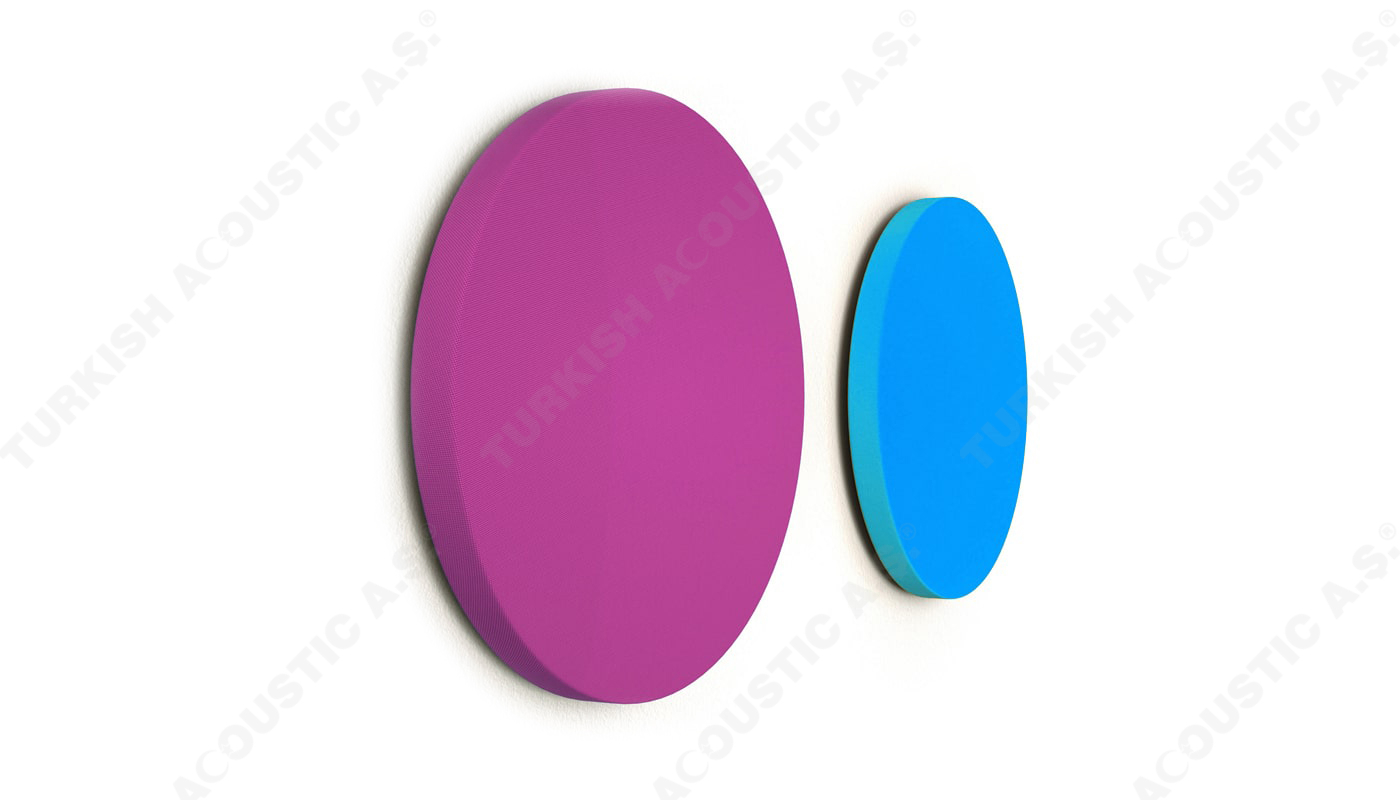

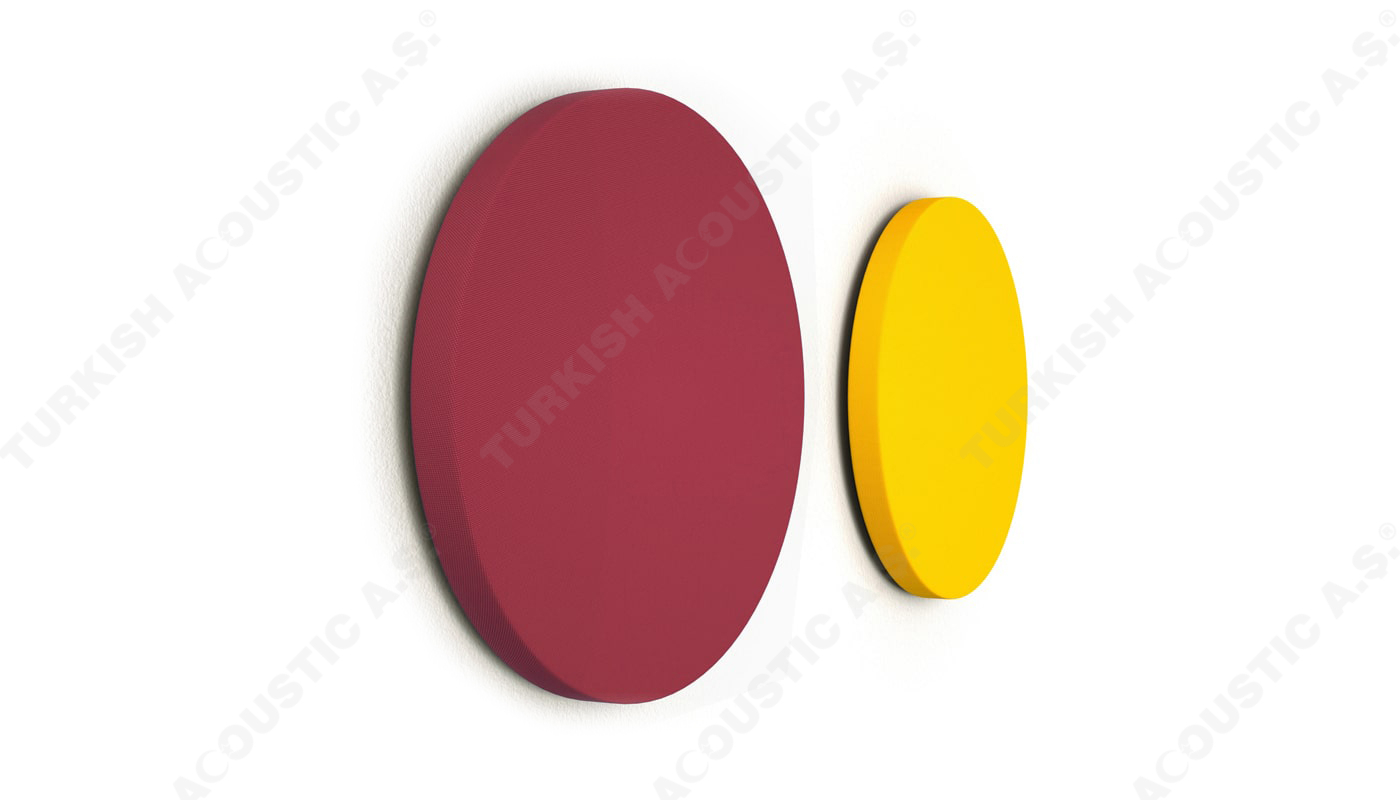

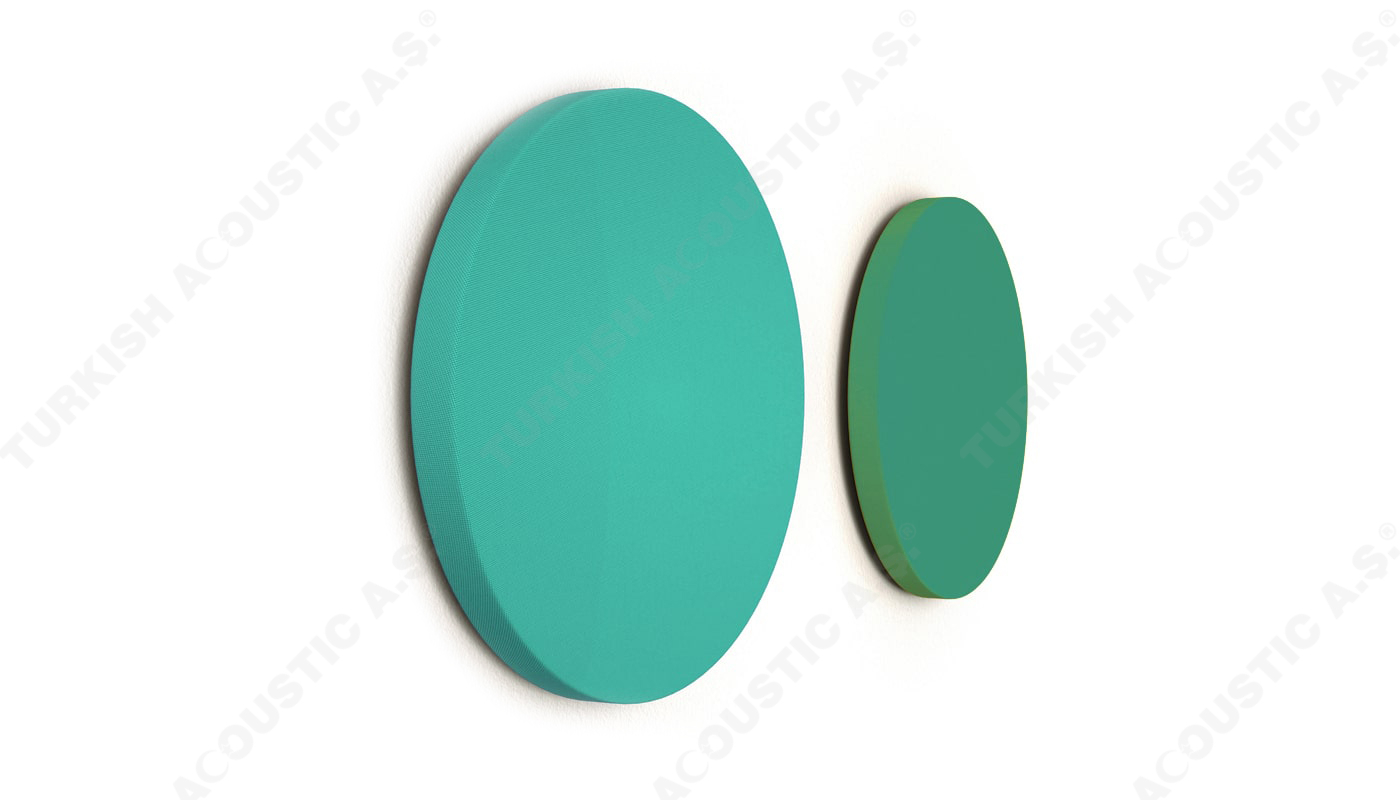

Oval Wall Panels: The product is produced in standard 30 mm, 40 mm, and 50 mm thickness. Baffle ceiling systems are produced from coated or flat basotect sponge panels. Canopy acoustic panels are mounted by hanging on ceilings with steel stainless accessories, cable, and anchorage materials. Oval decorative panels and fabric-covered oval panels will add elegance to your place. It will add a tremendous decorativeness and spaciousness to the areas. Our products are certified. They are rectangular suspended ceiling panels made by filling the acoustic panels with absorbent insulation material and covering them with acoustic fabrics. Acoustic canopy ceiling systems are used to regulate interference sounds and control noise in places with intense noise, such as offices, workplaces, shopping centers, and gymnasiums, meeting rooms, libraries, call centers, factories. Canopy acoustic ceiling systems NRC acoustic value (sound absorption value) is in the range of 0.95-1.00. Baffle acoustic fabric-covered panels are fire-resistant, class B s2 d0 according to UNE - EN 13501-1: 2007 standard. (Canopy Acoustic Ceiling)

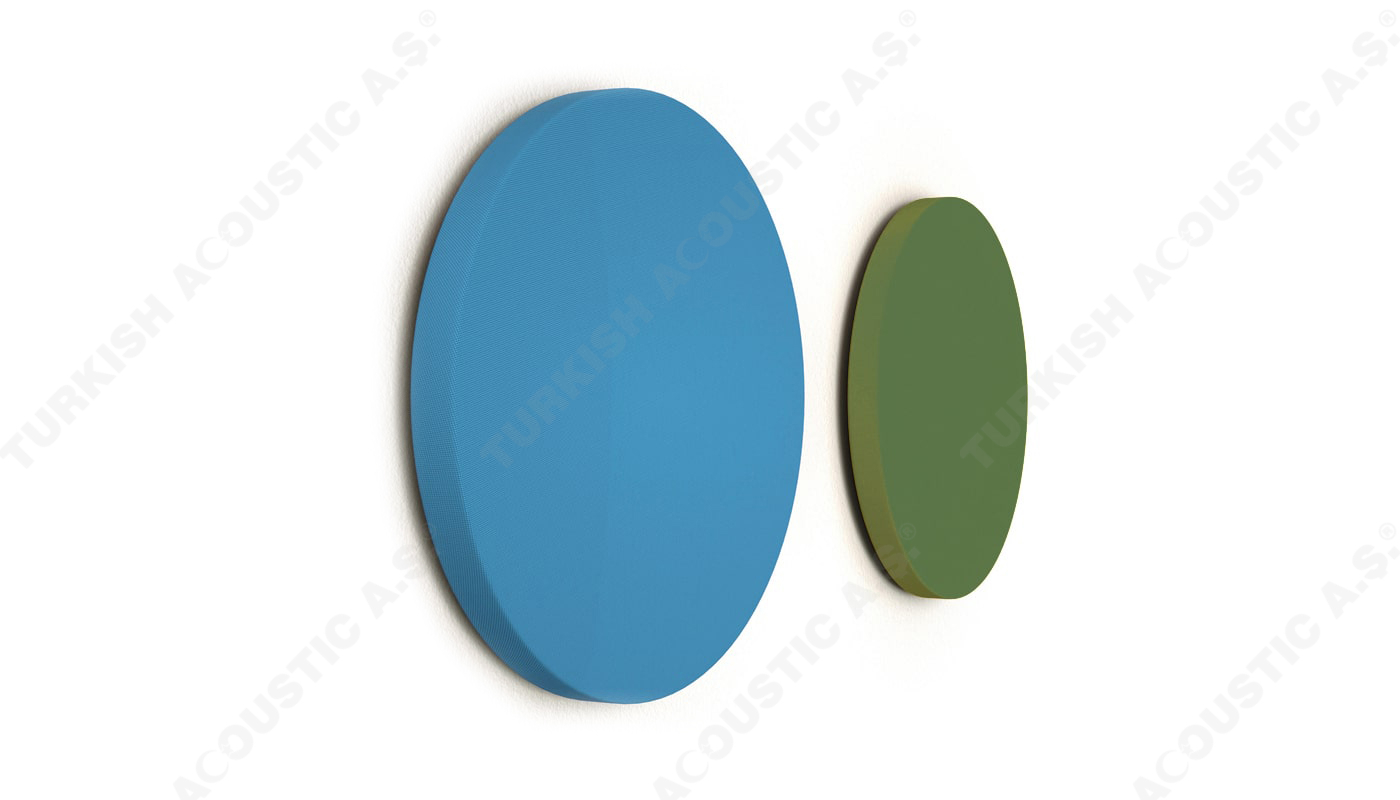

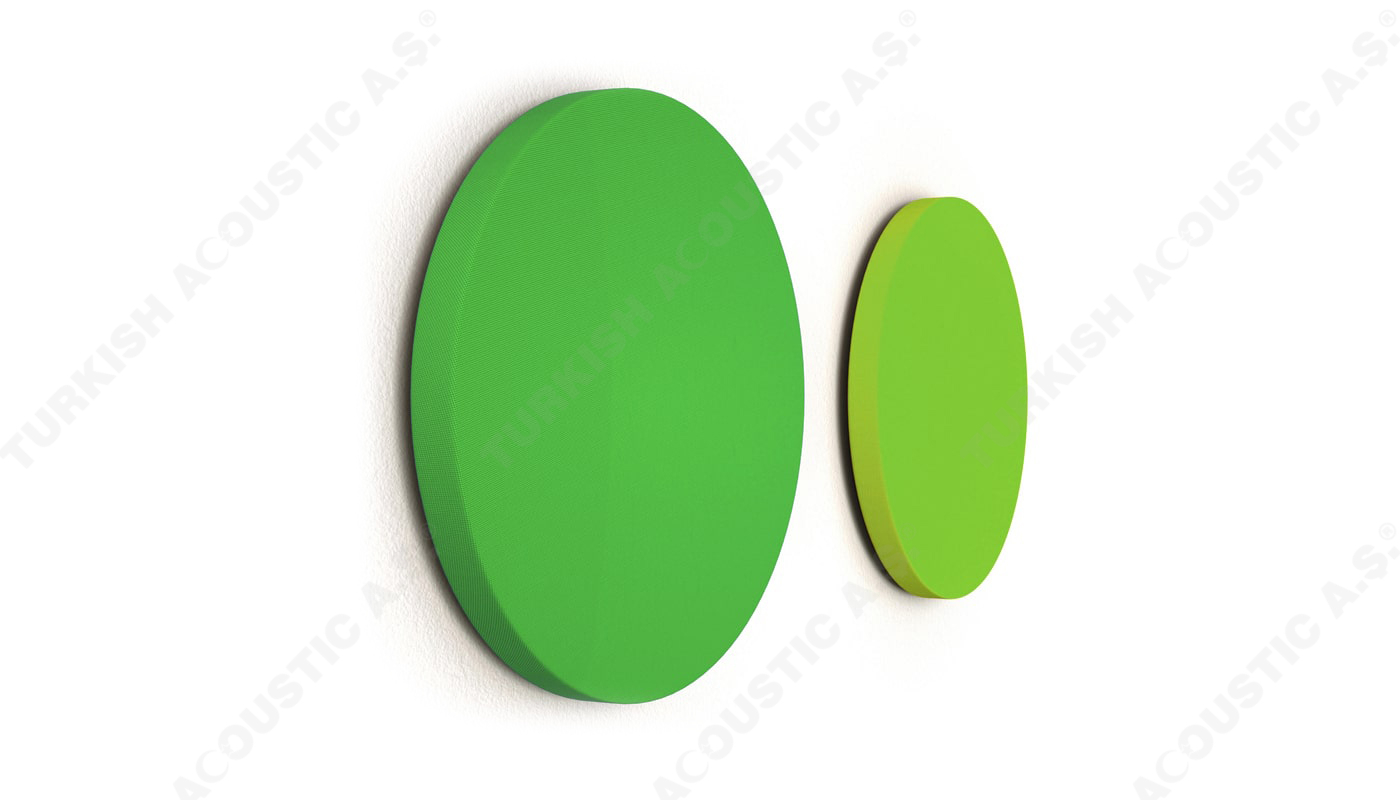

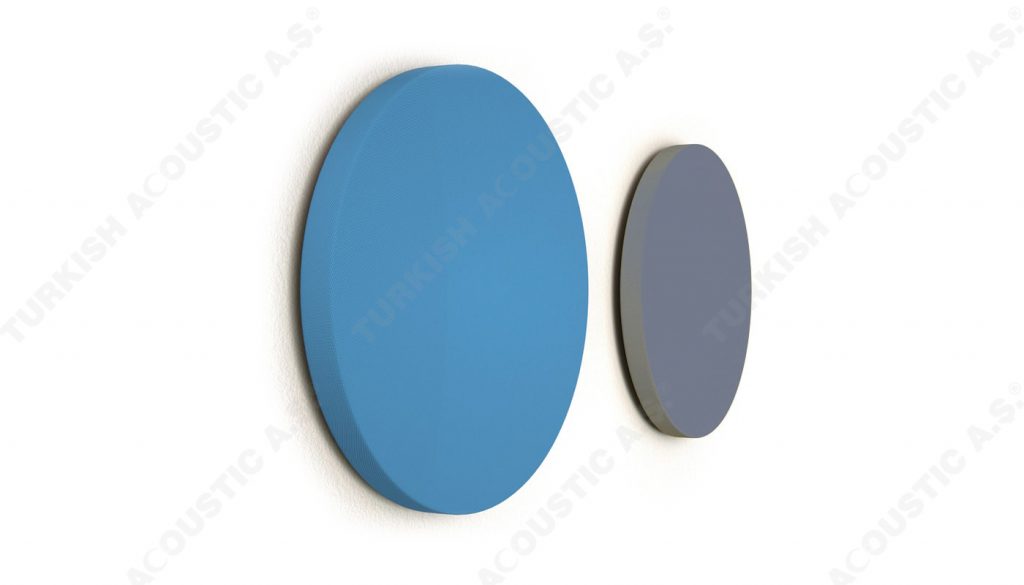

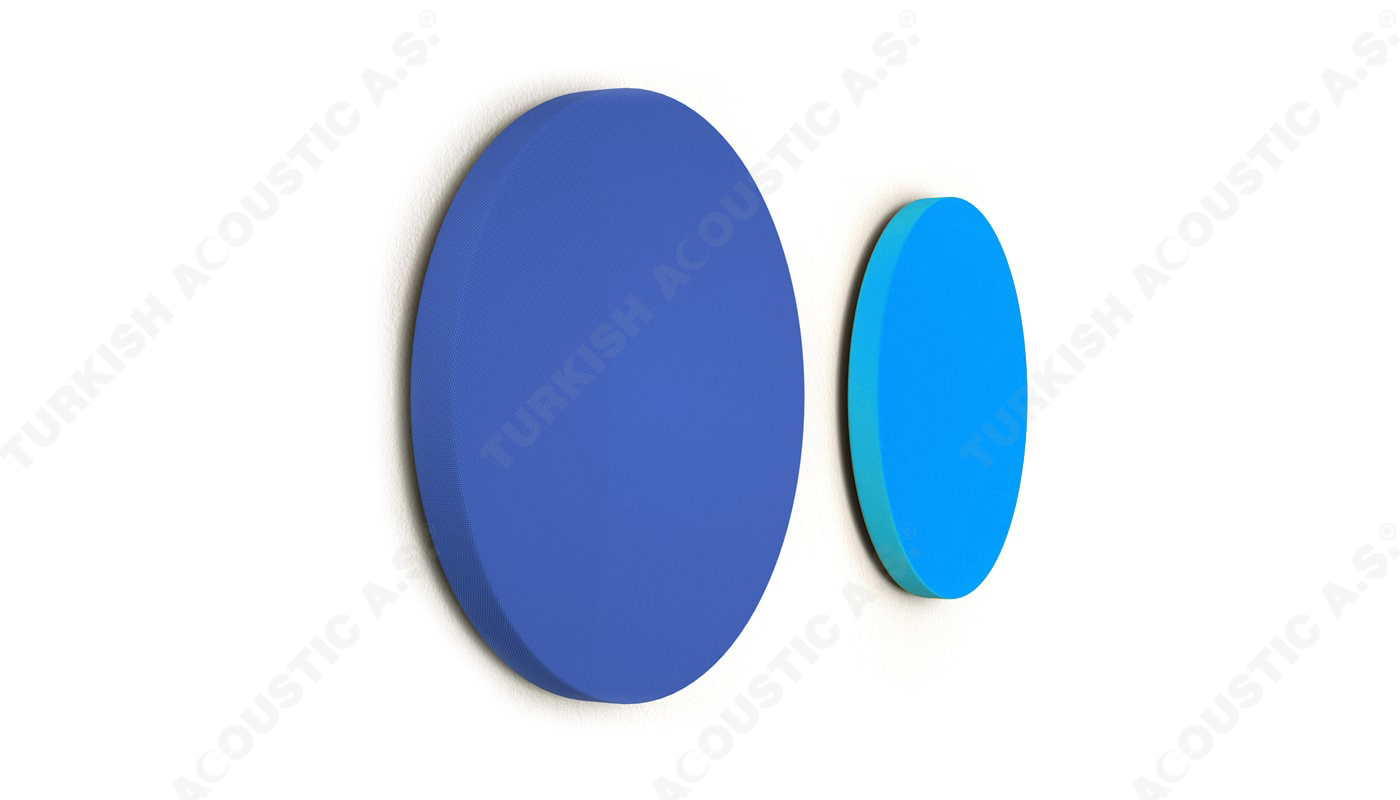

Oval Wall Panels Colors: Fabric-covered acoustic panels are unlimited in color, click here for the fabric chart.
Oval Wall Panels Thicknesses: Standard thicknesses of 20 mm, 40 mm, and 50 mm depending on the model. It is in compliance with all technical specifications.
Oval Wall Panels Dimensions: 60 × 60 cm, 60 × 120 cm, 60 × 180 cm, 60 × 240 cm, 60 × 270 cm, 60 × 300 cm, 120 × 120 cm, 120 × 180 cm, 120 × 240 cm, 120 × 270 cm, 120 x 300 cm
Oval Wall Panels Usage Areas: Conference and seminar halls, factories, shopping malls, gymnasiums, meeting rooms & movie theaters, auditoriums, and studios.
Oval Wall Panels Options: Fabric covered acoustic panels can be produced in different geometric shapes and thicknesses in combination.
Oval Wall Panels Non-flammability: Materials used are glass wool and fabric coverings in the form of b1 non-flammability.
Oval Wall Panels Density: 95 kg / m3 density acoustic glass wool board or 30 - 60 Dns Acoustic sponge.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Canopy Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Oval wall panels are in 60 × 60 cm, 60 × 120 cm, 60 × 180 cm, 60 × 240 cm, 60 × 270 cm, 60 × 300 cm, 120 × 120 cm, 120 × 180 cm, 120 × 240 cm, 120 × 270 cm, 120 x 300 cm plates, and there are 10 plates of products in different dimensions in their packages. It is sold by retail and wholesale as 30 mm, 40 mm, and 50 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
