Oval Ceiling Panels

Product Descrıptıon

Product Images

Implementatıon Gallery

Product Certıfıcates

Fıelds of use

Implementatıon Fıelds

Product Descrıptıon

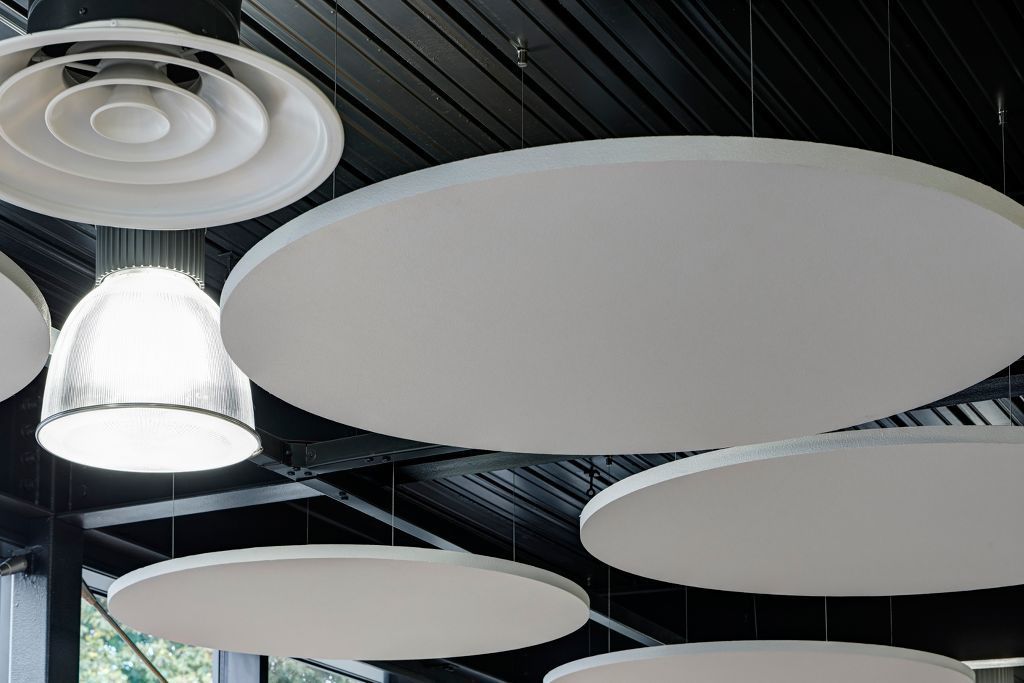

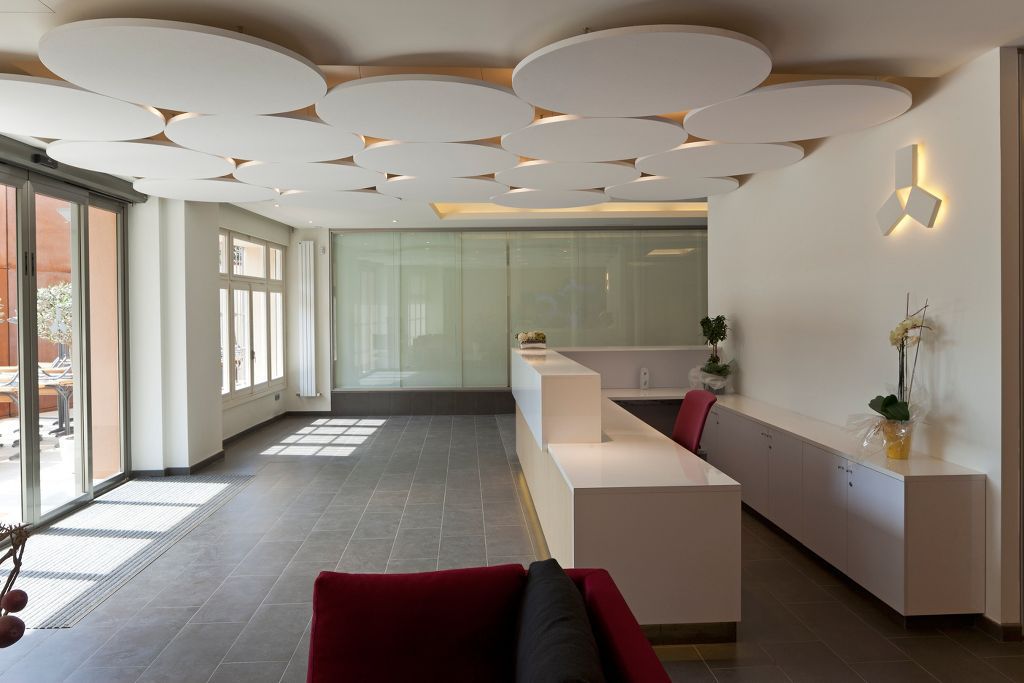

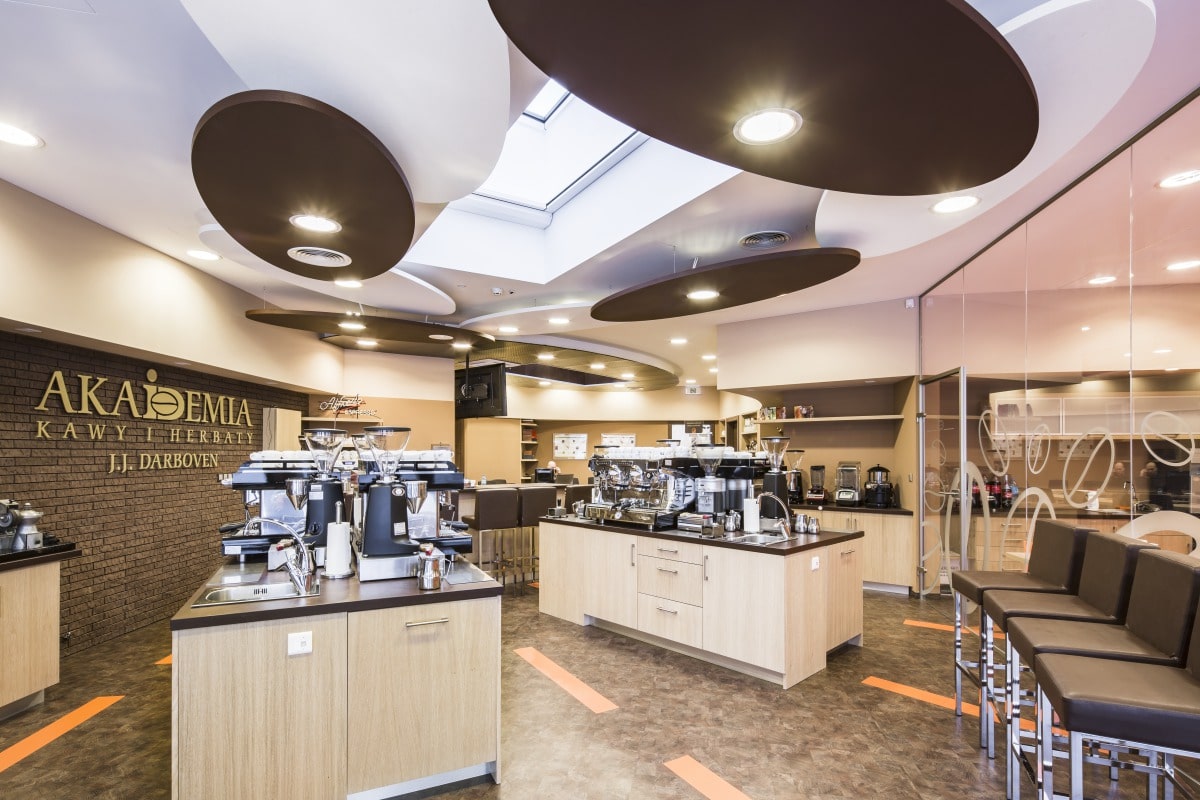

Oval Ceiling Panels: Oval, elliptical circular, and hexagonal shaped acoustic canopy ceiling panels are used to increase the elegance of your place and to prevent unwanted noise. Ceiling panels designed as high sound-absorbing panels to reduce unwanted noise are ideal products for volume acoustics. Canopy acoustic ceiling systems NRC acoustic value (sound absorption value) is in the range of 0.95-1.00.

Oval Acoustıc Canopy

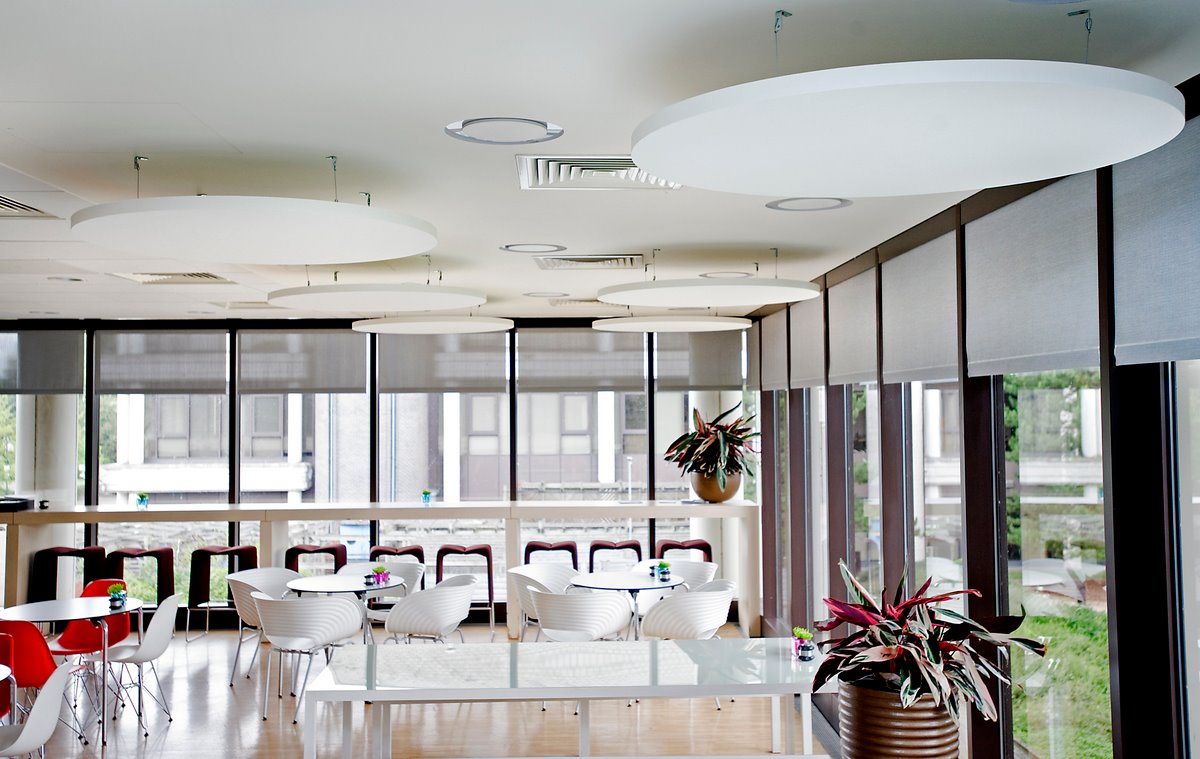

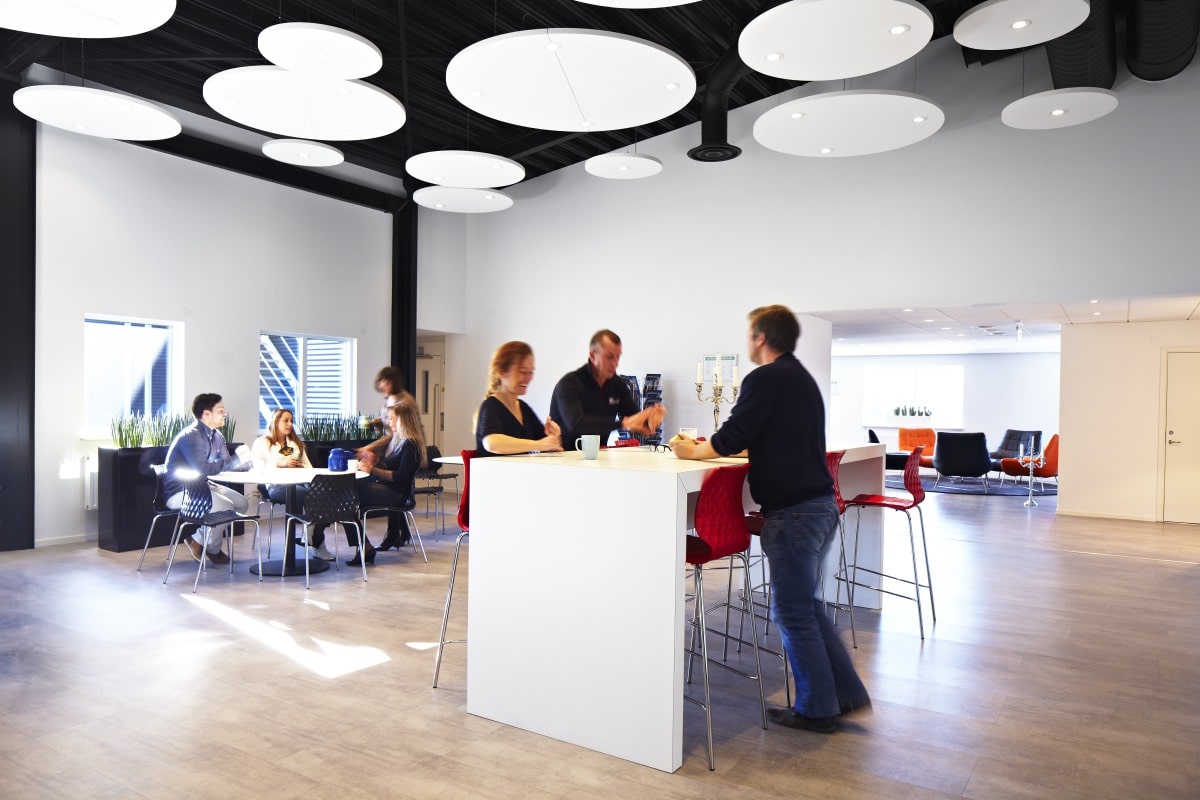

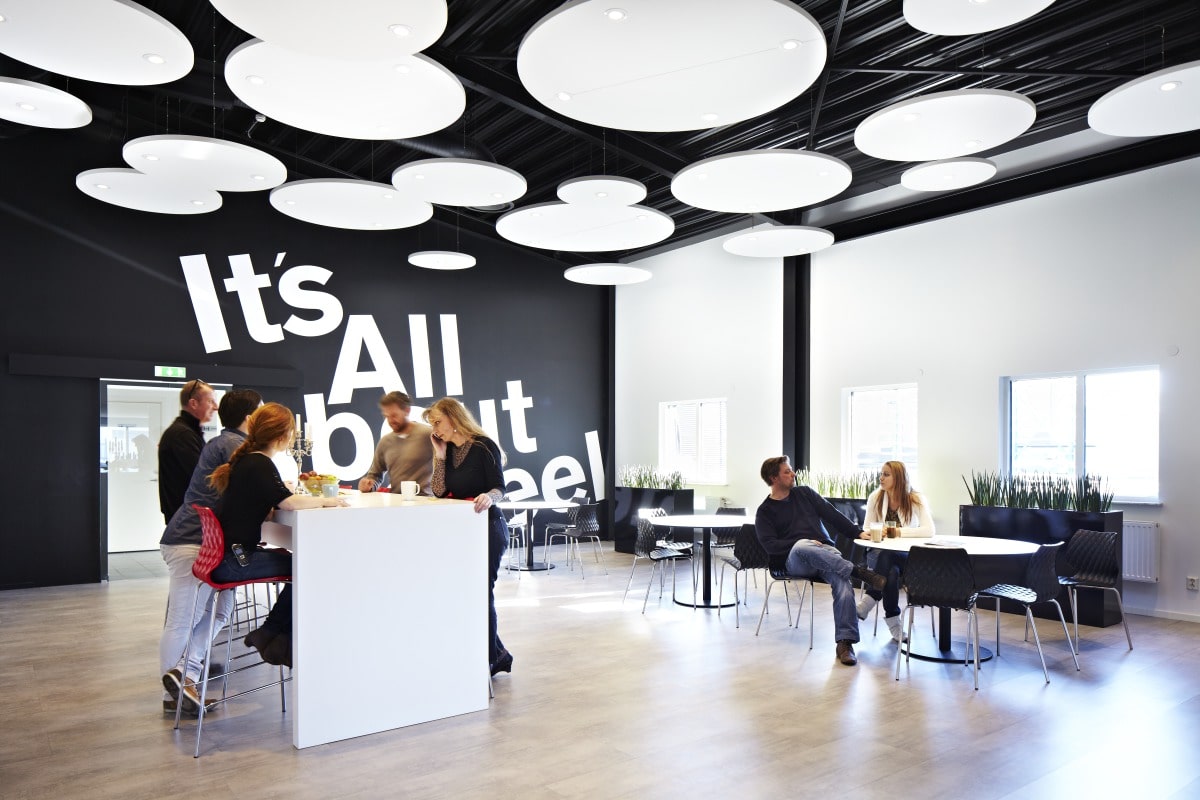

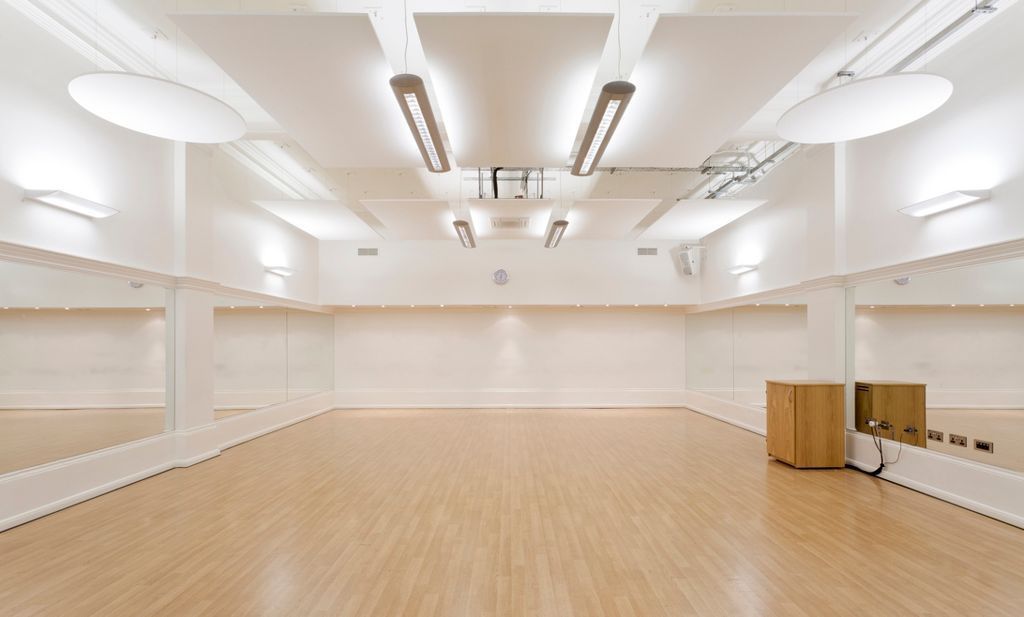

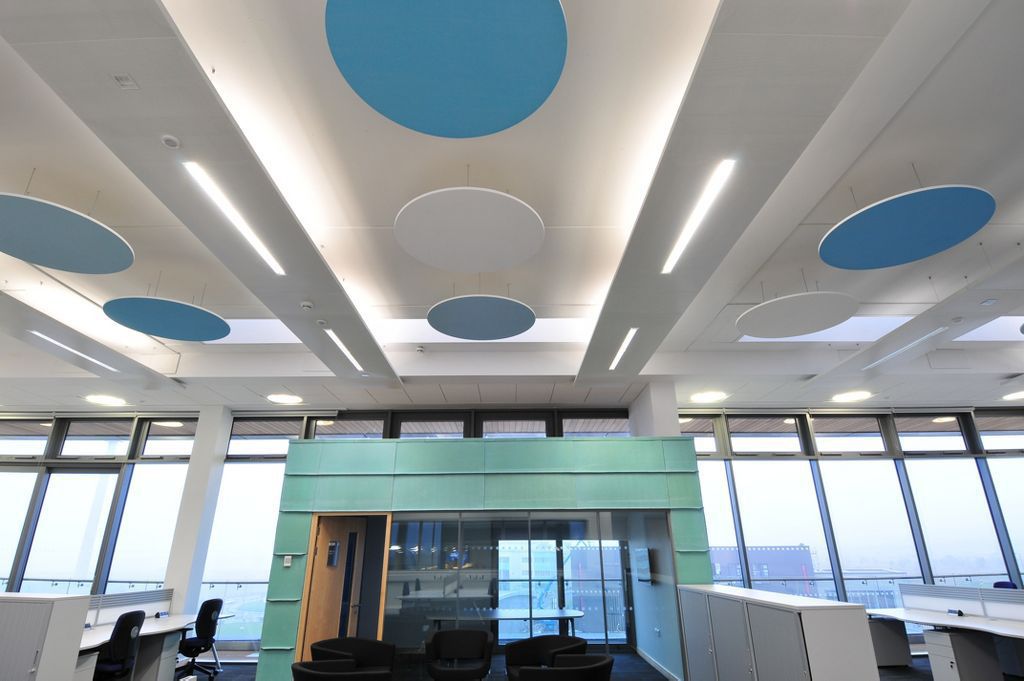

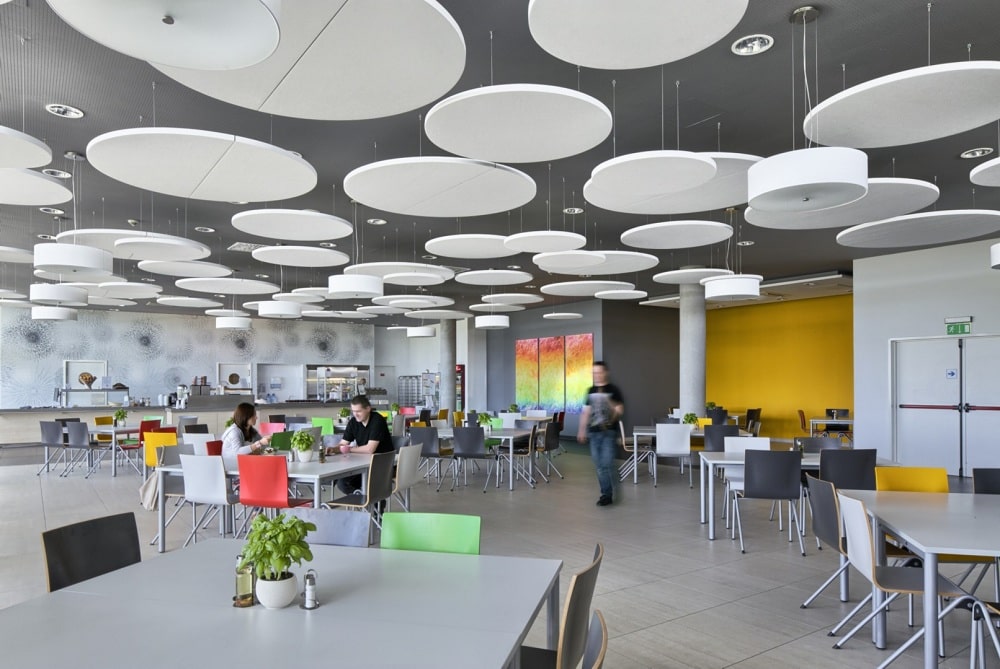

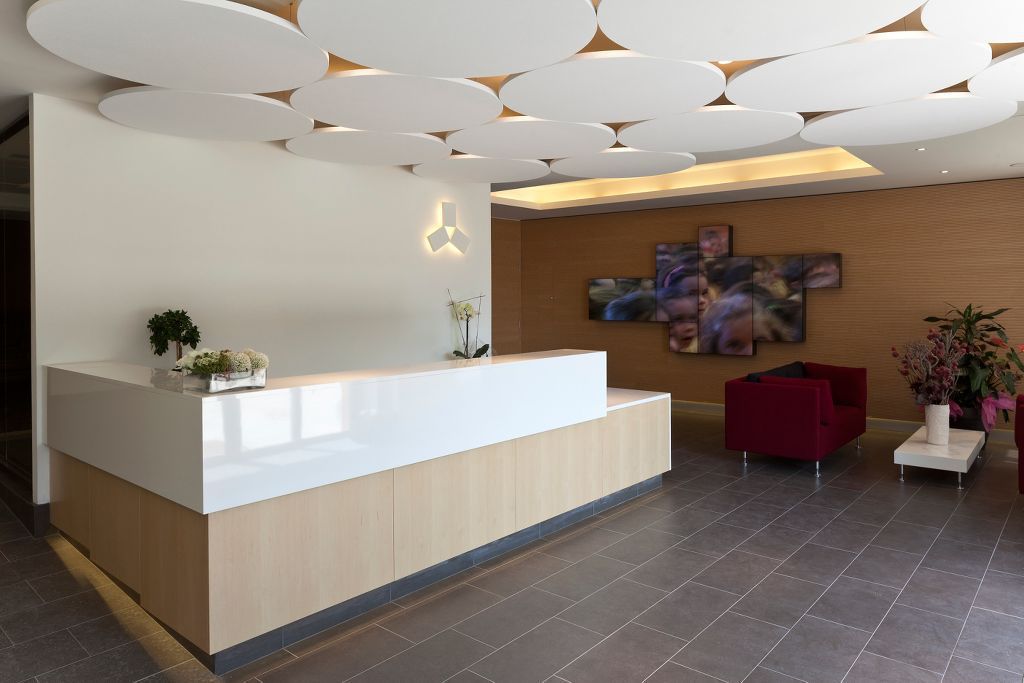

Applıcatıon Images

Product Images

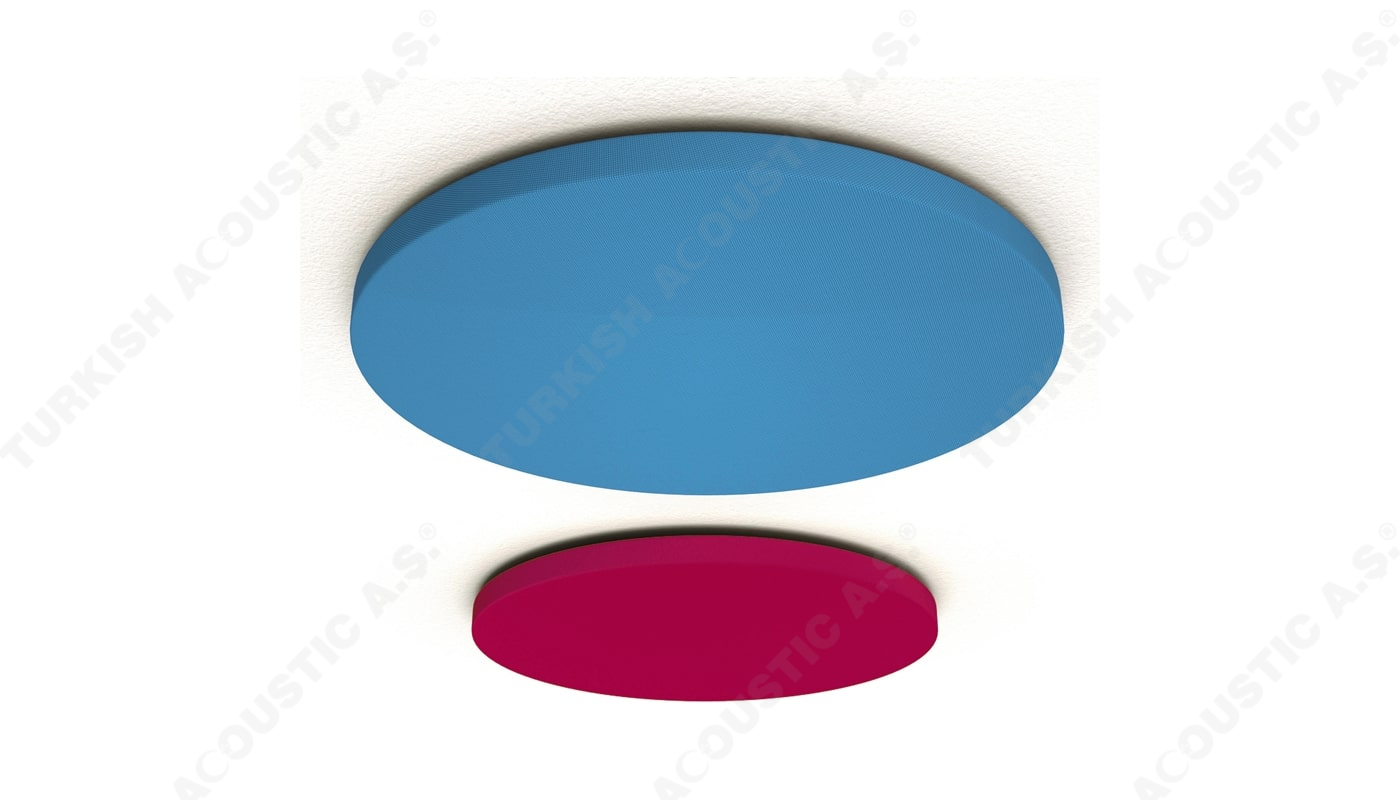

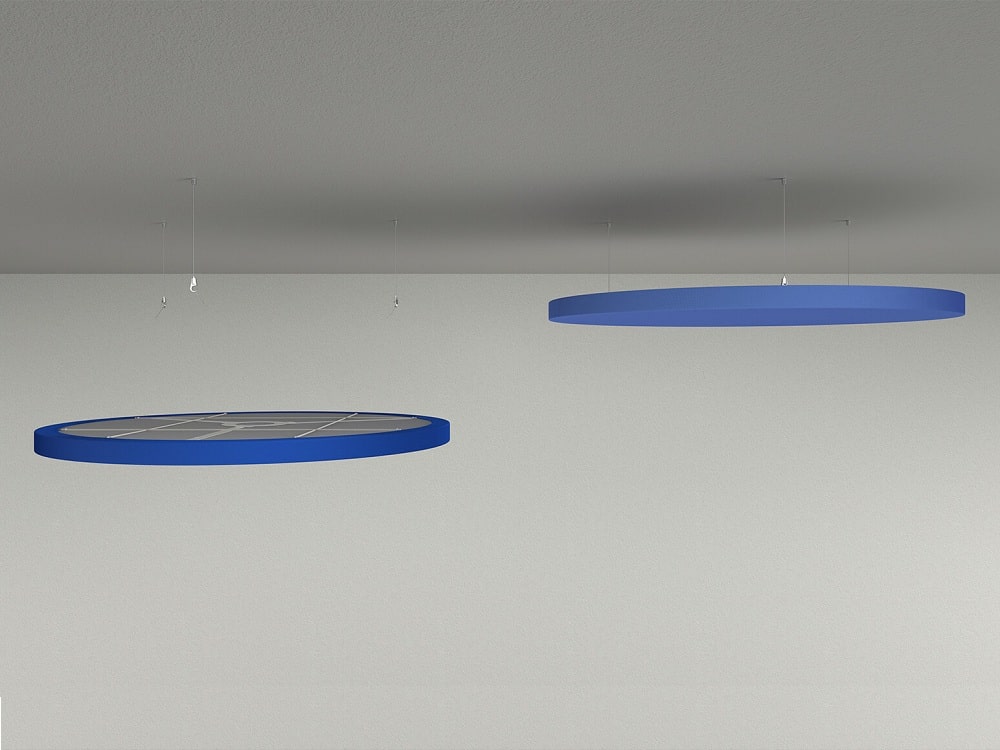

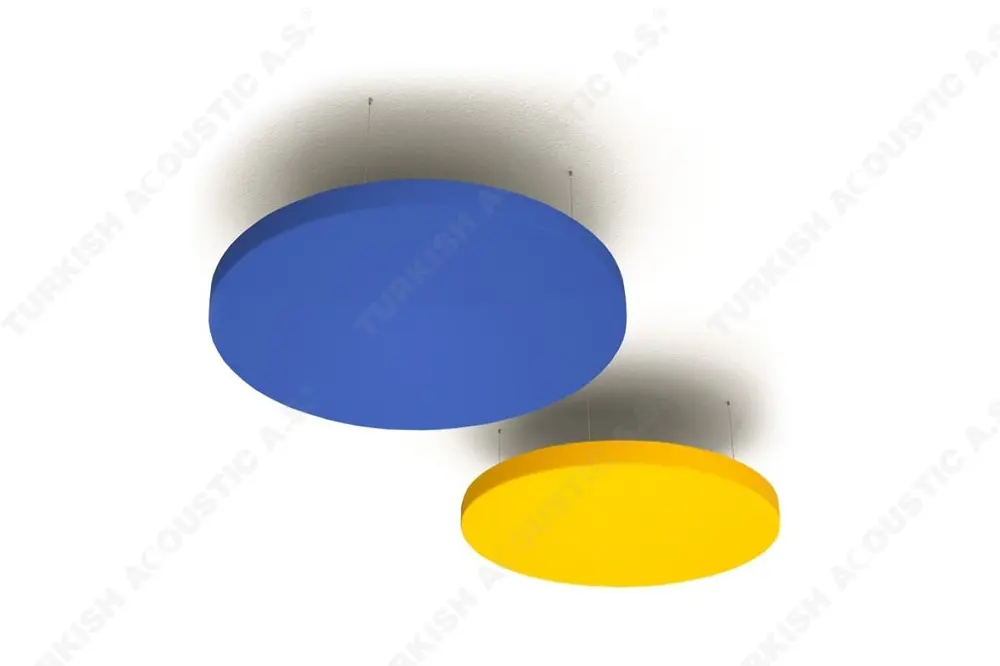

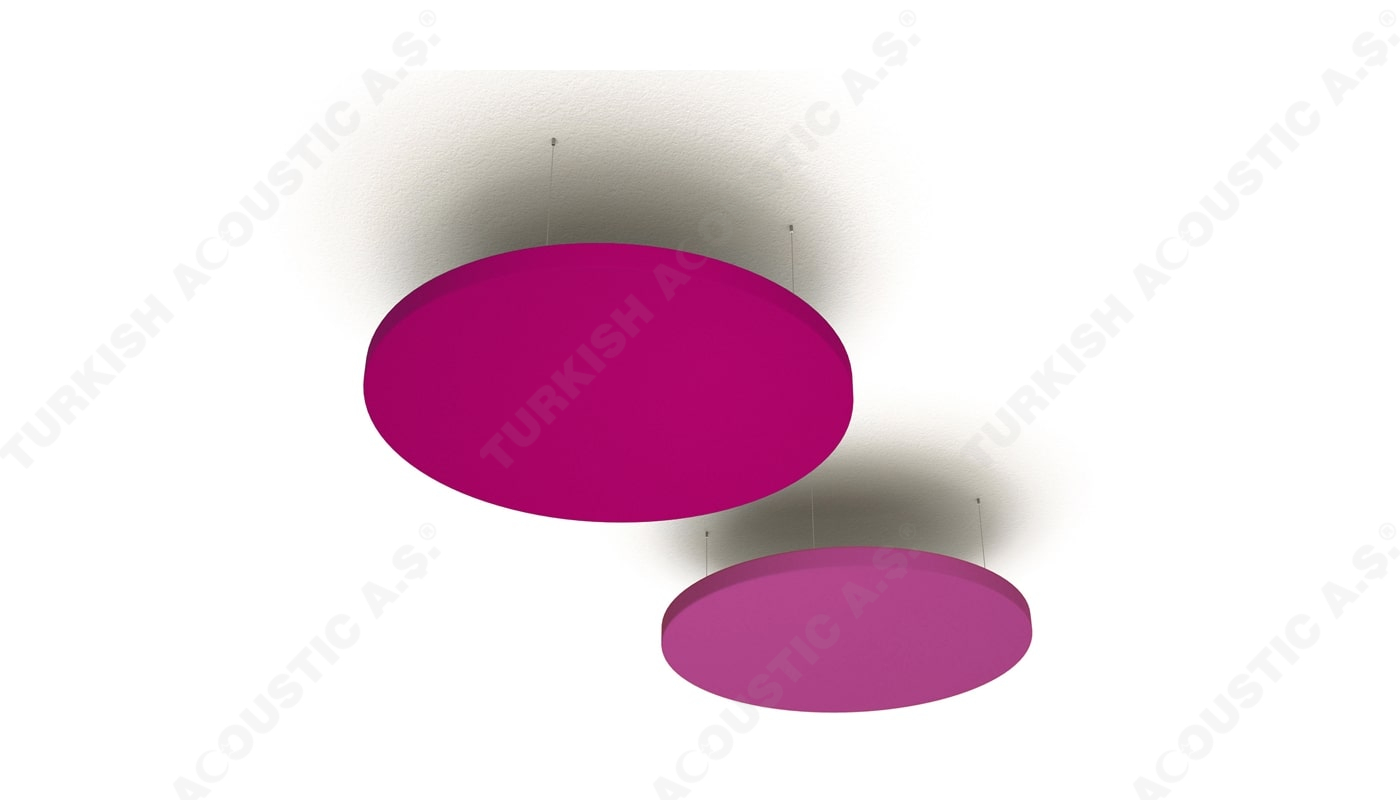

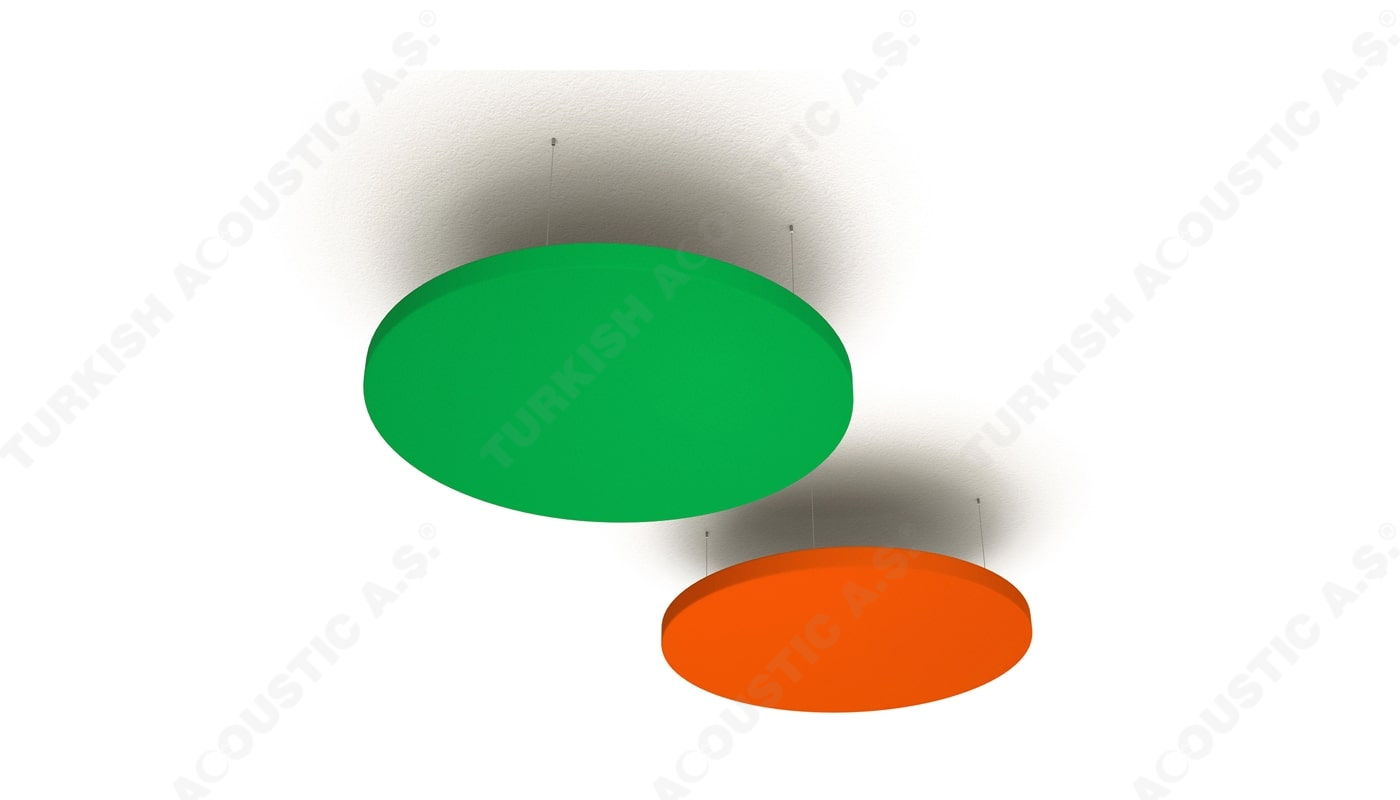

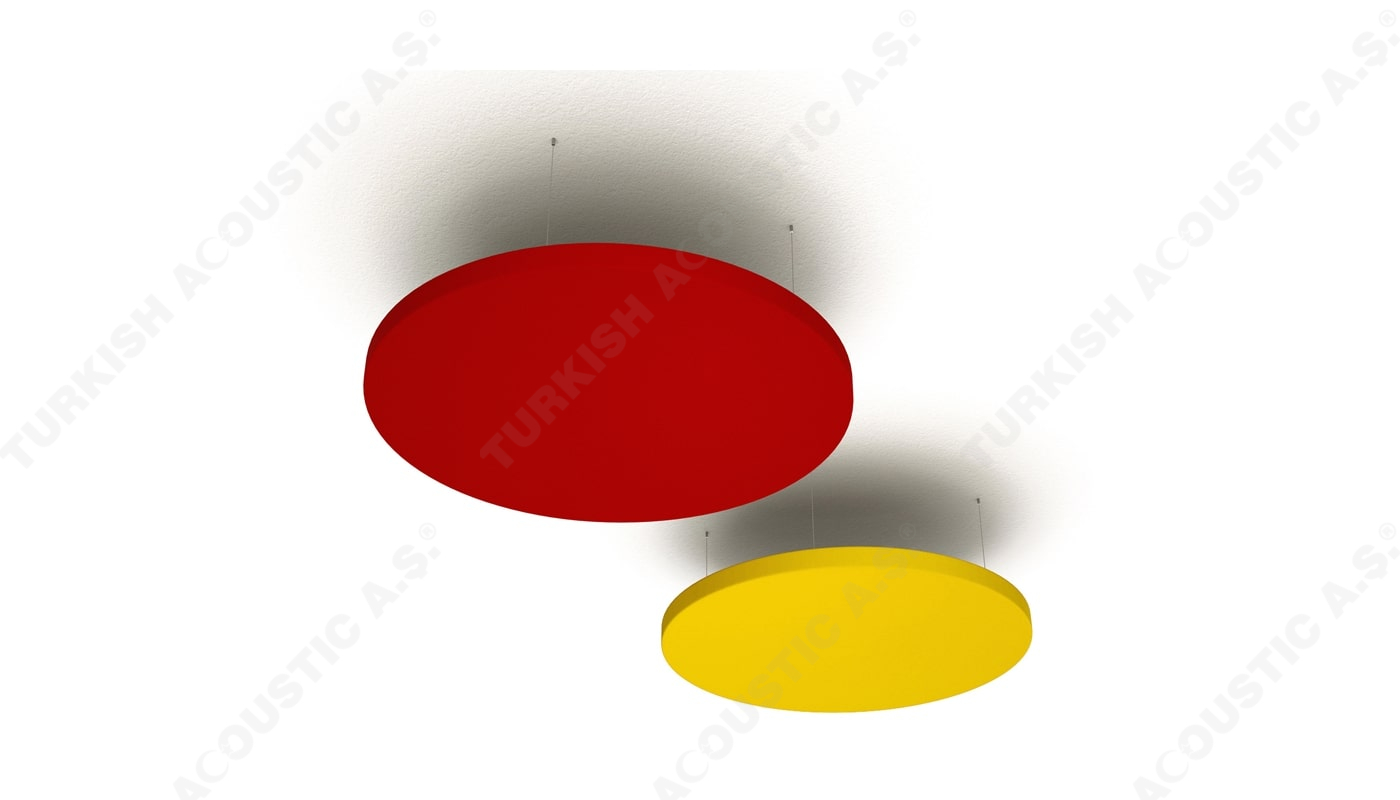

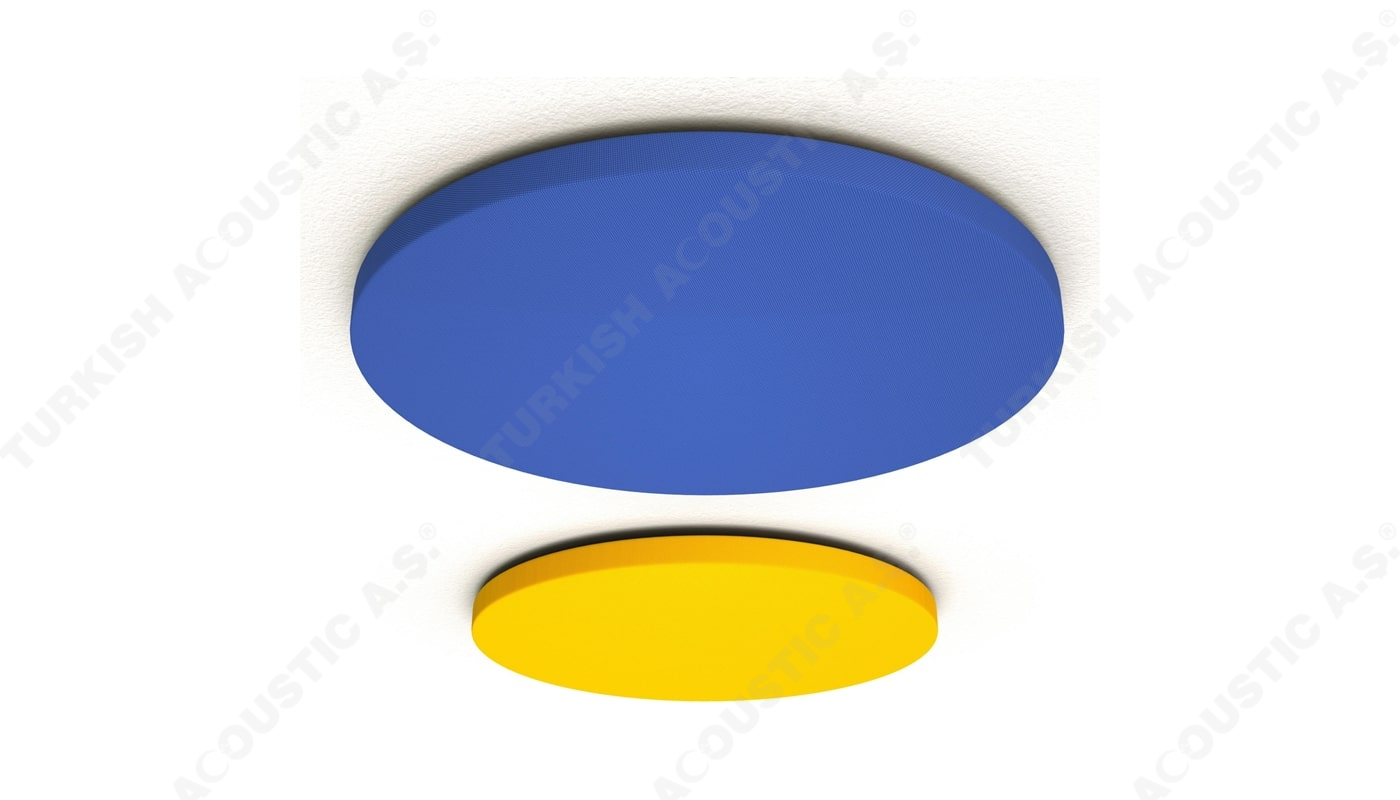

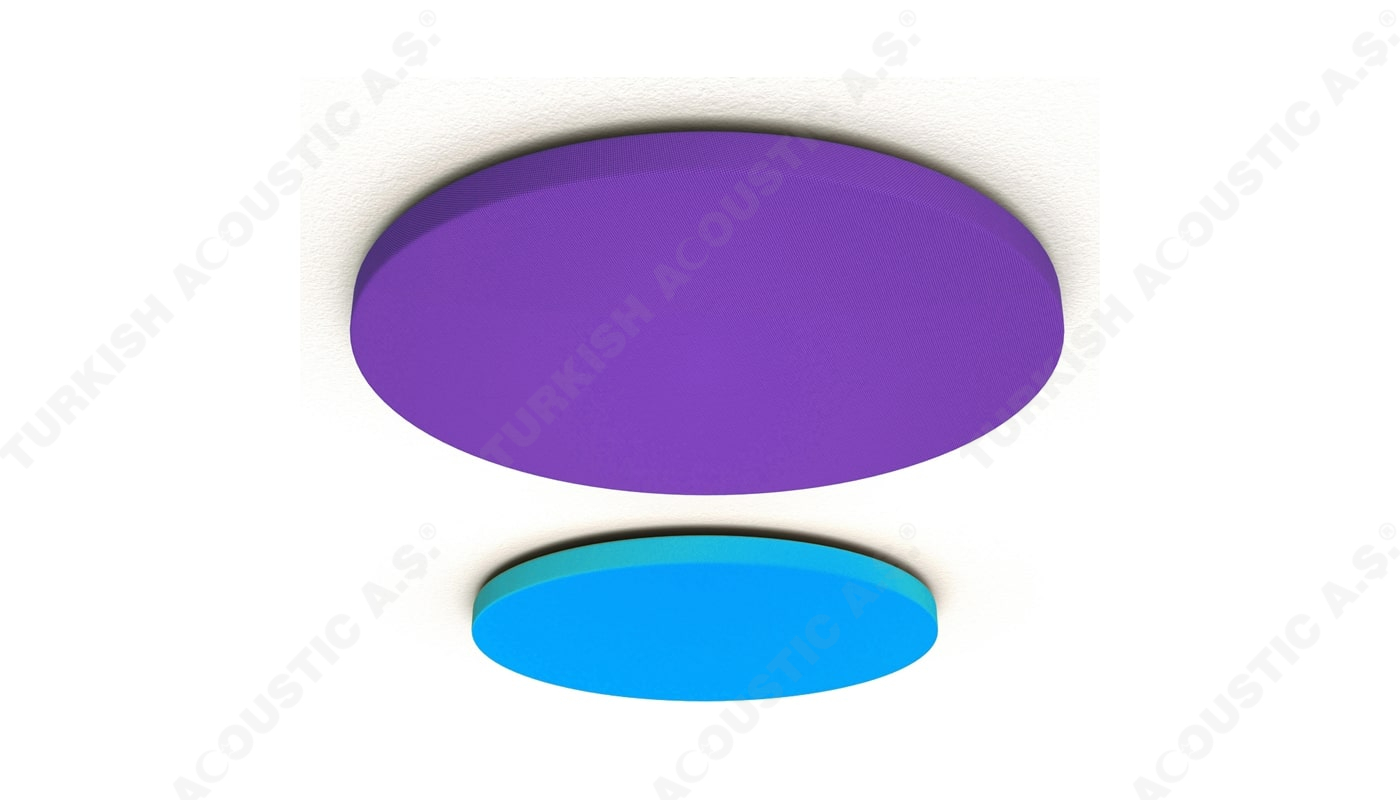

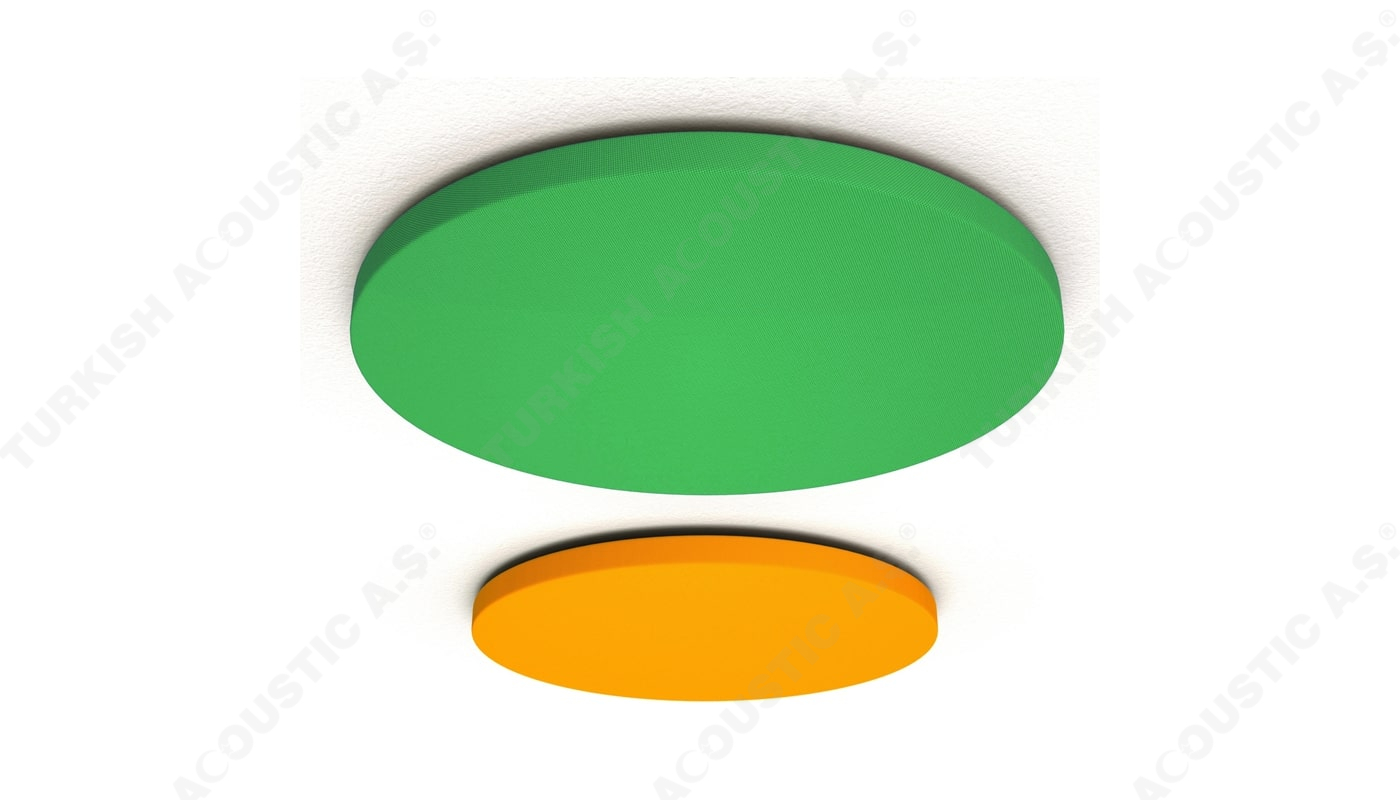

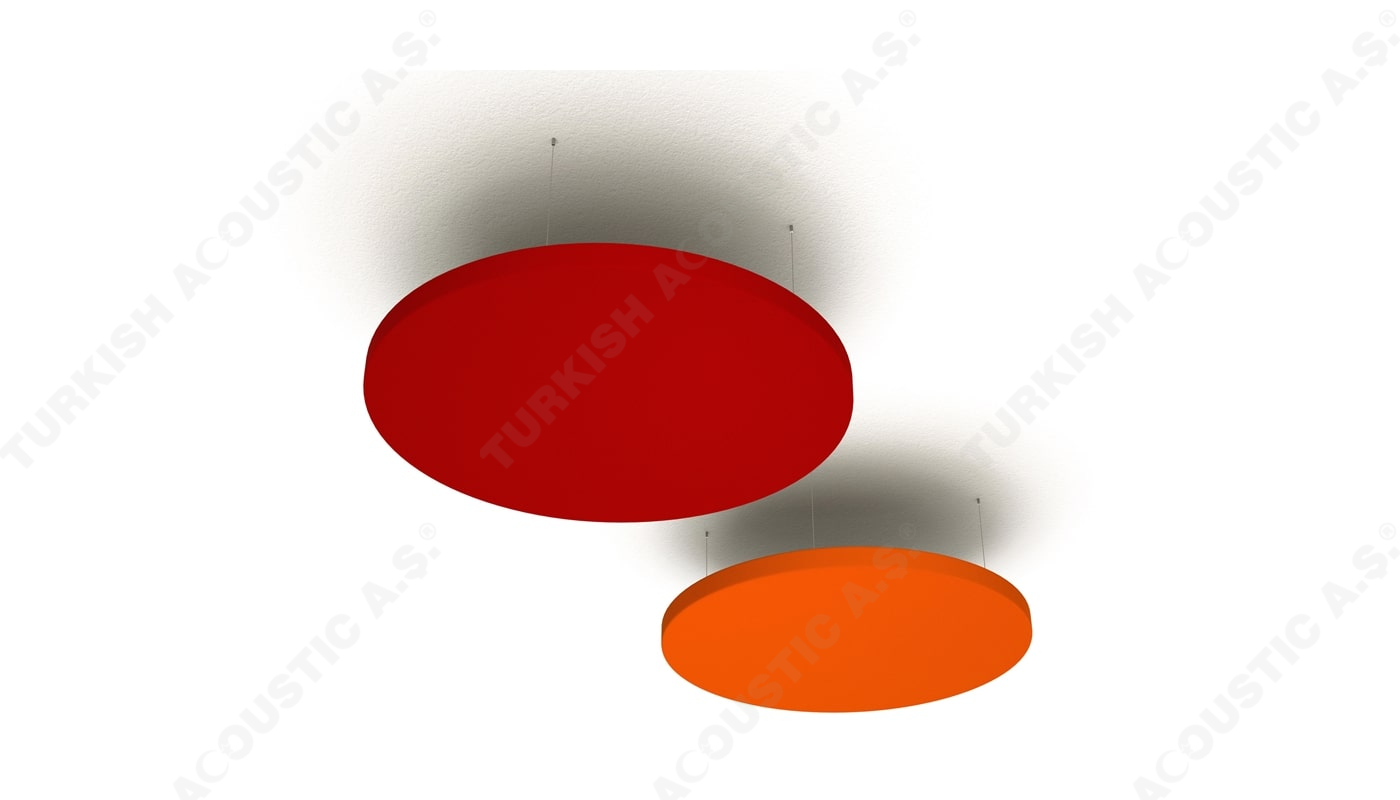

Oval Acoustıc Canopy

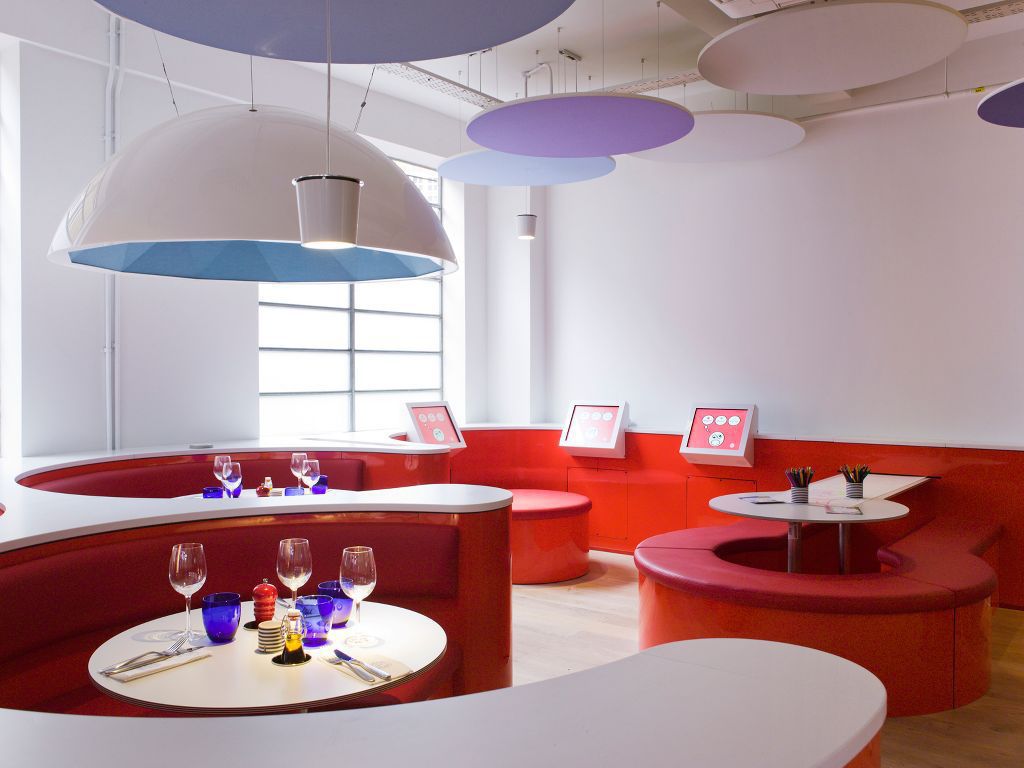

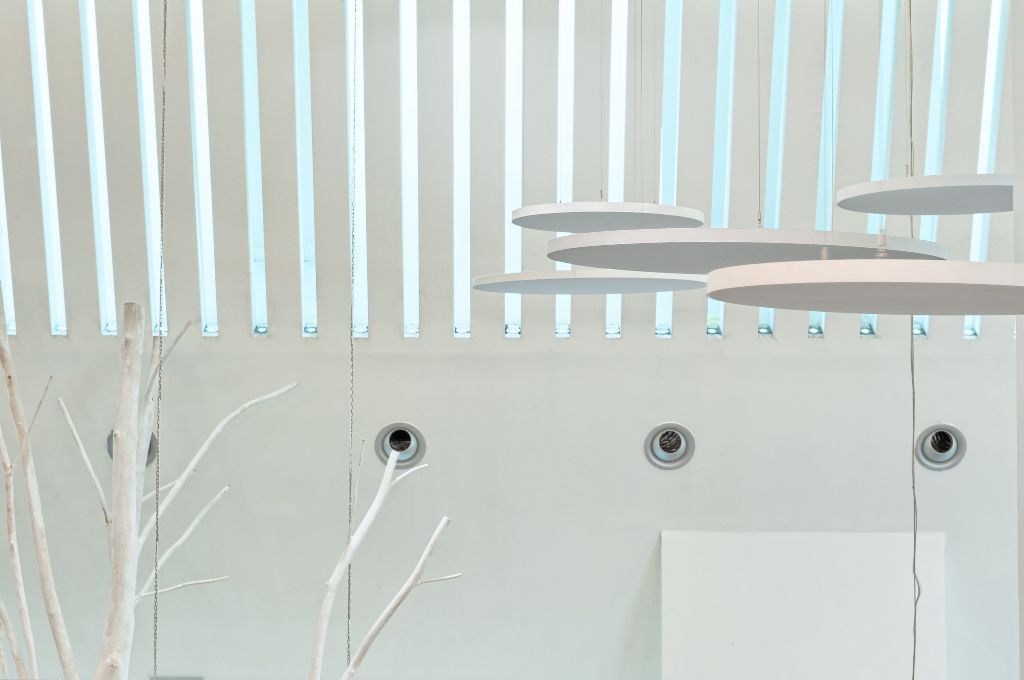

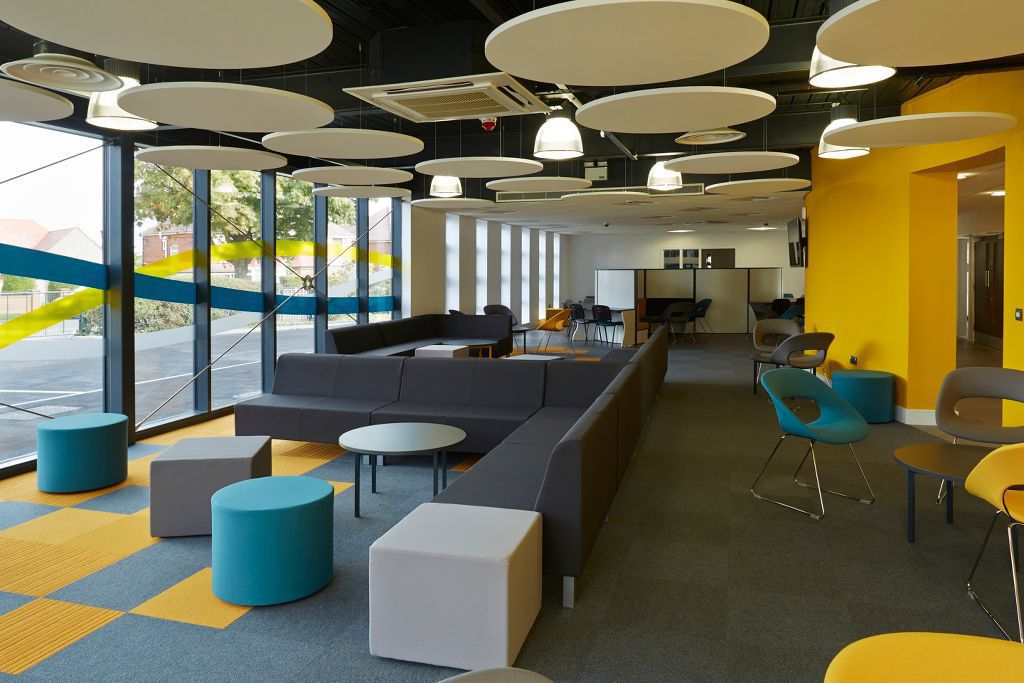

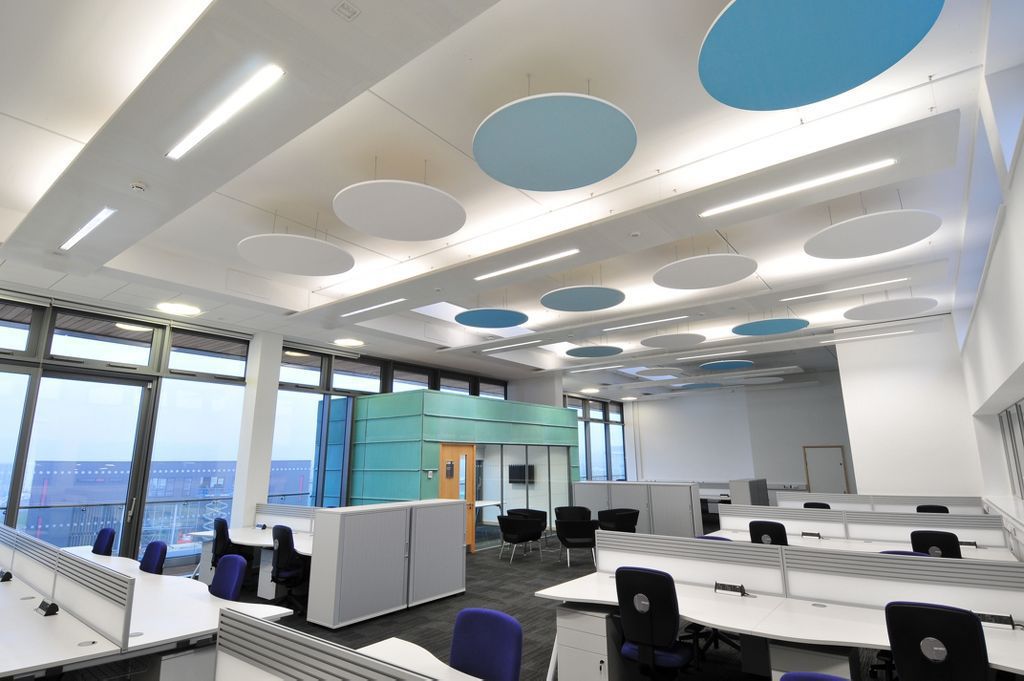

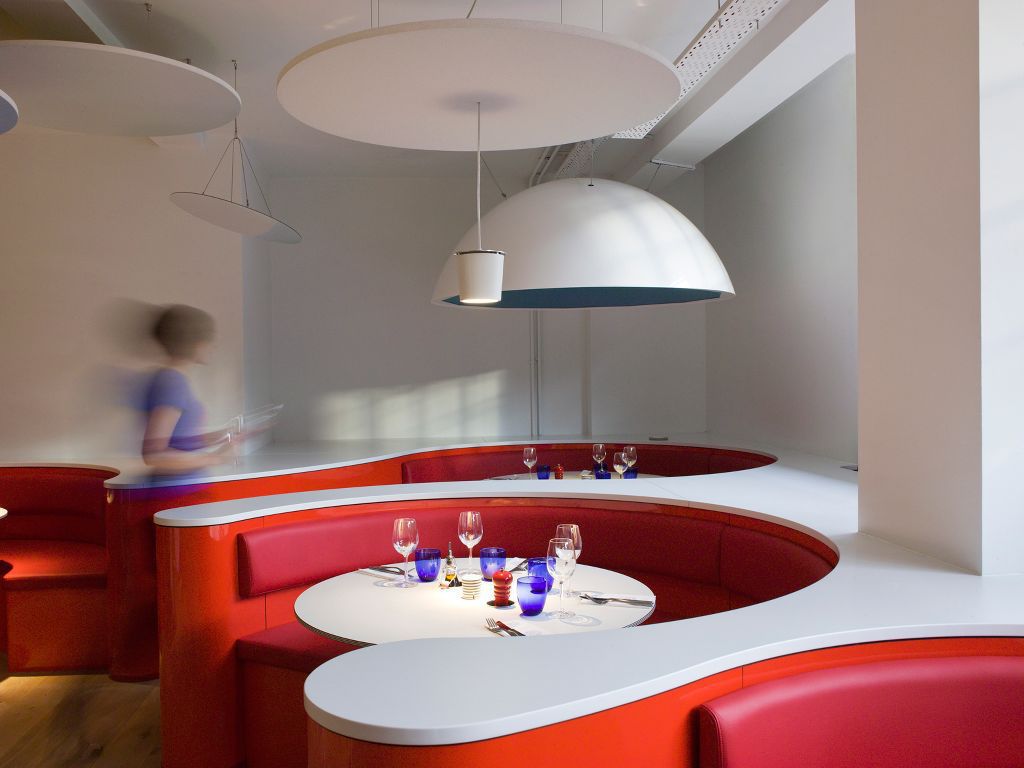

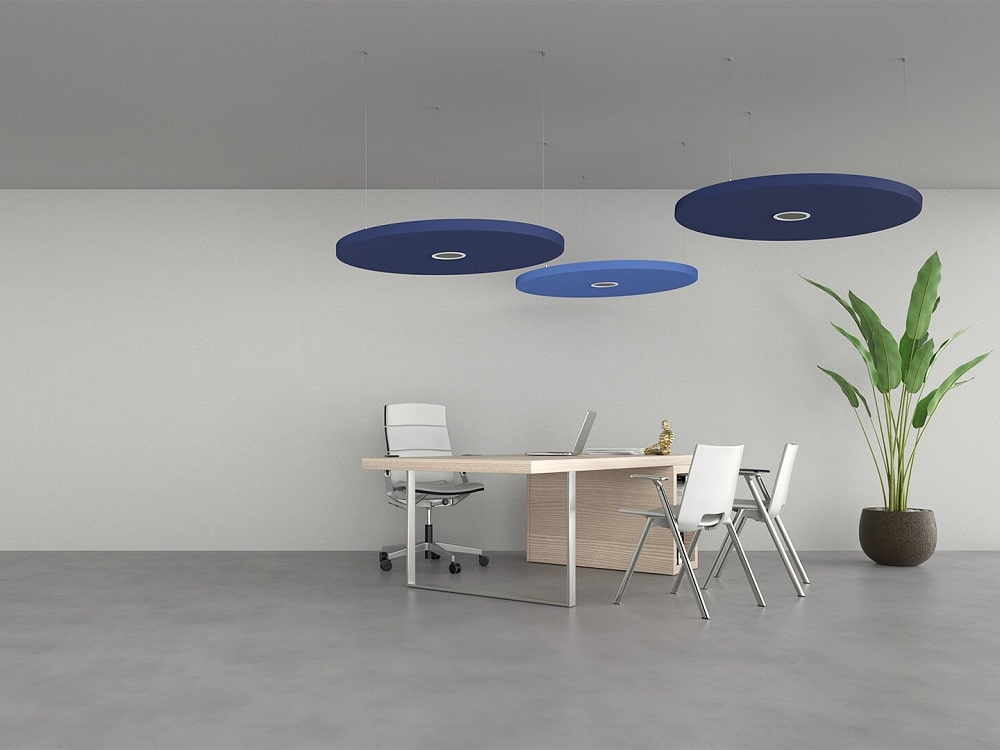

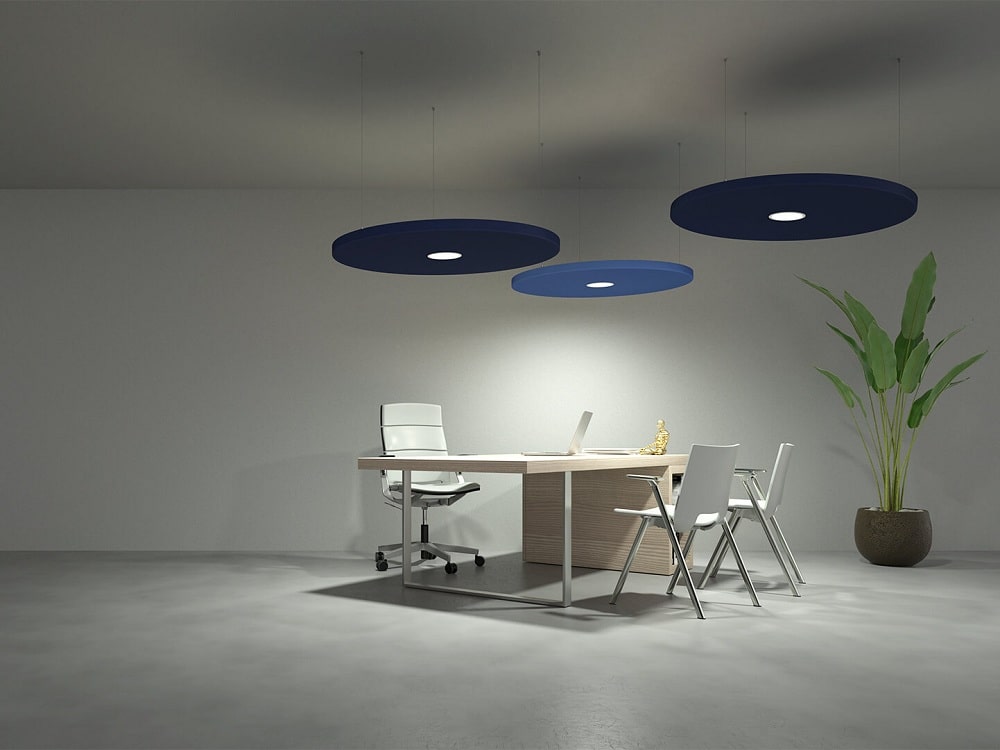

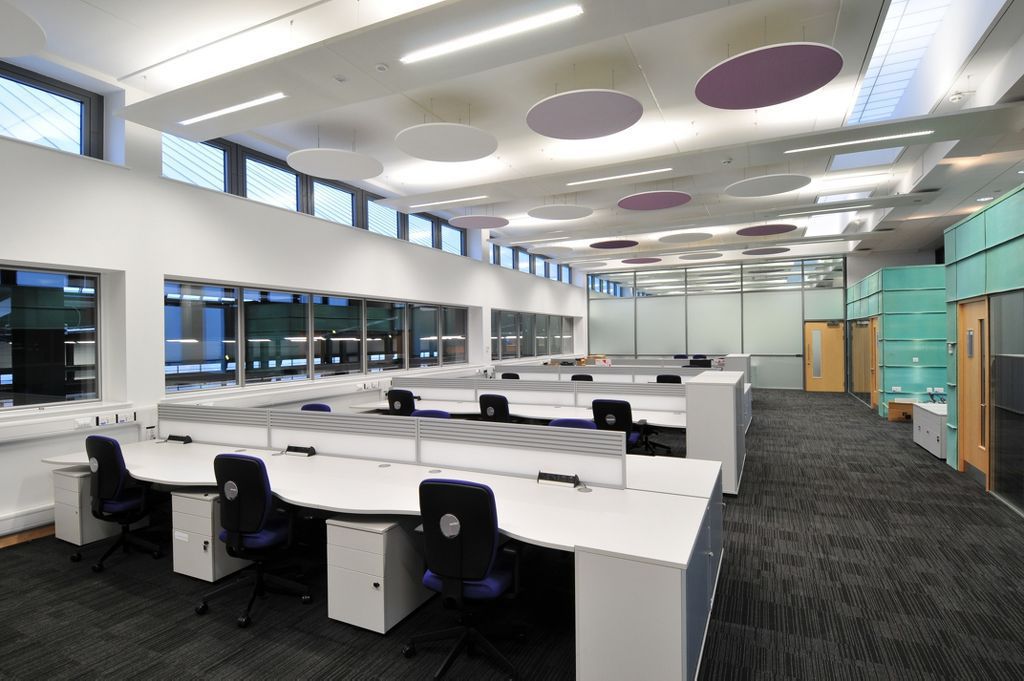

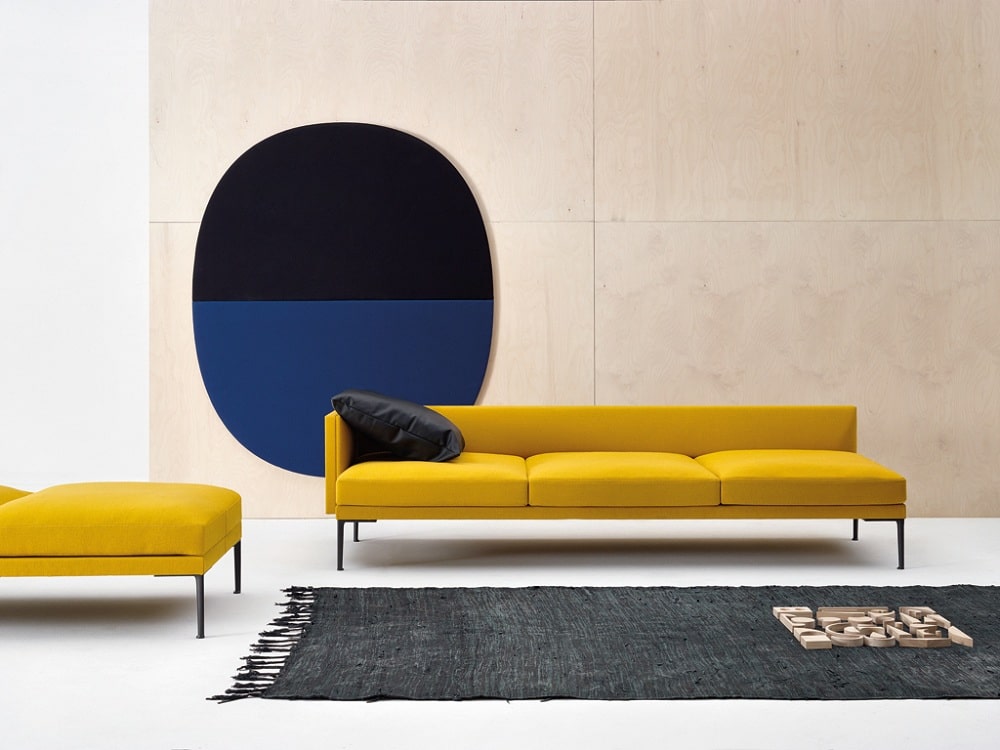

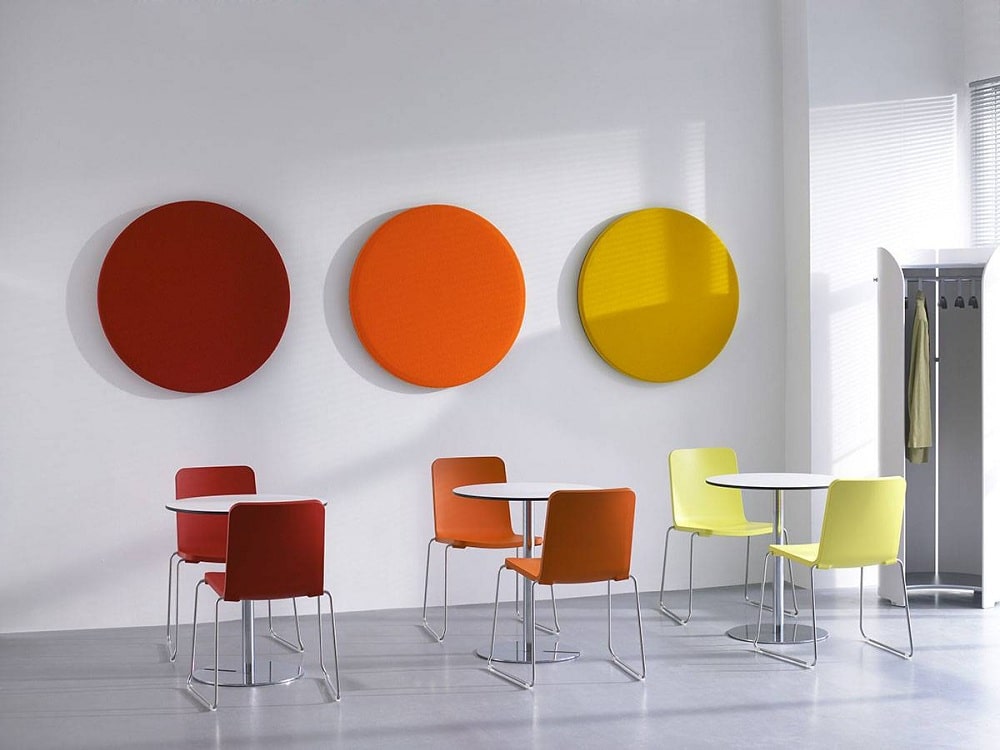

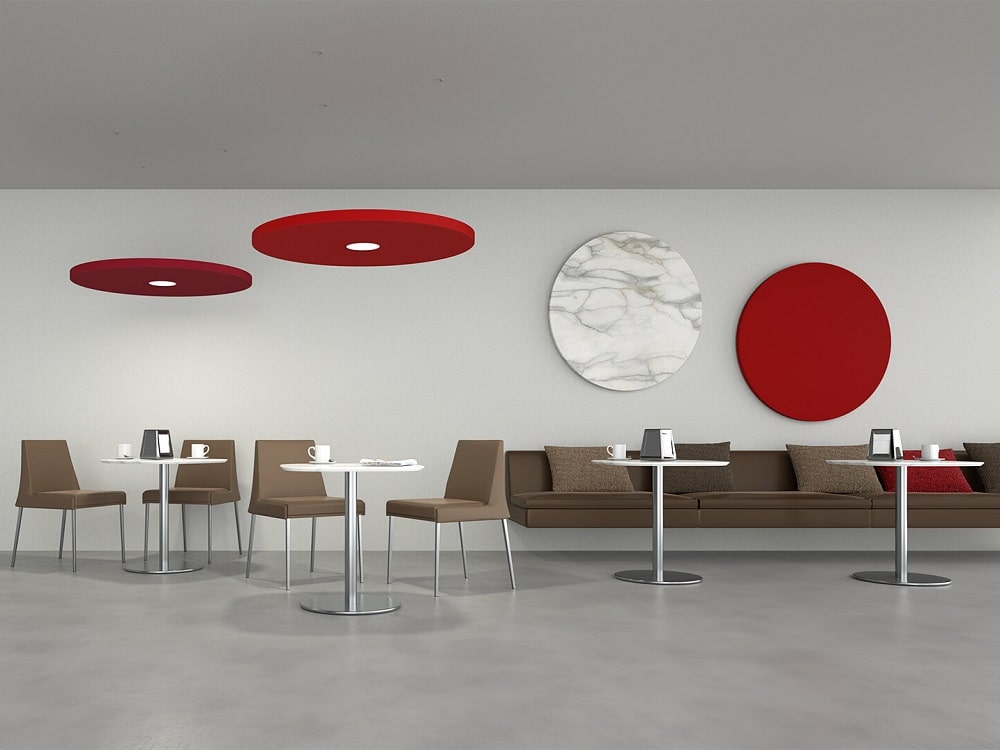

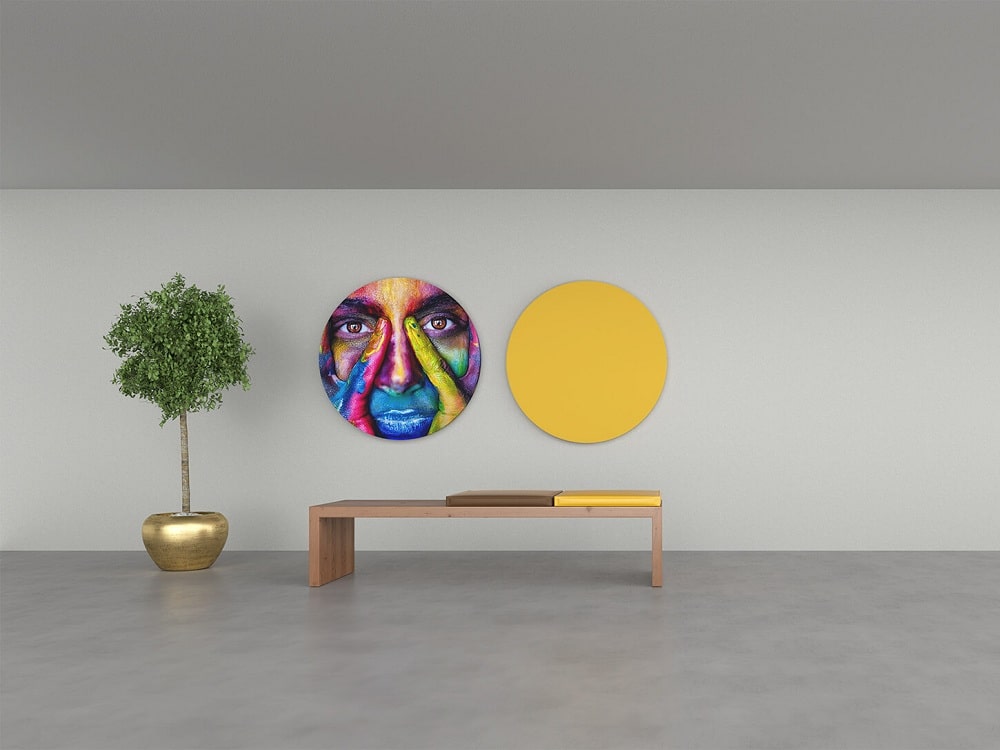

Implementatıon Gallery

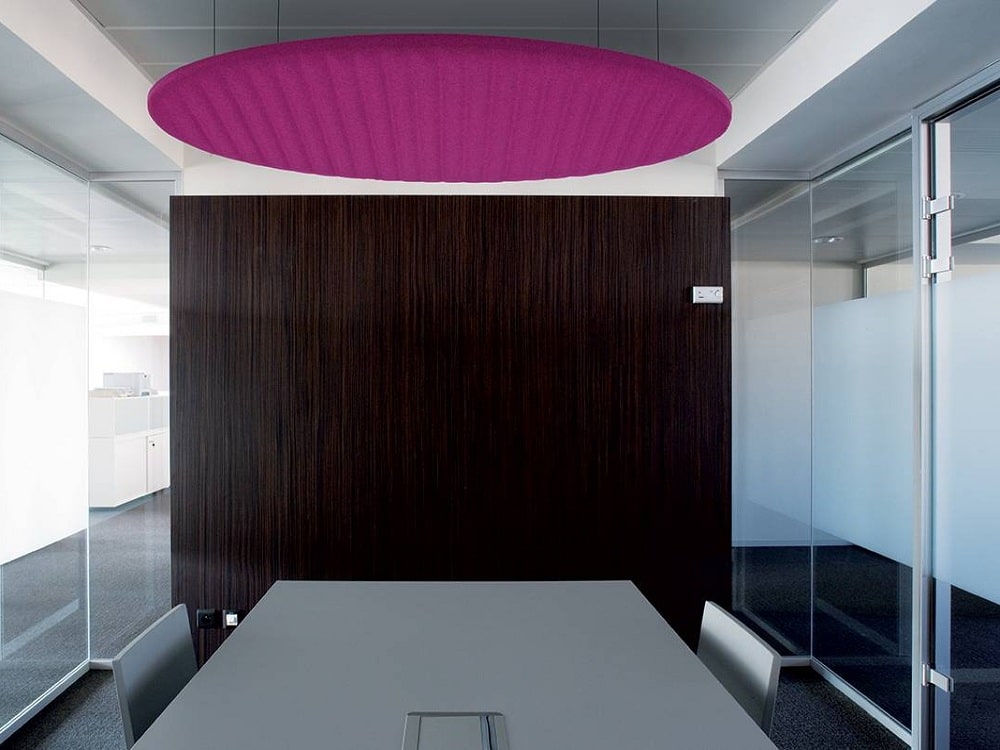

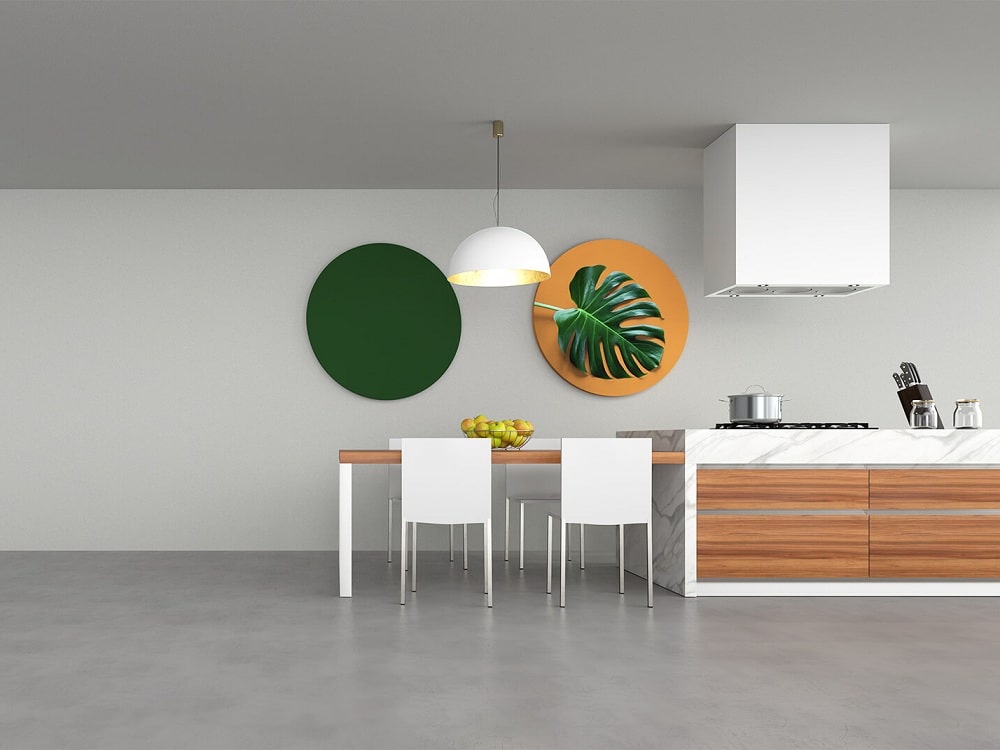

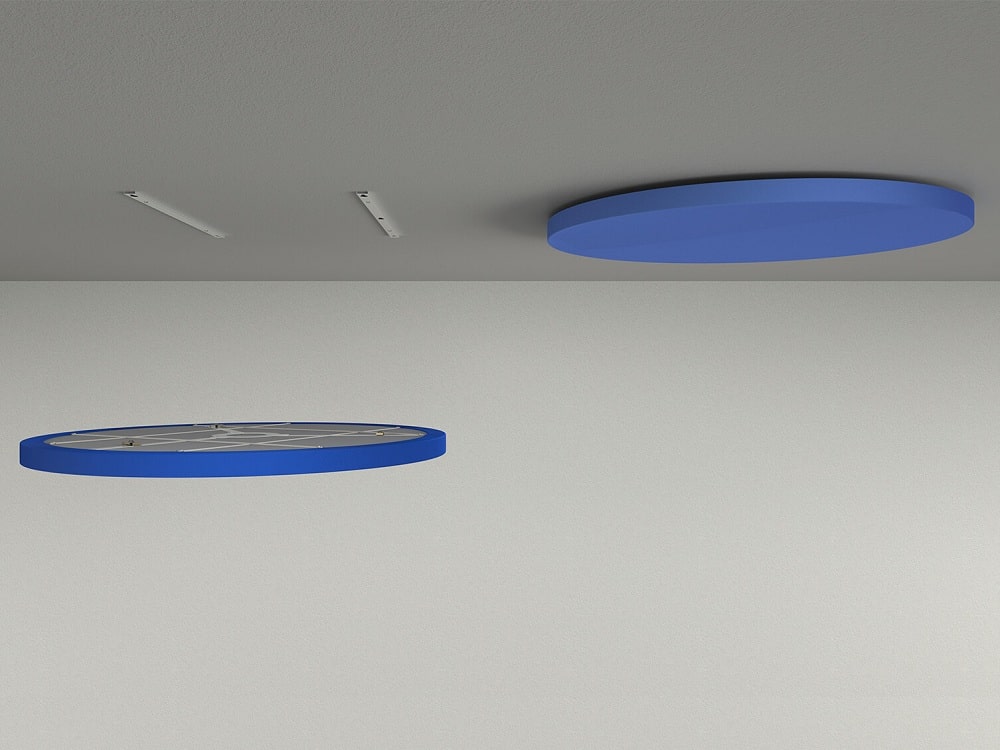

Oval Acoustıc Panel

Product Certıfıcates

Product Certıfıcate

Fıelds of use

Implementatıon Fıelds

Vehıcles

Banks

Studıos

Cafes

Call Centers

Houses

Factorıes

Shıps

Hospıtals

Swımmıng Pools

Offıces

Kındergartens

Lıbrarıes

Stores

Musıc Rooms

Work Places

Halls

Rest Rooms

Pıano Rooms

Restourants

Gymnasıums

Amusement Centers

Cınemas

Hotels

Mountıng Kıt

Canopy Models

Product Detaıls

Oval Shaped Canopy Panels: Oval, elliptical circular, and hexagonal shaped acoustic canopy ceiling panels are used to increase the elegance of your place and to prevent unwanted noise. Ceiling panels designed as high sound-absorbing panels to reduce unwanted noise are ideal products for volume acoustics. Canopy acoustic ceiling systems NRC acoustic value (sound absorption value) is in the range of 0.95-1.00. Baffle acoustic fabric-covered panels are fire-resistant, class B s2 d0 according to UNE - EN 13501-1: 2007 standard. The product is produced in standard 30 mm, 40 mm, and 50 mm thickness. Baffle ceiling systems are produced from coated or flat basotect sponge panels. Canopy acoustic panels are mounted by hanging on ceilings with steel stainless accessories, cable, and anchorage materials. (Canopy Acoustic Ceiling).

Canopy Panels Colors: Fabric-covered acoustic panels are unlimited in color, click here for the fabric chart.

Canopy Panels Thicknesses: Standard thickness of 20 mm, 40 mm, and 50 mm depending on the model. Complies with all technical specifications.

Canopy Dimensions: 60 × 60 cm, 60 × 120 cm, 60 × 180 cm, 60 × 240 cm, 60 × 270 cm, 60 × 300 cm, 120 × 120 cm, 120 × 180 cm, 120 × 240 cm, 120 × 270 cm, 120 x 300 cm

Canopy Usage Areas: Conference and seminar halls, factories, shopping malls, gymnasiums, meeting rooms & movie theaters, auditoriums, and studios.

Canopy Panel Options: Fabric covered acoustic panels can be produced combined in different geometric shapes and thicknesses.

Canopy Panels Non-flammability: Materials used are glass wool and fabric coverings in the form of b1 non-flammability.

Canopy Panels Density: 95 kg / m3 density acoustic glass wool or 30 - 60 Dns Acoustic sponge.

Implementatıons

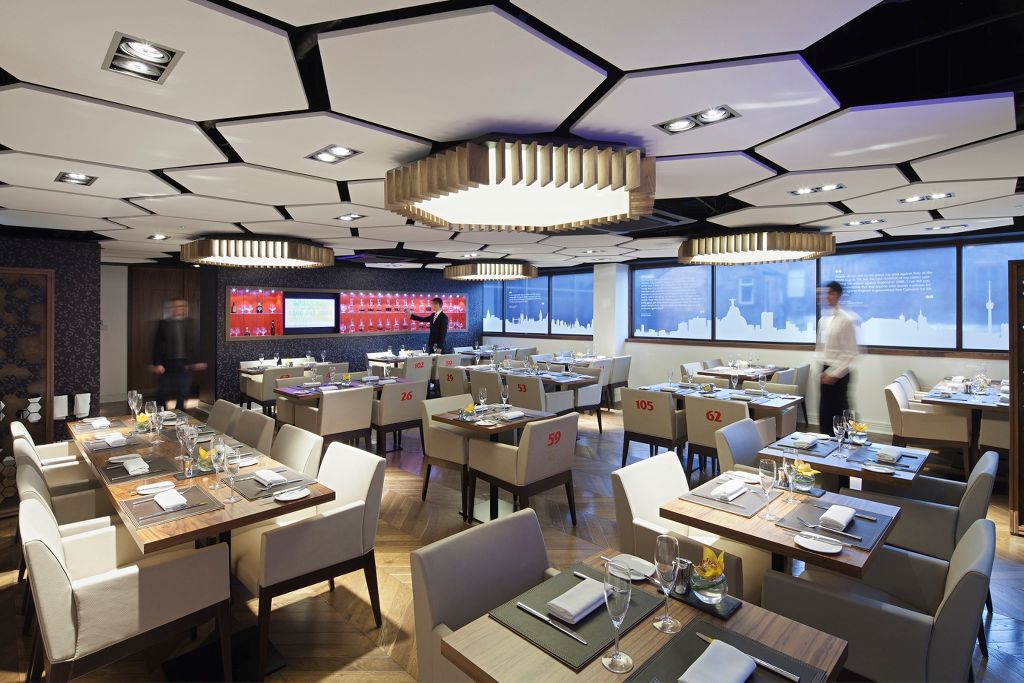

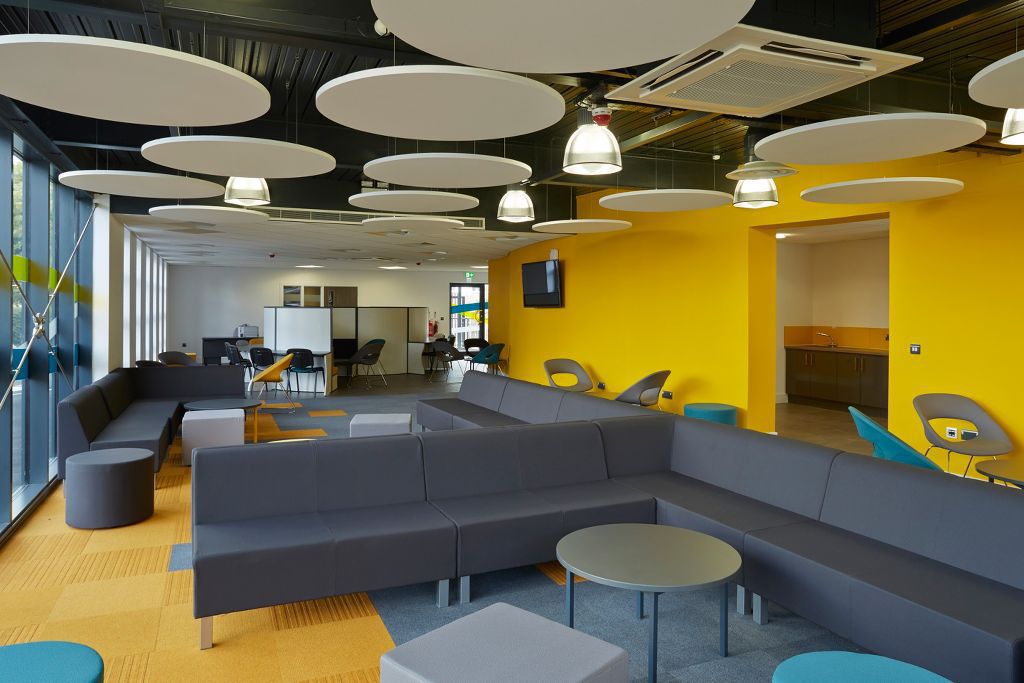

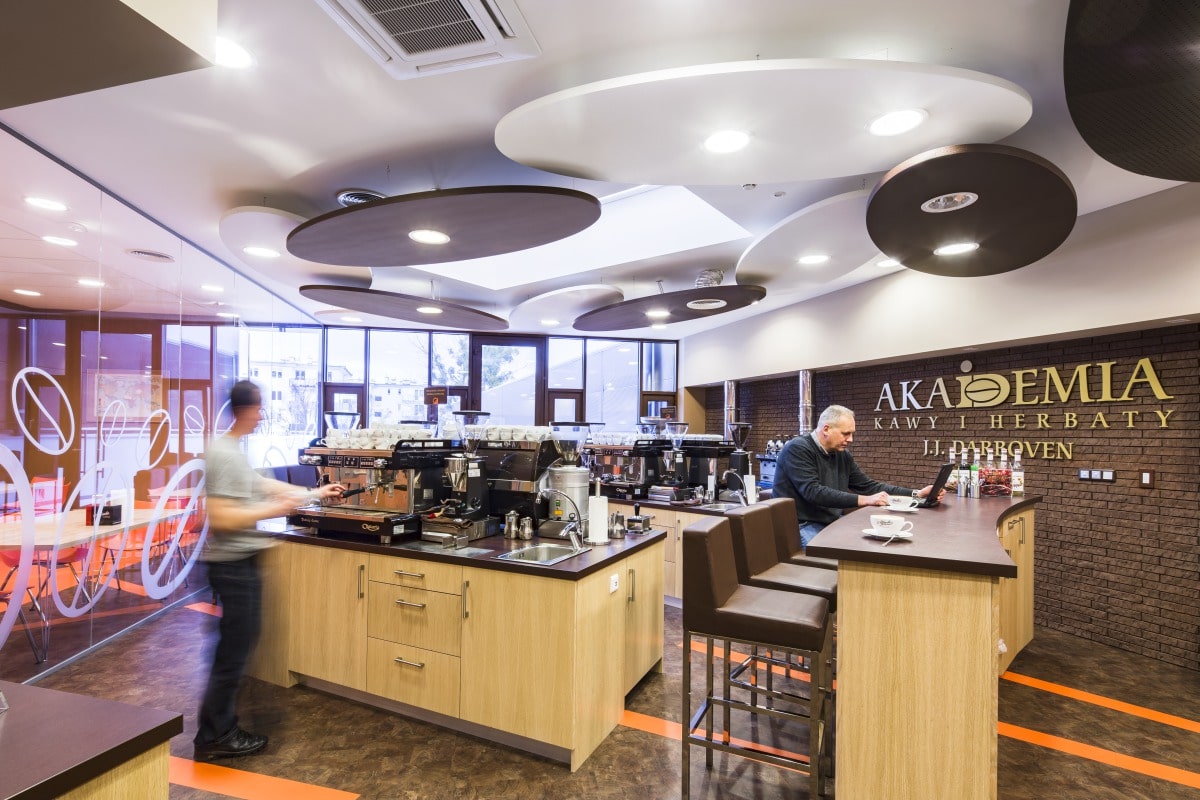

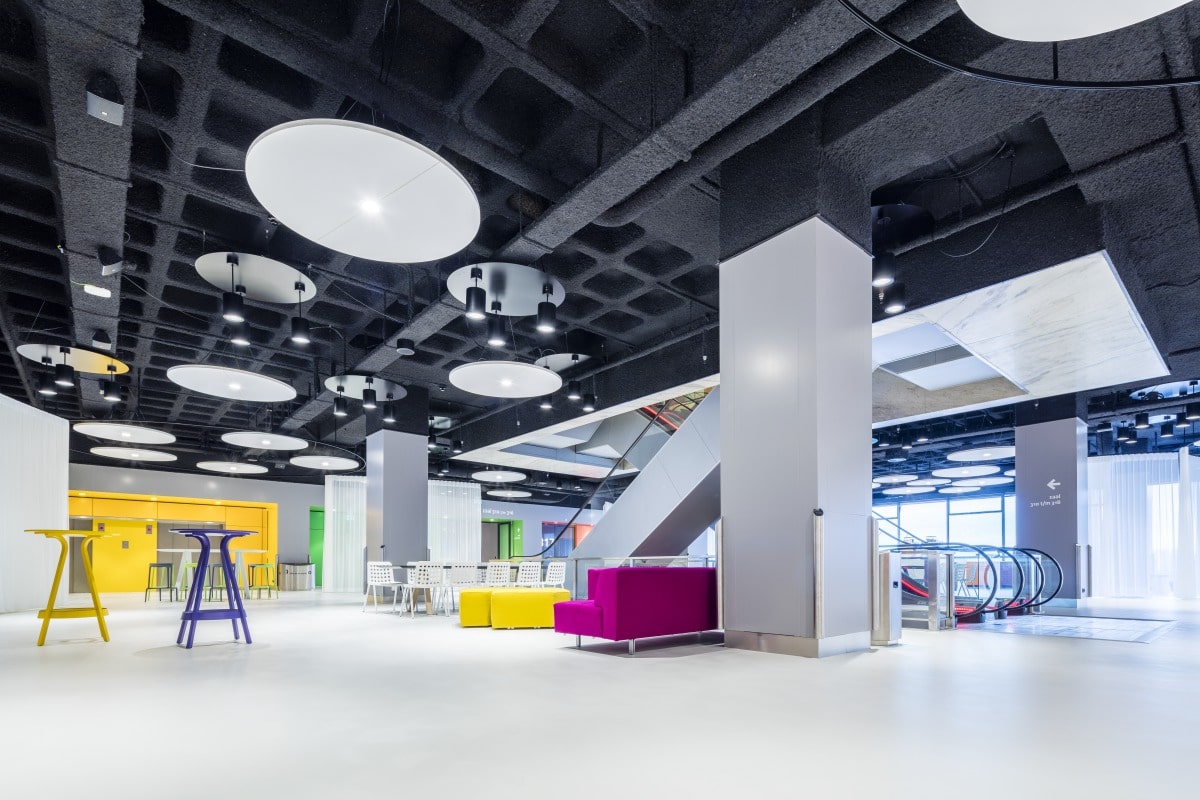

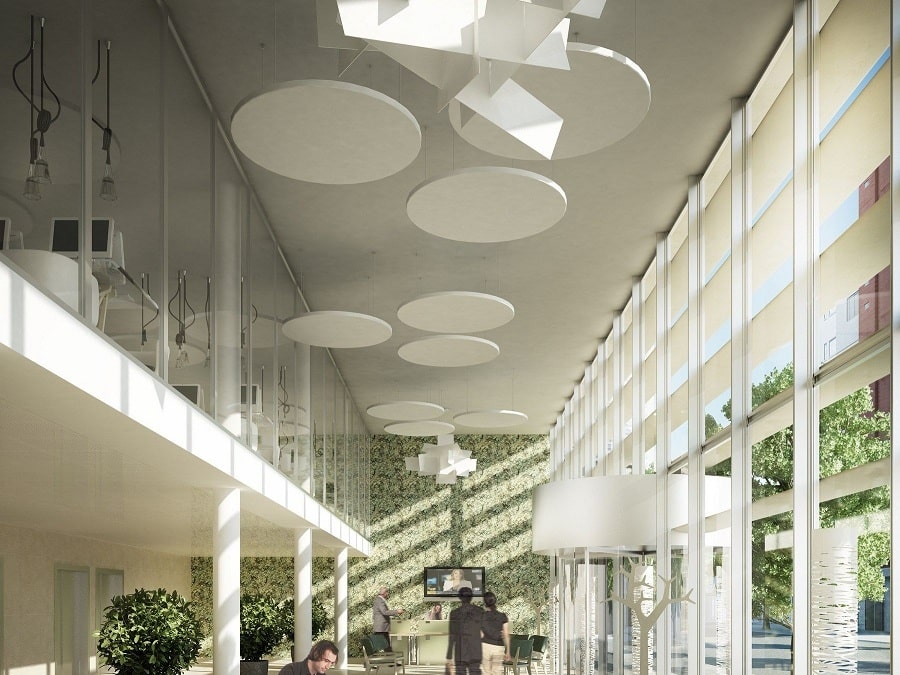

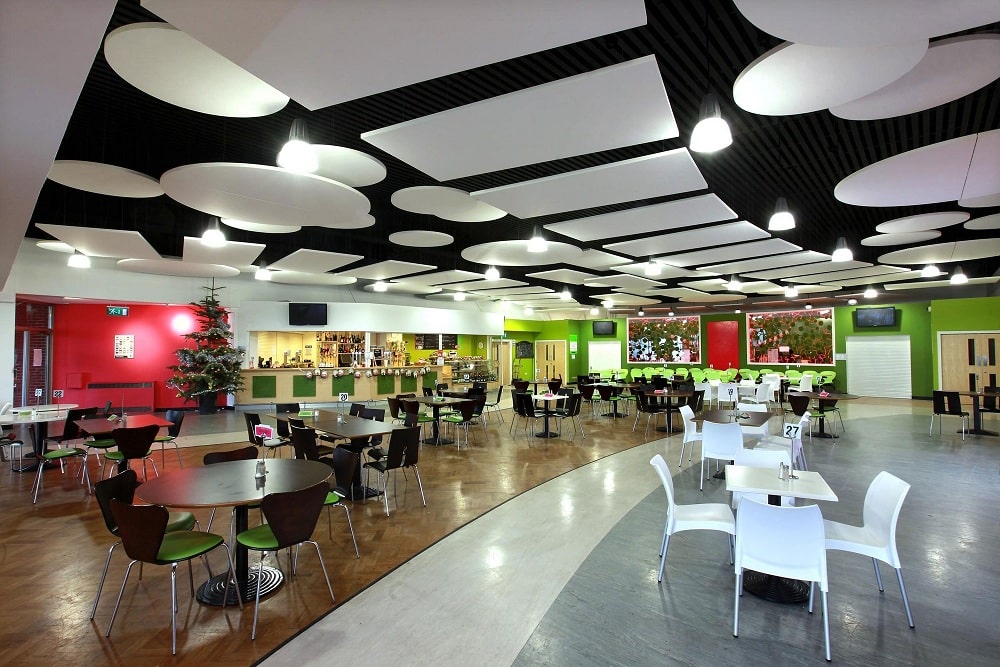

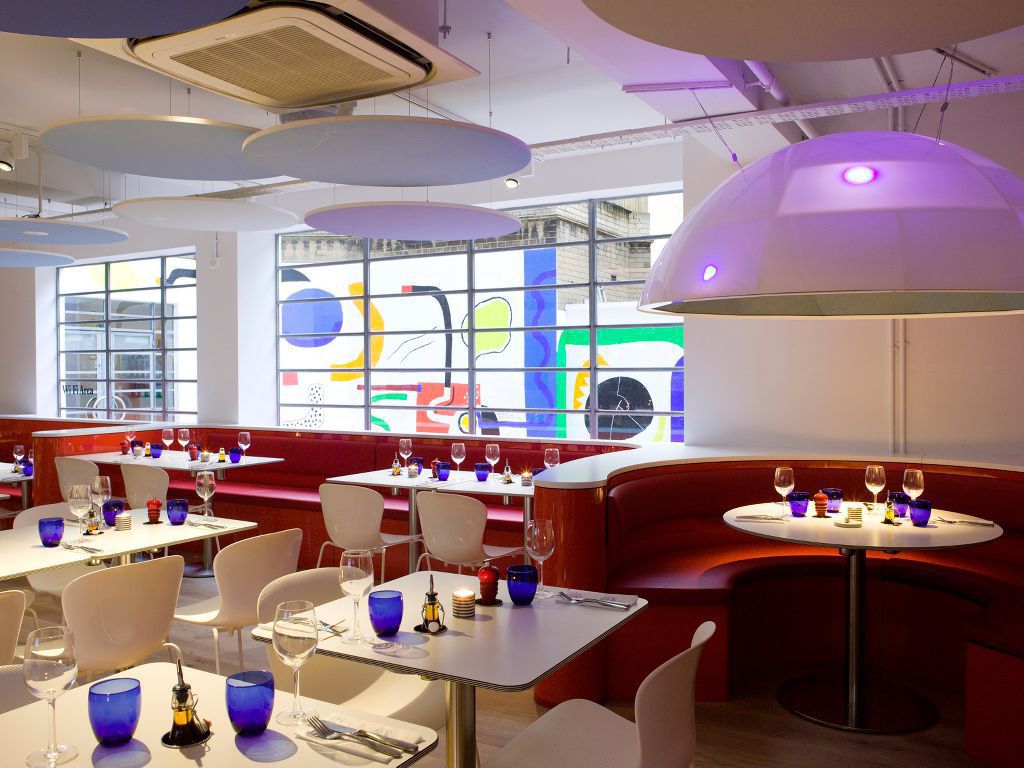

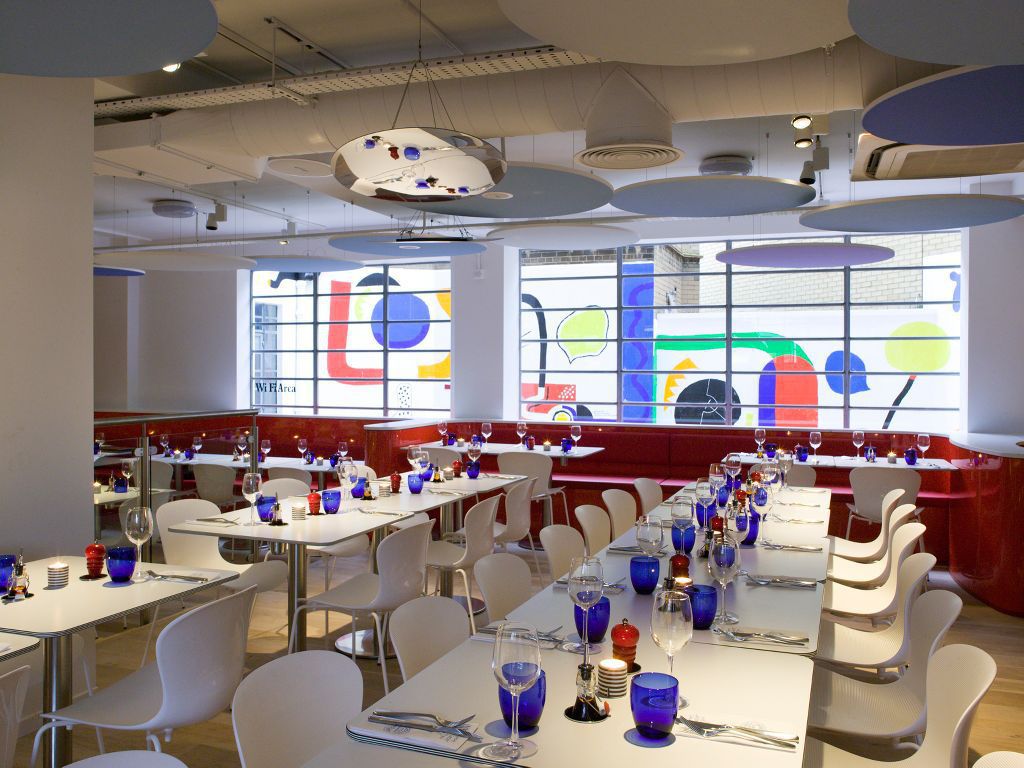

Canopy Ceılıng Systems

Product Profıles

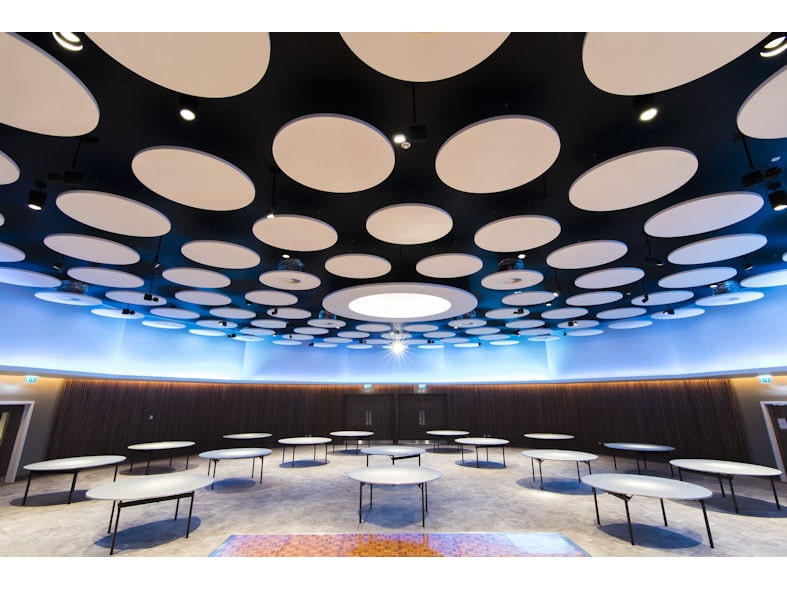

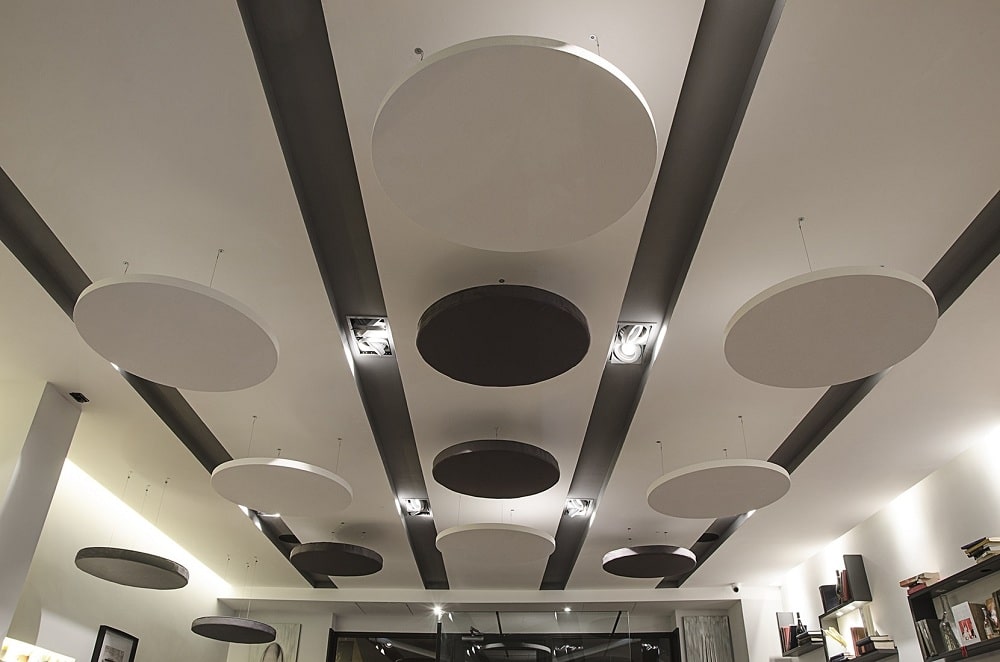

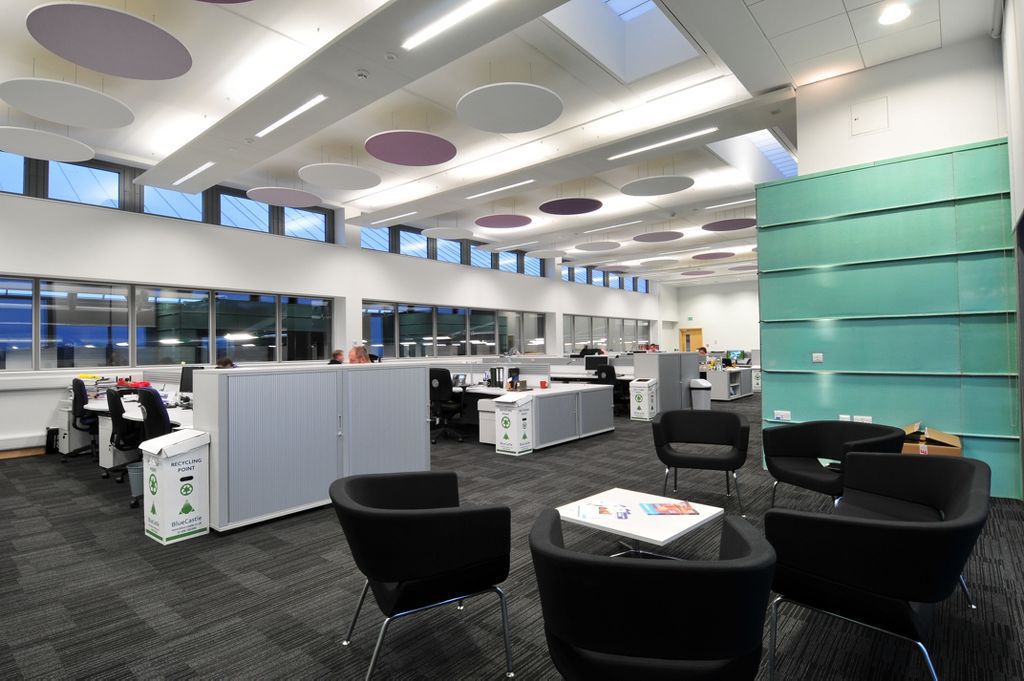

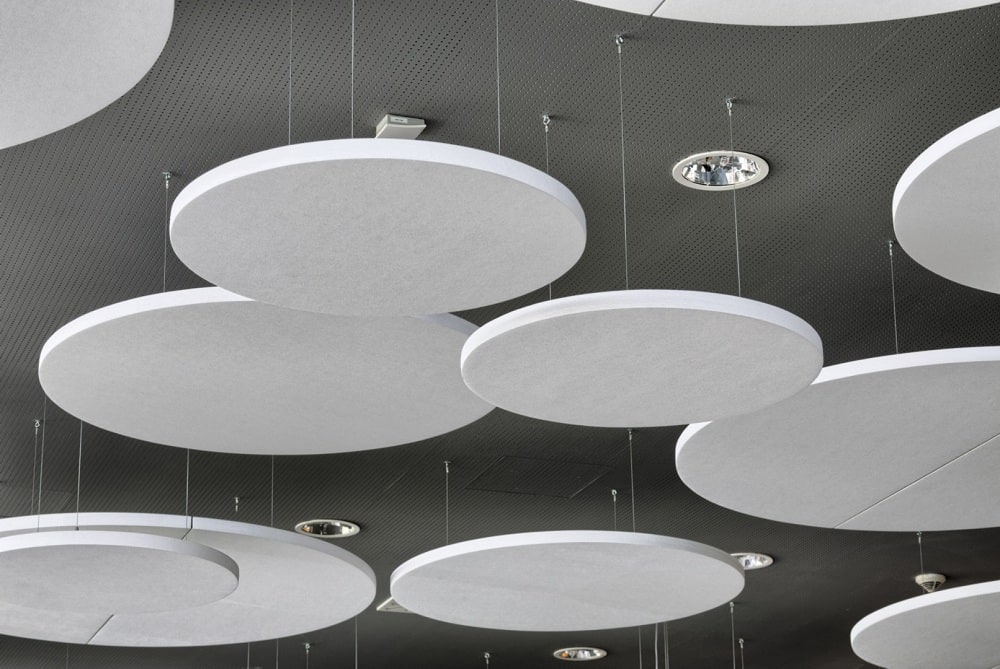

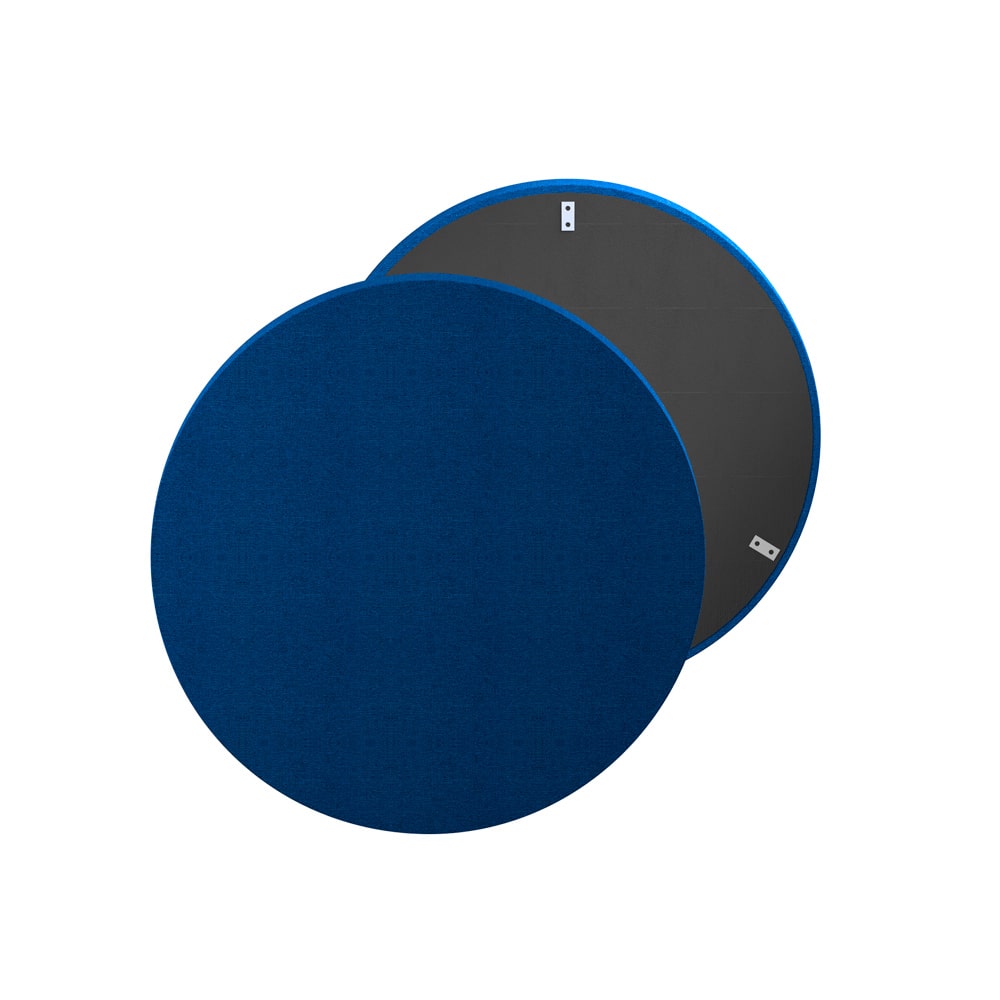

Oval Canopıes

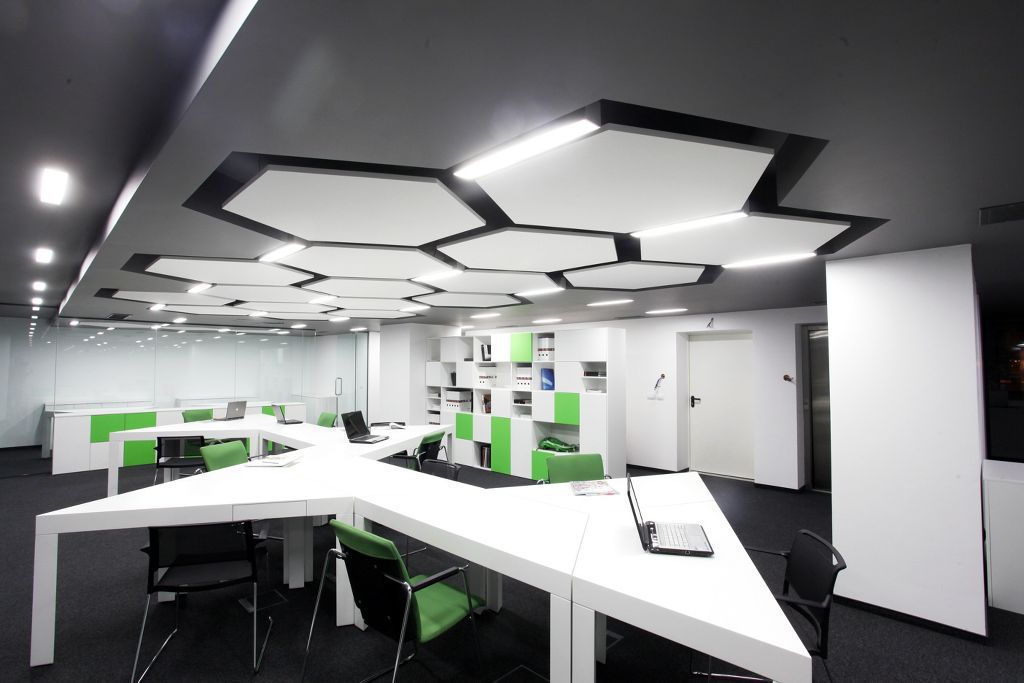

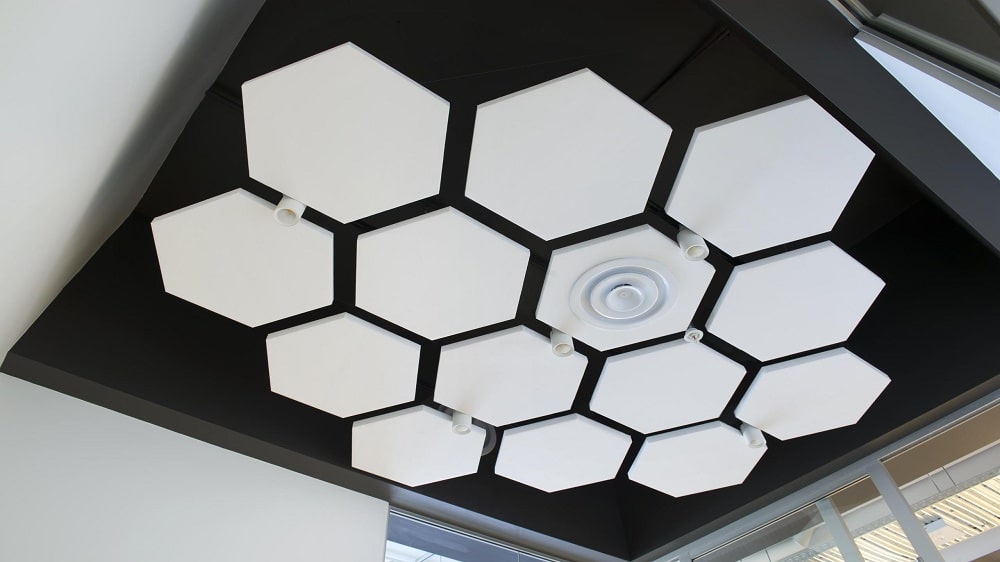

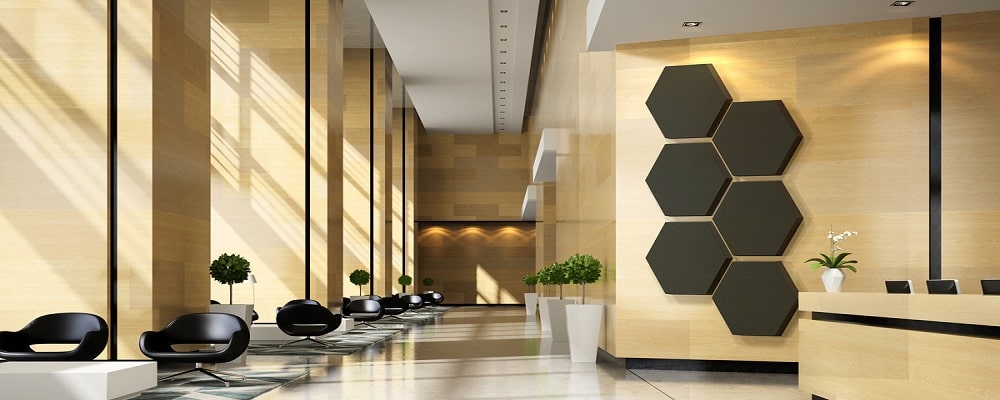

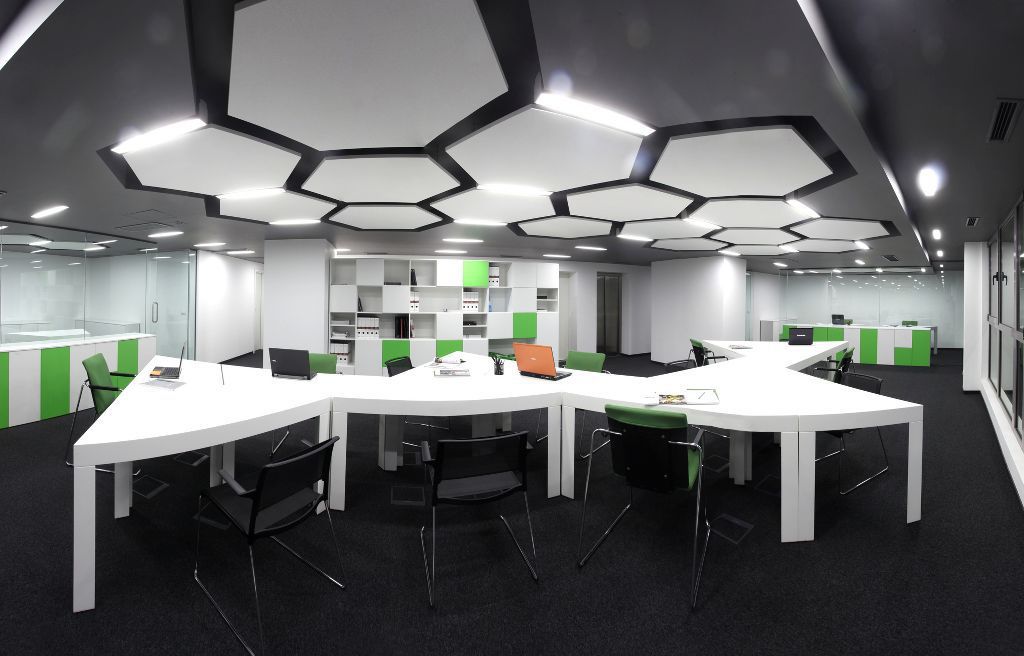

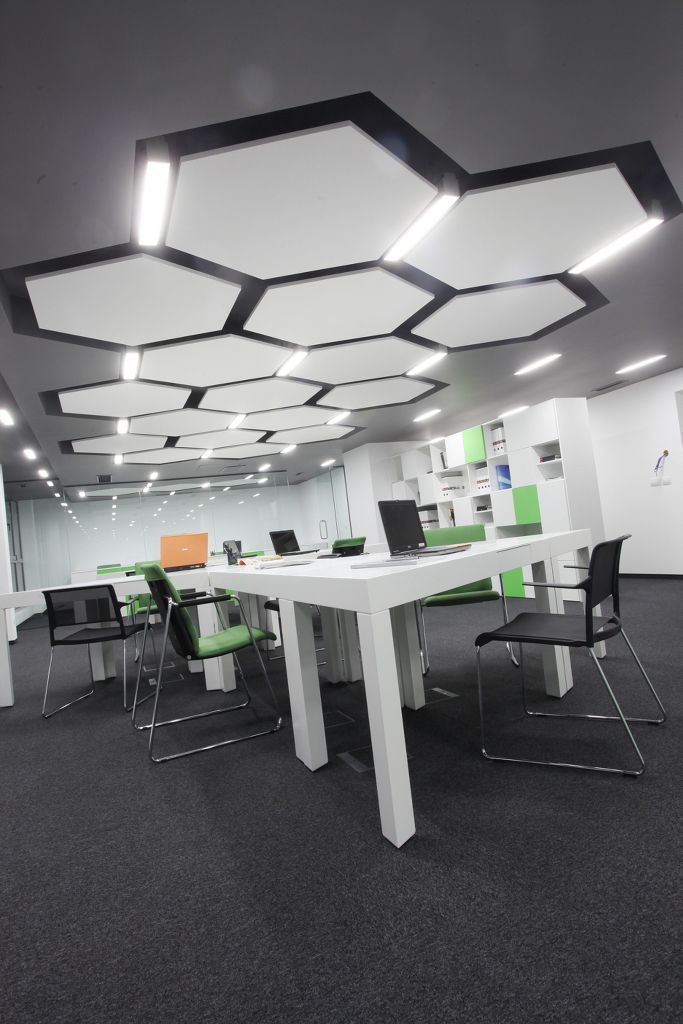

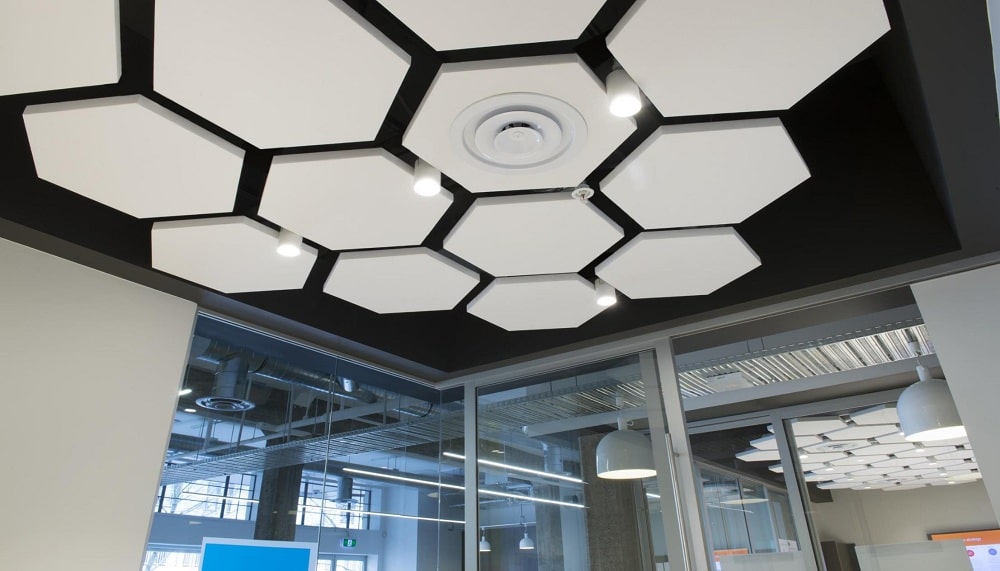

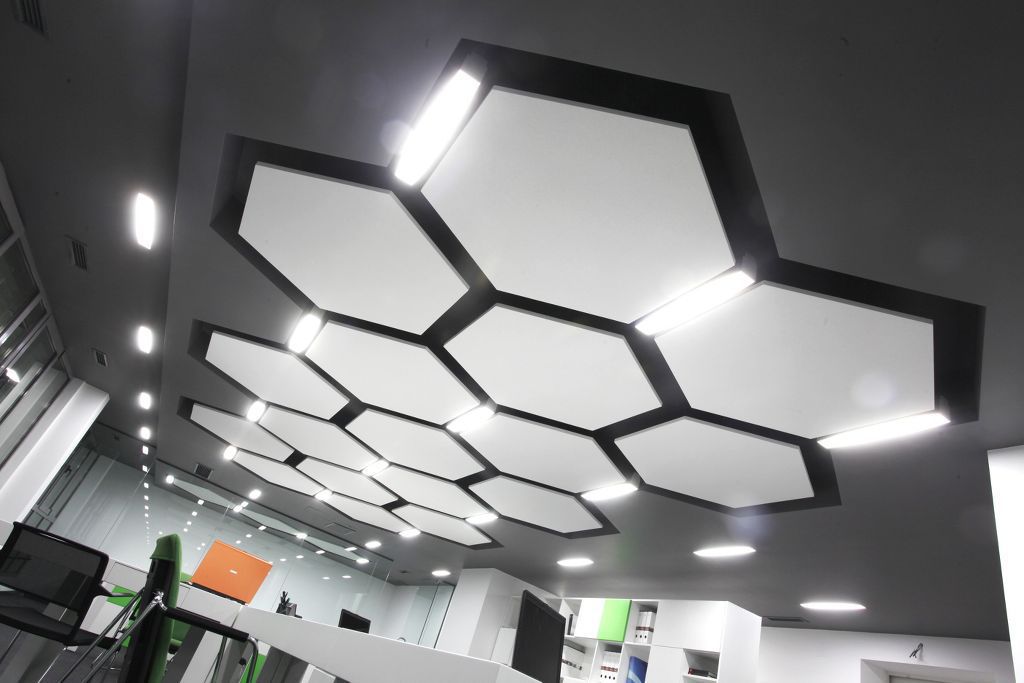

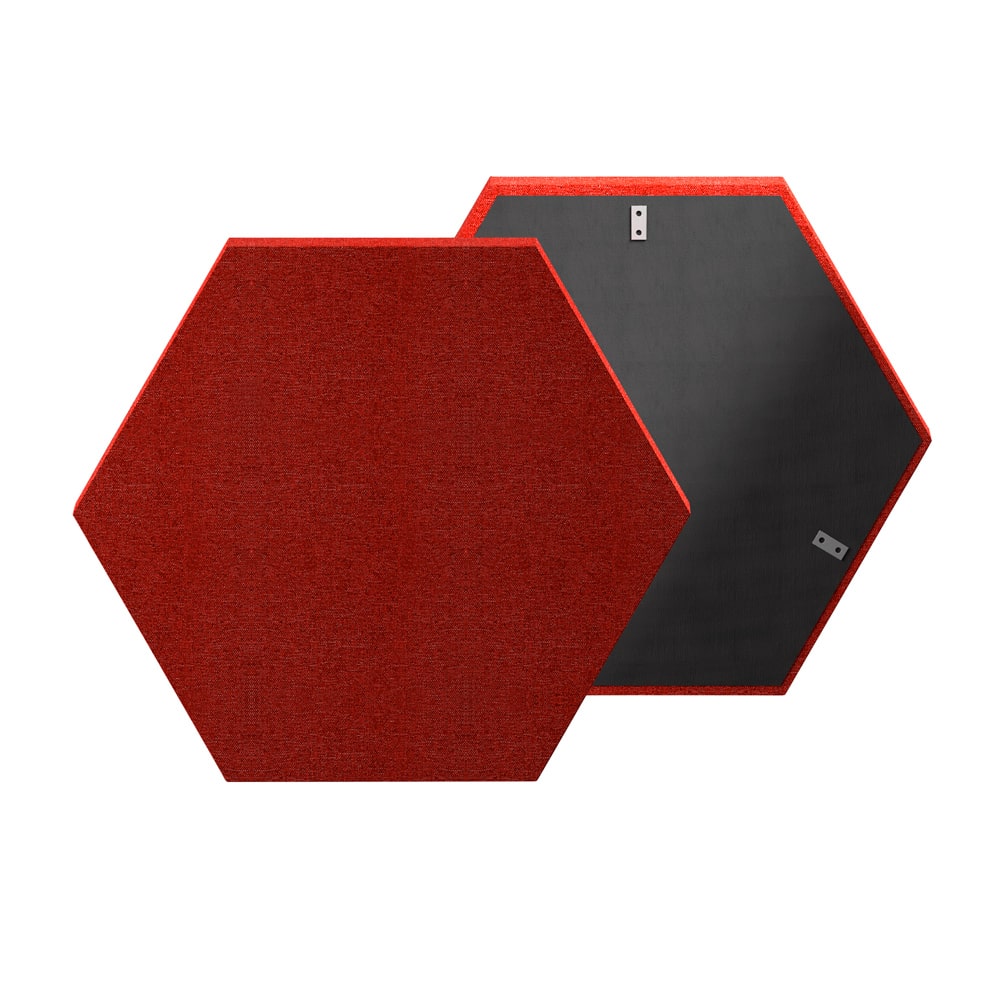

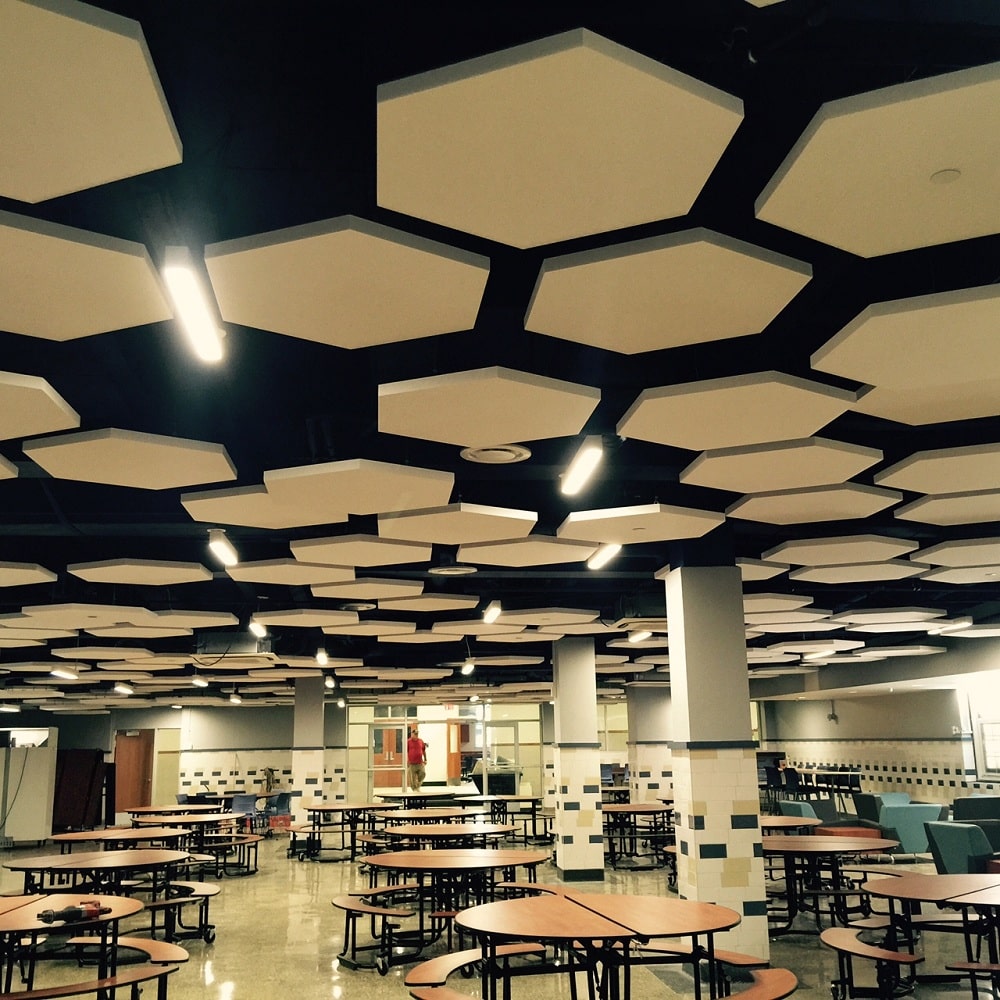

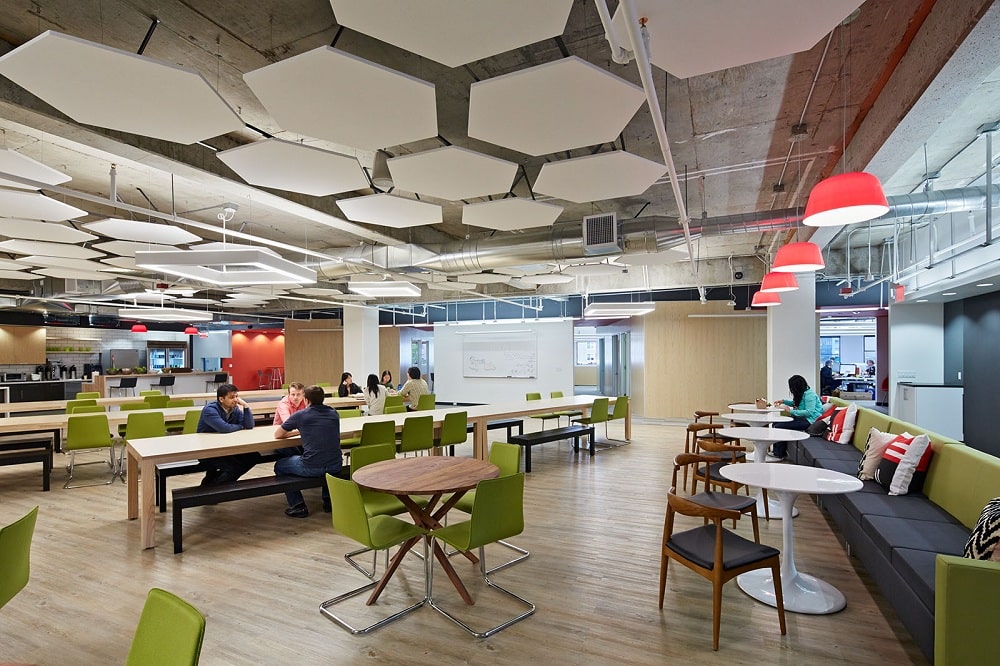

Hexagonal Canopıes

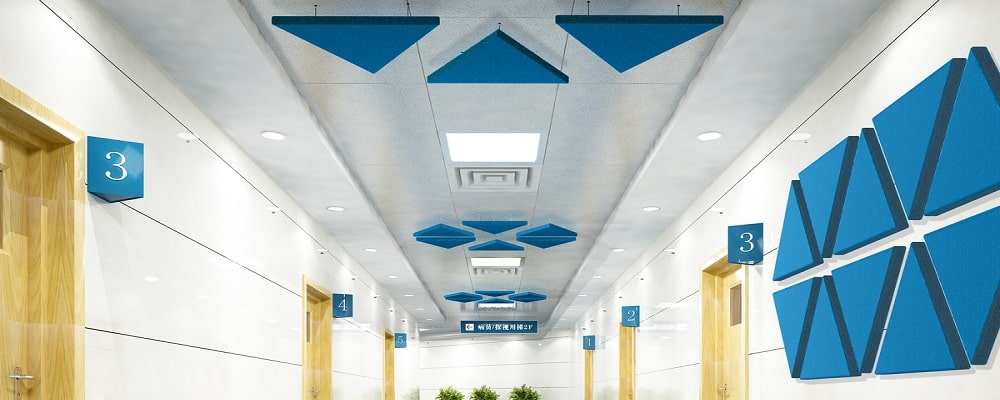

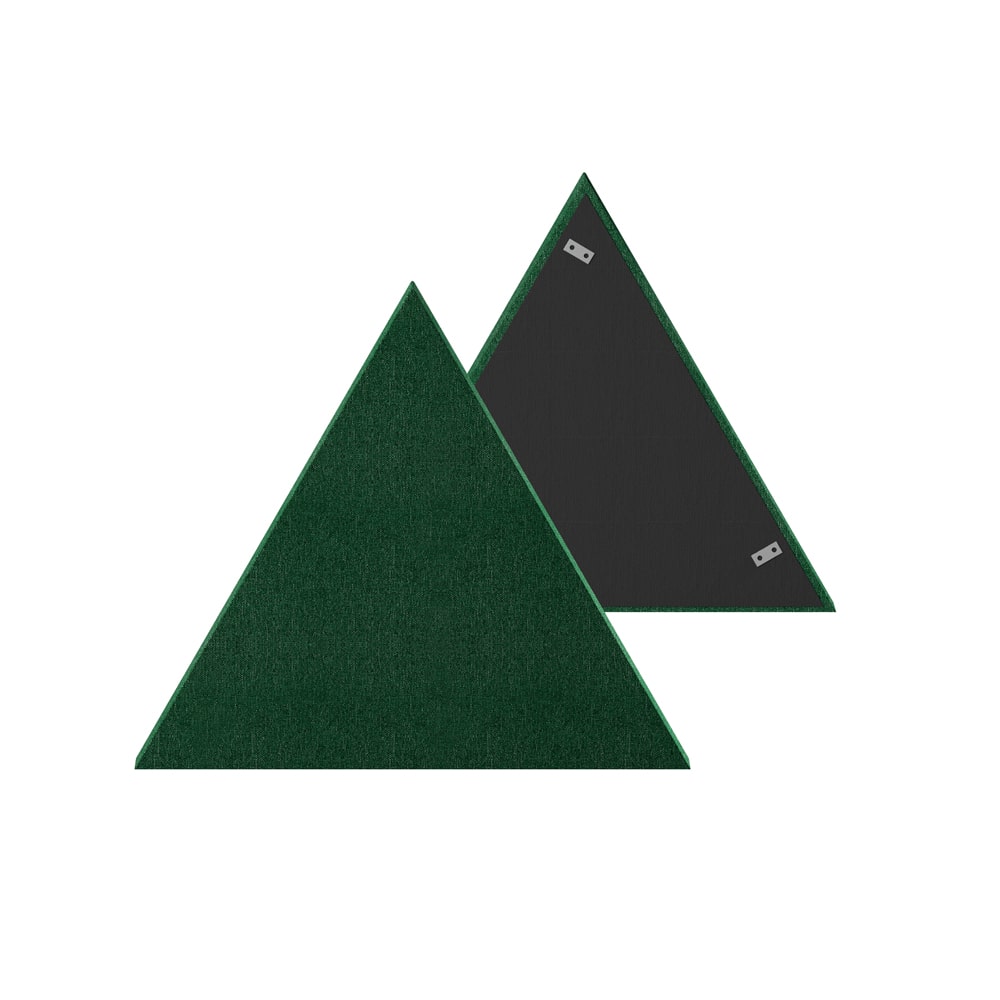

Trıangular Canopıes

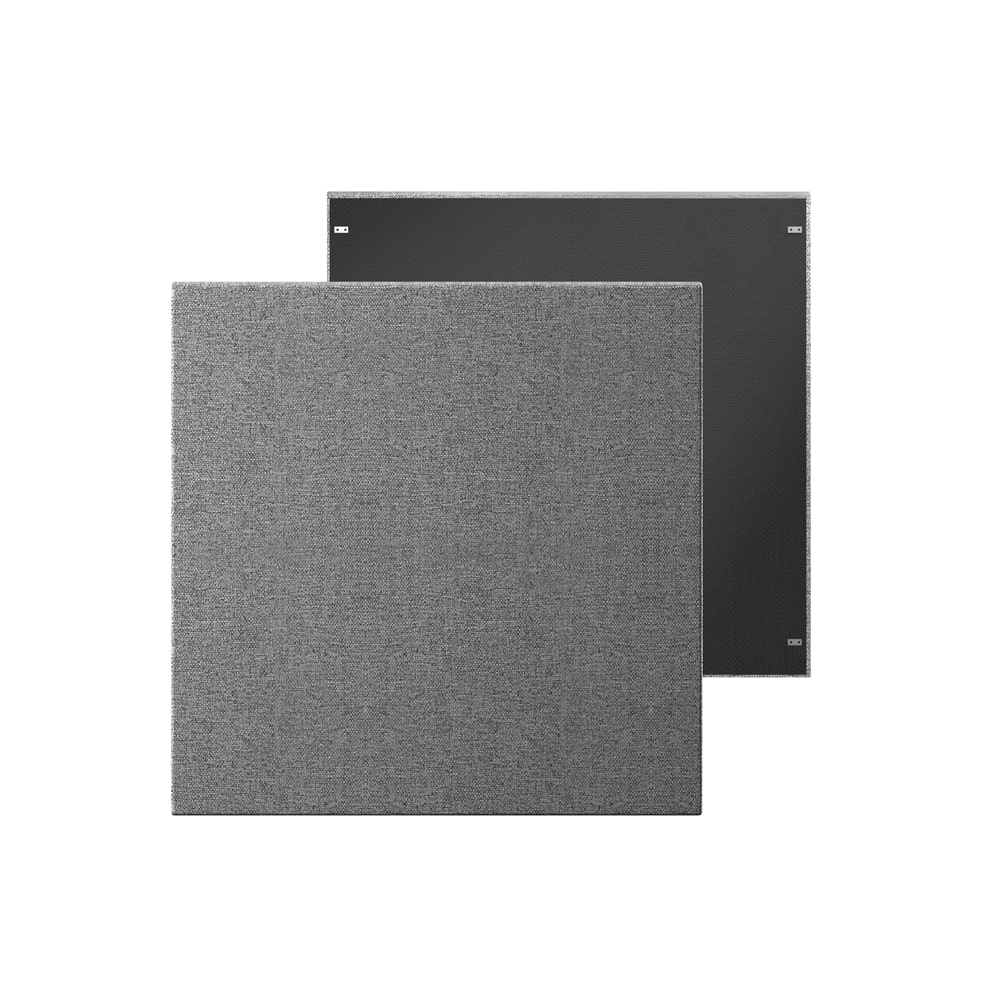

Square Canopıes

Rectangular Canopy

Oval Canopıes

Hexagonal Canopıes

Trıangular Canopıes

Square Canopıes

Rectangular Canopy

Product Securıty

Sound Absorptıon

Product Packages

Oval ceiling panels are in 60 × 60 cm, 60 × 120 cm, 60 × 180 cm, 60 × 240 cm, 60 × 270 cm, 60 × 300 cm, 120 × 120 cm, 120 × 180 cm, 120 × 240 cm, 120 × 270 cm, 120 x 300 cm plates, and there are 10 plates of products in different quantities in their packages. It is sold by retail and wholesale as 30 mm, 40 mm, and 50 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.

Range of Products

Sound Absorbent Cubes

Oval Ceılıng Panels

Acoustıc Floatıng Ceılıngs

Canopy Acoustıc Panels

Acoustıc Seperator Panels

Acoustıc Canopy Panels

İncelenme 164

Acoustic Separator Size	Height-Thickness	Absorption Factor Suitable for DİN52212
mm	mm	125 Hz	250 Hz	500 hz	1000 Hz	2000 Hz	4000 Hz
1000x1000	30 (30/10)	0,10	0,21	0,54	0,90	0,98	0,93
1000x1000	40 (40/10)	0,11	0,32	0,63	0,90	0,91	0,95
1000x1000	50 (50/10)	0,16	0,54	1,01	0,90	1,01	1.02
