Product Descrıptıon

Acoustic Floating Ceiling: Rectangular suspended ceiling panels made by filling sound-absorbing acoustic panels with absorbent insulation material and covered with acoustic fabrics. Acoustic canopy ceiling systems are used to regulate interference sounds and control noise in places with intense noise, such as offices, workplaces, shopping centers, and gymnasiums, meeting rooms, libraries, call centers, factories.

Acoustıc Floatıng Ceılıng

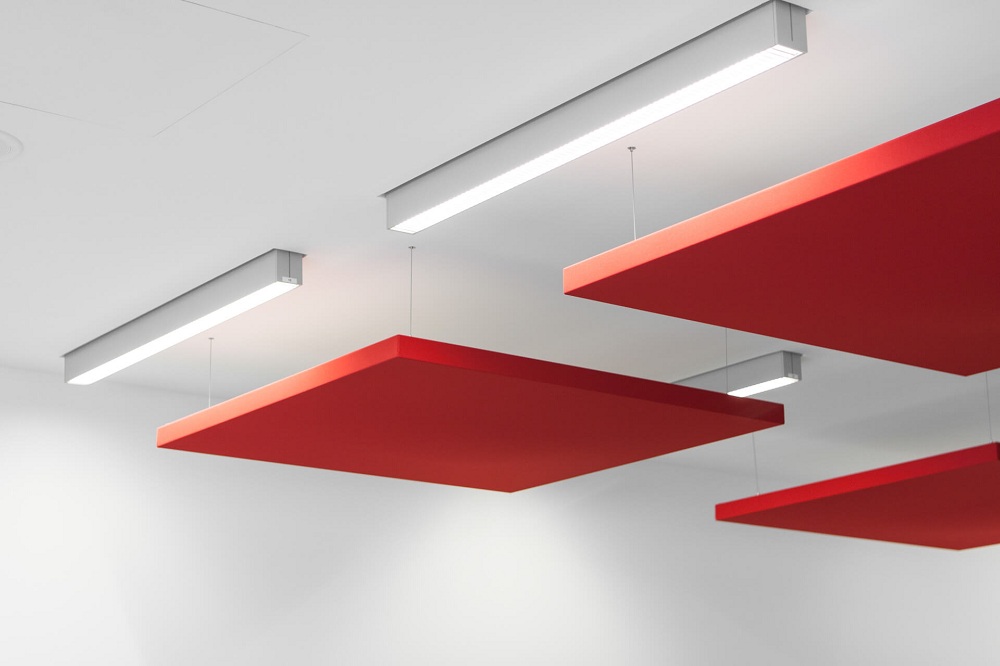

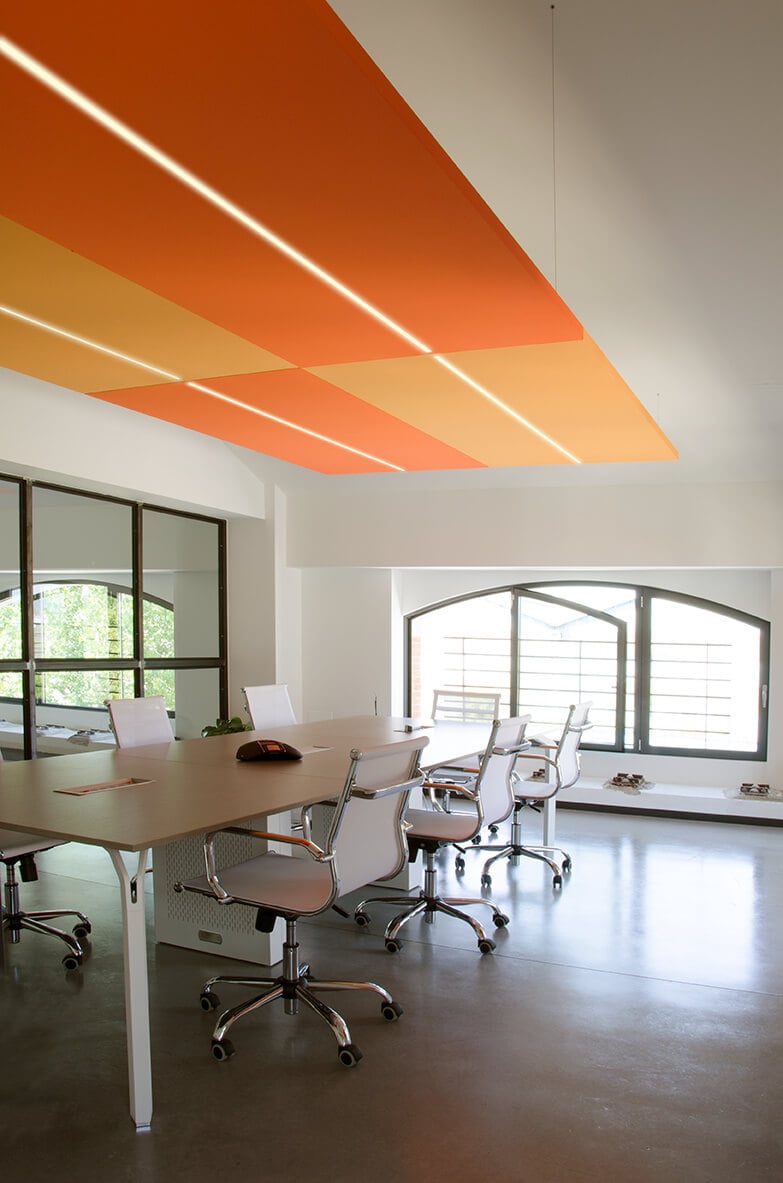

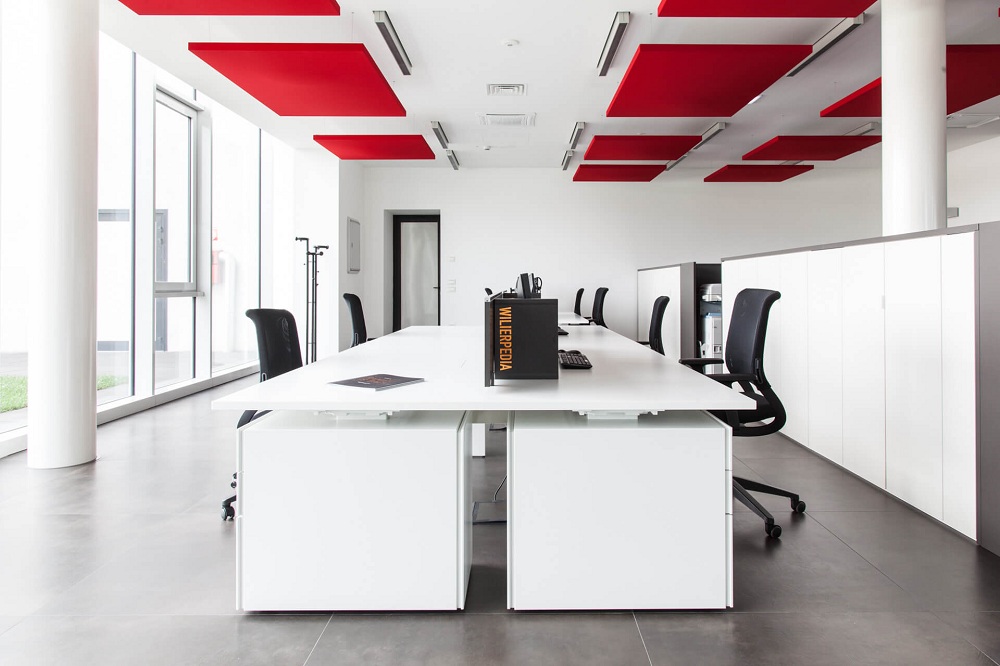

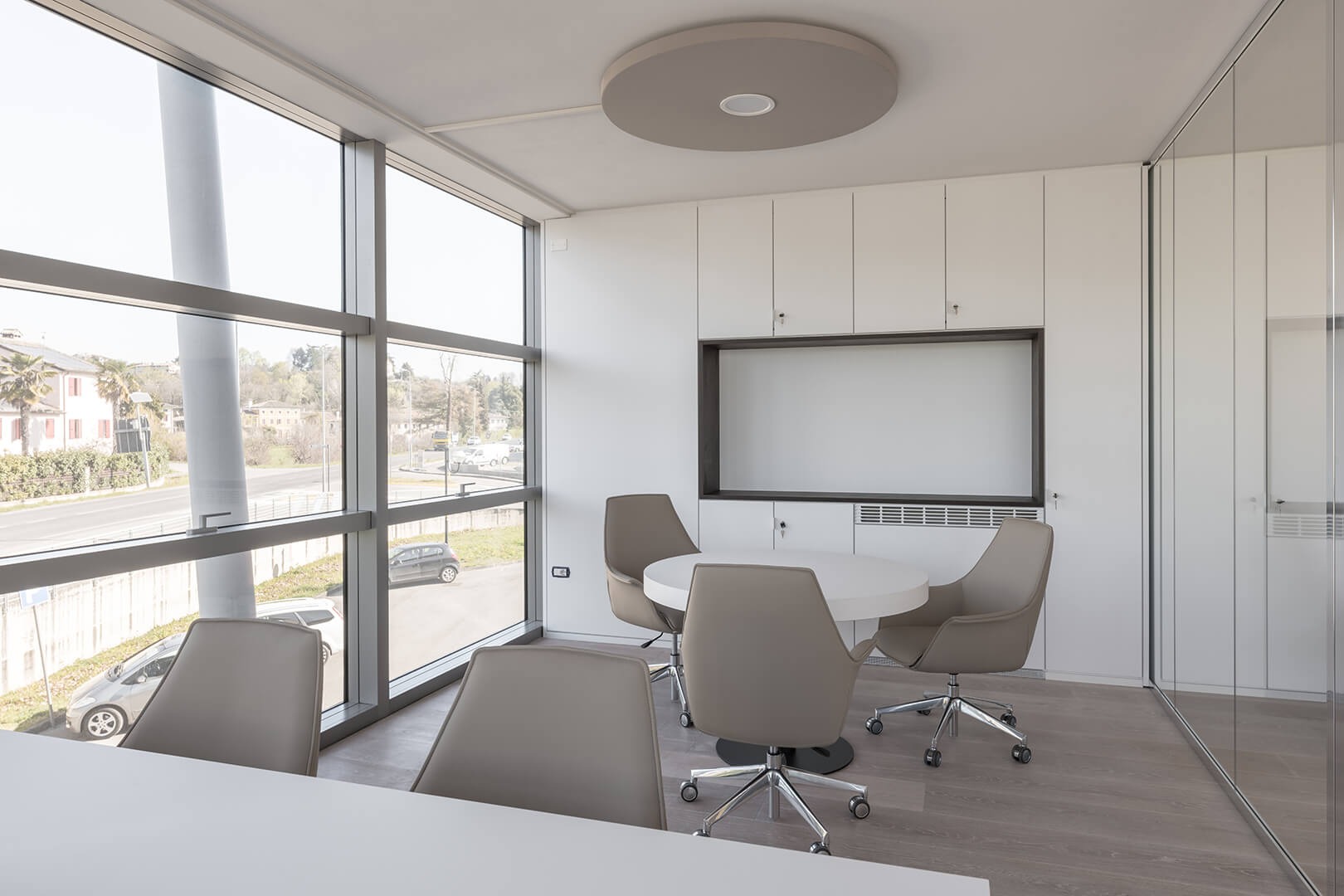

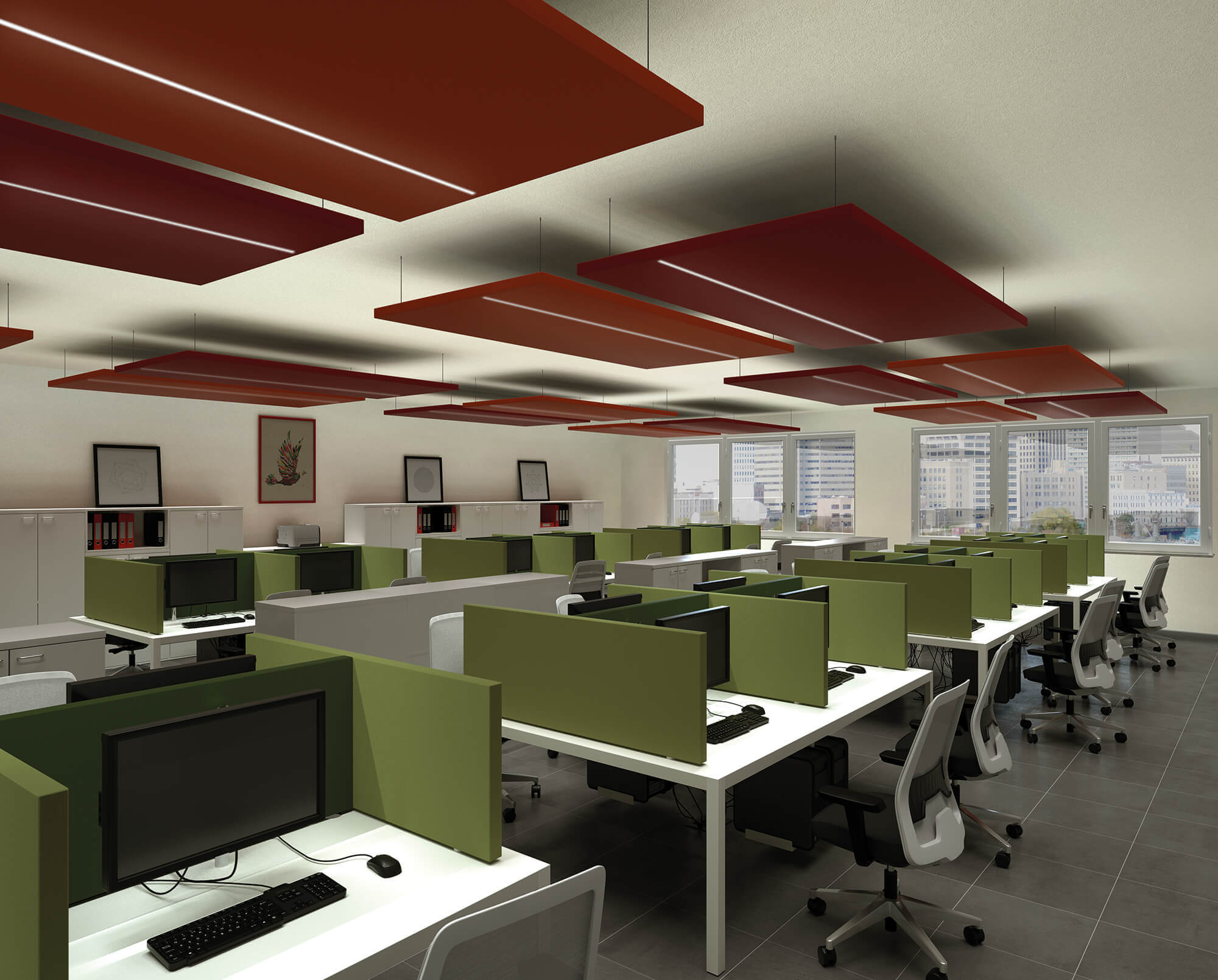

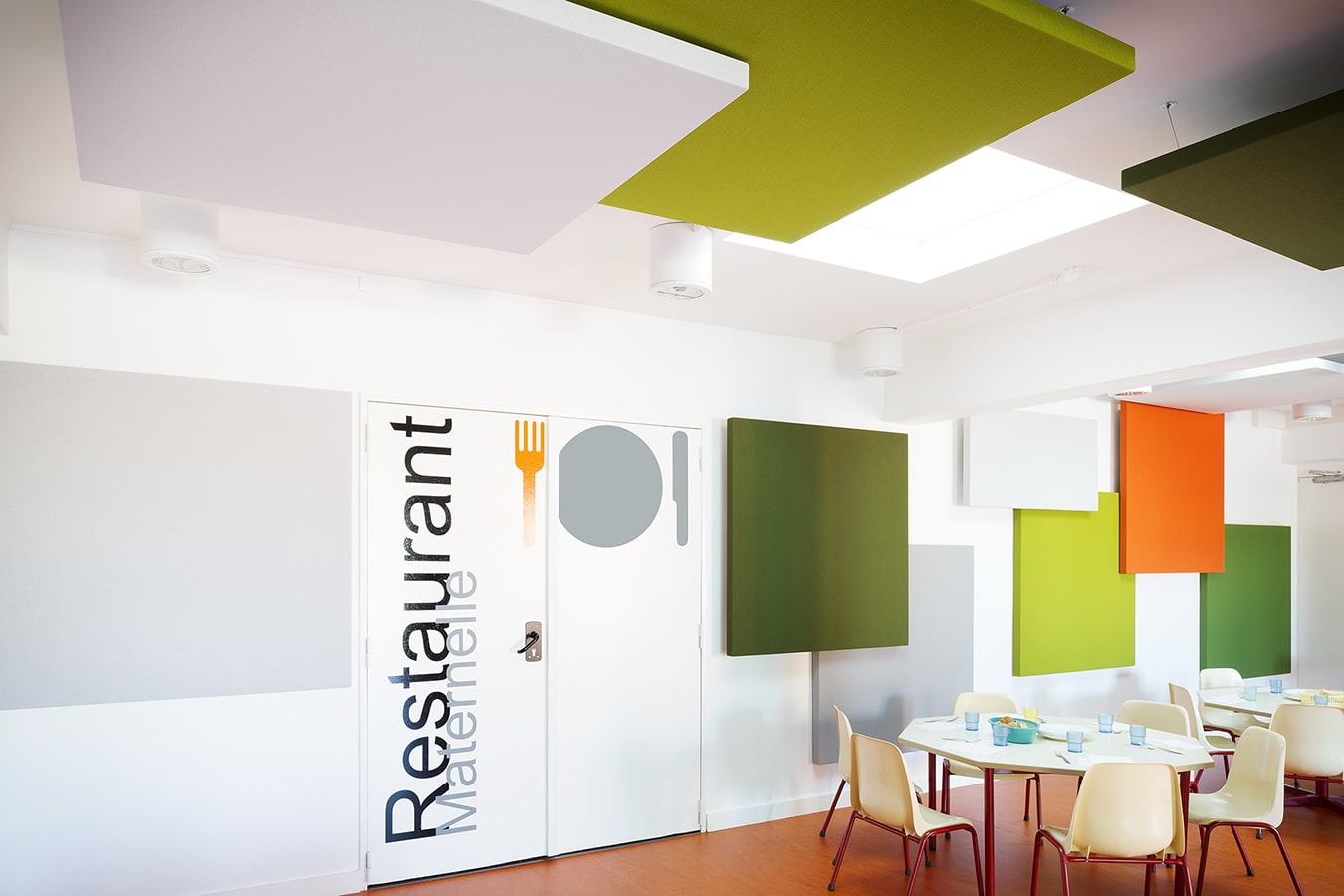

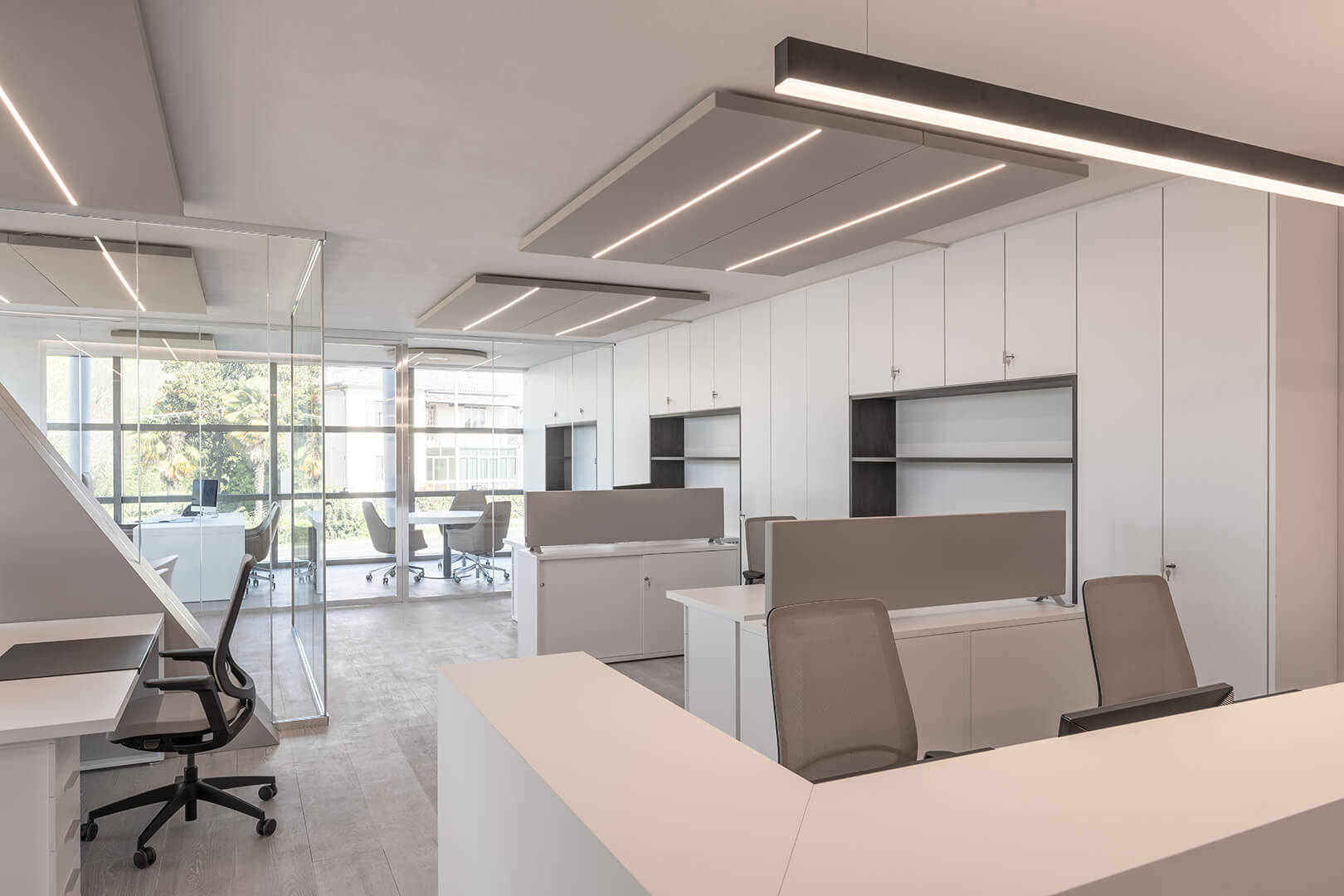

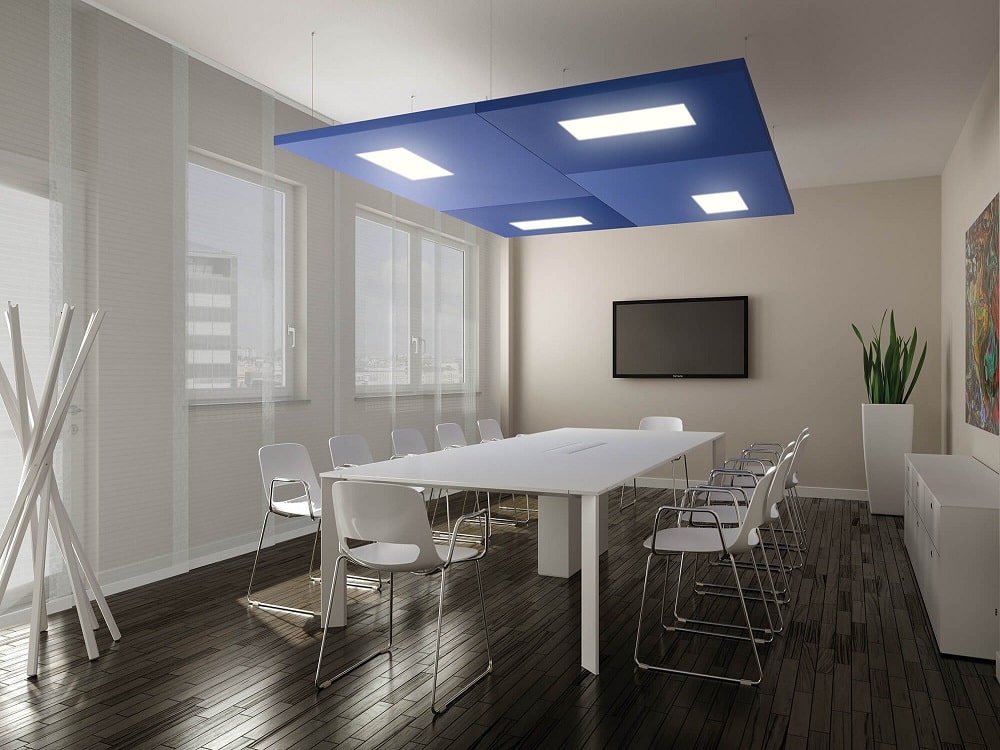

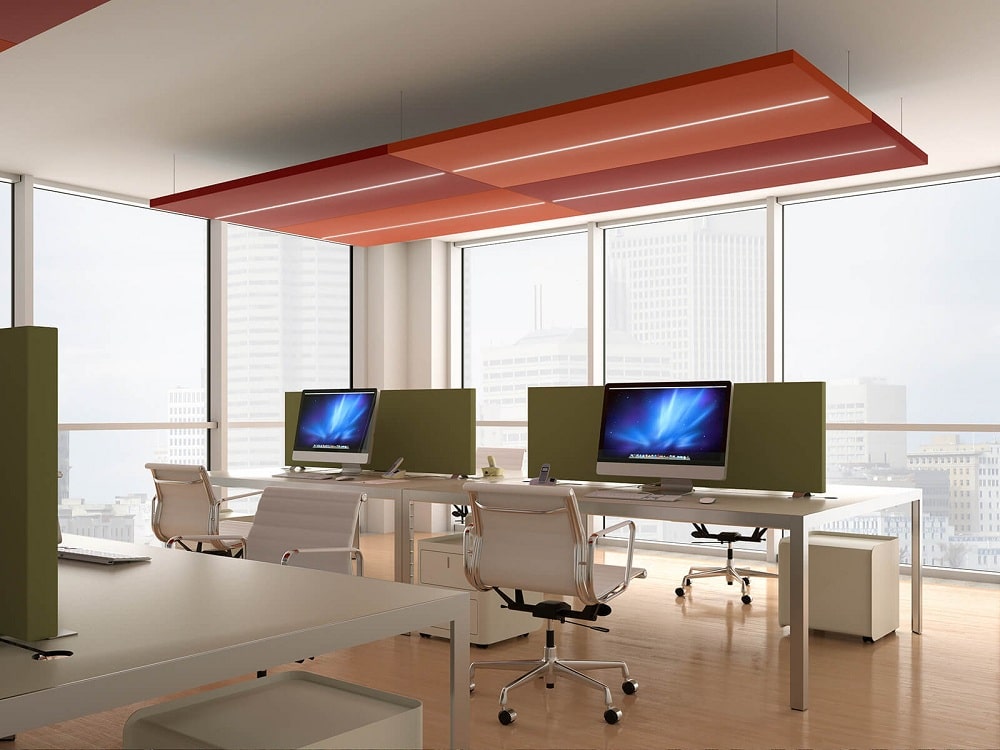

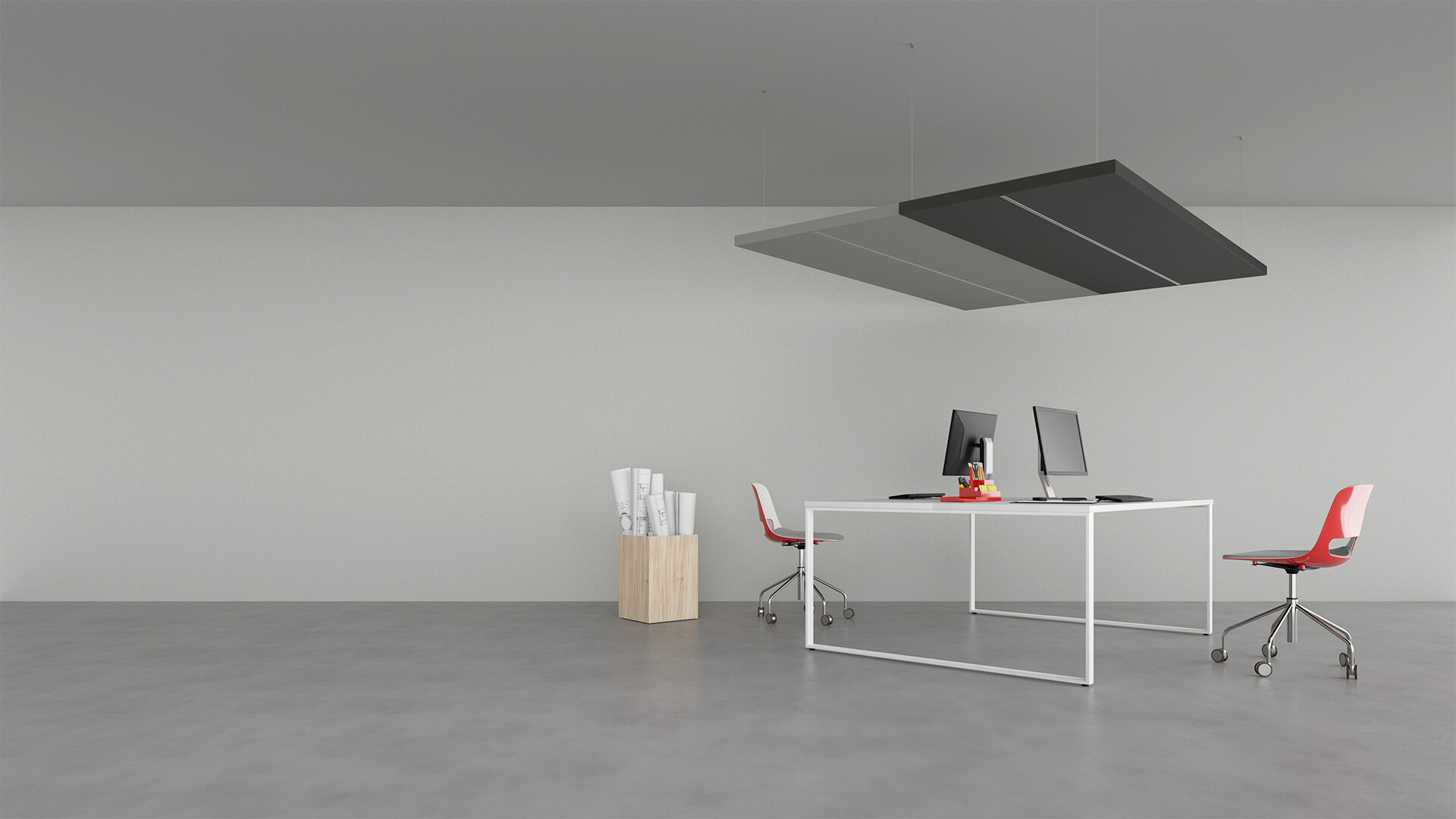

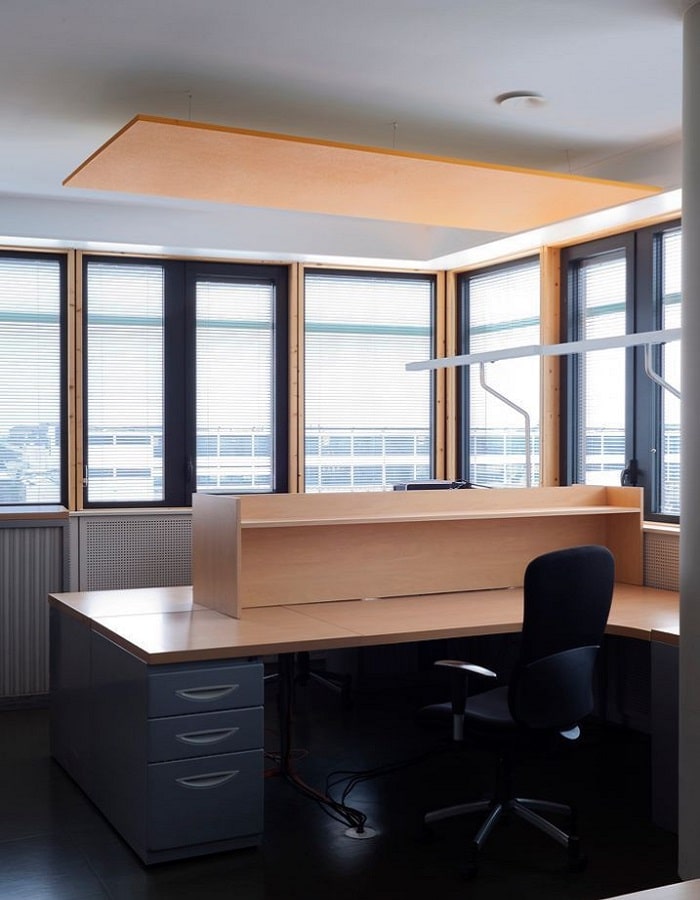

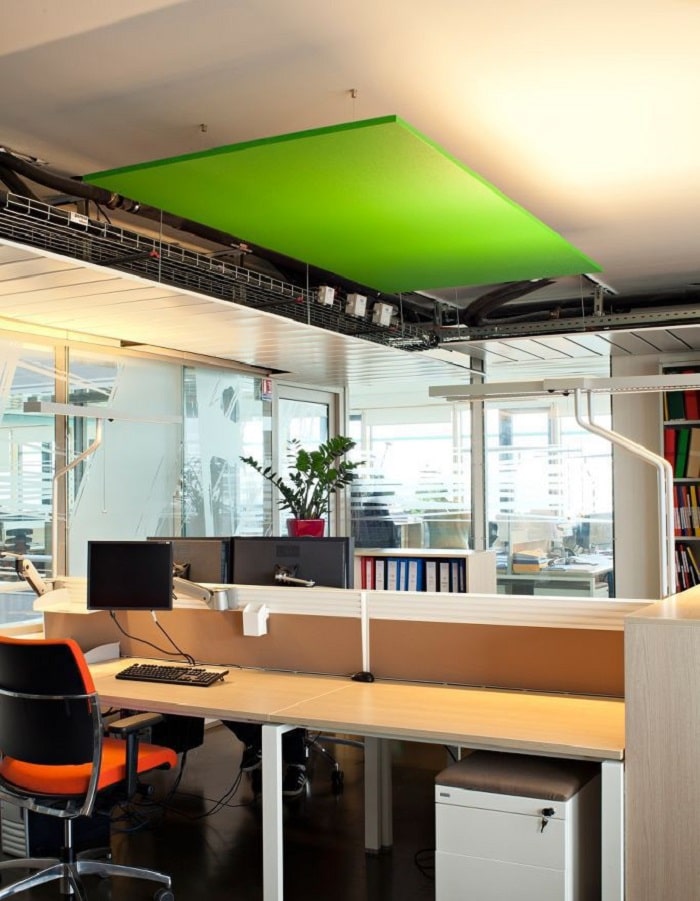

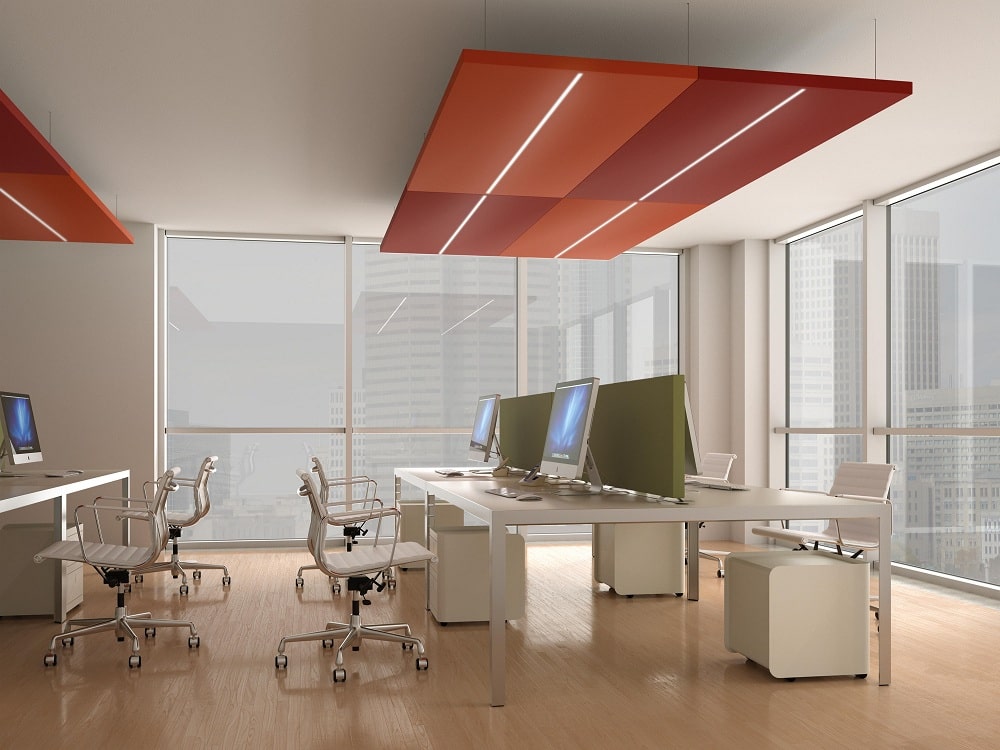

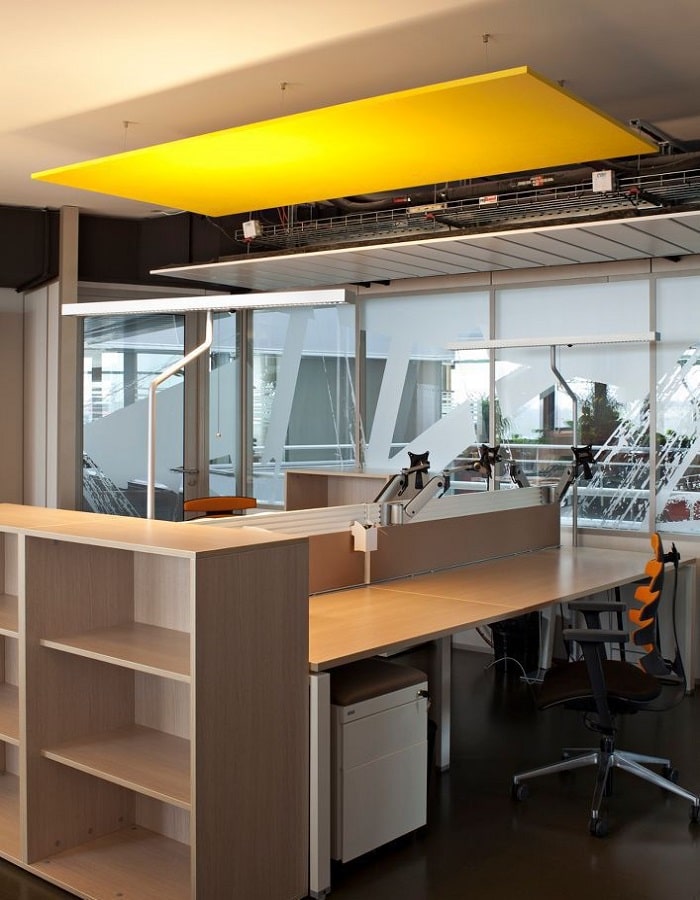

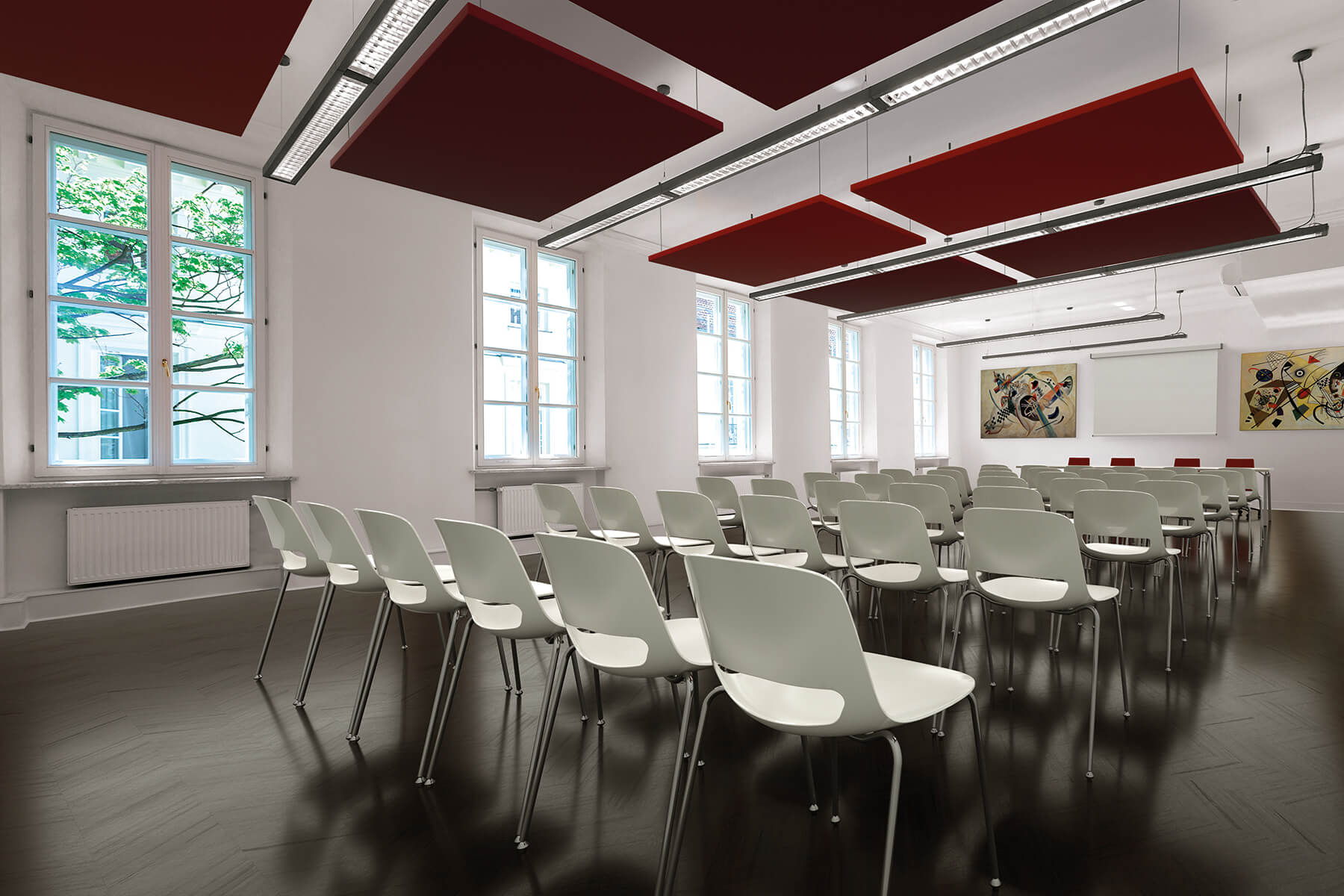

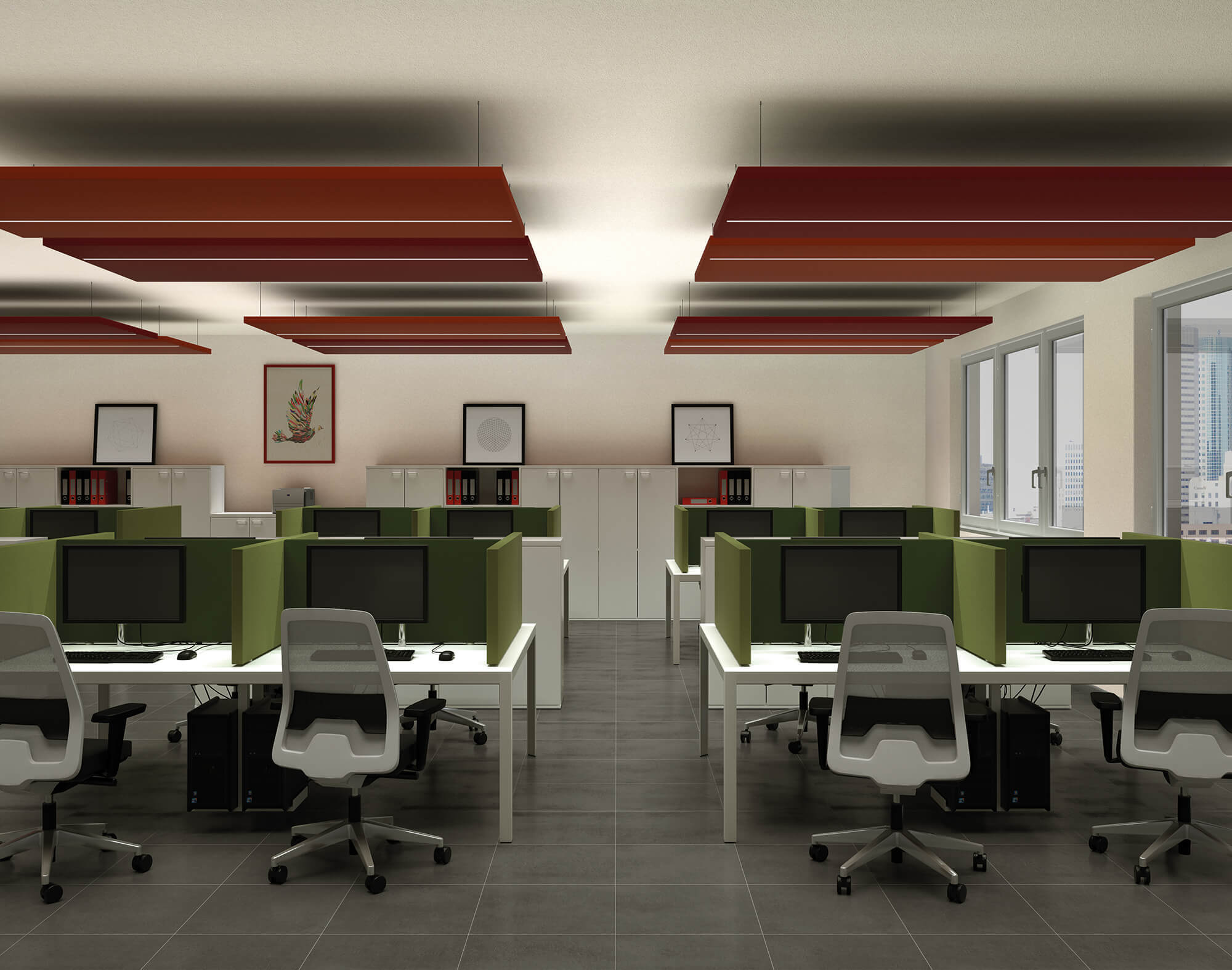

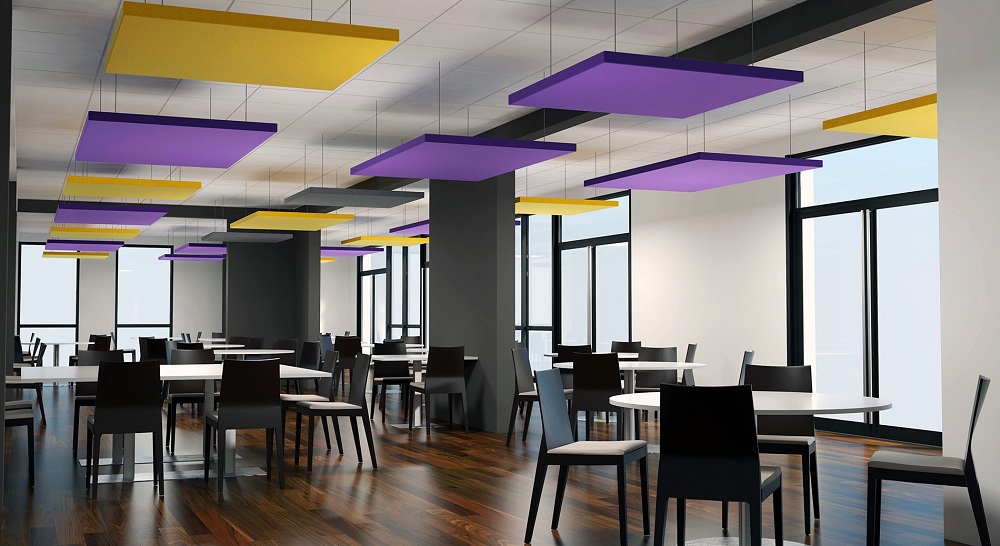

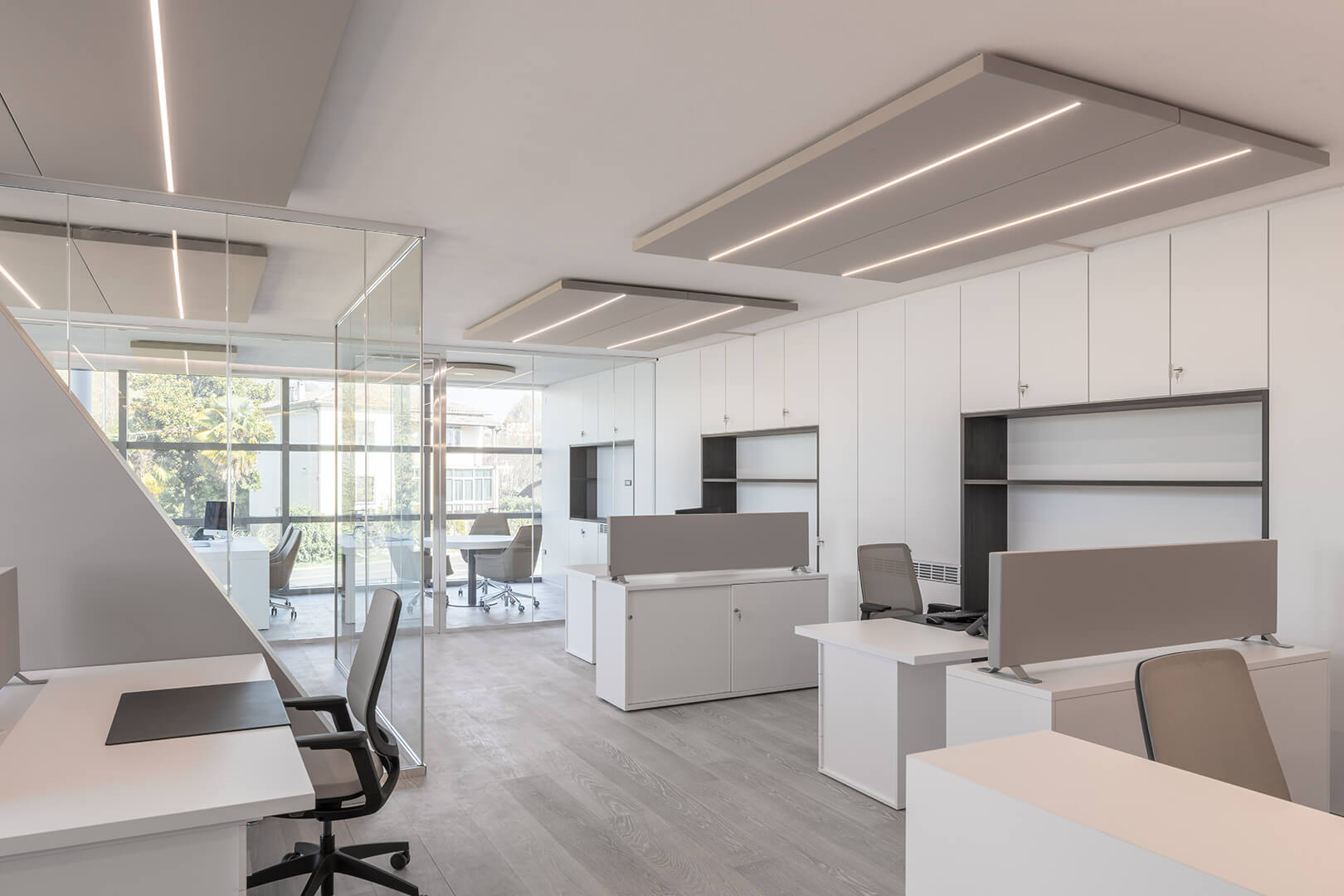

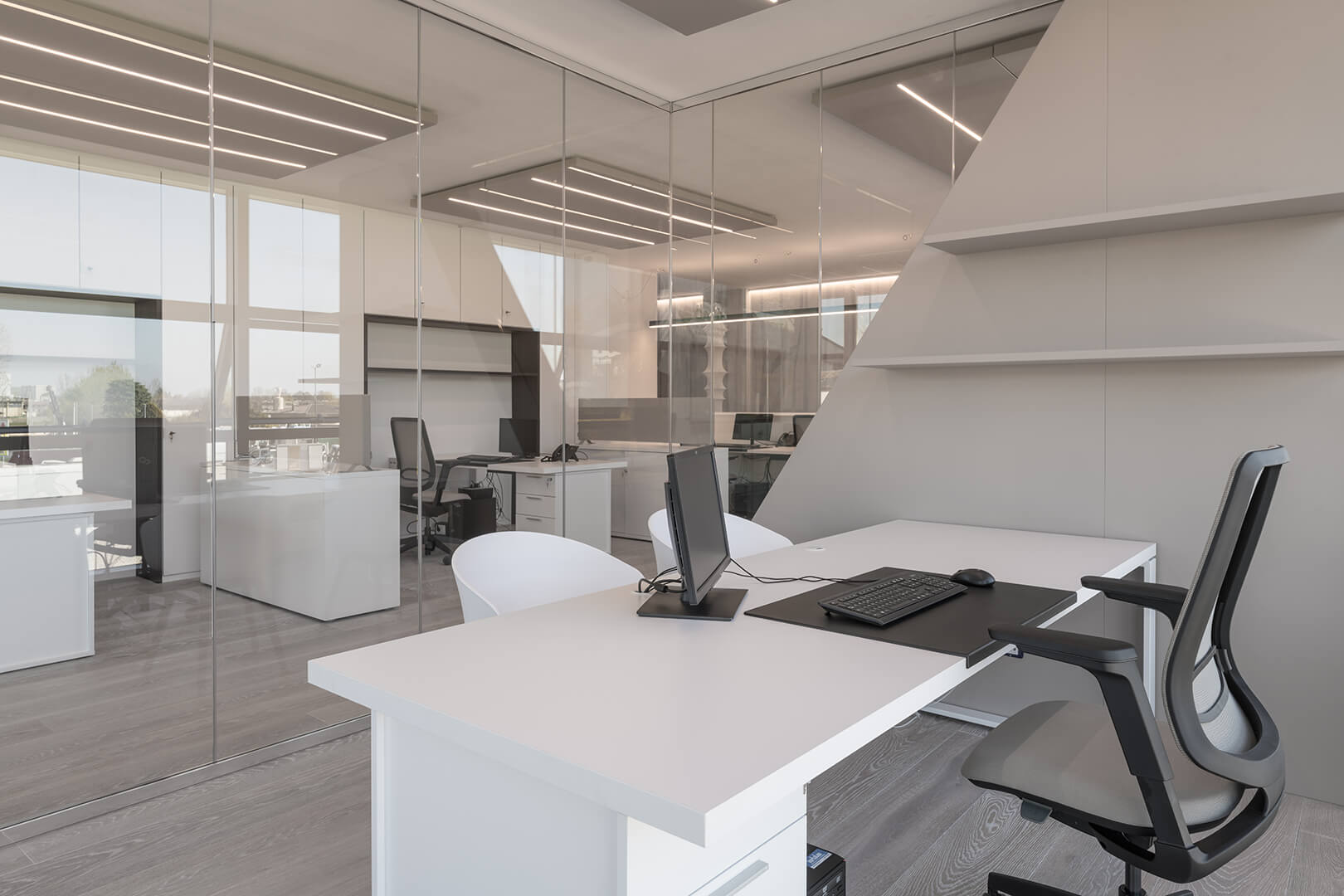

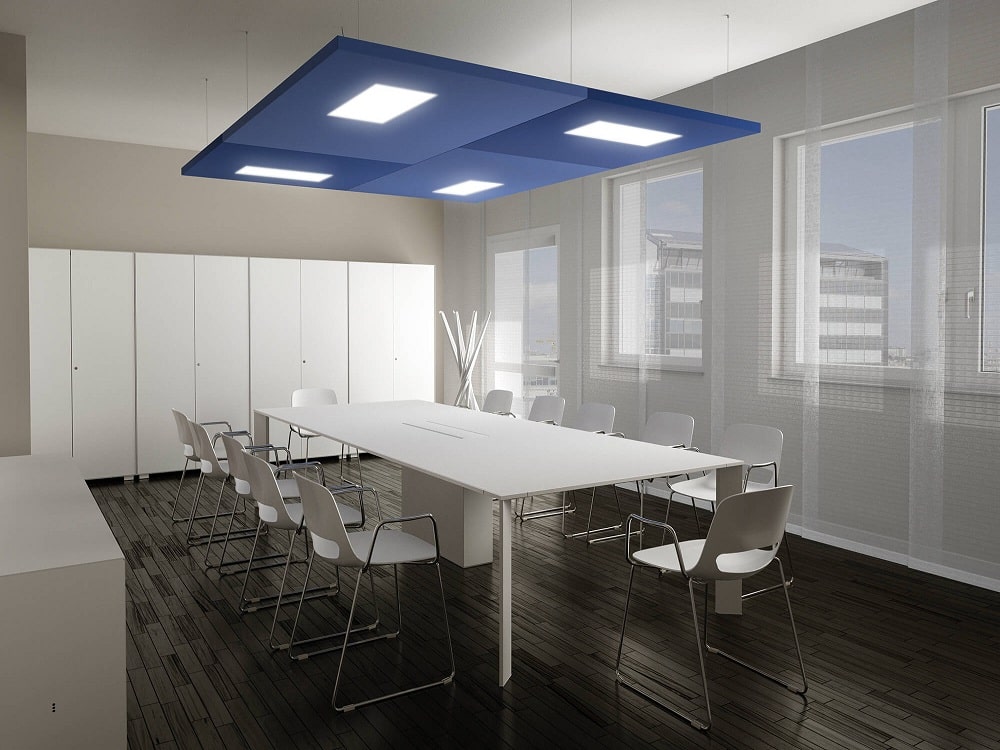

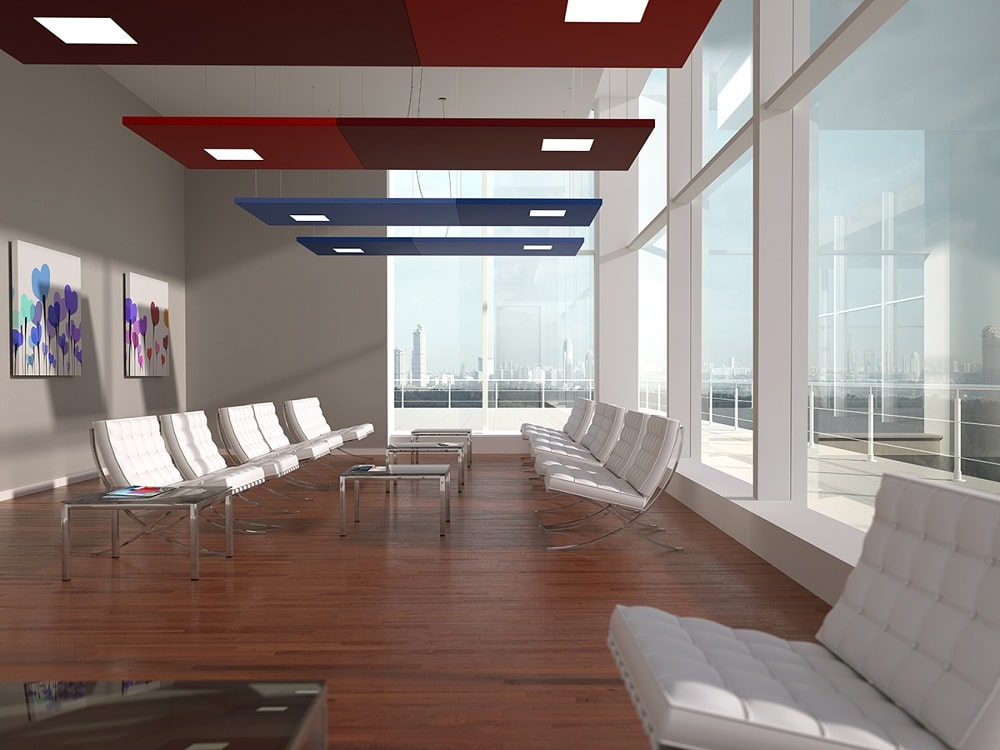

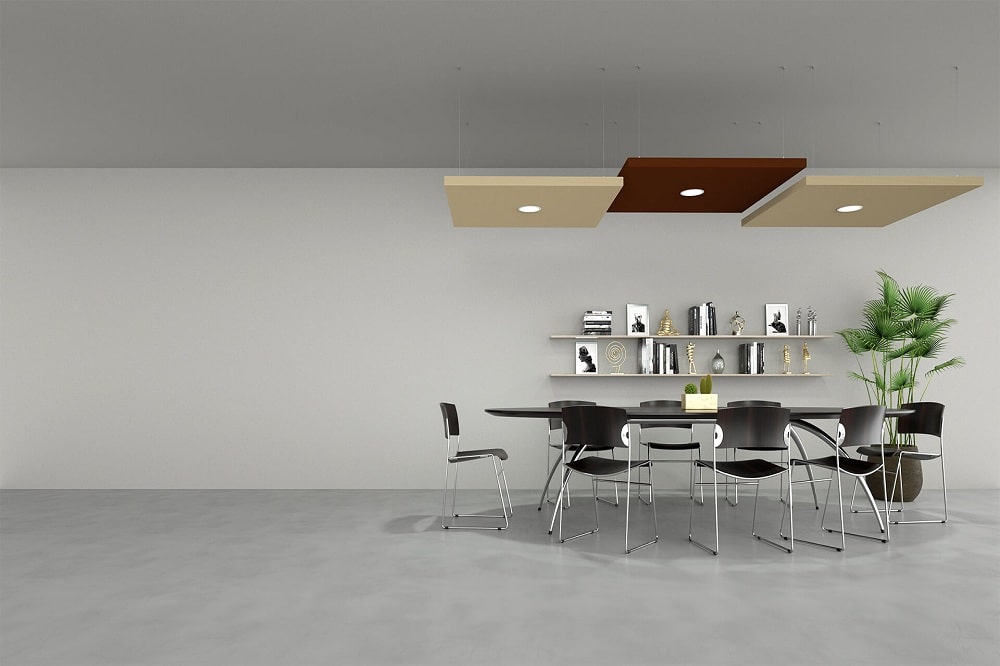

Applıcatıon Images

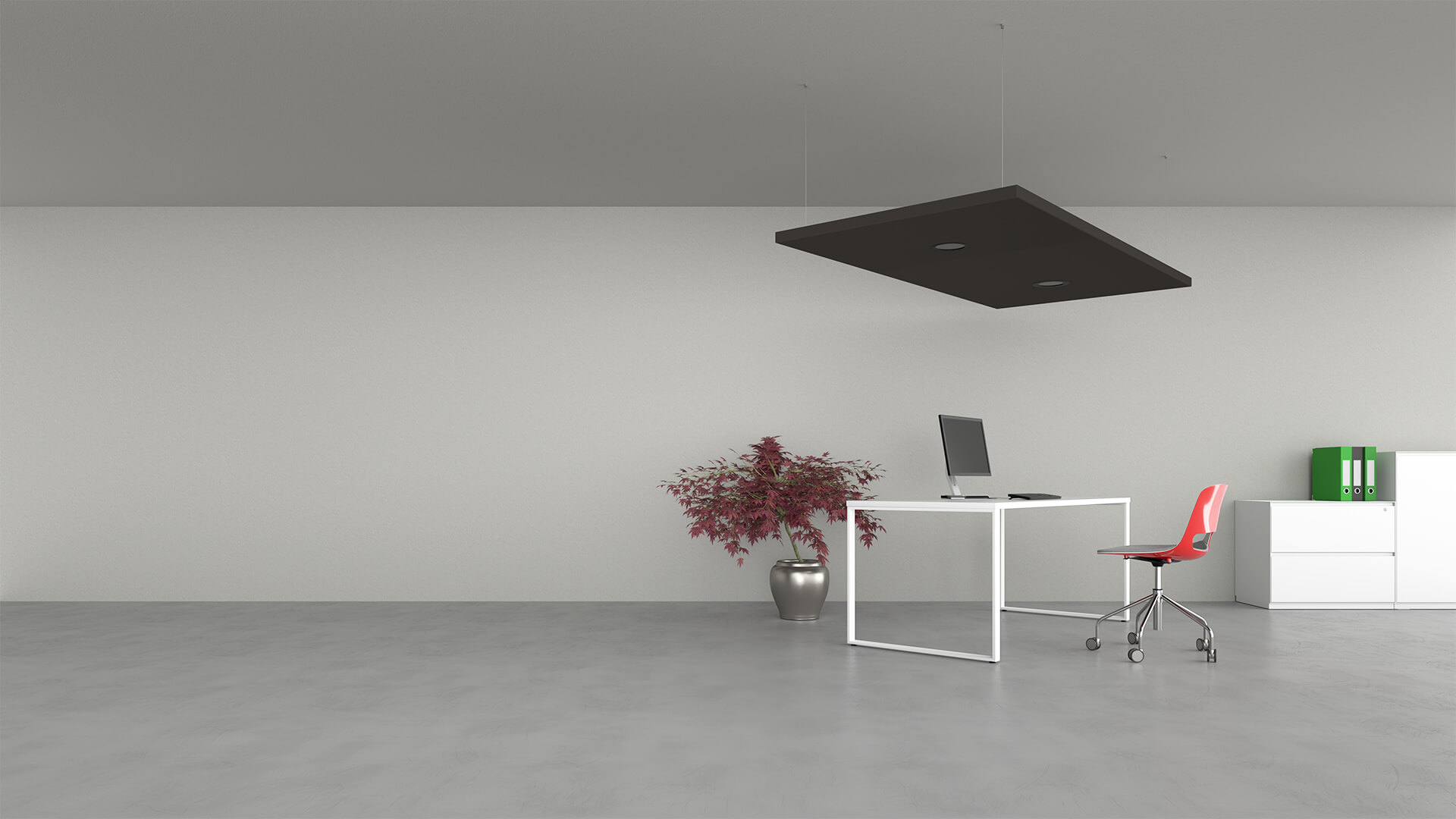

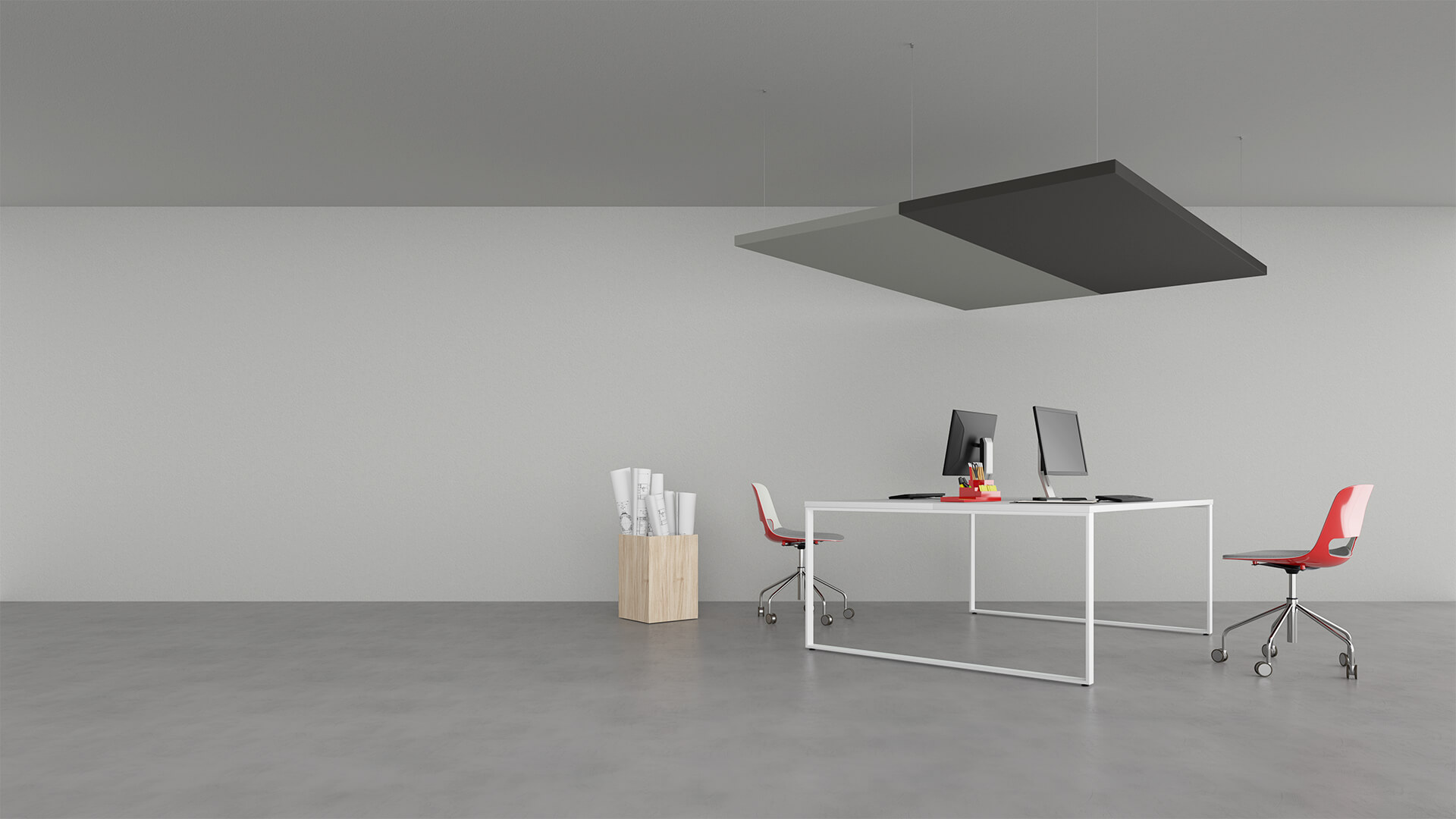

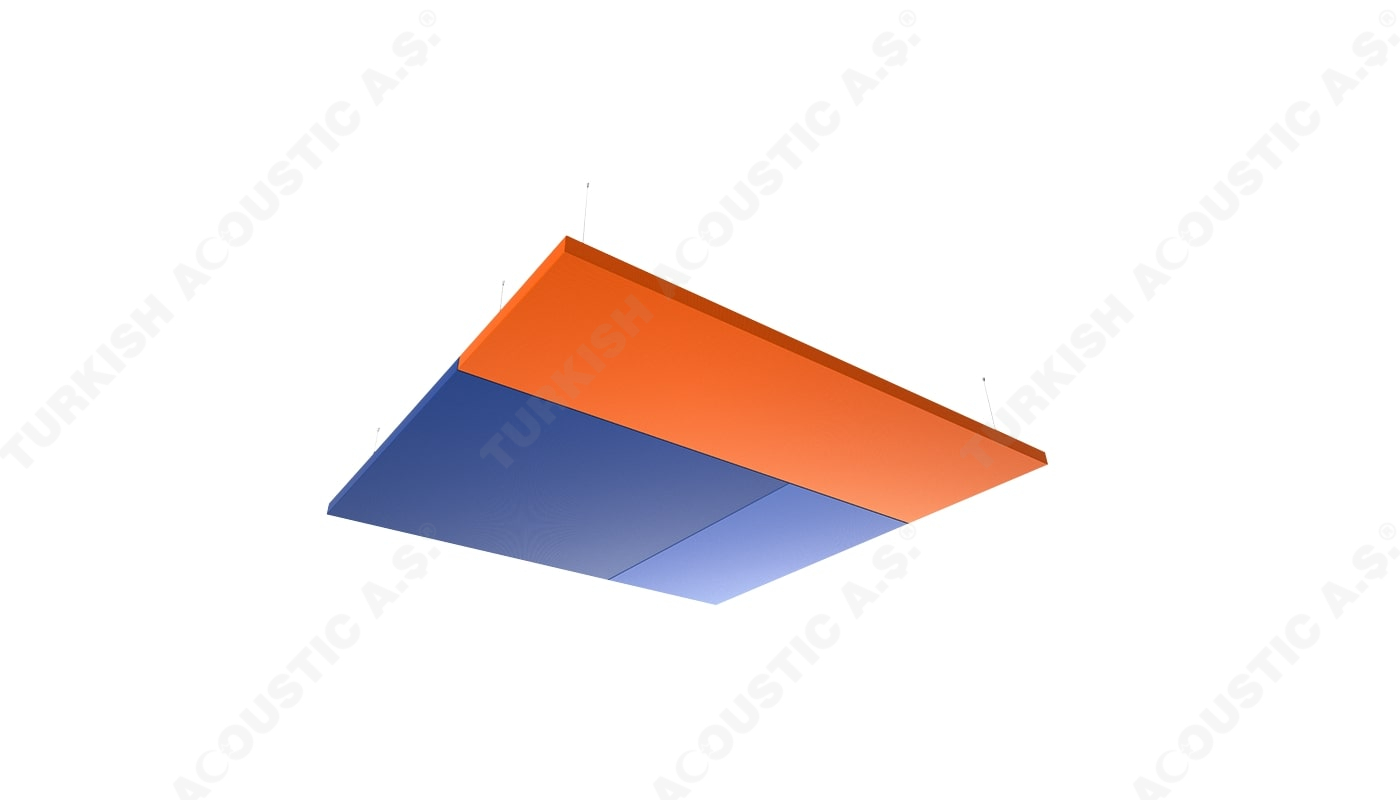

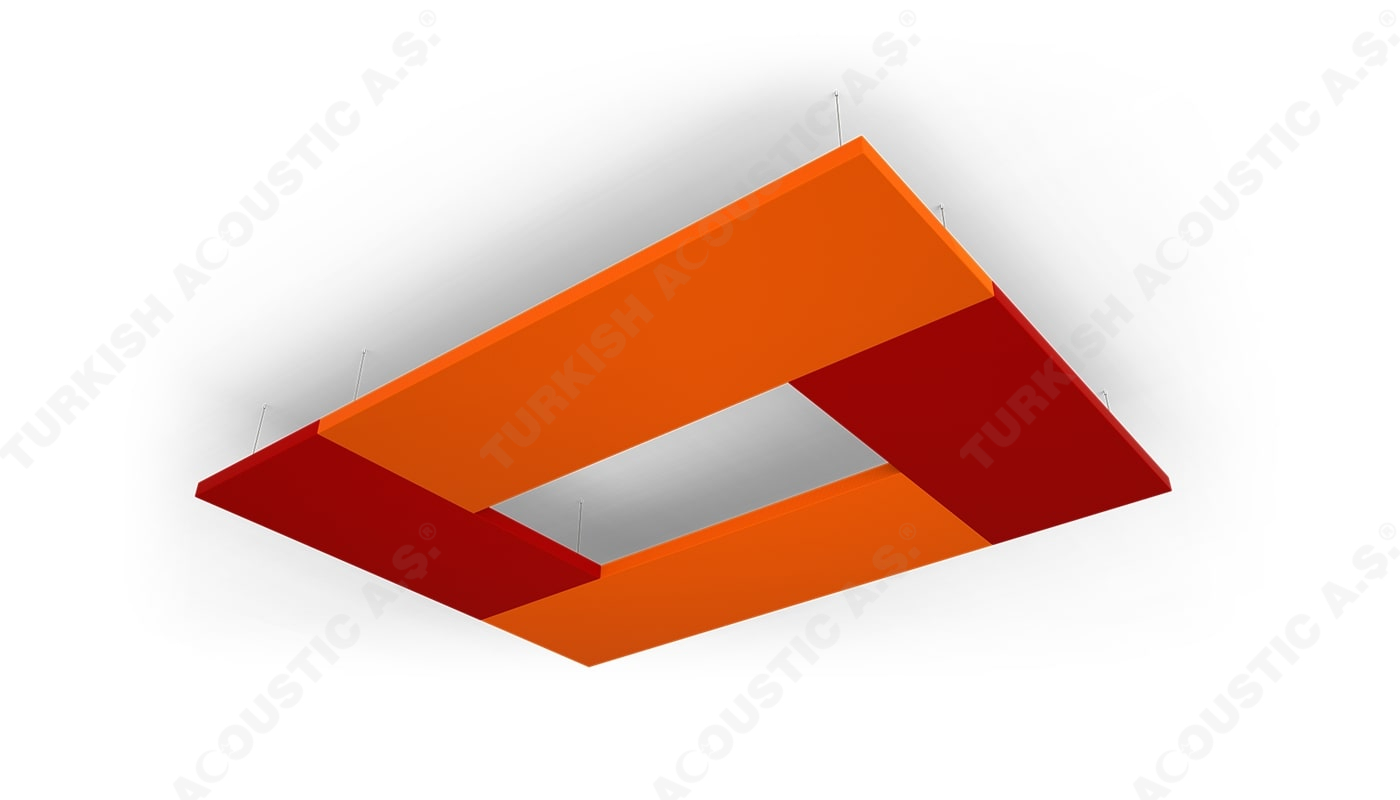

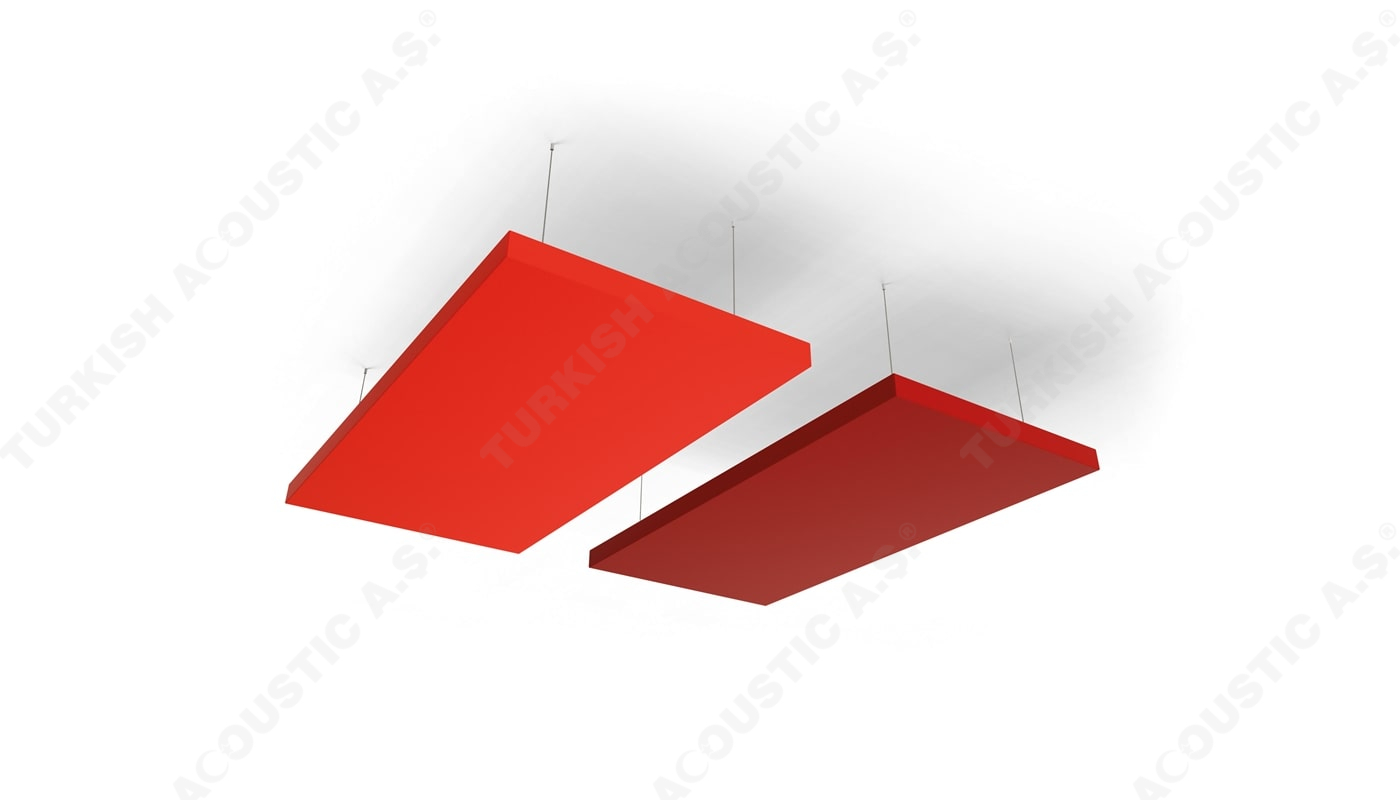

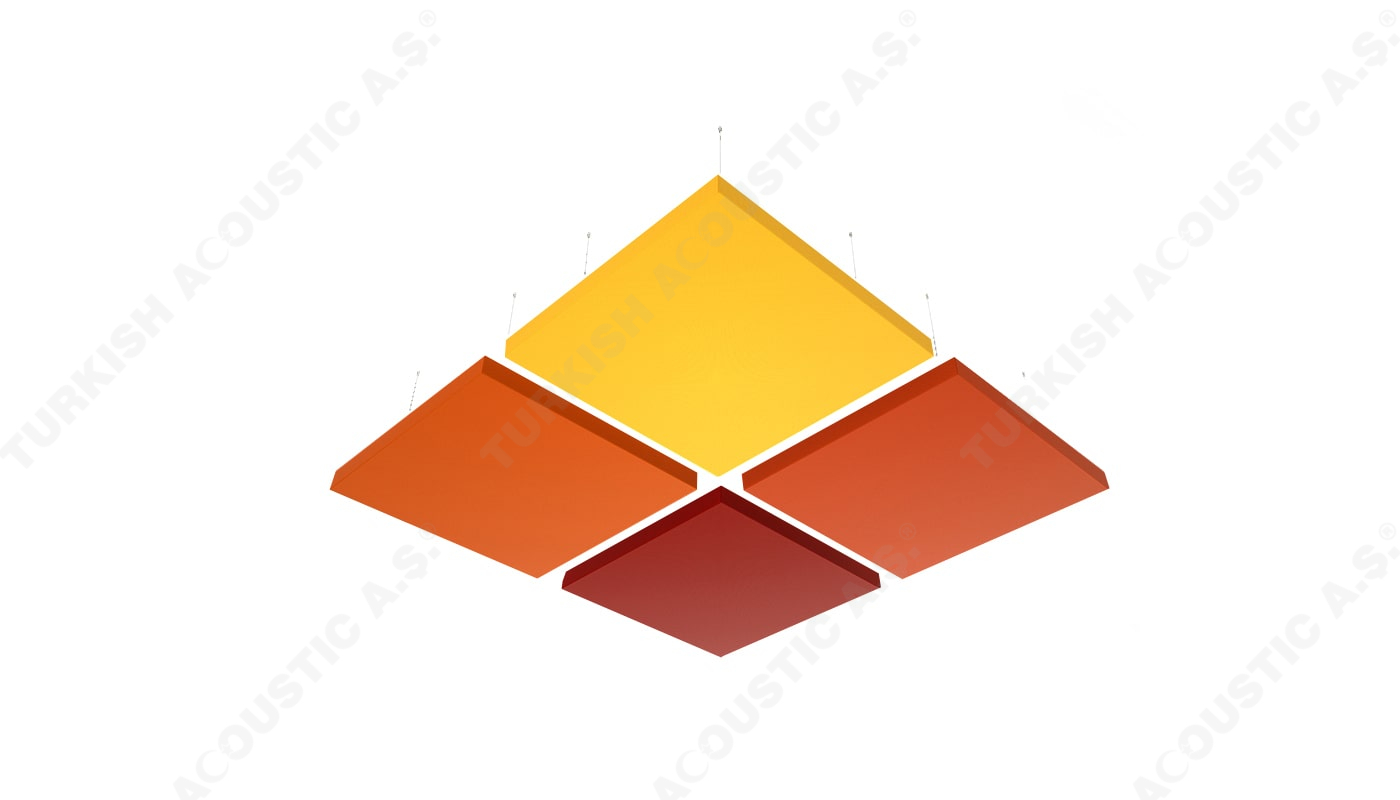

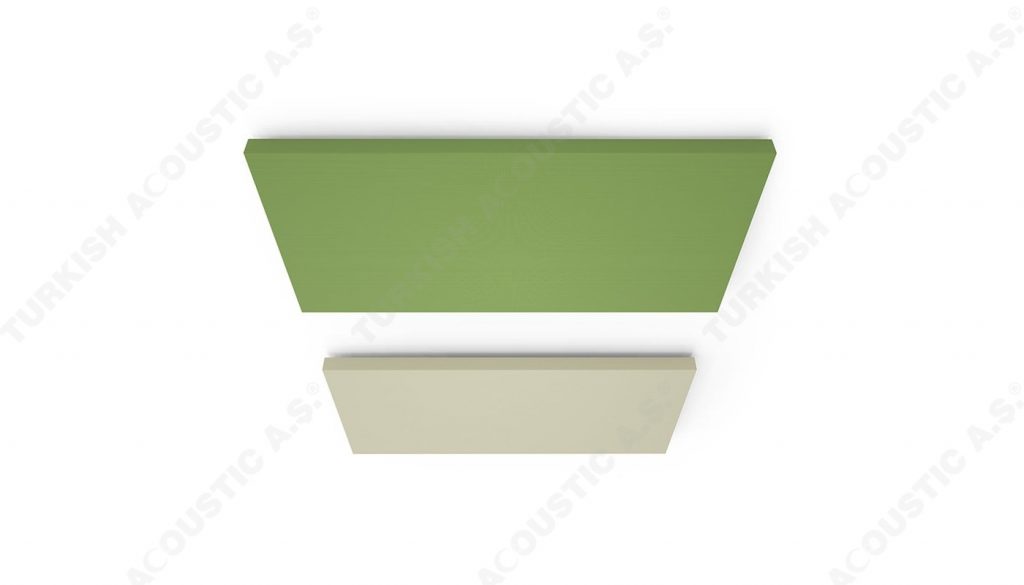

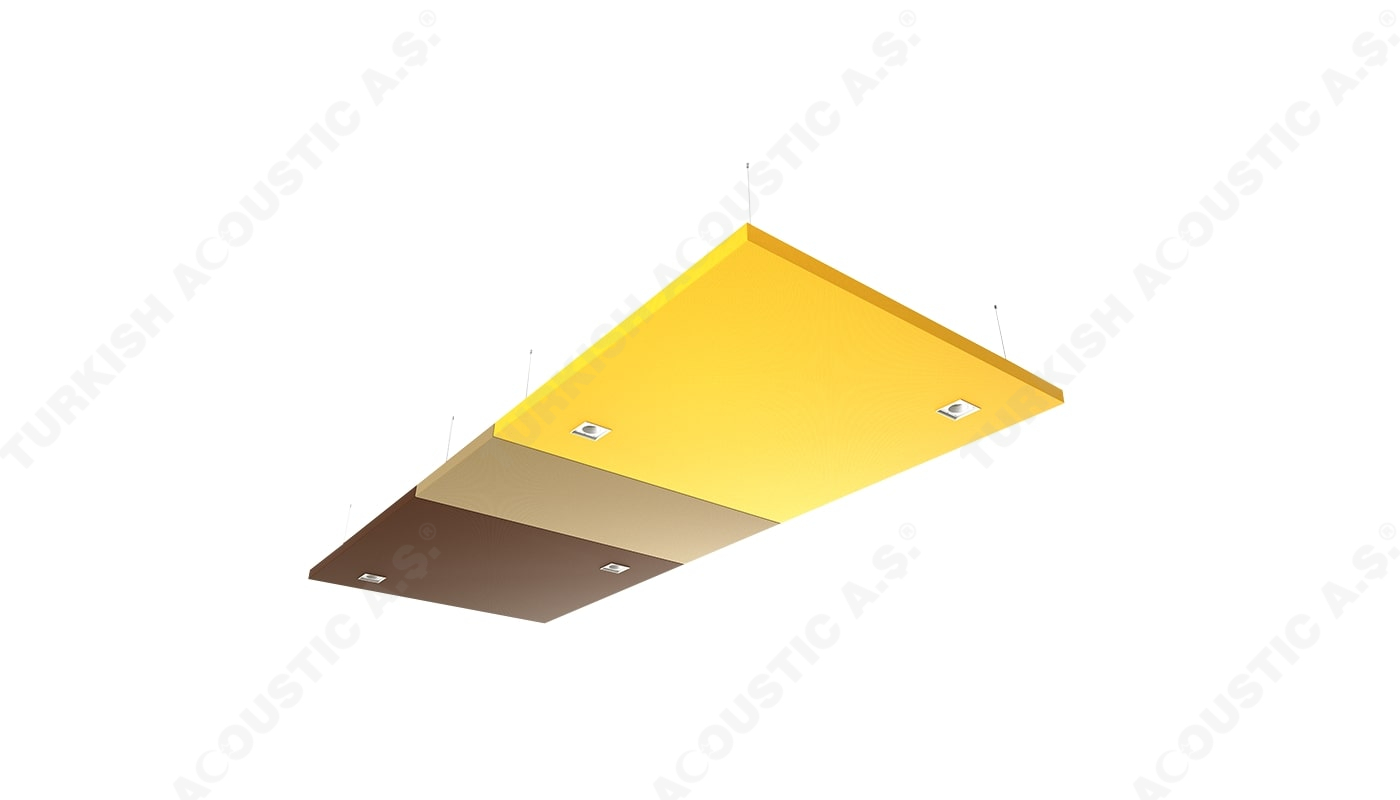

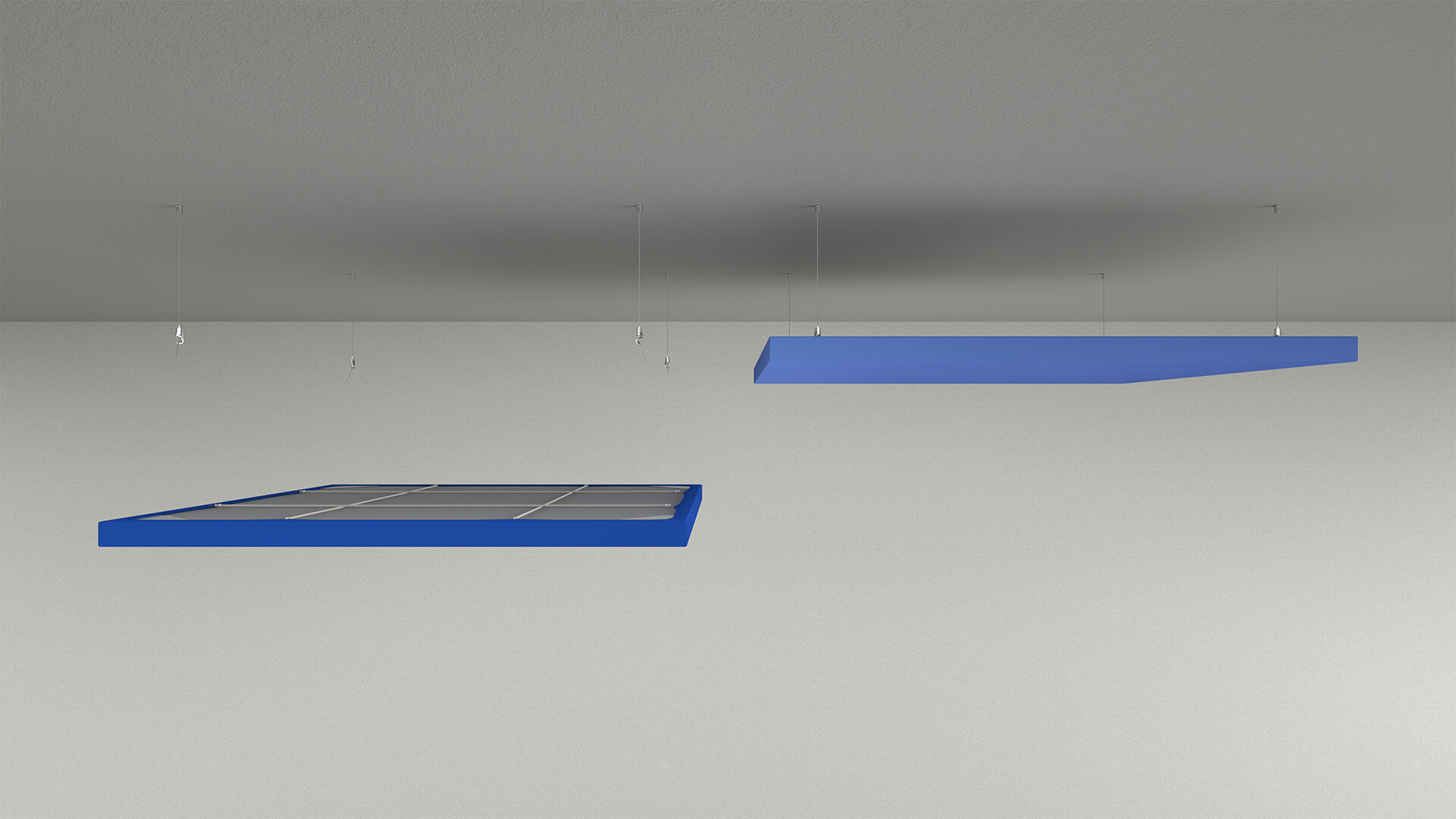

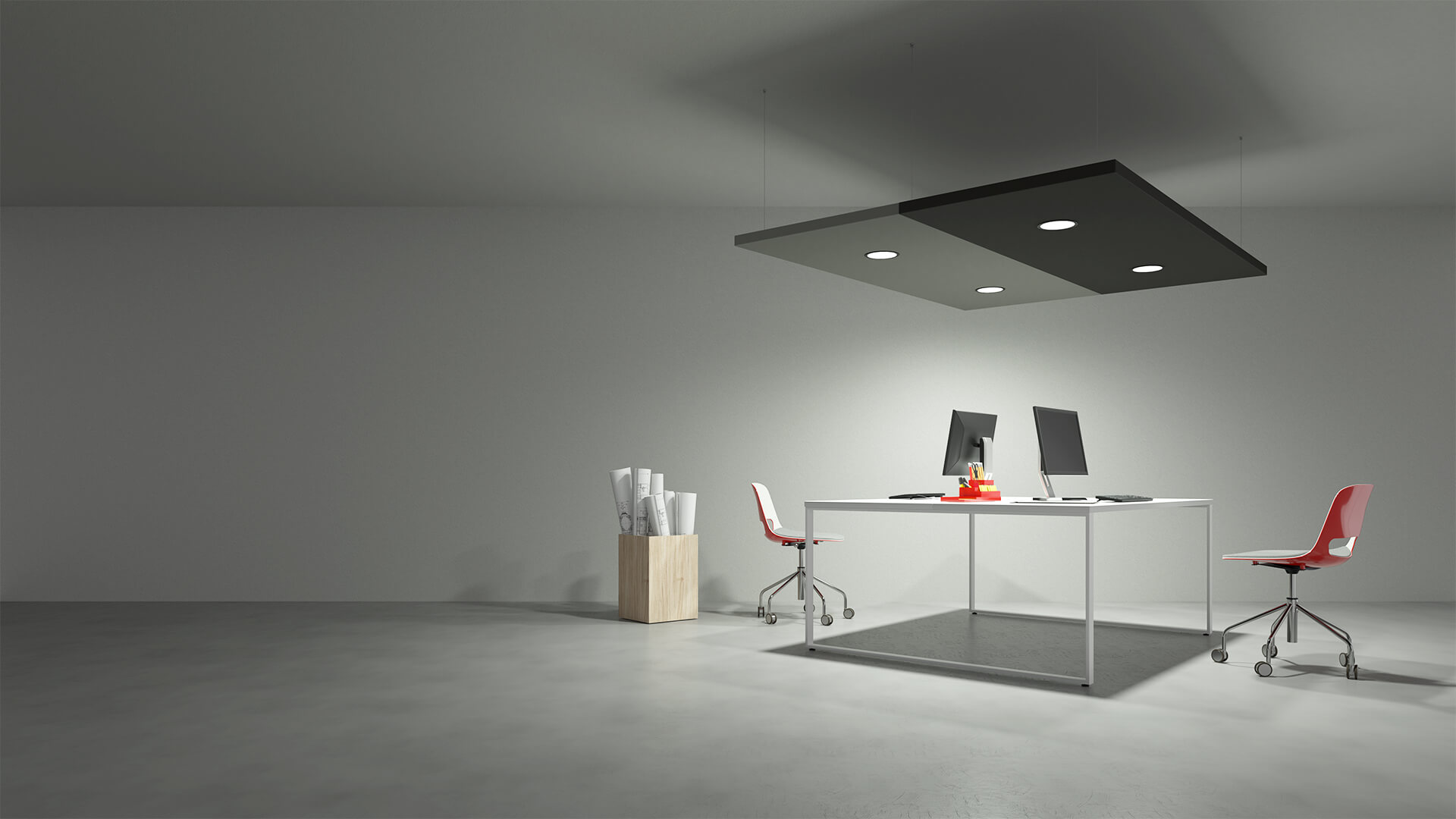

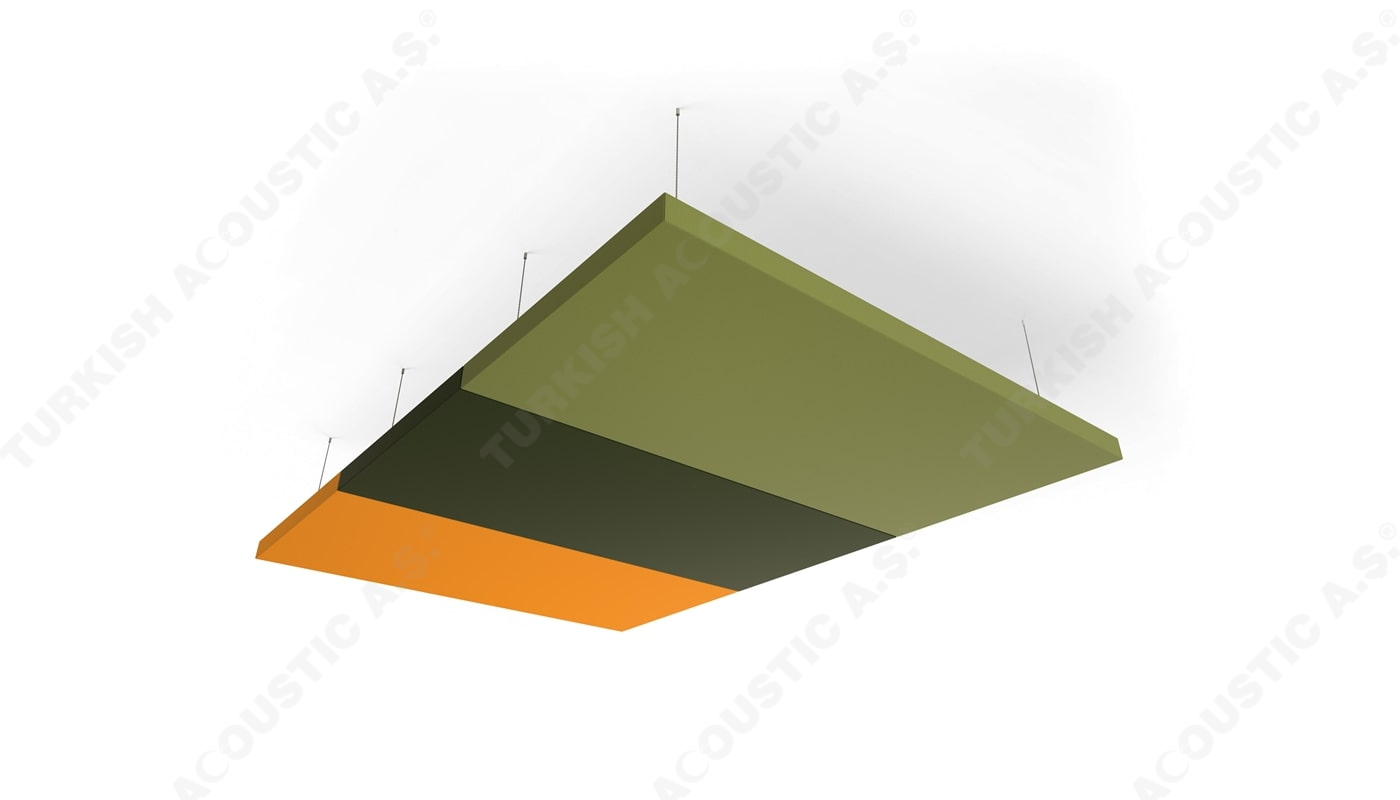

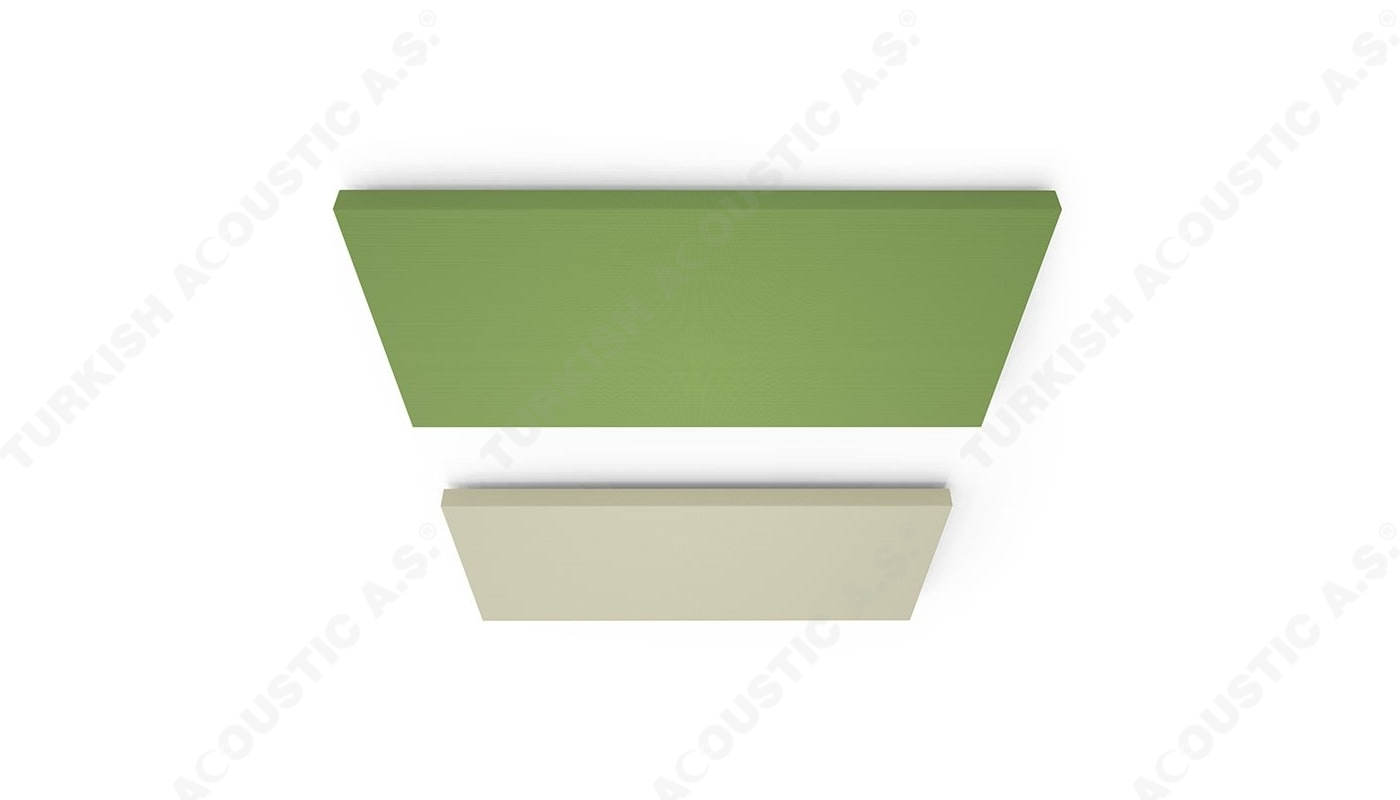

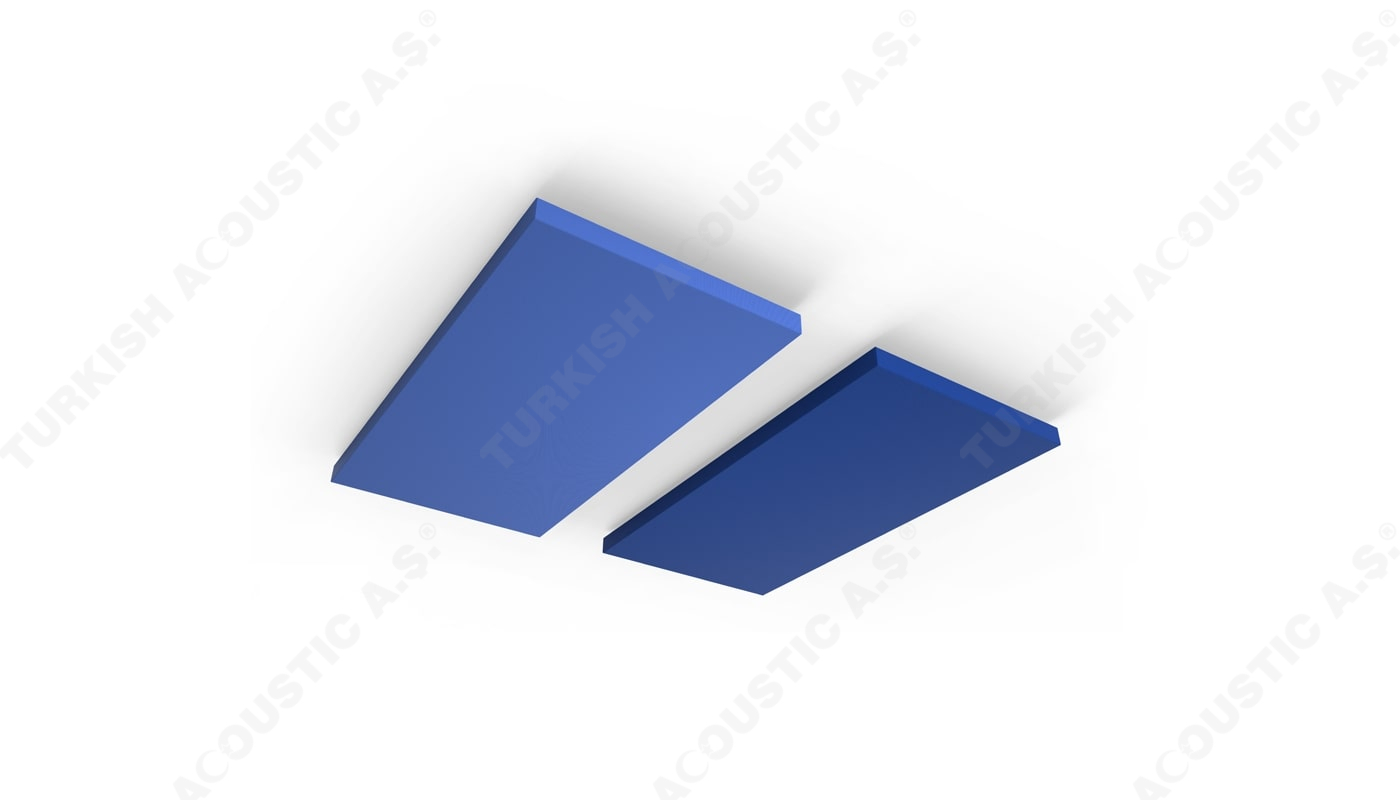

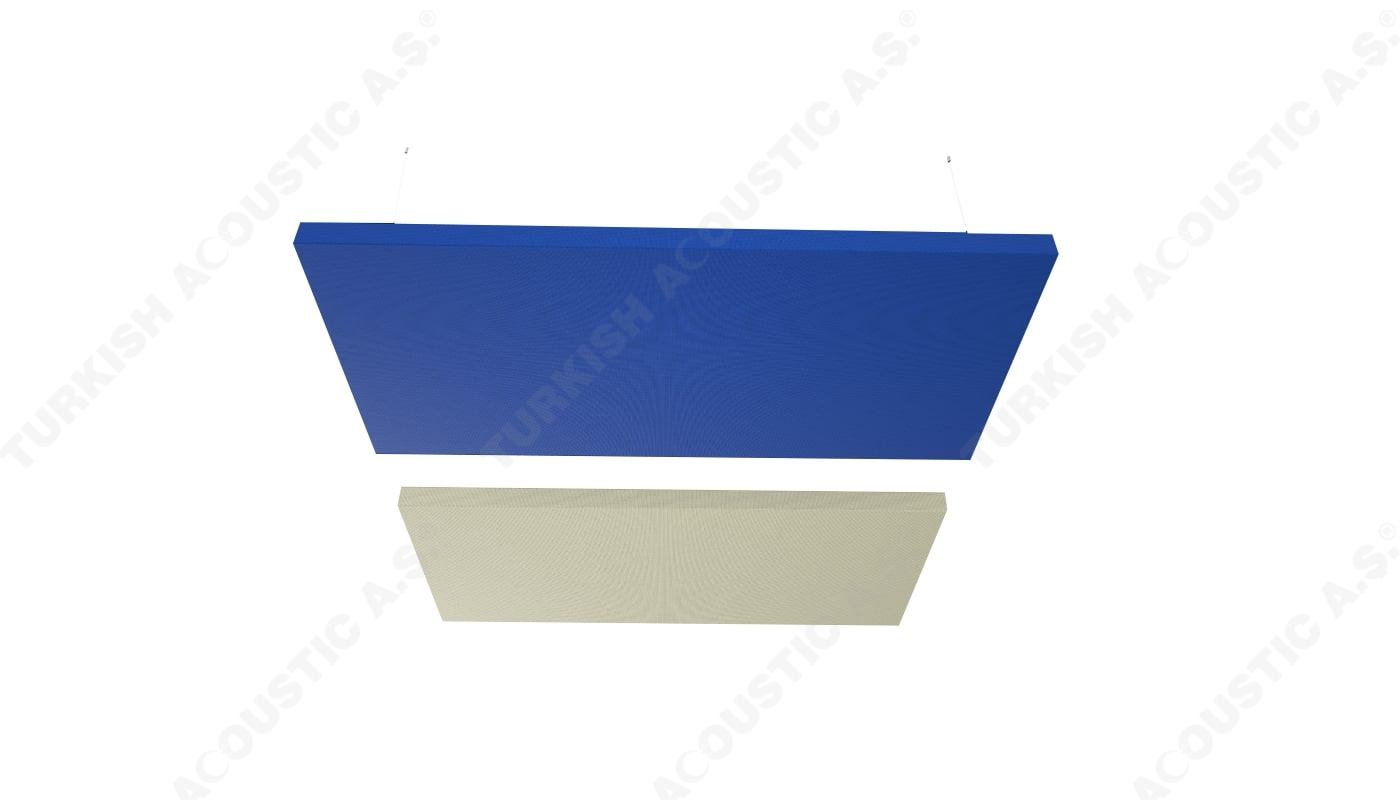

Product Images

Acoustıc Floatıng Ceılıng

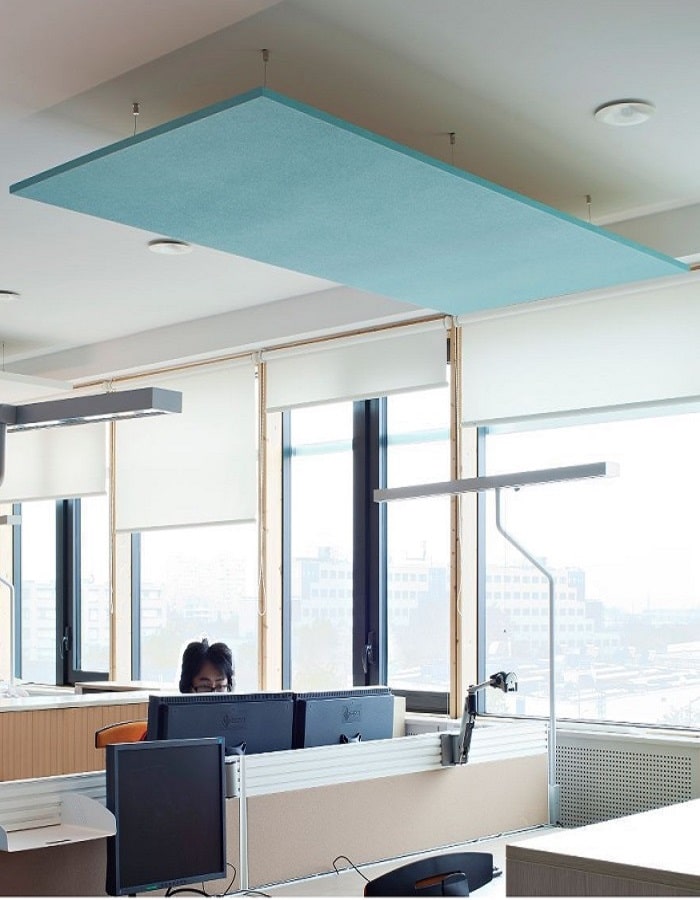

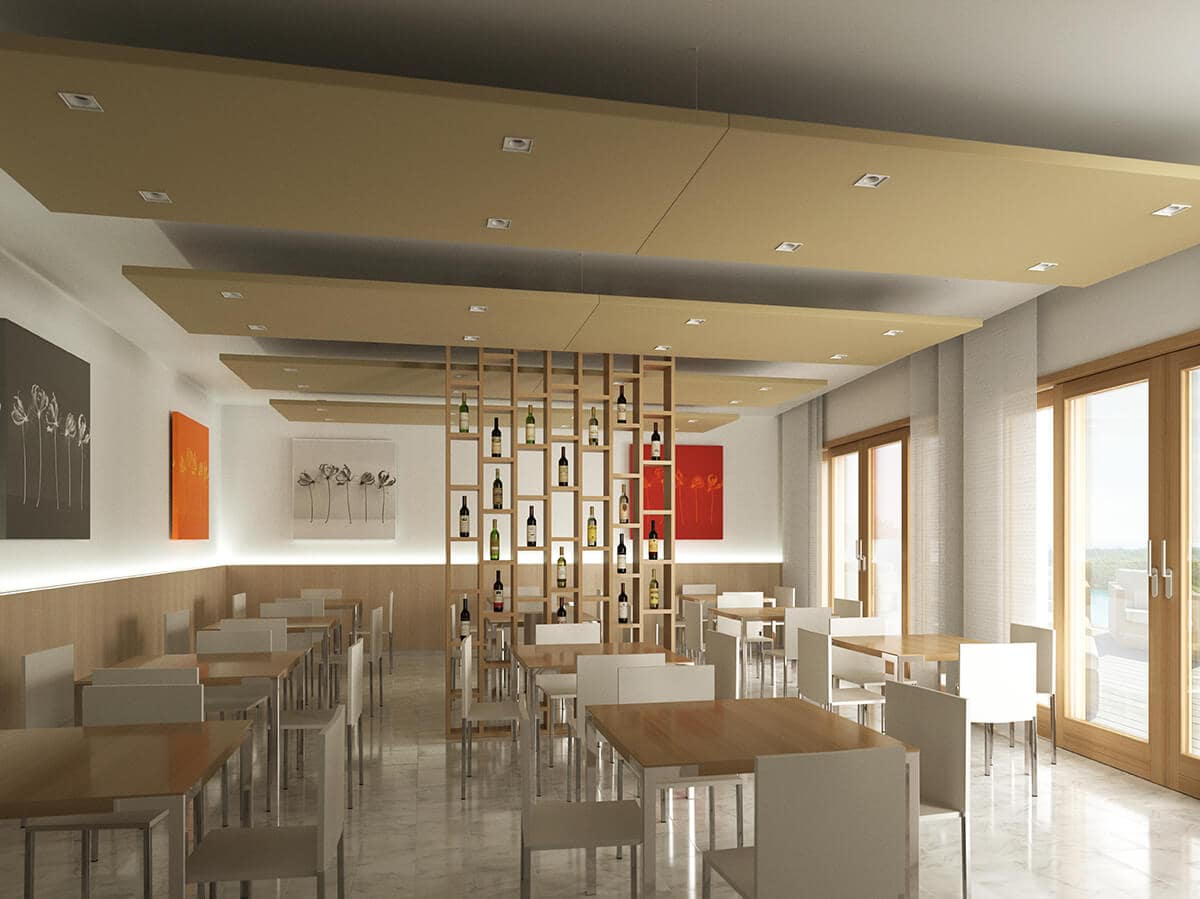

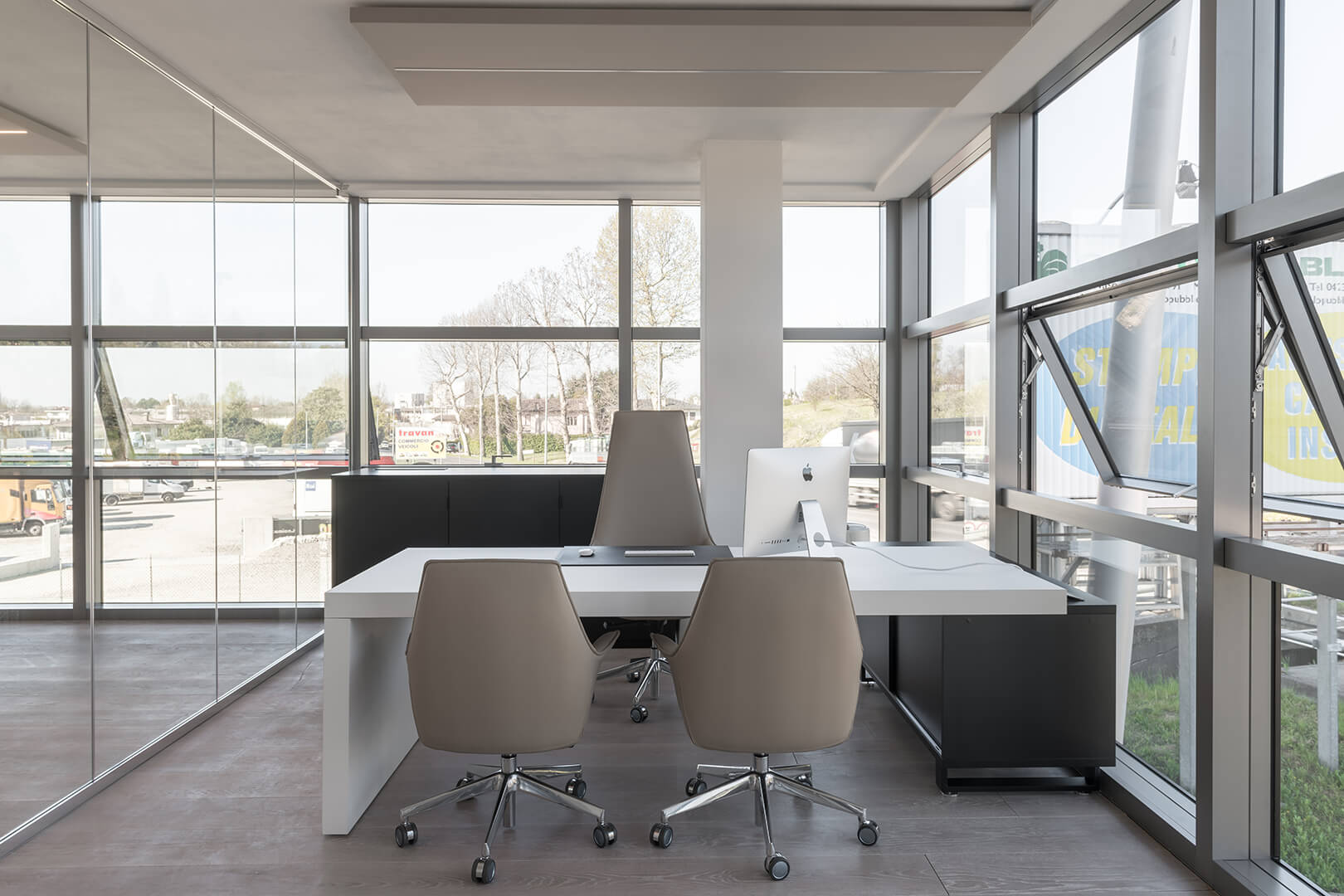

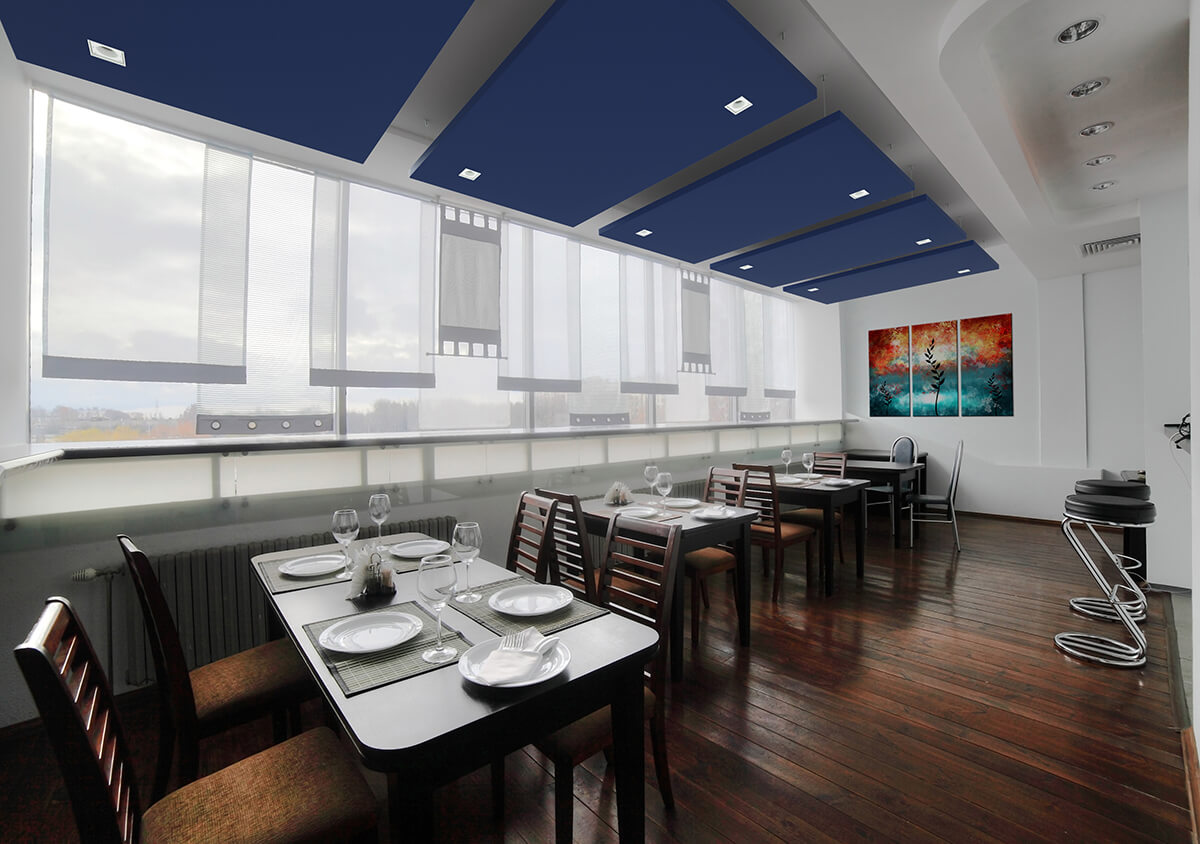

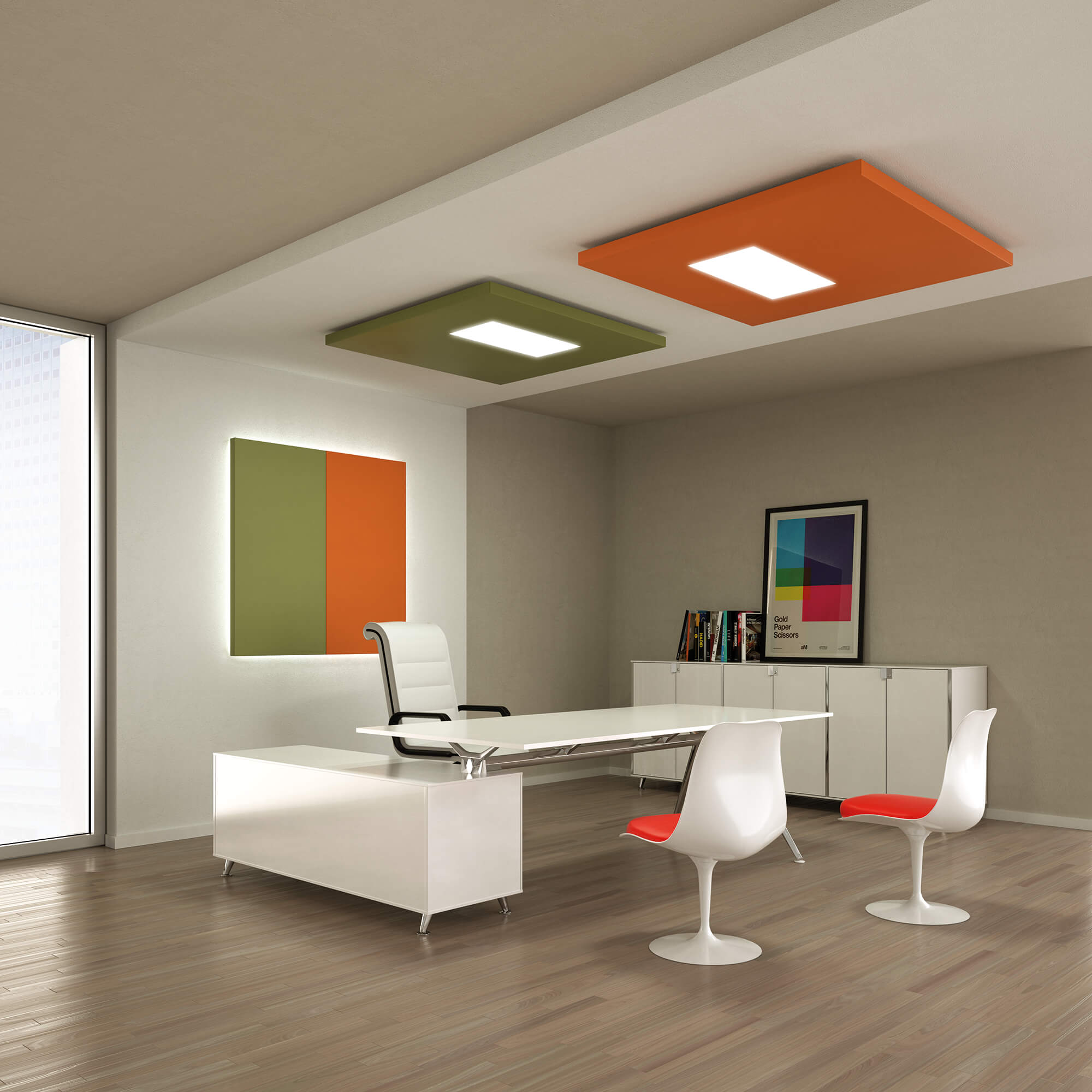

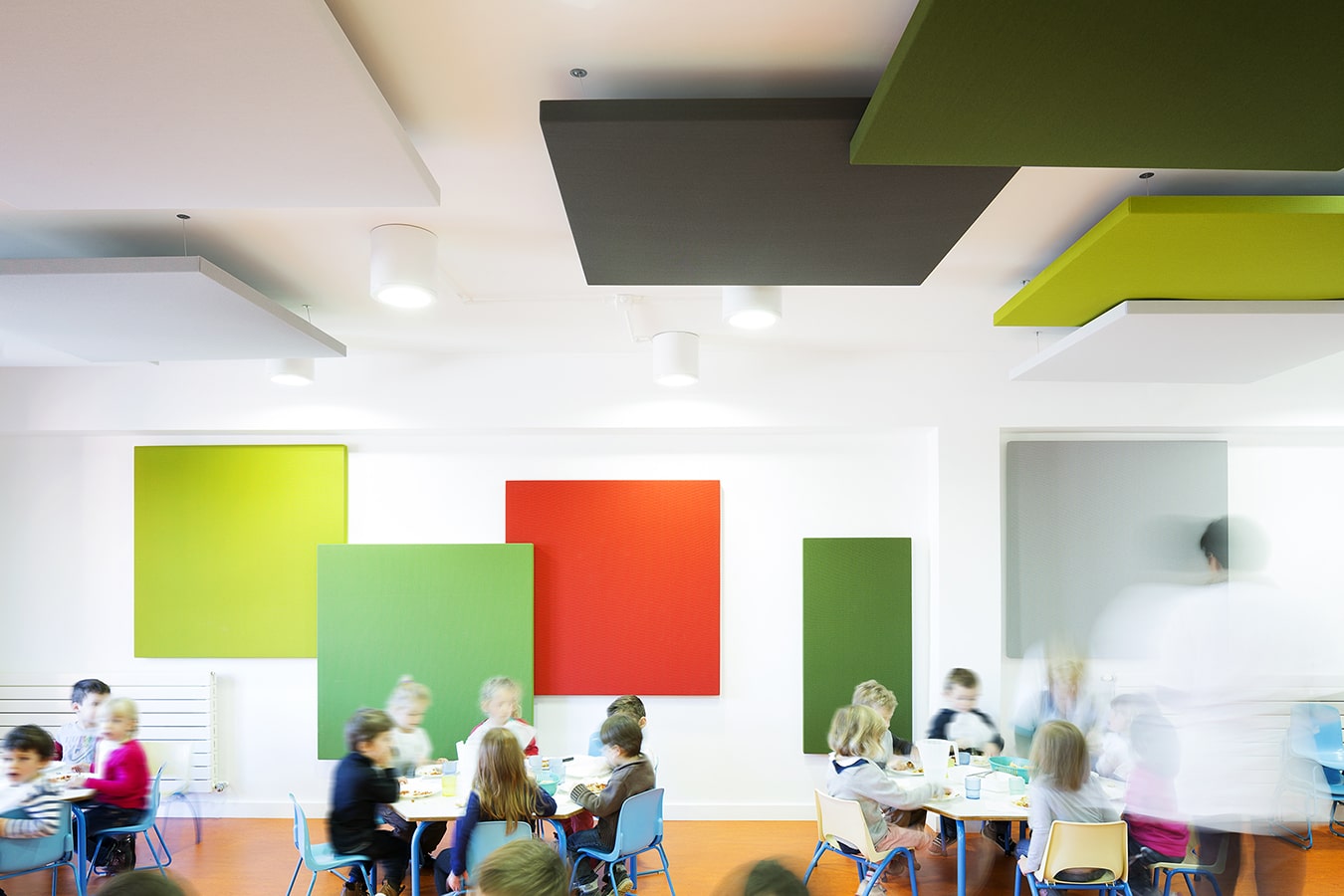

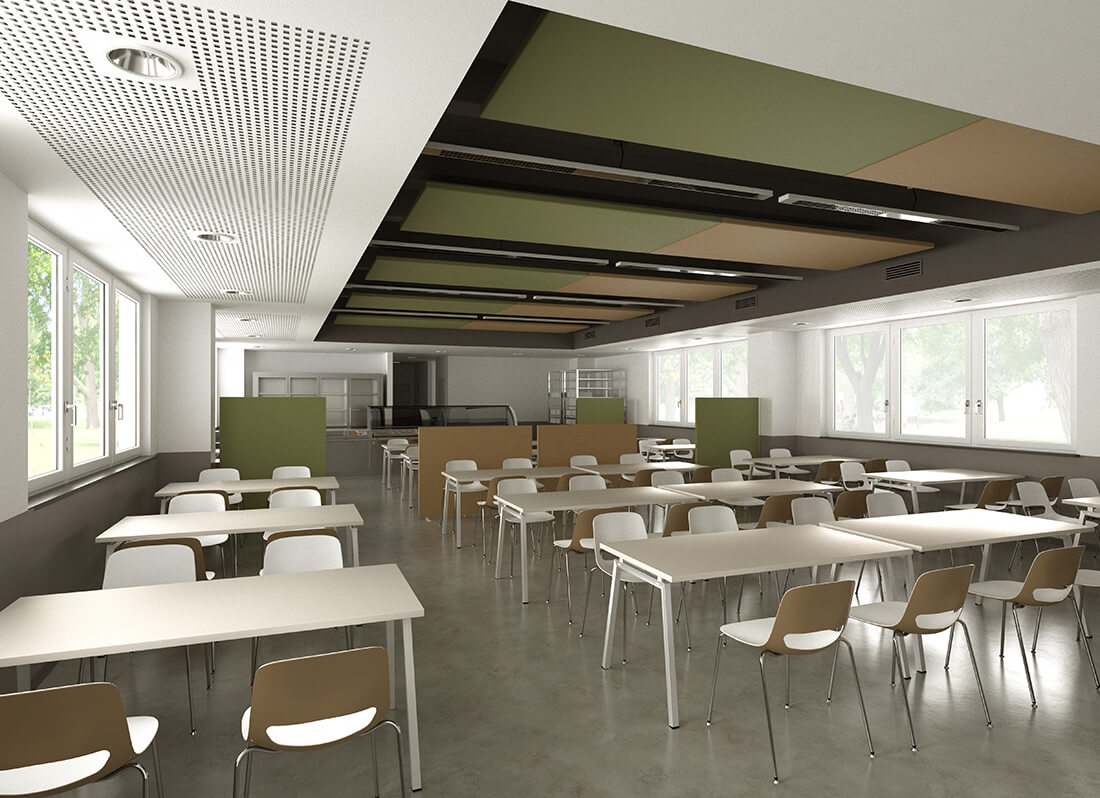

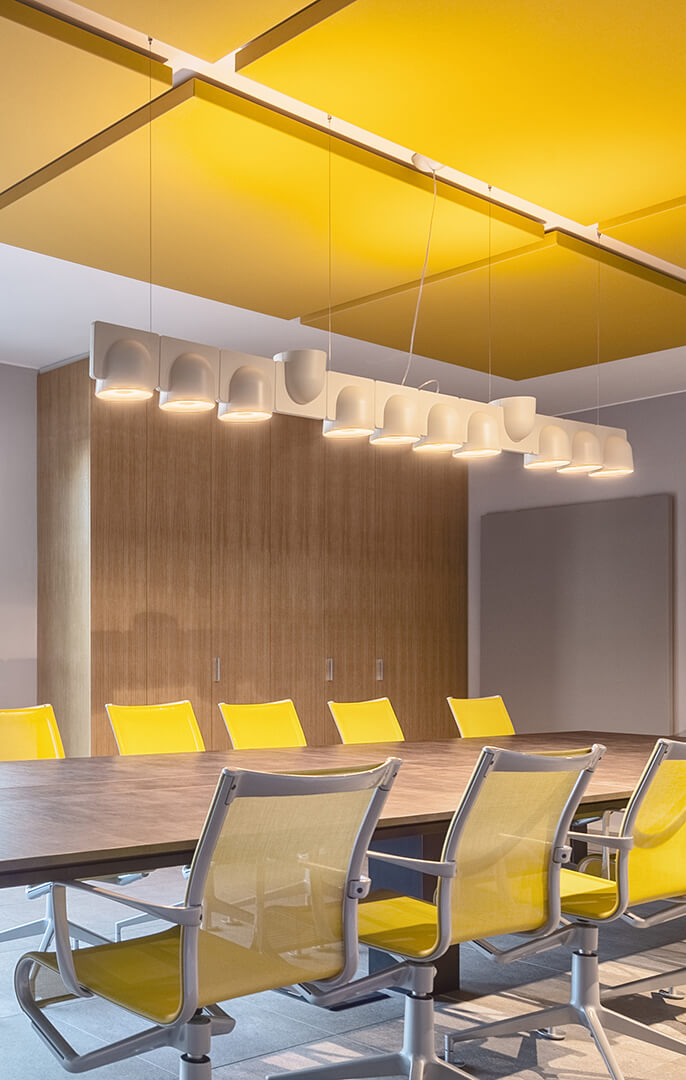

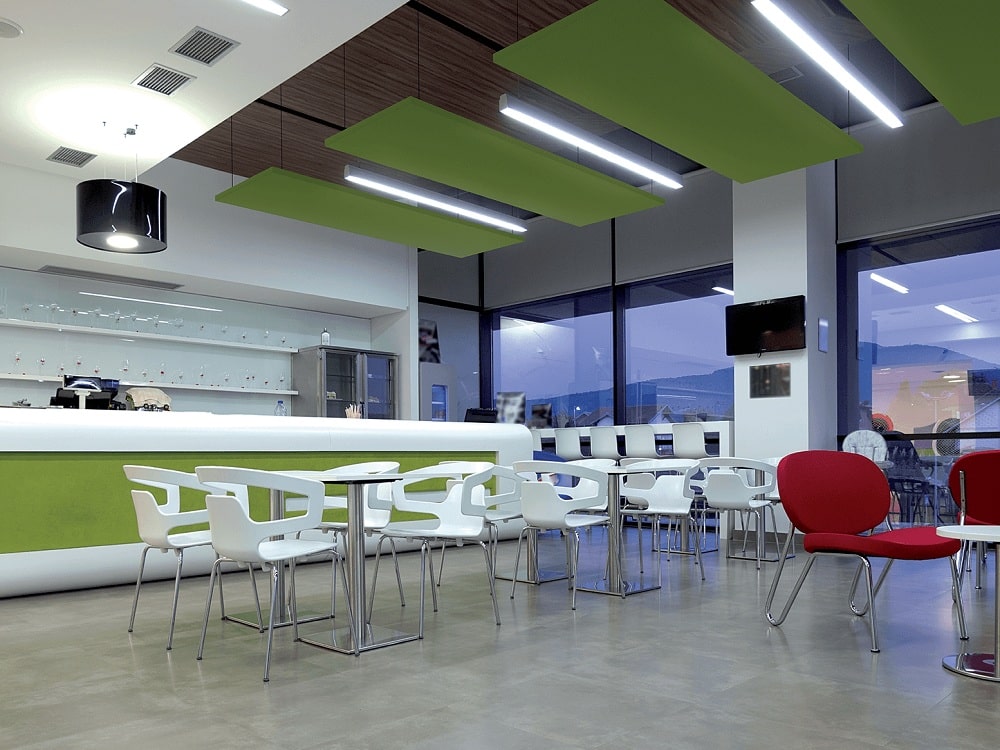

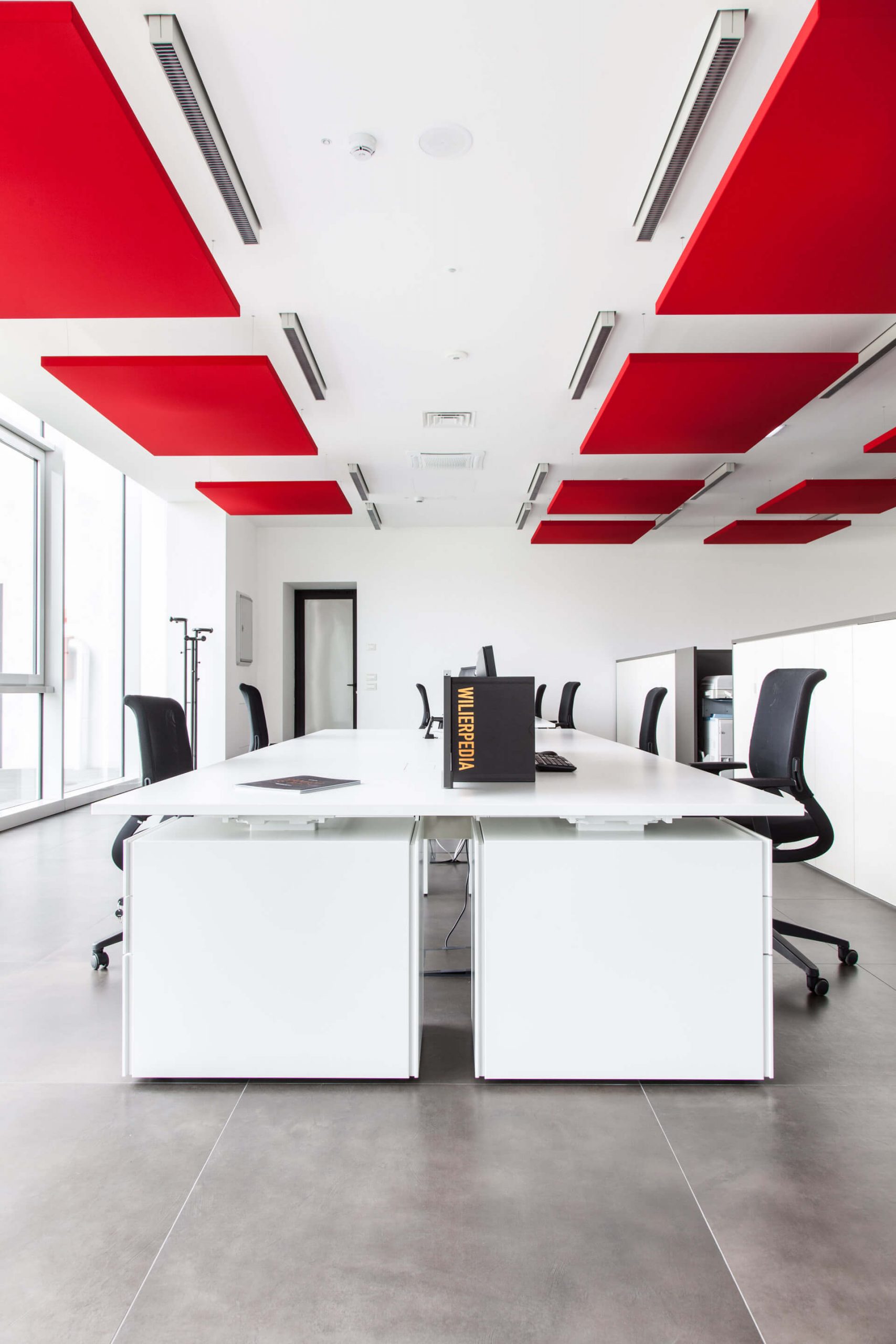

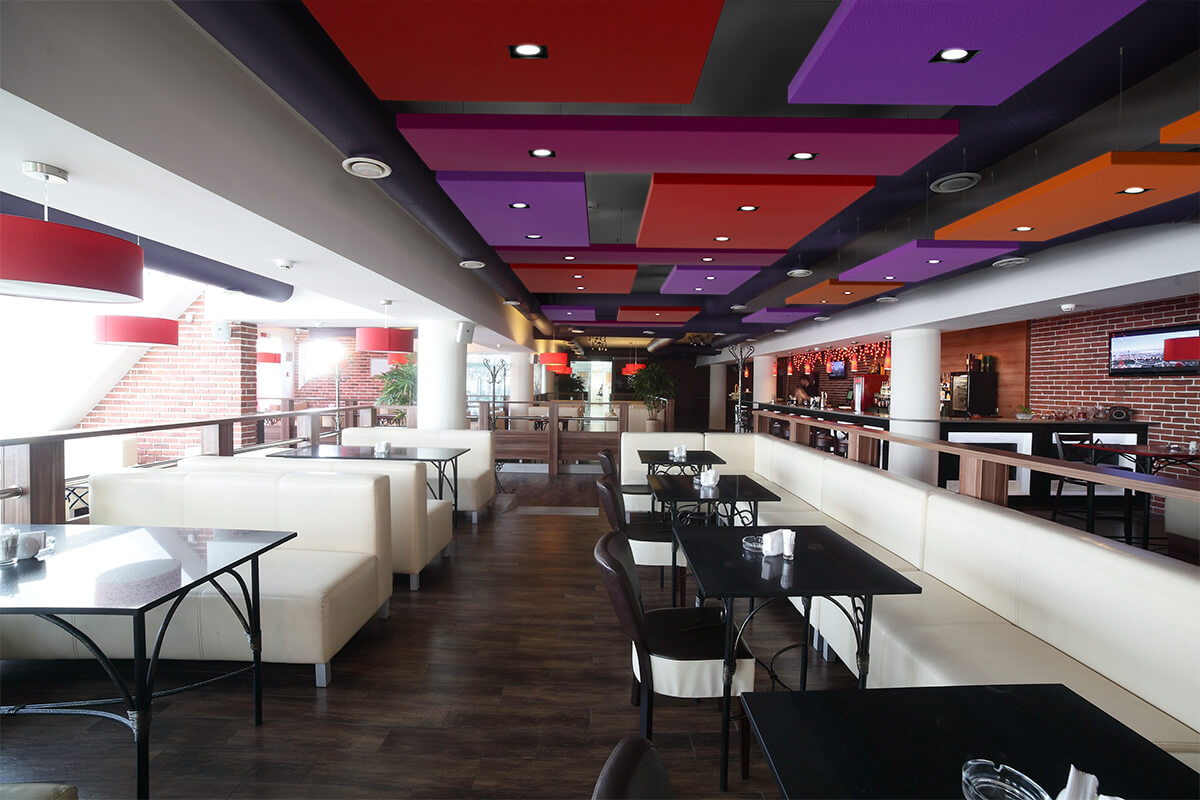

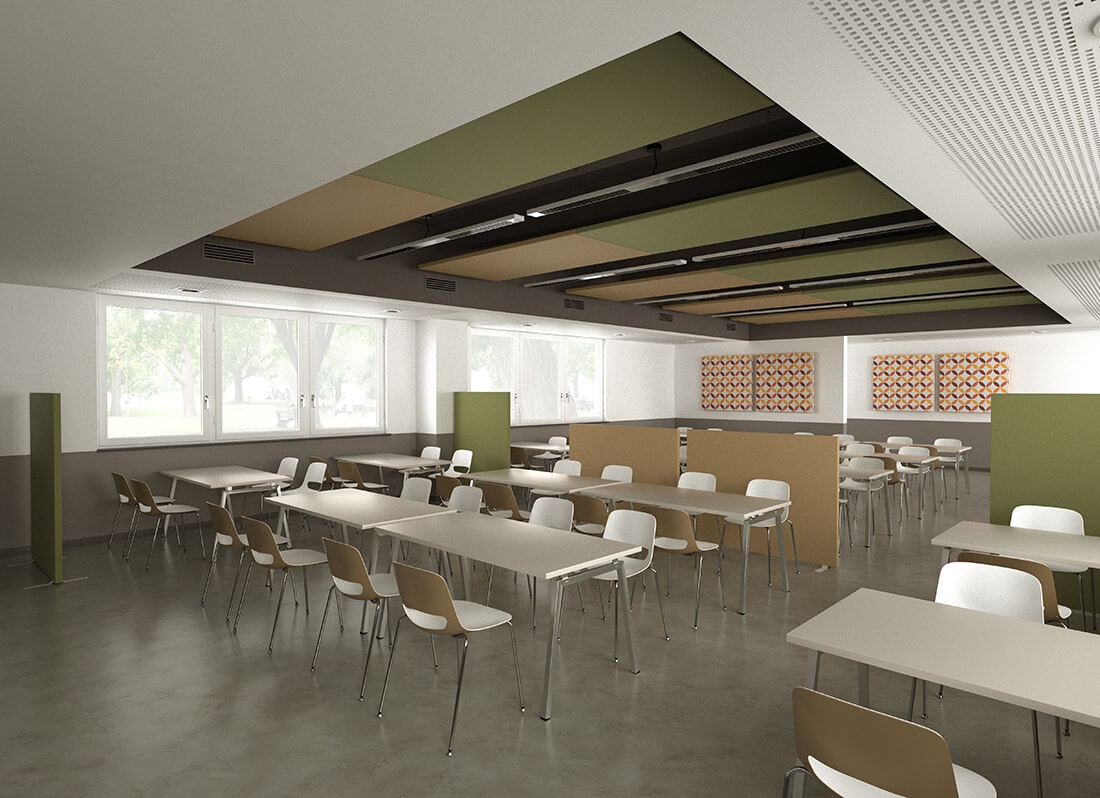

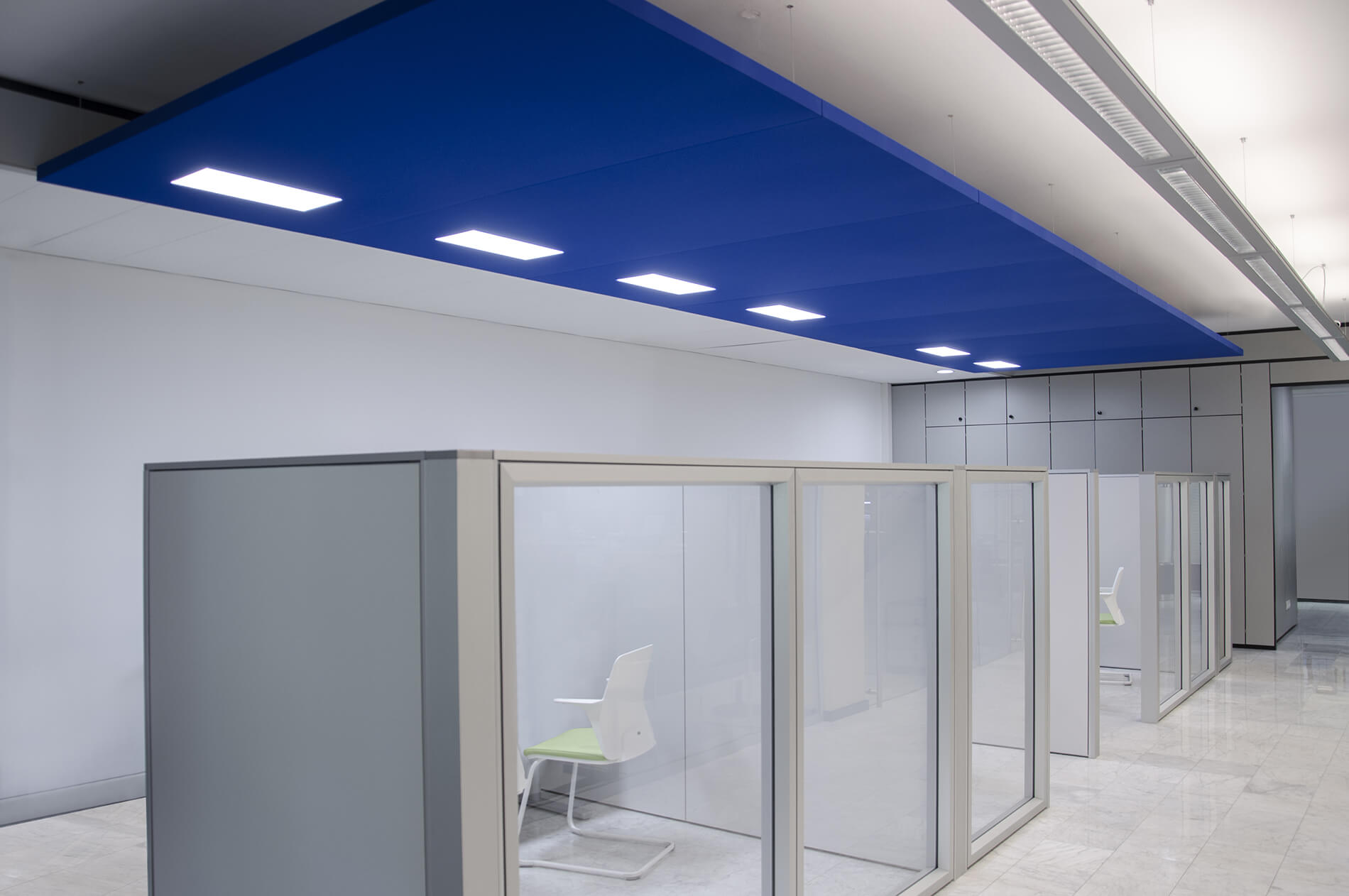

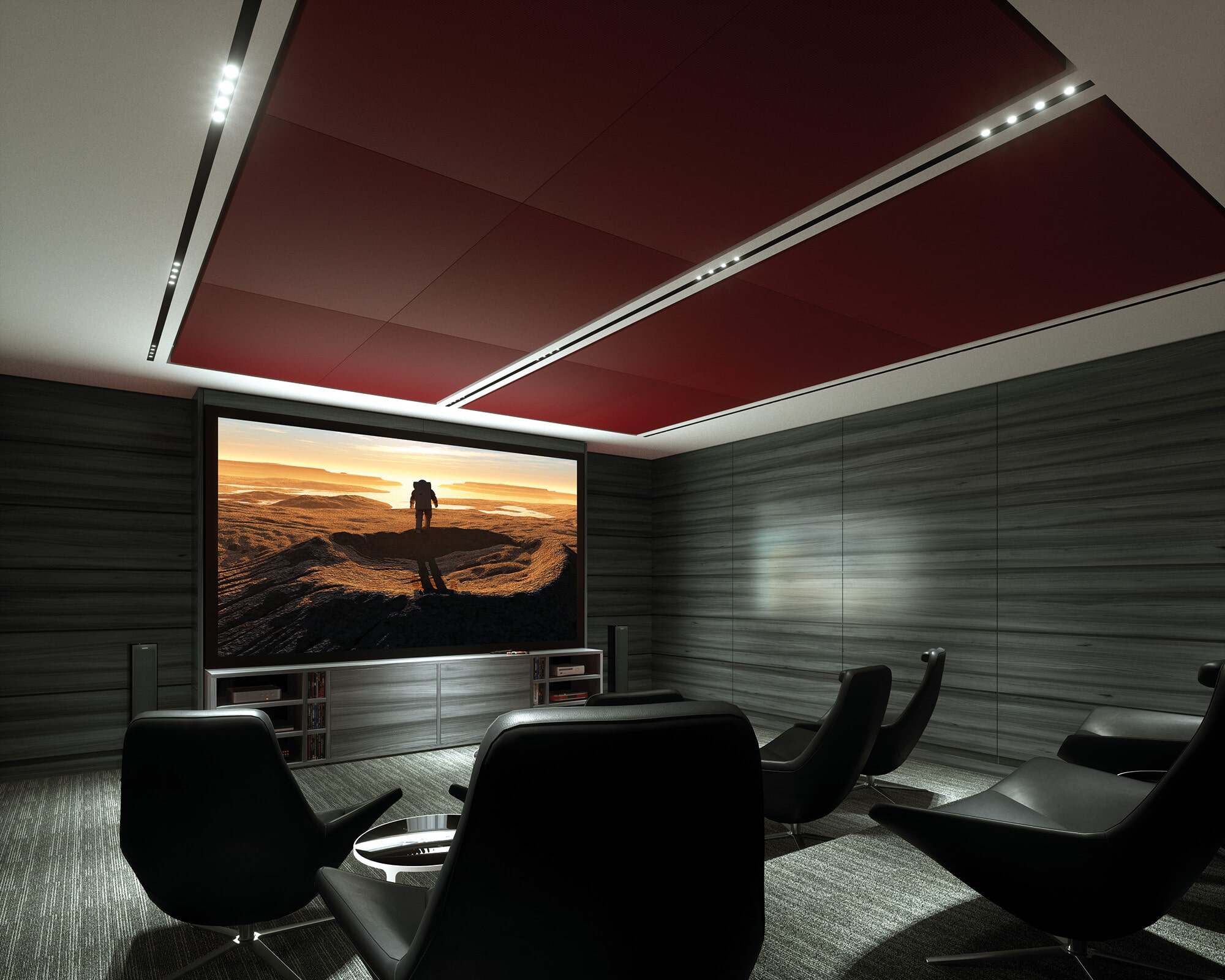

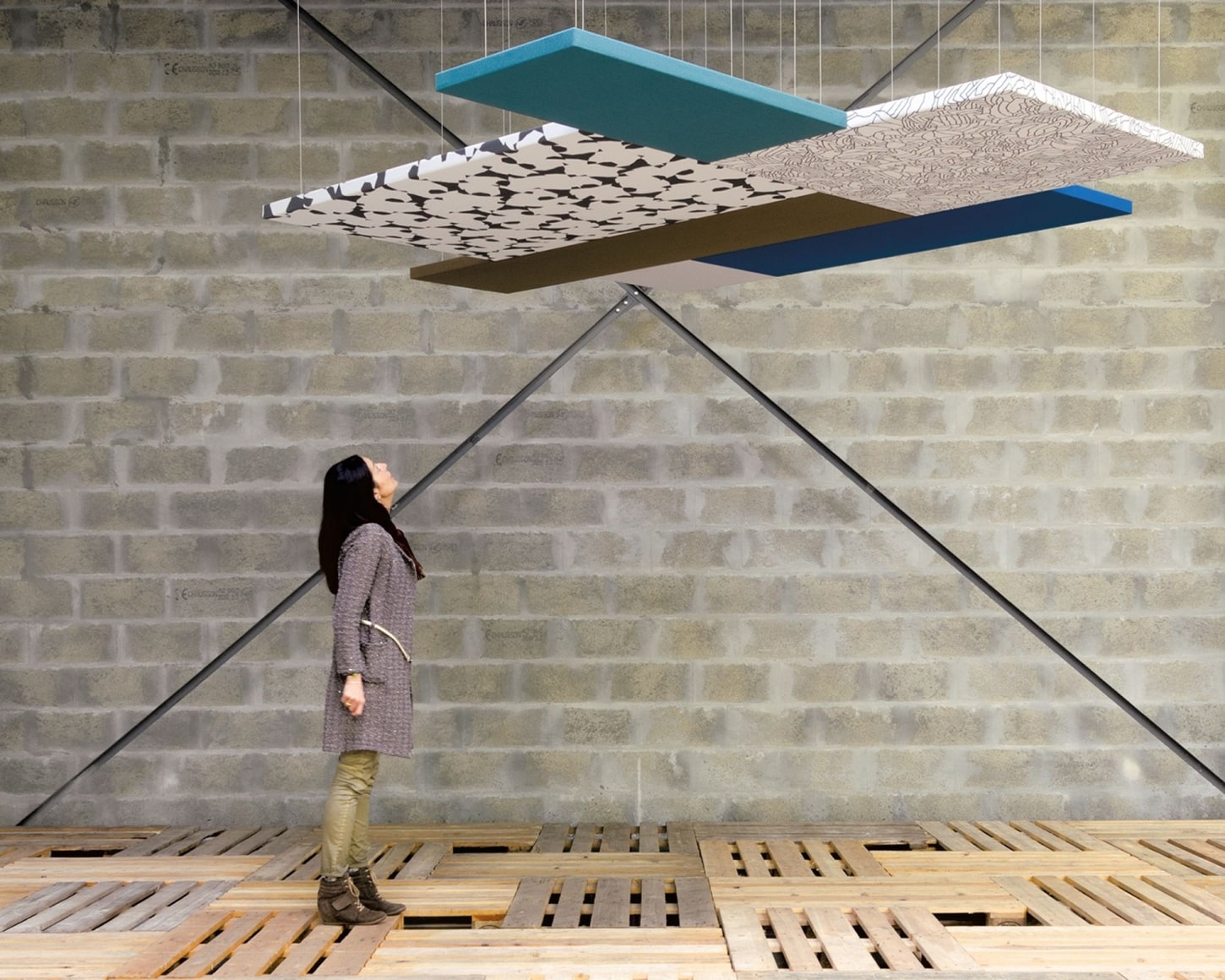

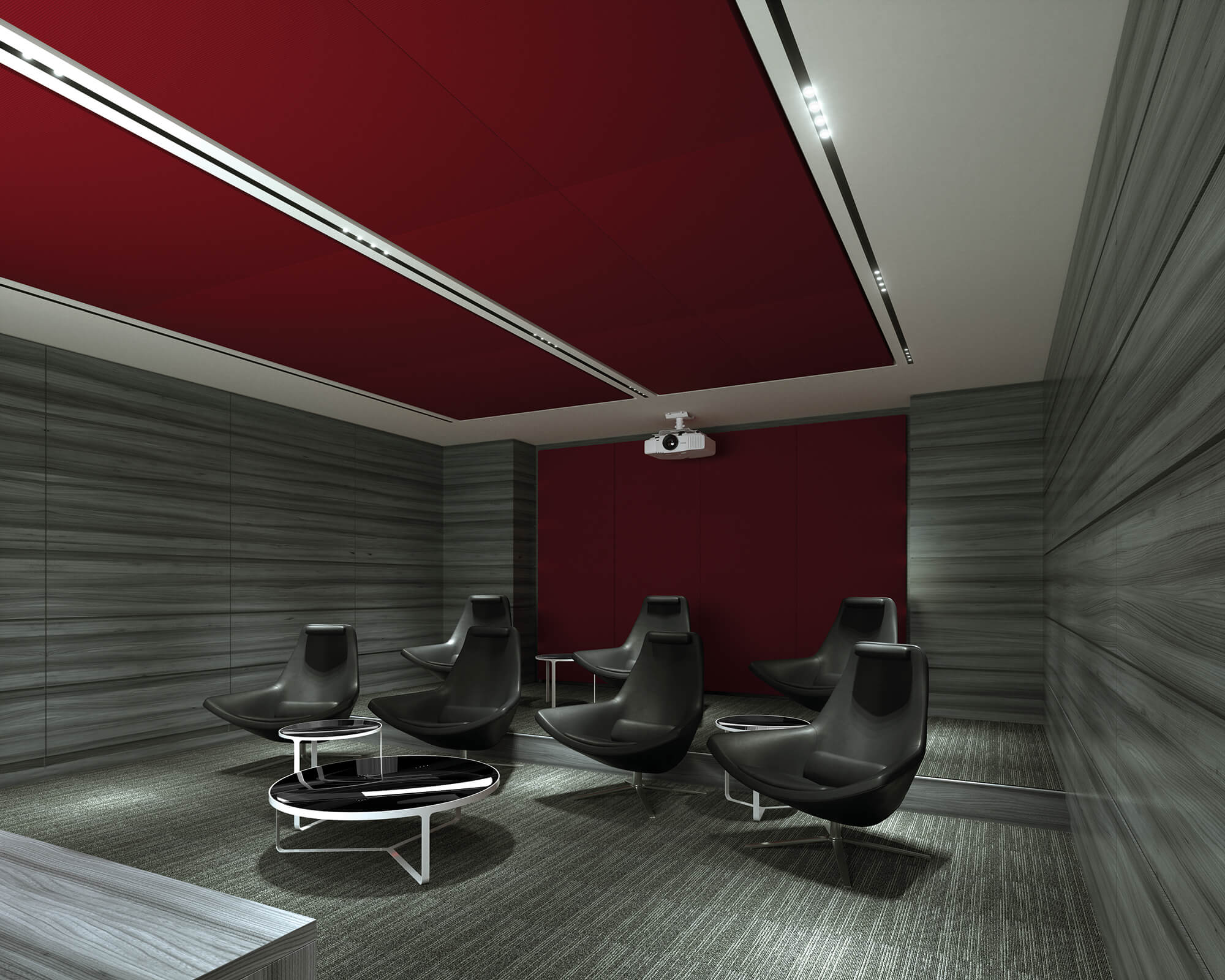

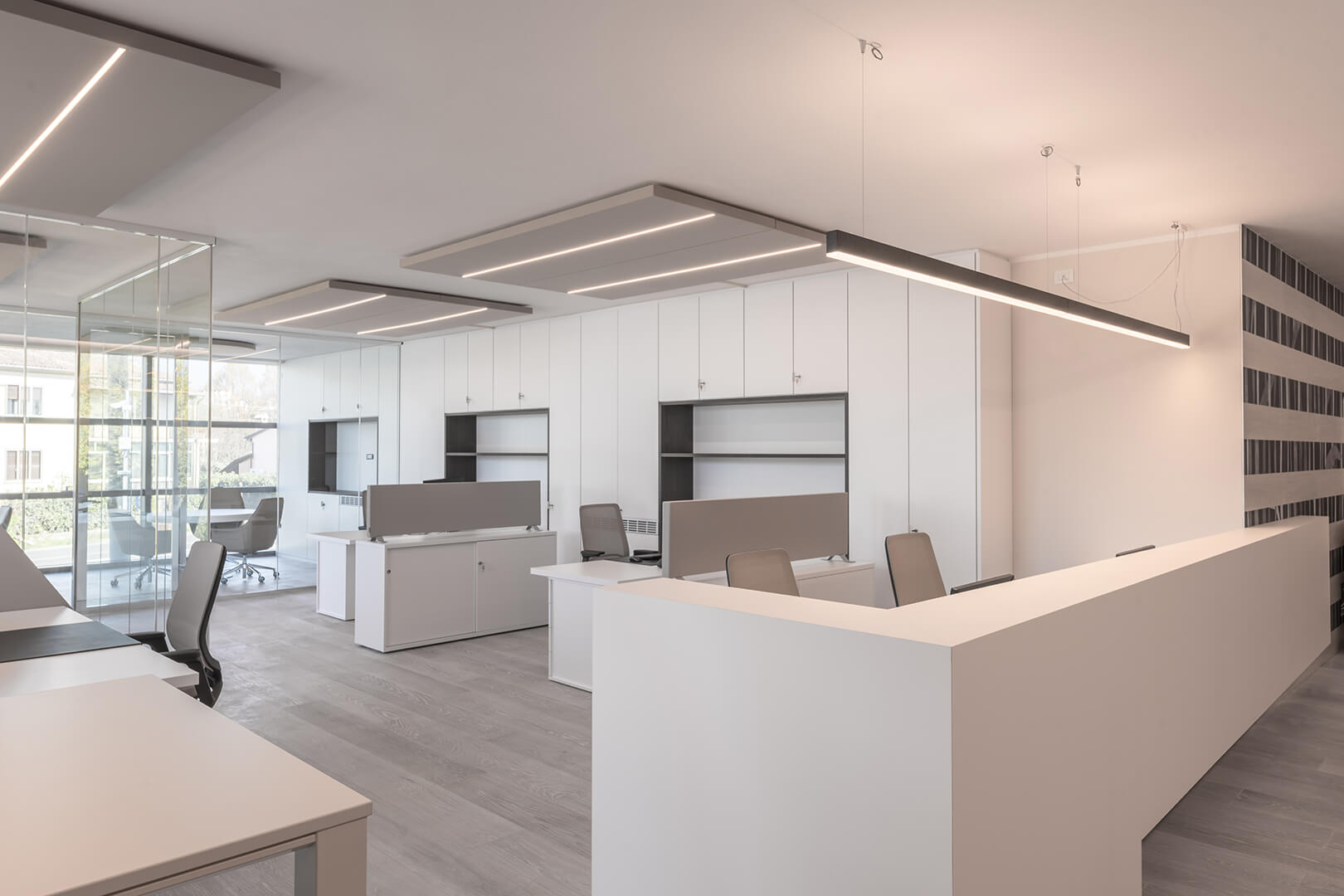

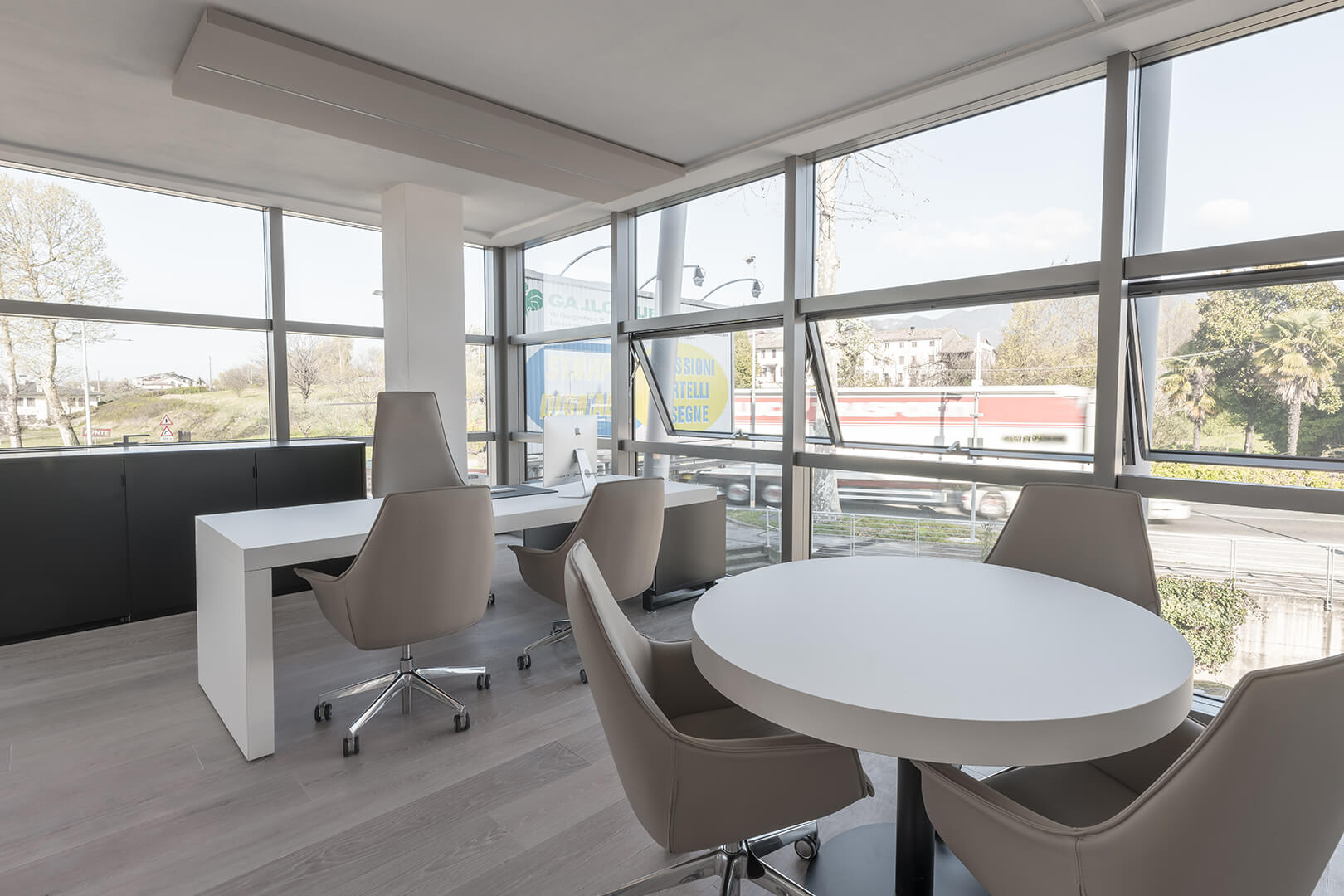

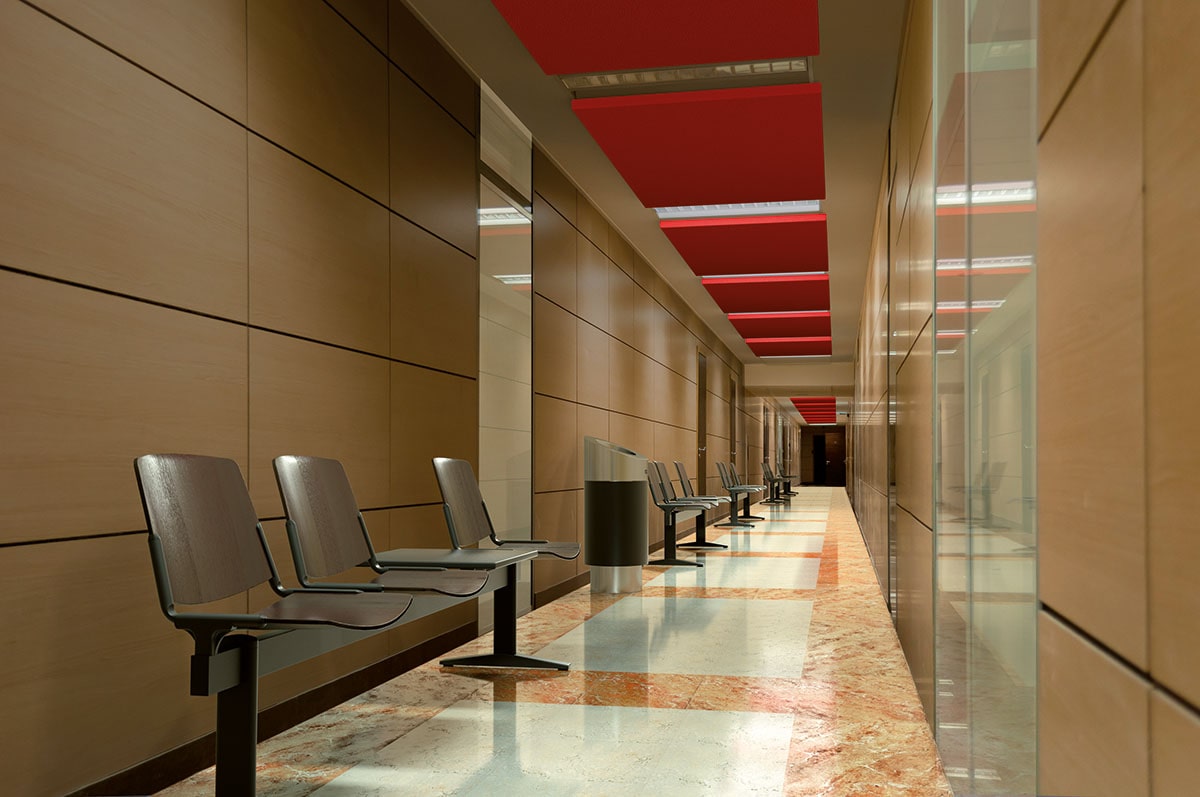

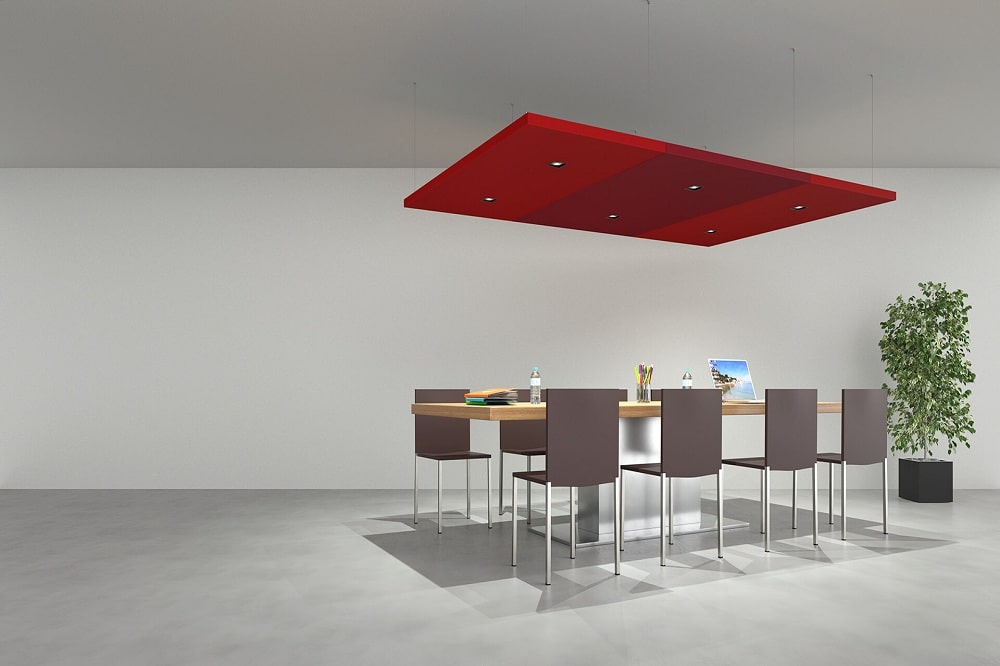

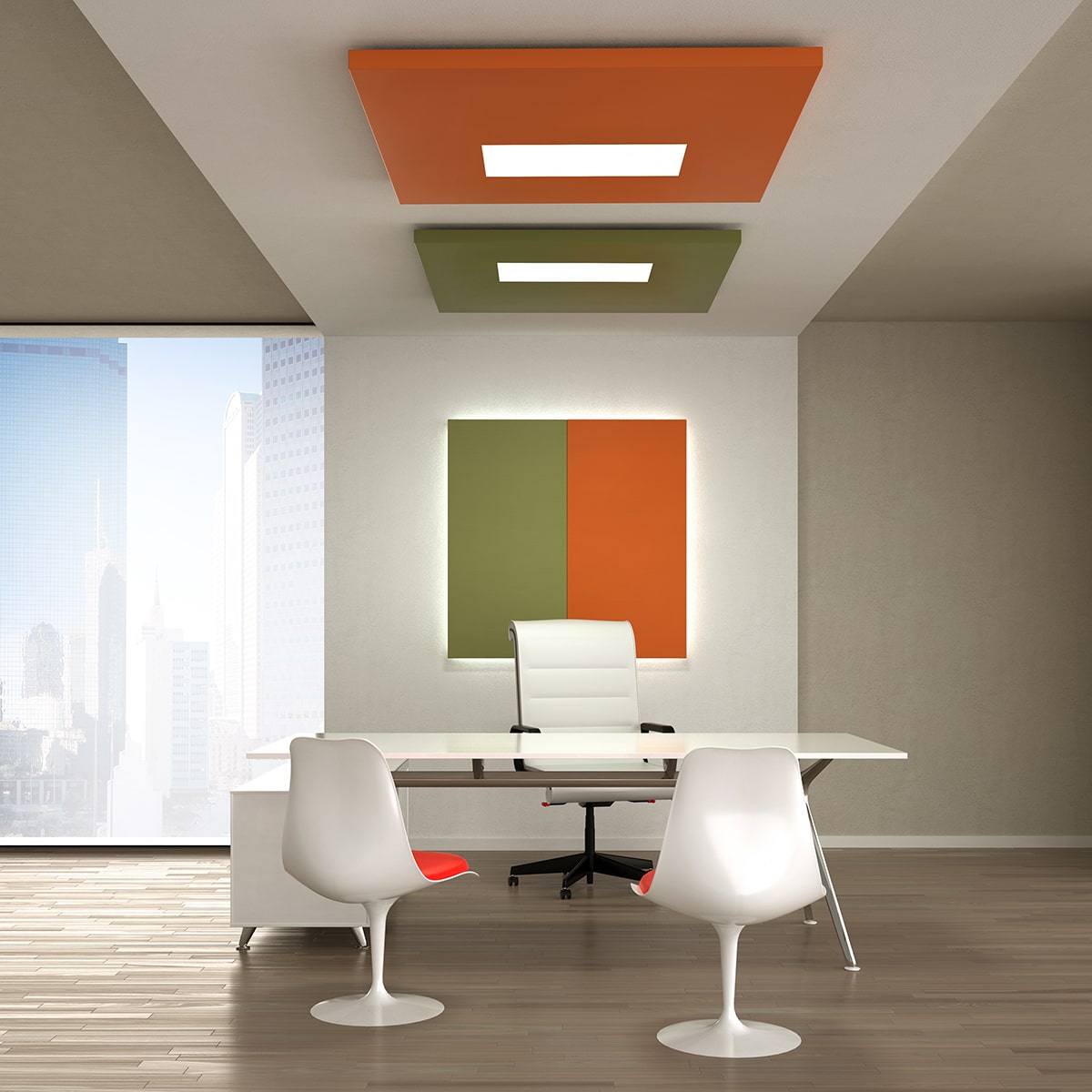

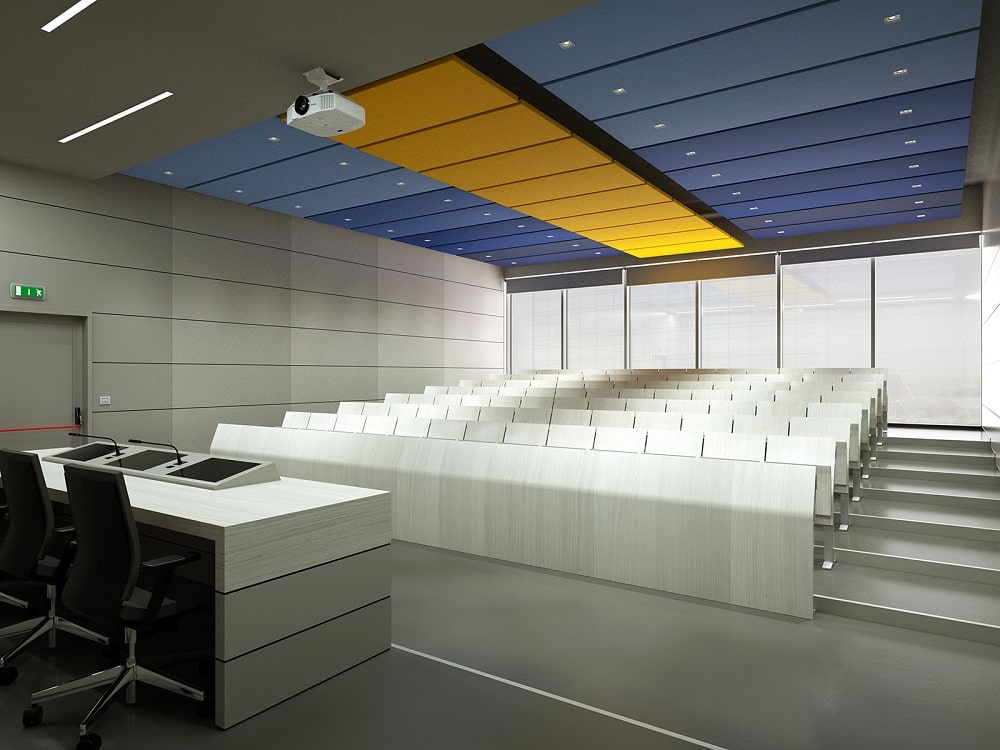

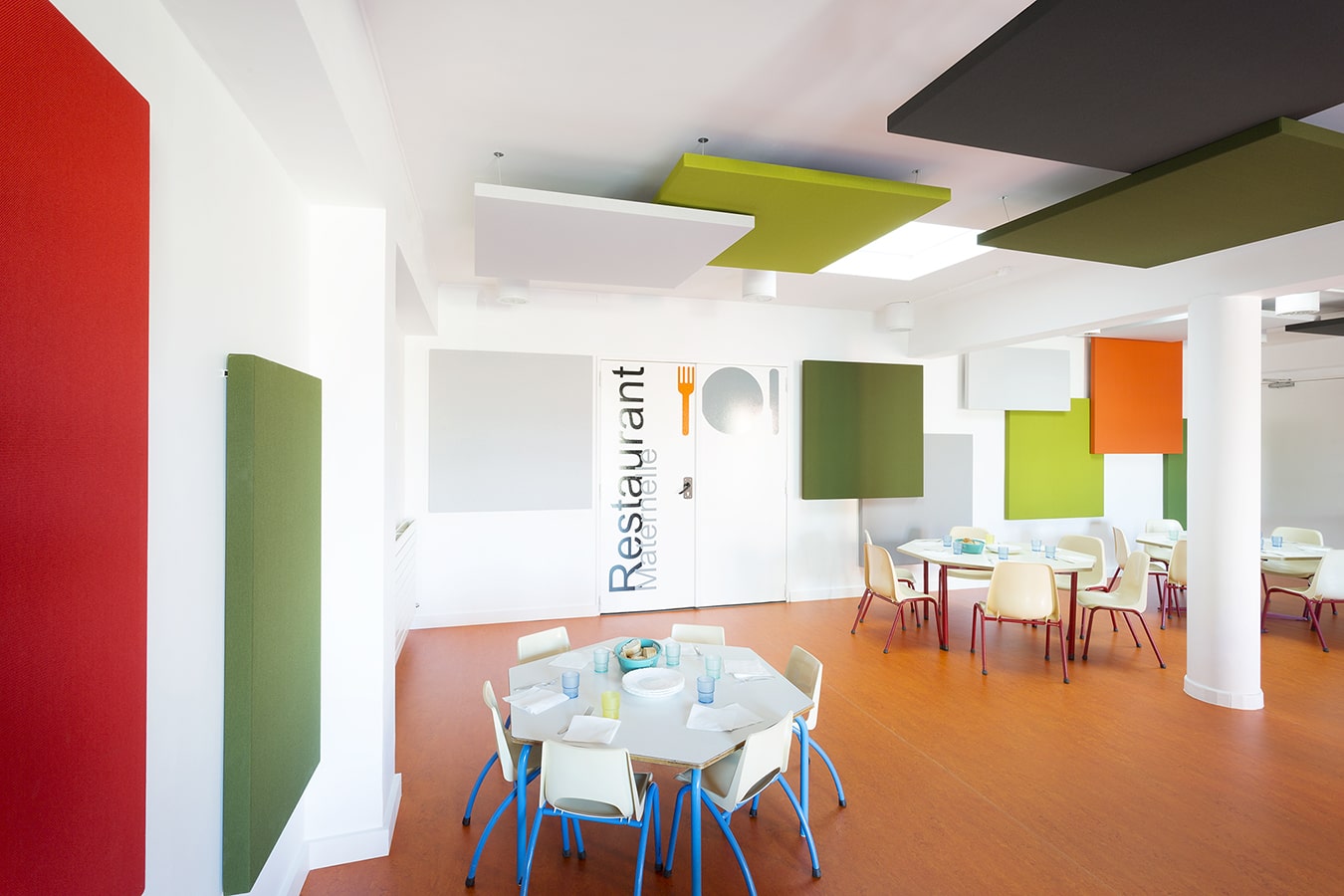

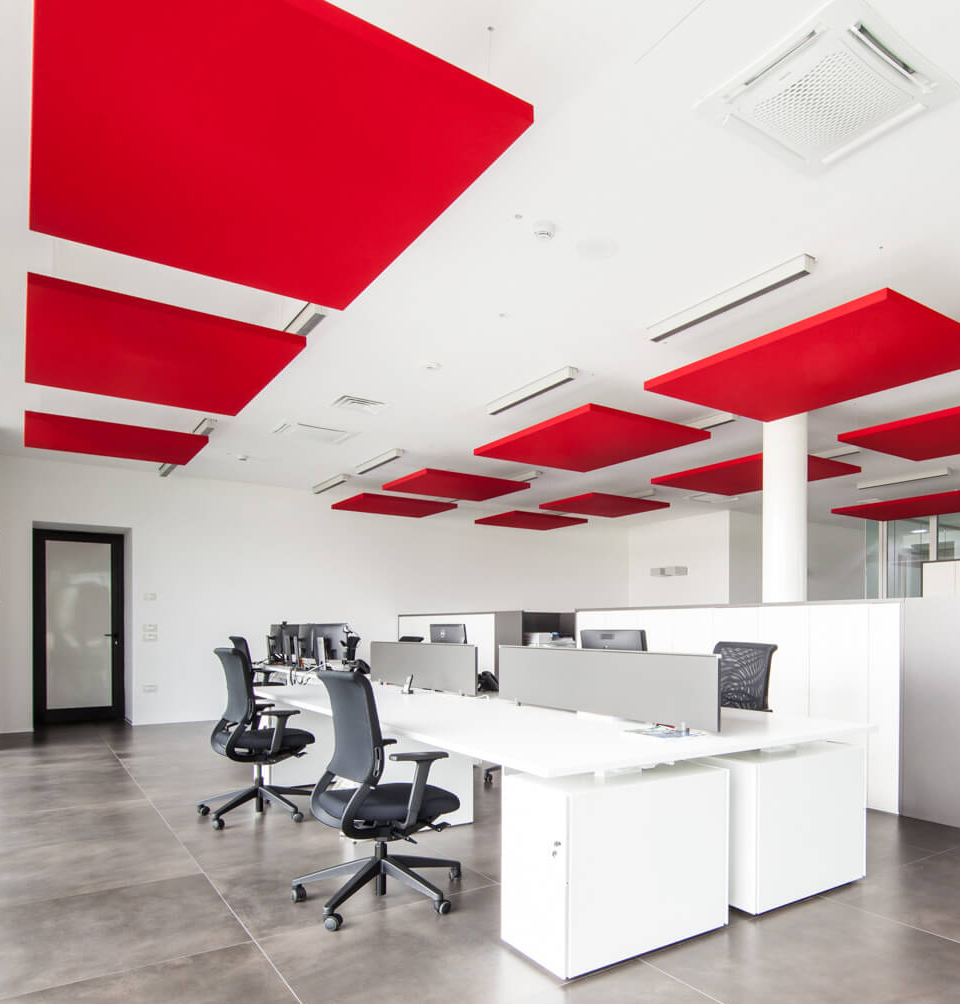

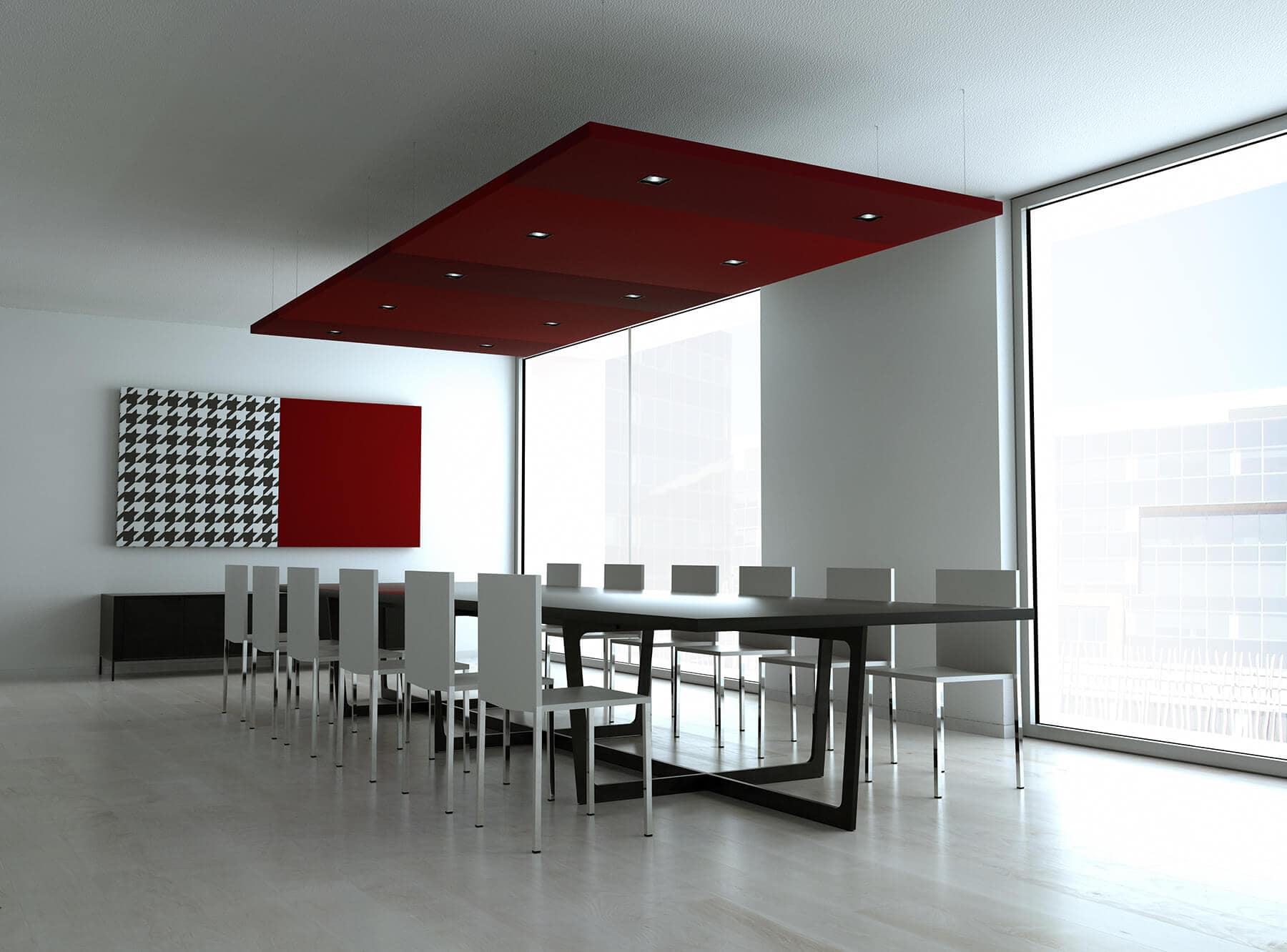

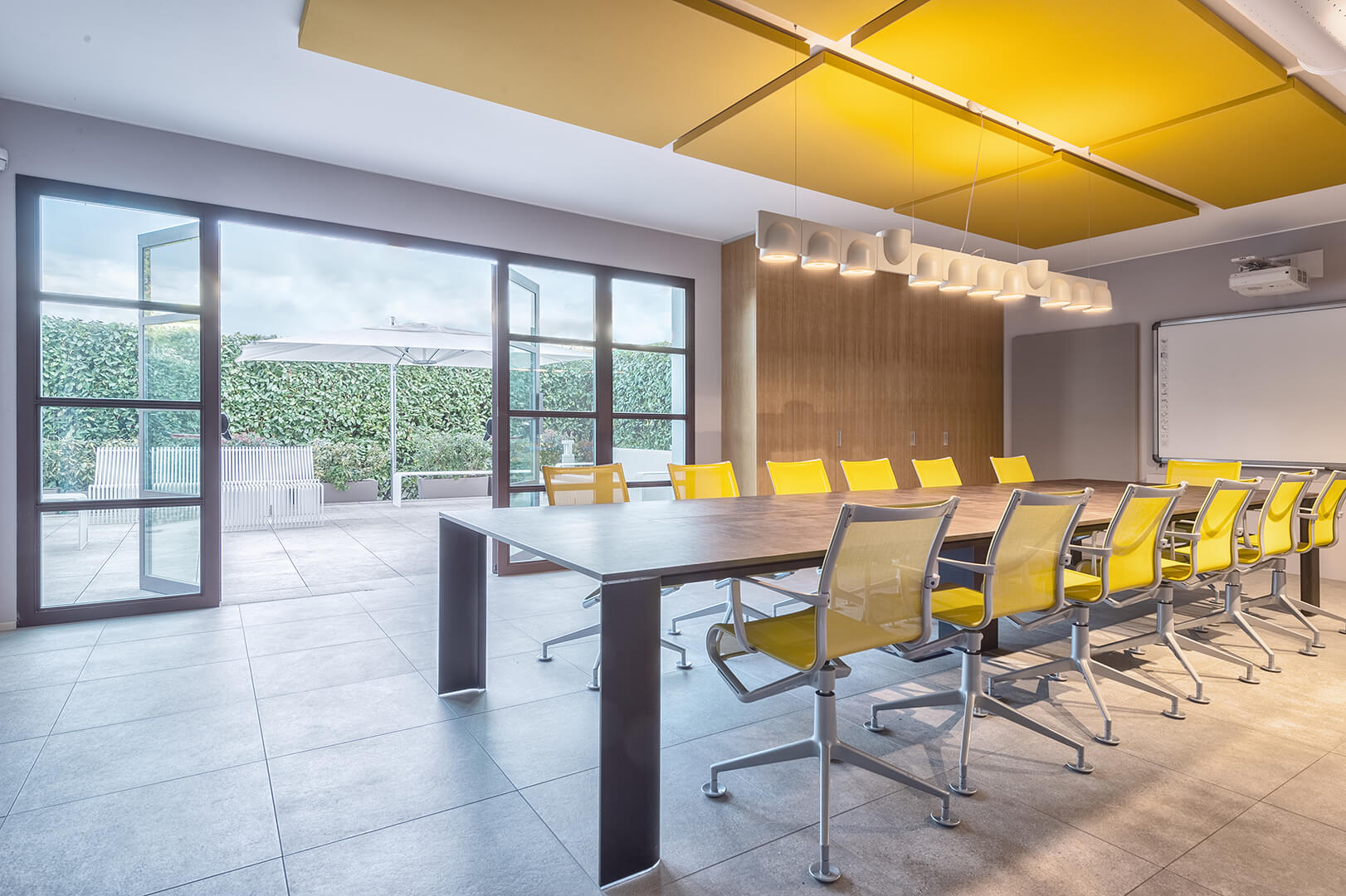

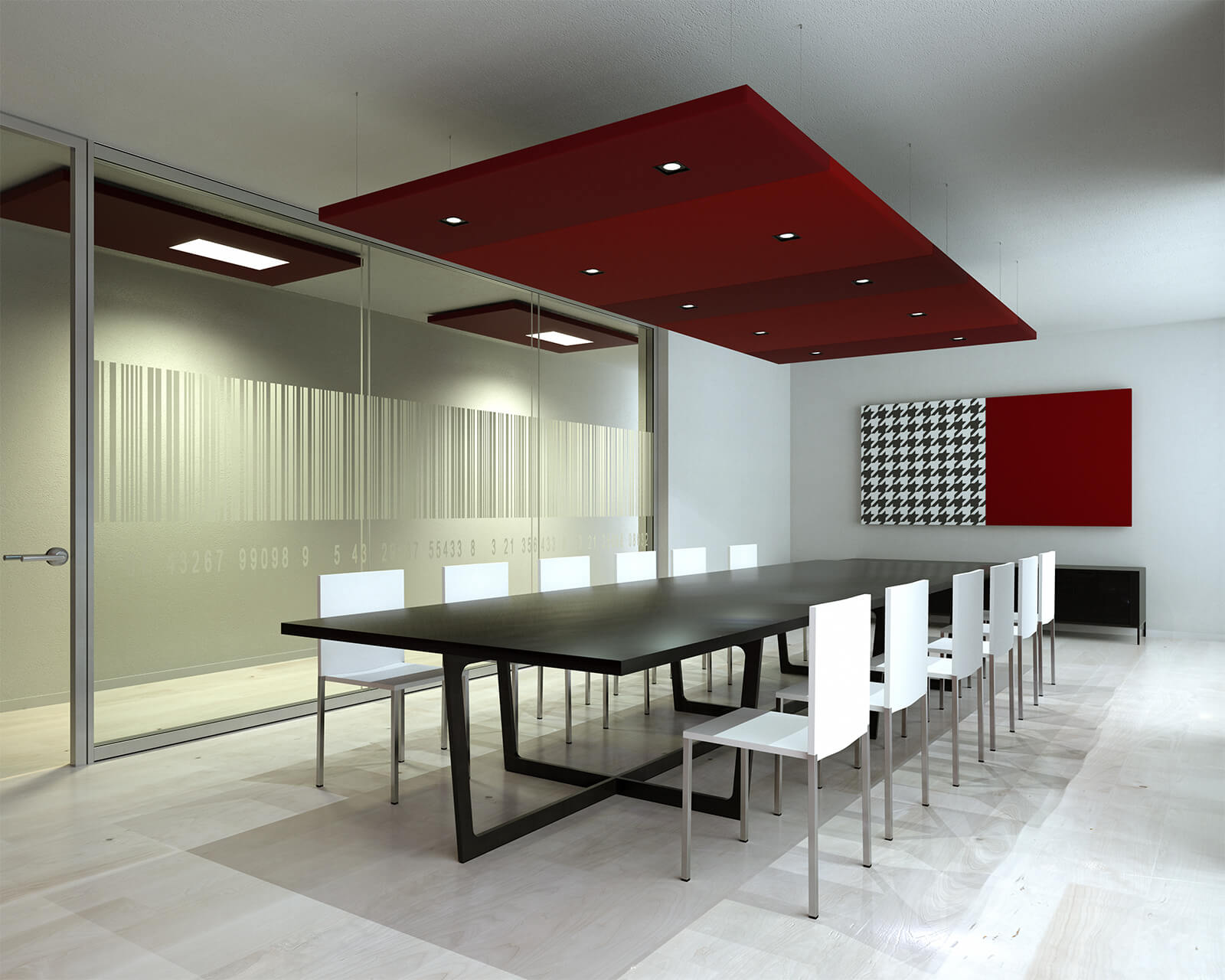

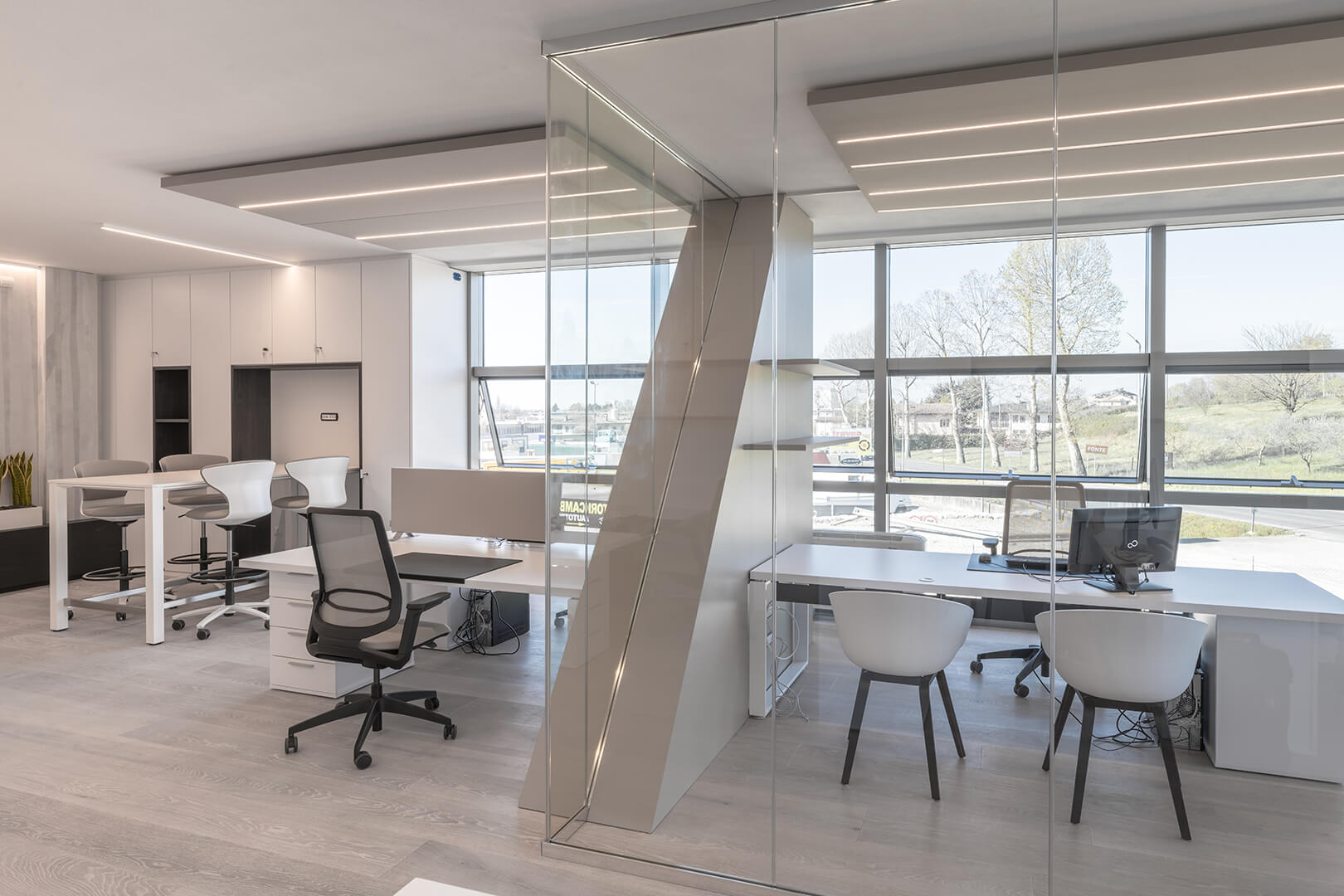

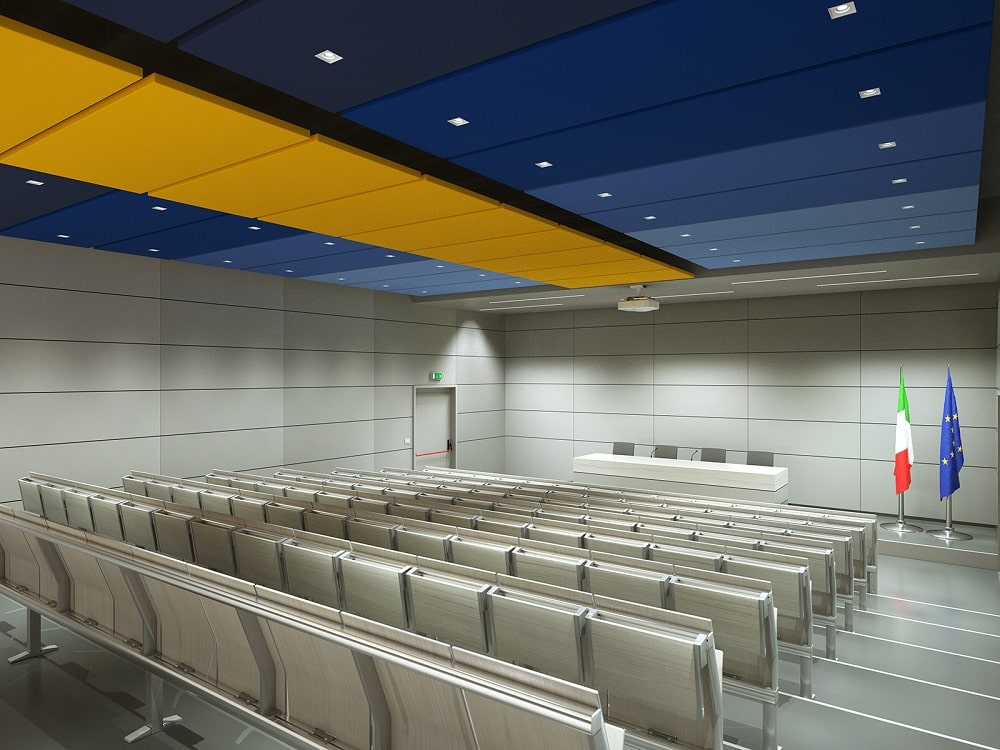

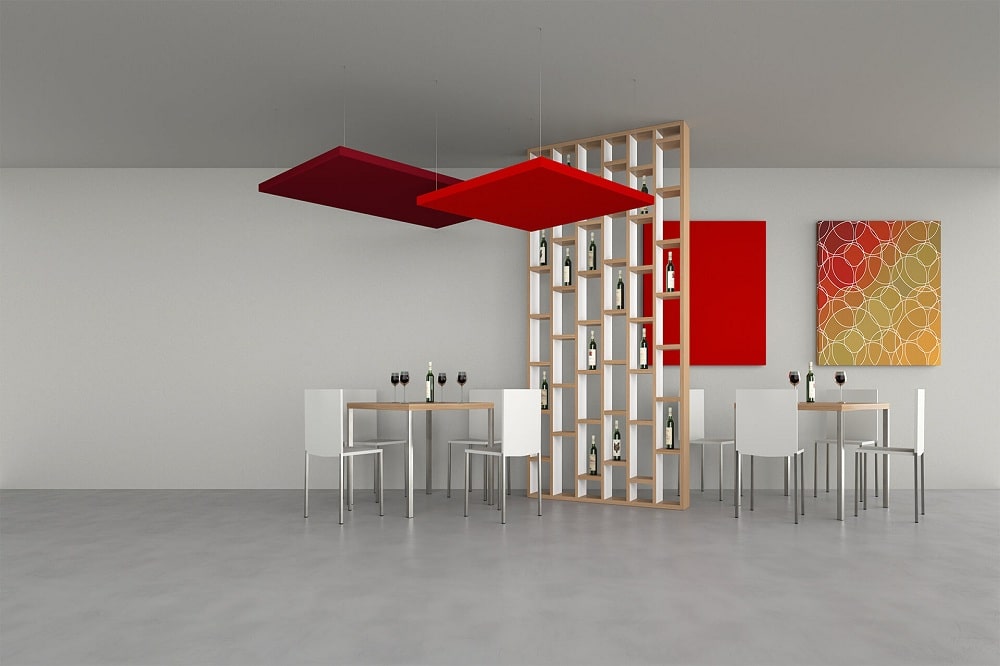

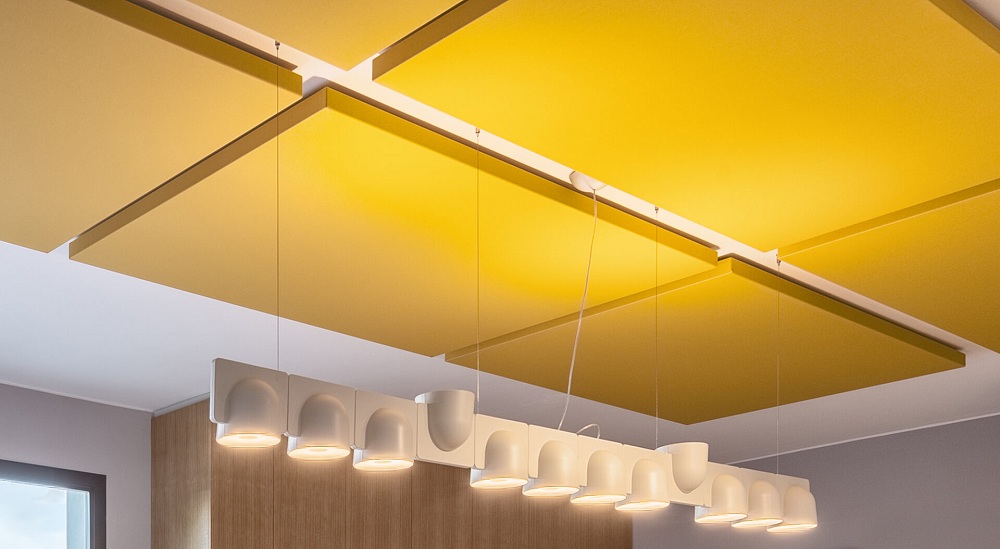

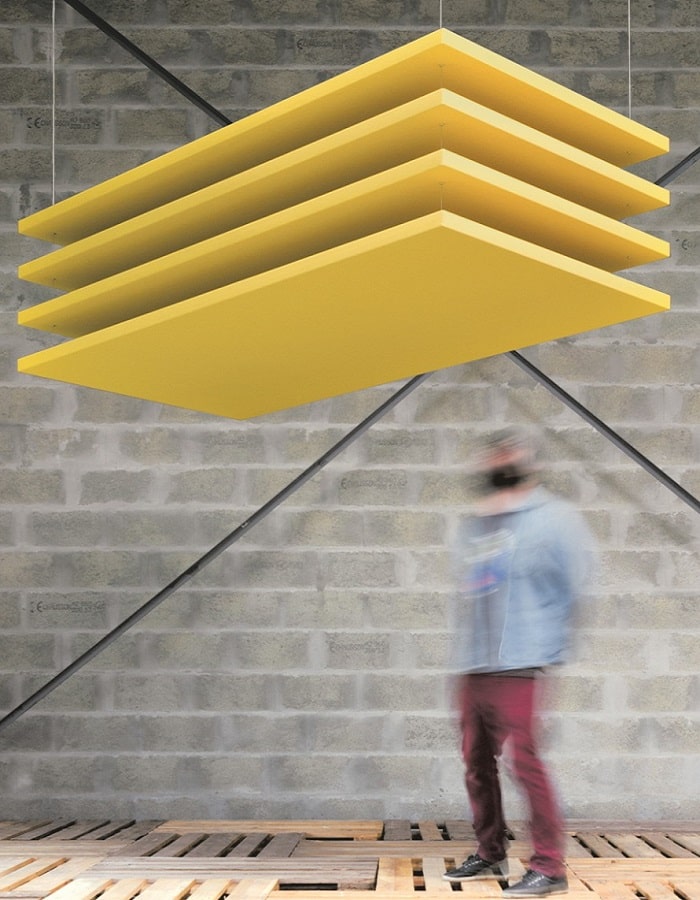

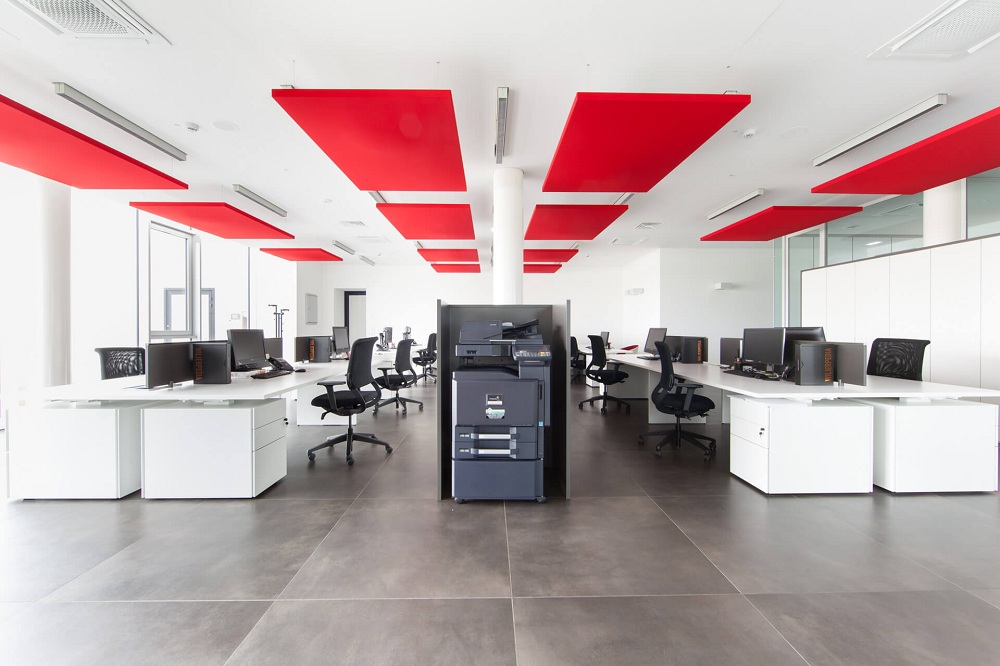

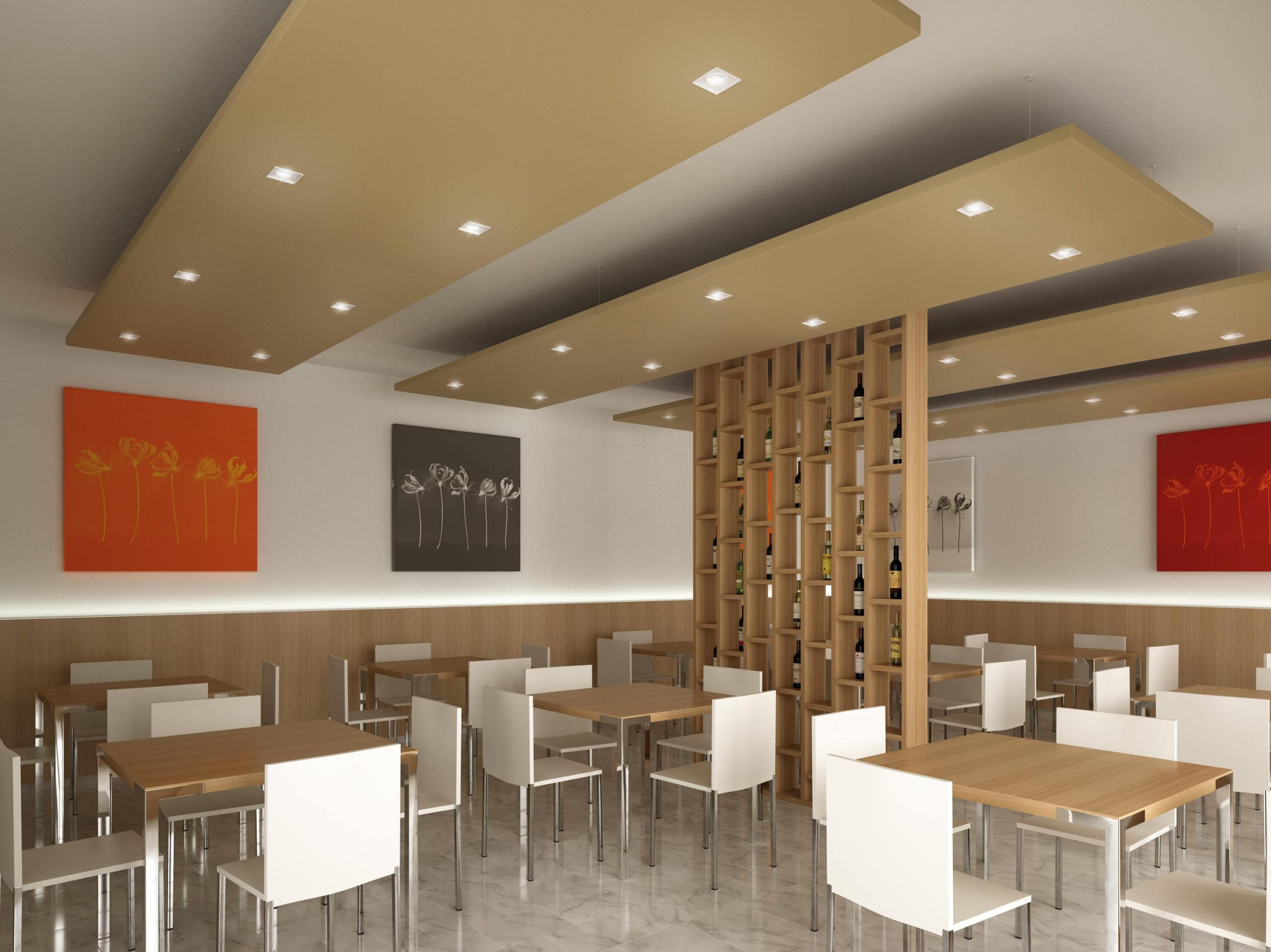

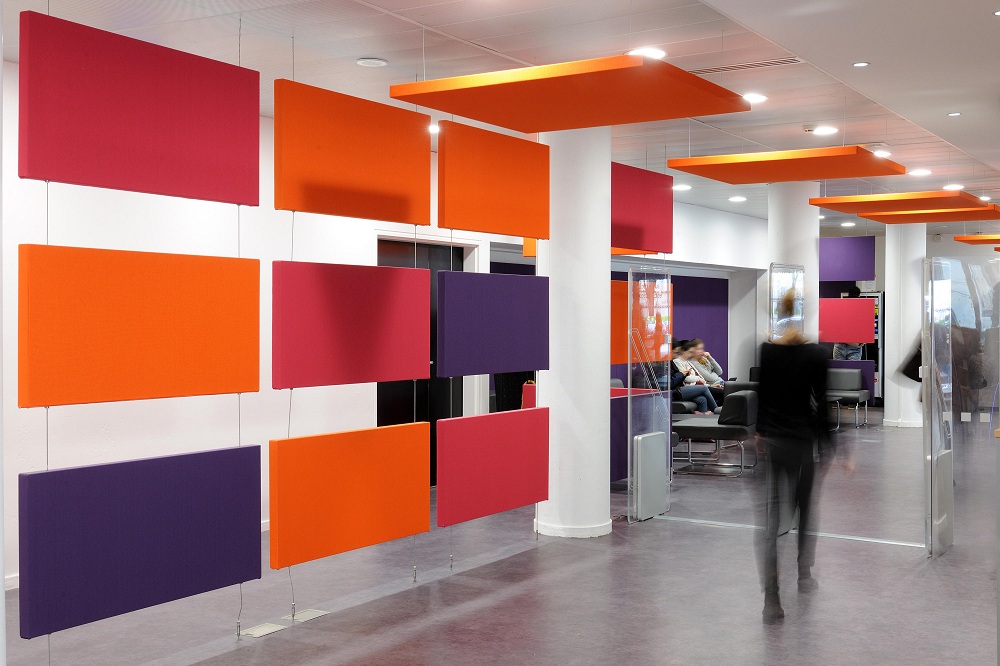

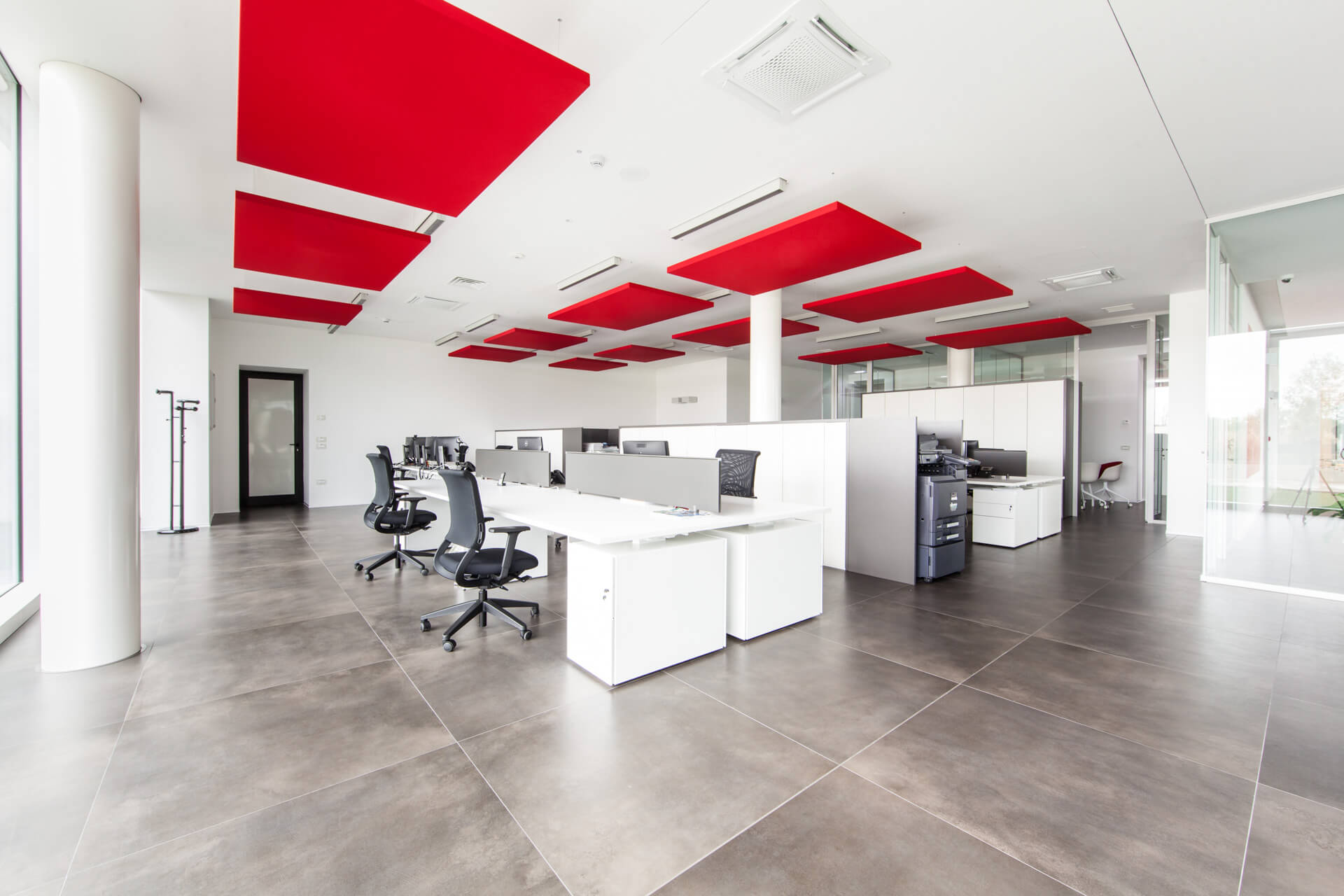

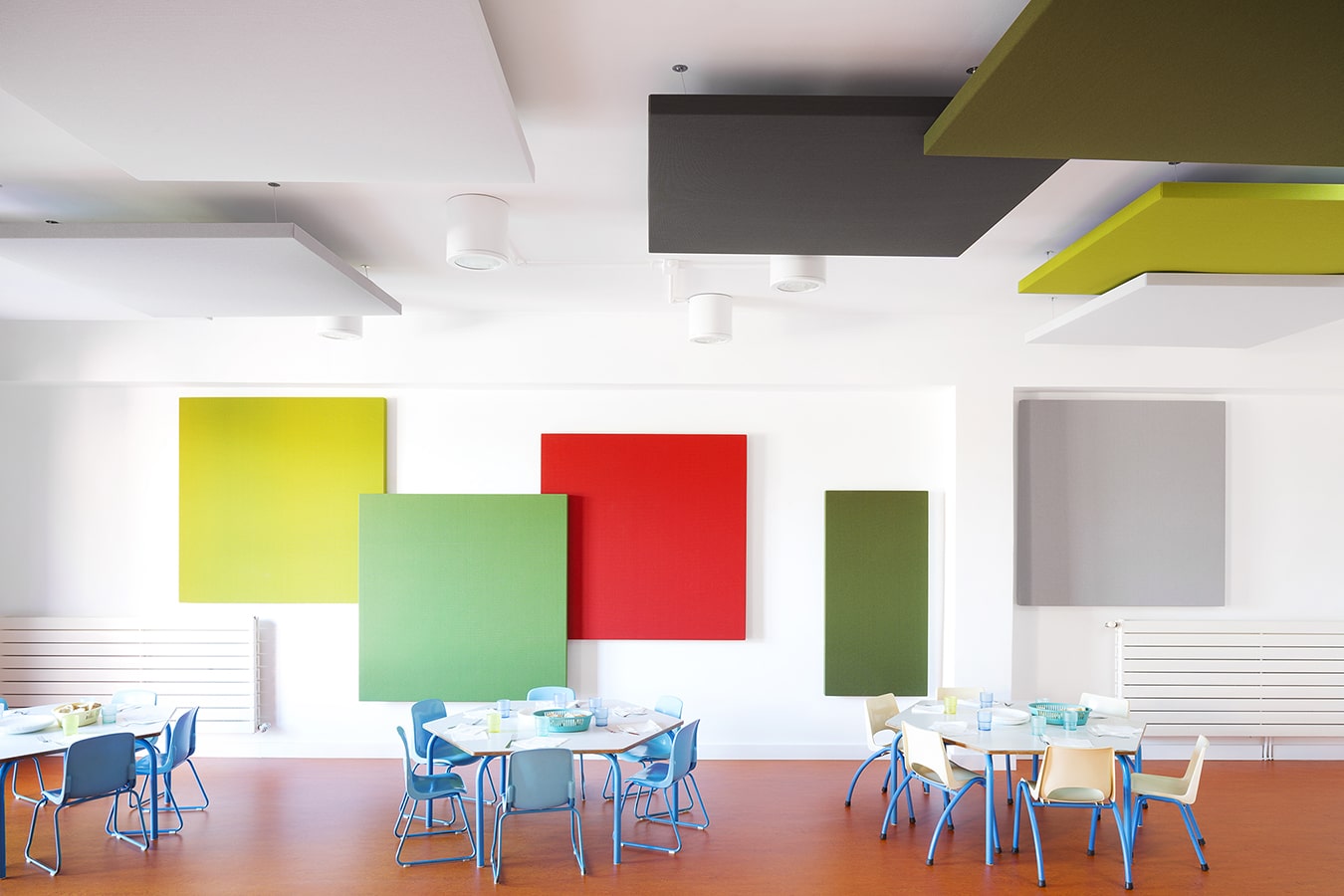

Implementatıon Gallery

Acoustıc Floatıng Ceılıng

Product Certıfıcates

Product Certıfıcate

Fıelds of use

Implementatıon Fıelds

Vehıcles

Banks

Studıos

Cafes

Call Centers

Houses

Factorıes

Shıps

Hospıtals

Swımmıng Pools

Offıces

Kındergartens

Lıbrarıes

Stores

Musıc Rooms

Work Places

Halls

Rest Rooms

Pıano Rooms

Restourants

Gymnasıums

Amusement Centers

Cınemas

Hotels

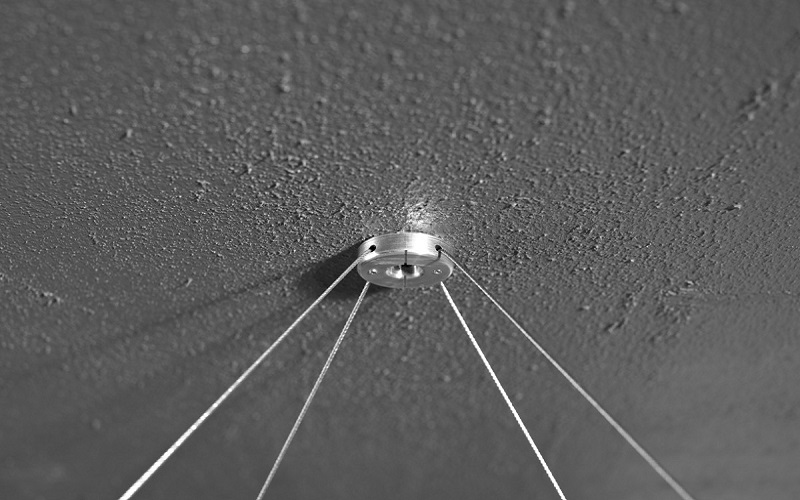

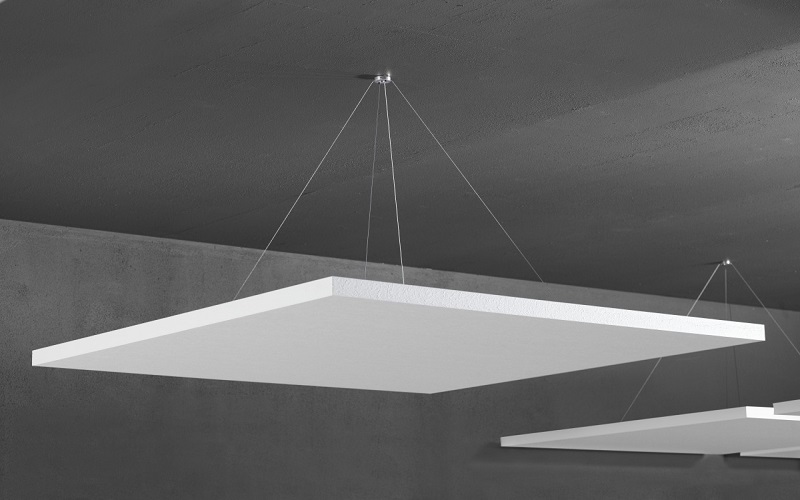

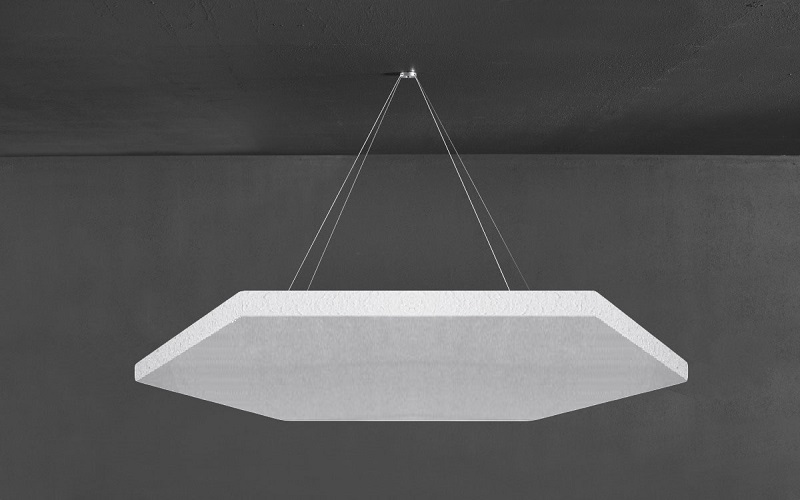

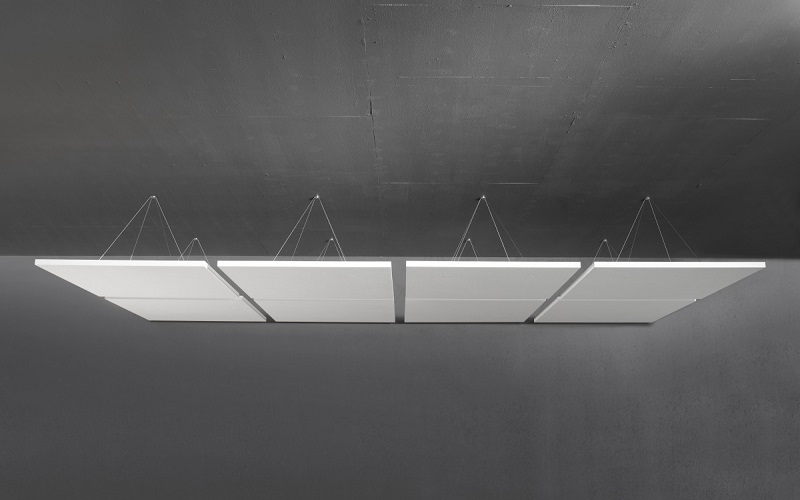

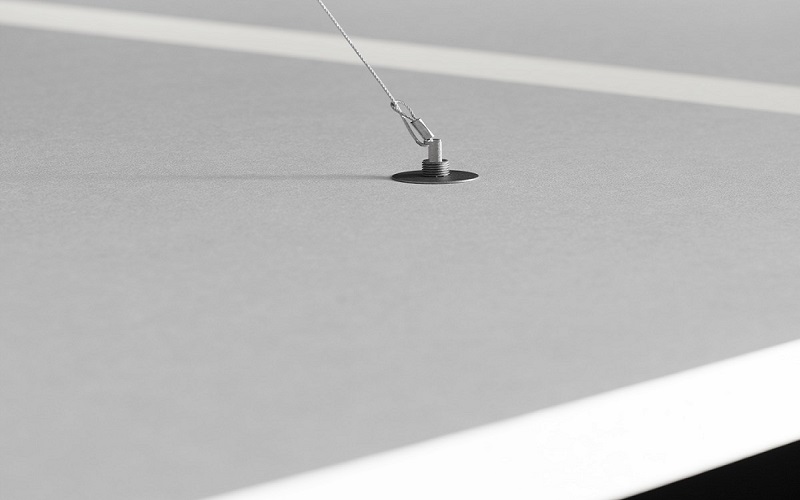

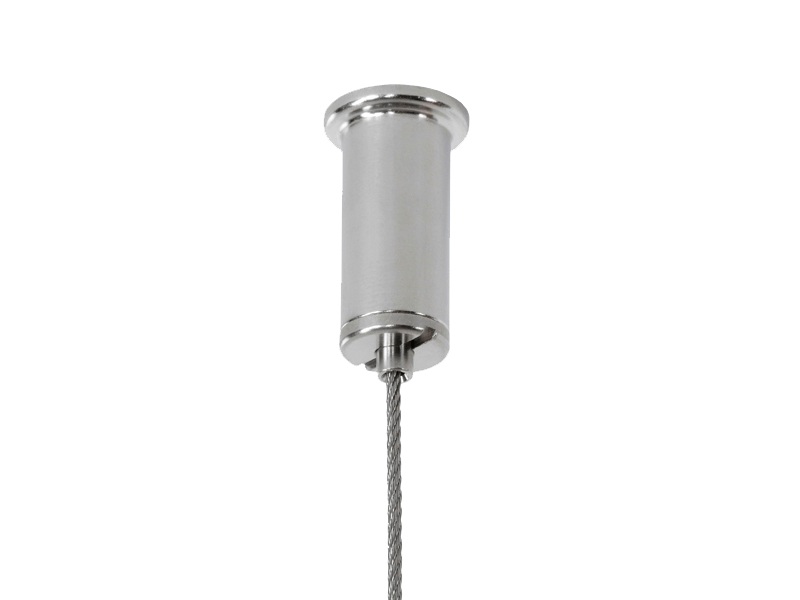

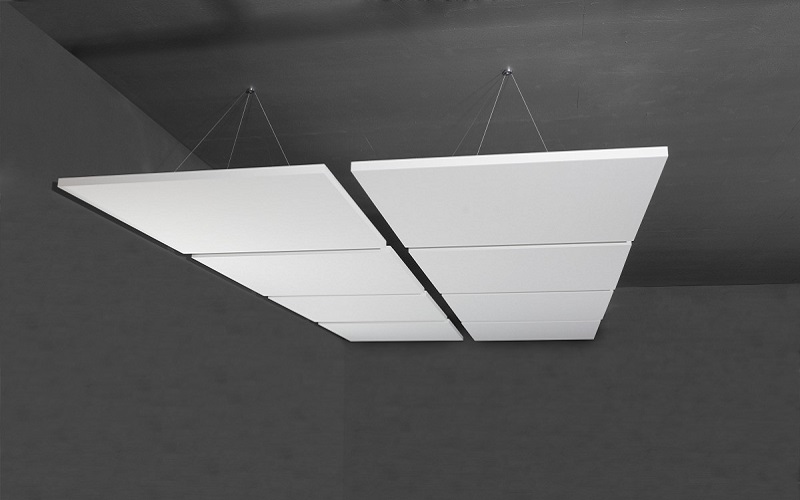

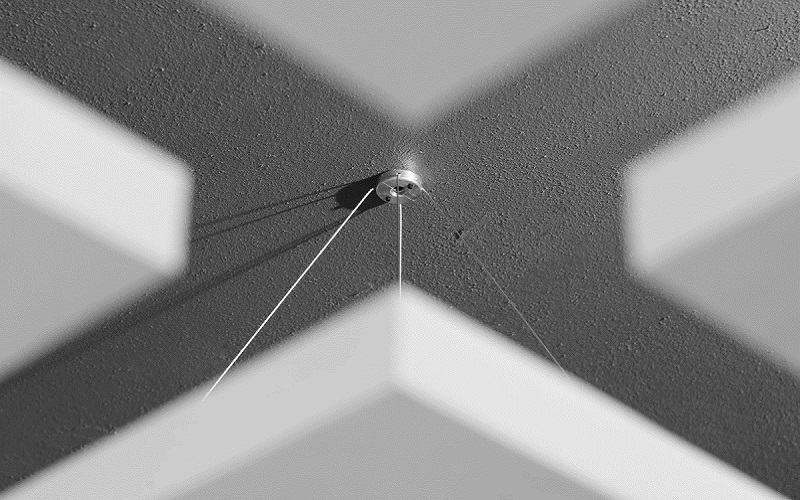

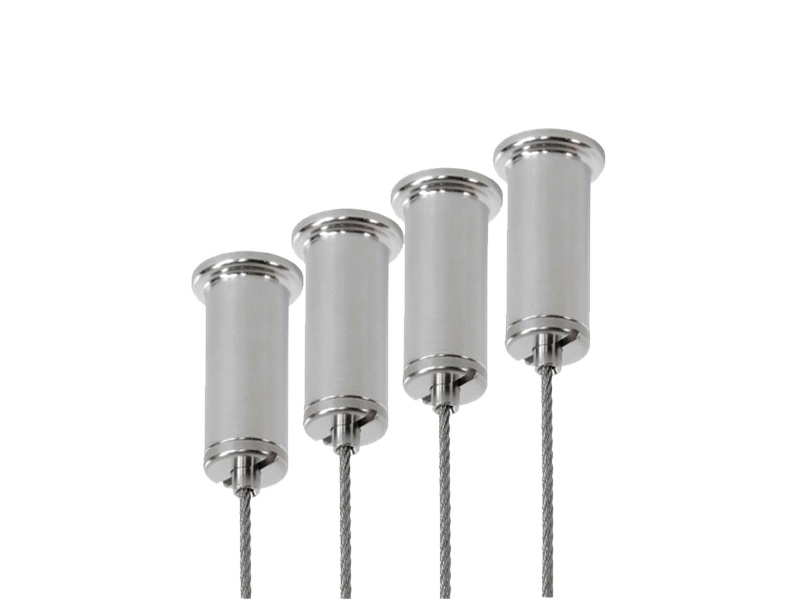

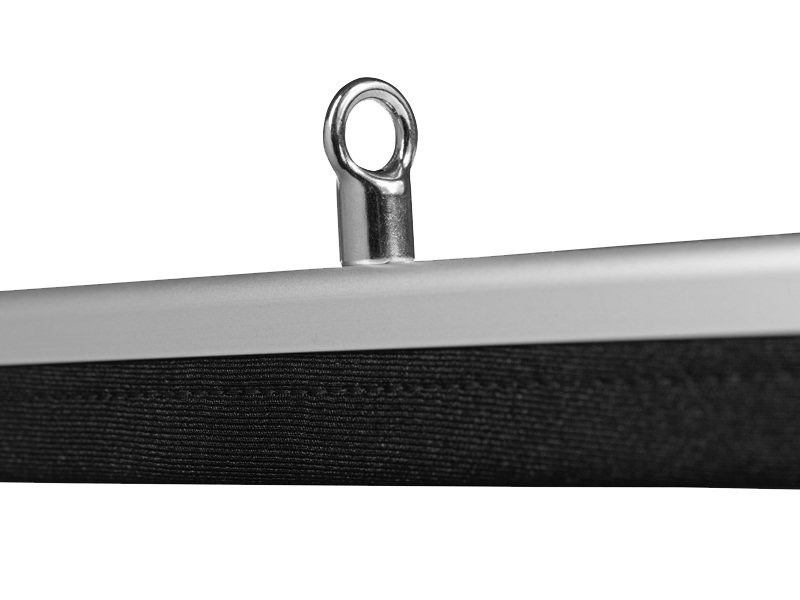

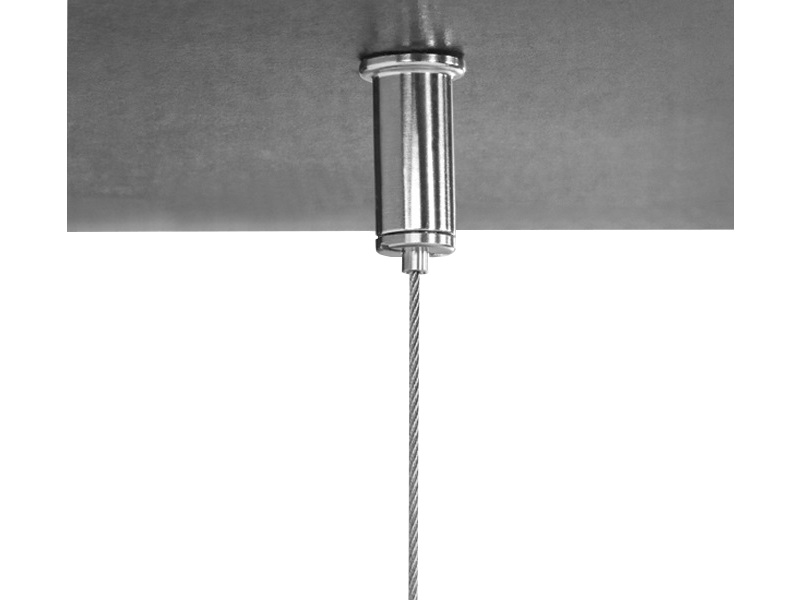

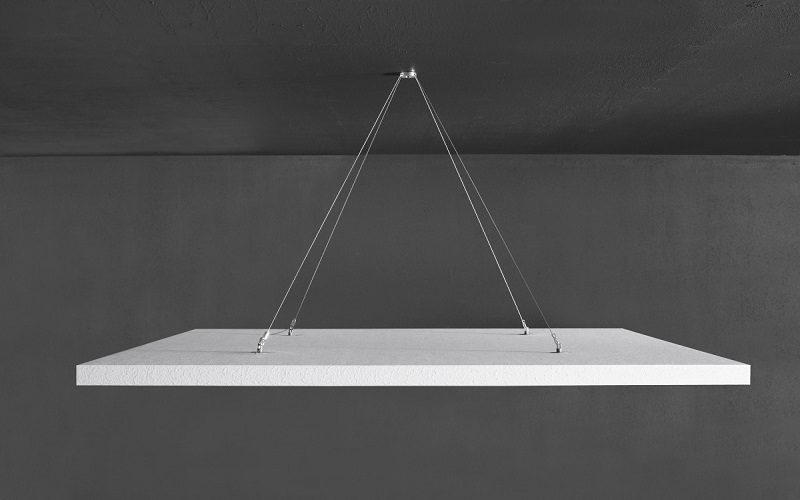

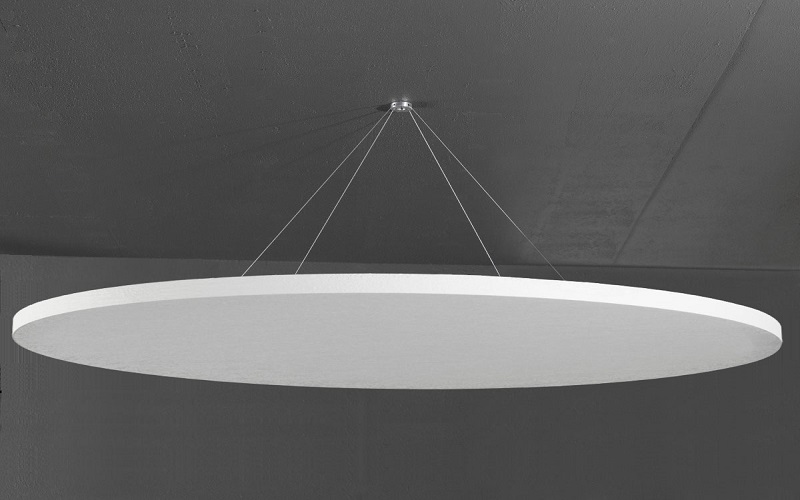

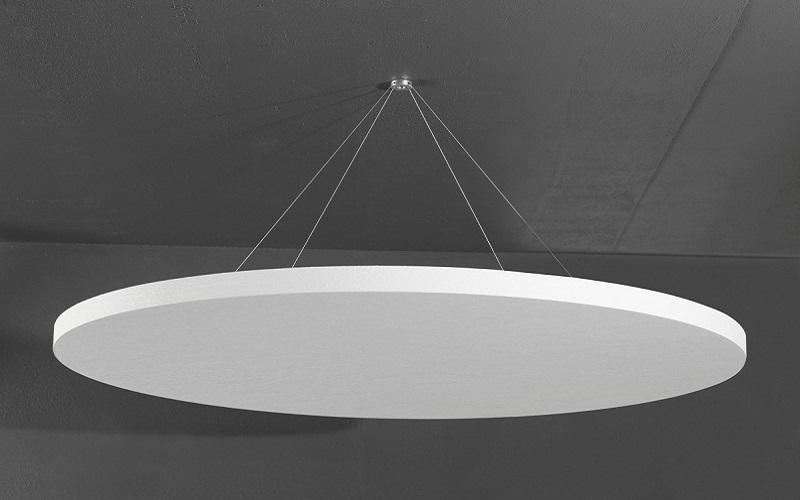

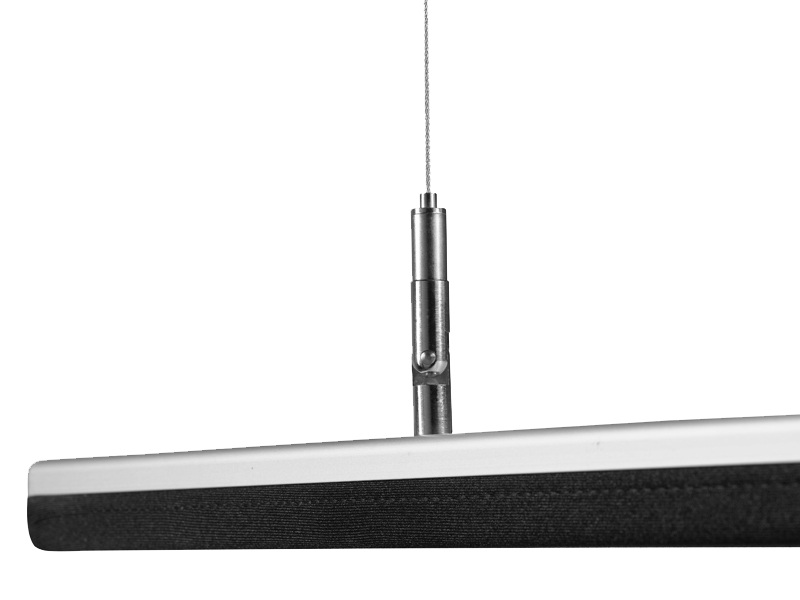

Mountıng Kıt

Canopy Models

Product Detaıls

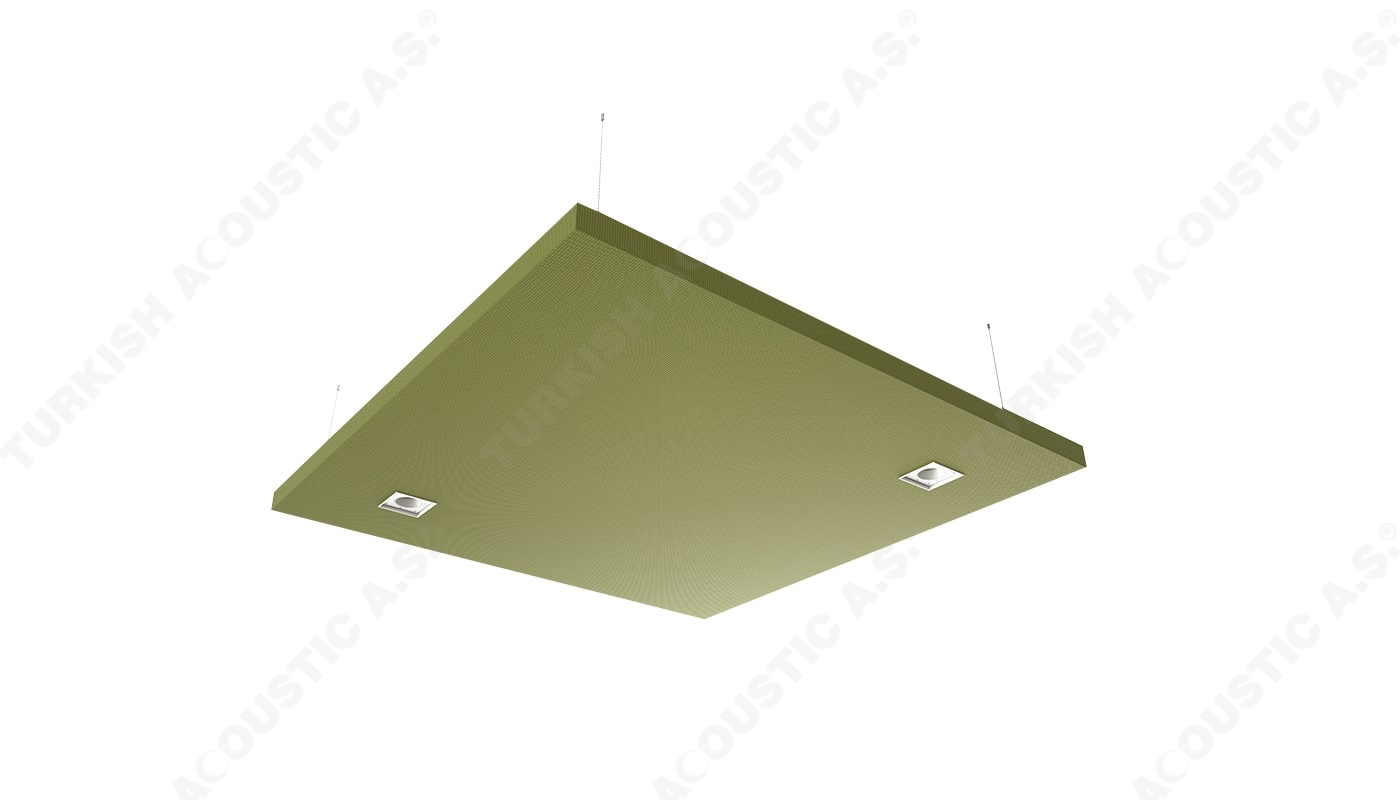

Acoustic Floating Ceilings: They are rectangular panel suspended ceiling panels made by filling sound-absorbing acoustic panels with absorbent insulation material and covered with acoustic fabrics. Acoustic canopy ceiling systems are used to regulate interference sounds and control noise in places with intense noise, such as offices, workplaces, shopping centers, and gymnasiums, meeting rooms, libraries, call centers, factories. Canopy acoustic ceiling systems NRC acoustic value (sound absorption value) is in the range of 0.95-1.00. Baffle acoustic fabric-covered panel panels are fire-resistant, class B s2 d0 according to UNE - EN 13501-1: 2007 standard. Canopy acoustic ceiling systems product is produced in standard 30 mm 40 mm and 50 mm thickness. Baffle ceiling systems are produced from coated or flat basotect sponge panels. Standard sizes are rectangular shapes such as 50 cm x 150 cm. Canopy acoustic panels are mounted by hanging on ceilings with steel stainless accessories, cable, and anchorage materials. (Canopy Acoustic Ceiling)

Acoustic Floating Ceiling Colors: Fabric-covered acoustic panels are unlimited in color, click here for the fabric chart.

Acoustic Floating Ceiling Thicknesses: Standard thicknesses of 20 mm, 40 mm, and 50 mm depending on the model. It complies with all technical specifications.

Acoustic Floating Ceiling Dimensions: 60 × 60 cm, 60 × 120 cm, 60 × 180 cm, 60 × 240 cm, 60 × 270 cm, 60 × 300 cm, 120 × 120 cm, 120 × 180 cm, 120 × 240 cm, 120 × 270 cm, 120 x 300 cm

Acoustic Floating Ceiling Usage Areas: Conference and seminar halls, factories, shopping malls, gymnasiums, meeting & movie theaters, auditoriums, and studios.

Acoustic Floating Roof Options: Fabric covered acoustic panels can be produced in combination in different geometric shapes and thicknesses.

Acoustic Floating Ceiling Flammability: The materials used are glass wool and fabric coverings in the form of b1 non-flammability.

Acoustic Floating Ceiling Density: 95 kg / m3 density acoustic glass wool board or 30 - 60 Dns Acoustic sponge.

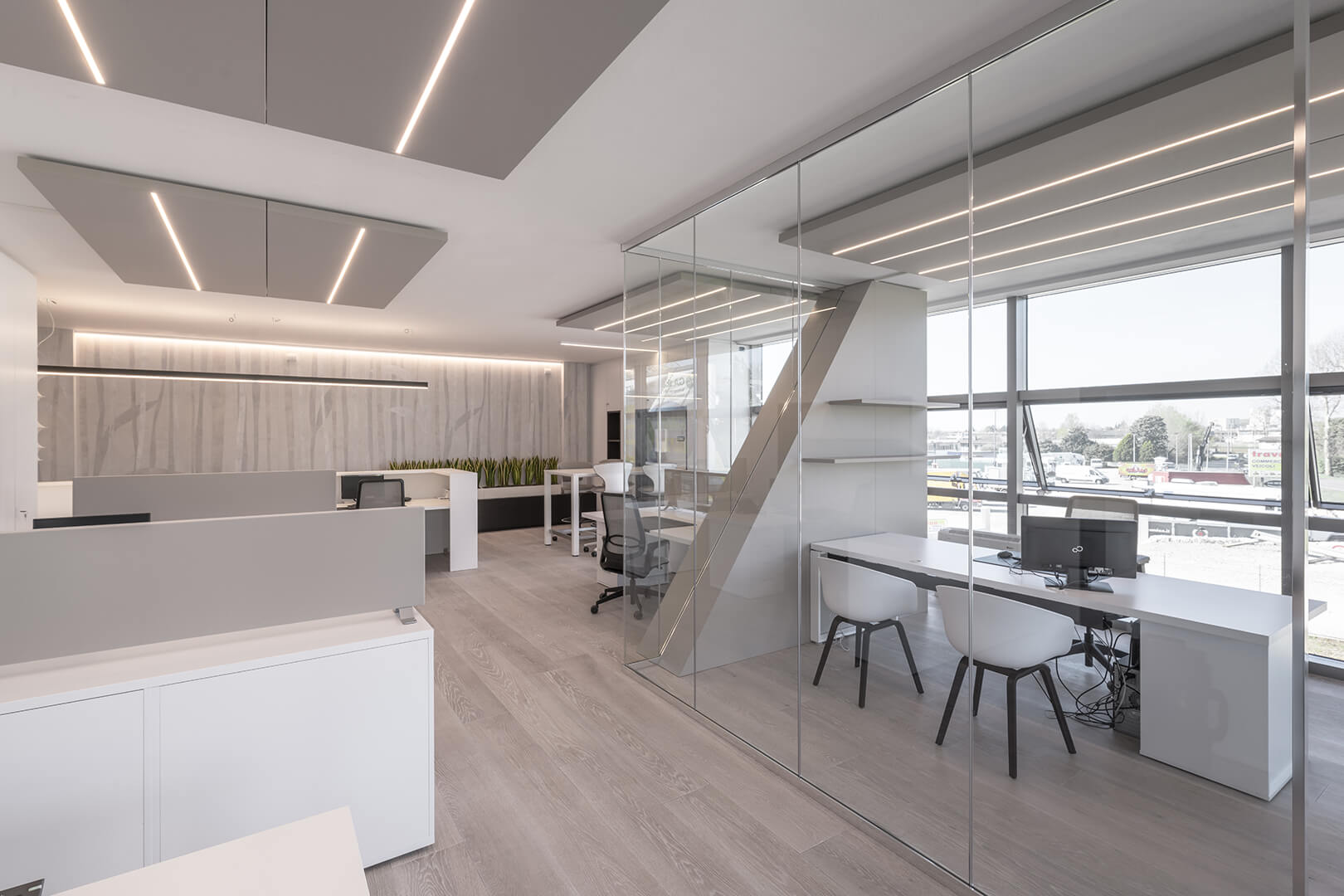

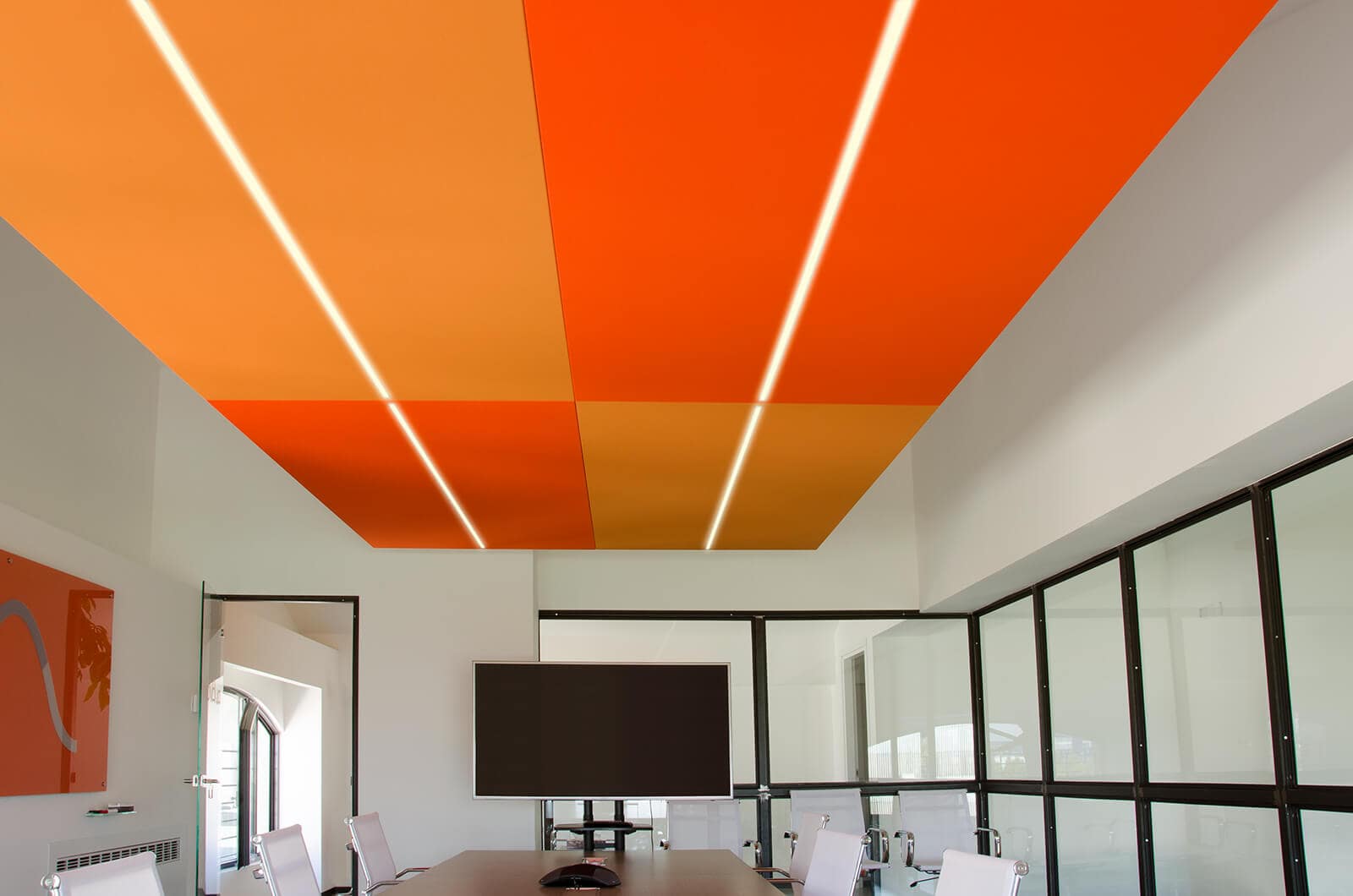

Implementatıons

Canopy Ceılıng Systems

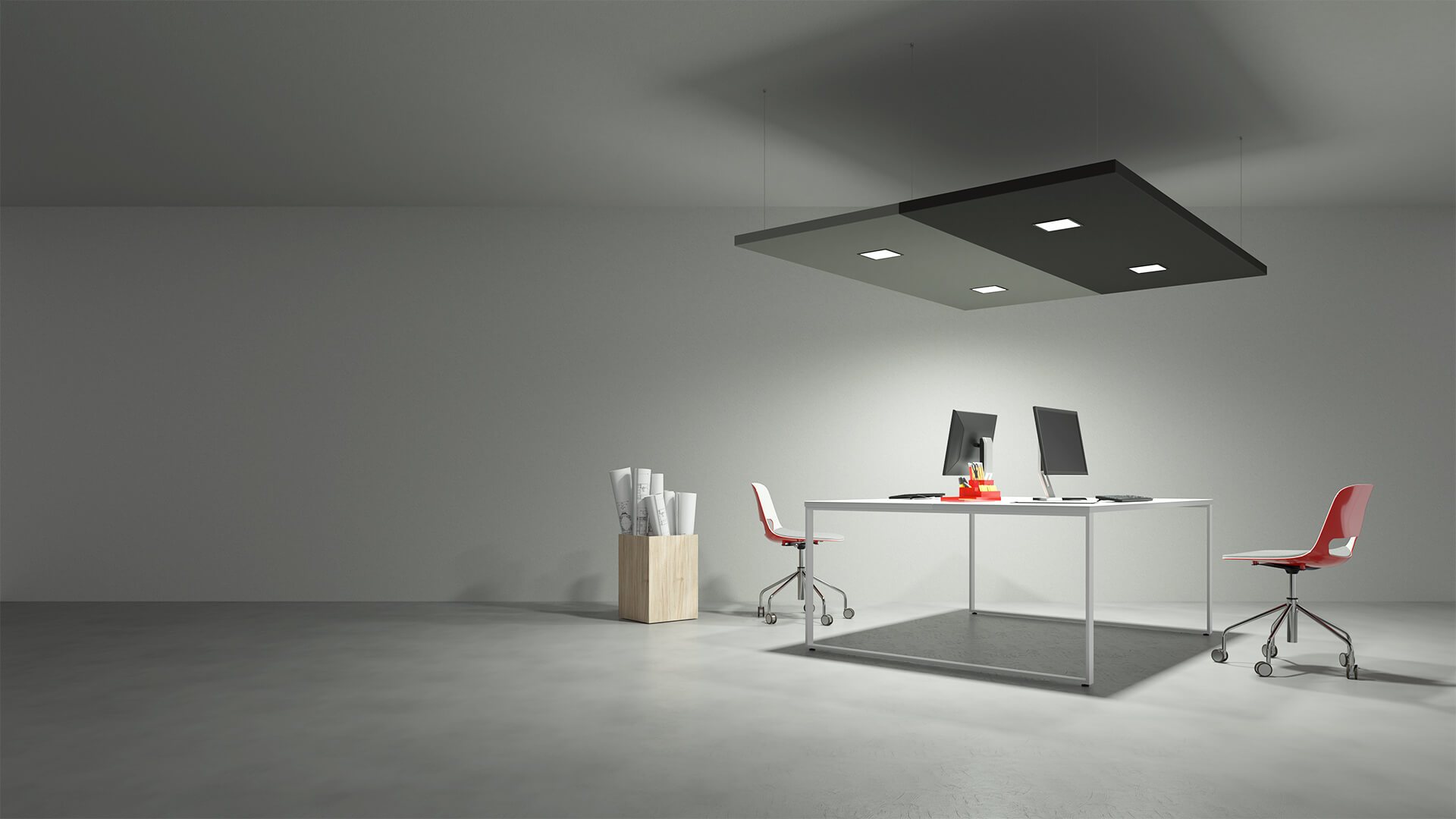

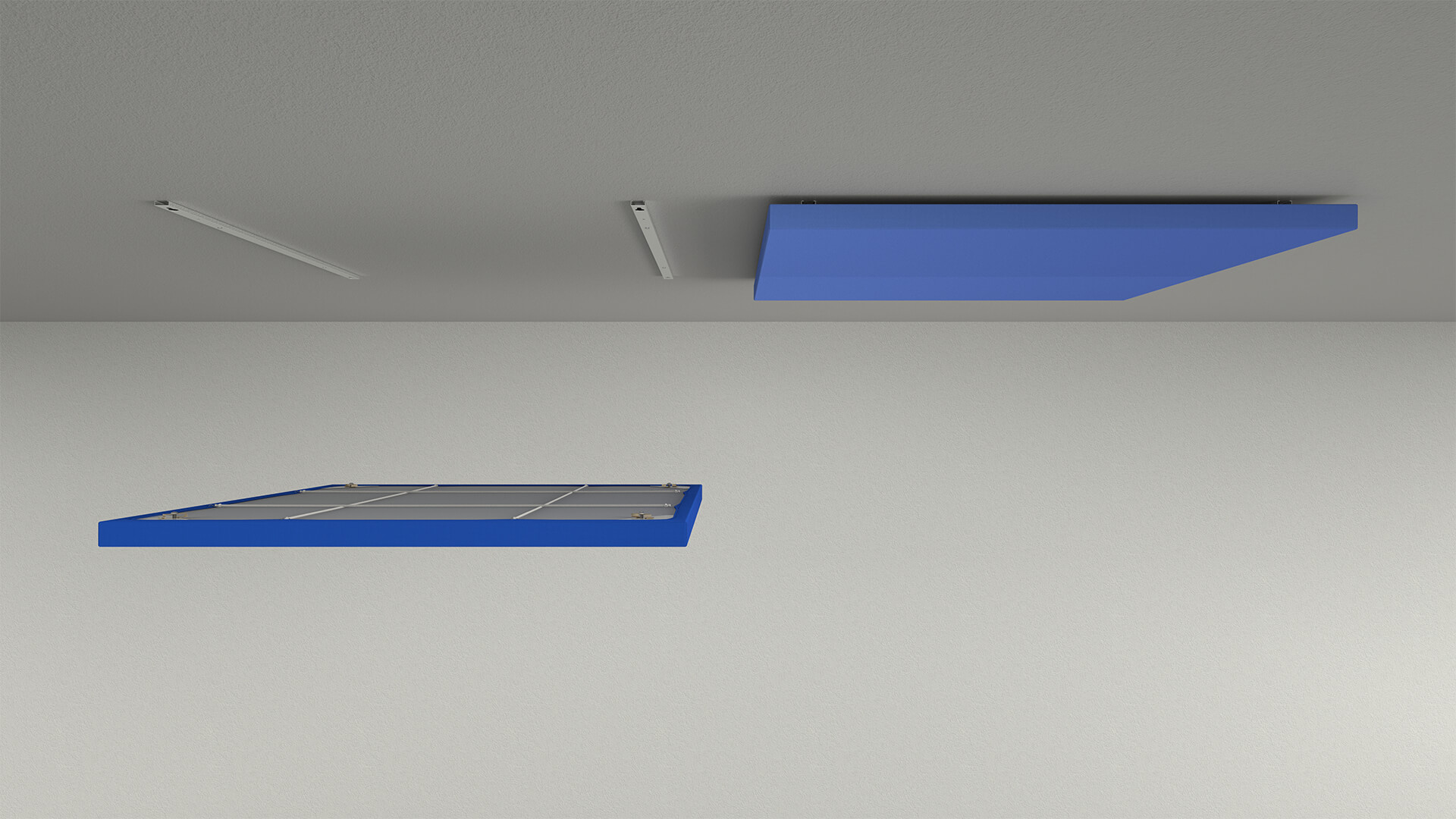

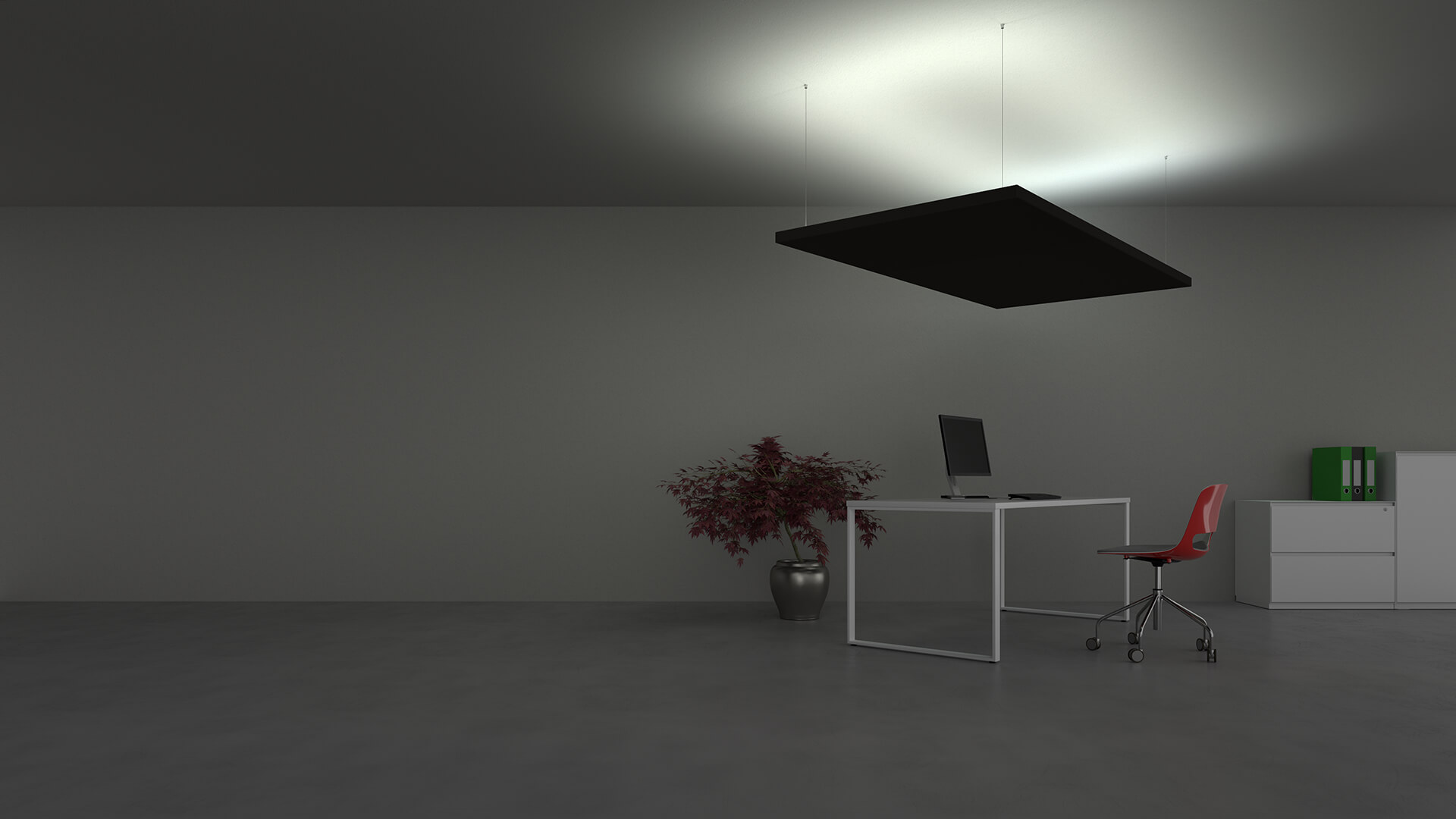

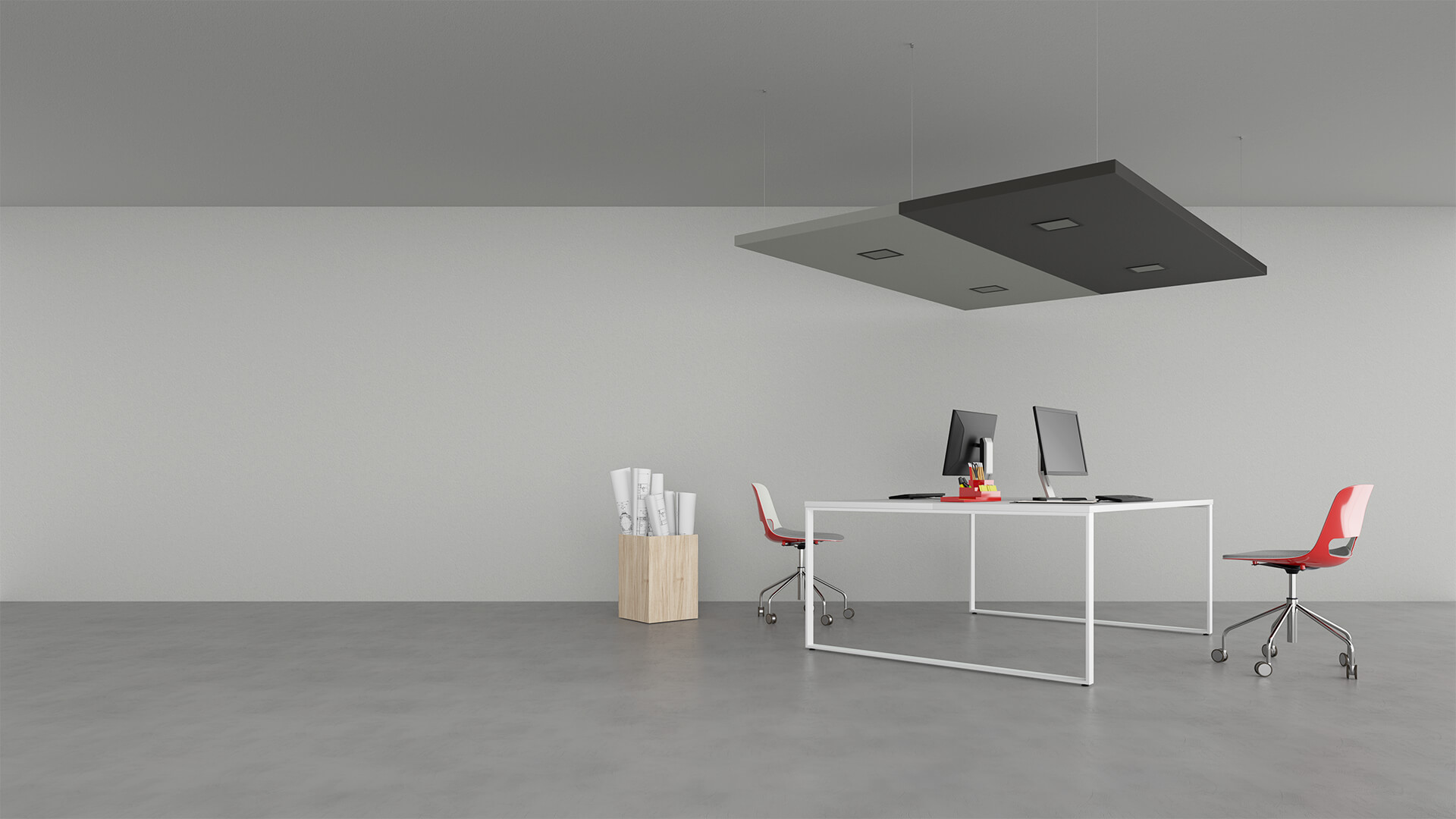

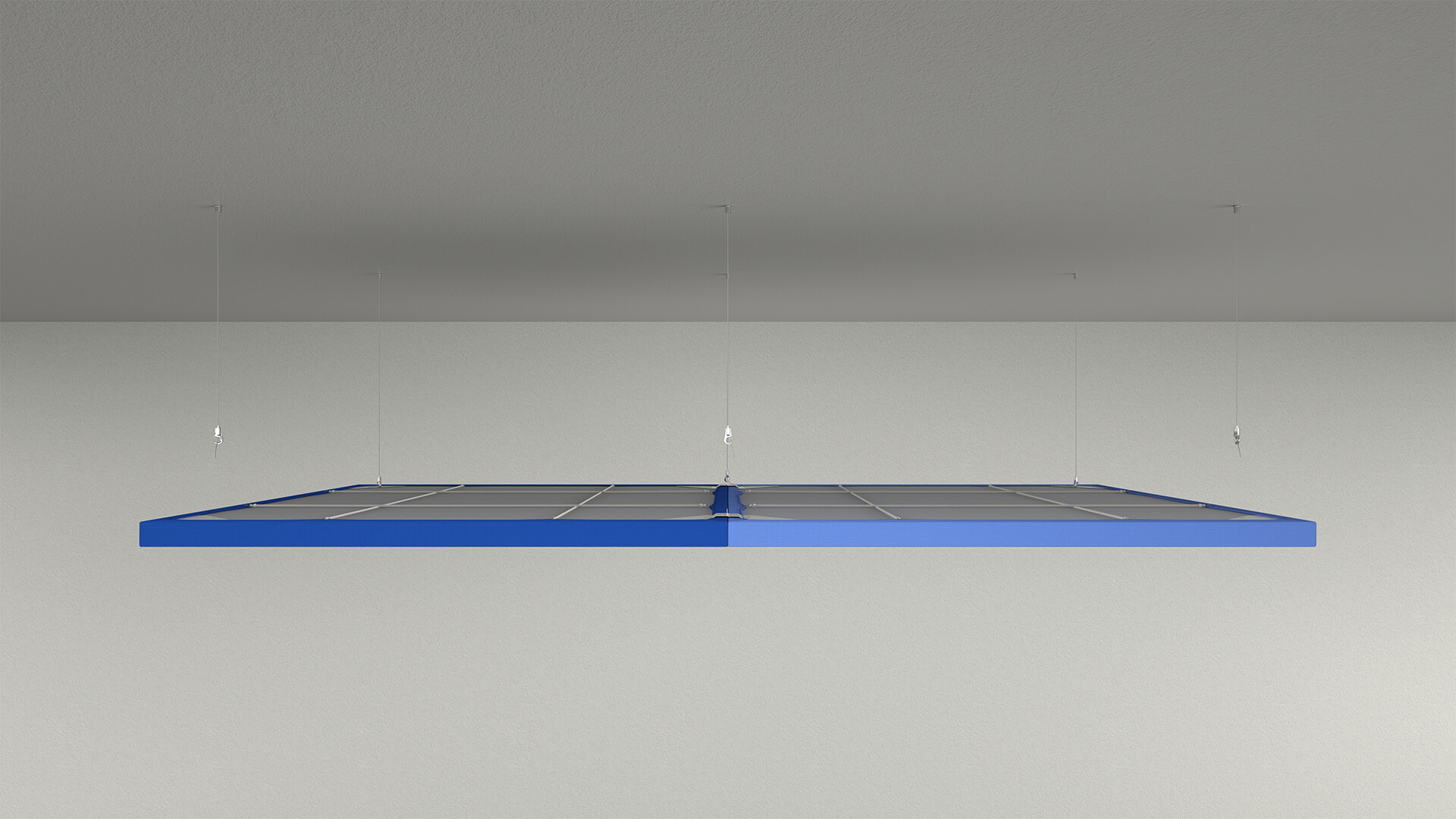

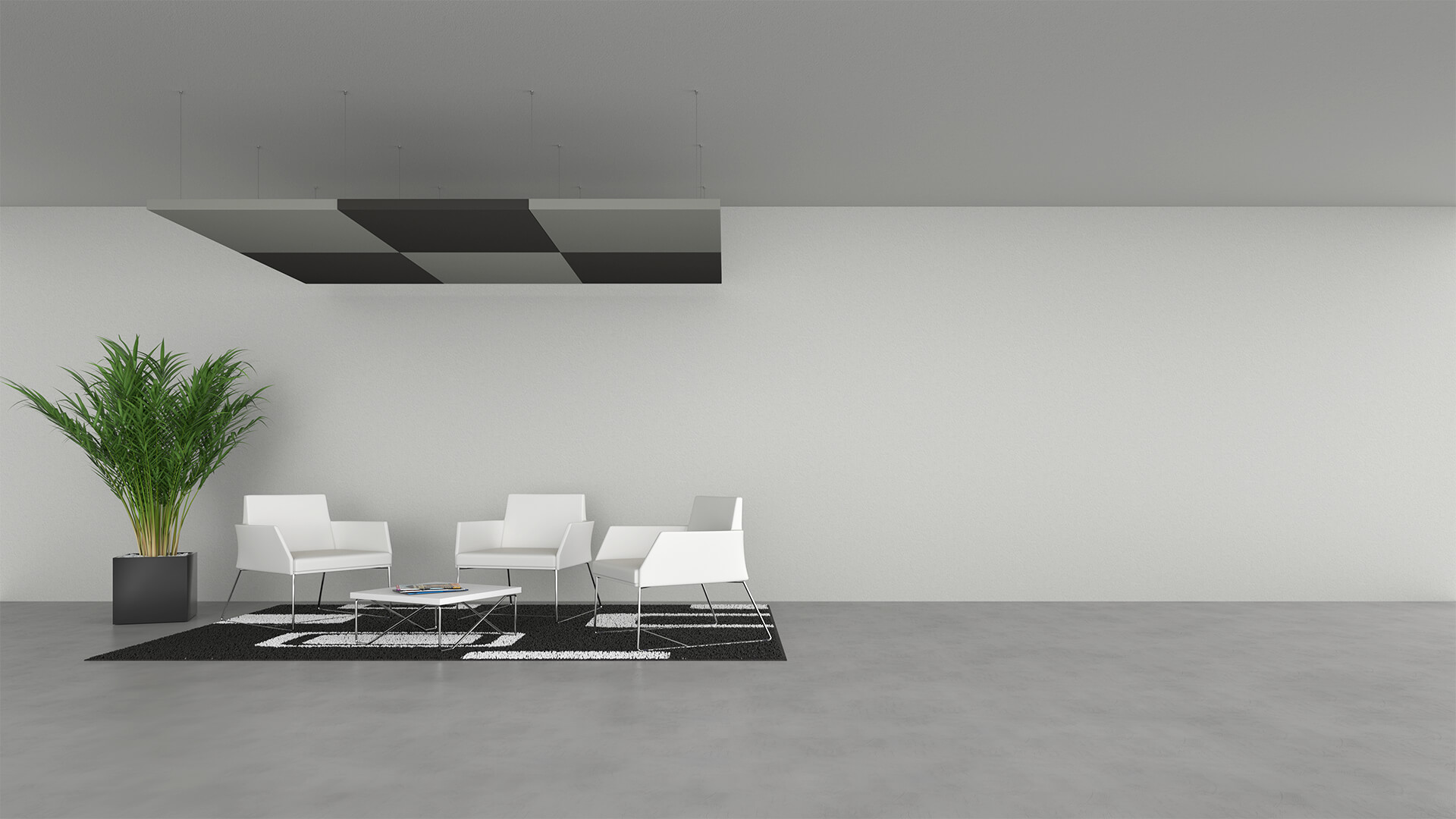

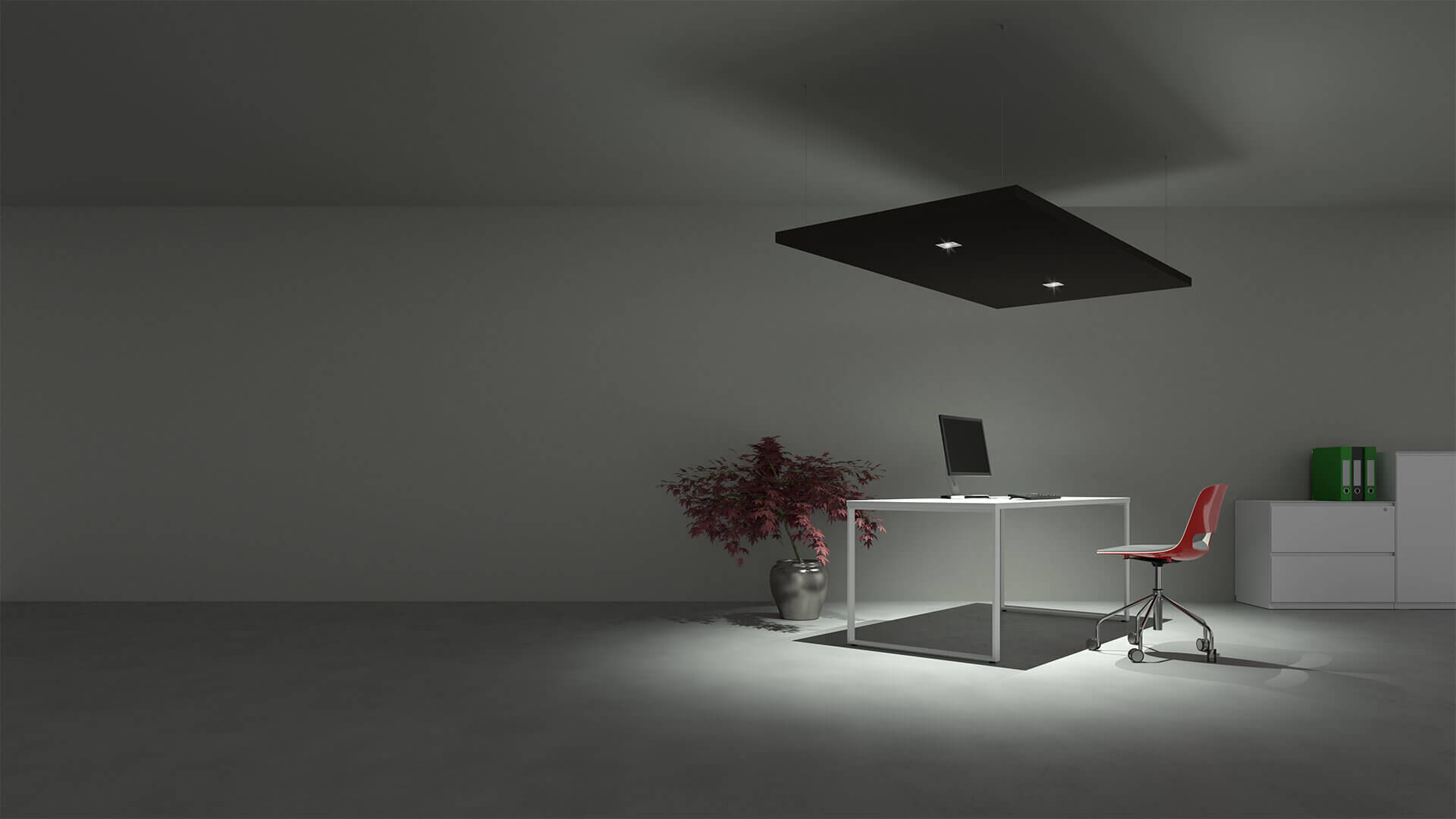

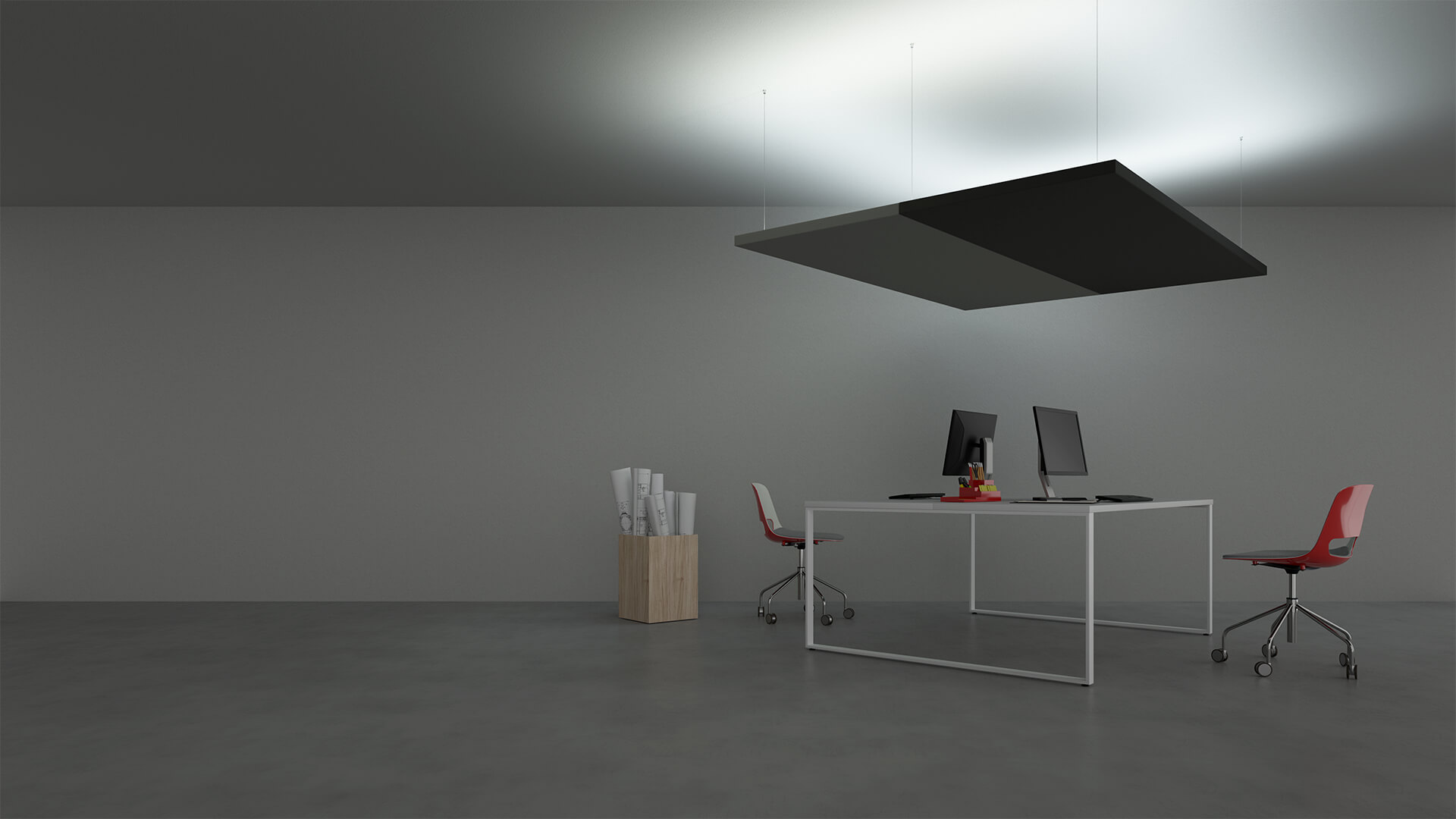

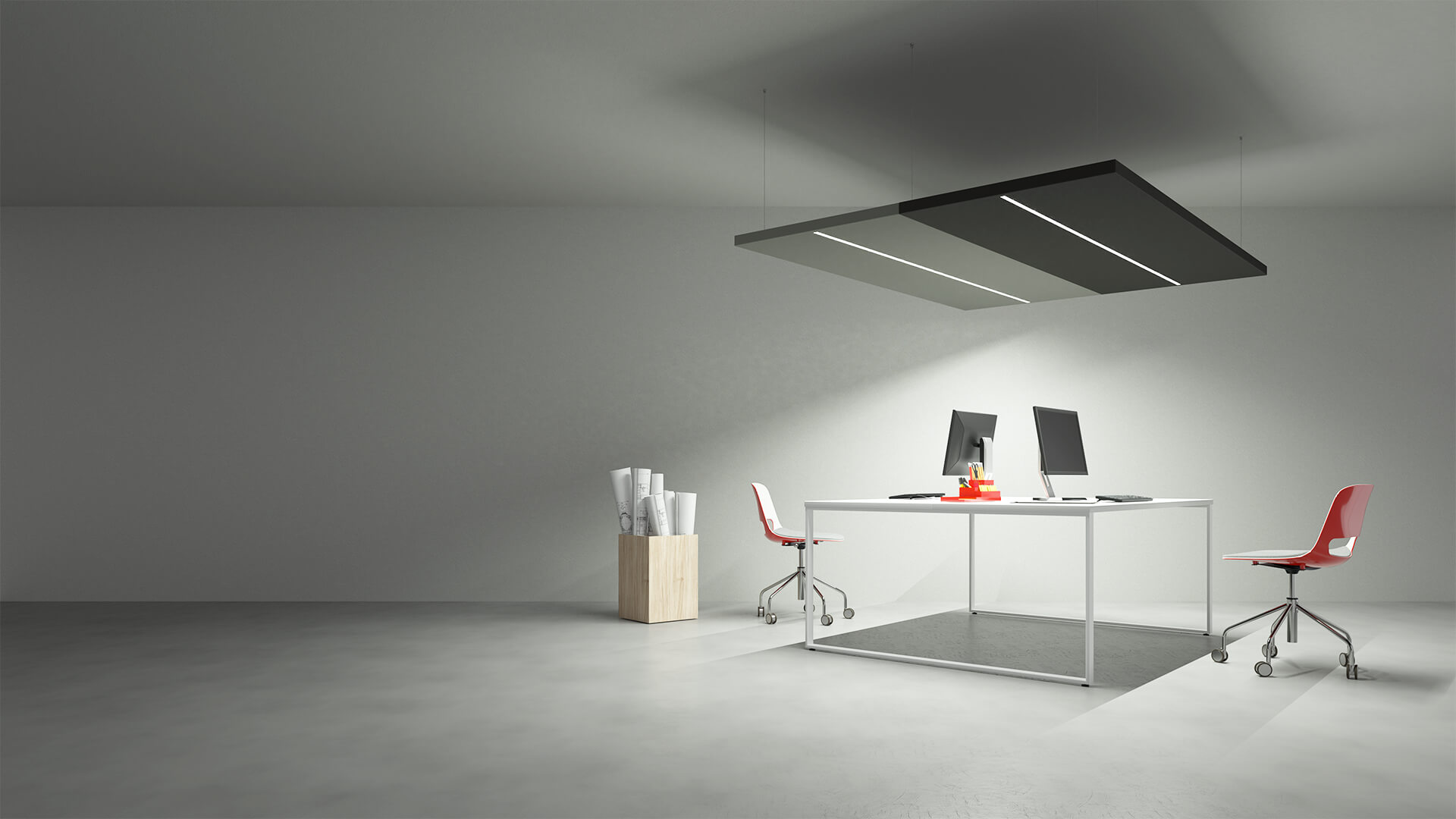

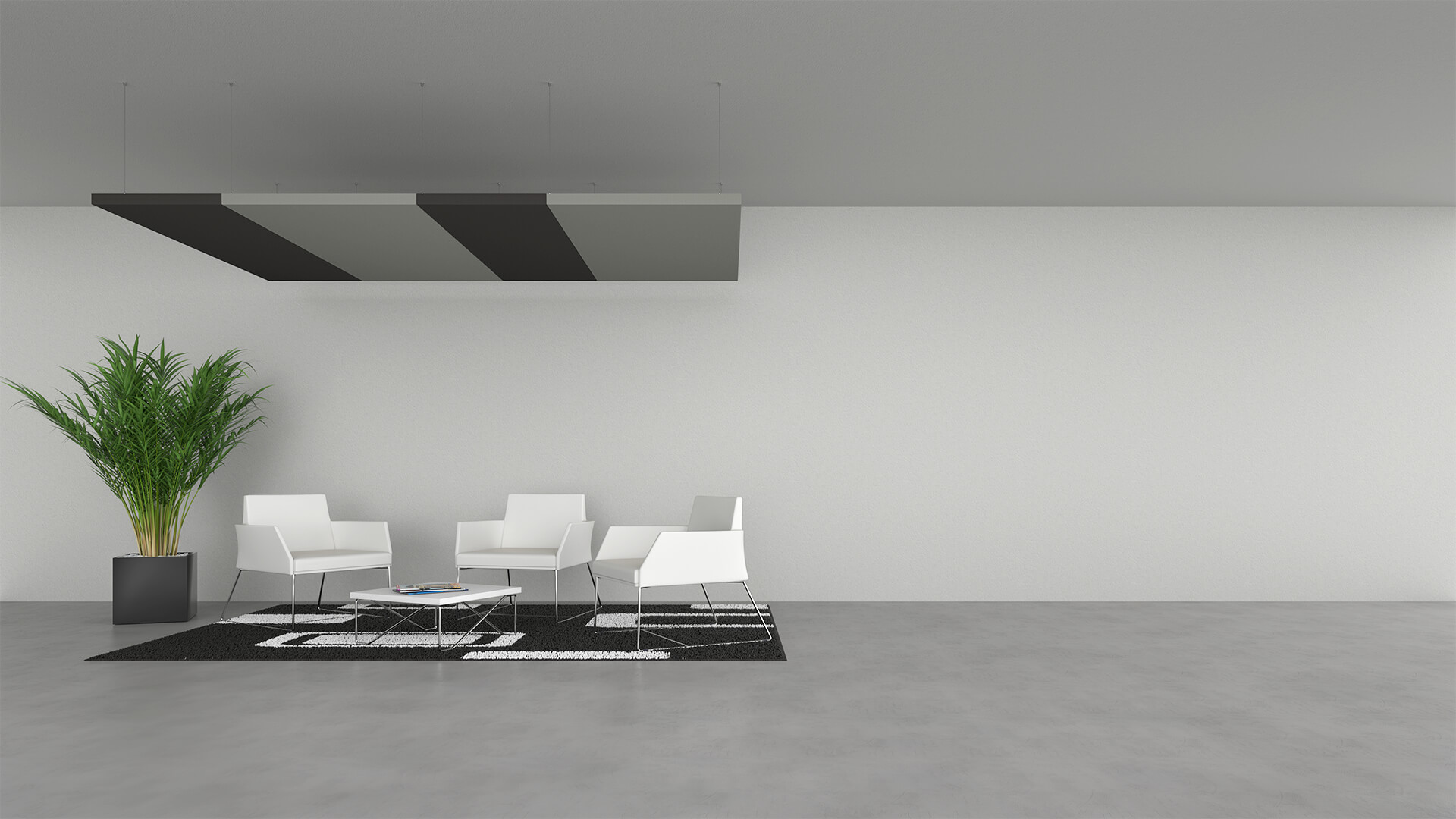

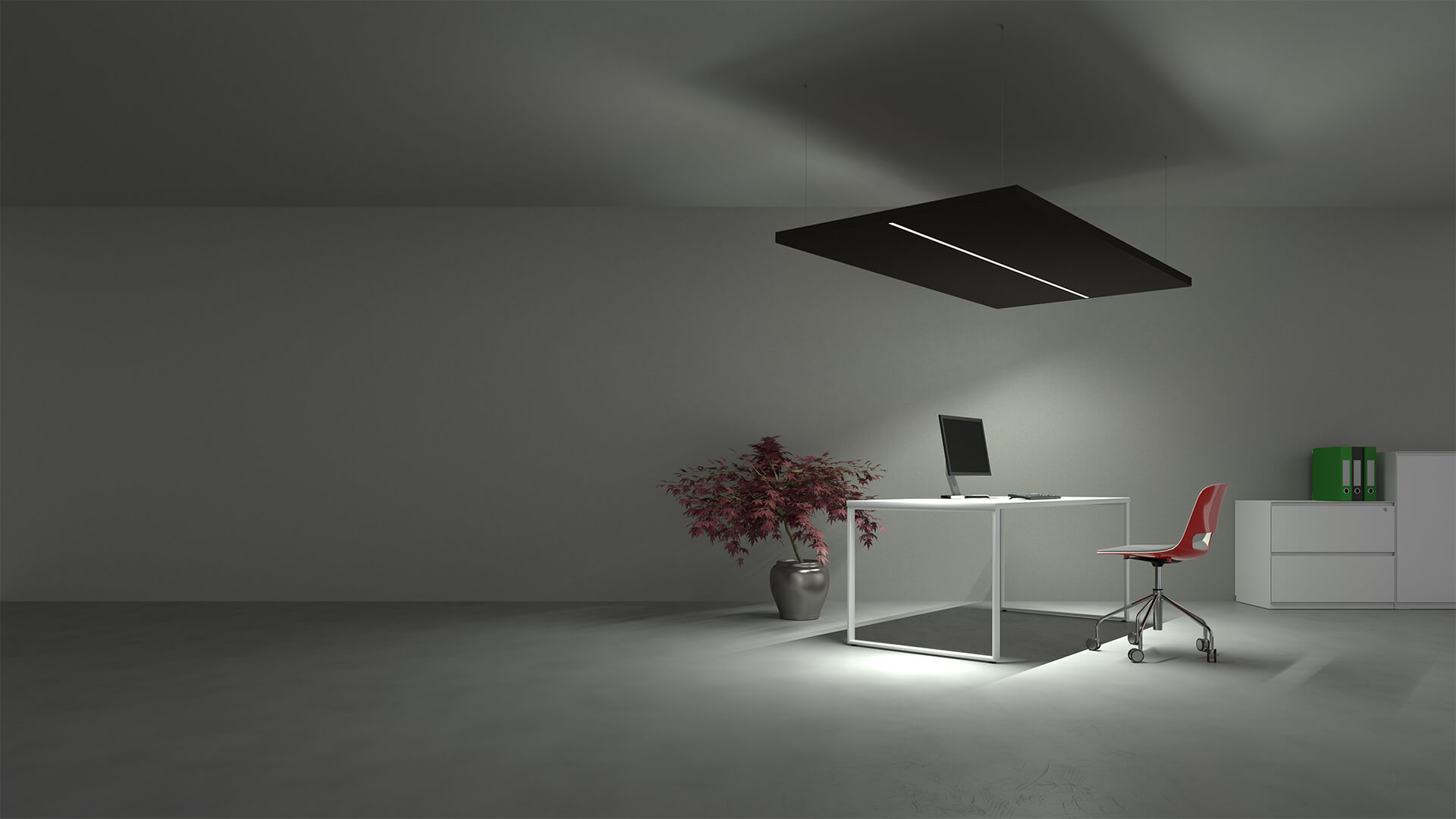

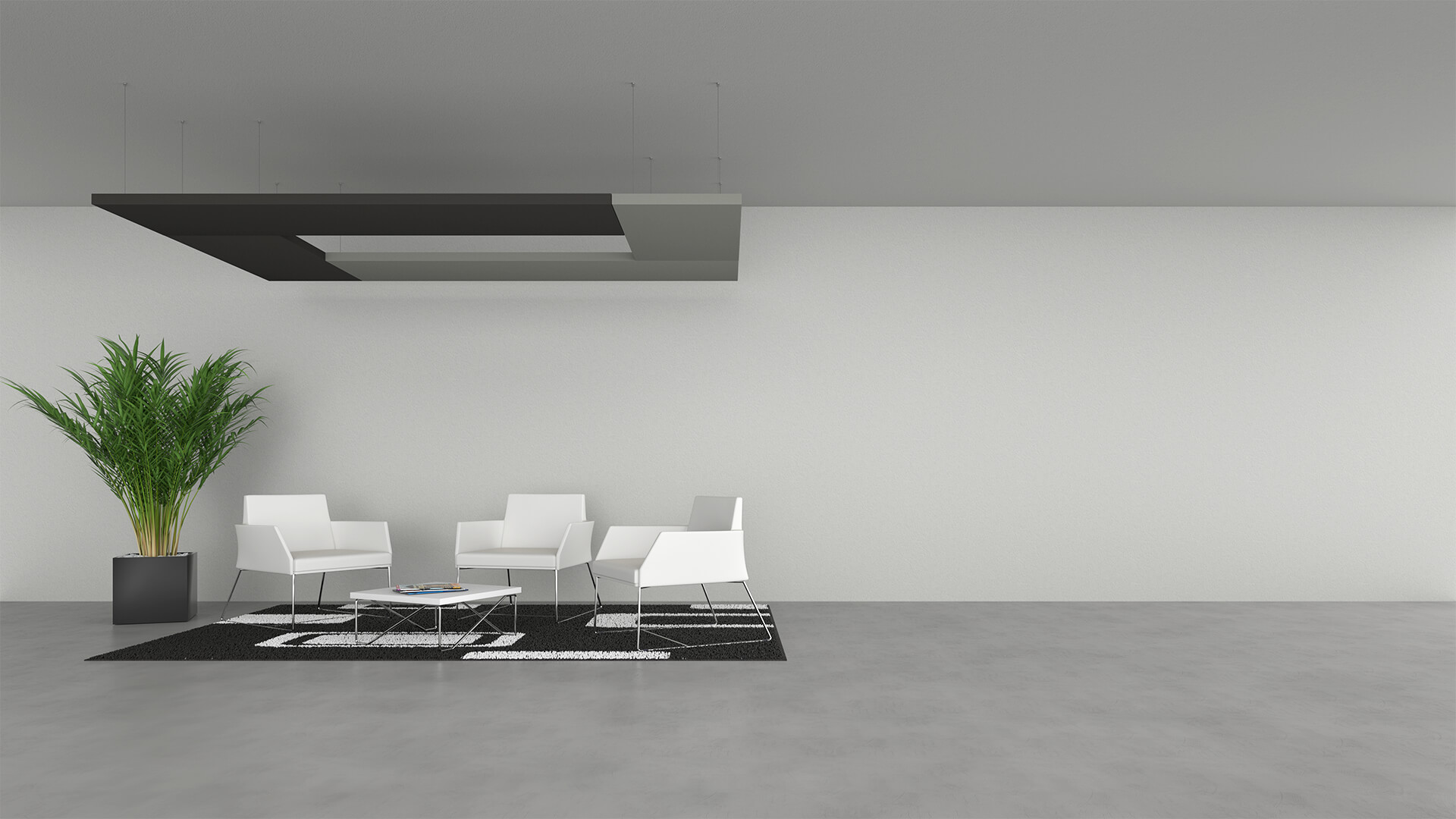

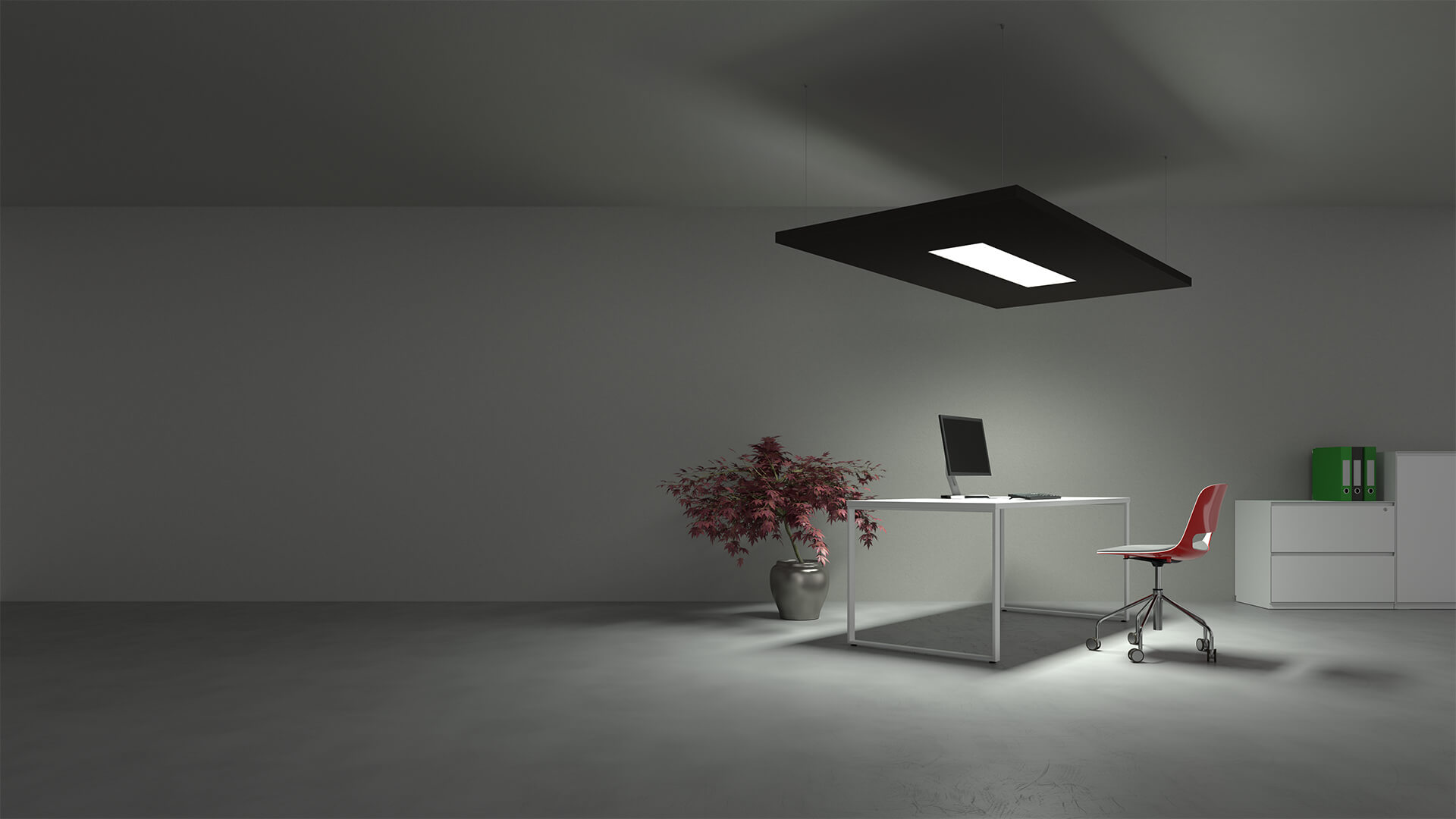

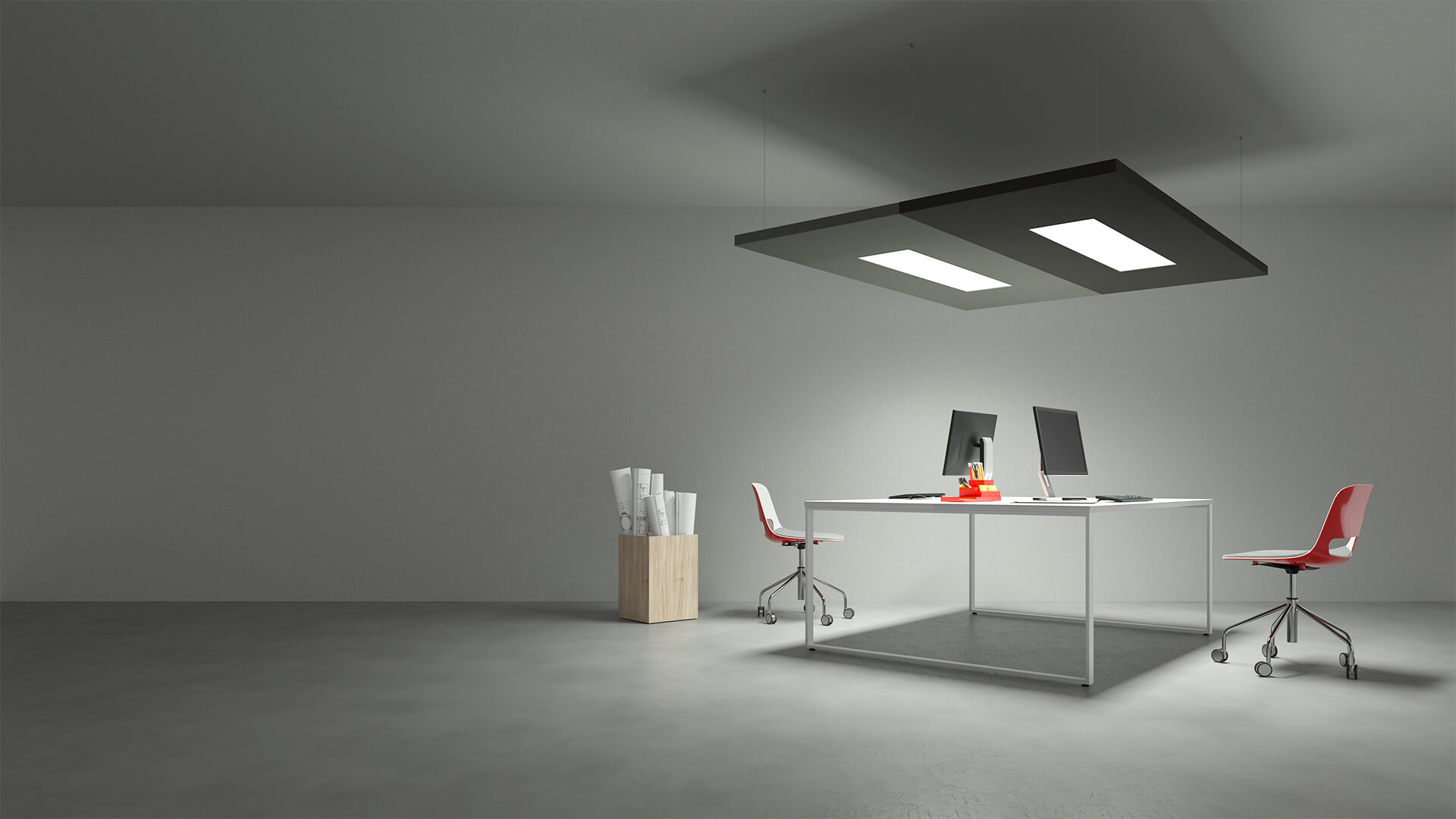

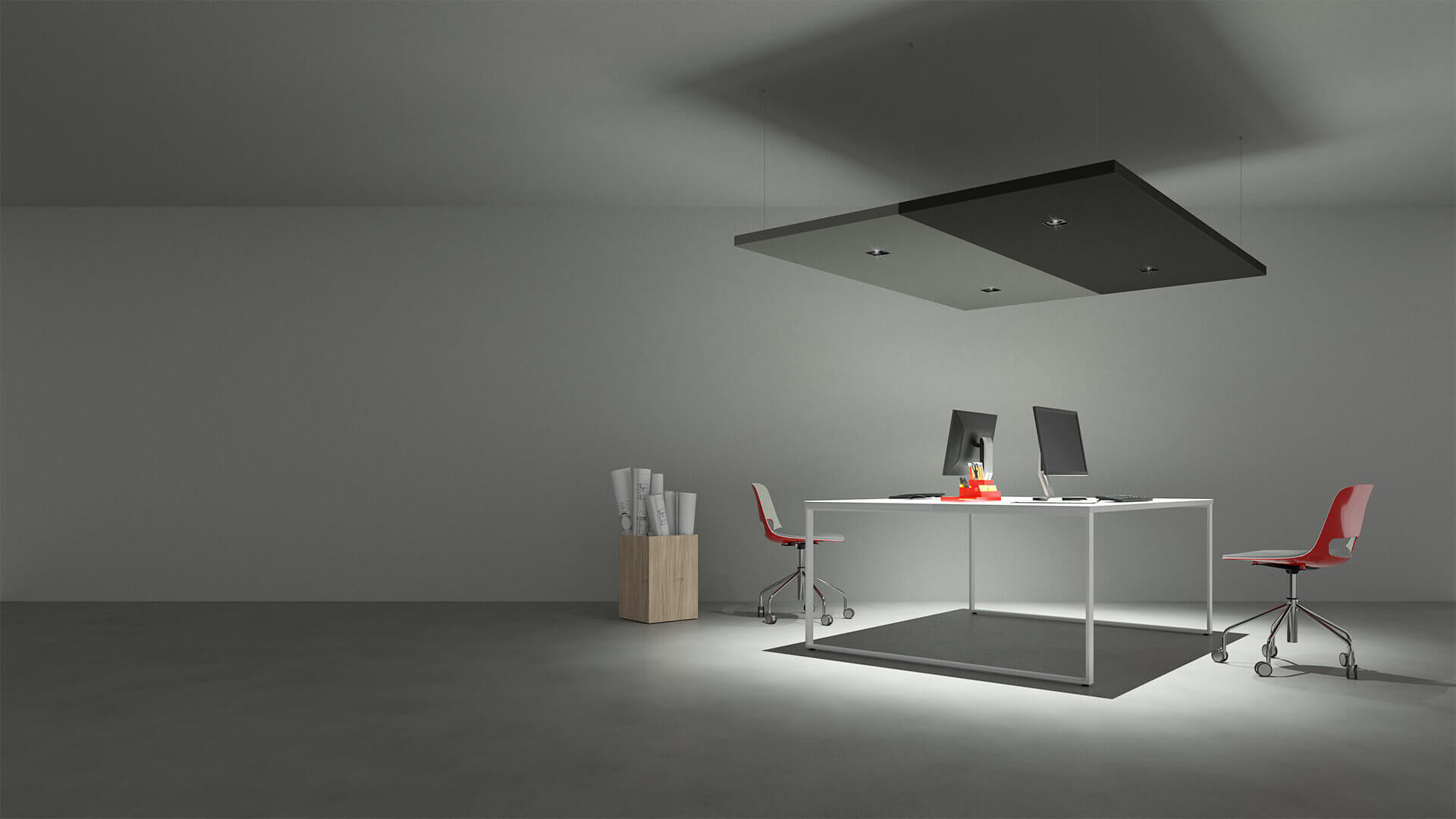

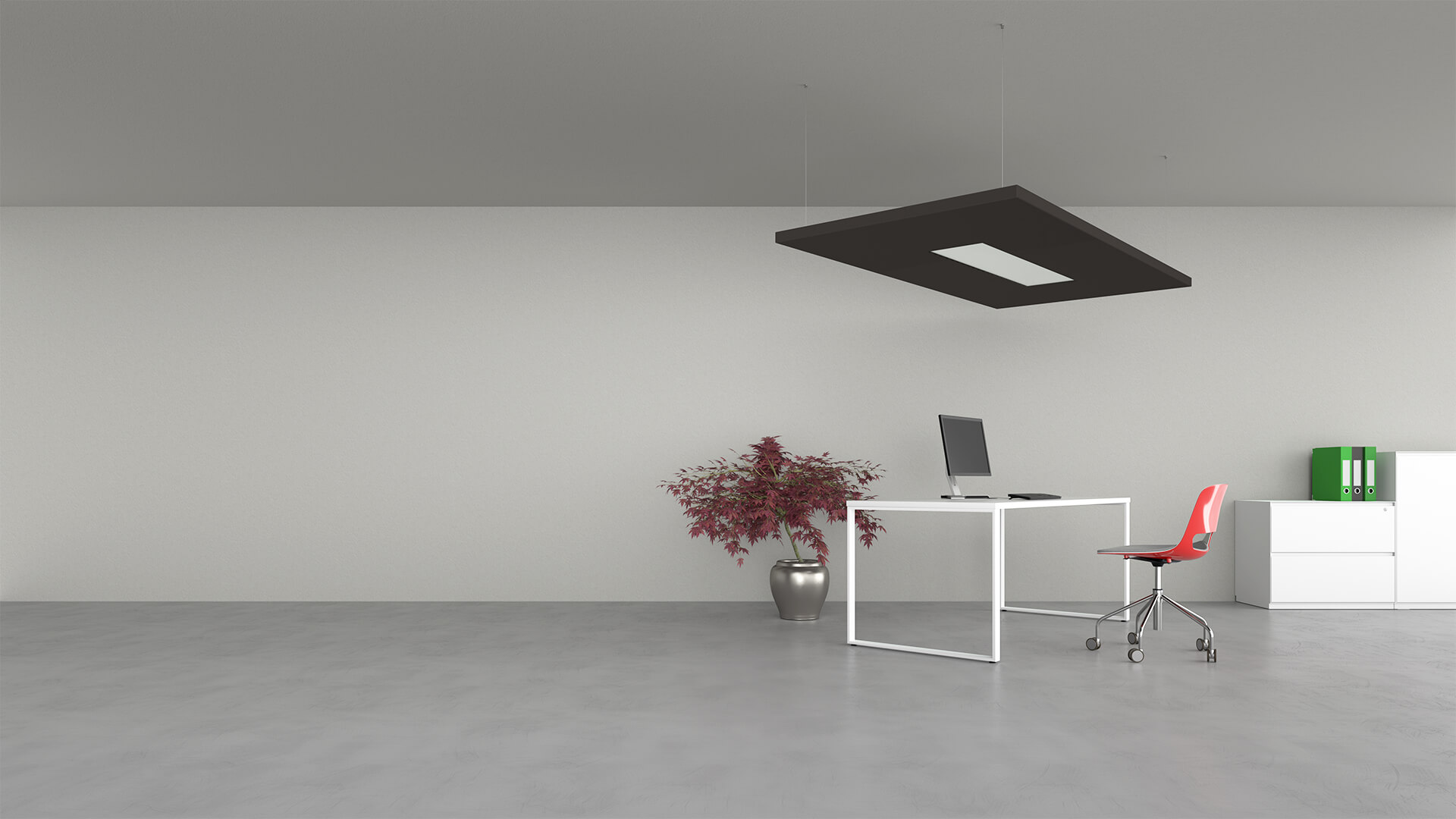

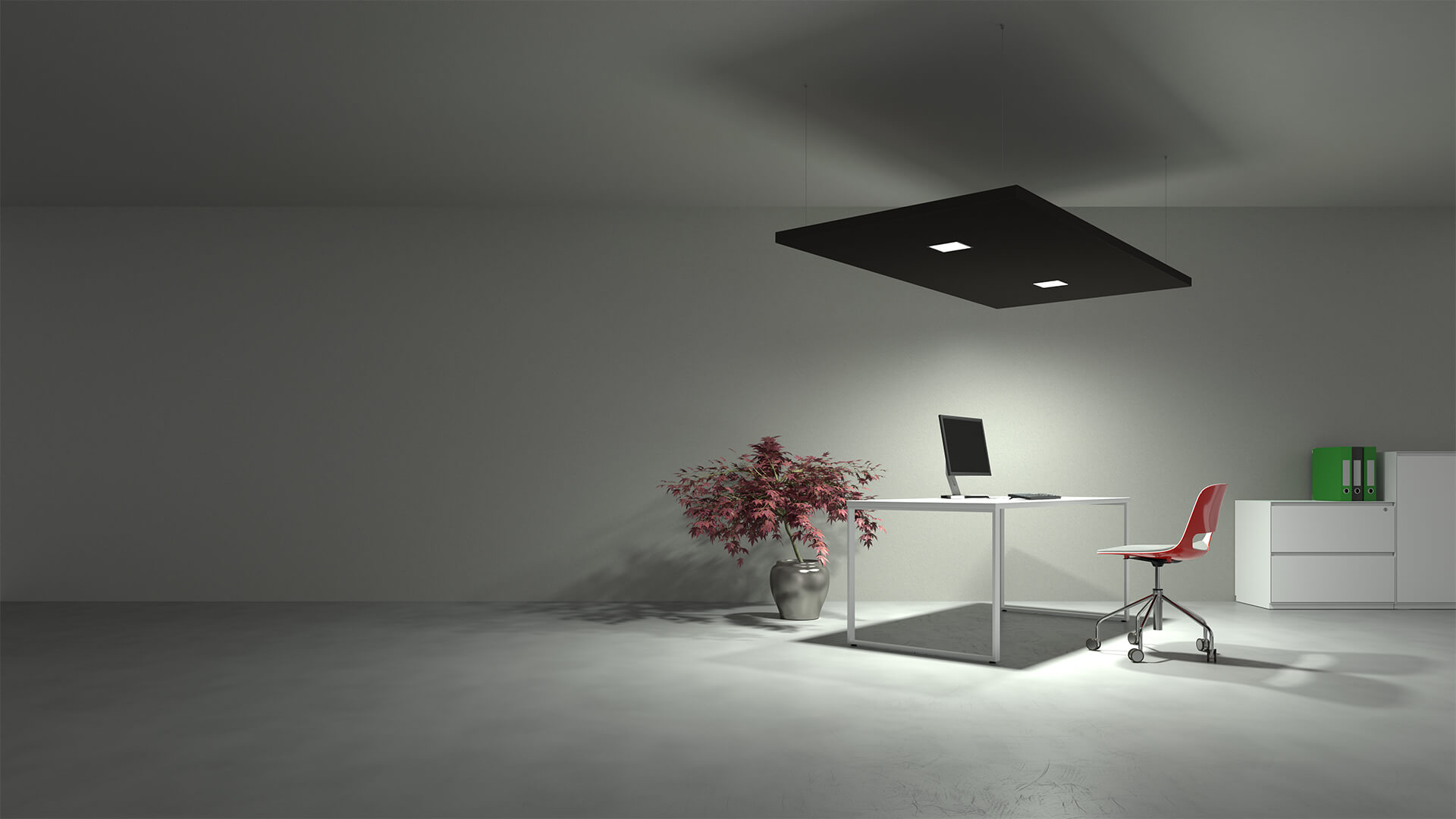

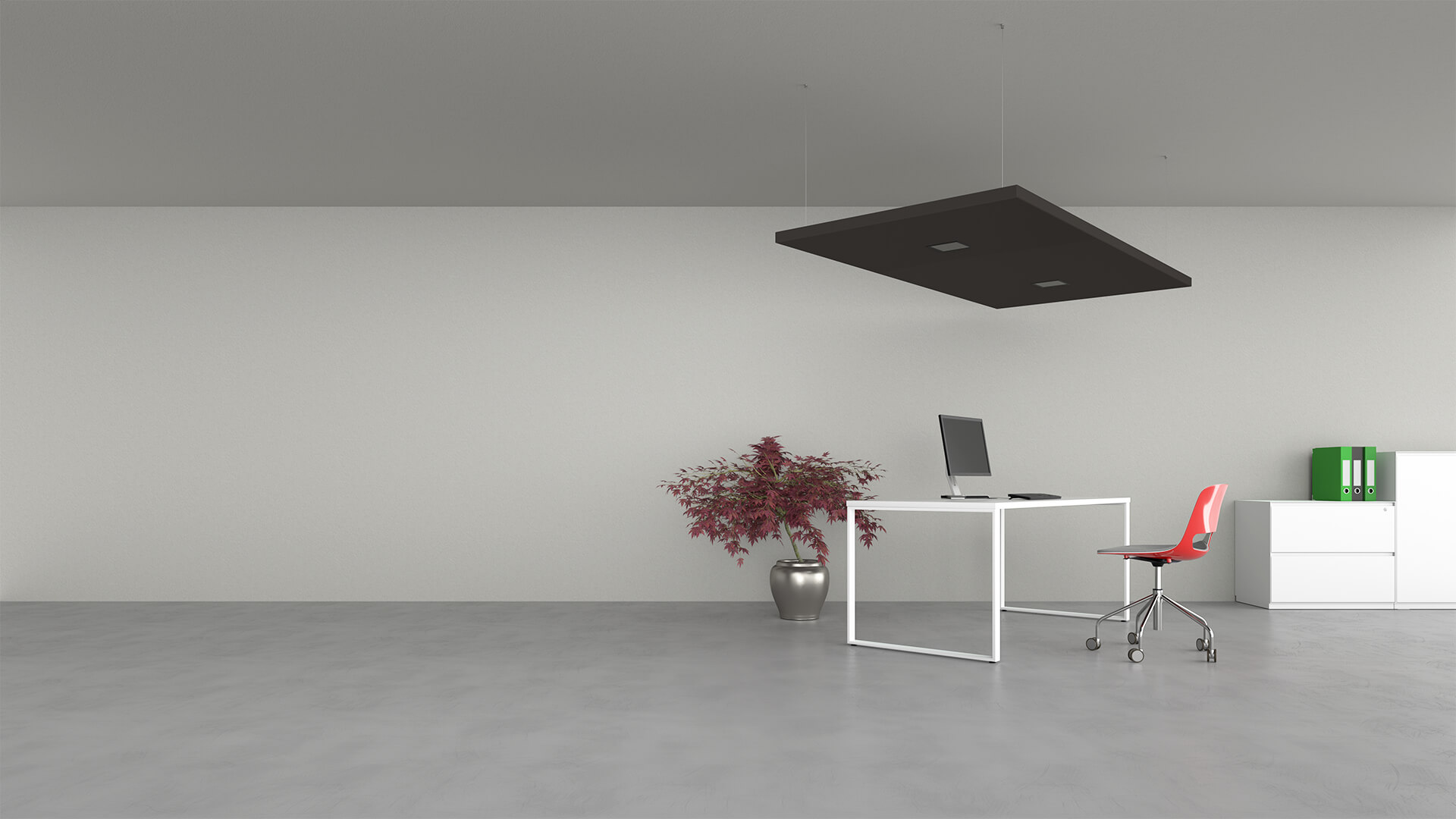

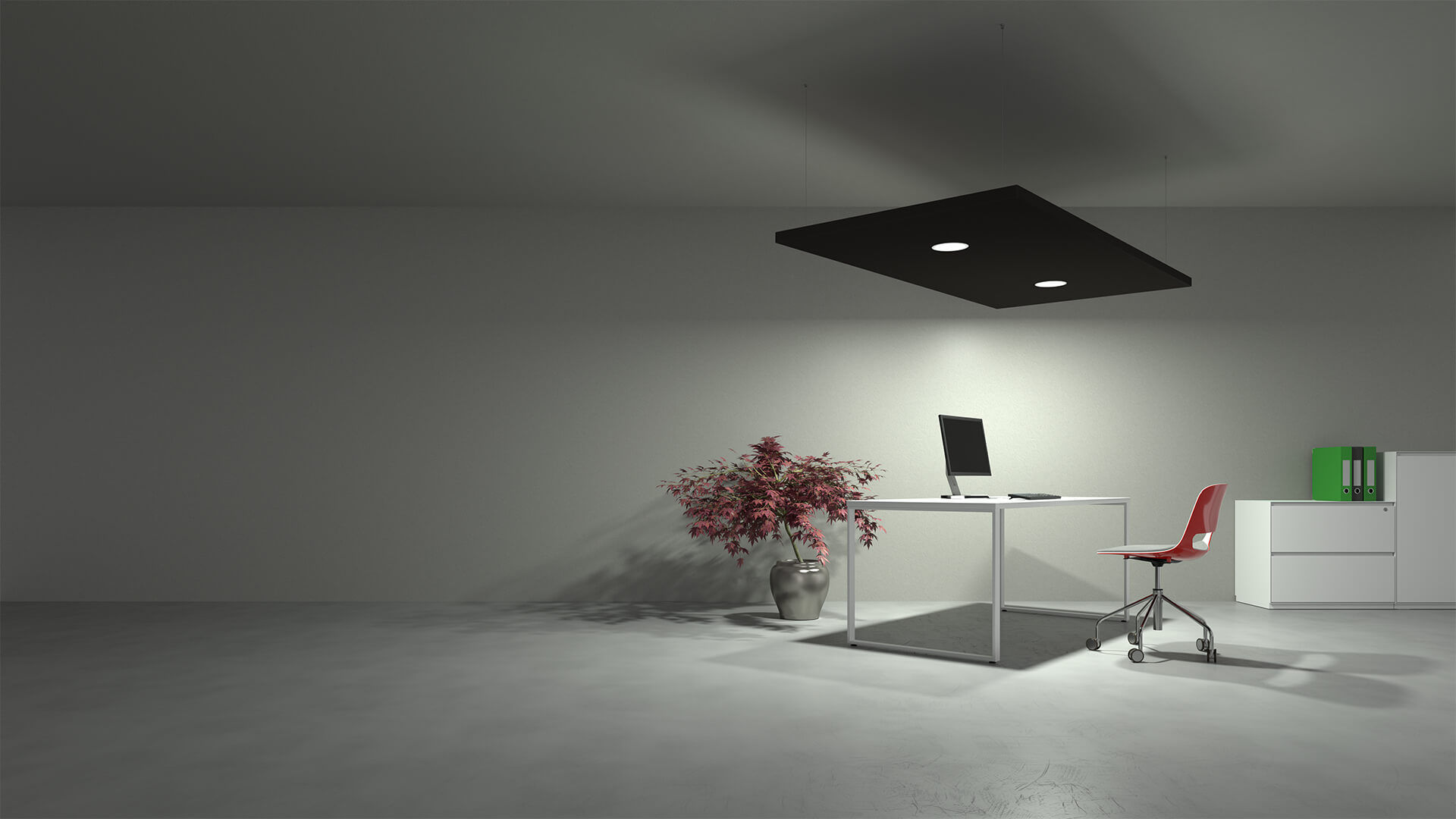

Product Profıles

Canopy Ceılıng Panels

Product Securıty

Sound Absorptıon

Product Packages

Acoustic floating ceiling panels 60 × 60 cm, 60 × 120 cm, 60 × 180 cm, 60 × 240 cm, 60 × 270 cm, 60 × 300 cm, 120 × 120 cm, 120 × 180 cm, 120 × 240 cm, 120 It is in the form of × 270 cm, 120 x 300 cm plates and there are 10 plates of products in different sizes in their packages. It is sold in retail and wholesale as 20 mm, 40 mm, and 50 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.

Range of Products

Sound Absorbent Cubes

Oval Ceılıng Panels

Acoustıc Floatıng Ceılıngs

Canopy Acoustıc Panels

Acoustıc Seperator Panels

Acoustıc Canopy Panels

İncelenme 118

Acoustic Canopy Size	Height-Thickness	Absorption Factor Suitable for DİN52212
mm	mm	125 Hz	250 Hz	500 hz	1000 Hz	2000 Hz	4000 Hz
1000x1000	30 (30/10)	0,10	0,21	0,54	0,90	0,98	0,93
1000x1000	40 (40/10)	0,11	0,32	0,63	0,90	0,91	0,95
1000x1000	50 (50/10)	0,16	0,54	1,01	0,90	1,01	1.02
