Trk Melamine Foam: Basf Basotect melamine fireproof foam sponge panels are original German-made basf products. Basotect sponge, a light flexible, and fireproof melamine foam sponge developed for Basf basotect Nasa provides highly effective sound insulation and insulation. This acoustic material, which has a light density, is generally preferred in automotive, industry, and studio sound insulation. Basf Trk Melamine Foams are also available in flat panel form and patterned shapes. We can manufacture Trk Melamine Foam in special cuts and thicknesses, our basotect sponges imported from Germany are in the form of cube blocks. Our Basf Basotect block size is 1250 mm x 2500 mm x 2000 mm. You can find the prices of Basf Trk Melamine Foam from the price list on our homepage. It is white-gray and light gray as standard. BASF foam Basotect melamine Istanbul Turkey Turkish sales office acoustics.

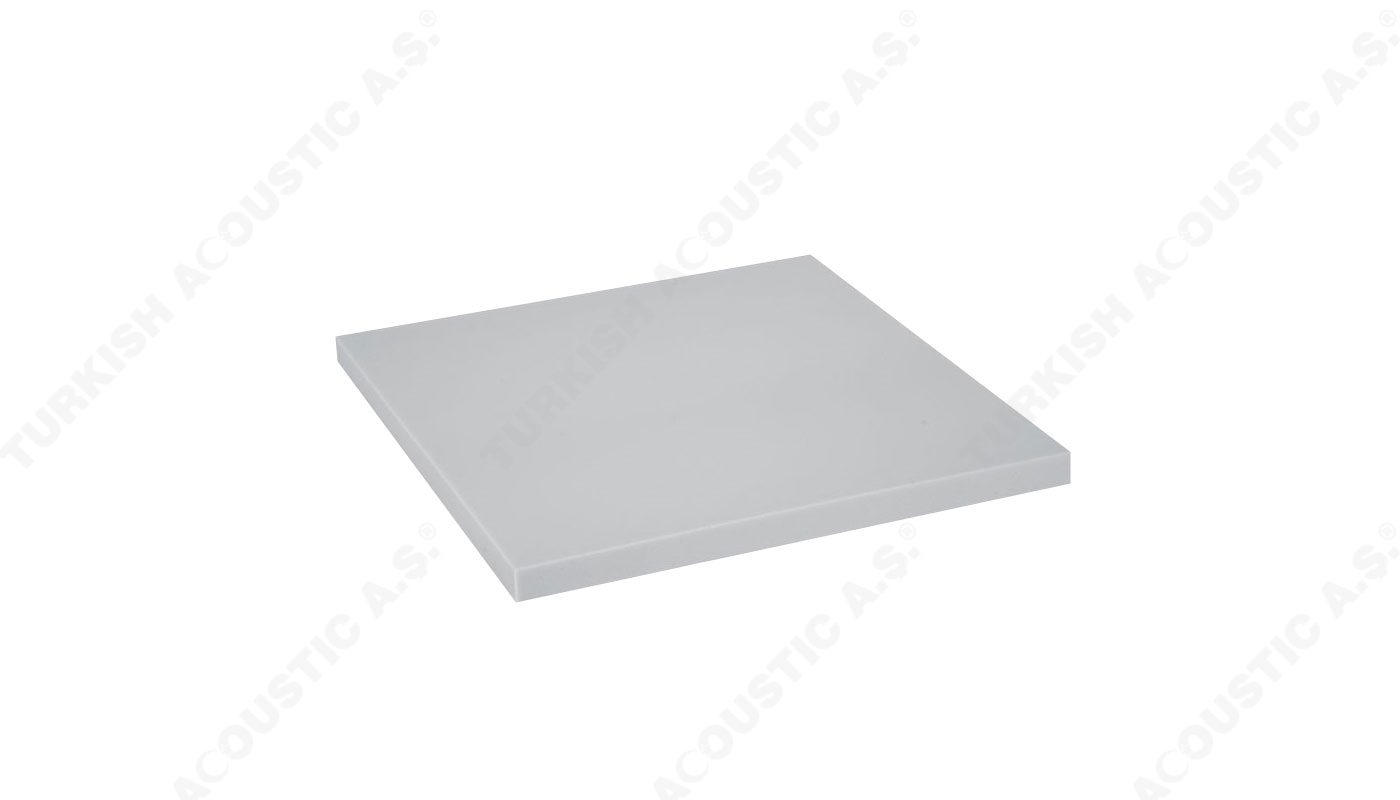

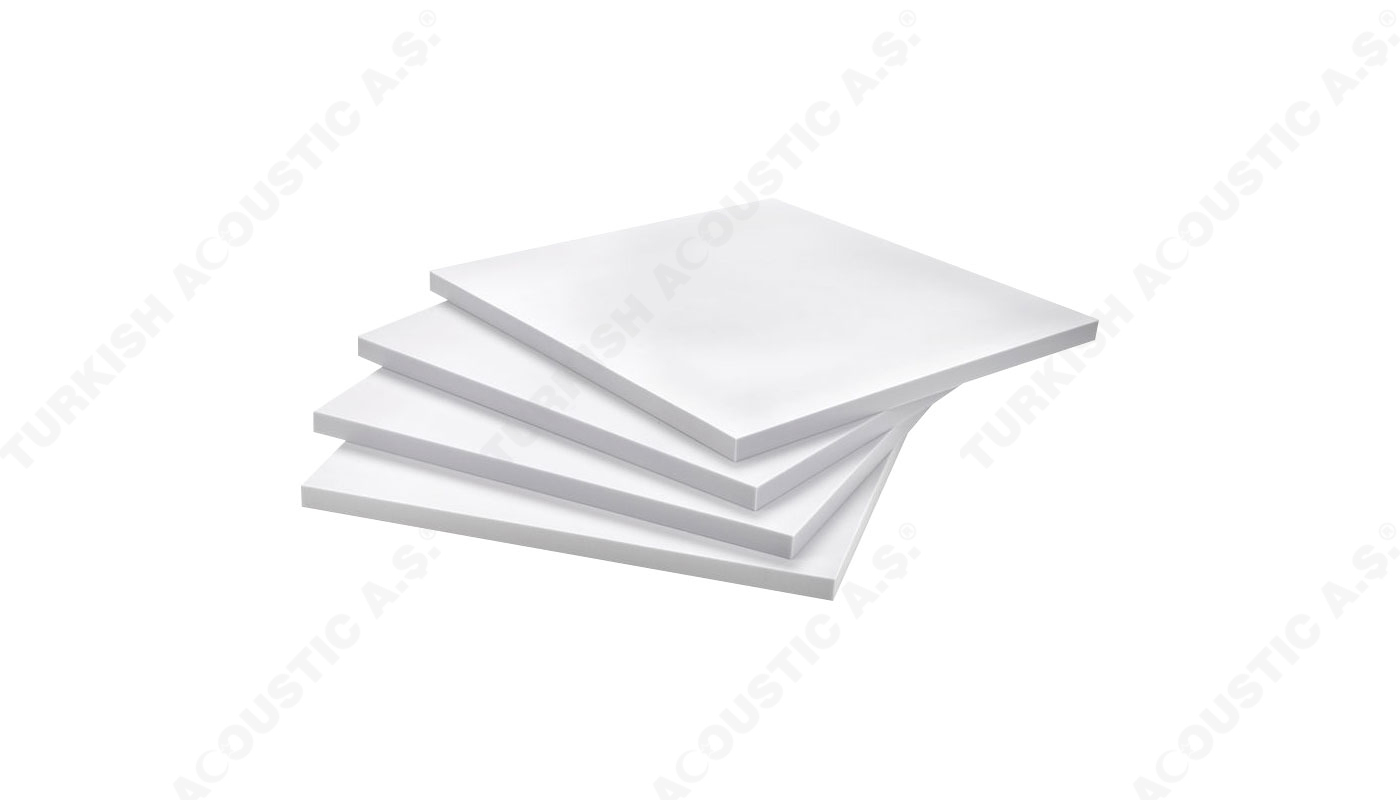

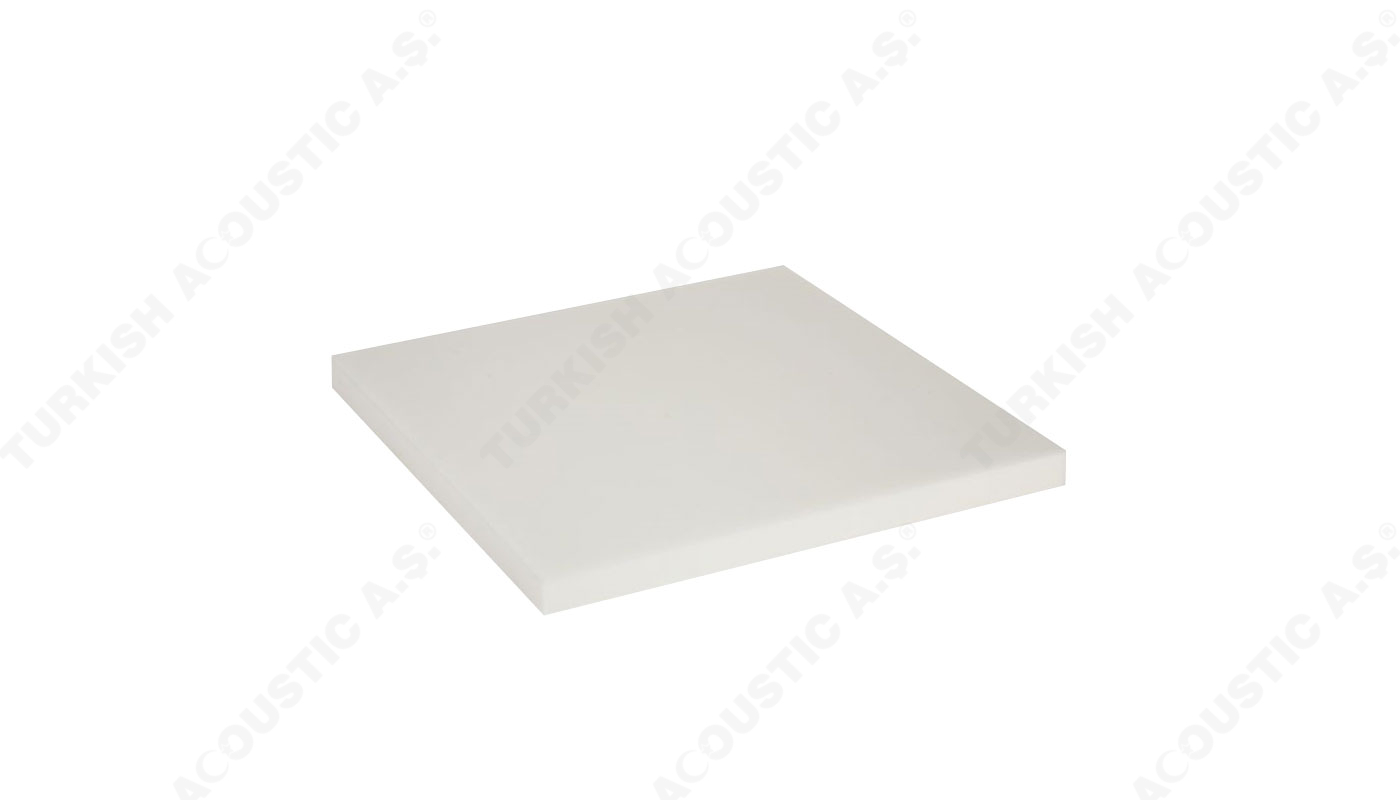

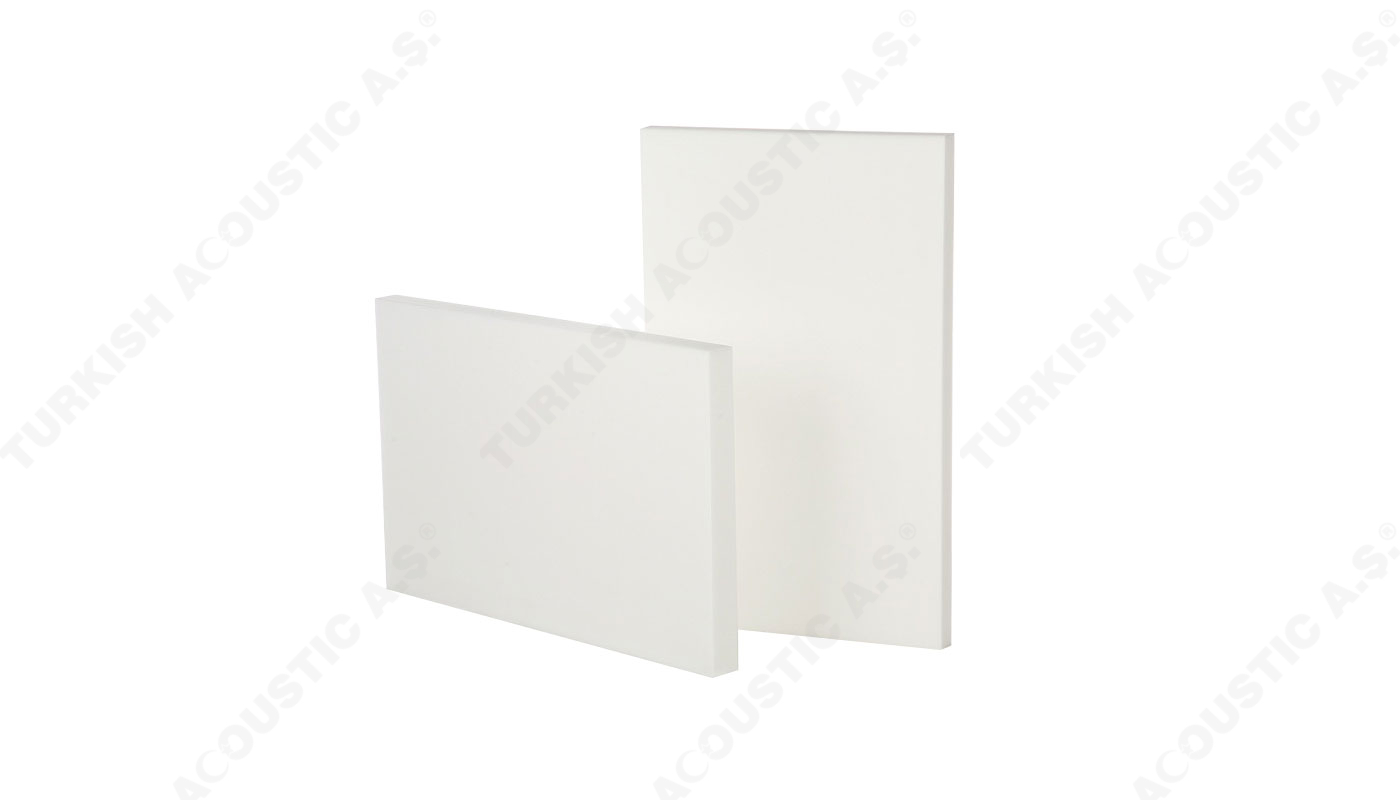

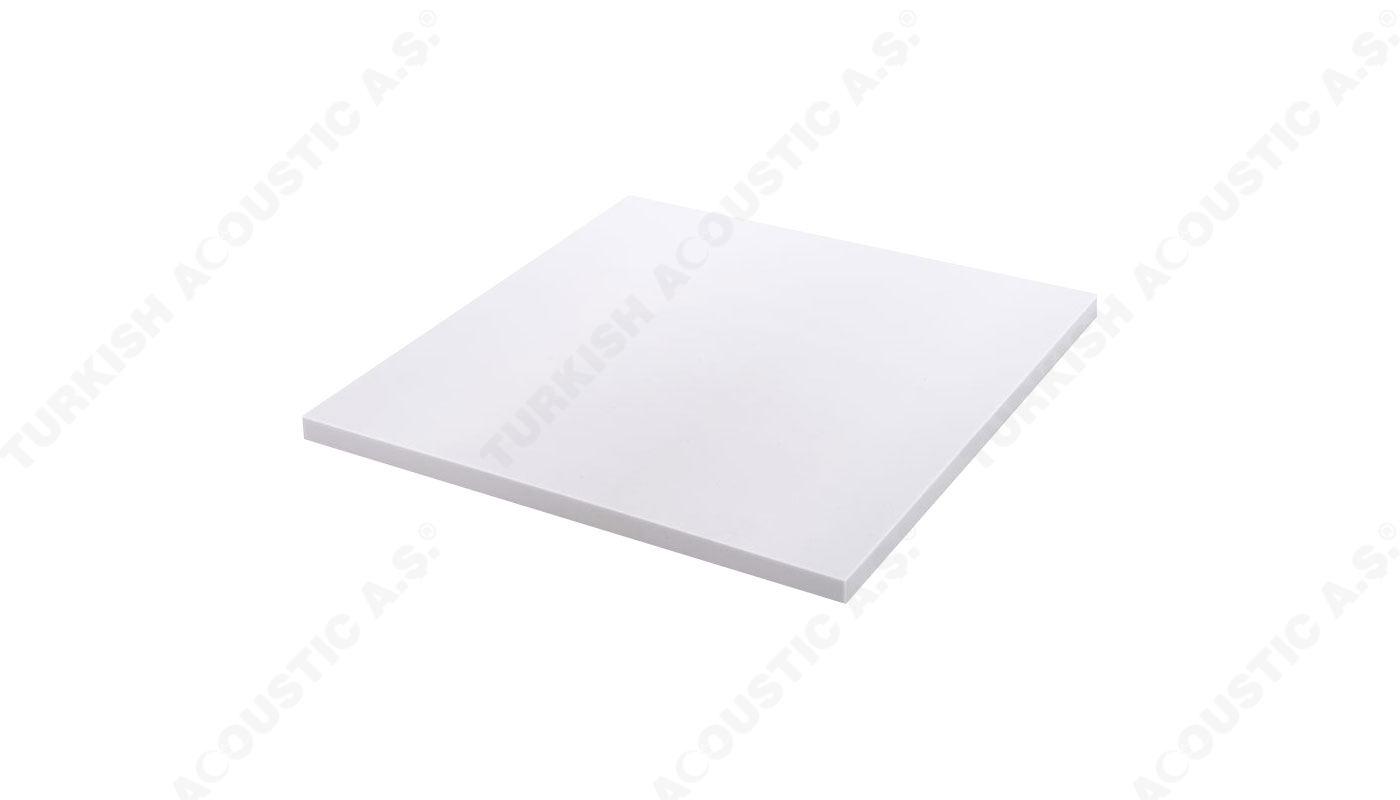

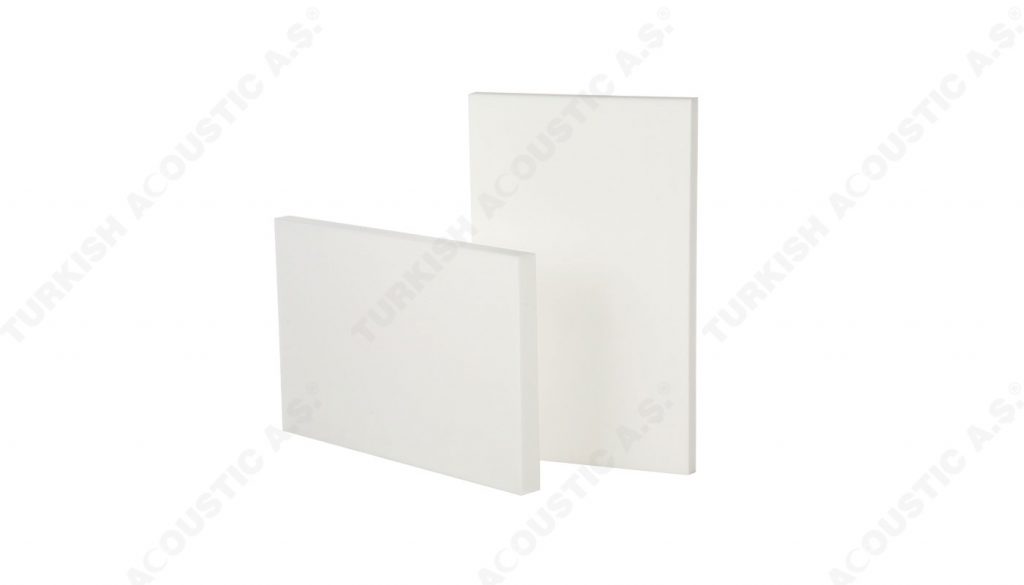

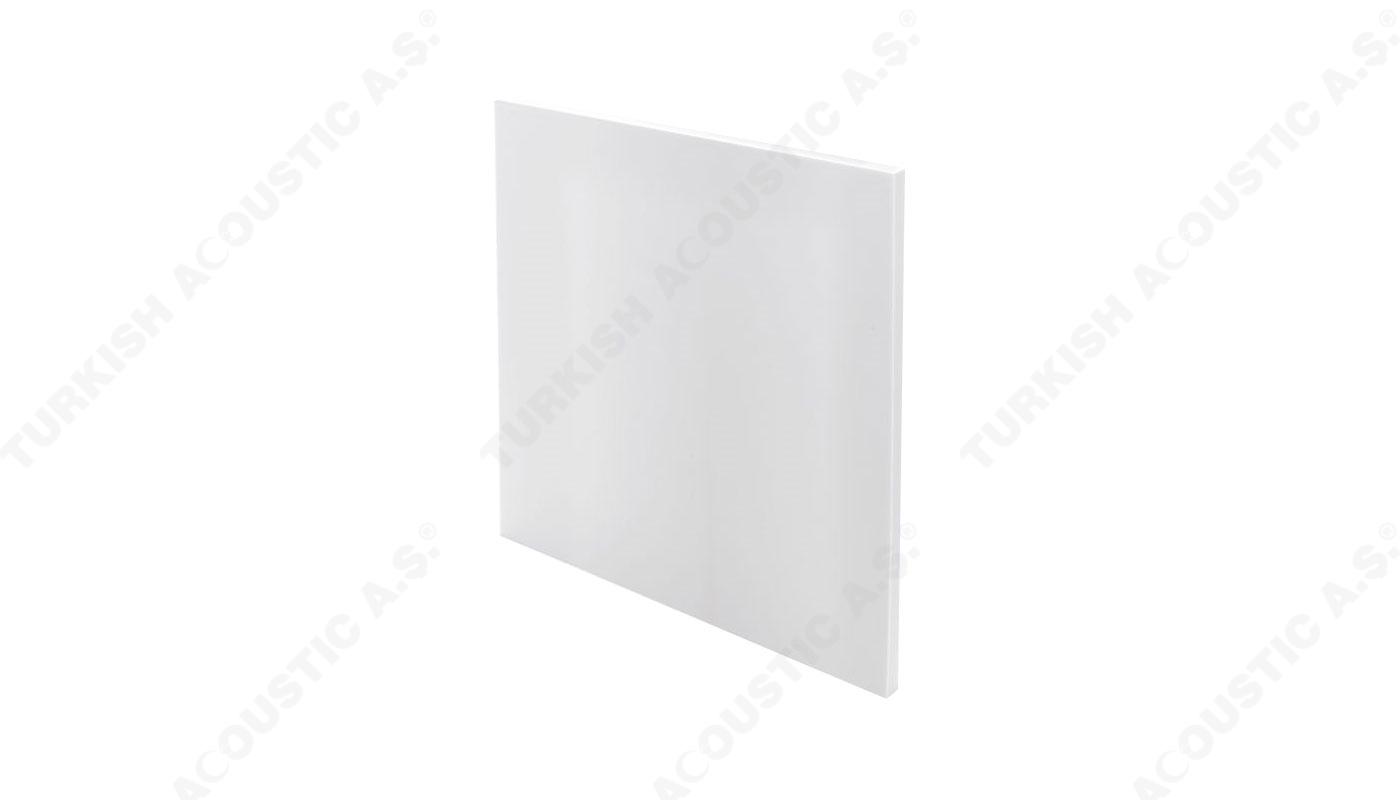

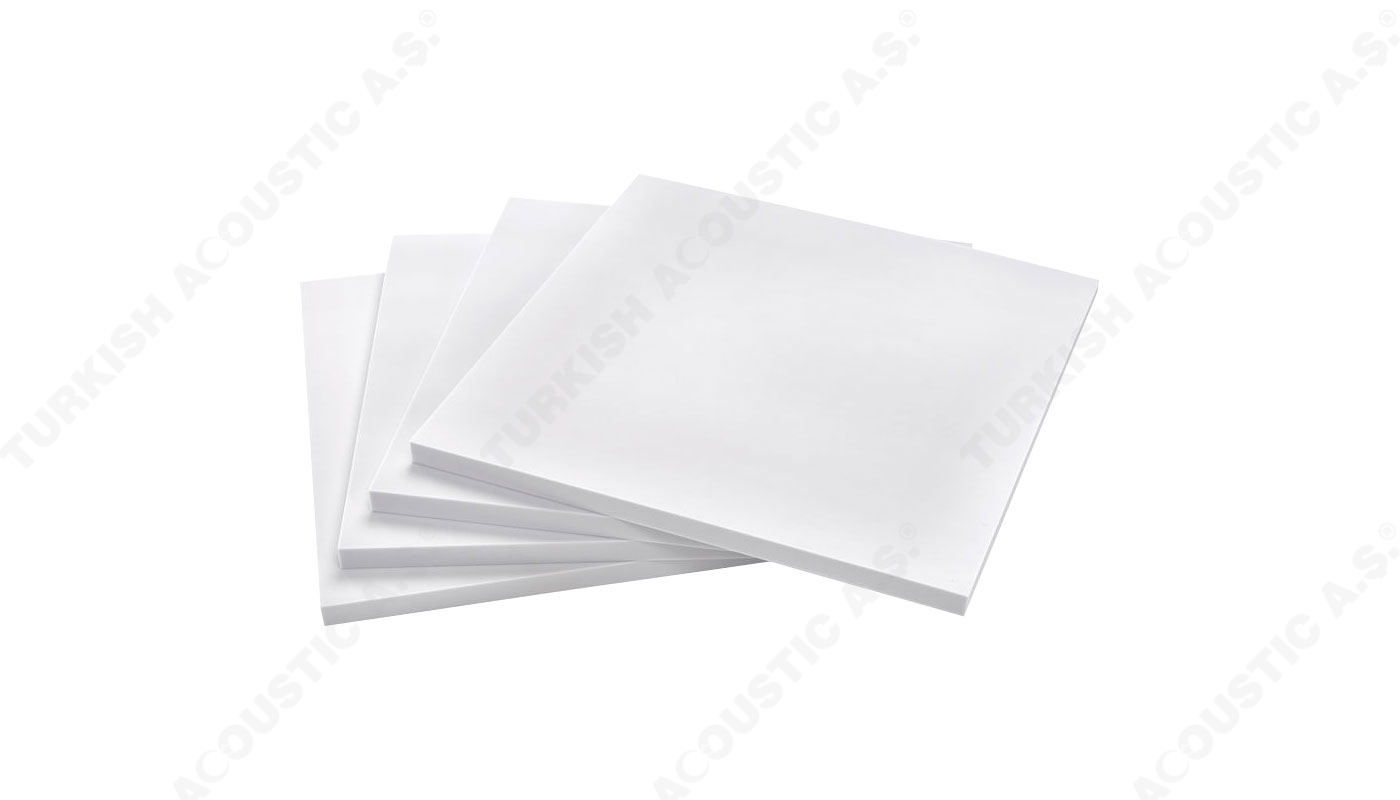

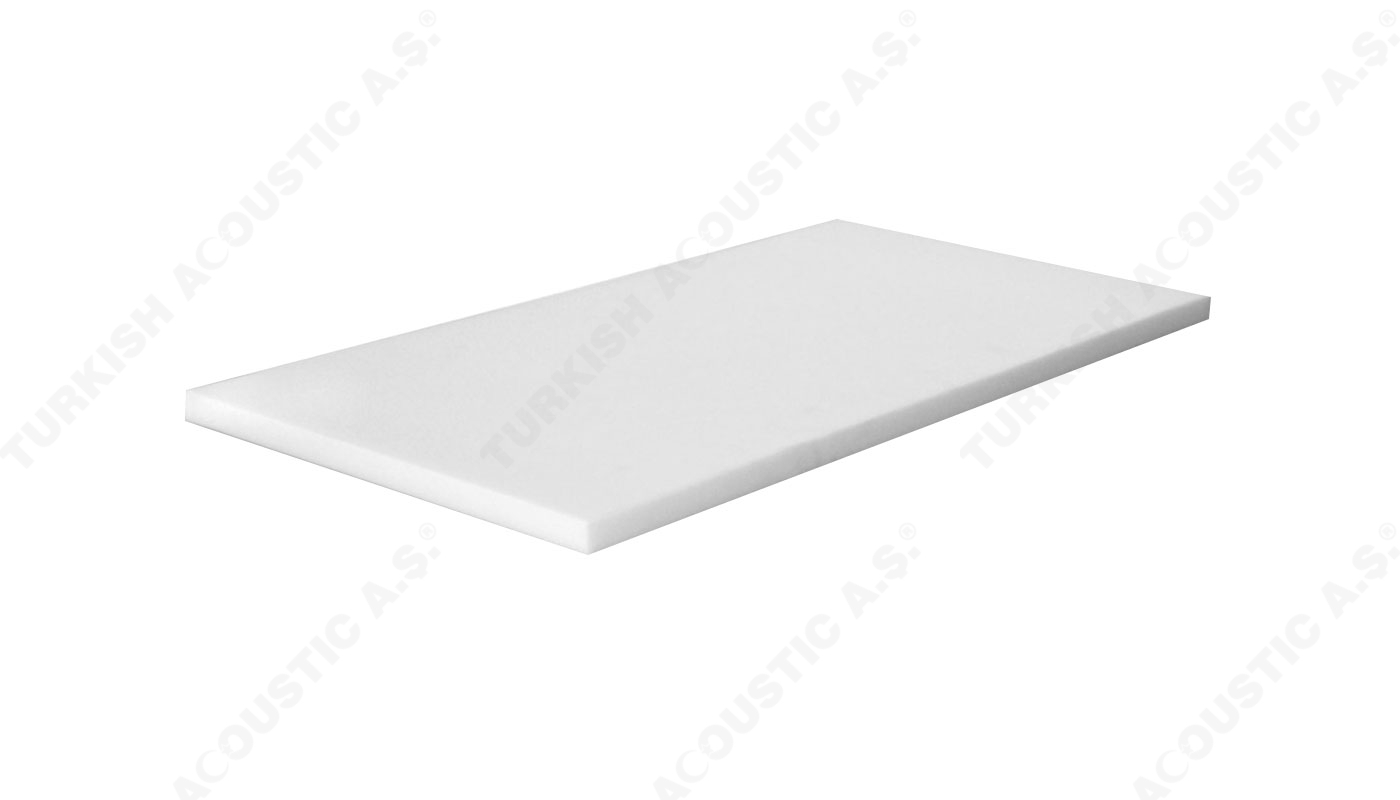

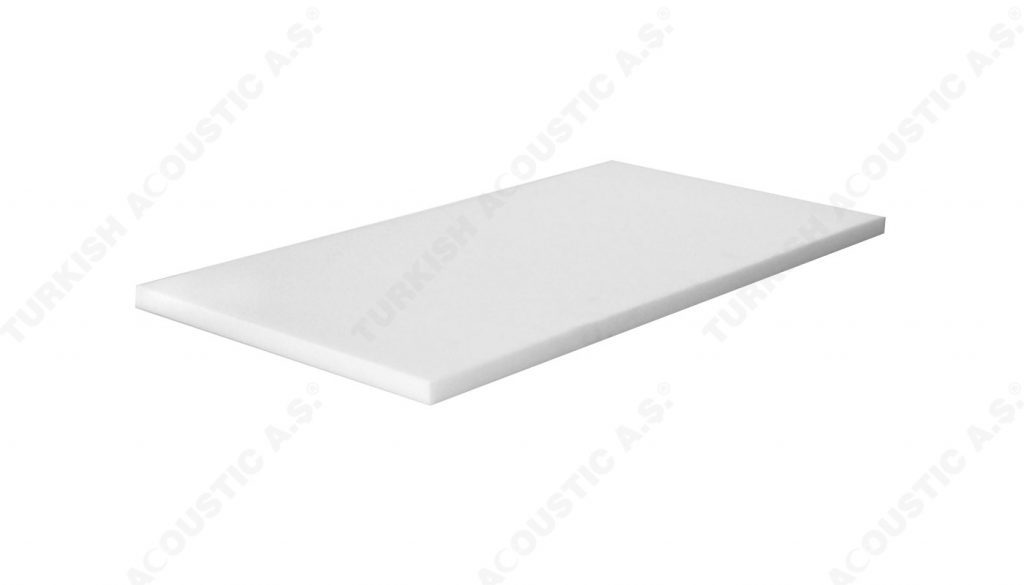

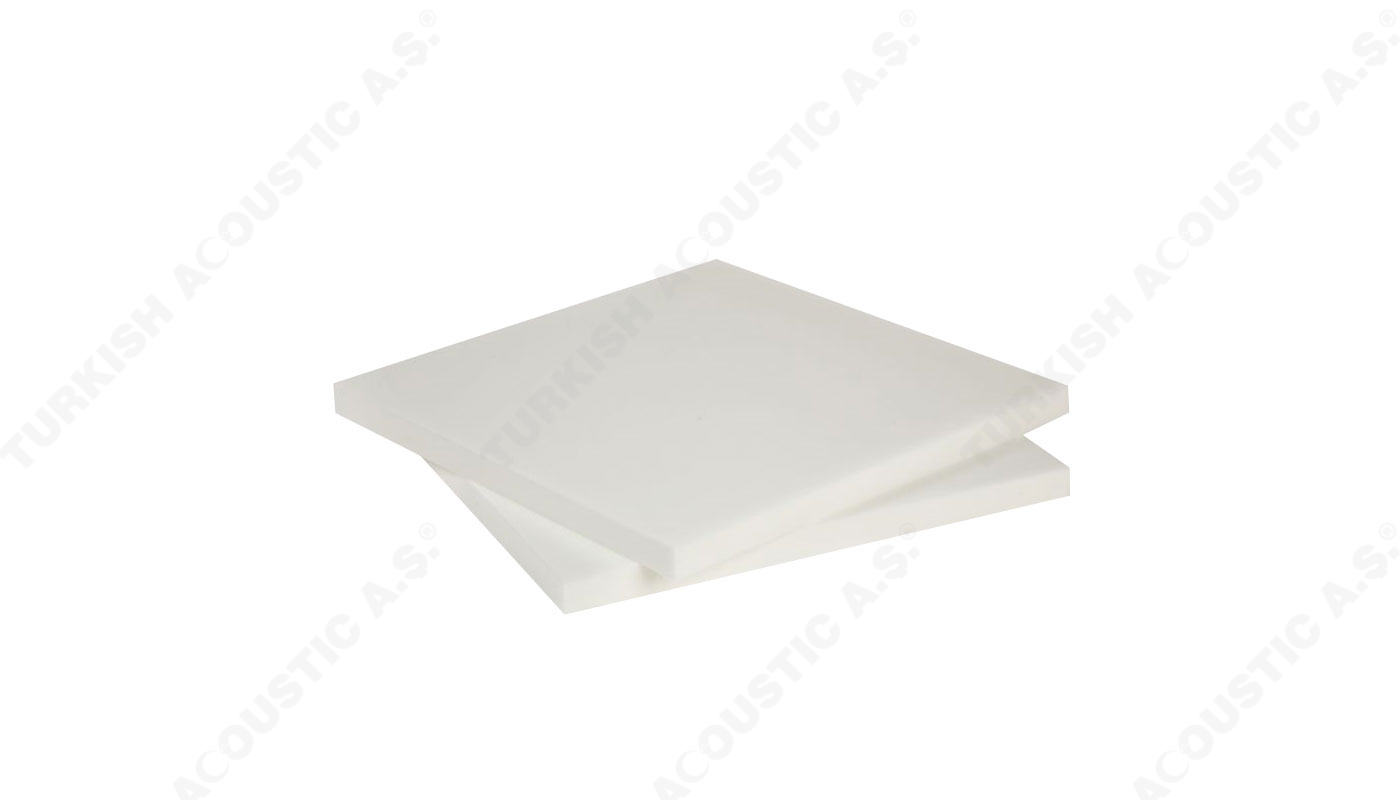

Trk Melamine Foam Dimensions: It is 50 cm x 125 cm plate dimensions and 30 mm and 40 mm are offered for retail sale.
Trk Melamine Foam Package Contents: Trk Melamine Foams 50 cm x 125 cm size plates are sold in 40 packages. 1 Package 25 m² Sold.

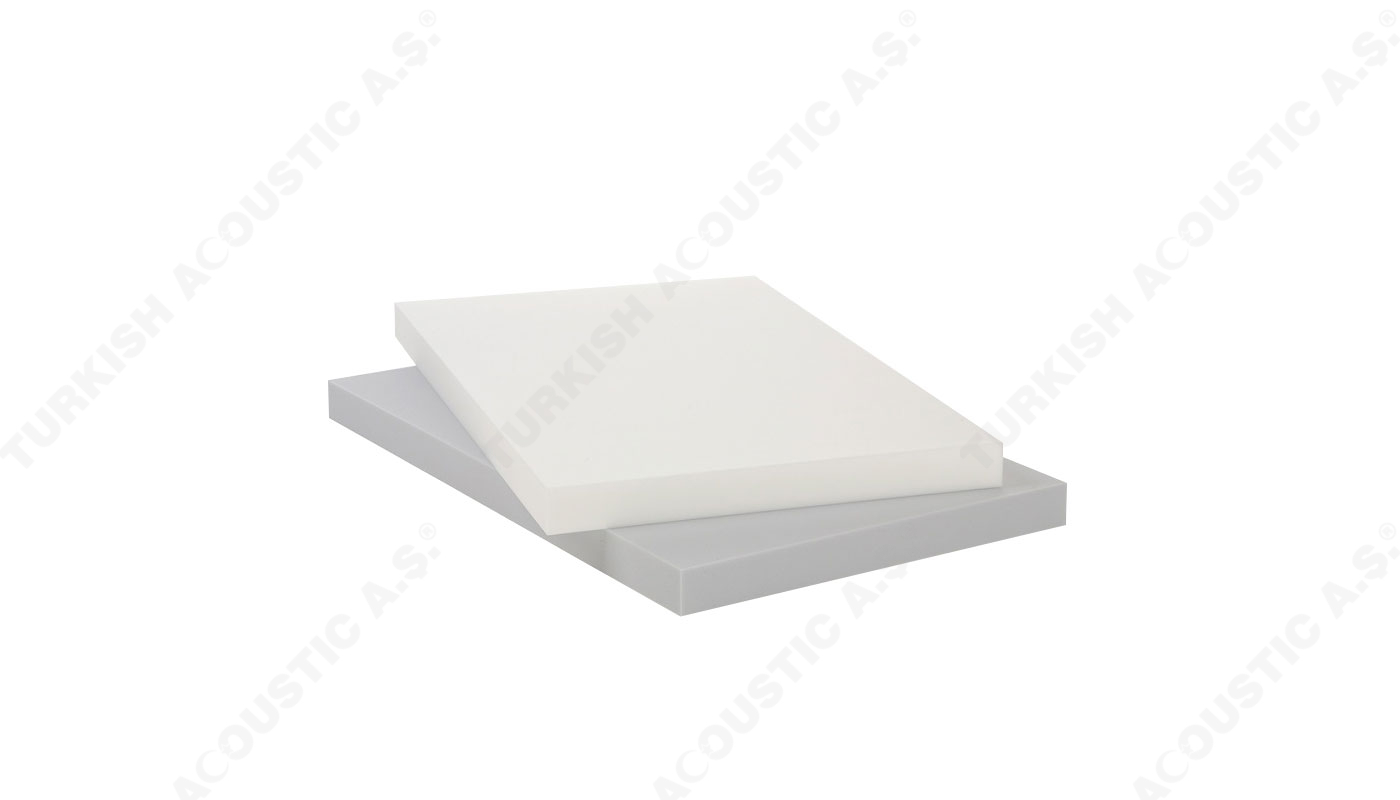

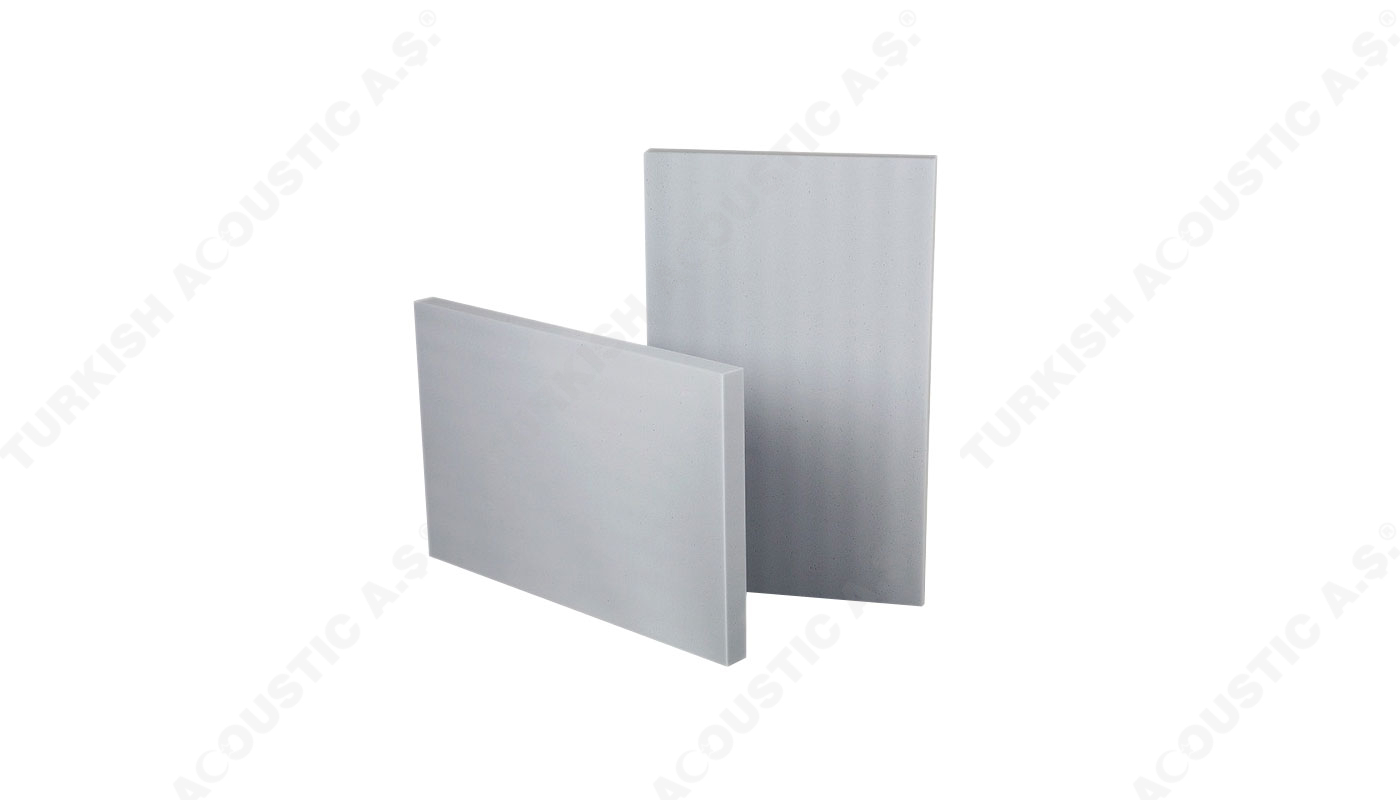

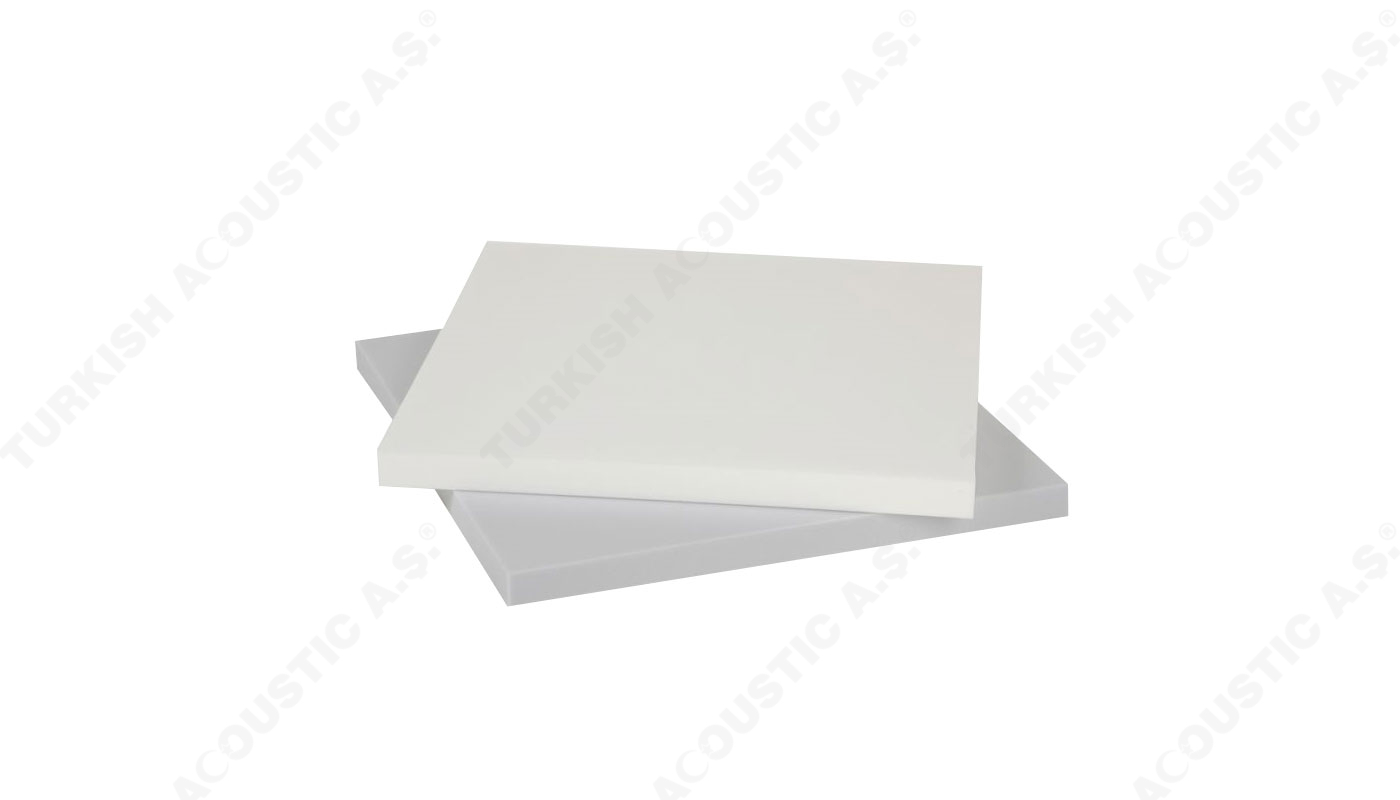

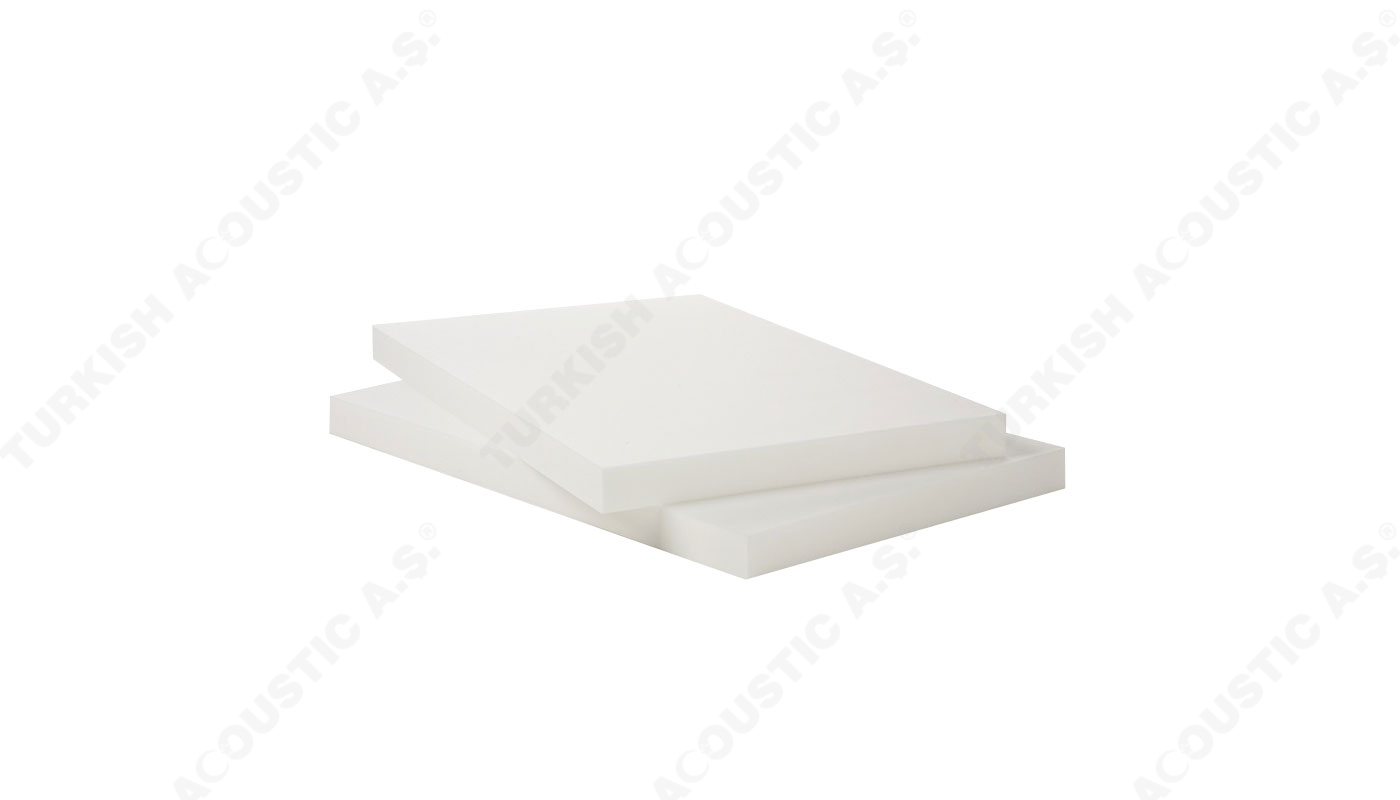

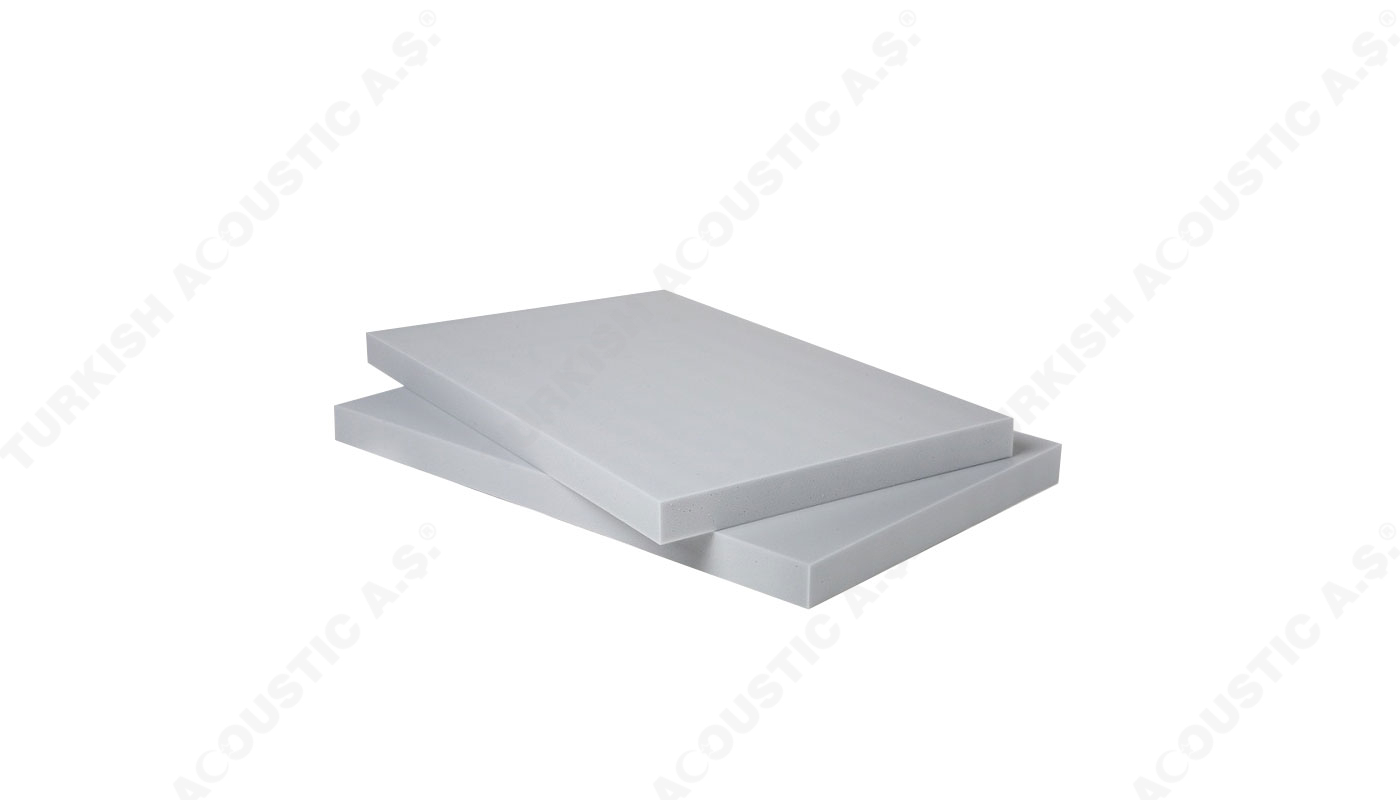

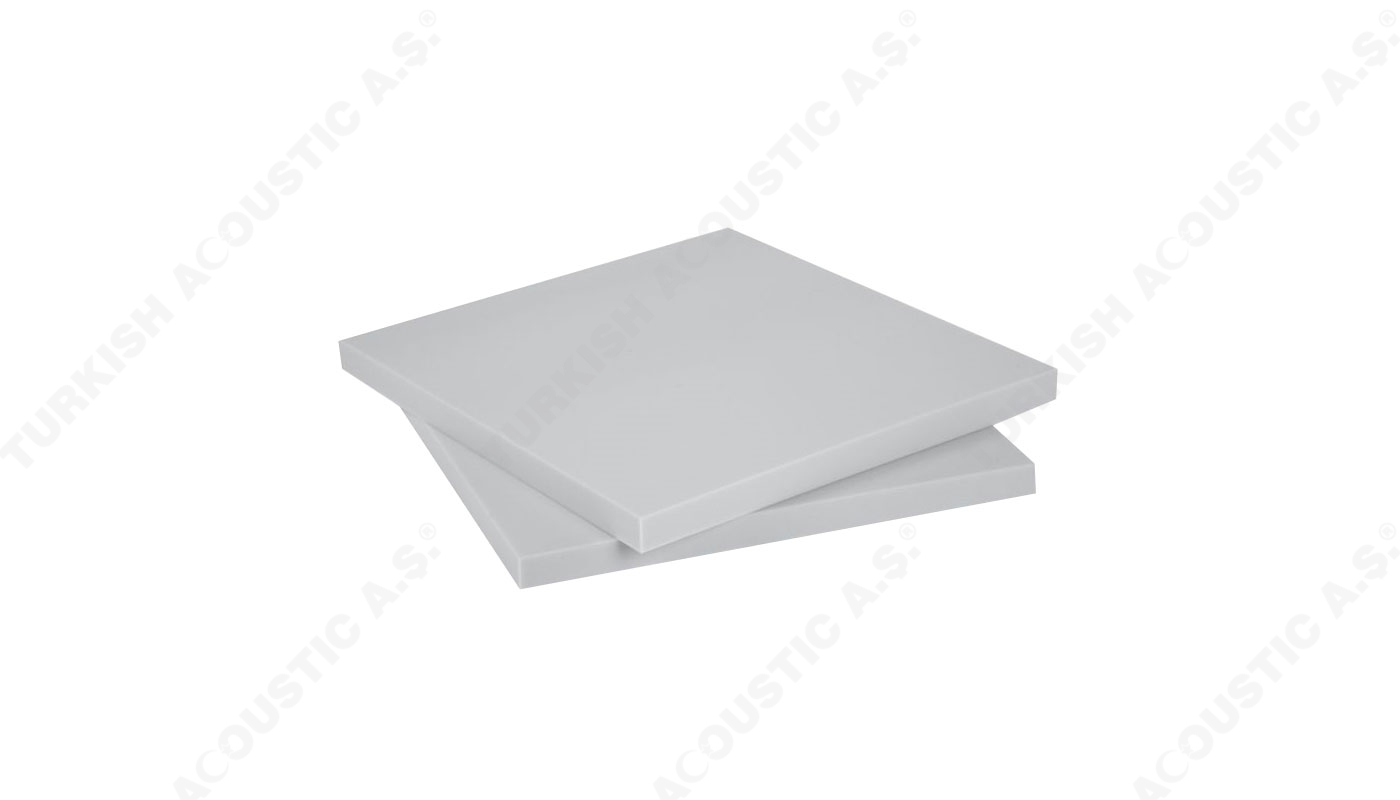

Trk Melamine Foam Color types: White and light gray are sold as standard, colored production is possible.
Trk Melamine Foam Usage Areas: Music room, studio, generator cabin, radio broadcasting house, gymnasium, entertainment venues.
Trk Melamine Foam Production: Production of special thickness 50 mm and above is possible. Custom sizes are possible. Colors RAL Chart
Trk Melamine Foam Fireproof: Non-flammable/non-flammable Firend; In flammability, it has BS476: class 0 and UNI 9175: 2008 M1 certificates.
Trk Melamine Foam Density: 1 0 to 20 Kg / M³ Special production in desired density and thickness is possible. CNC cutting is possible.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Basotect sponges are in 50 cm x 125 cm or 100 cm x 125 plates and contain 10 m² of product in their package. It is sold retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
