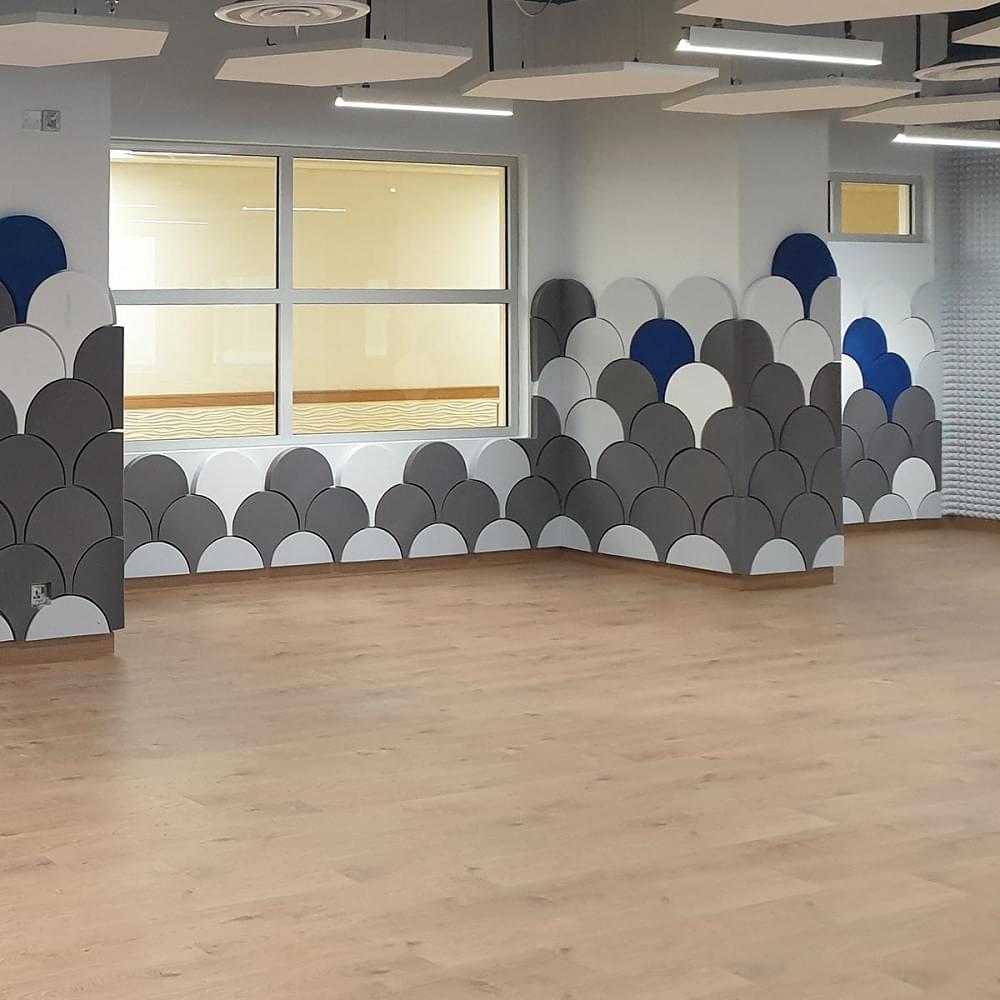

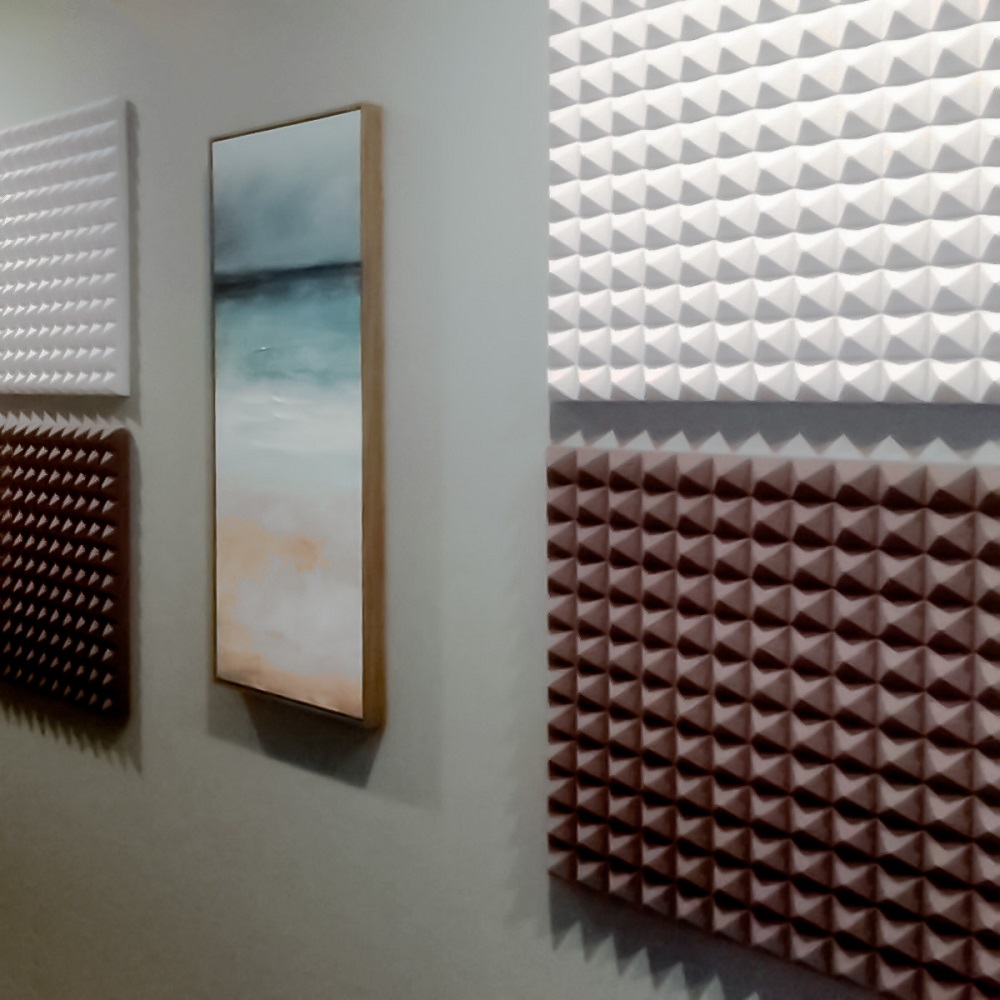

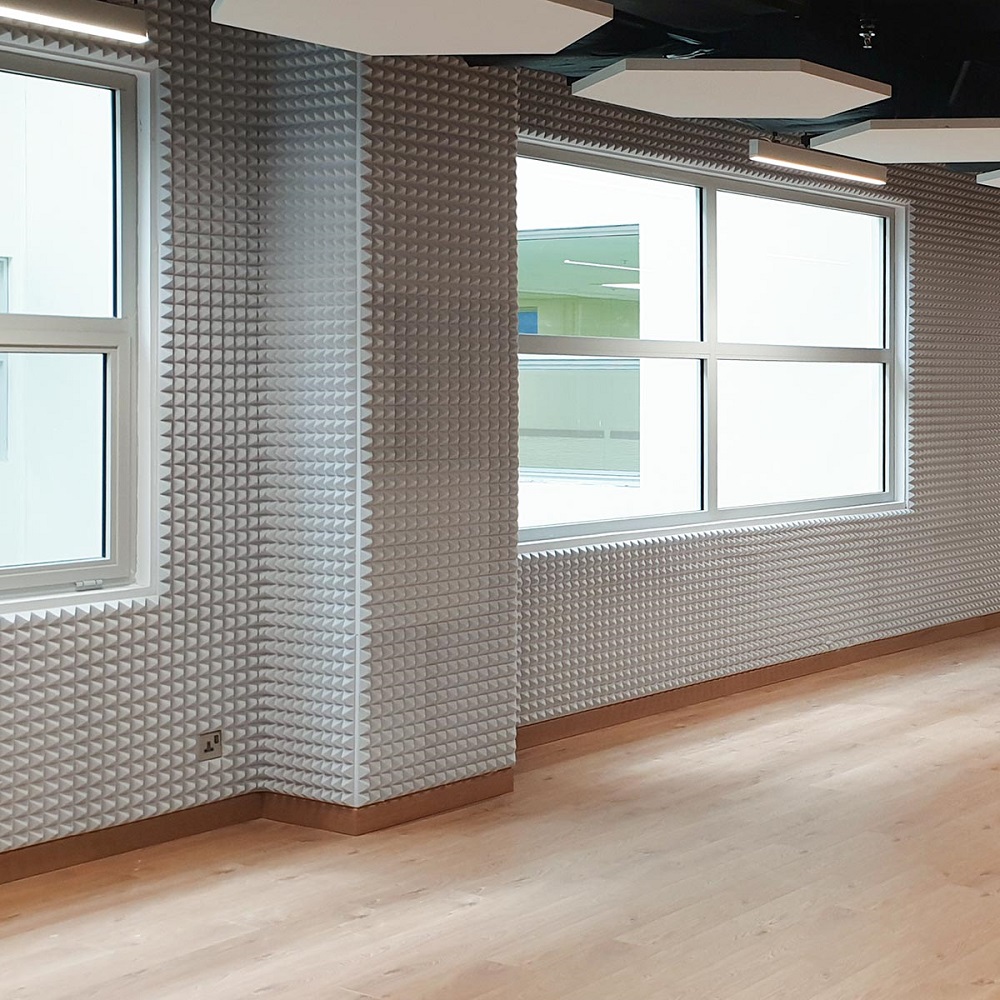

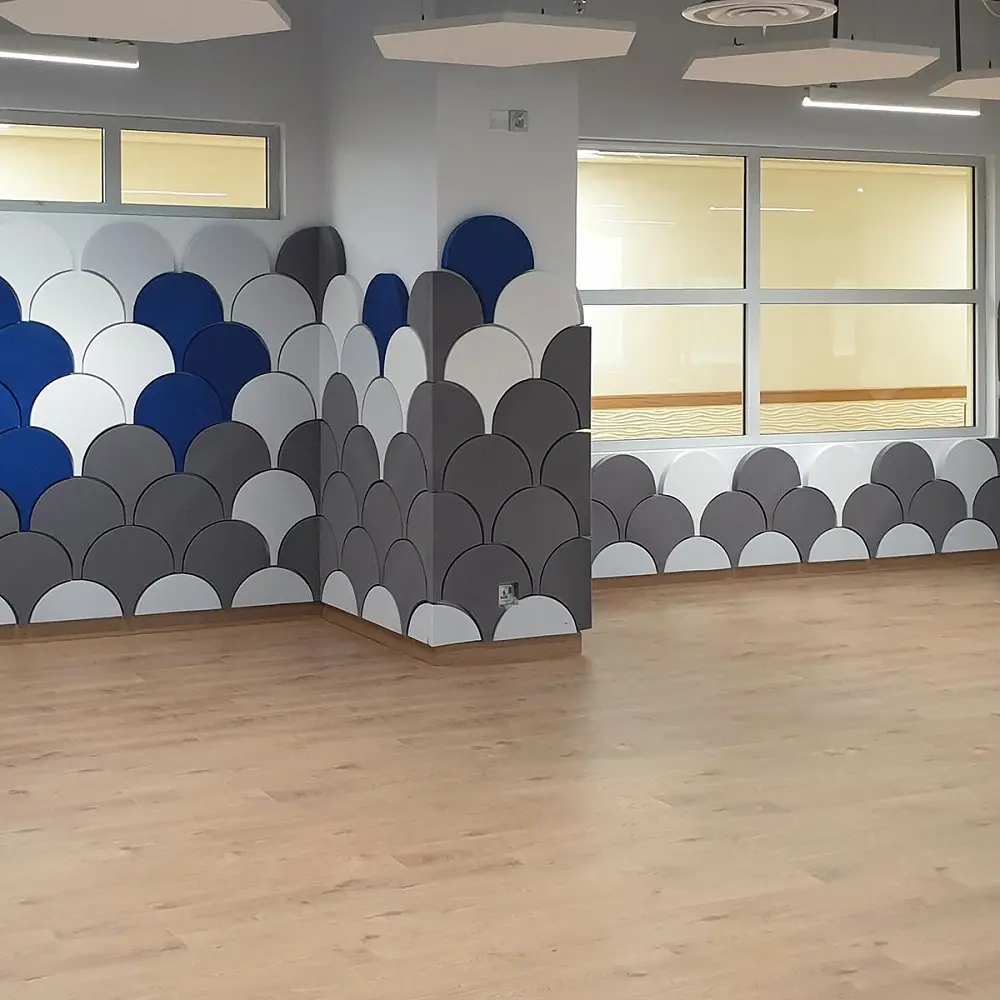

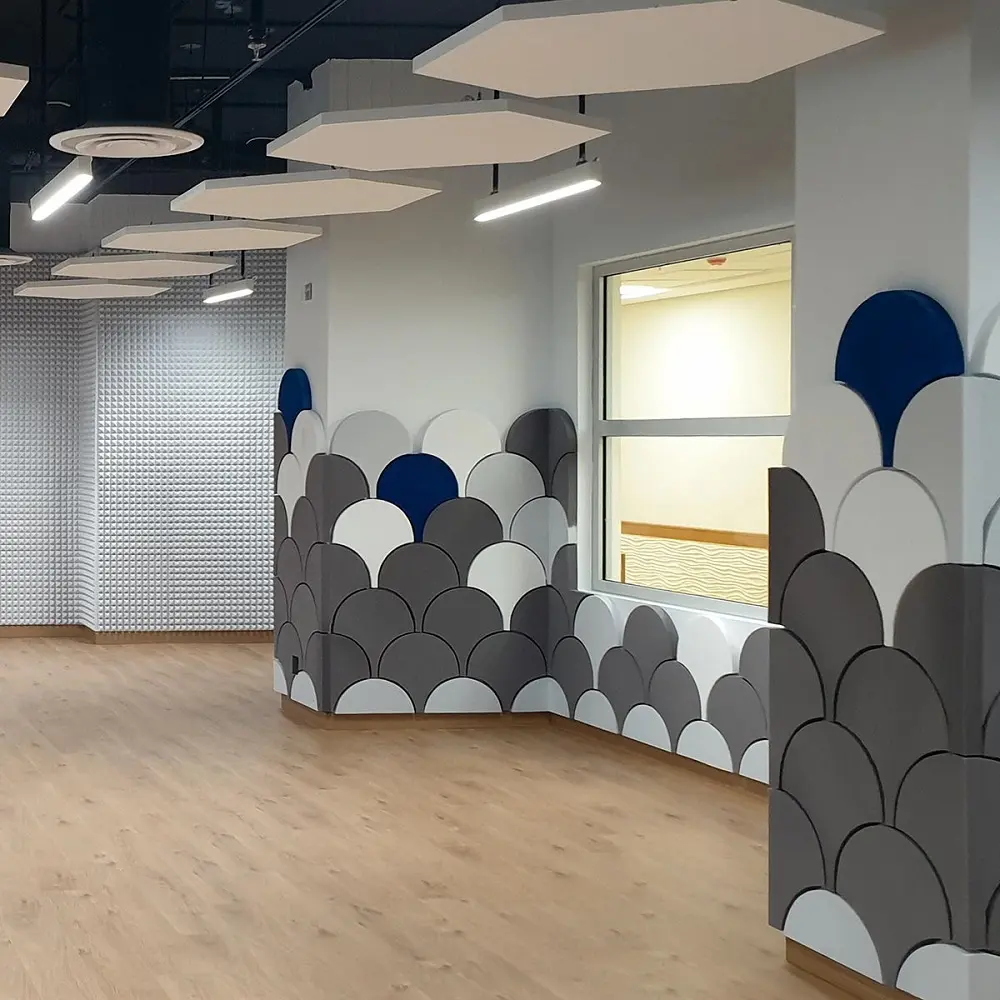

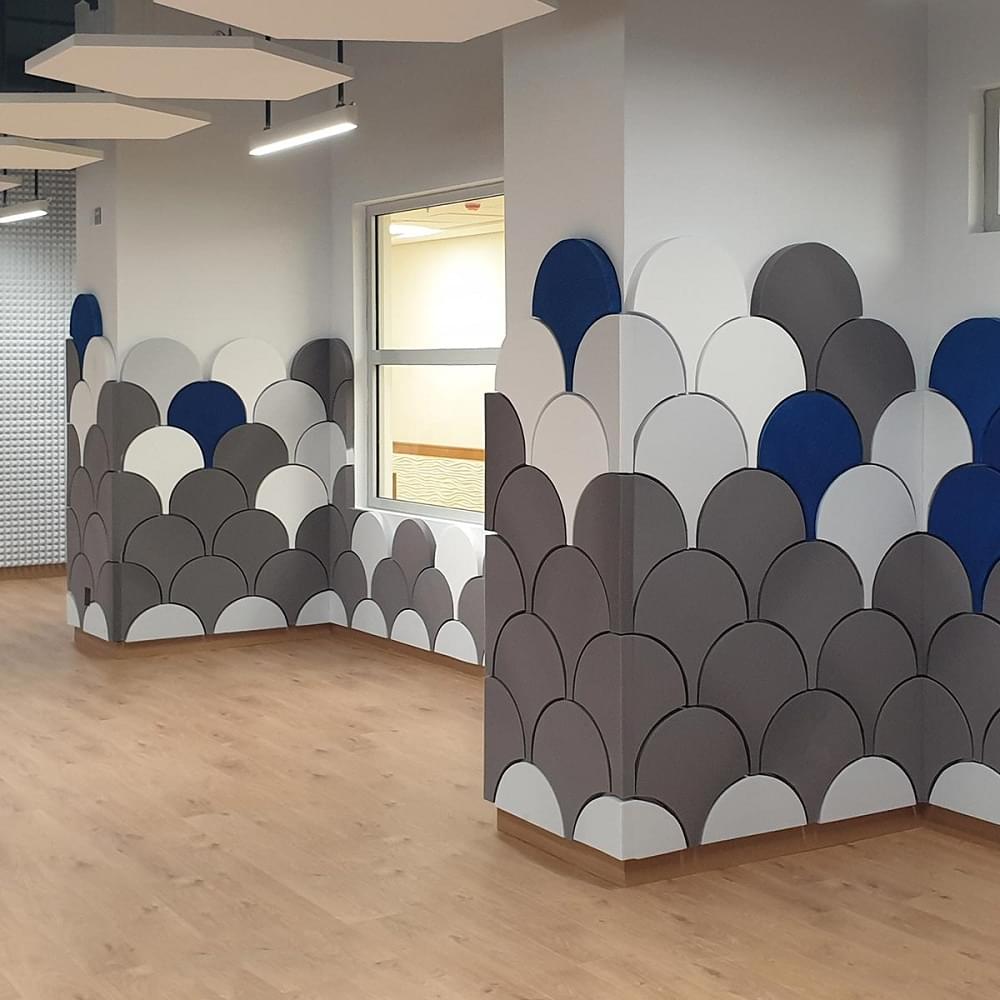

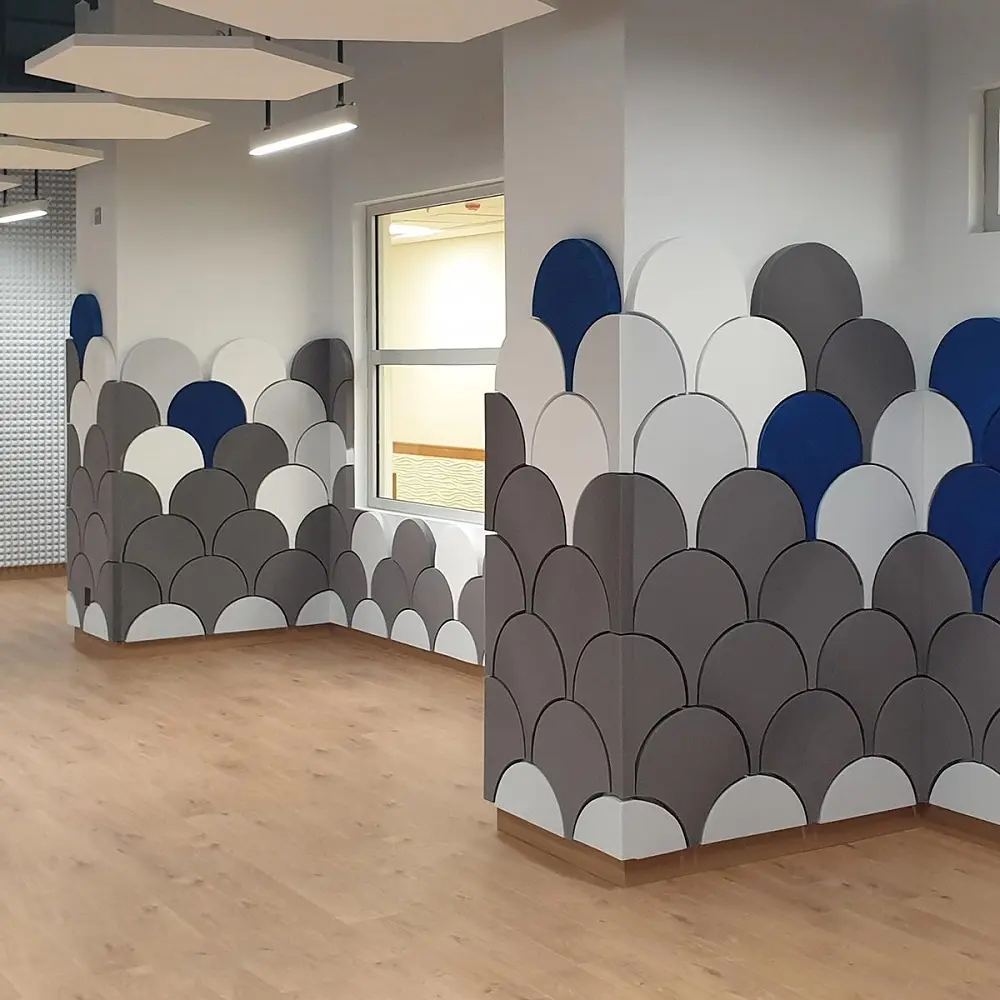

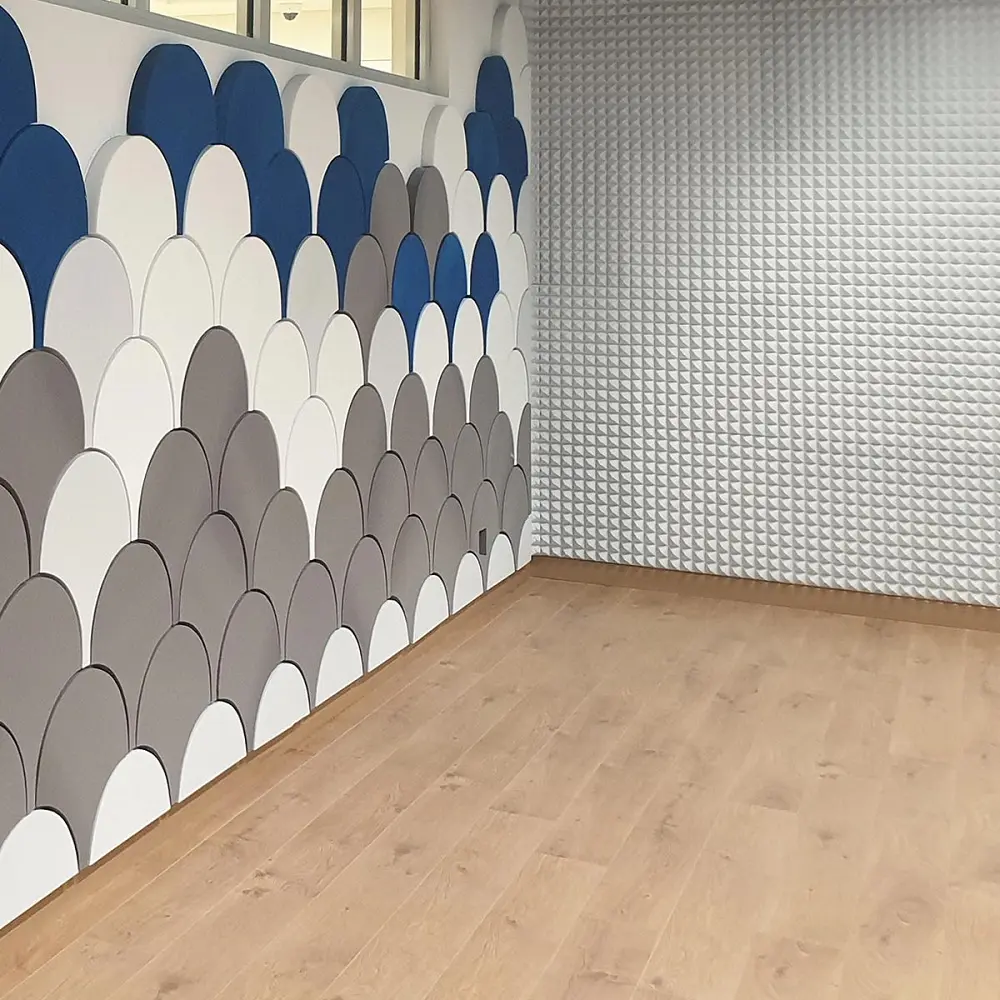

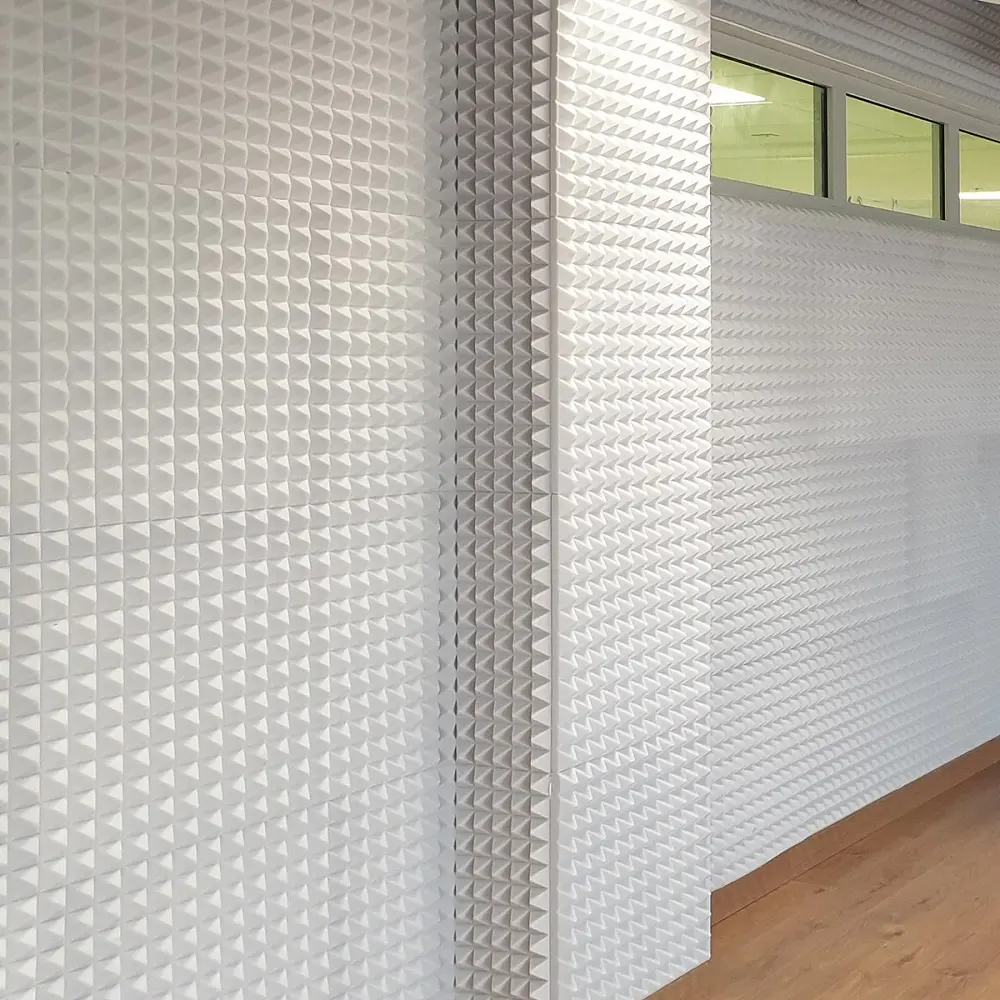

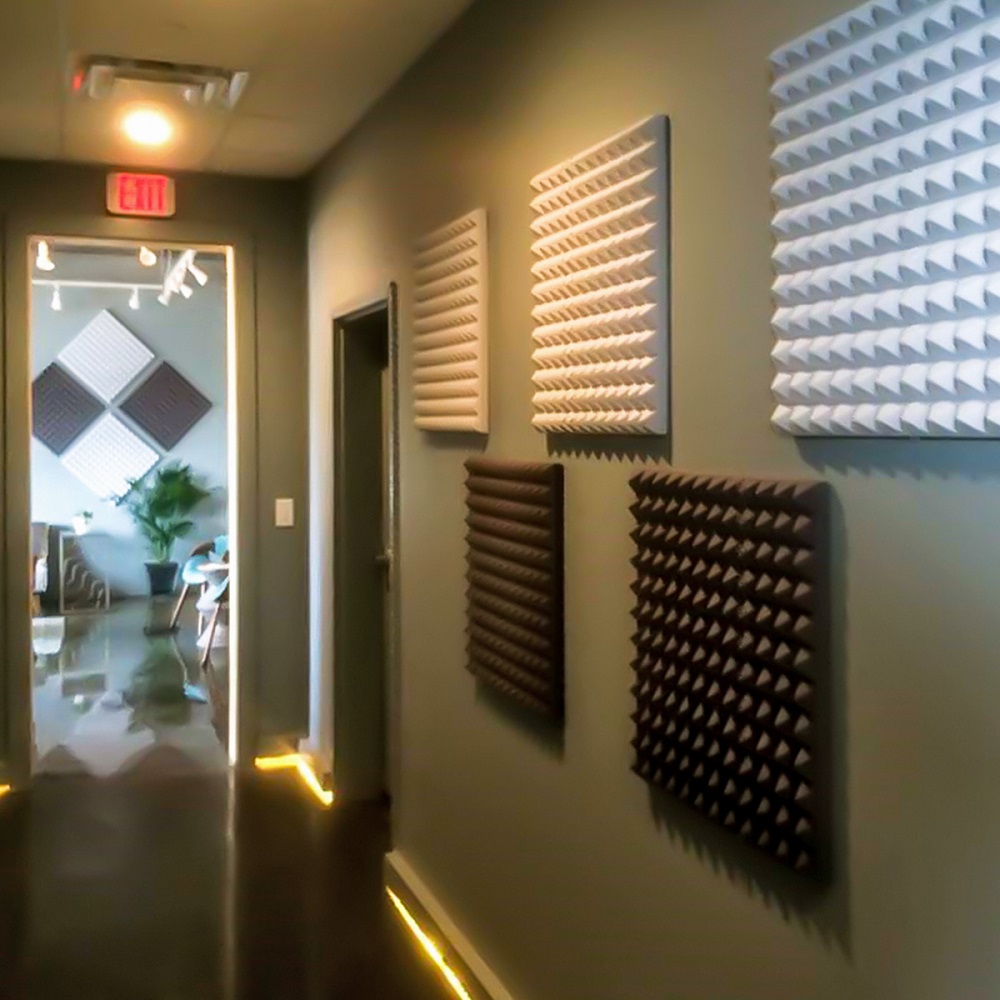

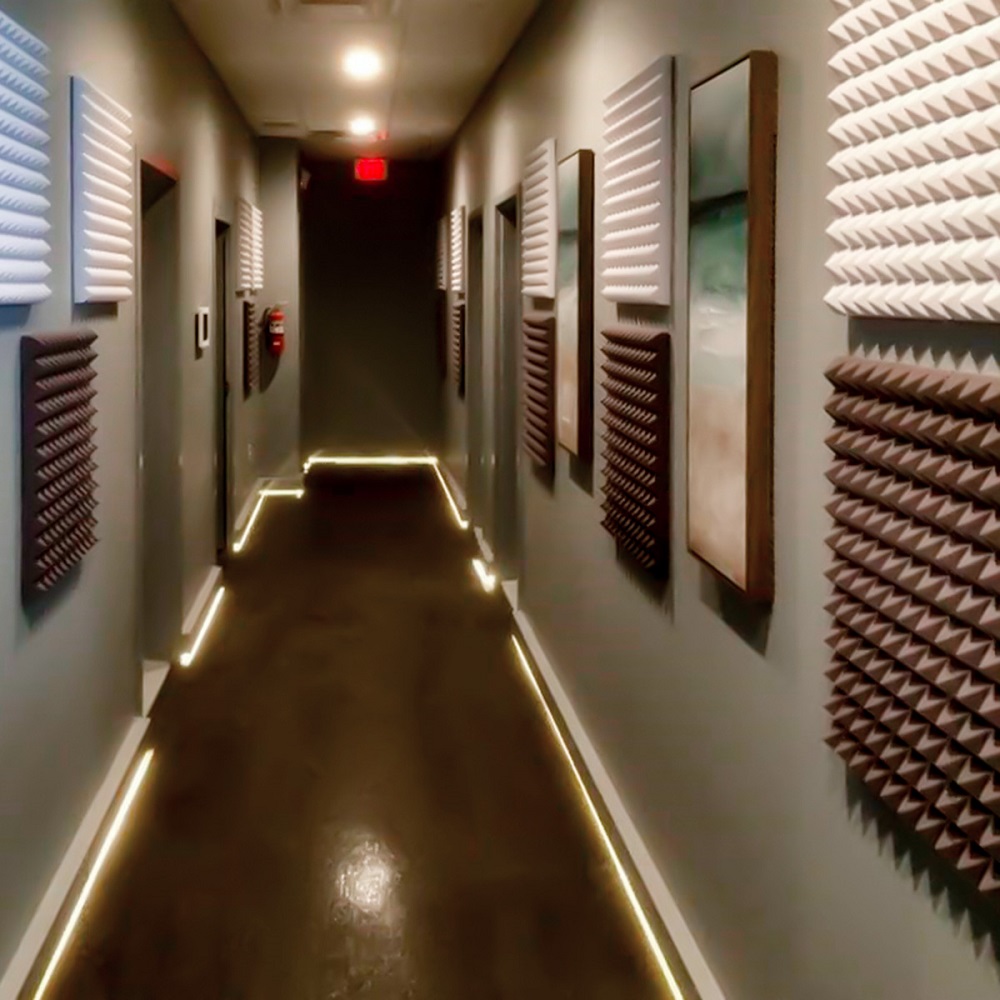

Application Images

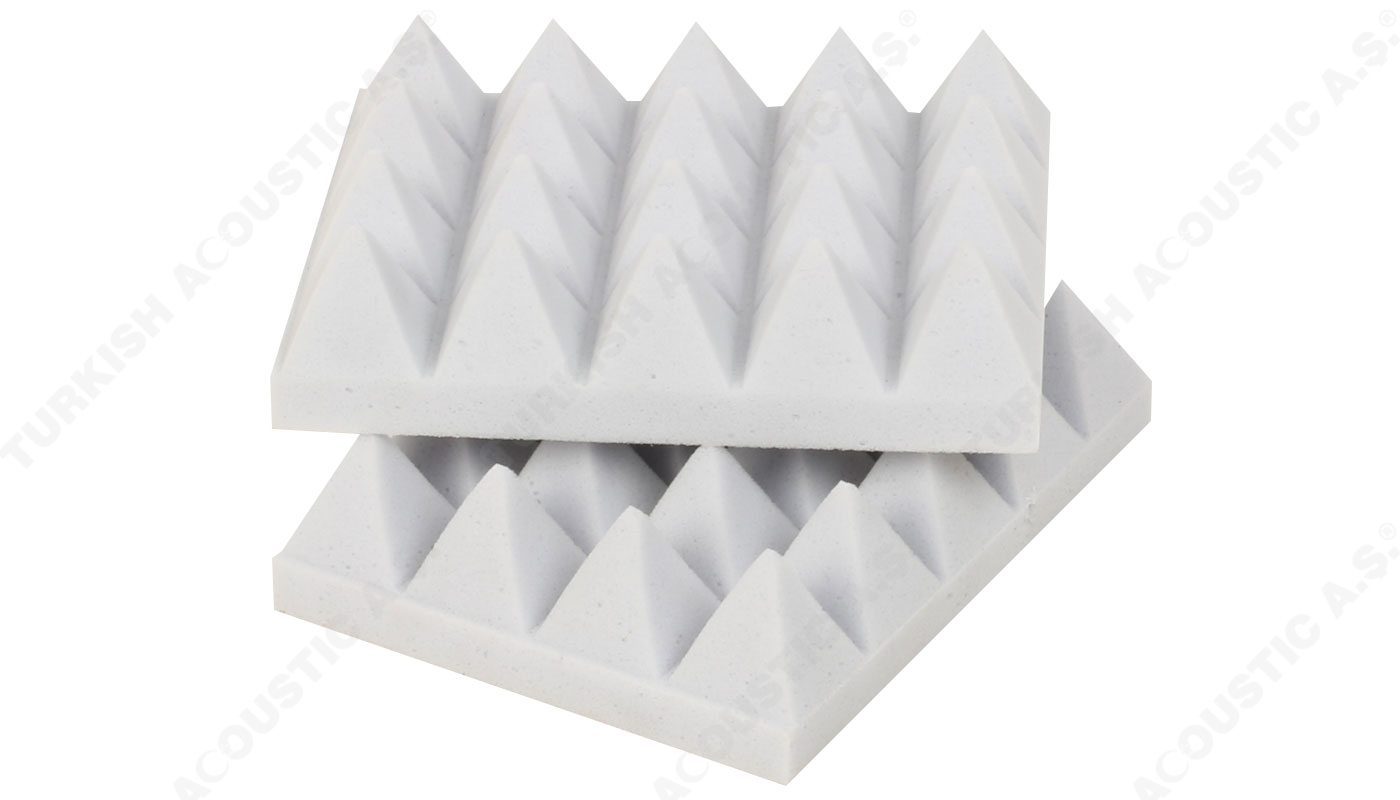

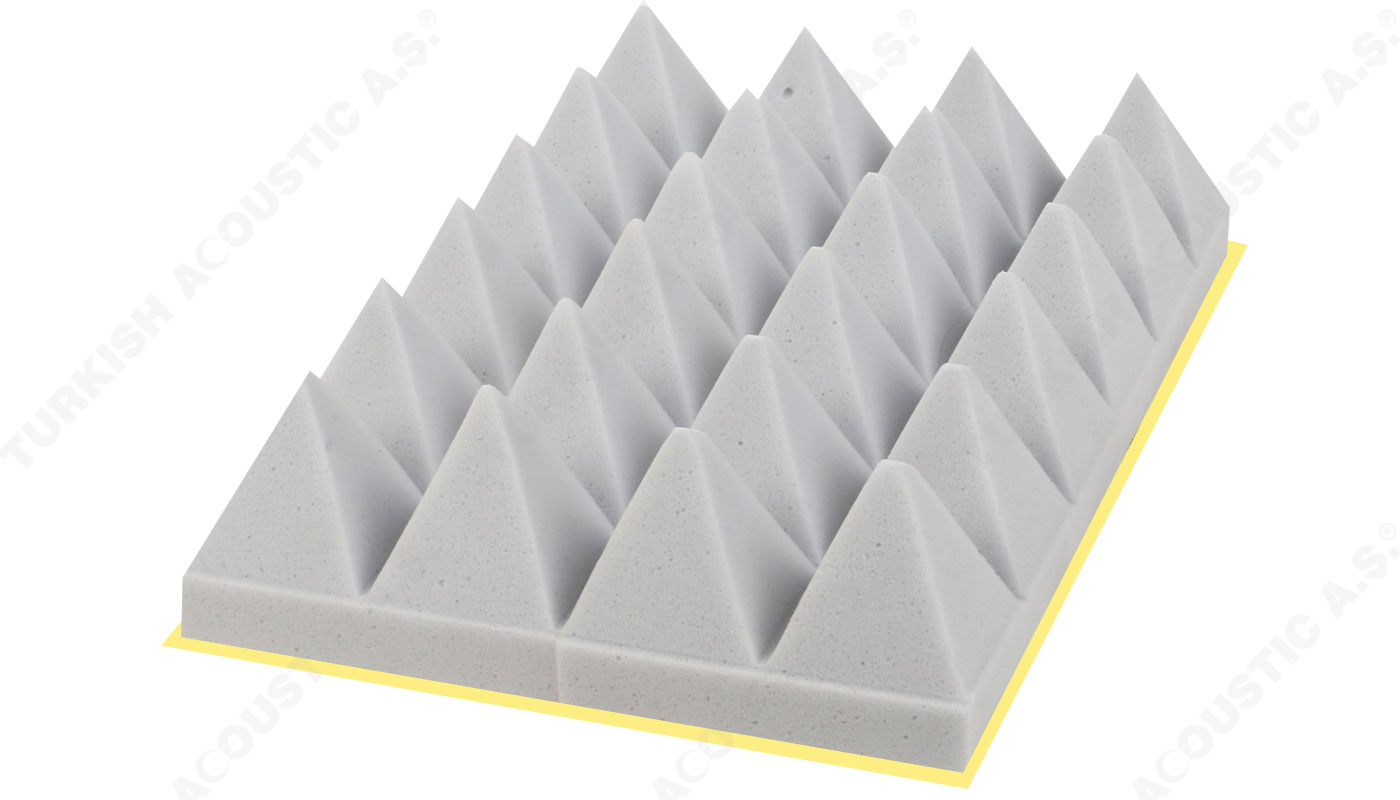

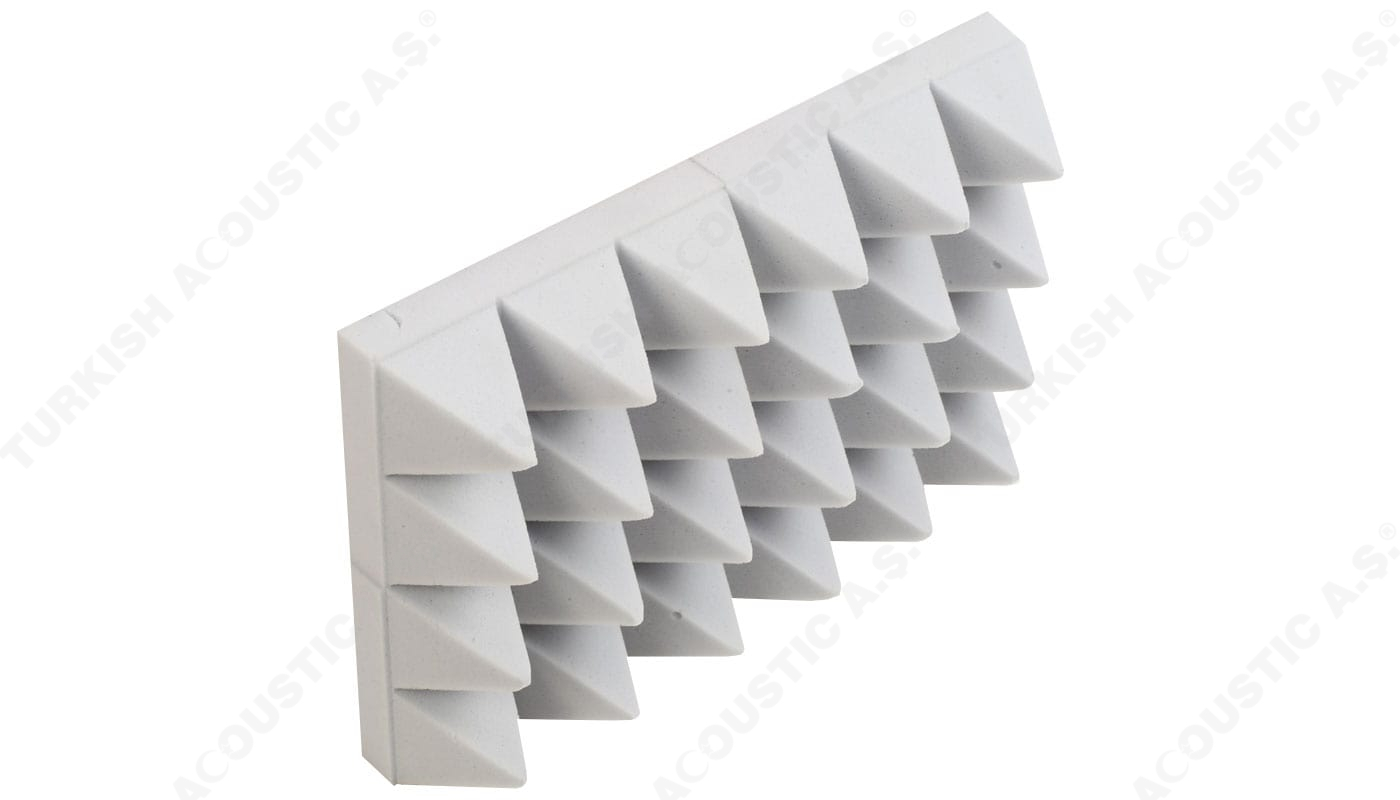

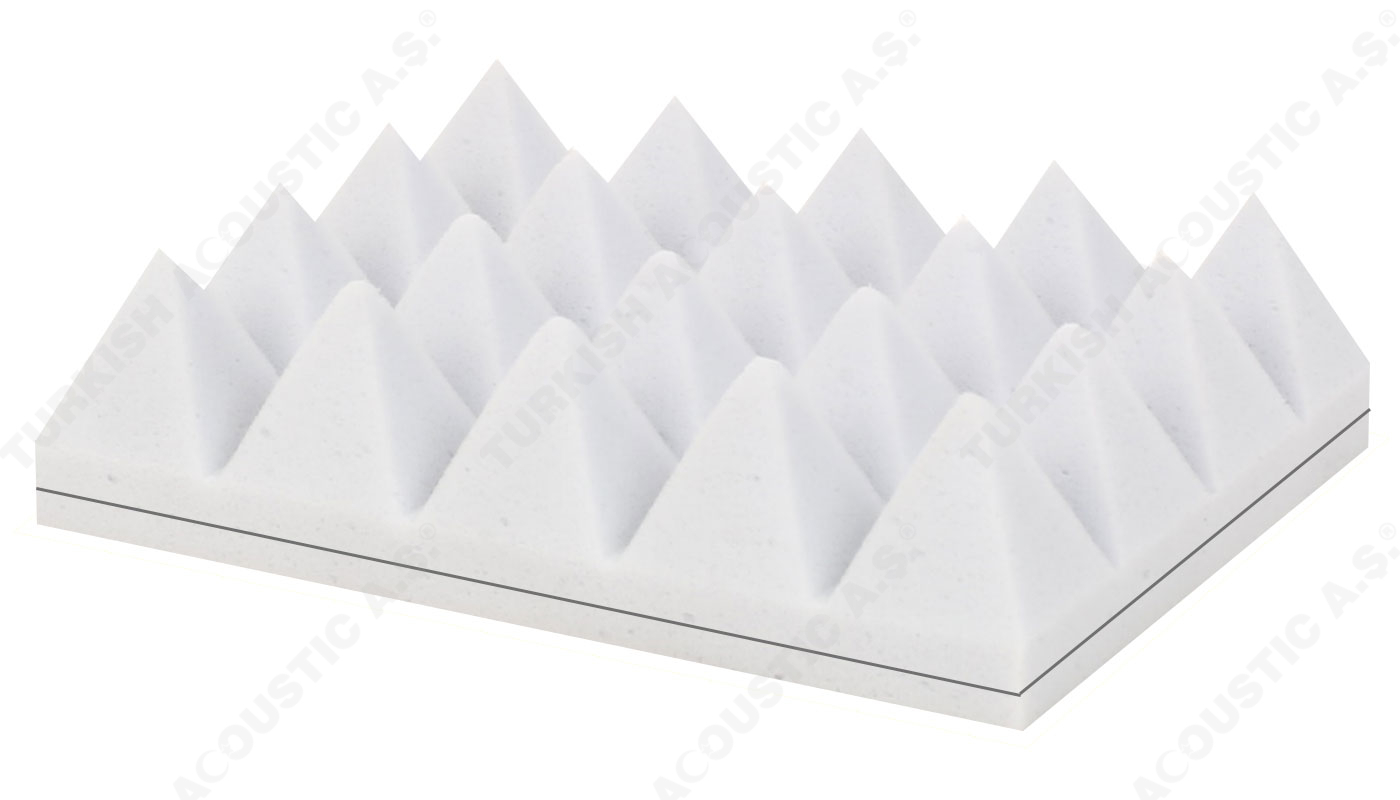

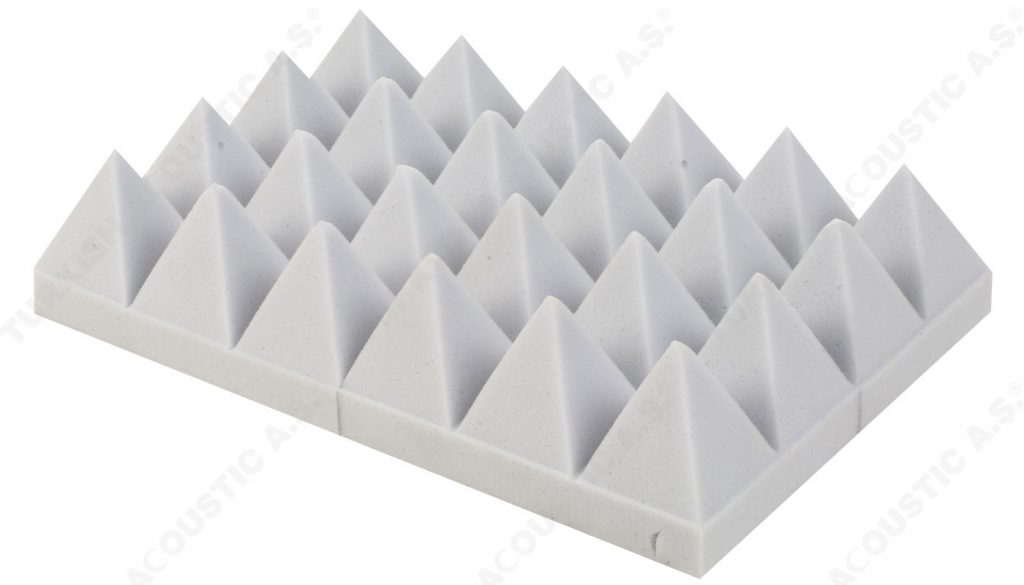

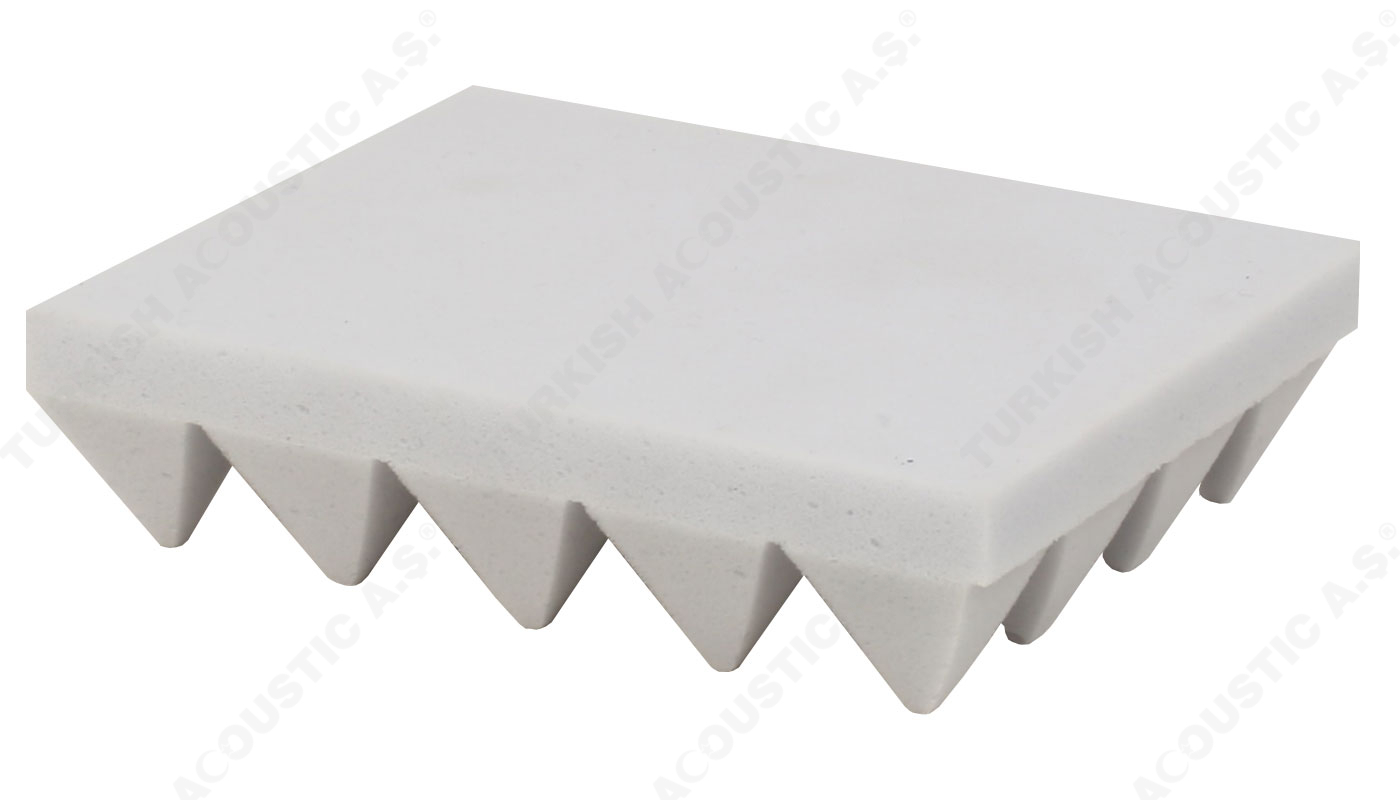

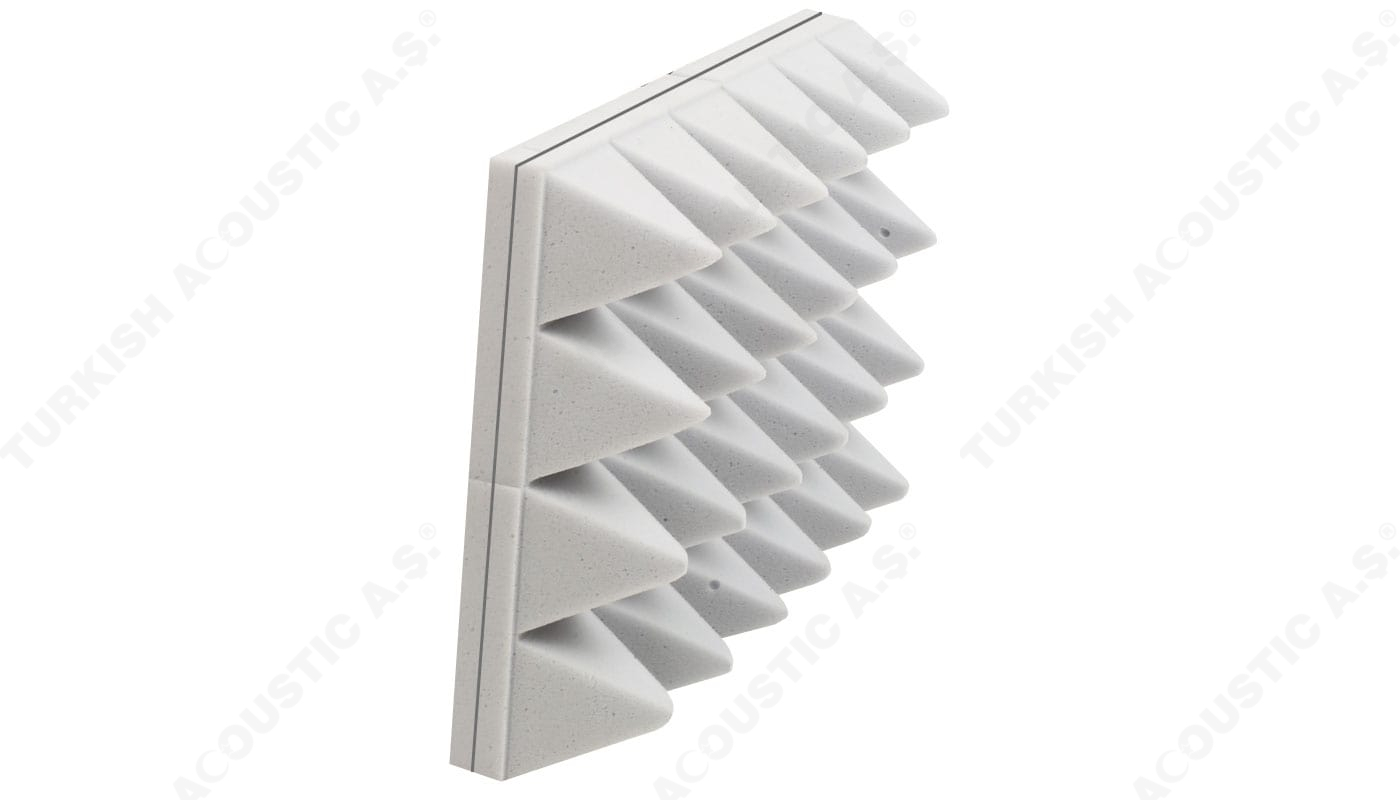

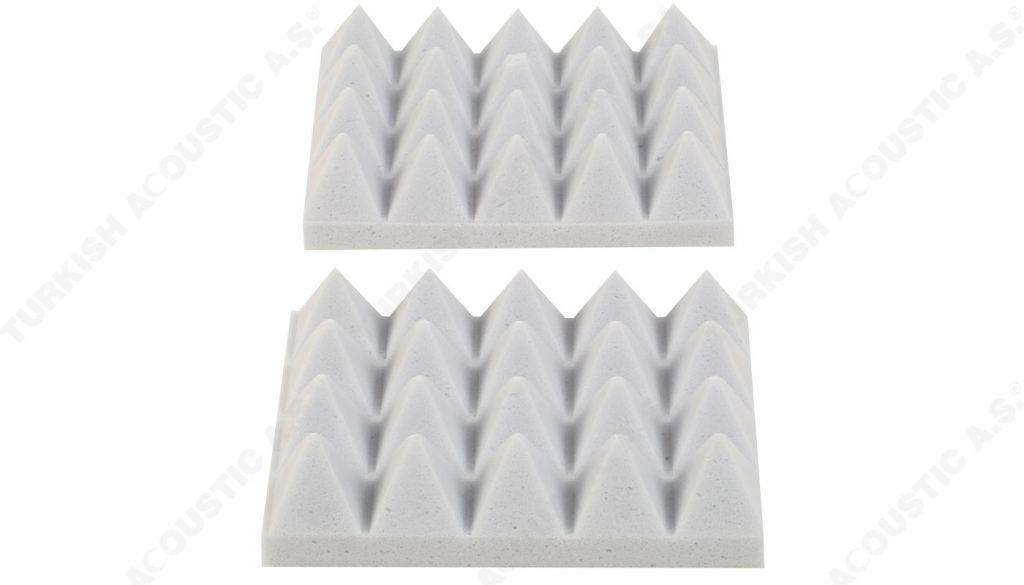

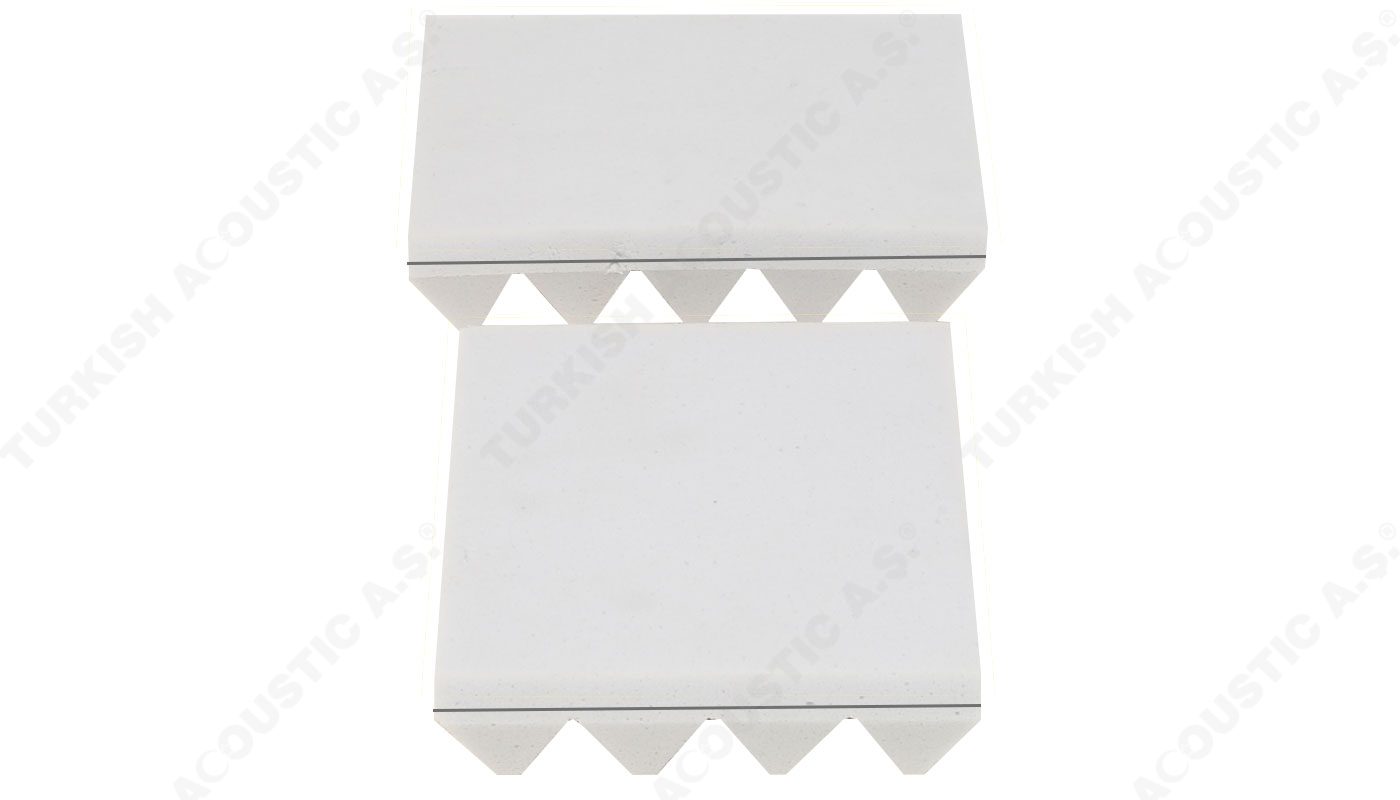

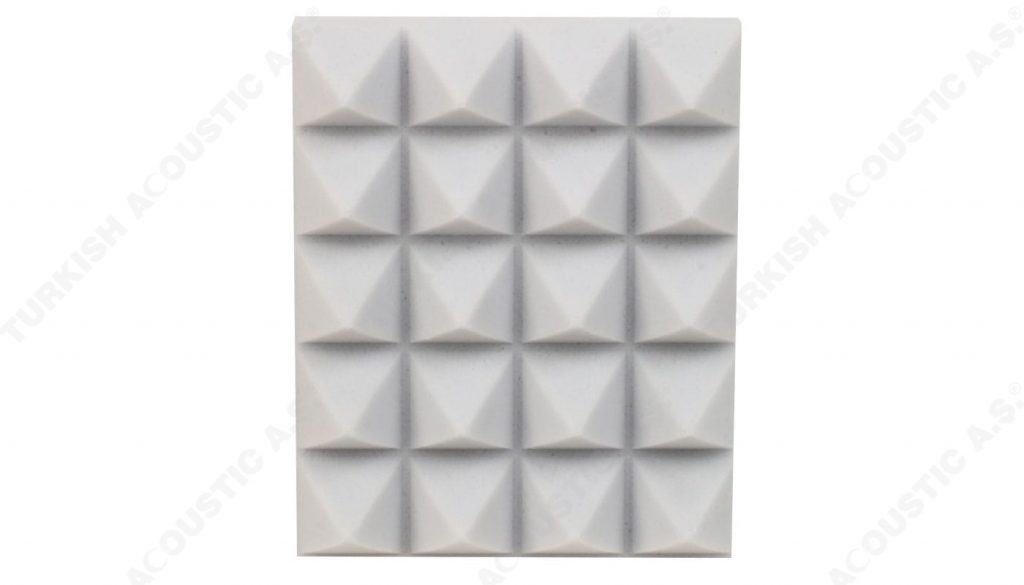

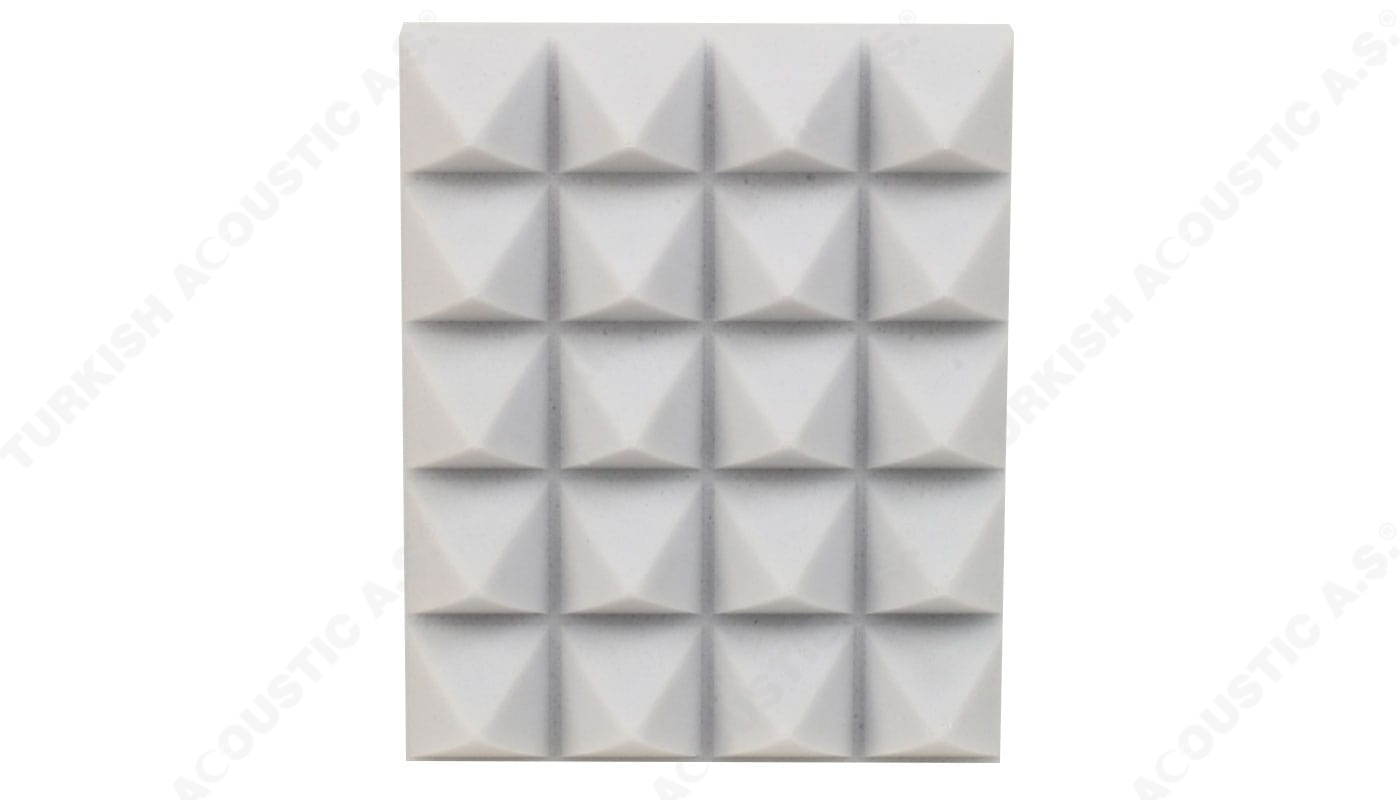

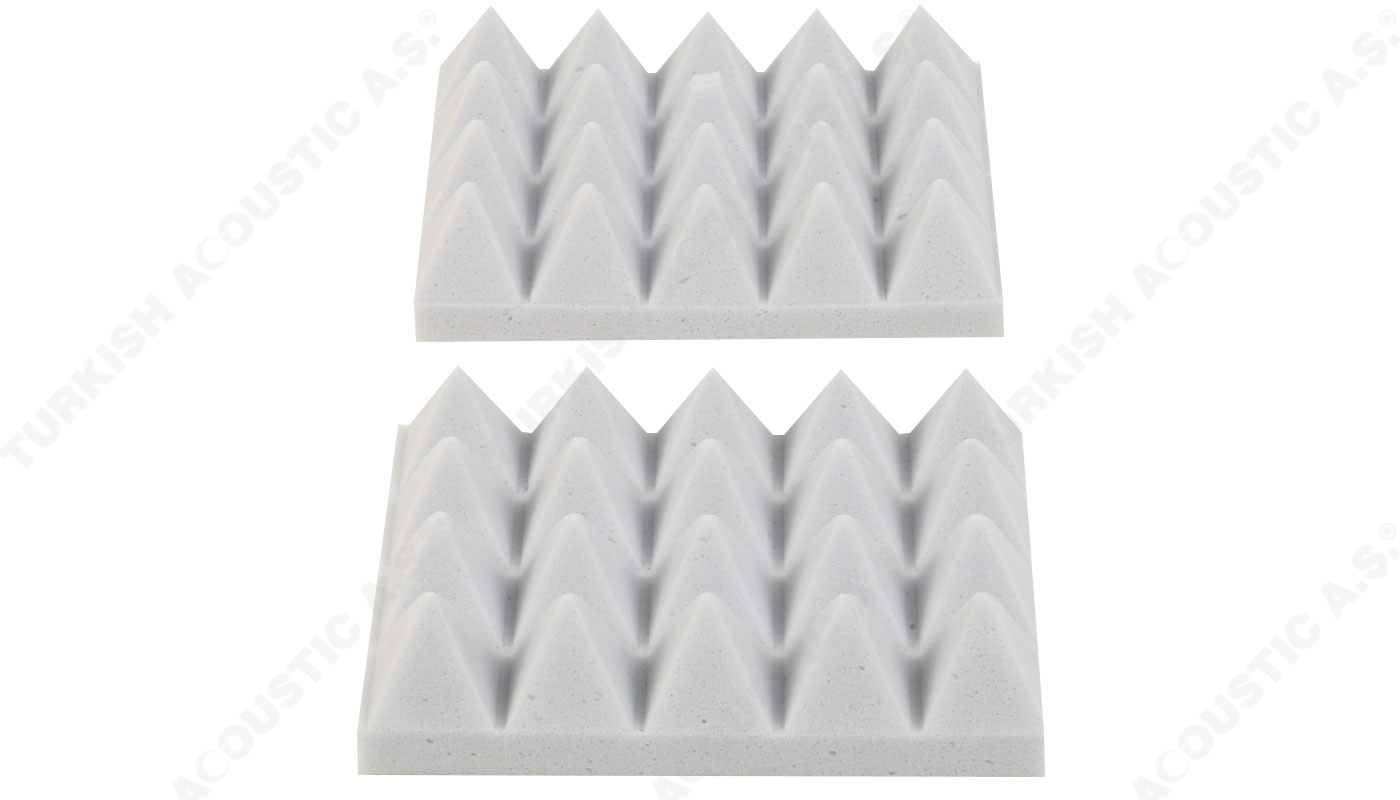

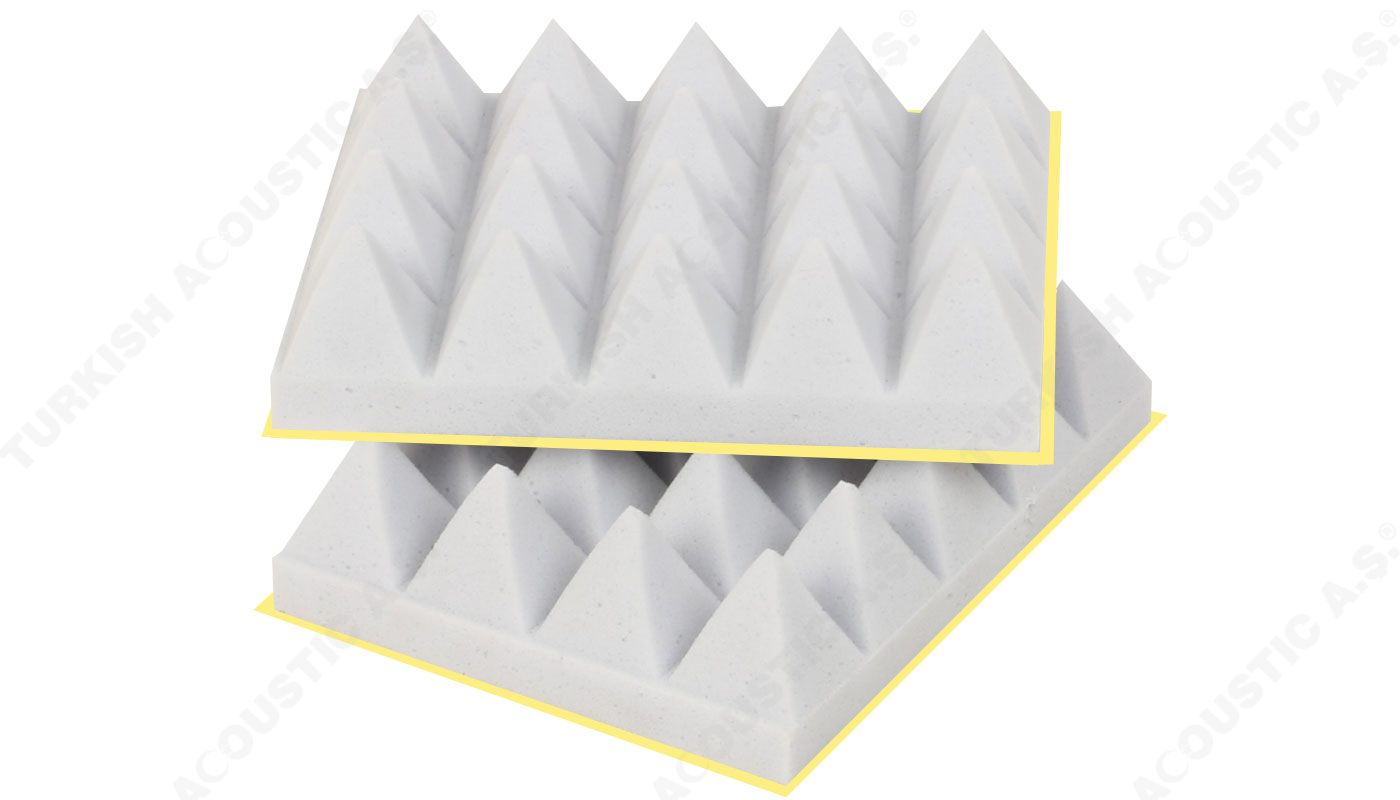

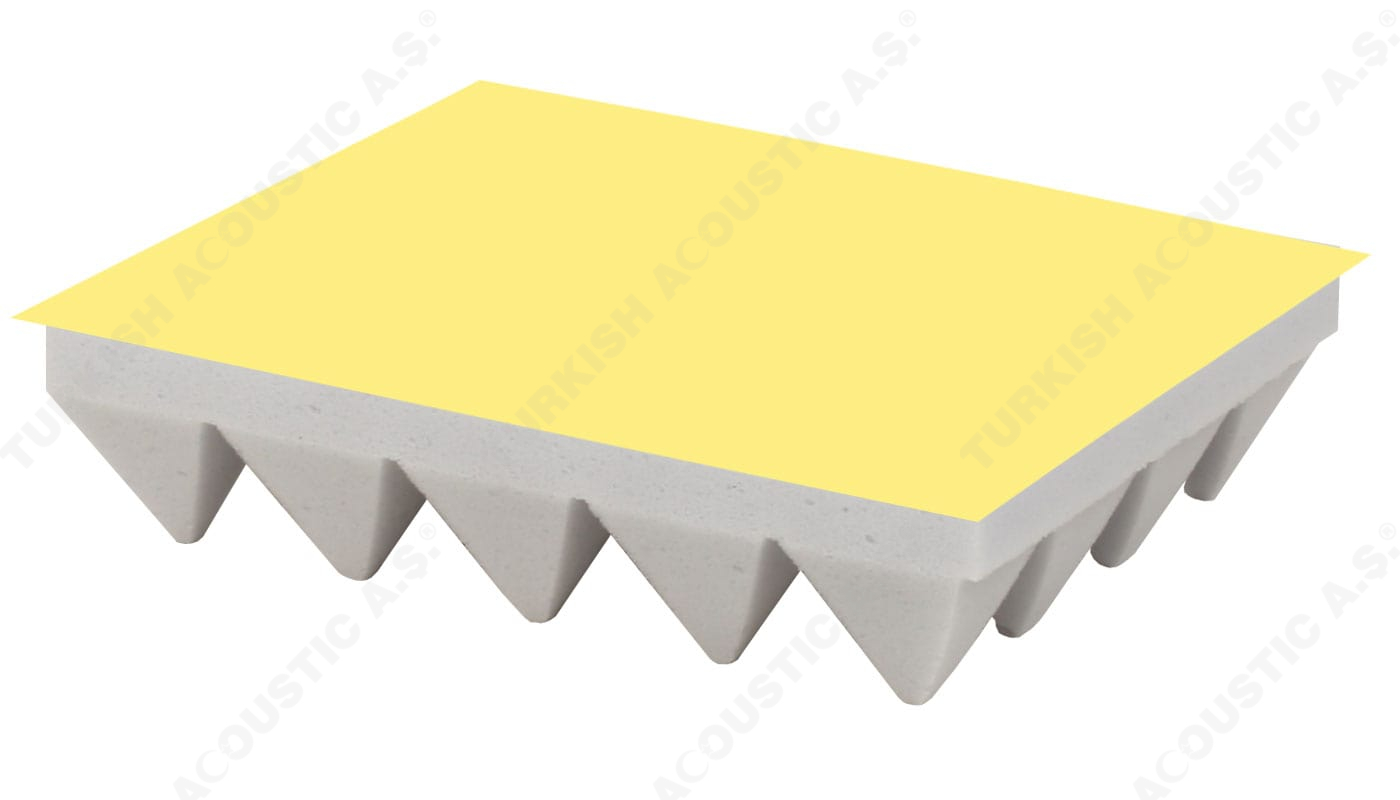

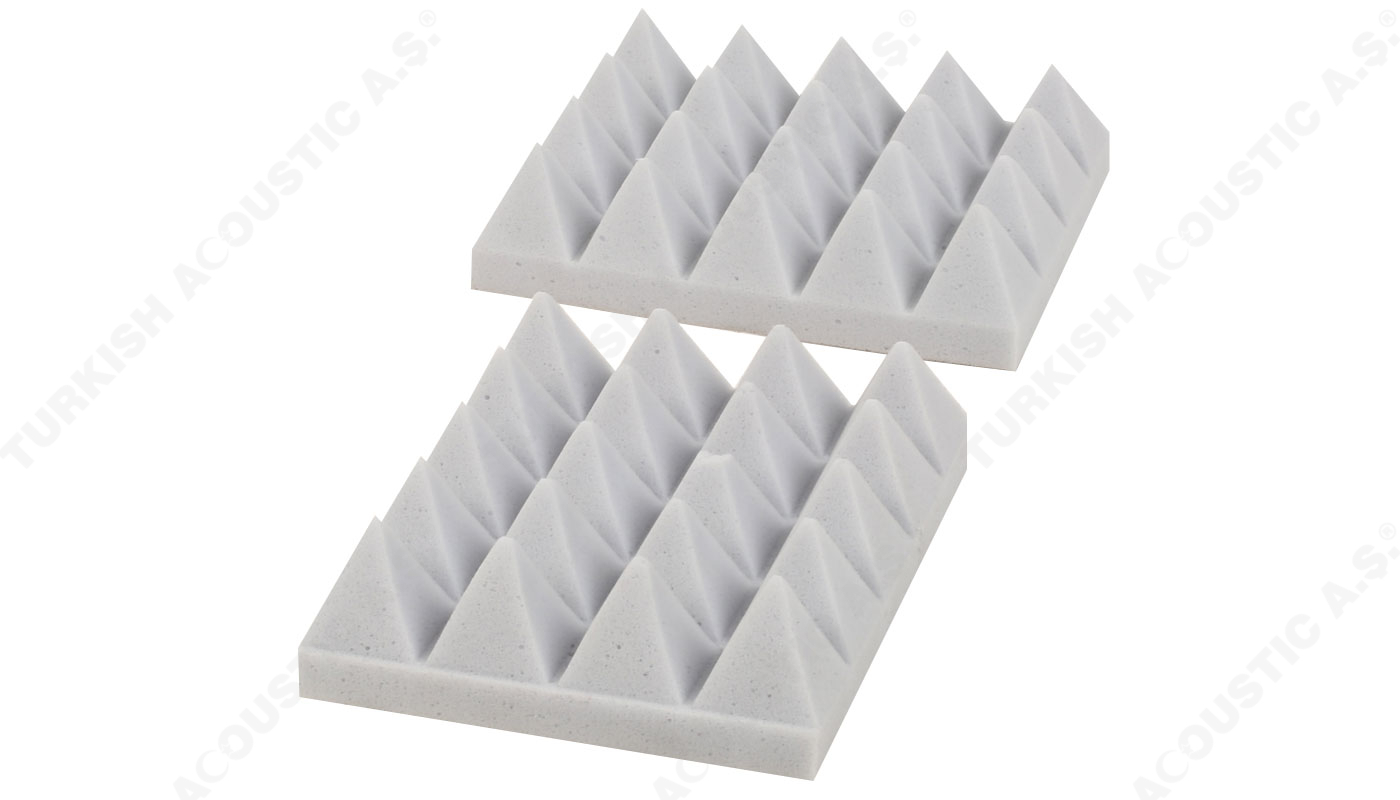

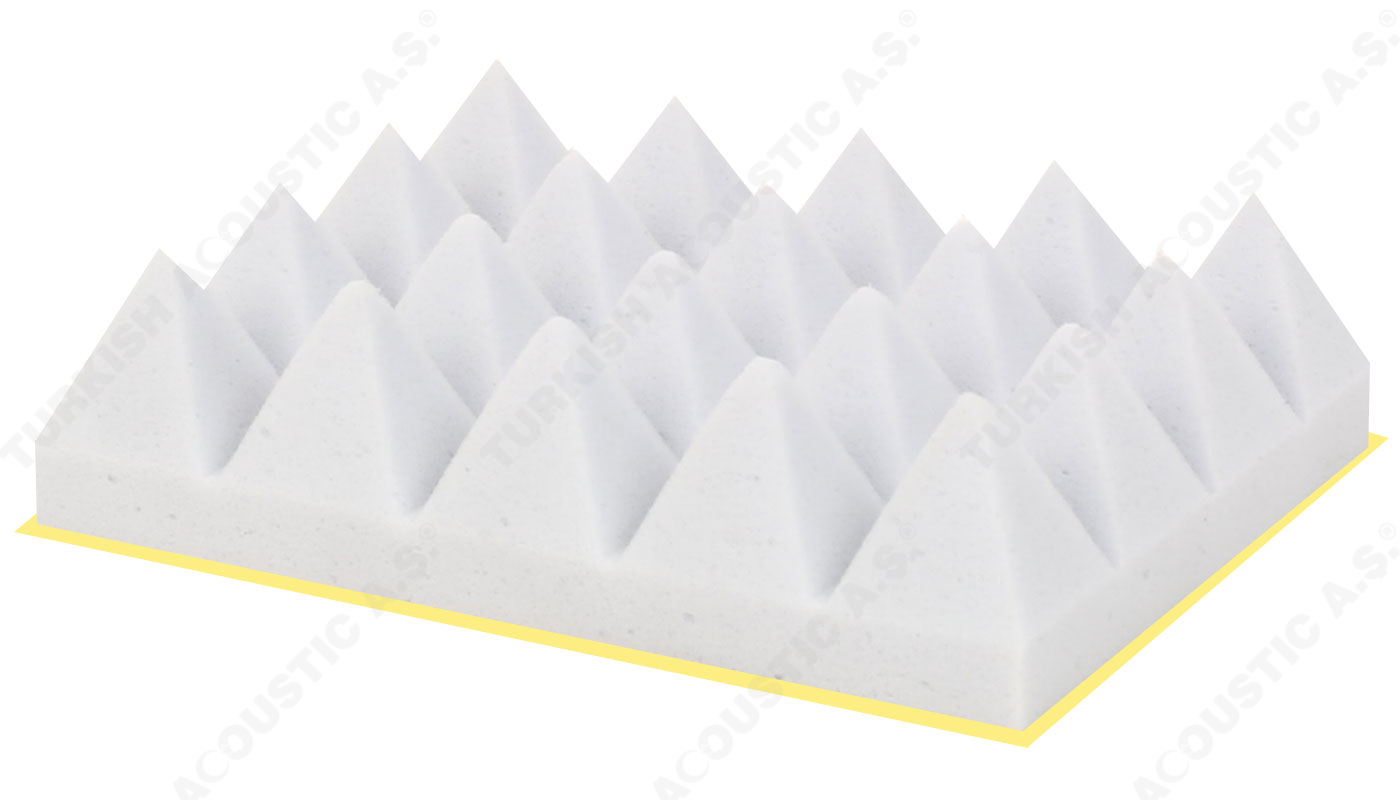

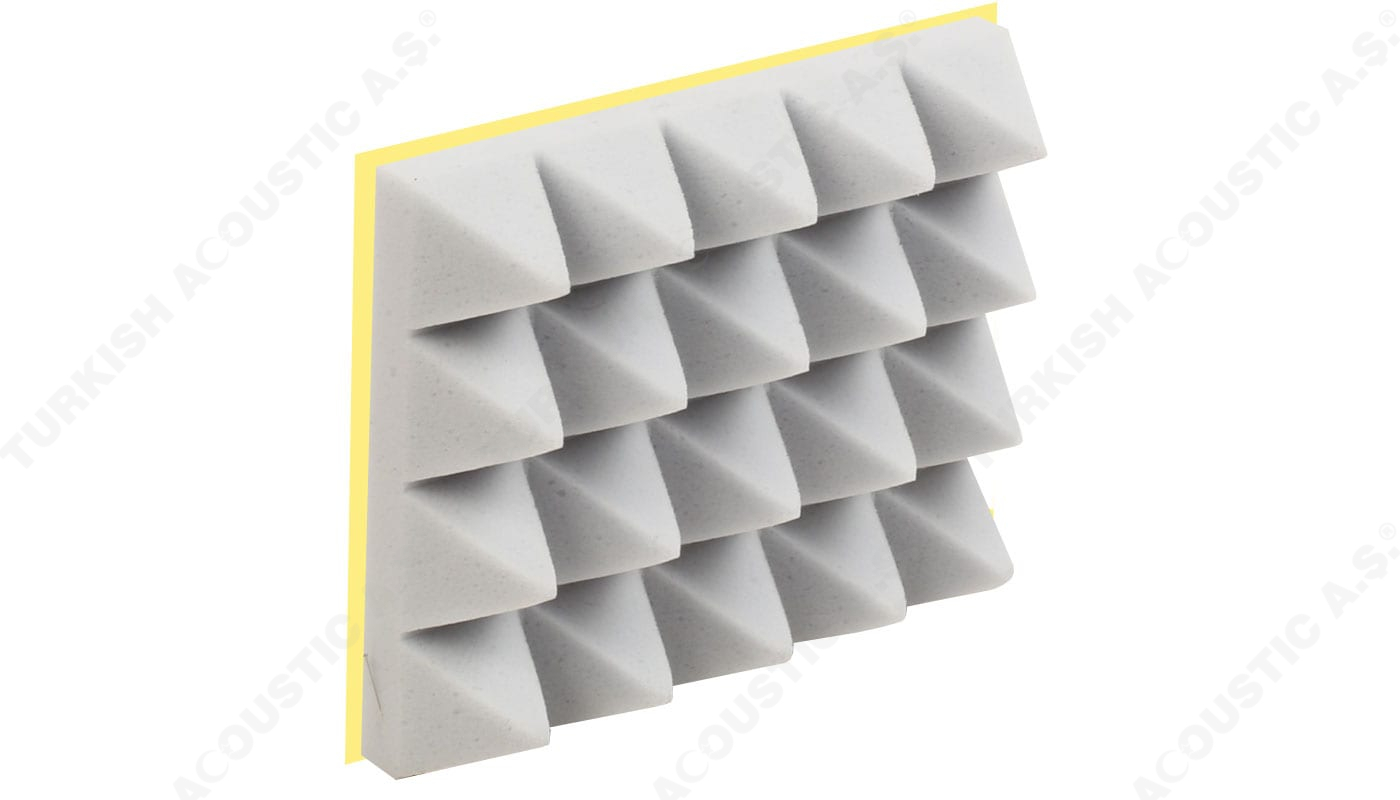

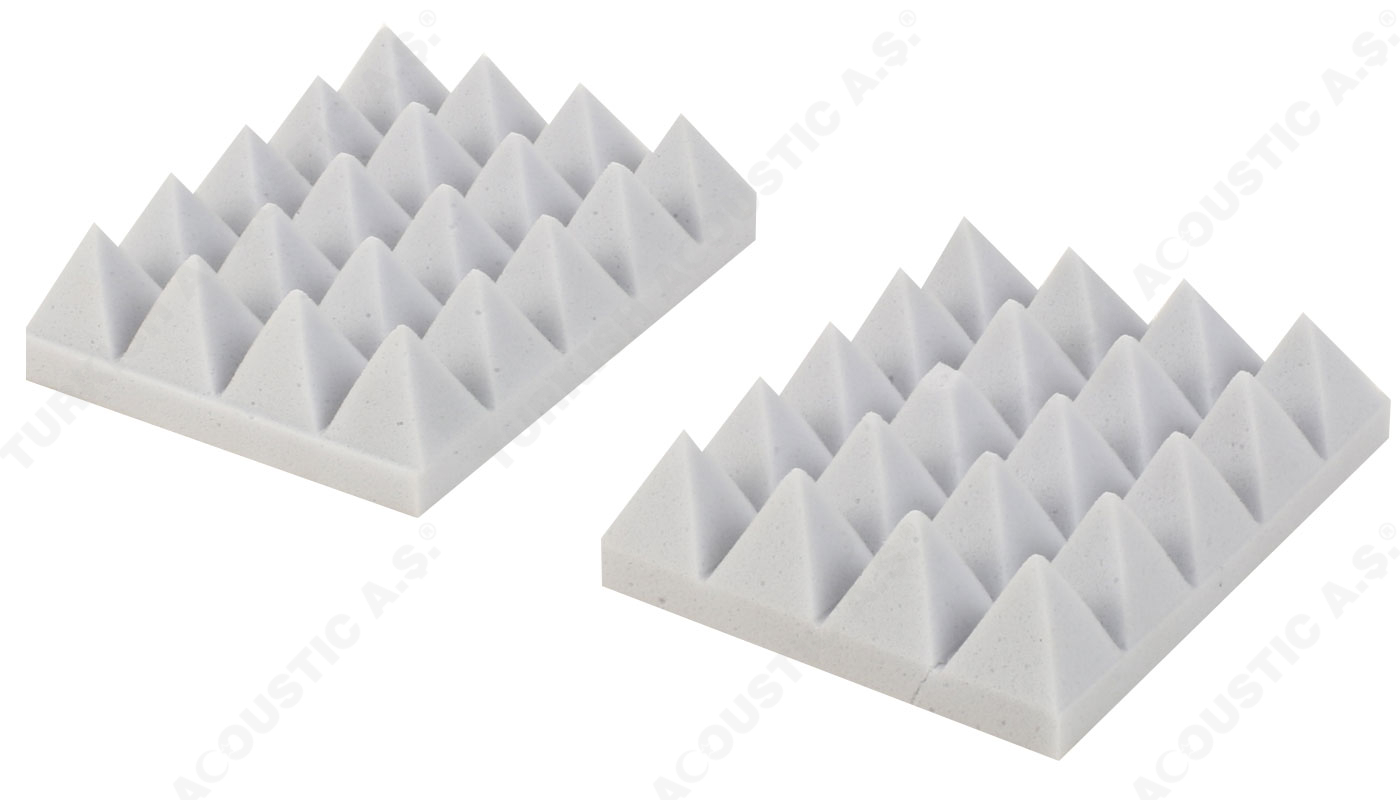

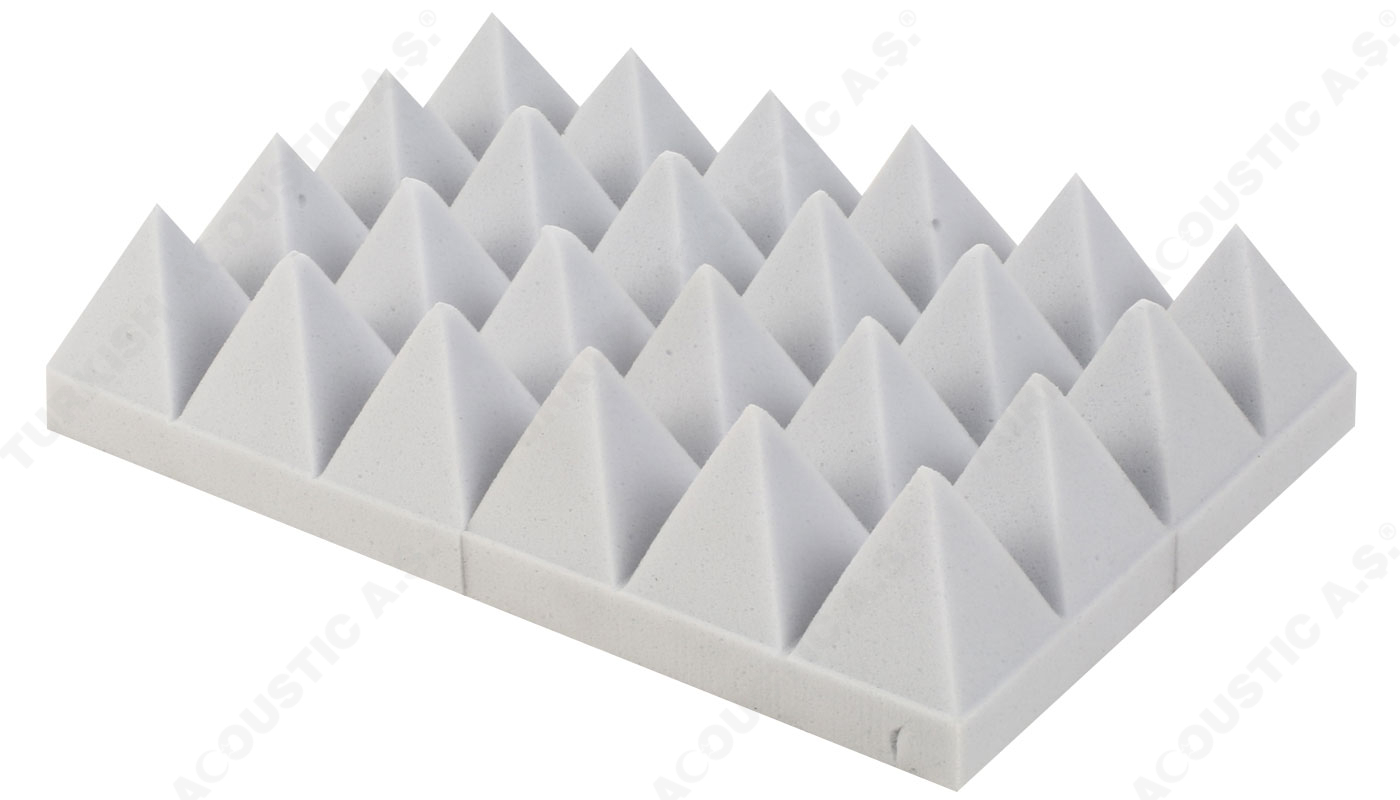

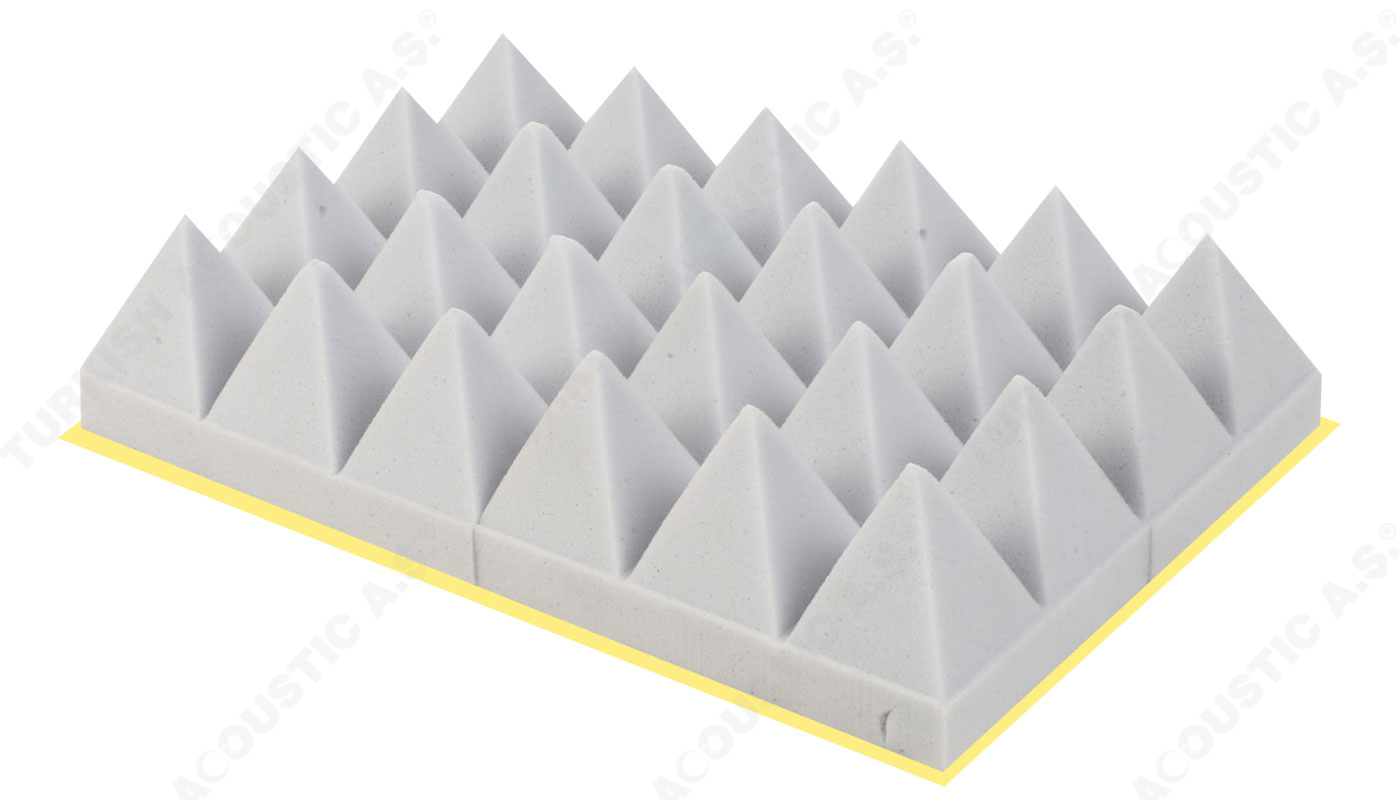

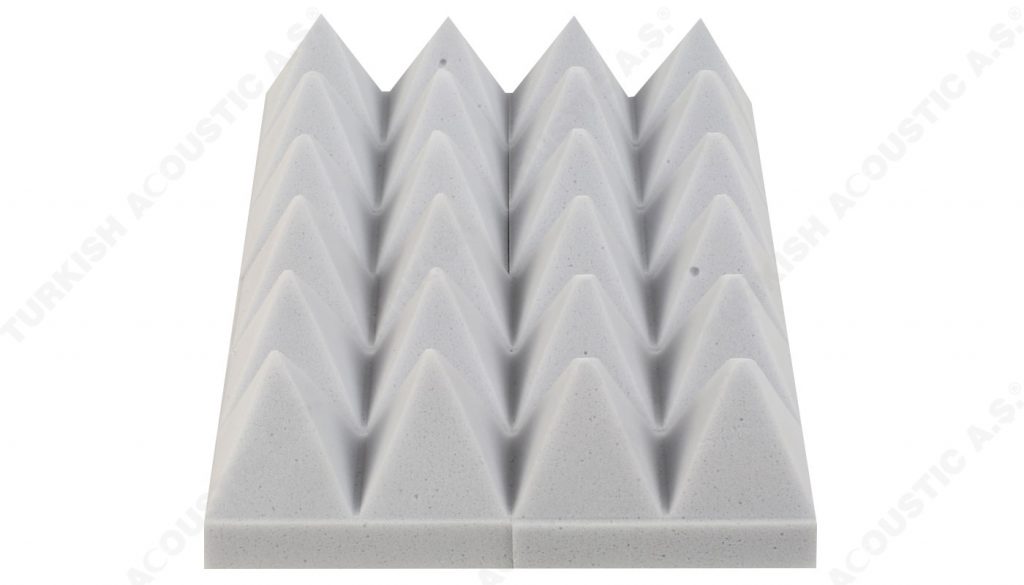

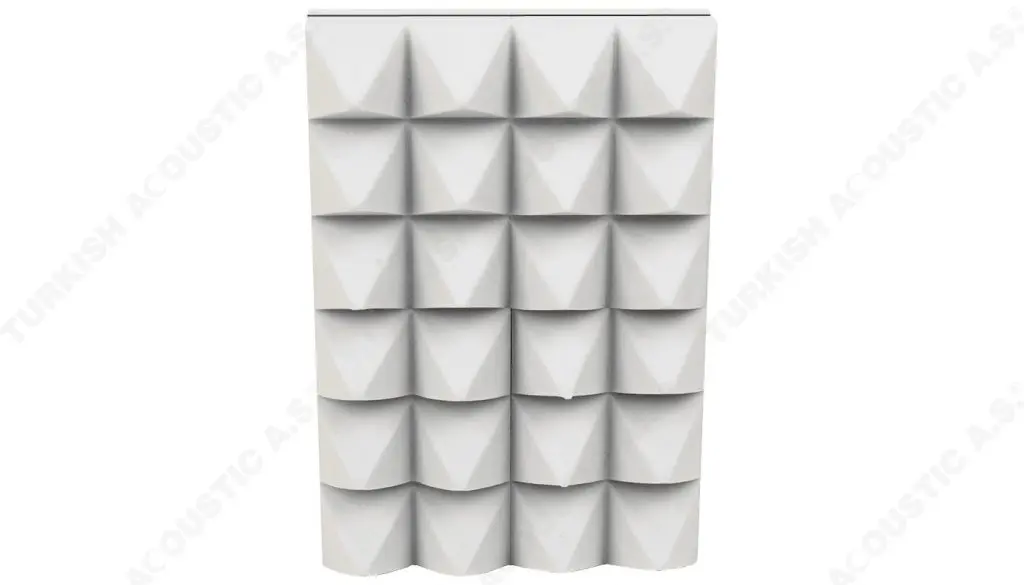

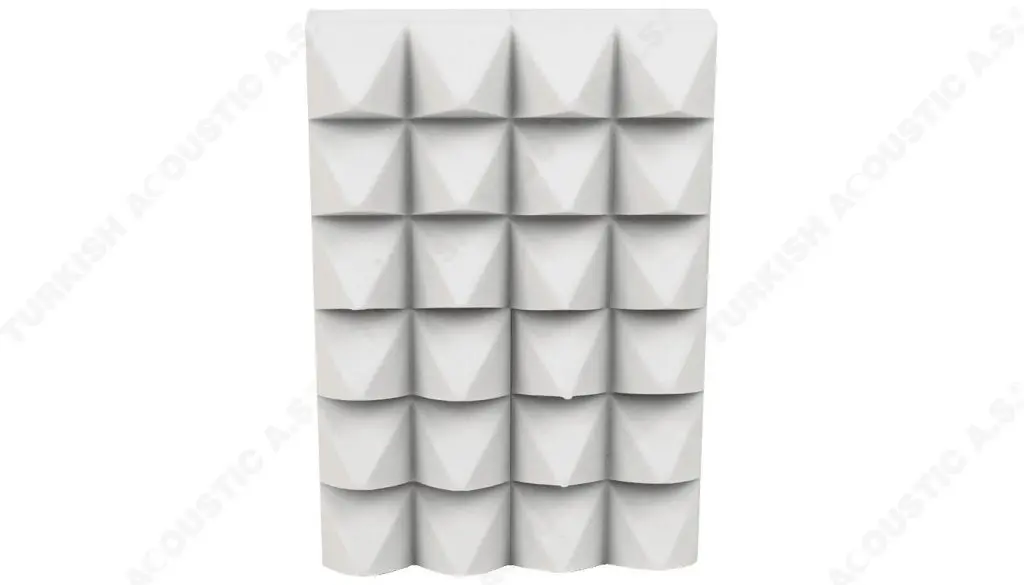

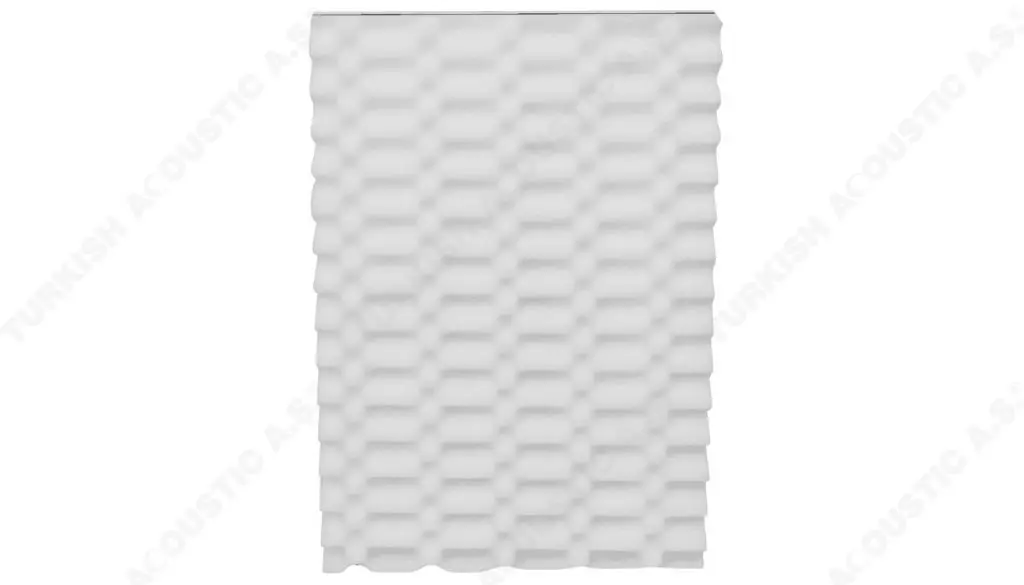

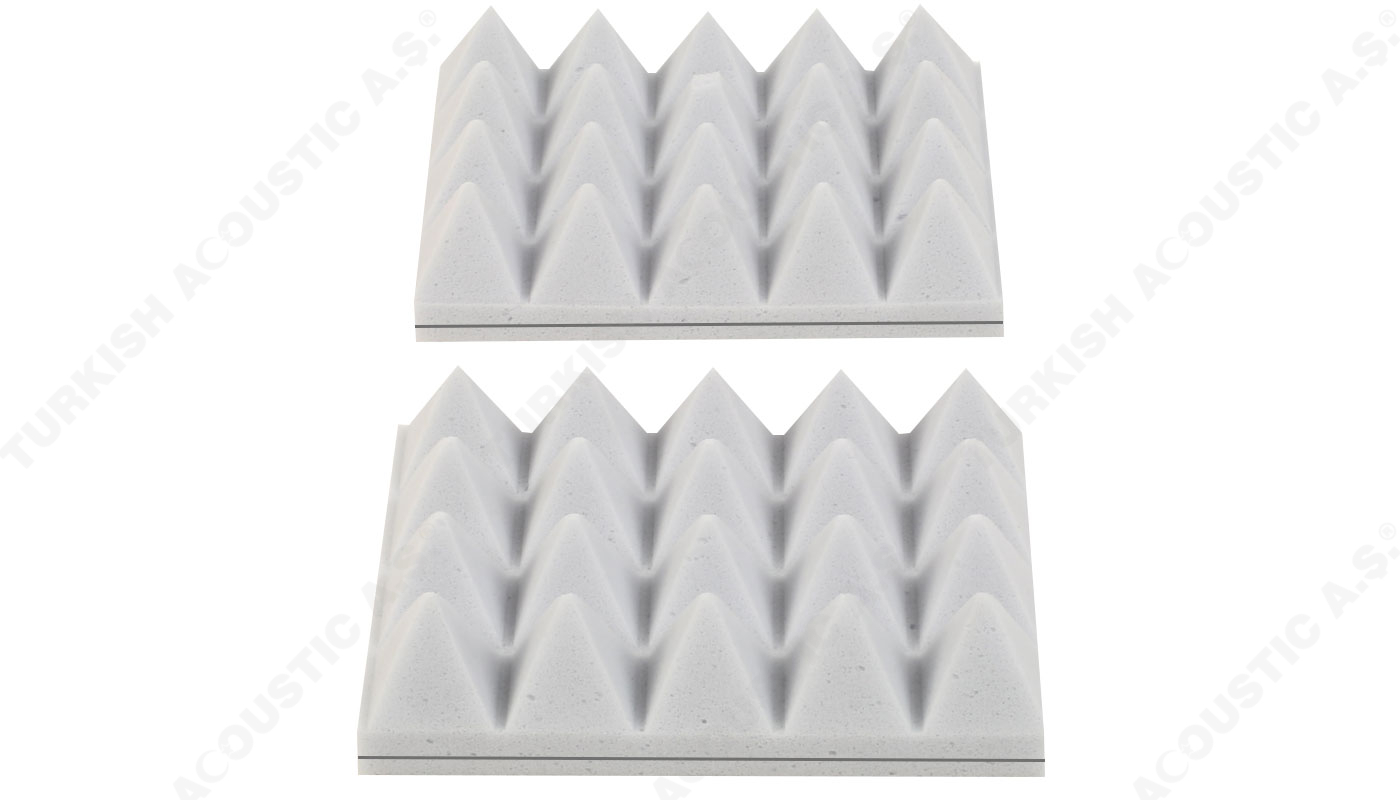

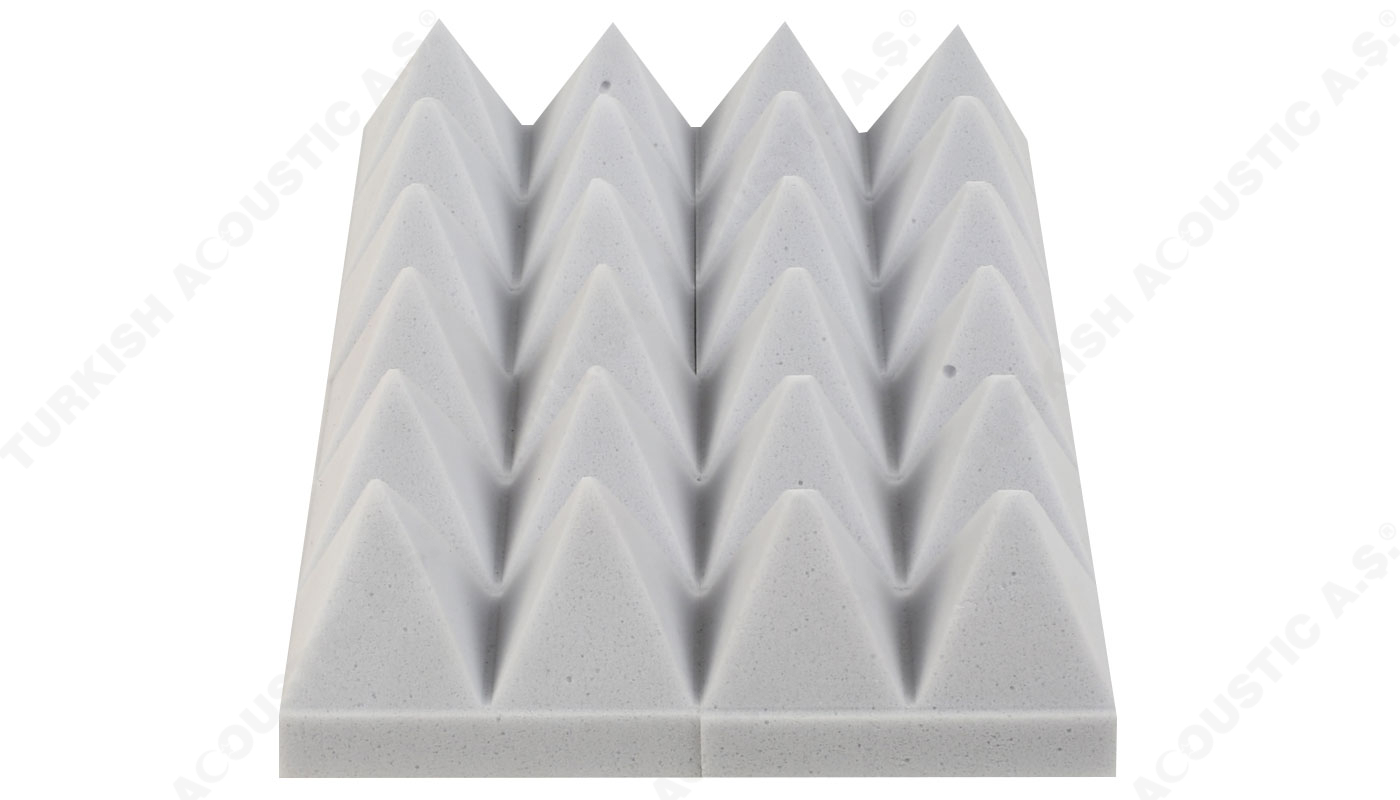

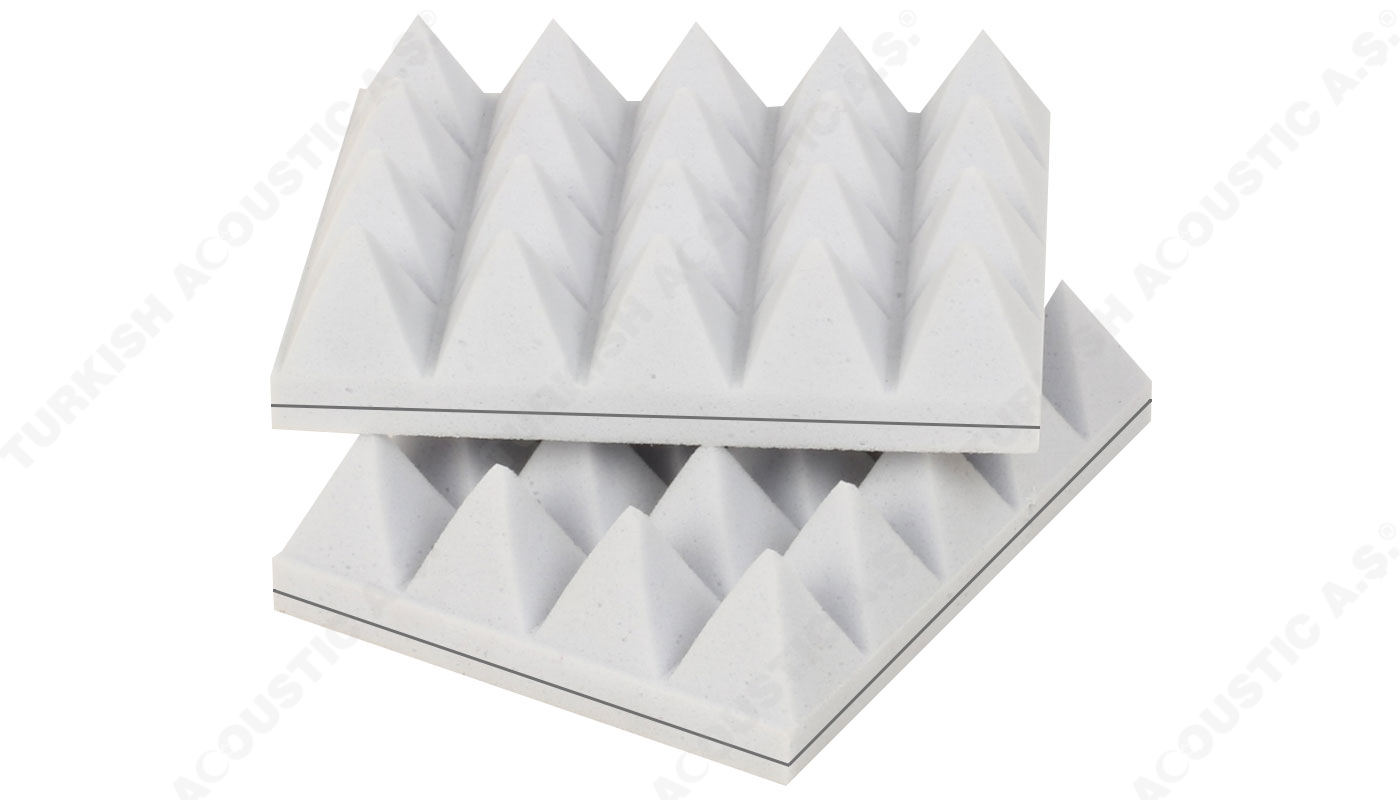

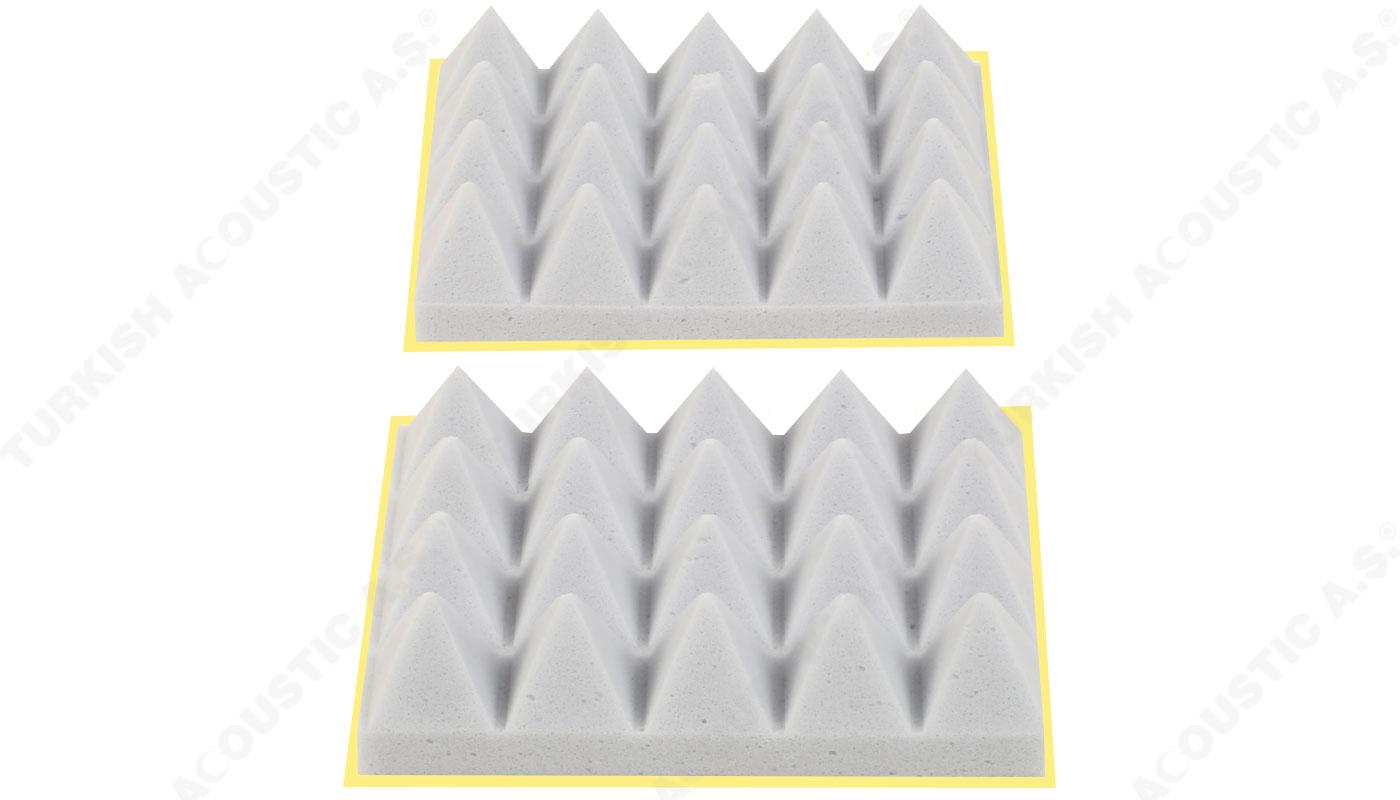

Basotect Pyramid Sponge: Basf brand melamine foams imported from Europe by Turkish Acoustic, and basotect pyramid sponges, which are sold in our country as well as import and export, are produced in accordance with European standards. Basf basotect (Made in Germany) pyramid sponge, acoustic pyramid foam, melamine fireproof sponge foam, basotect acoustic pyramid sponges, which are from the fireproof melamine sponge family produced in Basf European factory, have superior sound absorption, and insulation values. Basotect pyramid sponges, preferred in many areas, are one of the products that will be the most compatible with your decor in terms of architecture. Basotect pyramid sponge has superior performance in high and low-frequency sounds as well as being light and non-flammable. German-made Basf basotect pyramid sponges developed for NASA and the aviation industry. Our company imports basotect pyramid sponges from Germany. You can view Basf Basotect pyramid sponge images in the "product images" section. In addition, we make the special cutting of Basotect melamine sponge in the desired thickness and size from our sponge block sizes of 1250 mm x 2500 mm imported from Germany as Basf melamine acoustic fireproof sponge foam. Our Basf Basotect melamine sponge models are in the form of a basotect pyramid, basotect egg, basotect labyrinth, and basotect panel. We have standard production of product colors in standard white and gray colors. If you wish, we can color the products with fabric coating in the color you want. You should make your product orders by calculating the waste, depending on the size of the 125 cm x 250 cm block plate.
Basotect Pyramid Sponge Dimensions: 50 cm x 100 cm Plate dimensions, 40 mm and 50 mm are offered for retail sale
Basotect Pyramid Sponge Package Content: Basotect pyramid sponges 50 cm x 125 cm size plates are sold in 40 packages. 1 Package 25 m²

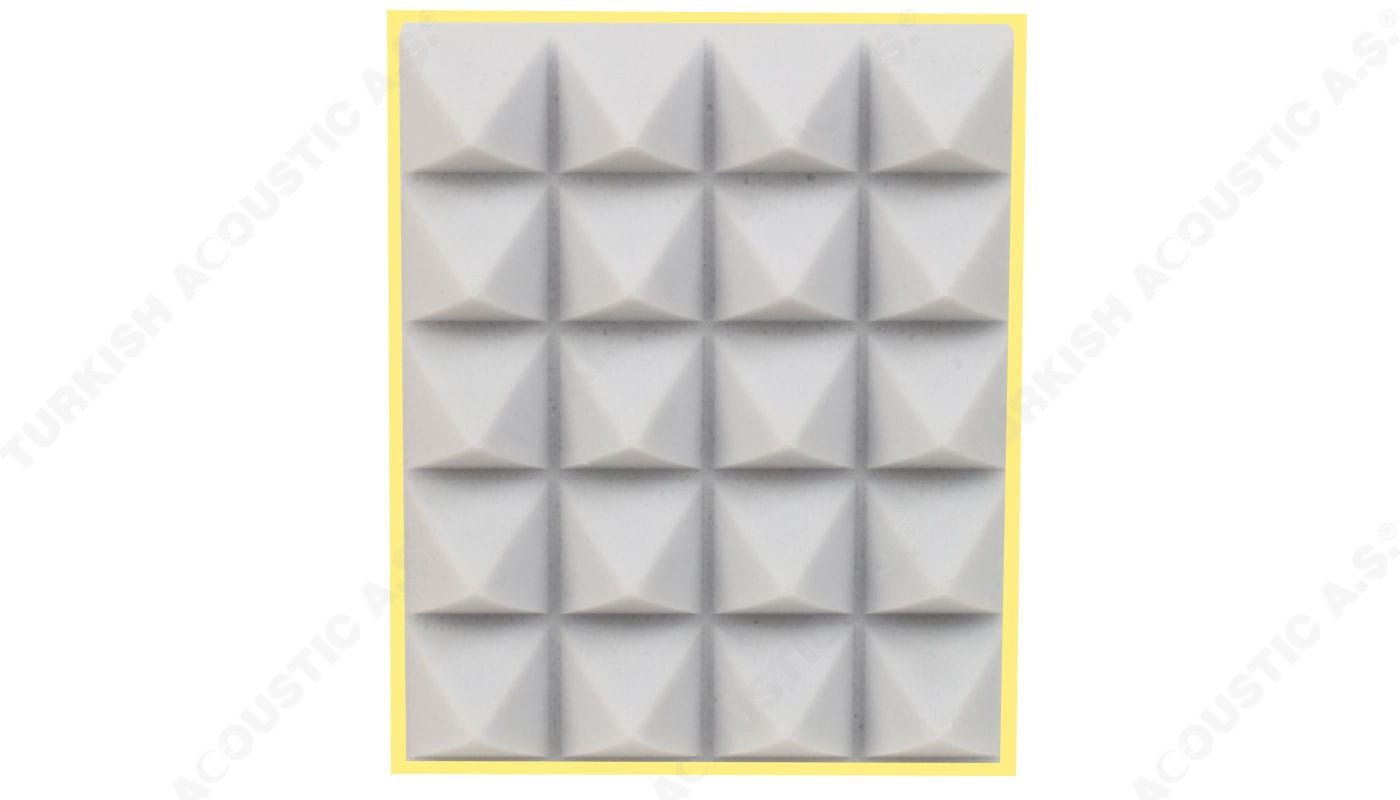

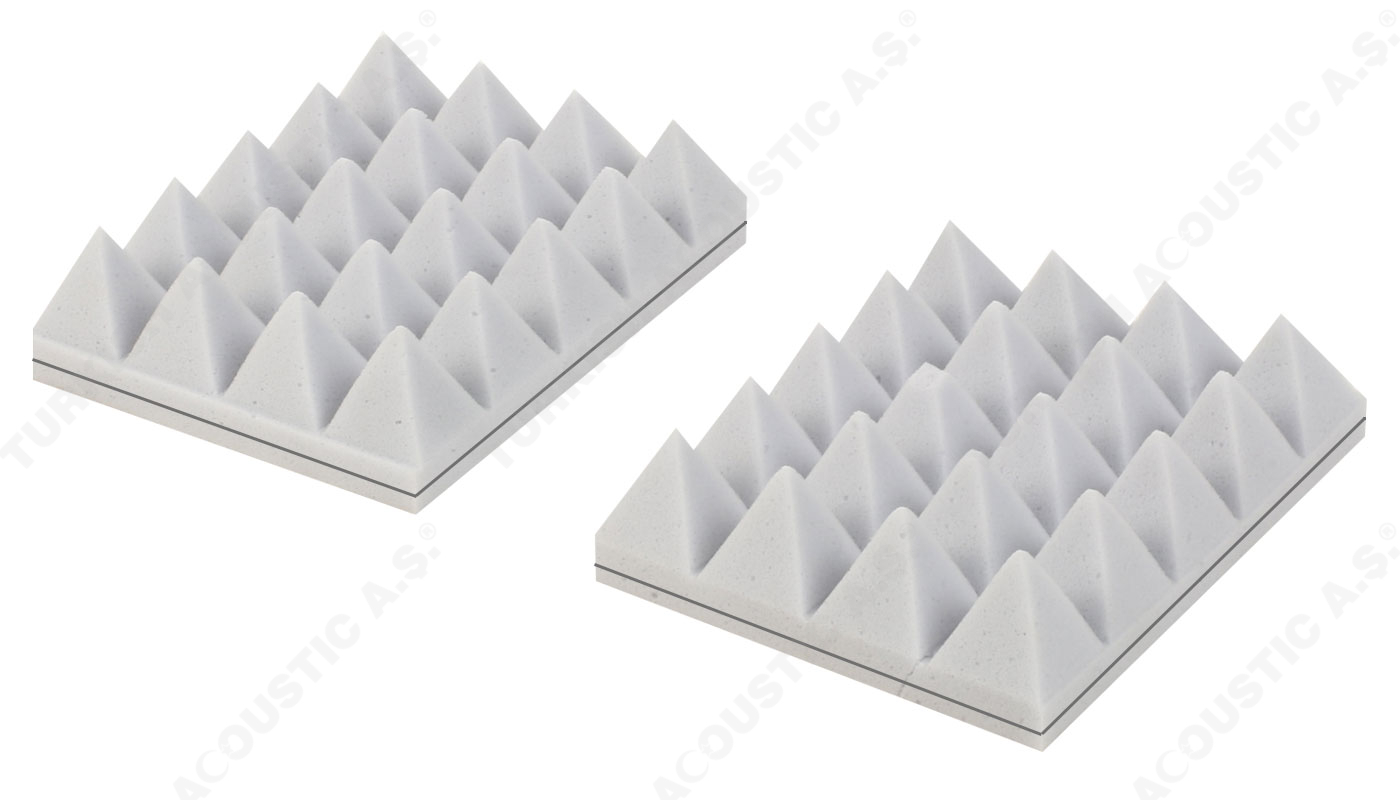

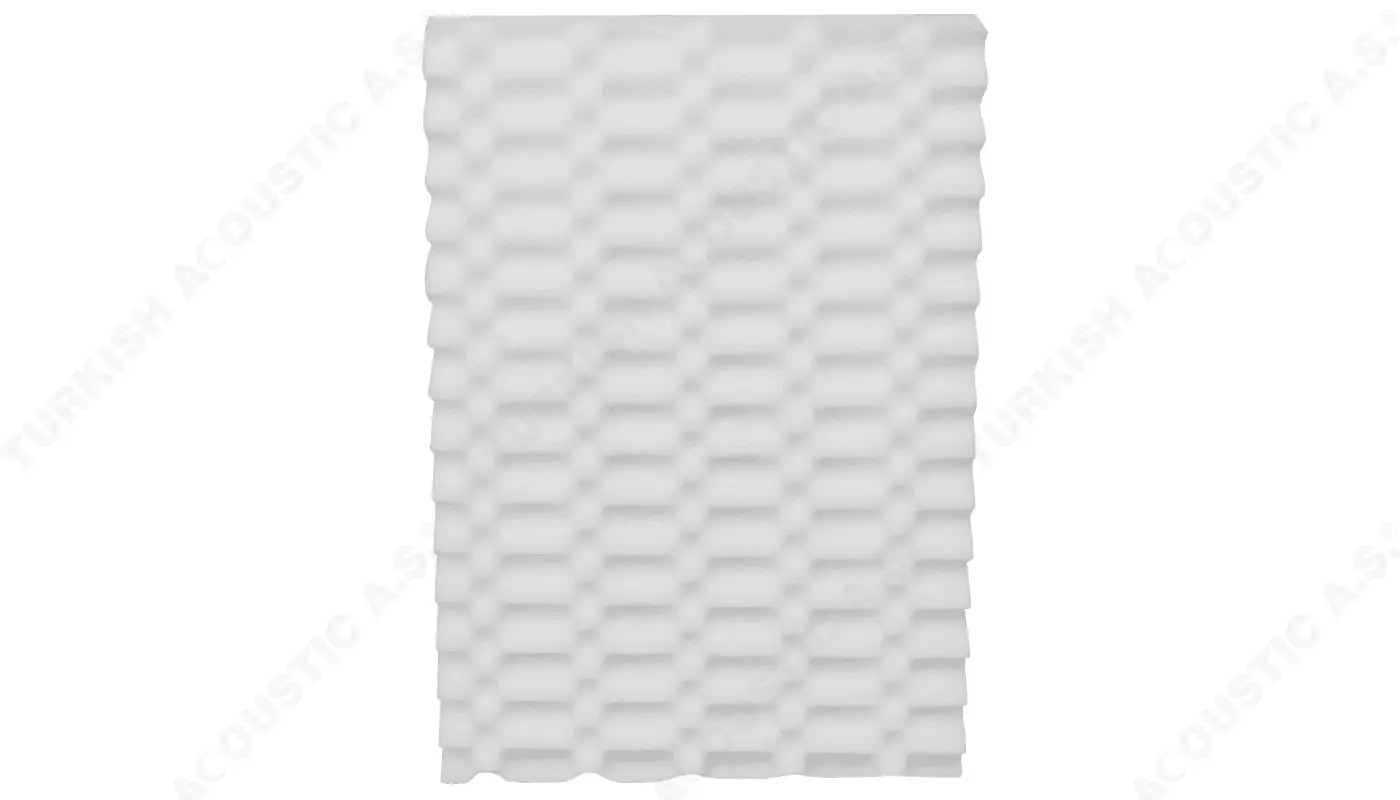

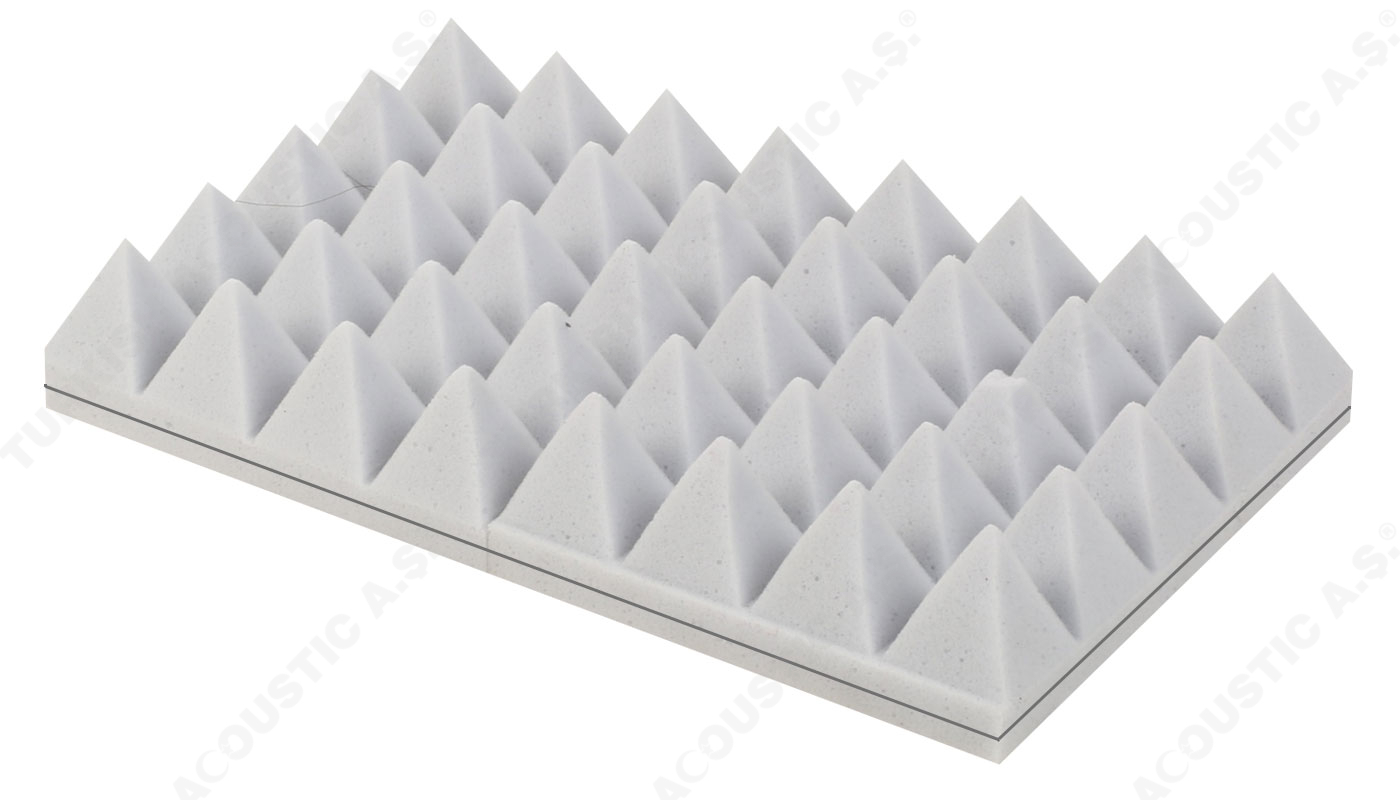

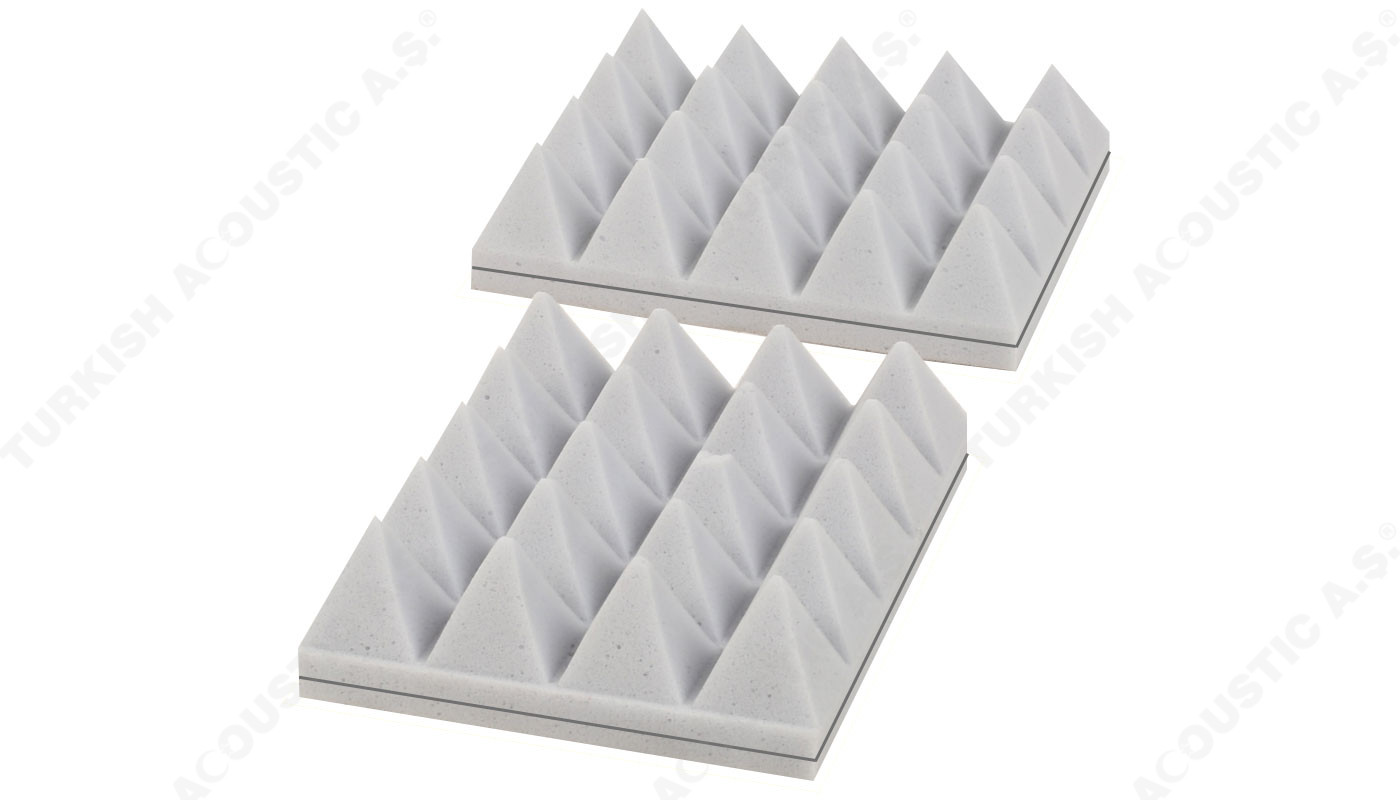

Basotect Pyramid Sponge Color Variations: White and light gray are sold as standard, colored production is possible.

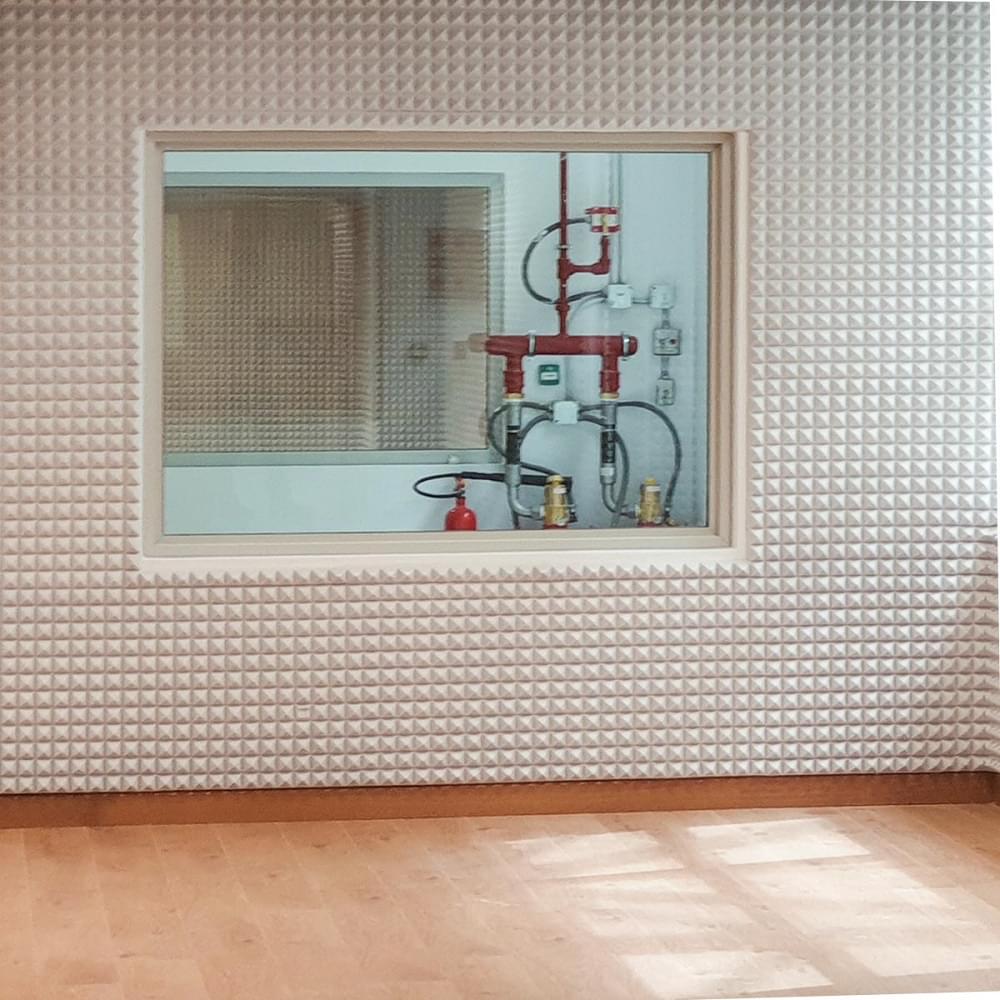

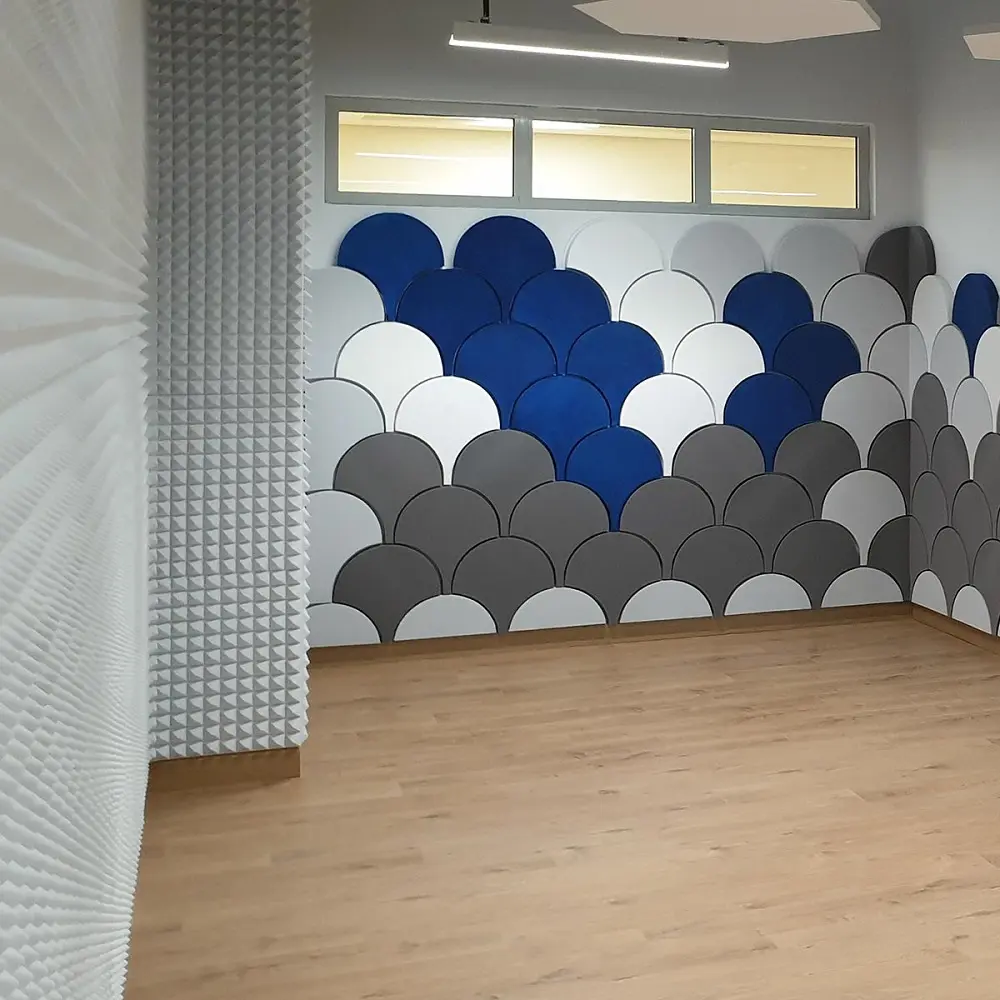

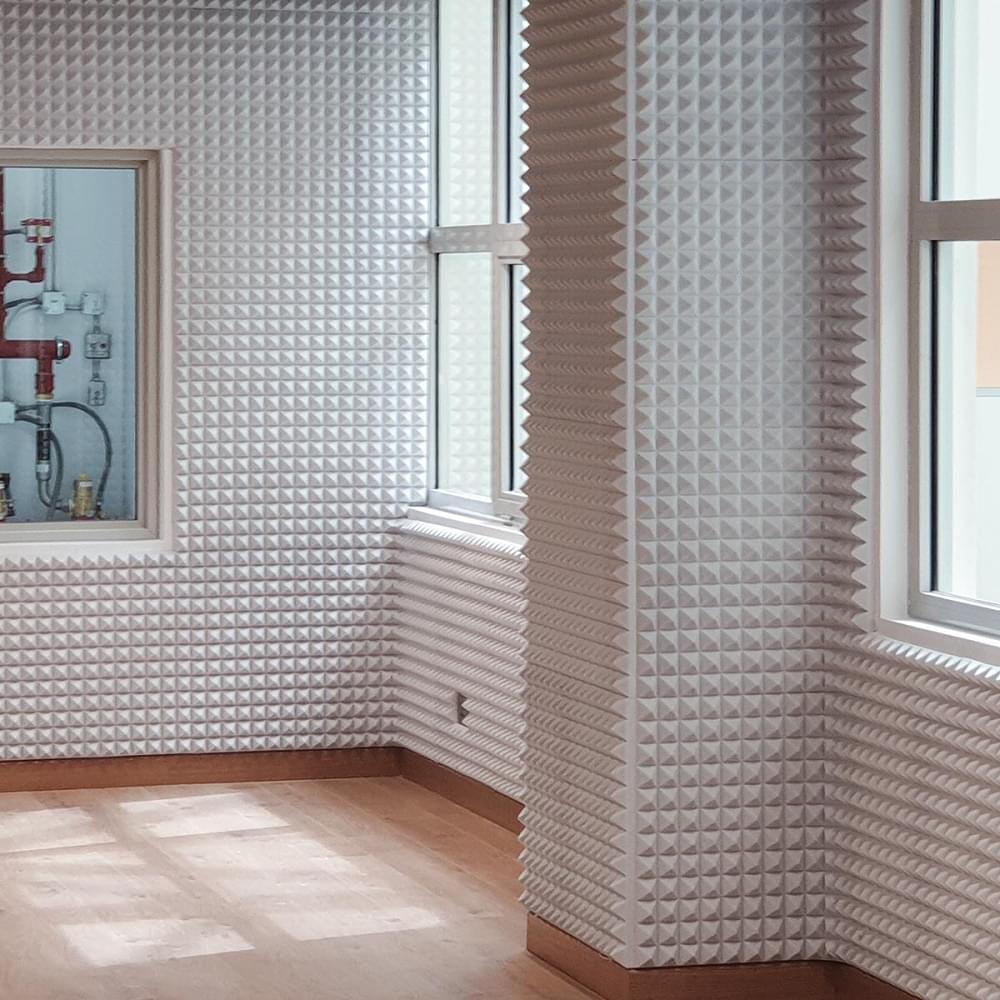

Basotect Pyramid Sponge Area of Usage: Music room, studio, generator cabin, radio broadcasting room, gymnasium, amusement centers.
Basotect Pyramid Sponge Production: Production of special thickness 50 mm and above is possible. Sizes custom cut possible Colors RAL color chart
Basotect Pyramid Sponge Nonflammability: Optional / non-flammability Firend; In flammability, it has BS476: class 0 and UNI 9175: 2008 M1 certificates.
Basotect Pyramid Sponge Density: 15 to 20 Kg / M³ It is possible to custom manufacture in desired density and thickness.
Tolerances: 30 mm product is between 25 - 30 mm, 40 mm product is between 35 - 40 mm.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.

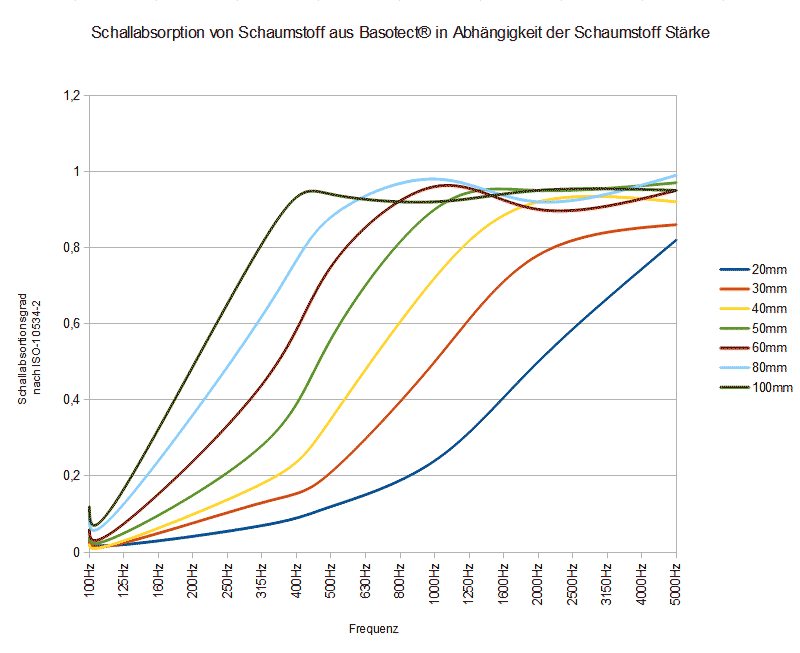

Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Basotectpyramid sponges are in 100 cm x 100 cm plates and there are 10 plates, 10 m² of products in their packages. It is sold by retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
