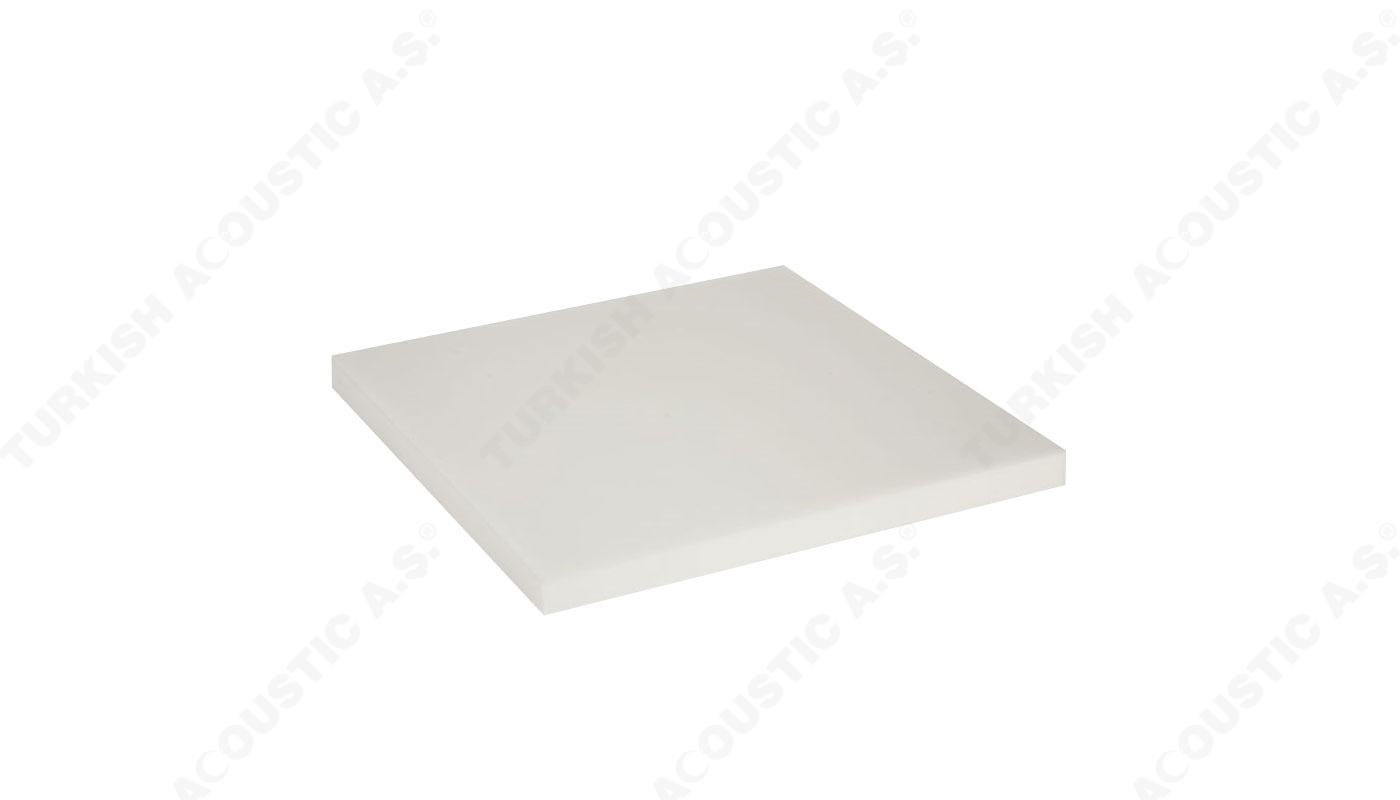

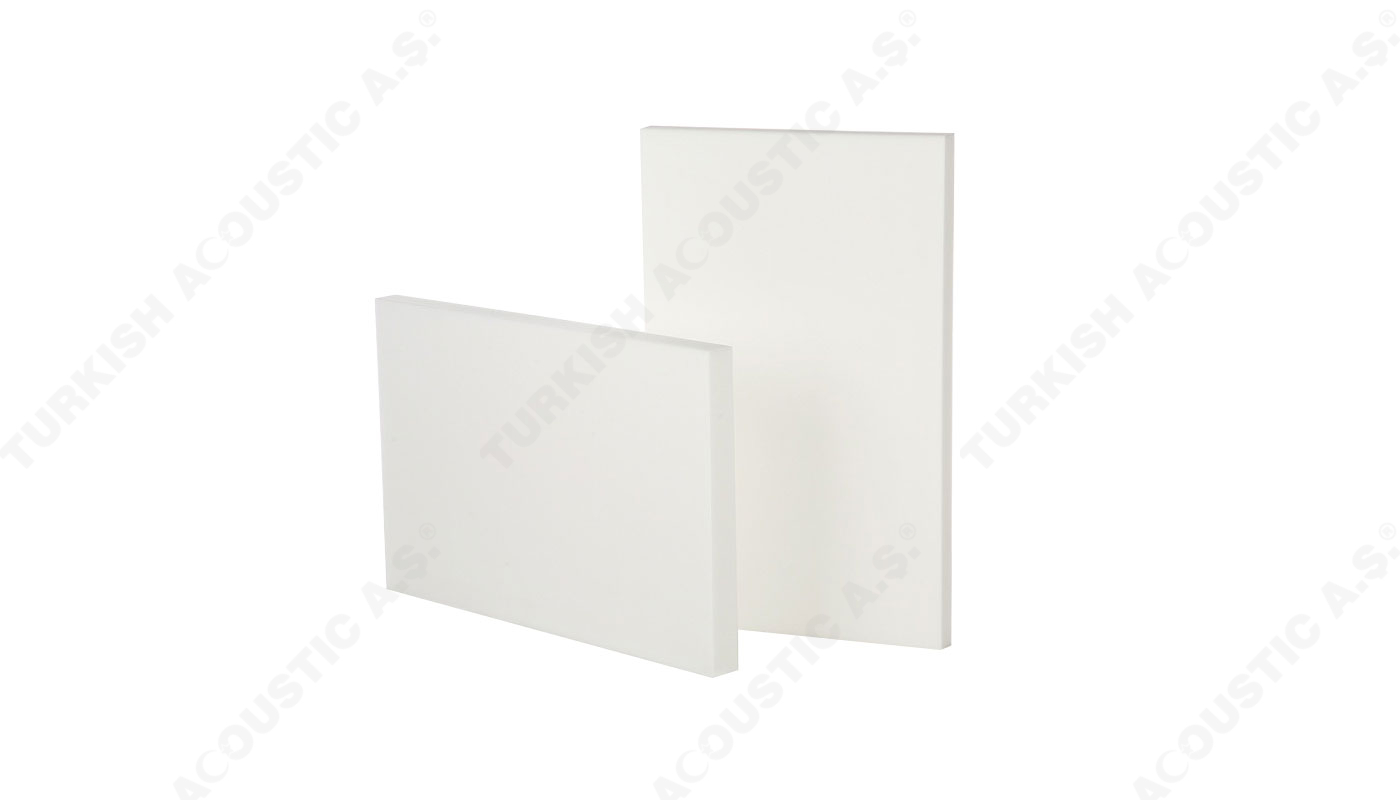

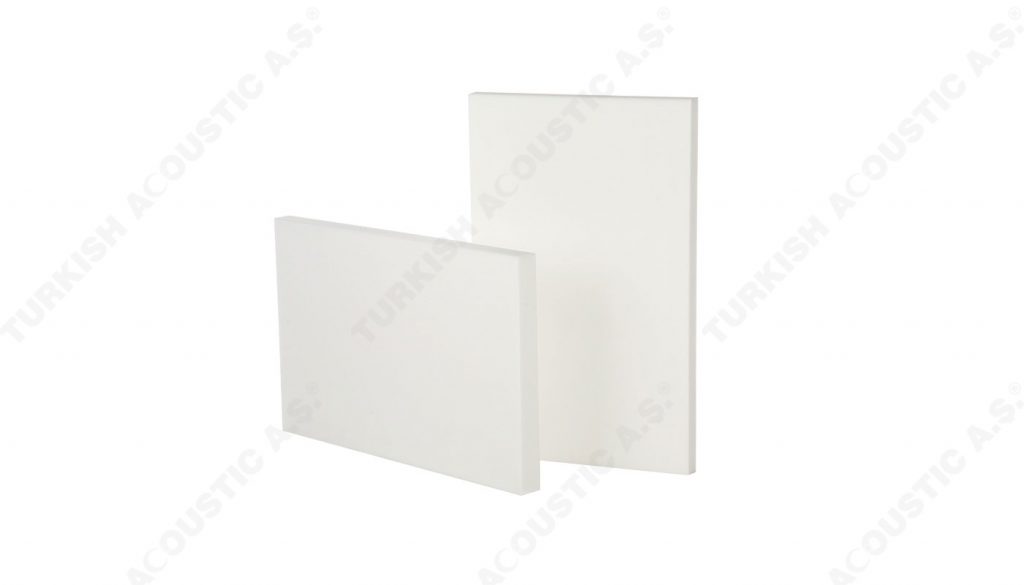

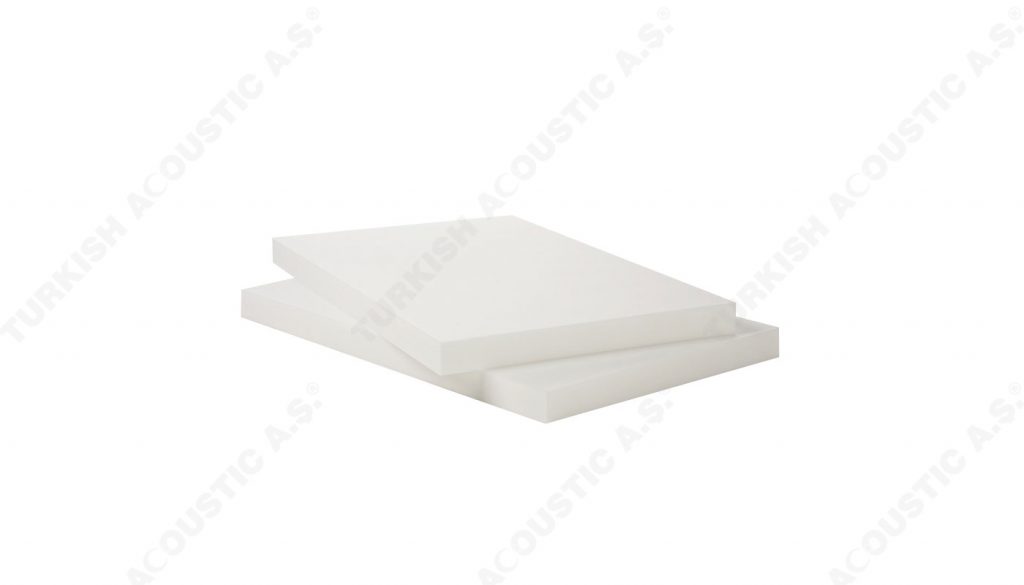

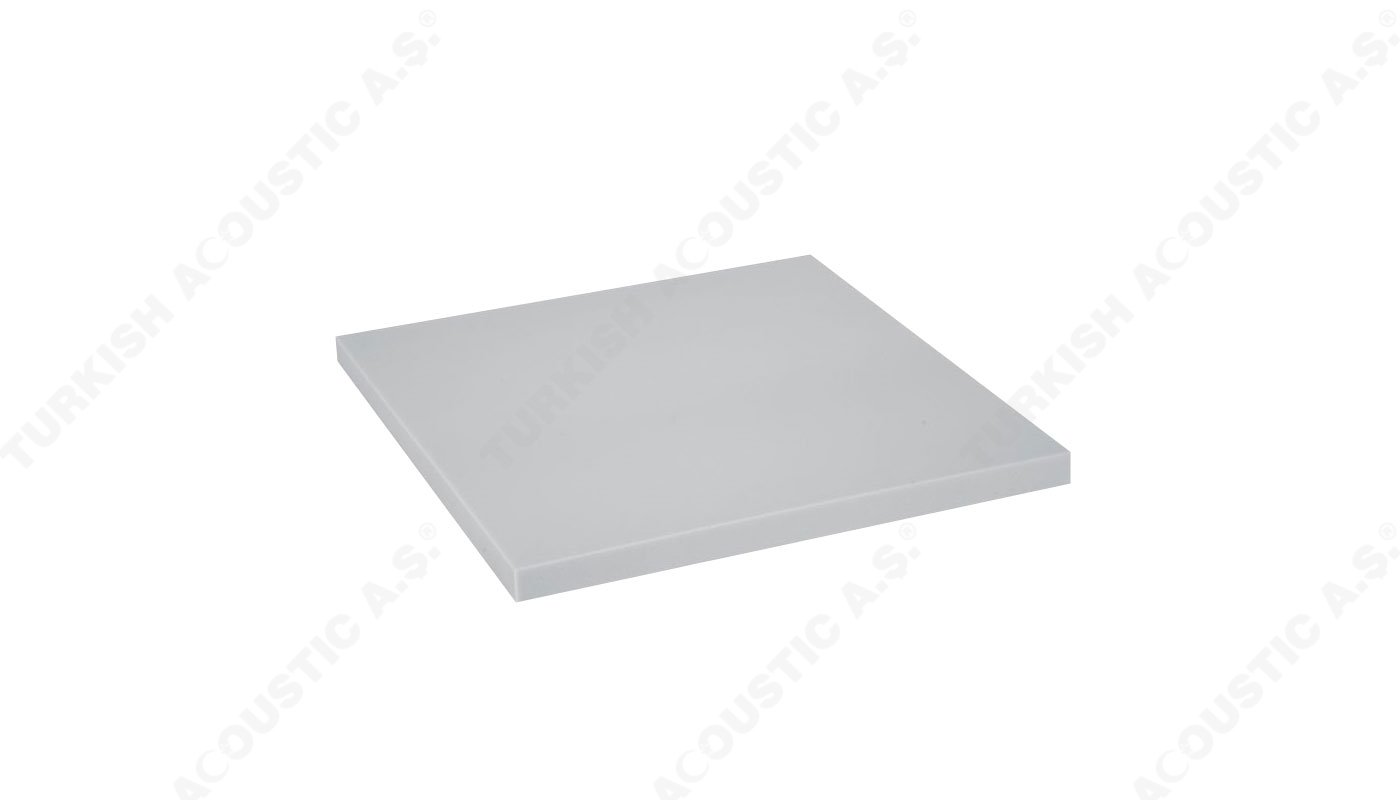

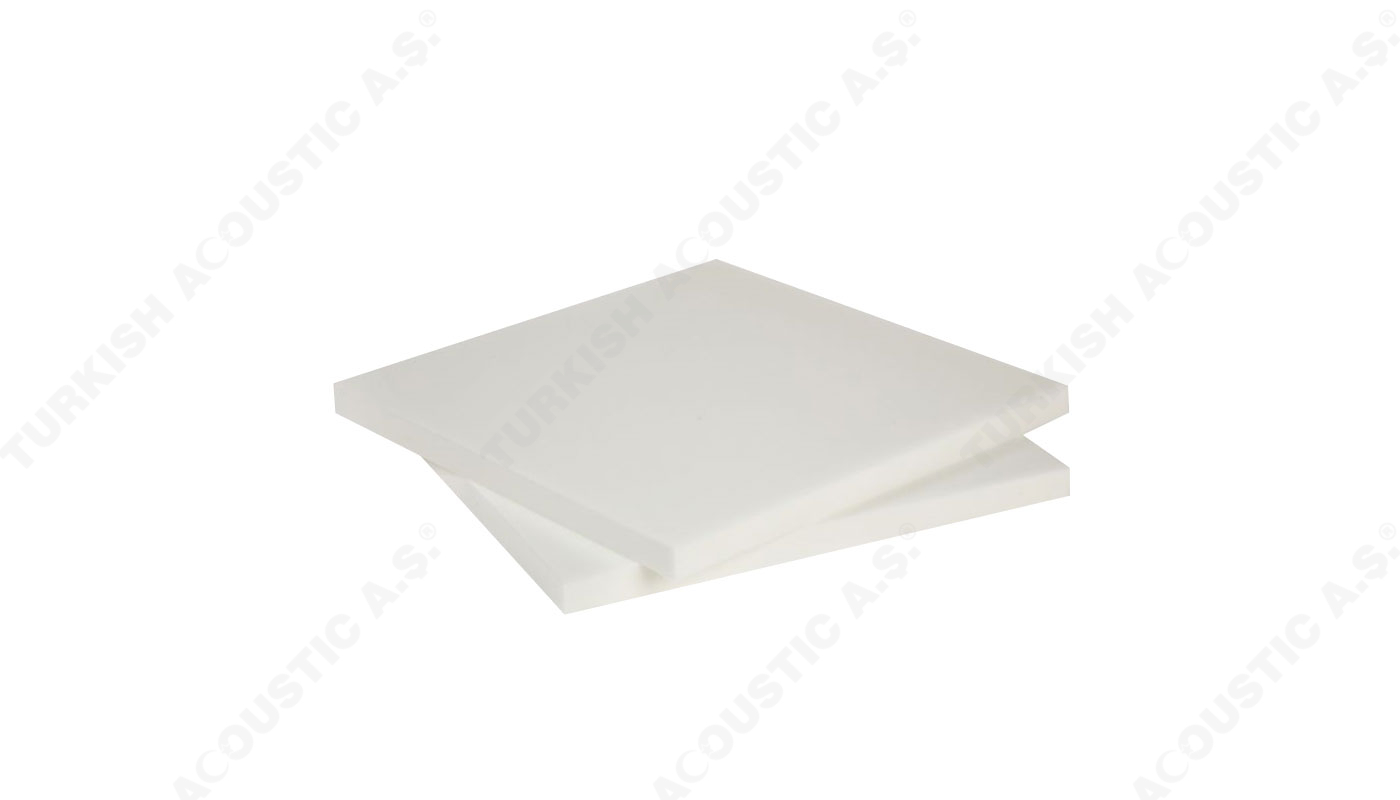

Basotect Melamine Sponge Panel: Basotect sponge panels, which are basic acoustic fireproof melamine foam, are generally produced in light gray and white colors as flat panel panels. Basotect sponge panel is generally produced in the form of hexagonal, square and oval, elliptical canopy with chamfered edge and special cutting is possible in different shapes. Basotect Sponges are produced as pyramid surfaced sponges with fire resistant, high NRC values, in white or light gray colors. Basotect melamine sponge is used as a heat and sound insulation material where it is necessary to absorb mid and high frequency sounds, prevent tinnitus, and provide acoustics indoors. Basotect melamine sponges are a flexible, open-cell foam made from thermoset polymer. It is used in sound insulation applications to cut echo formation and mid-frequency sounds. Since it does not contain dead cell antibacterial microbes, it does not pose any health problems. Being non-flammable in any way further expands the usage area. It can be produced in different color, surface form, thickness, density and model. It is a very delicate and light material. In this way, the ease of application and speed of application increase. By using it on the ceiling or the wall, you can prevent sounds that want to pass through obstacles and disturb the space.
Basotect Sponge Panels Dimensions: 50 cm x 125 cm Plate dimensions, 30 mm and 40 mm are offered for retail sale.
Basotect Sponge Panels Package Contents: Basotect panels 50 cm x 125 cm size plates are sold in 40 packages. 1 Package 25 m² Sold.

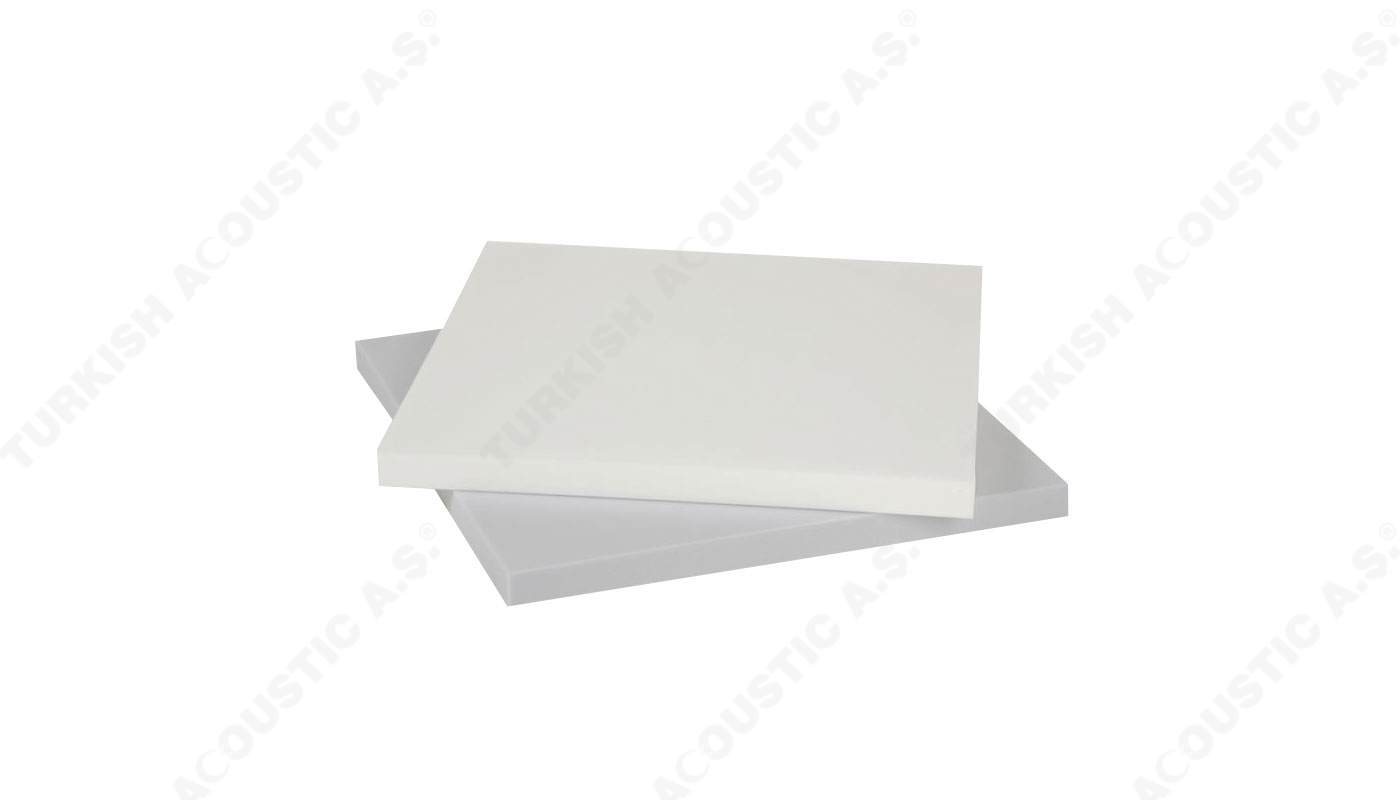

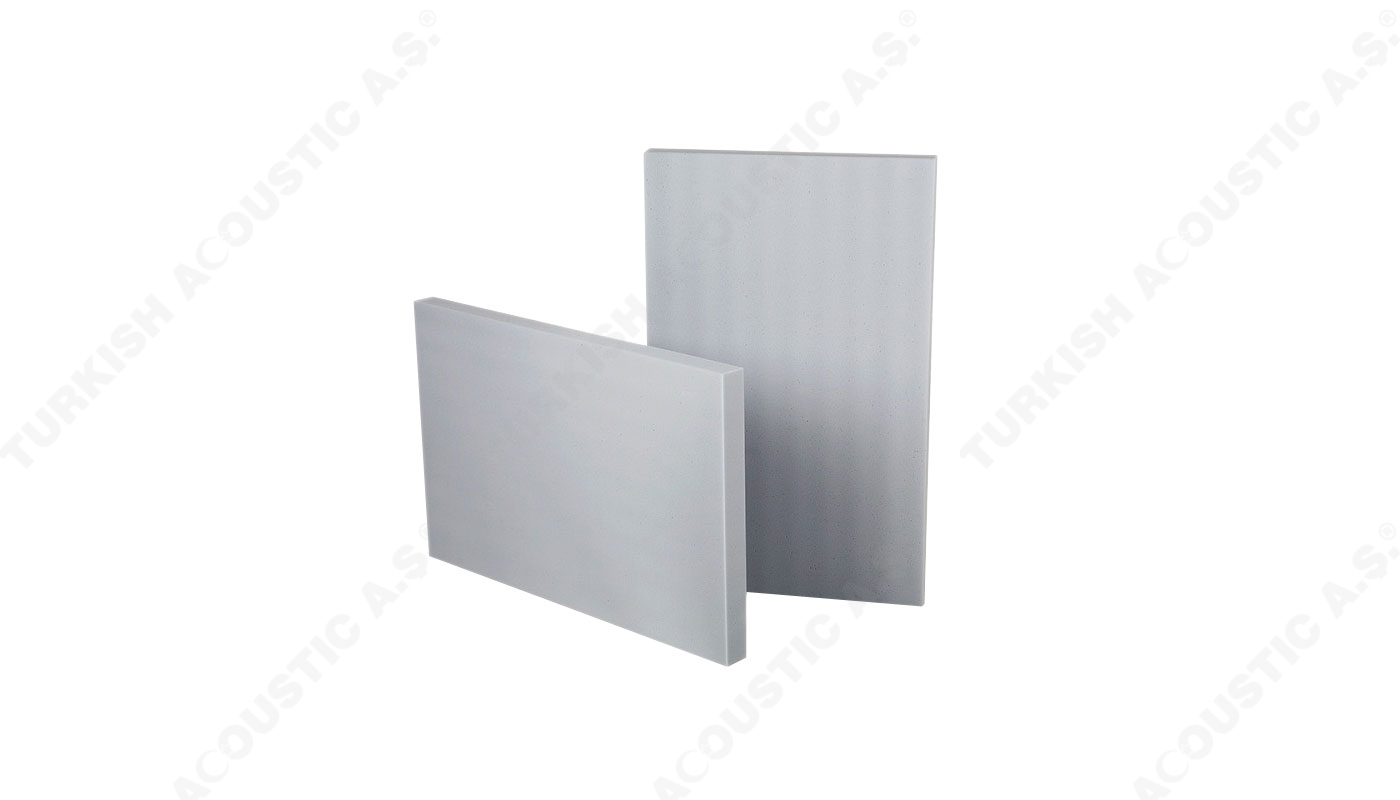

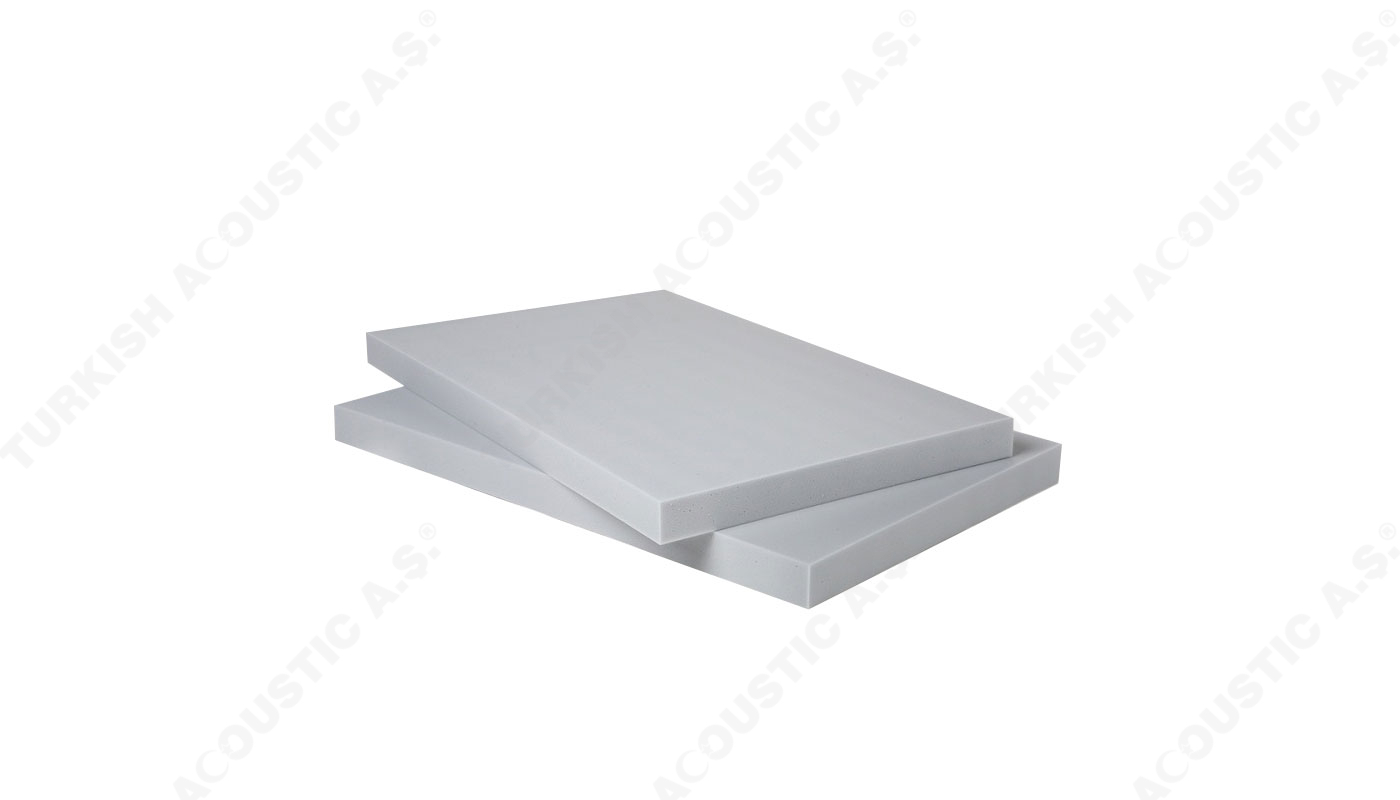

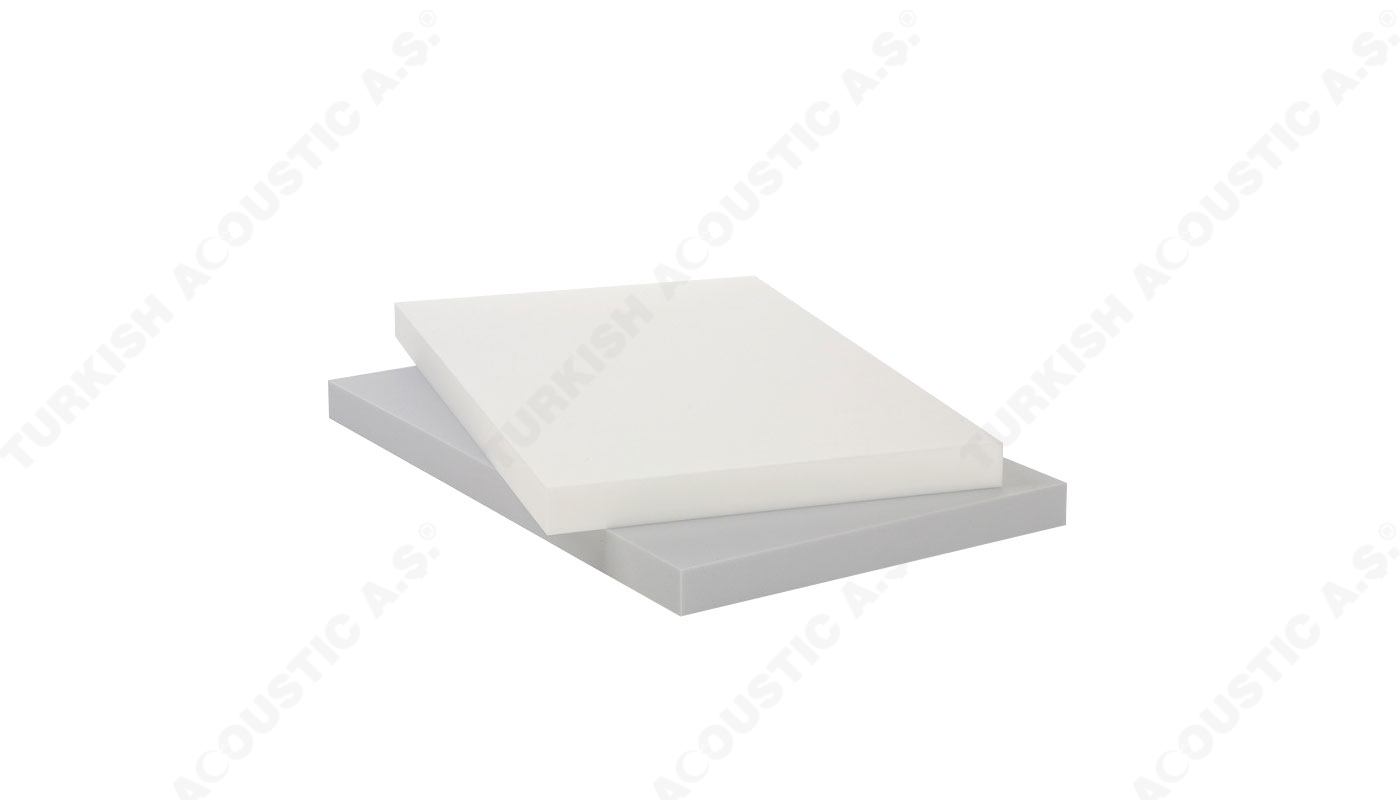

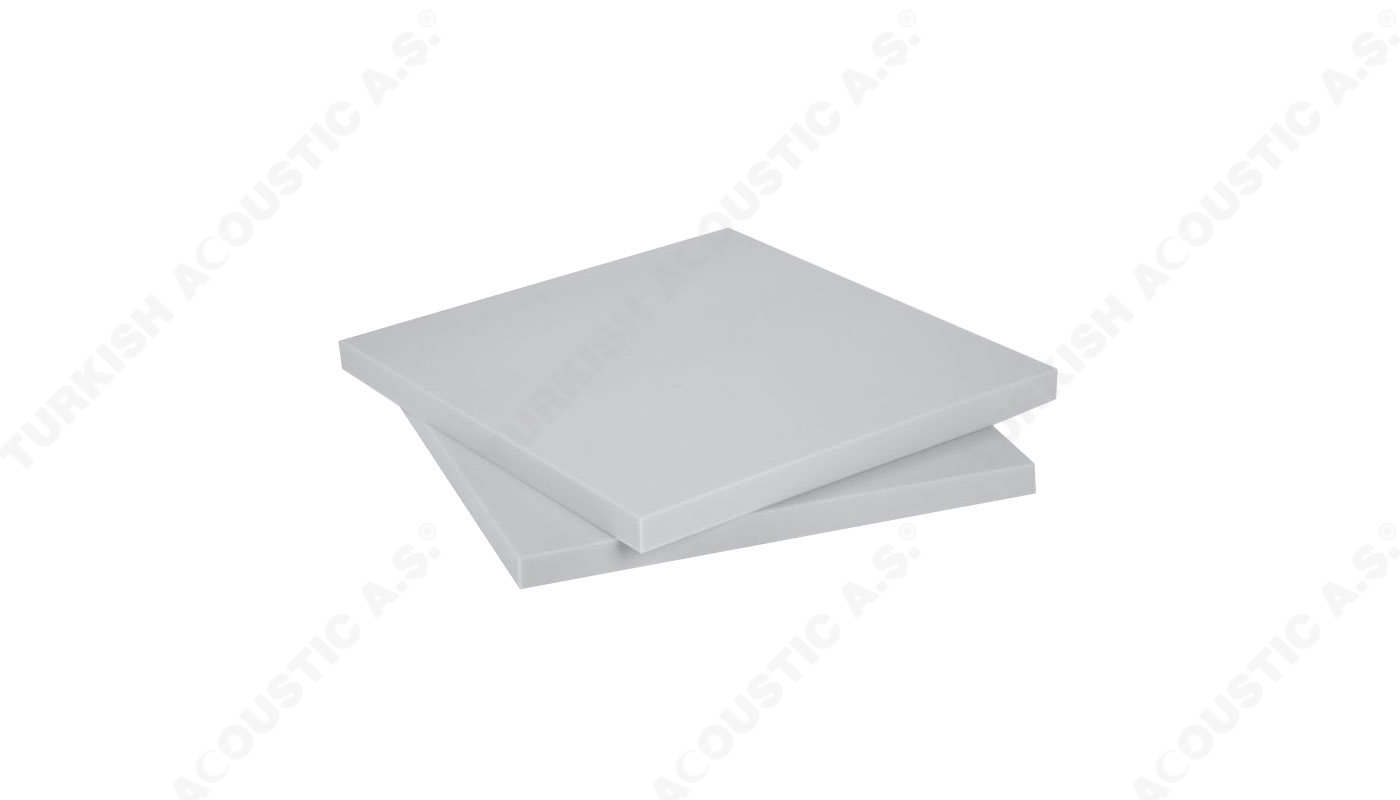

Basotect Sponge Panels Color types: They are sold as standard in white and light gray, color production is possible.
Basotect Sponge Panels Usage Areas: Music room, studio, generator cabin, radio publishing house, gym, entertainment venues.
Basotect Sponge Panels Production: Production of special thickness 50 mm and above is possible. Custom cut to size is possible. Colors RAL Chart
Basotect Sponge Panels Fireproof: Non-flammable / non-flammable Firend ; In flammability, it has BS476: class 0 and UNI 9175: 2008 M1 certificates.
Basotect Sponge Panels Density: 1 0 to 20 Kg / M³ It is possible to custom manufacture in desired density and thickness. CNC cutting is possible.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Basotect sponges are in 50 cm x 125 cm or 100 cm x 125 plates and contain 10 m² of product in their package. It is sold retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
