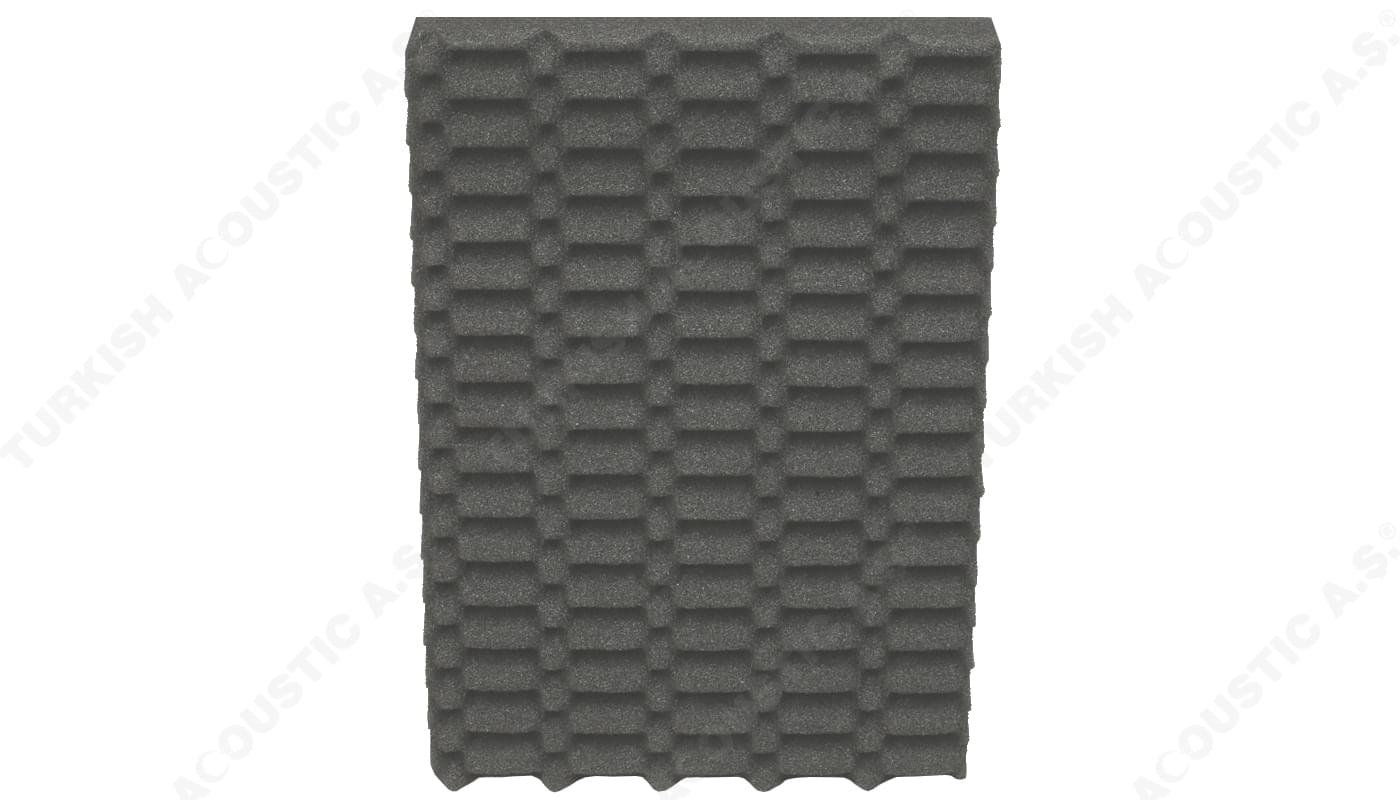

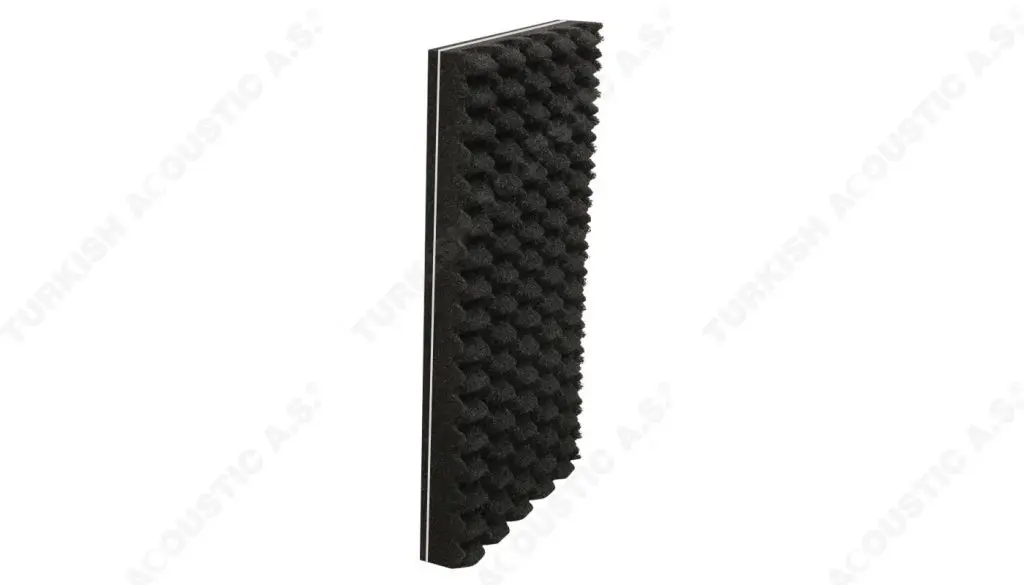

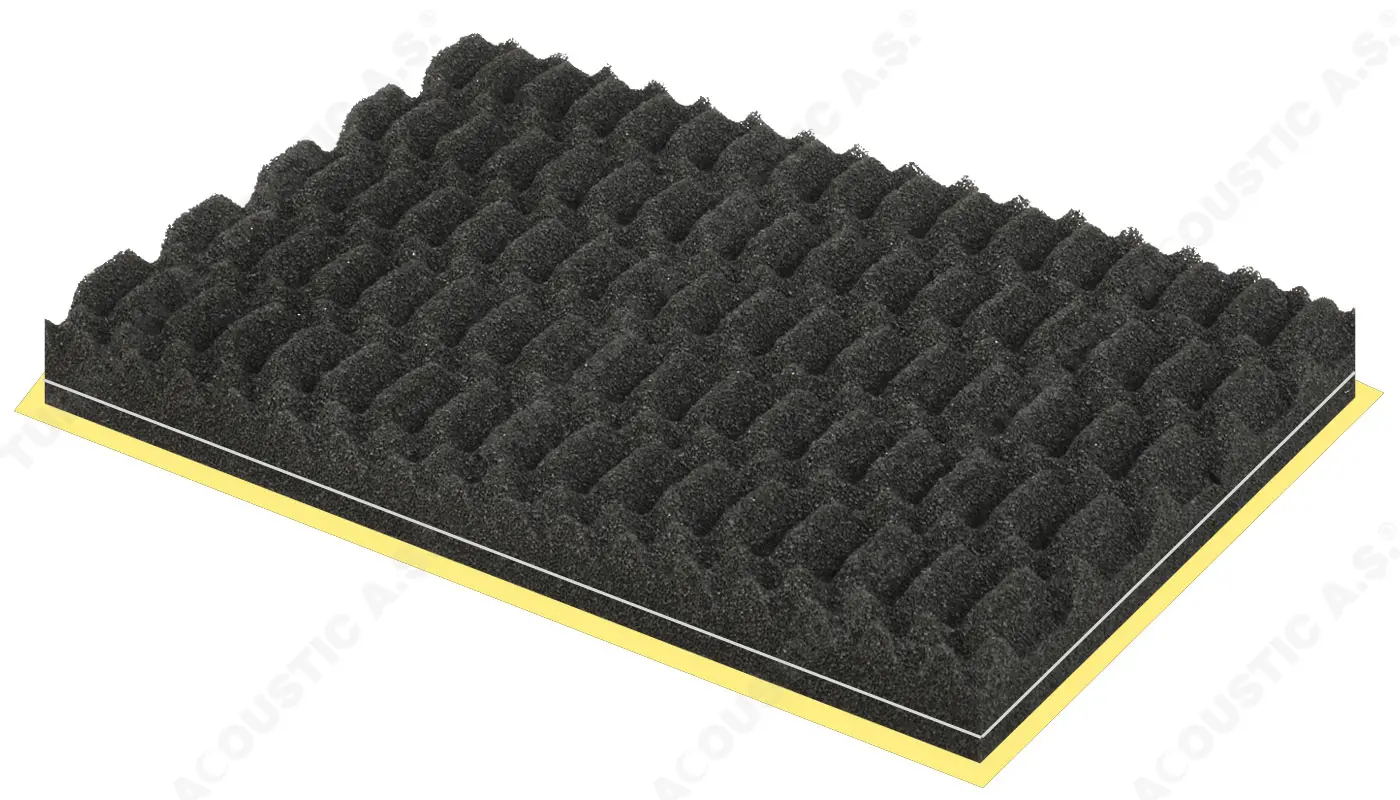

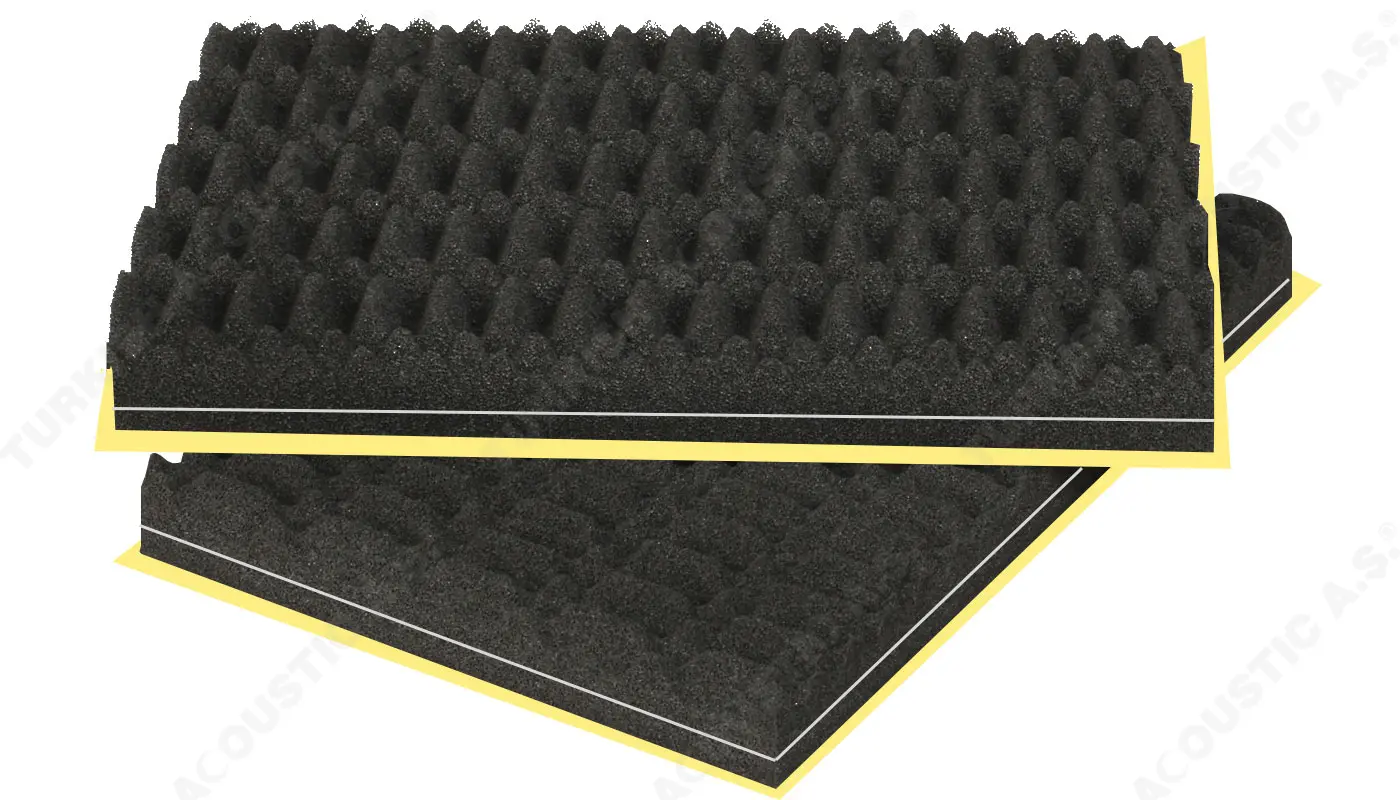

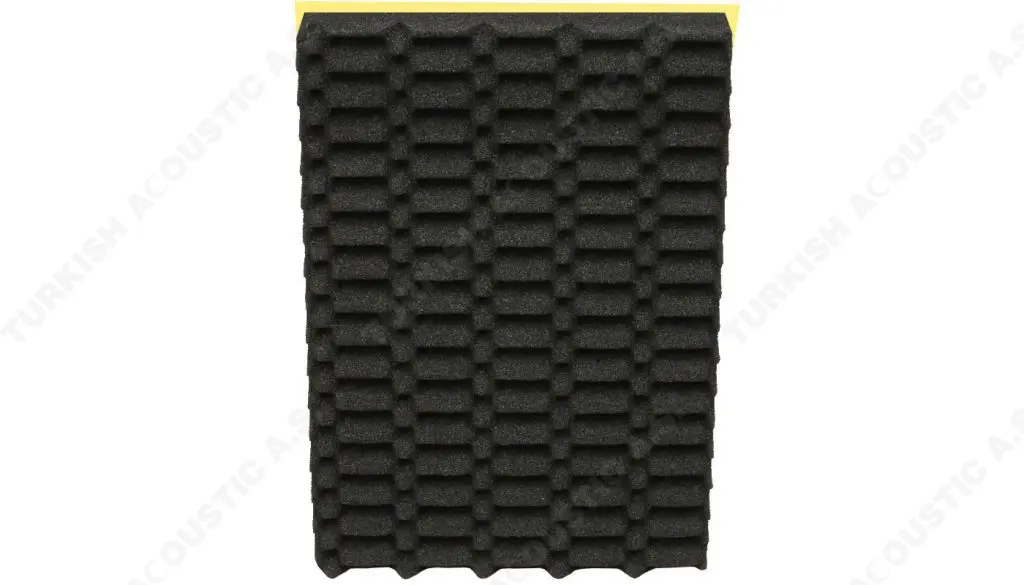

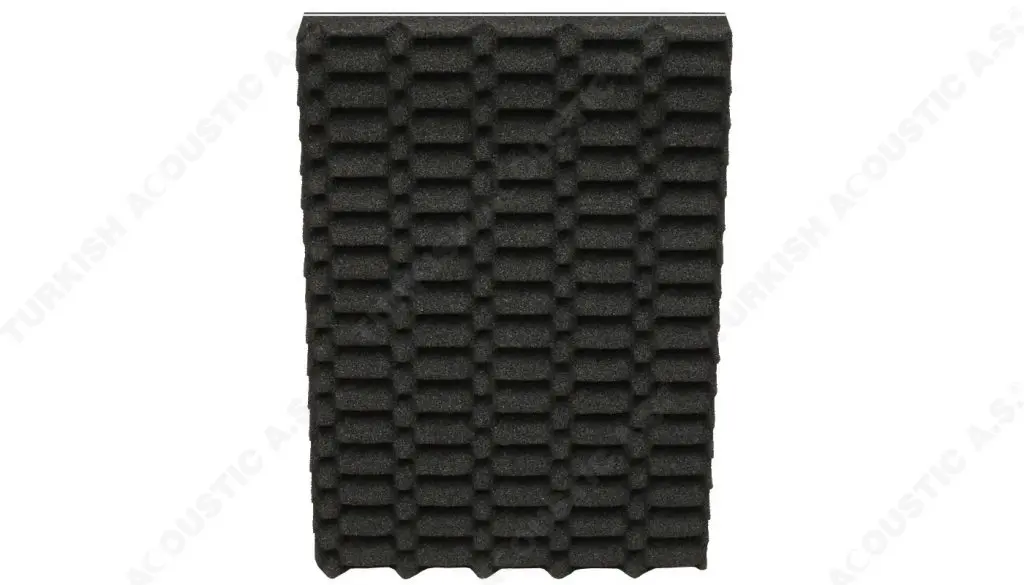

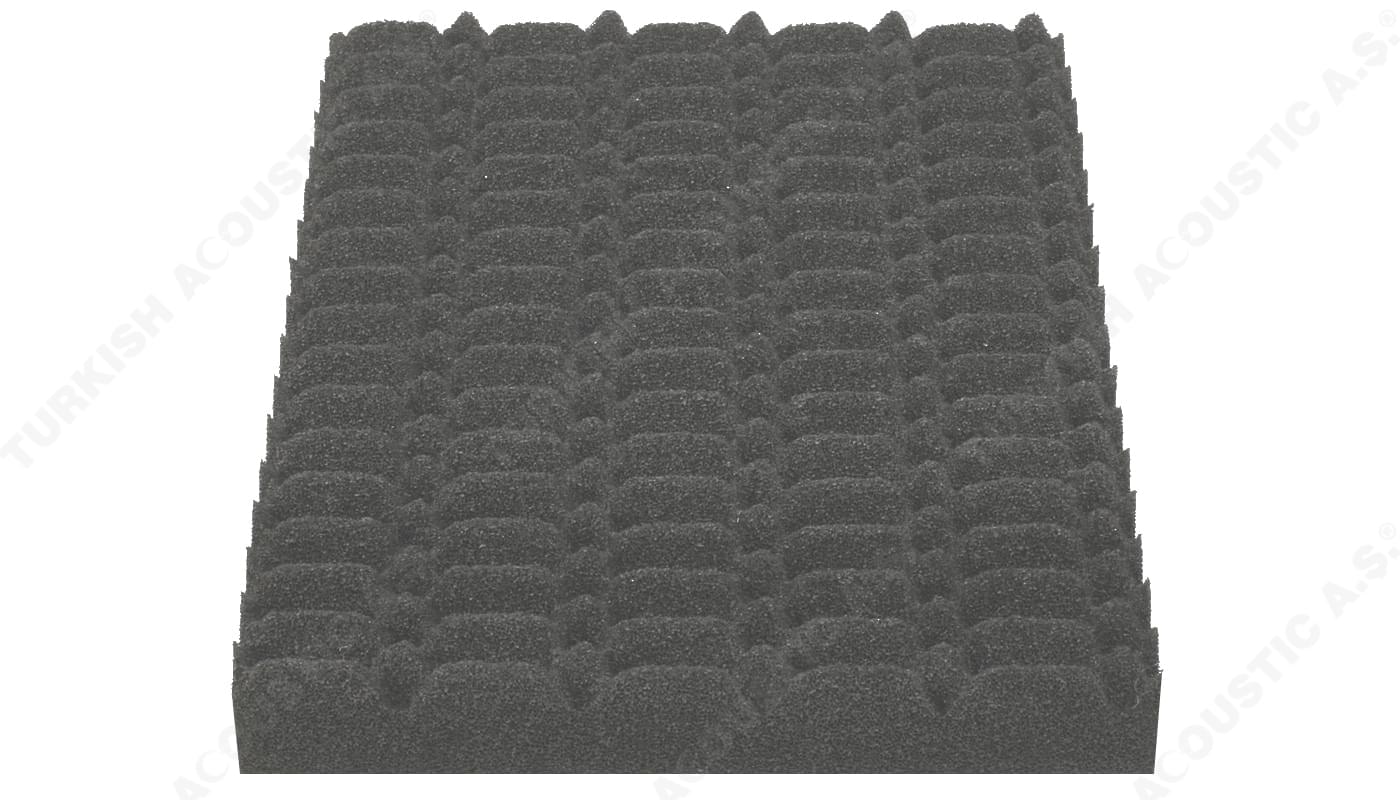

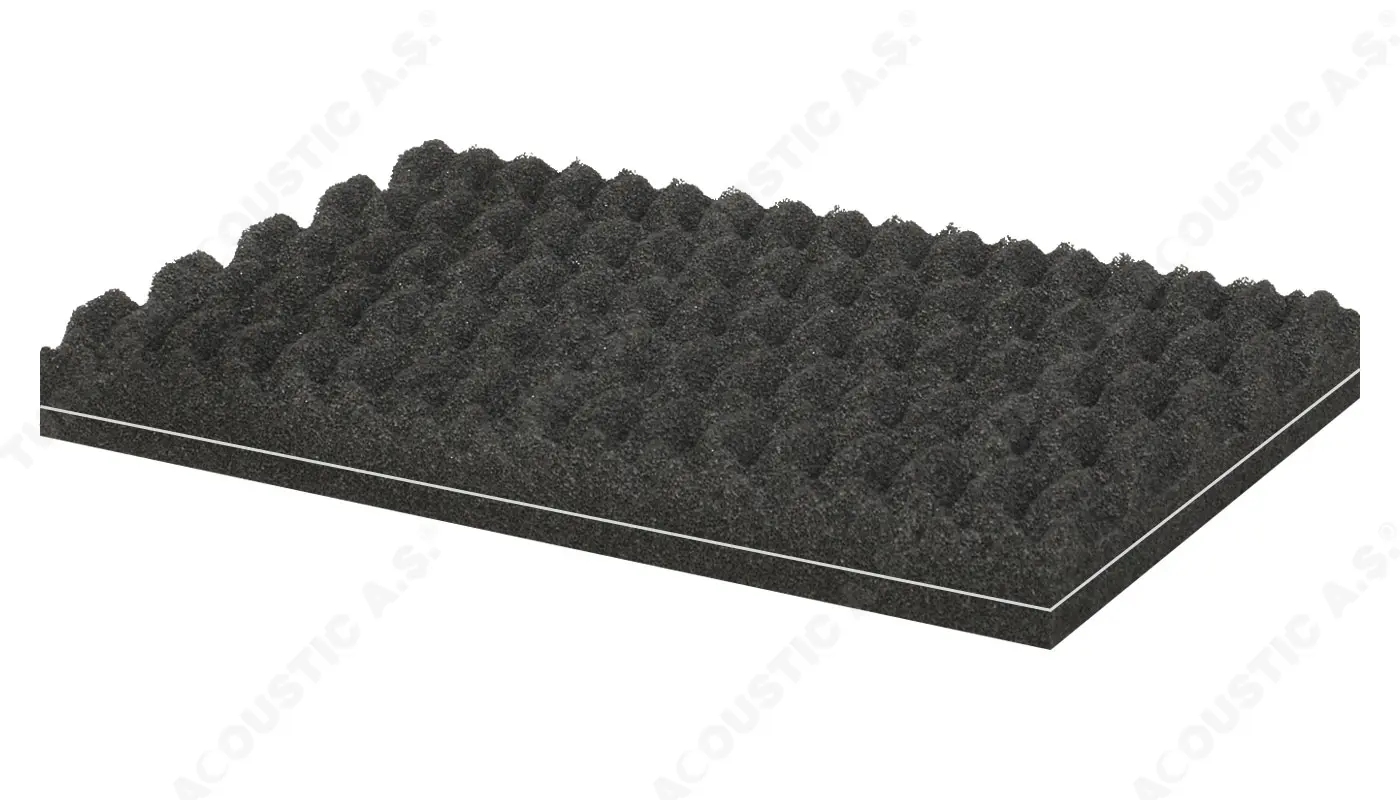

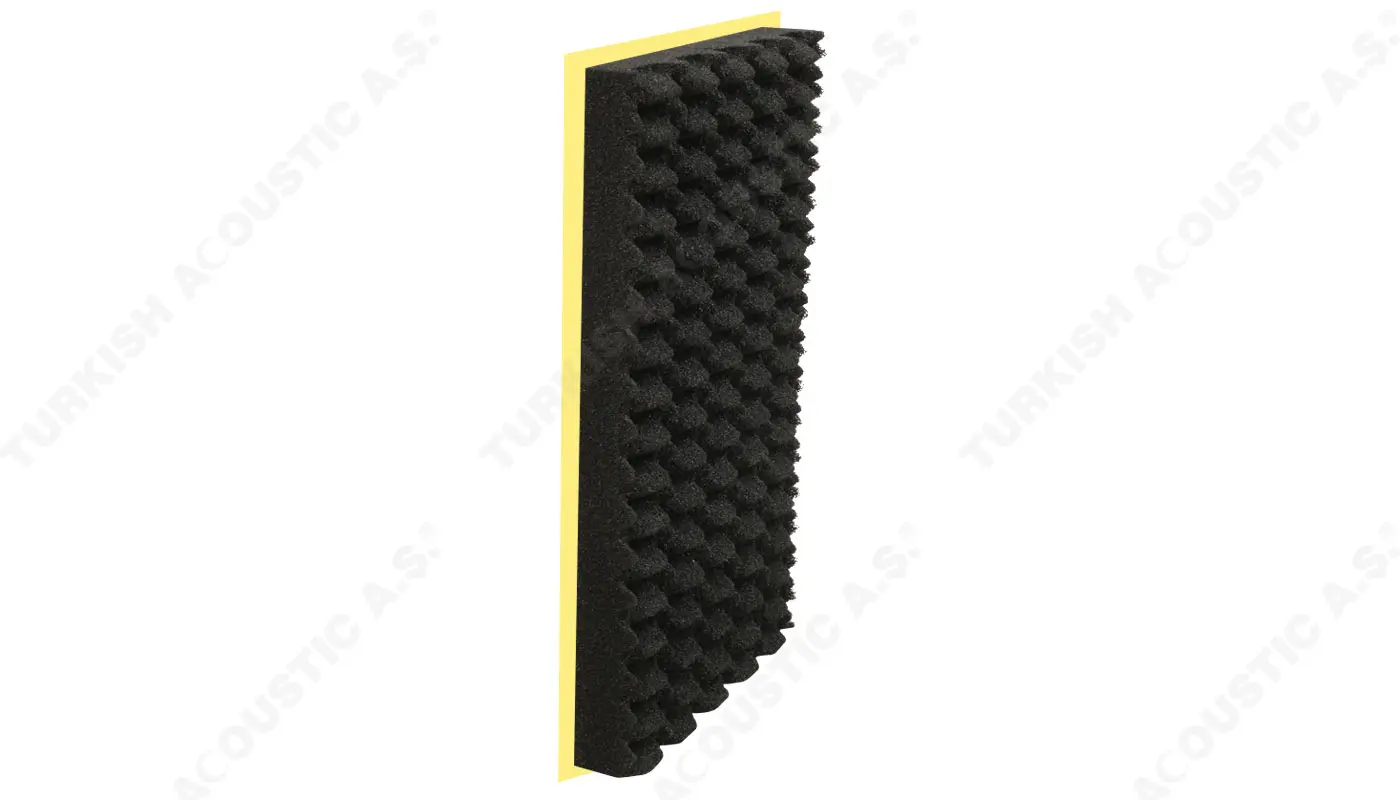

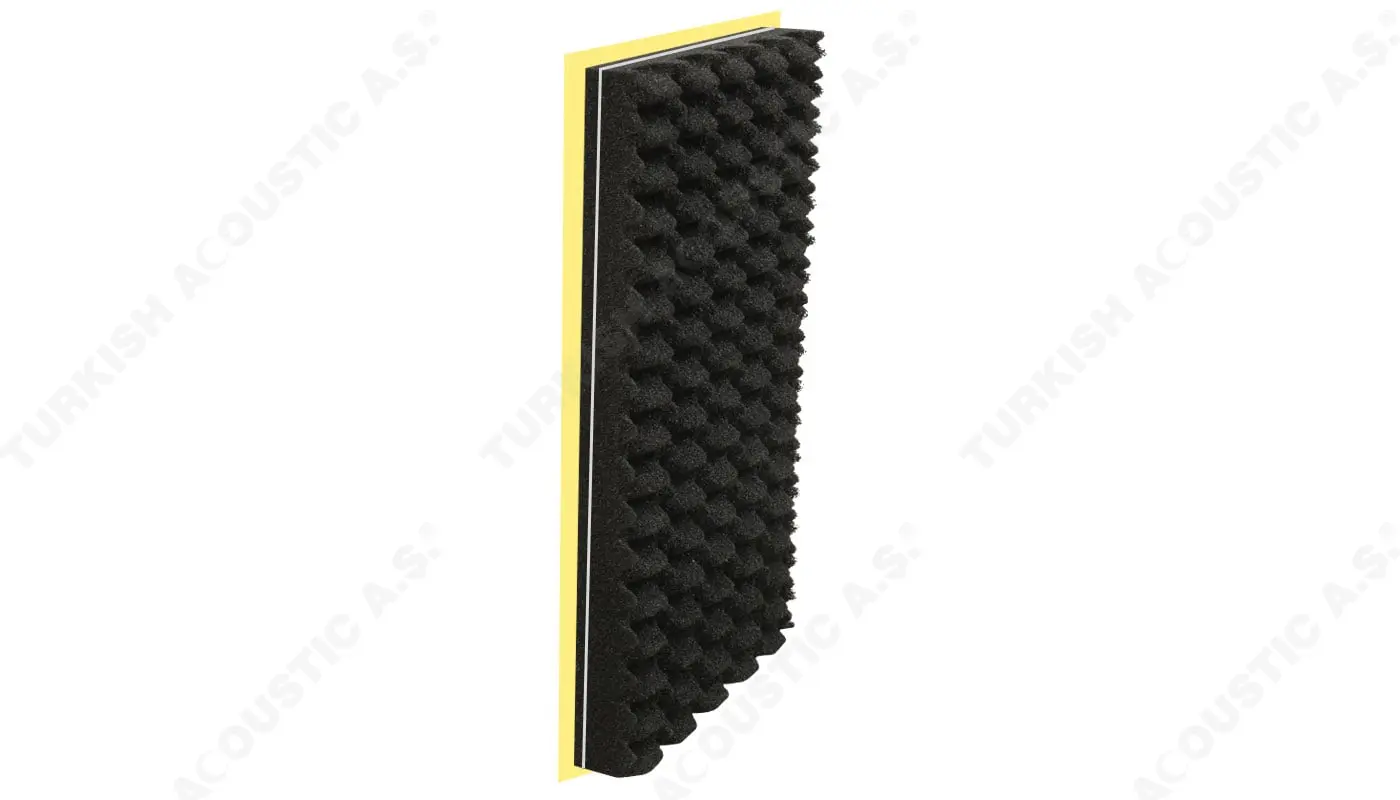

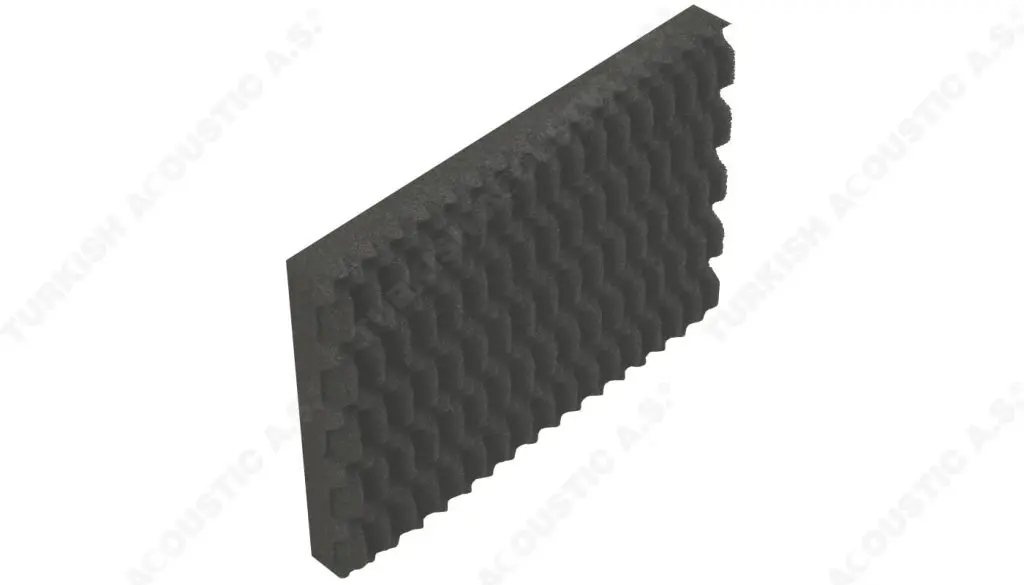

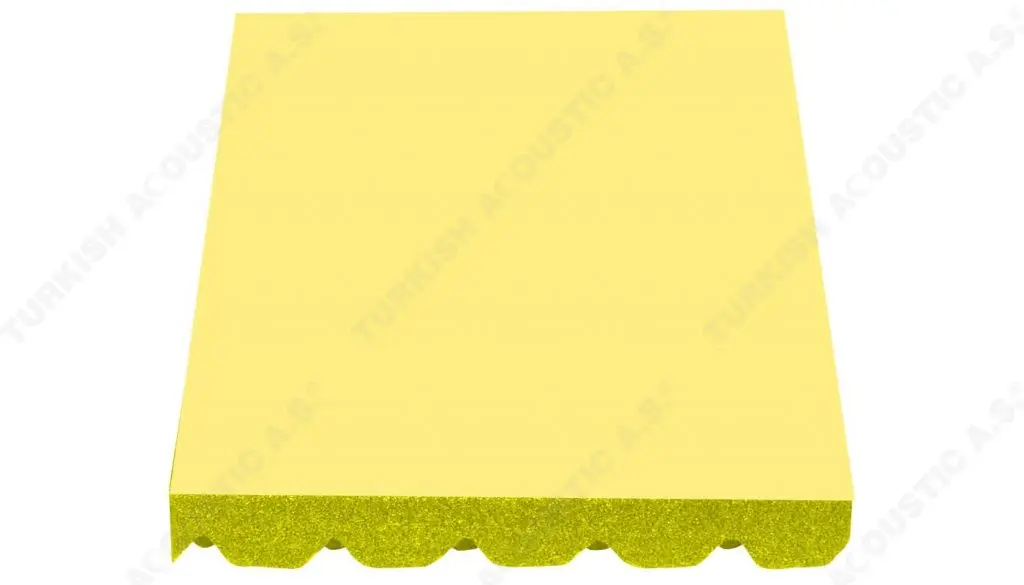

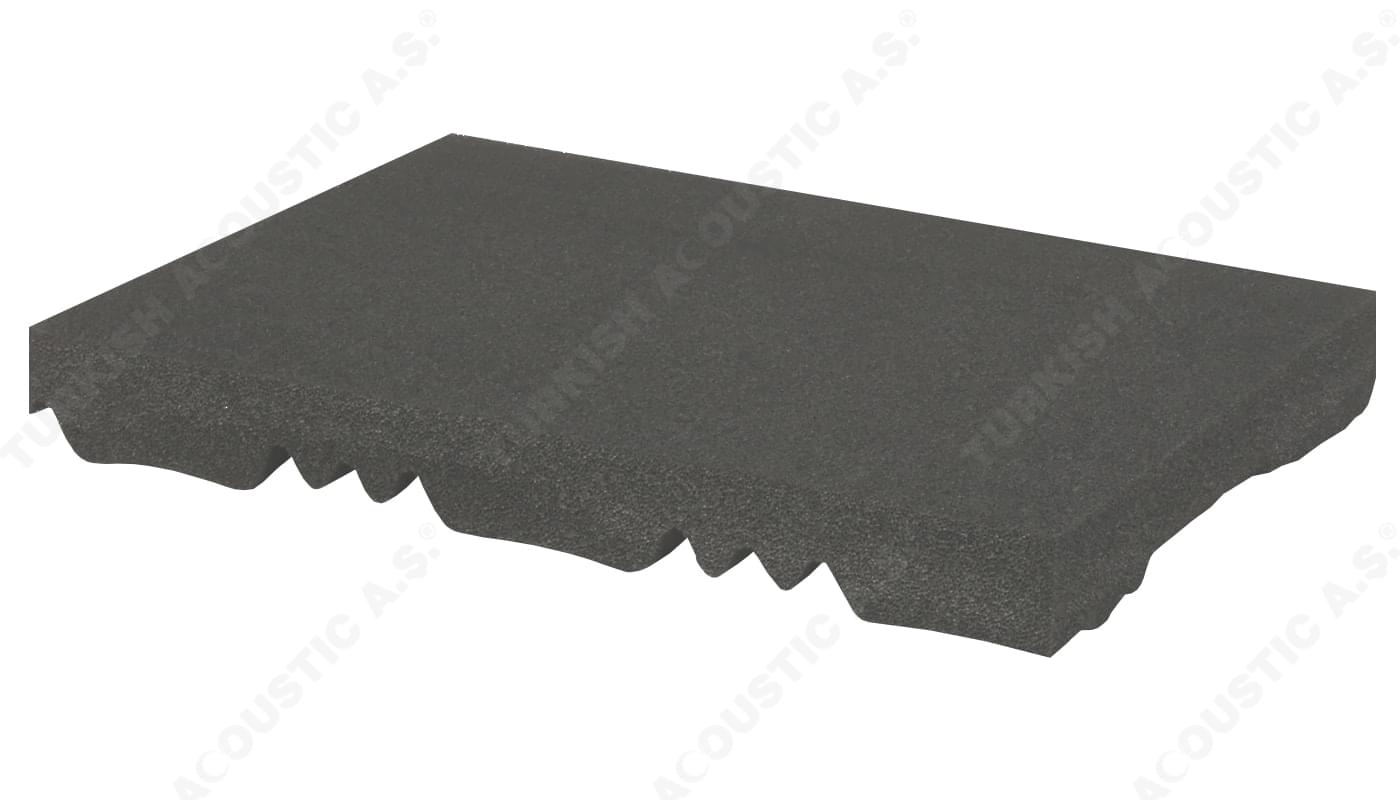

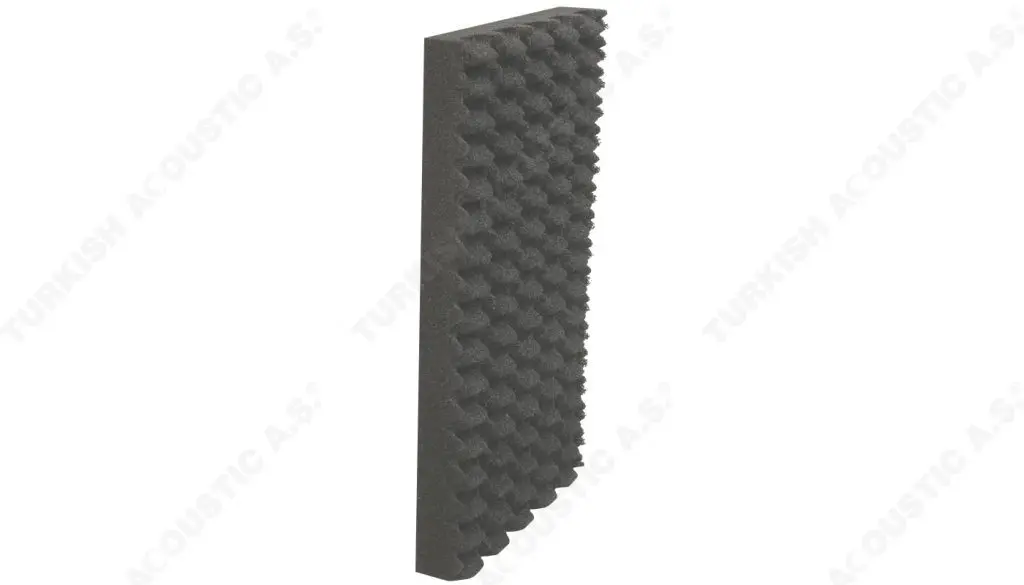

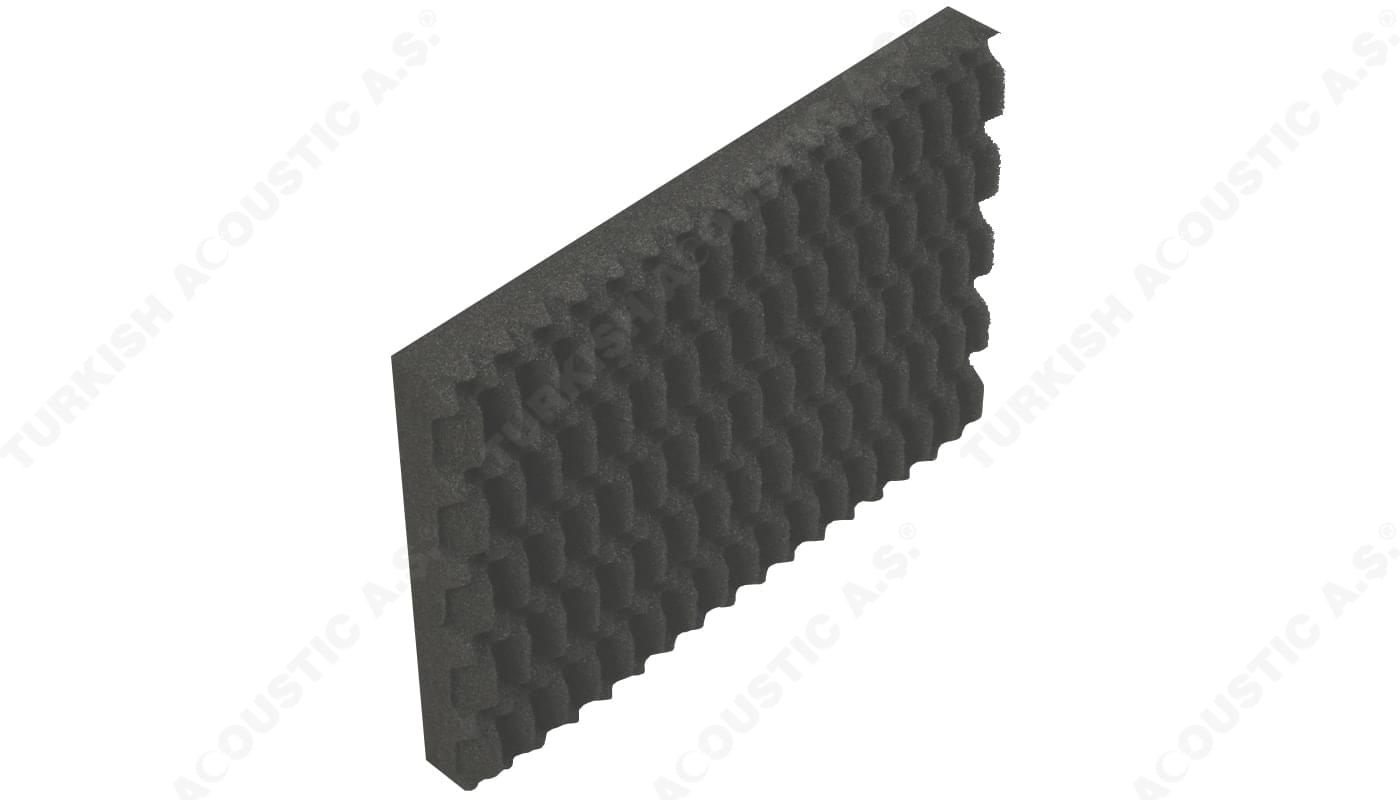

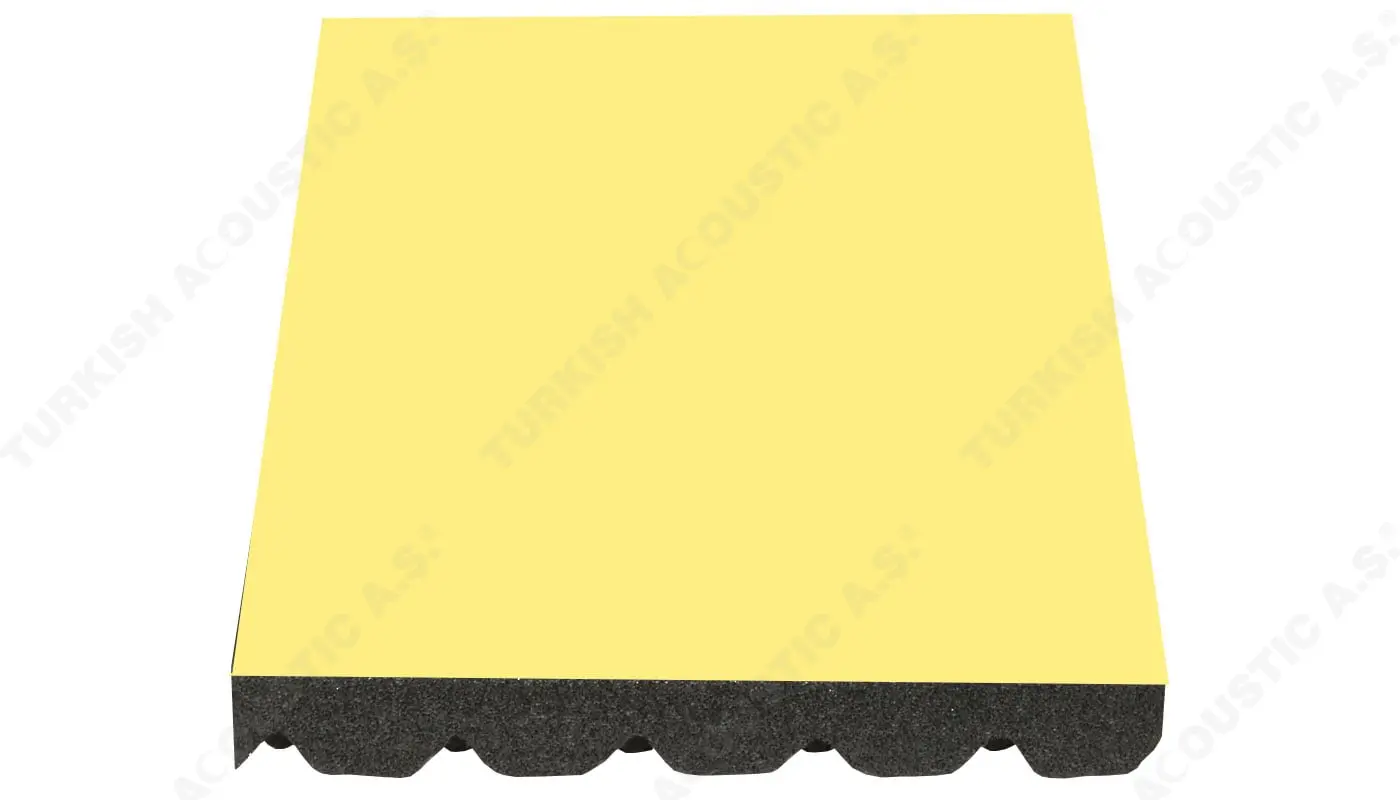

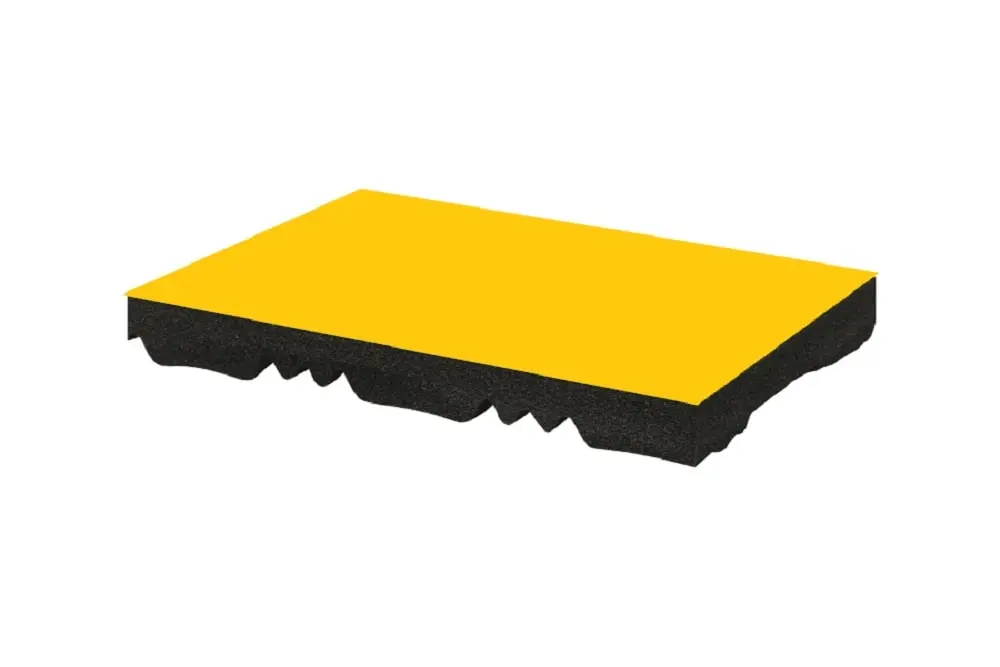

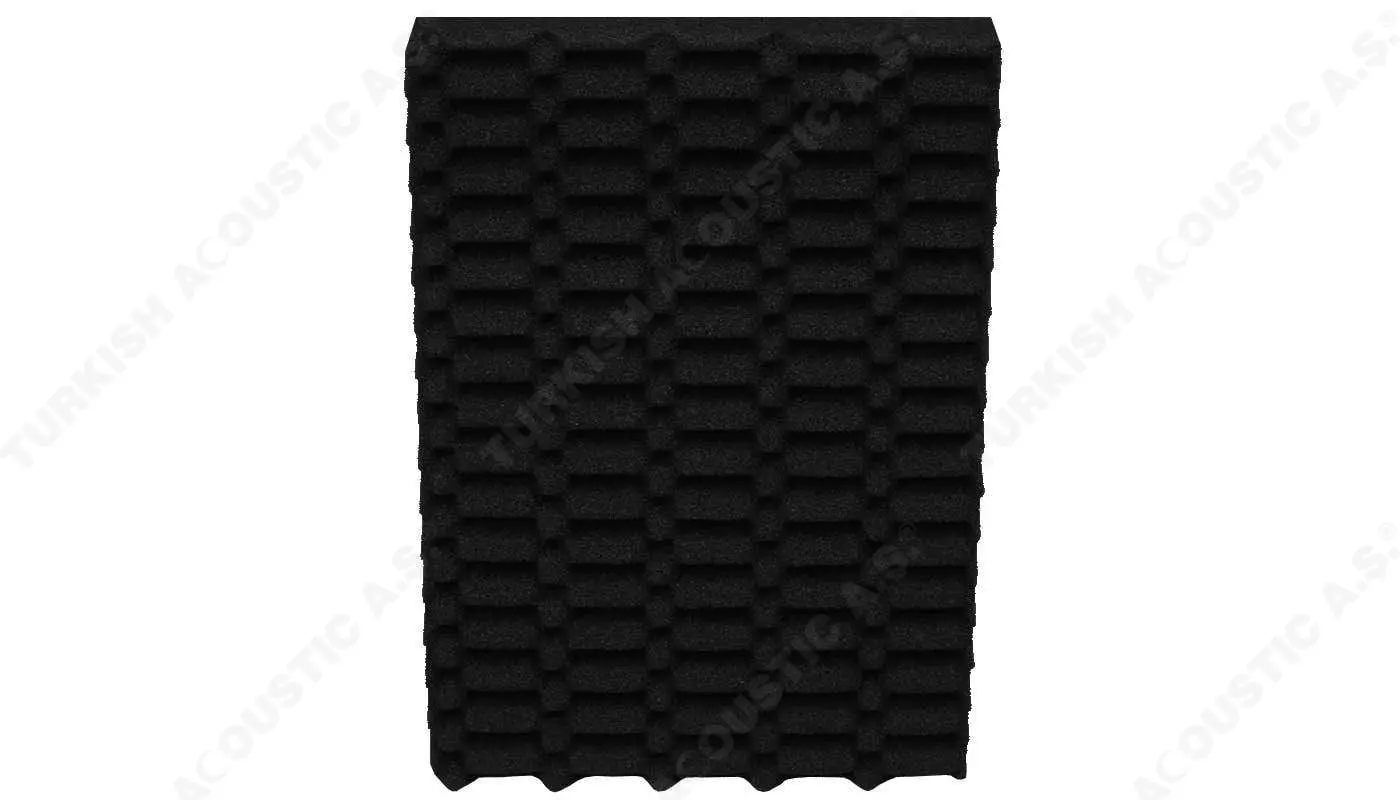

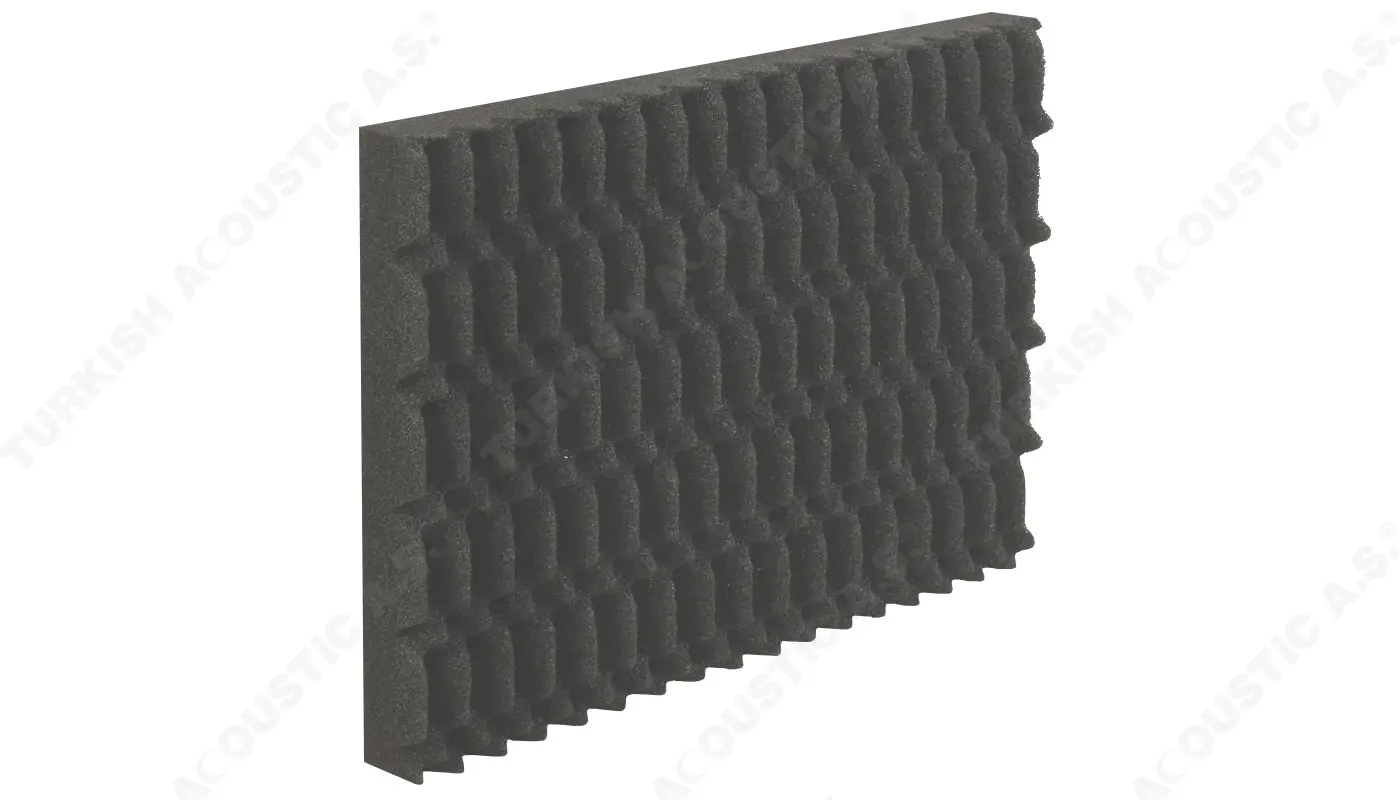

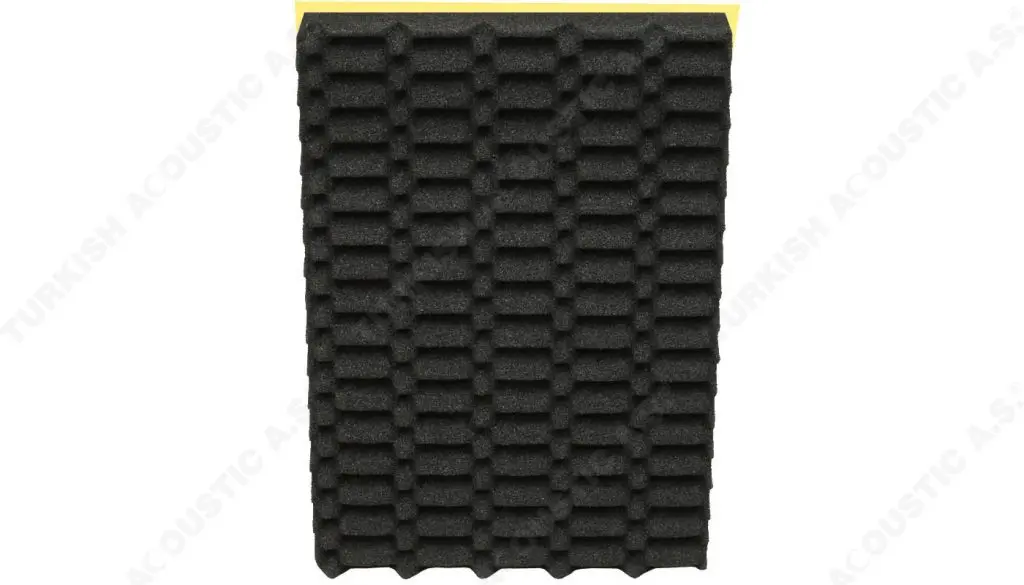

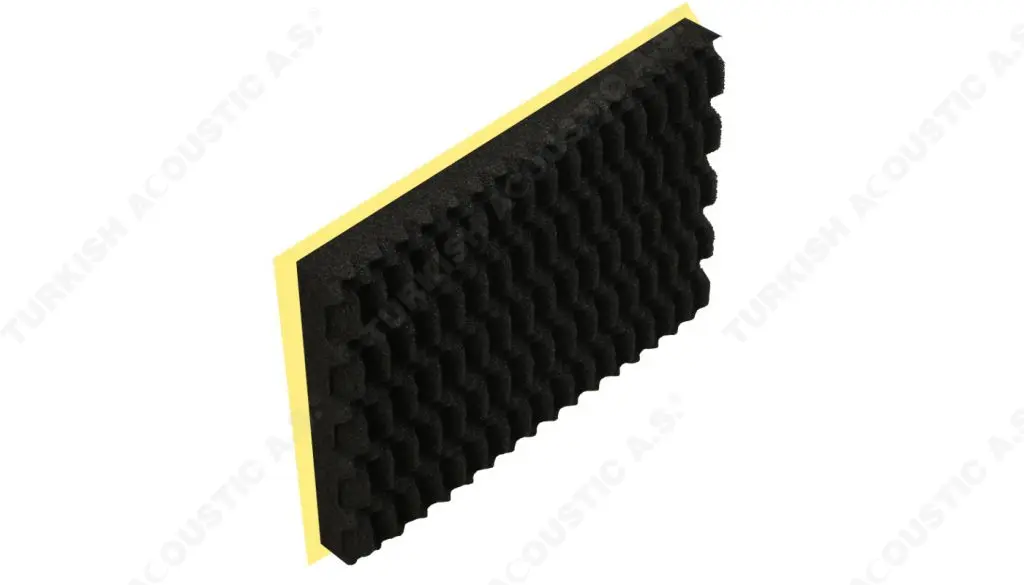

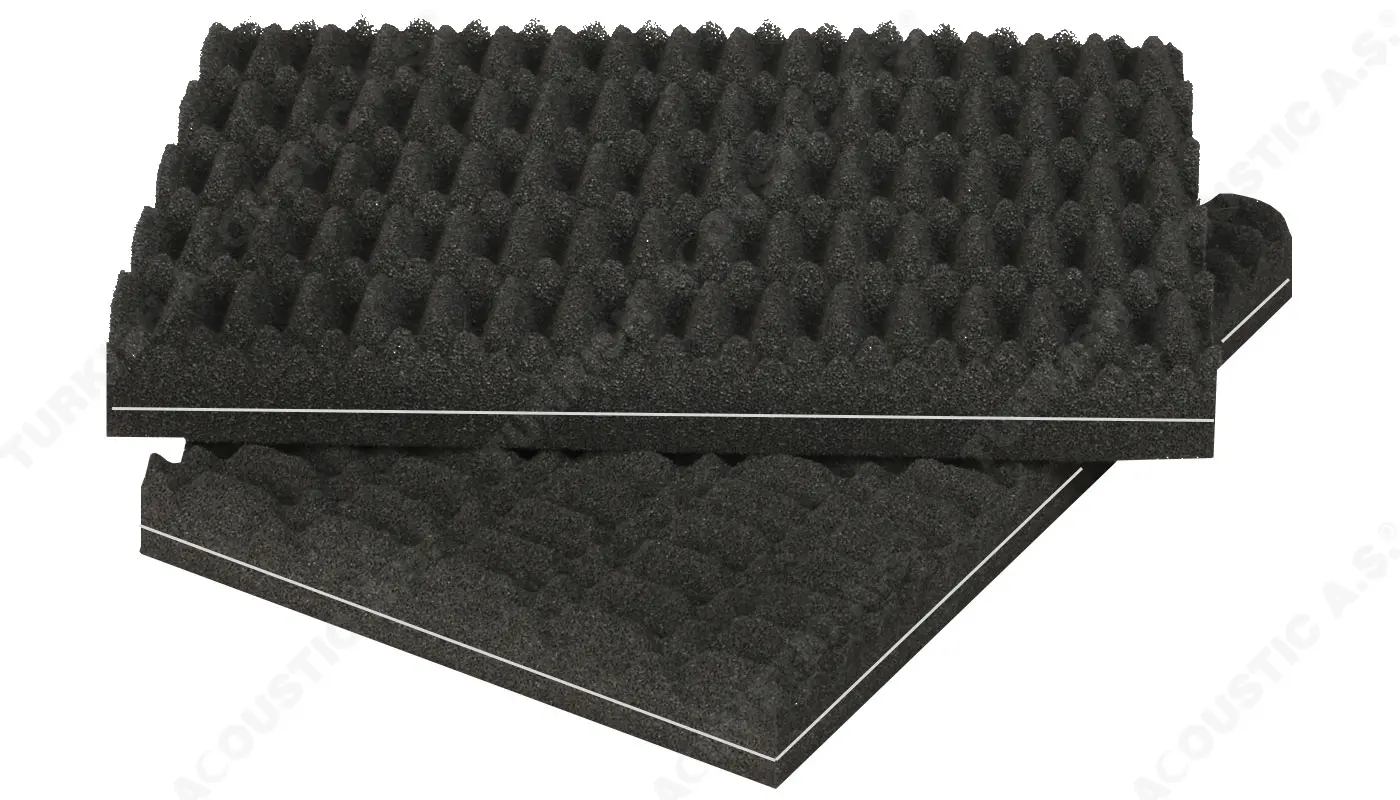

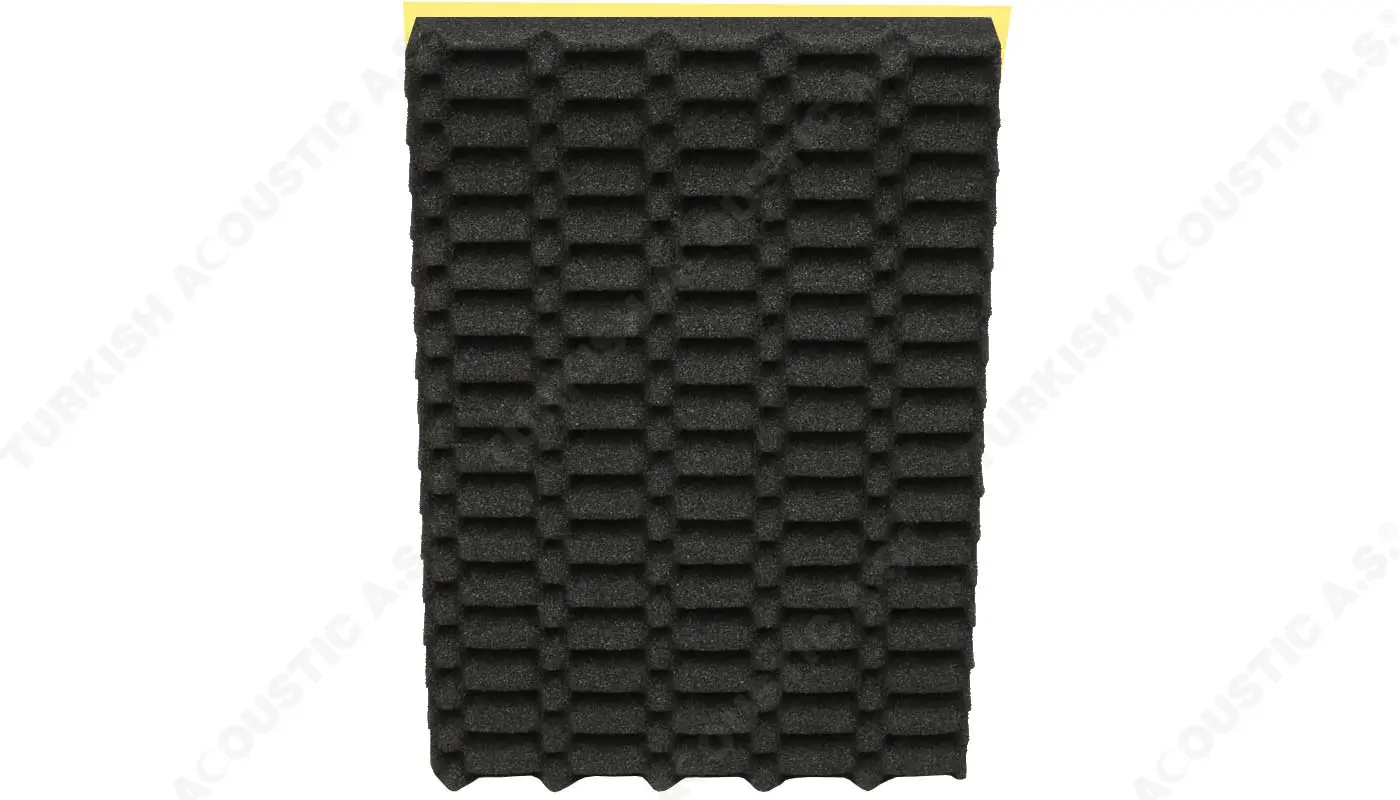

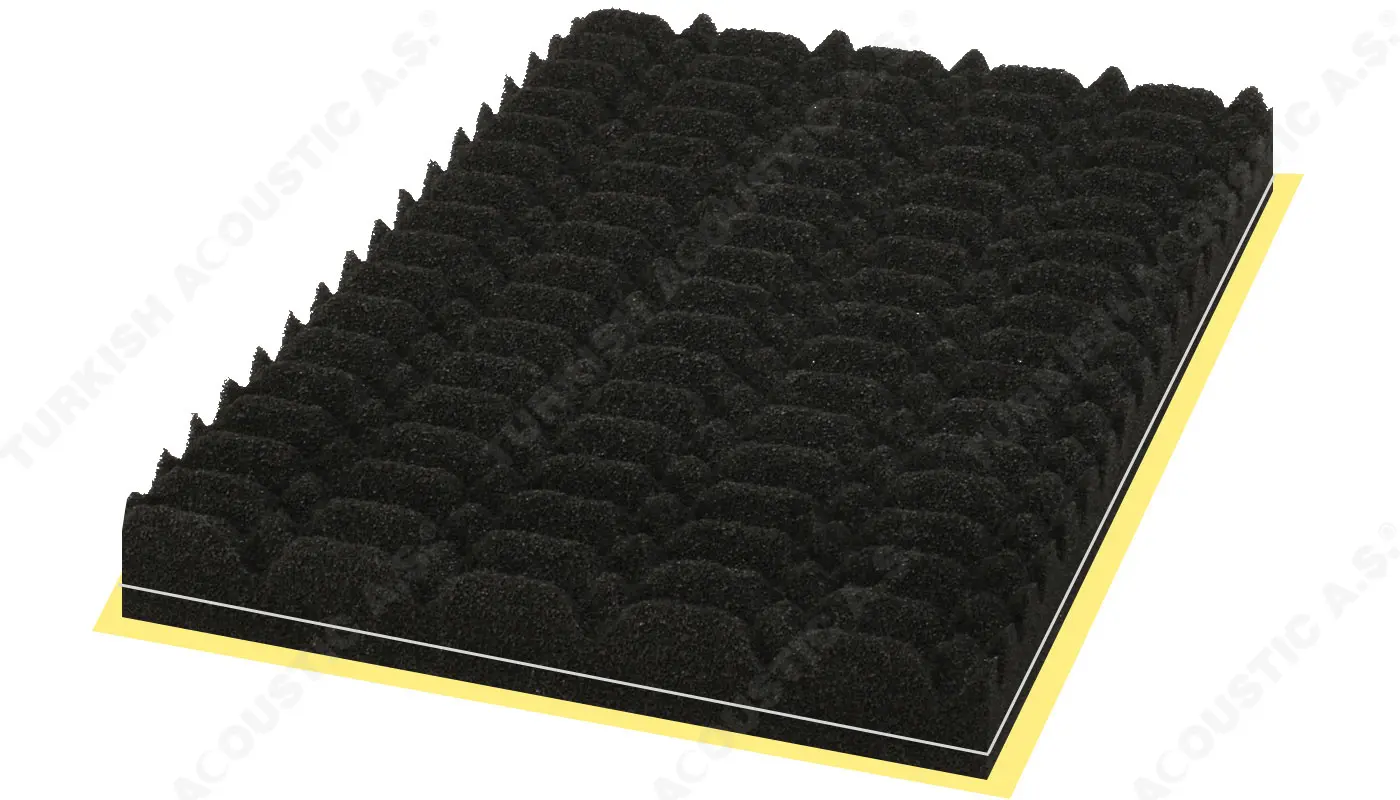

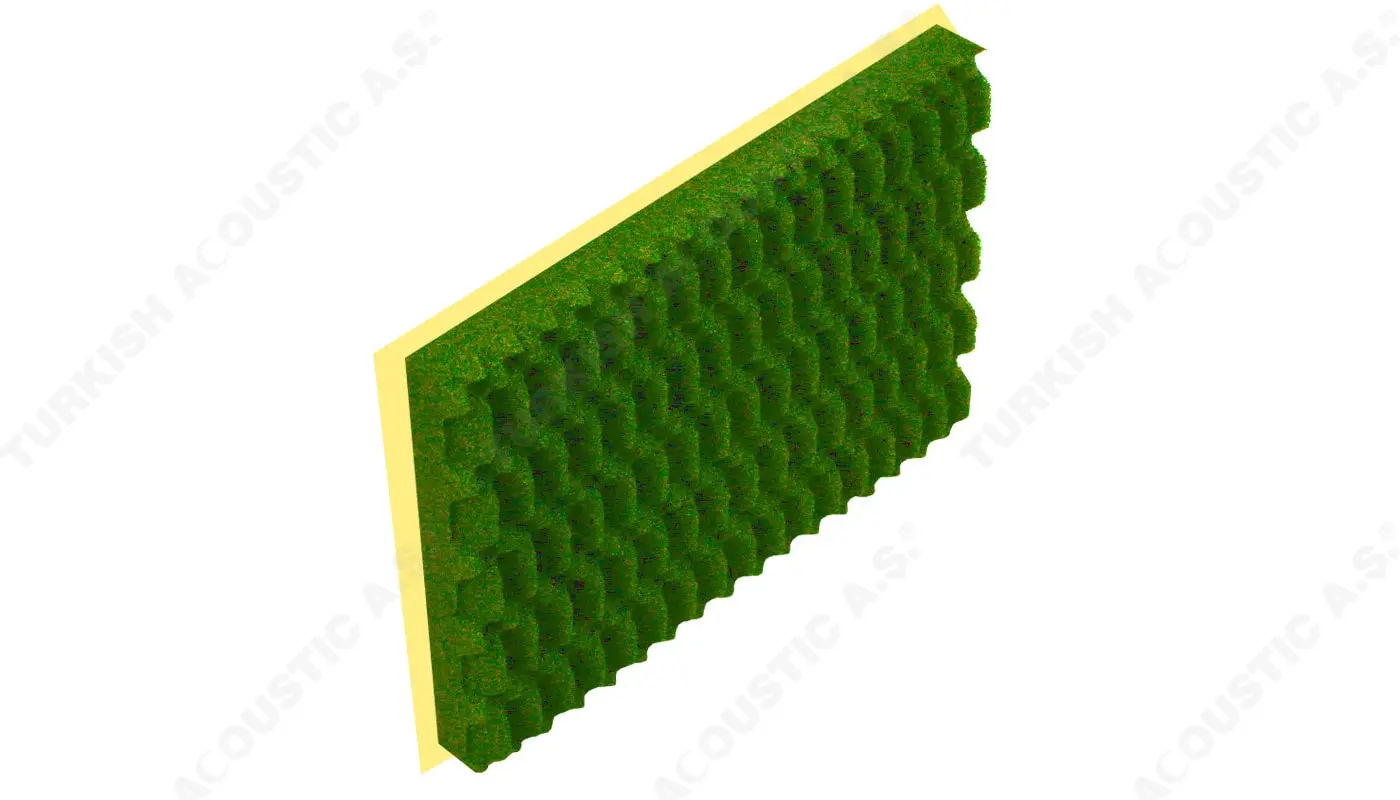

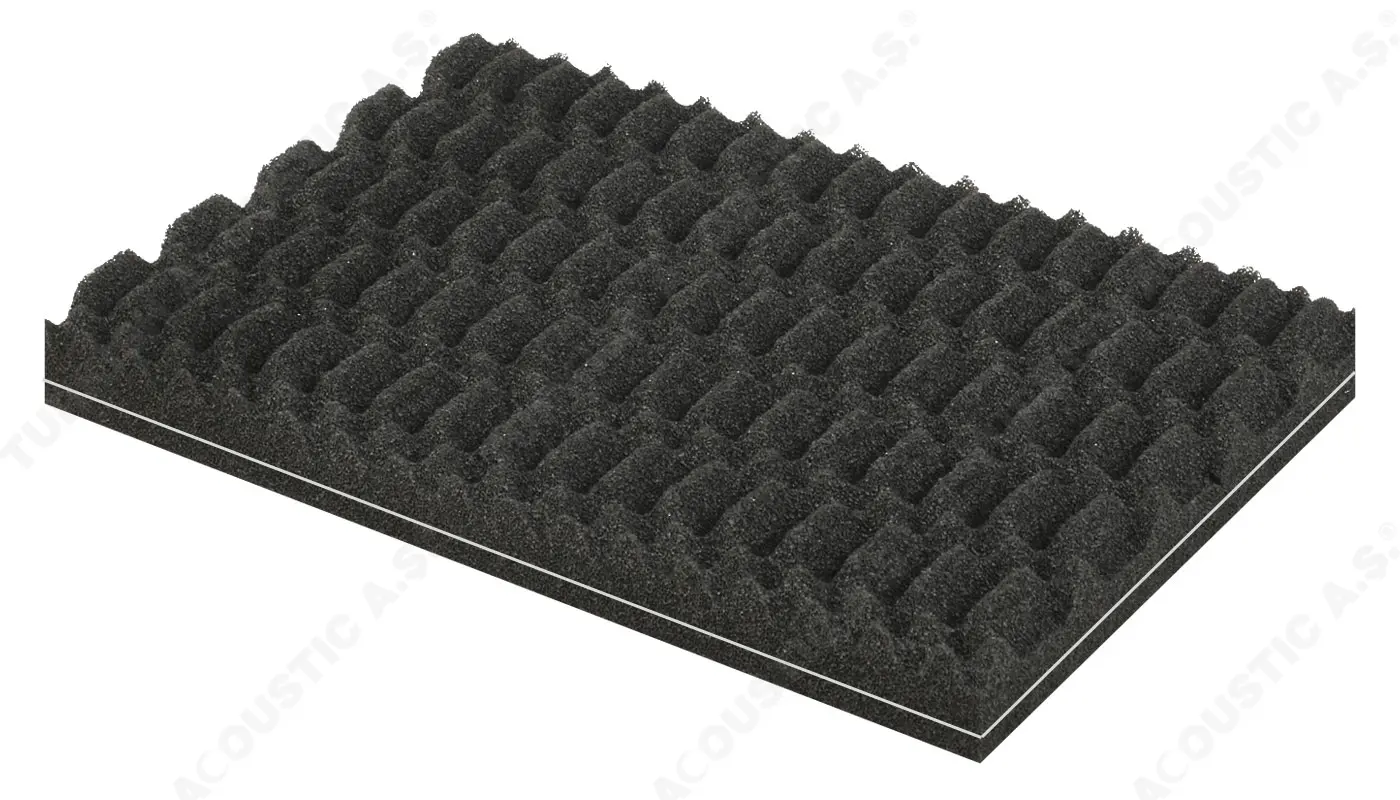

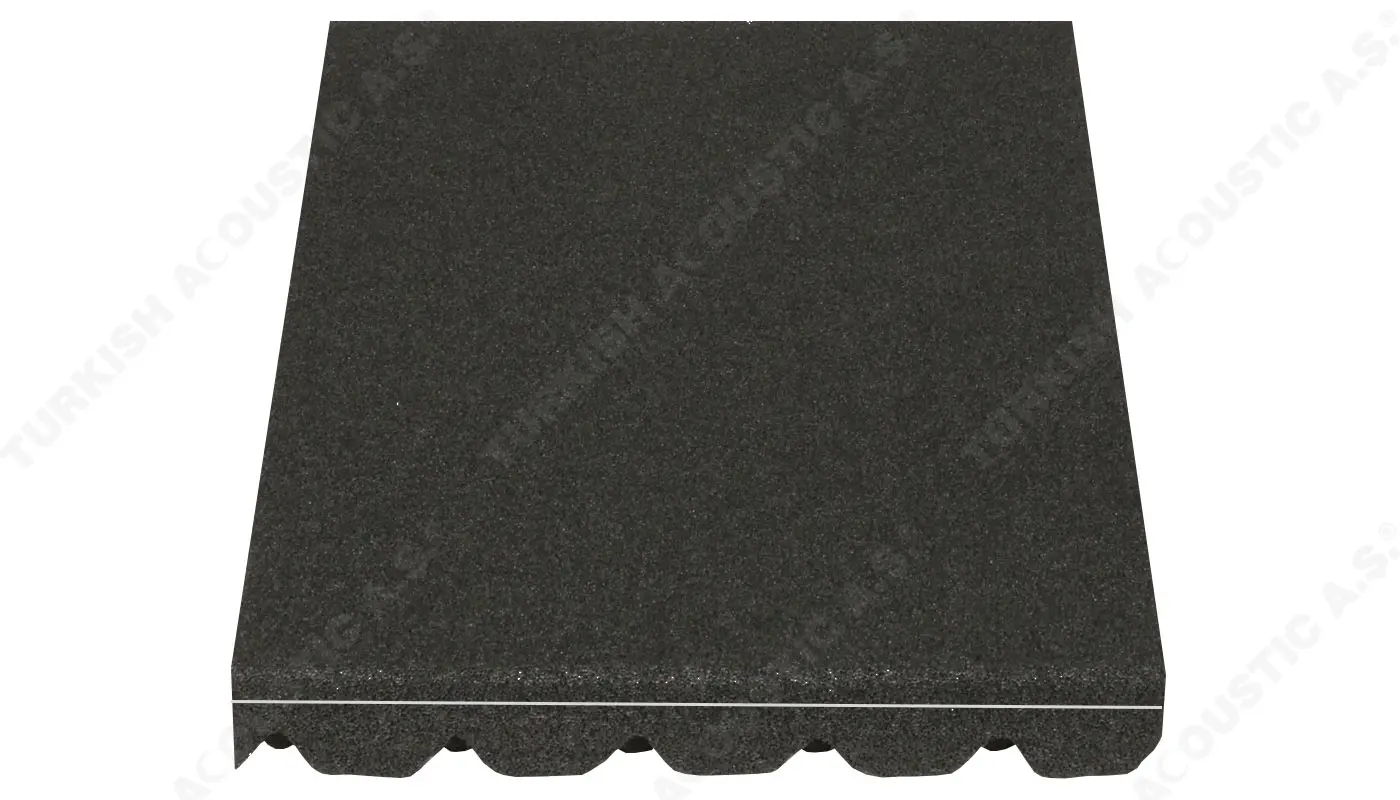

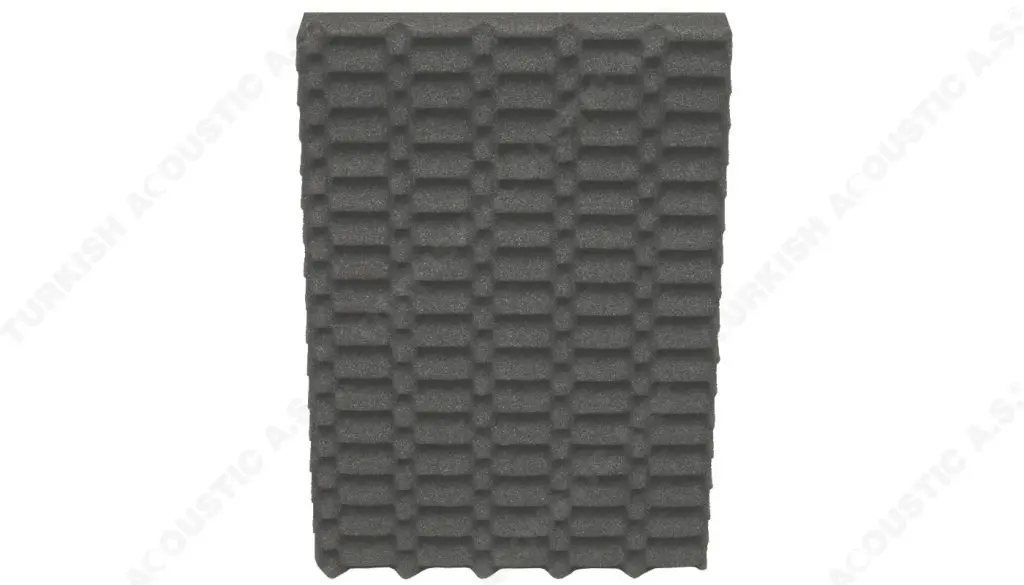

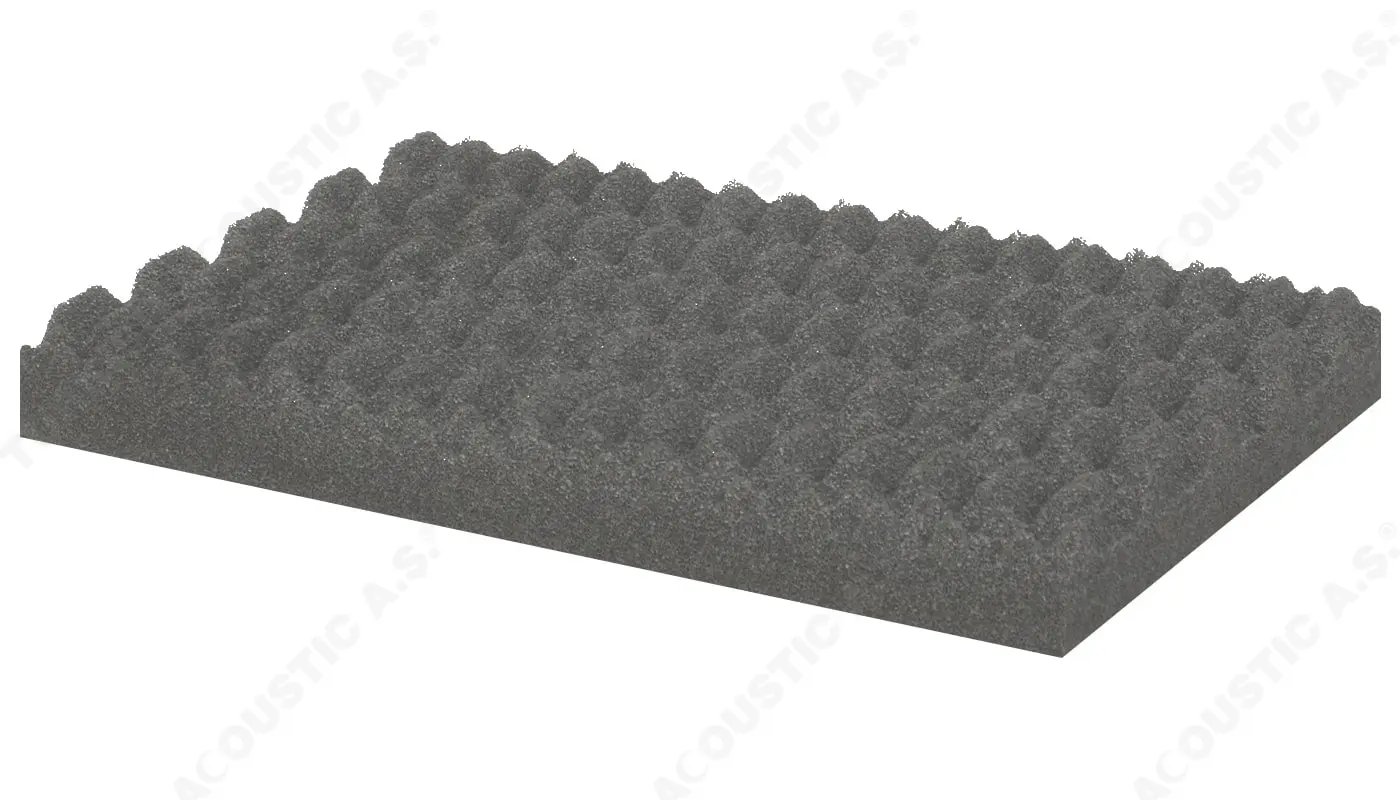

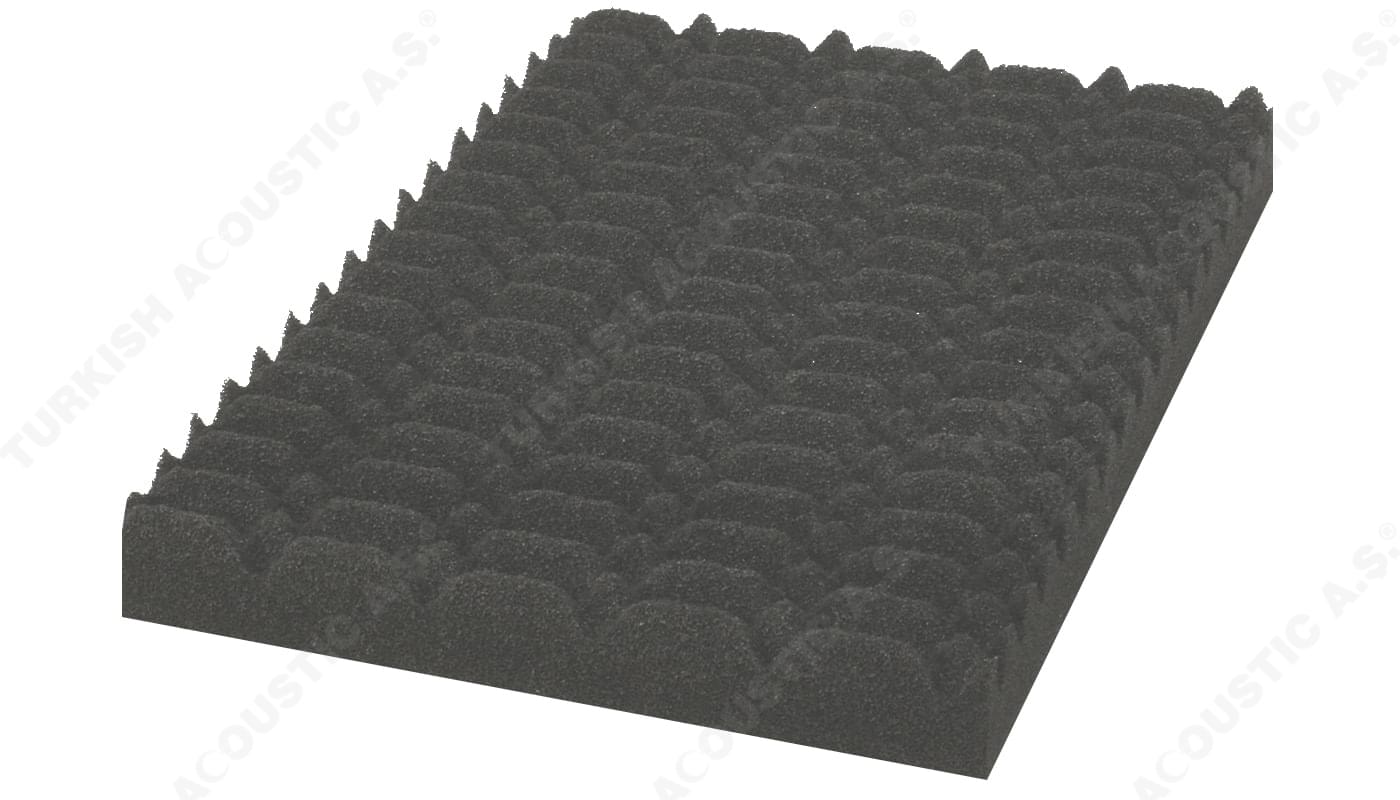

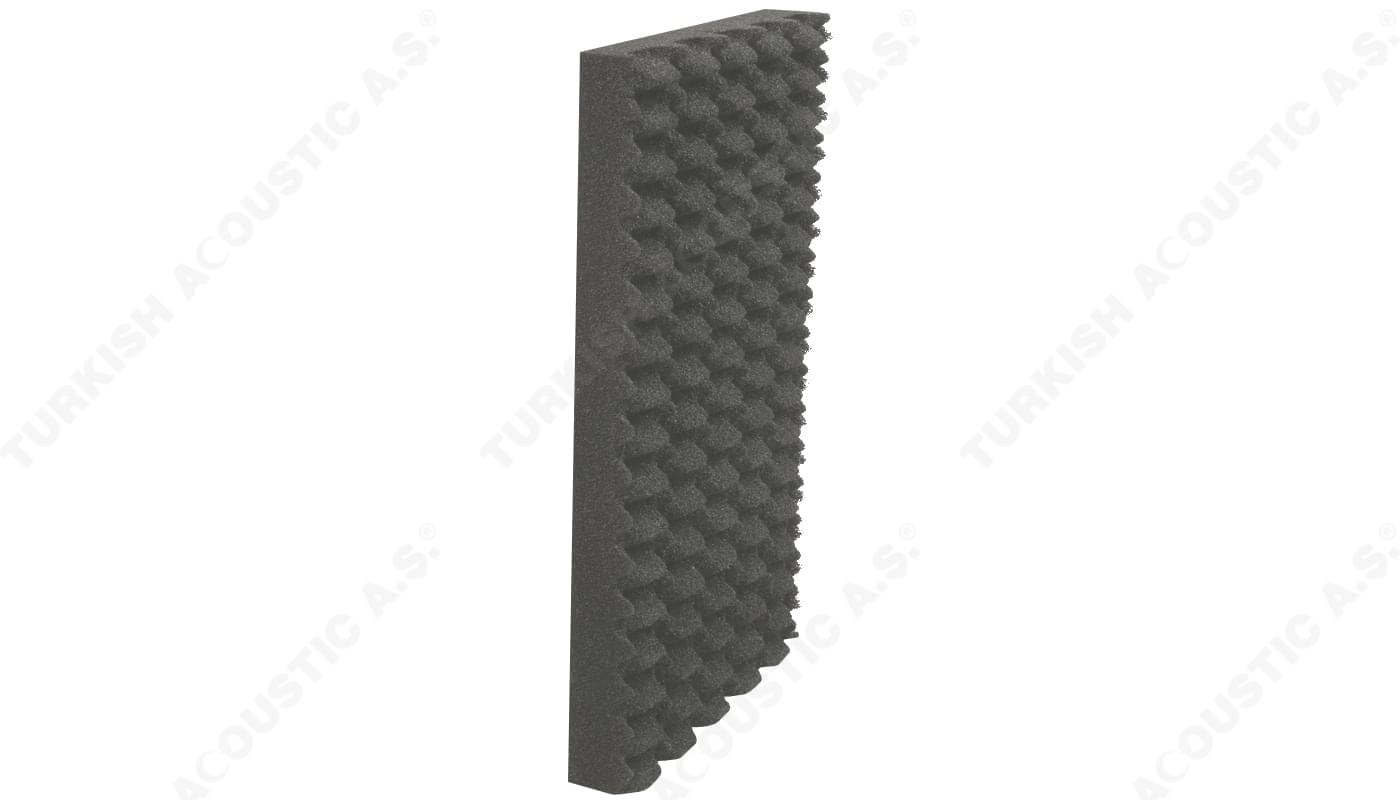

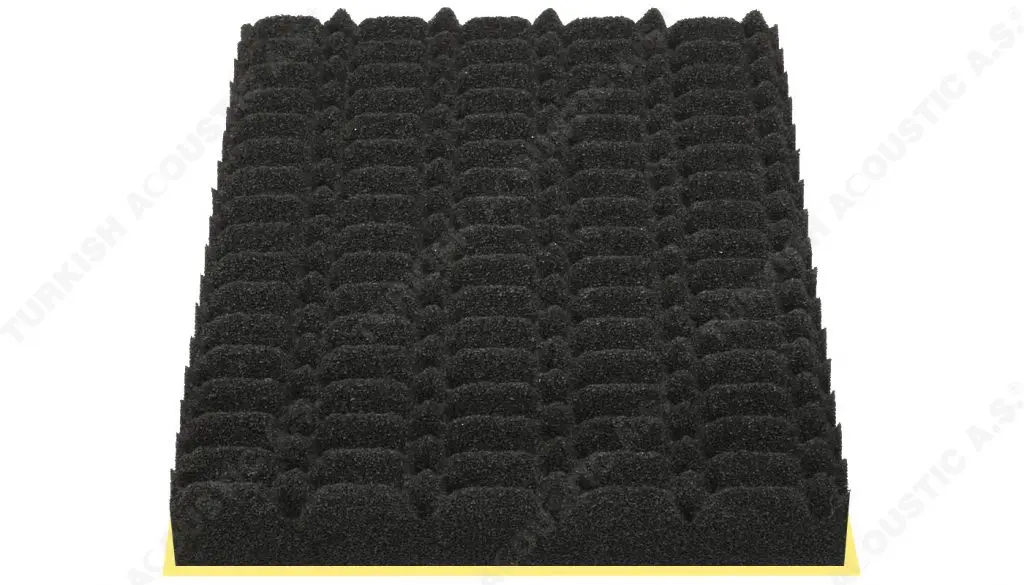

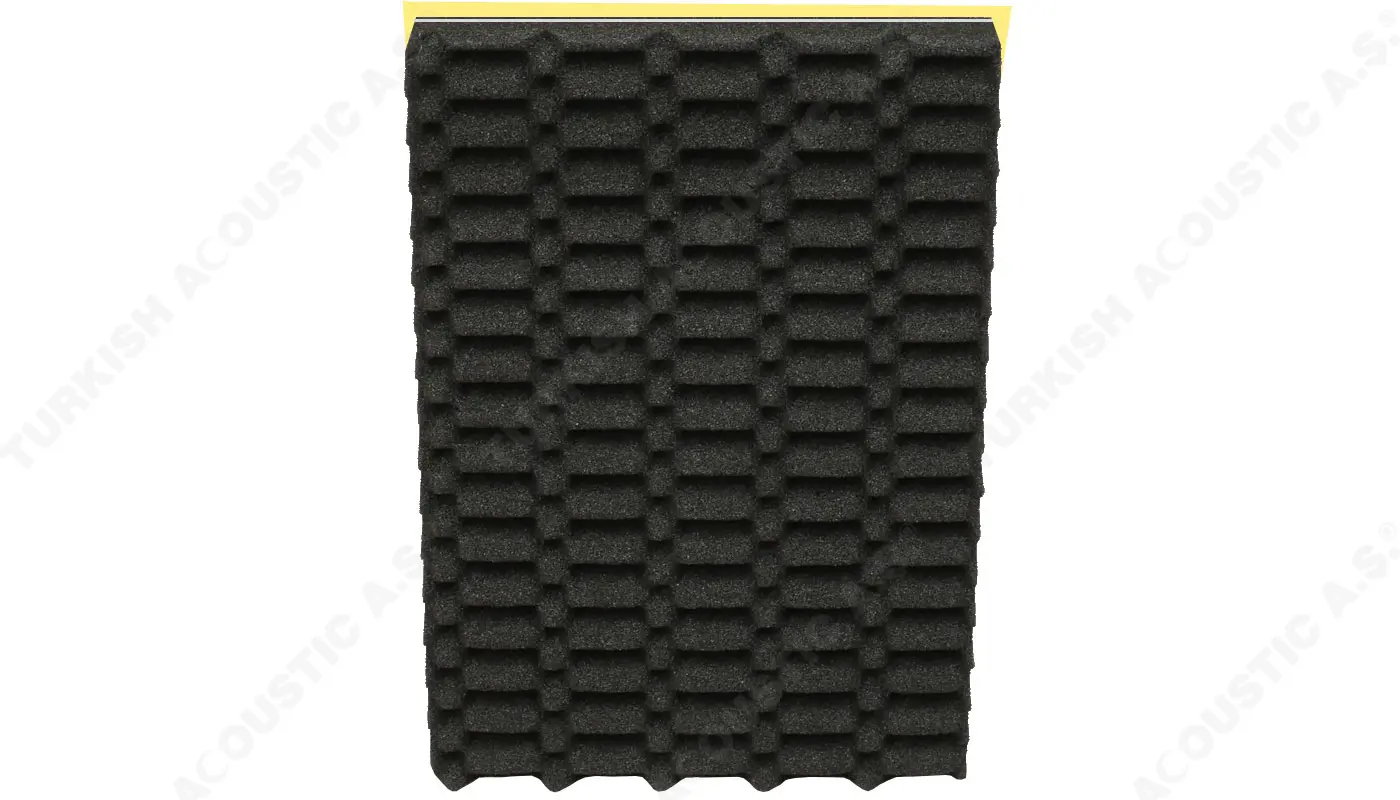

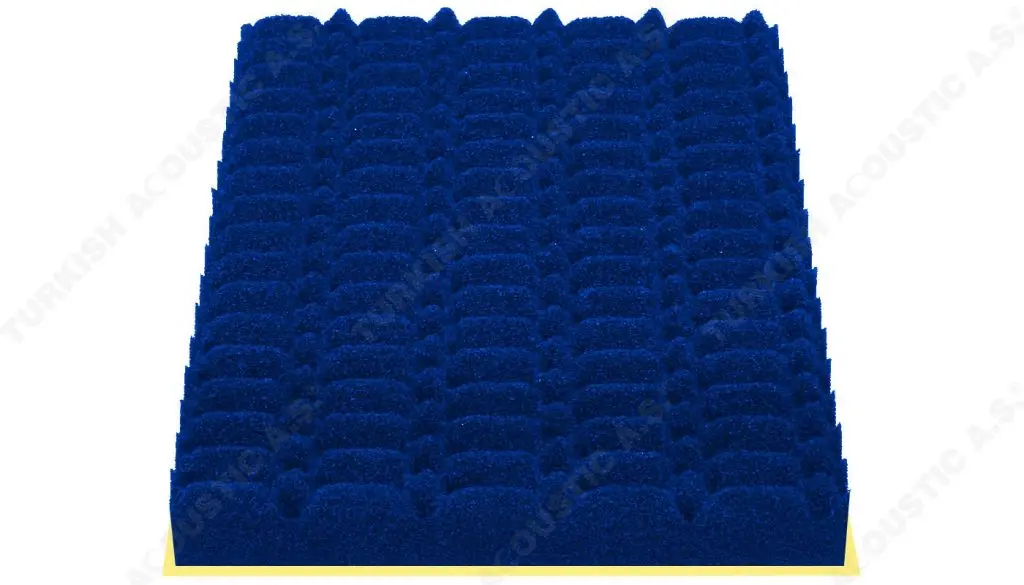

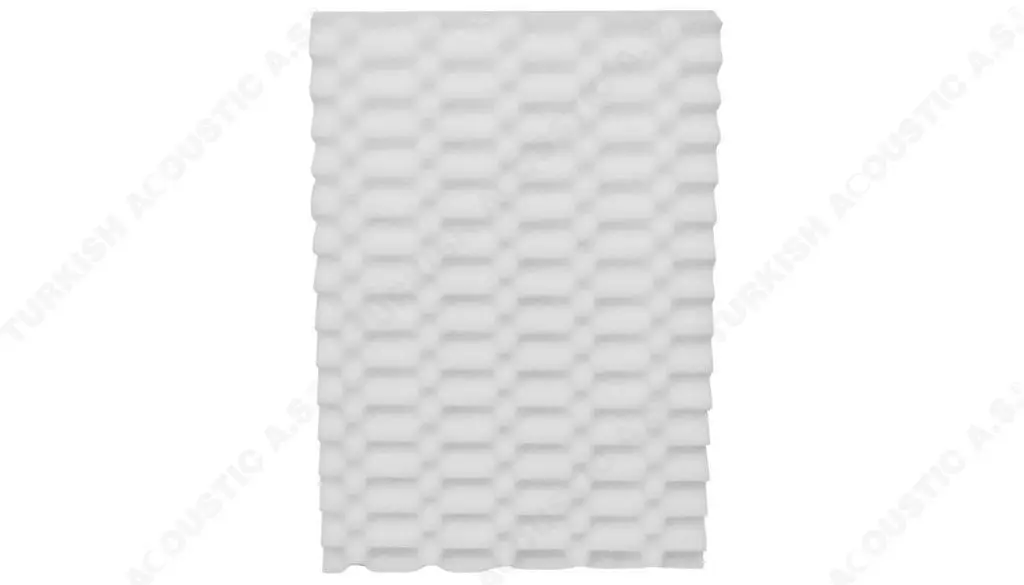

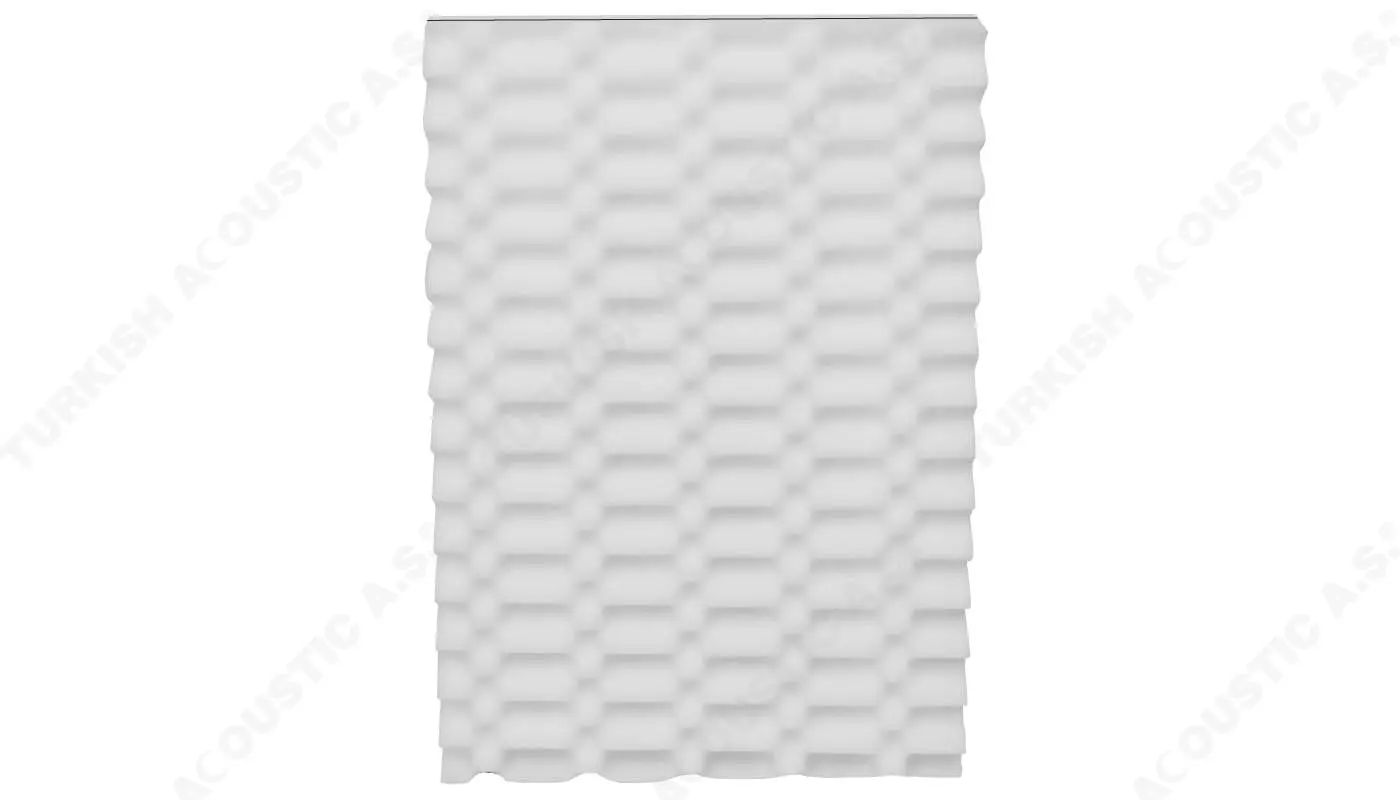

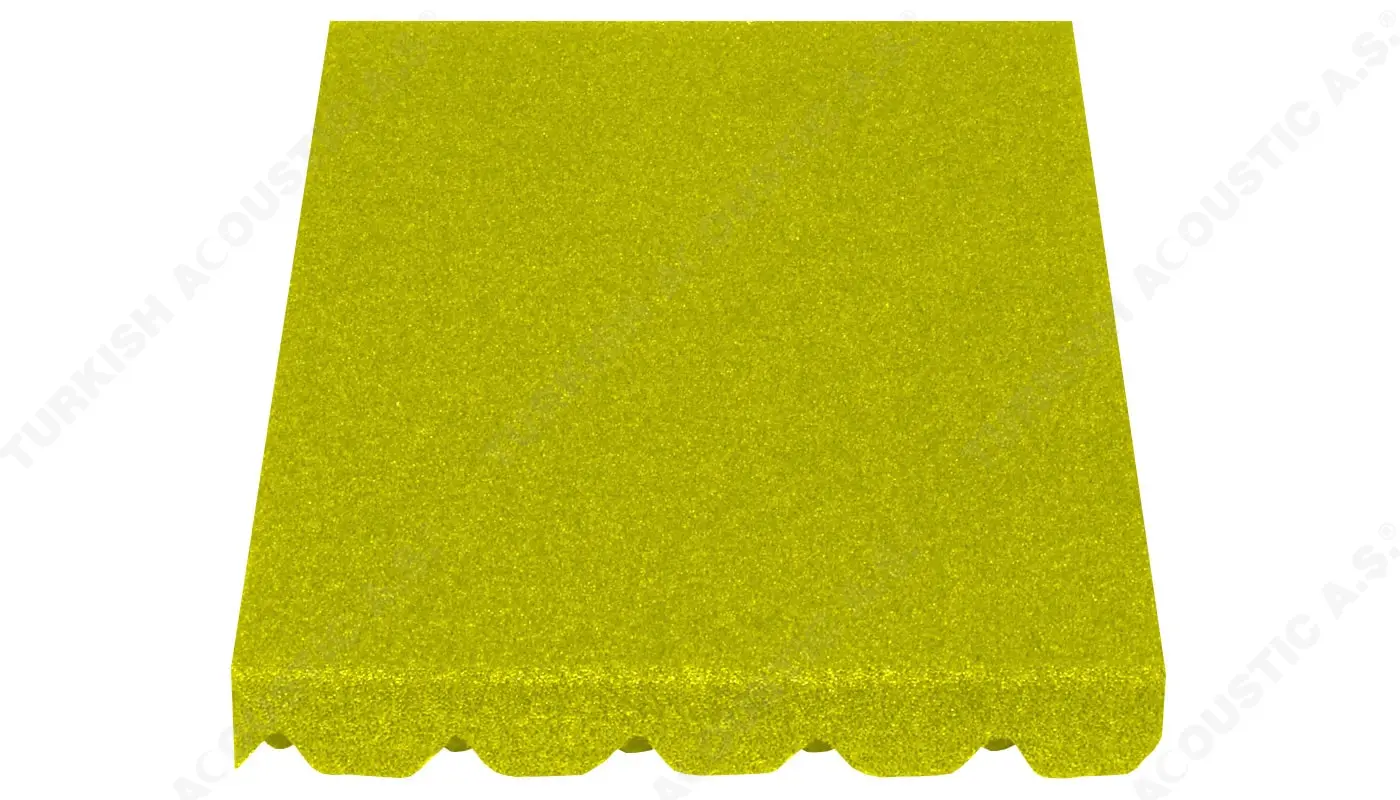

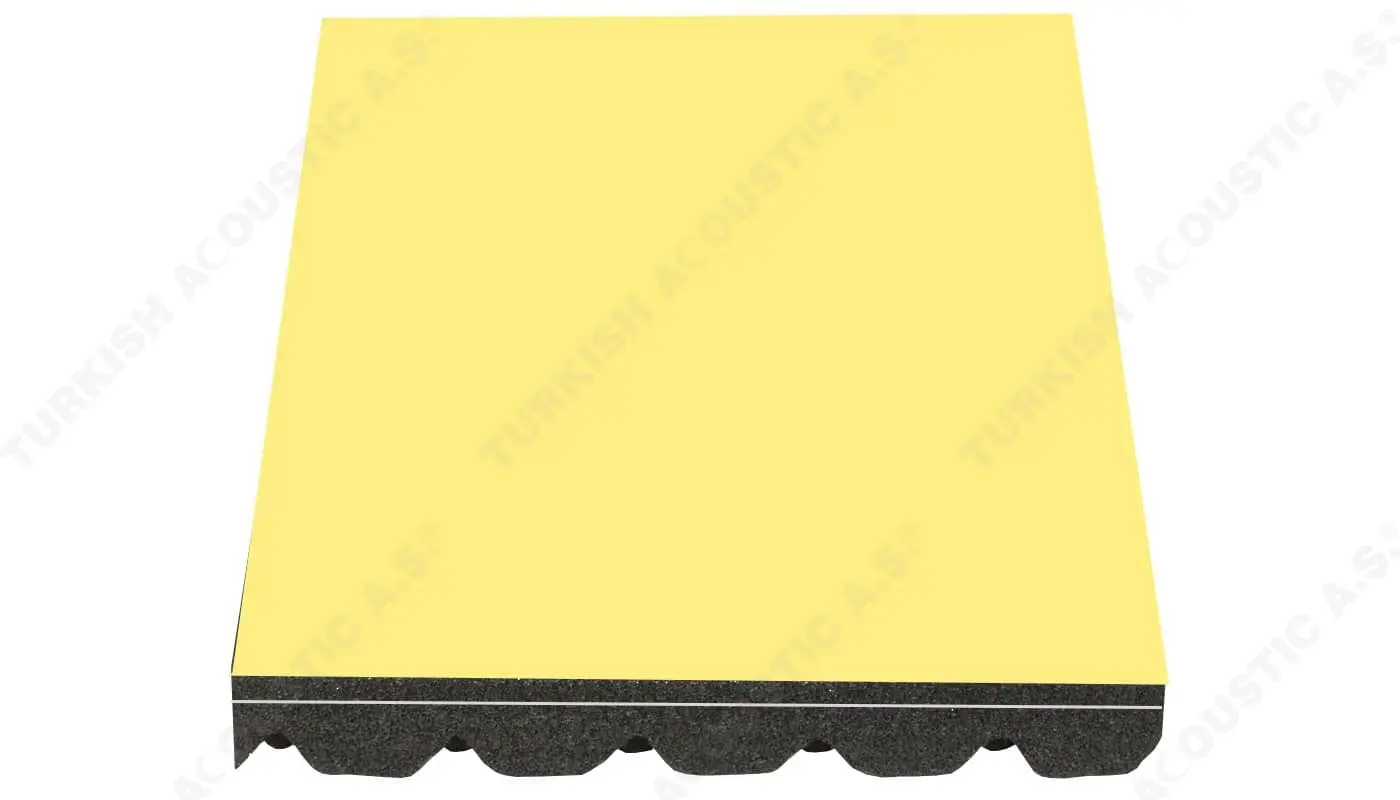

Fireproof Special Foam: Fireproof special foam provides highly efficient sound insulation thanks to its special texture / structure. In addition to highly effective sound insulation and sound insulation, fireproof special foam sponges have high acoustic properties and provide sound regulation. Fireproof special foam sponge is an acoustic material that provides the best performance in the acoustic material class. In addition to being colored and self-adhesive if you wish, fireproof special foam sponges can also be used with heavy rubber epdm barrier to increase the insulation performance by increasing the loss of sound transmission. Acoustic sponges, also known as Acoustic Specials (pyramid sponges), are acoustic sponges produced from polyurethane raw material with high sound absorption values. Acoustic fireproof special foam sponge, Non-flammable sponges offer effective solutions in acoustic regulation with their open pore and flexible structure. Sponges made of first class materials can be used in many areas. Acoustic fireproof special foam sponge, special foam sponge model with barrier, which is among the special produced sponge types, has a flexible and easily applicable structure.
Fireproof Special Foam Sponge Dimensions : 100 cm x 100 cm Plate dimensions, 30 mm and 40 mm are offered for retail sale.
Fireproof Special Foam Package Contents : Acoustic Special foams 100 cm x 100 cm size plate 10 pieces are sold in a package. 1 Pack 10 m² Sold.

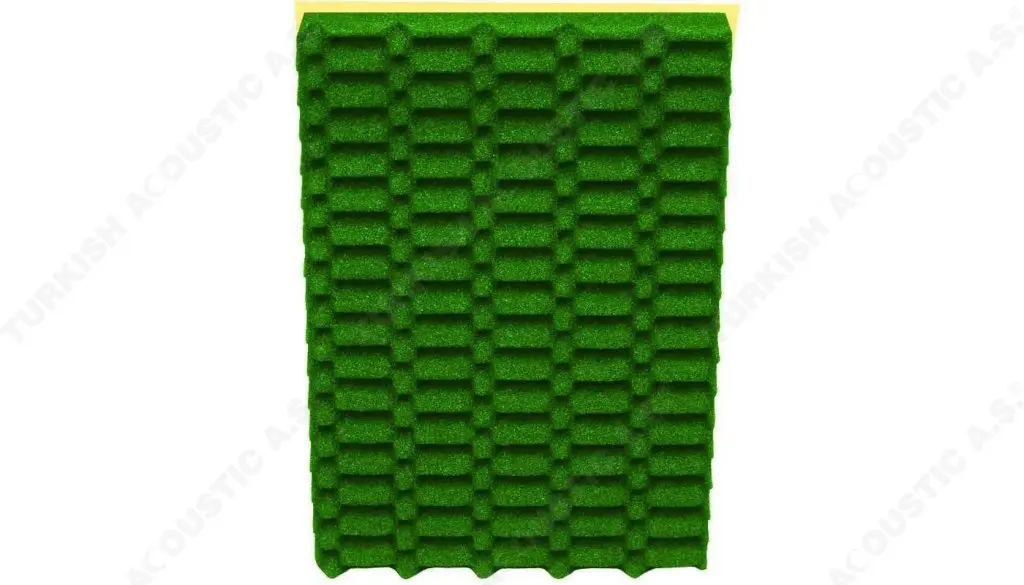

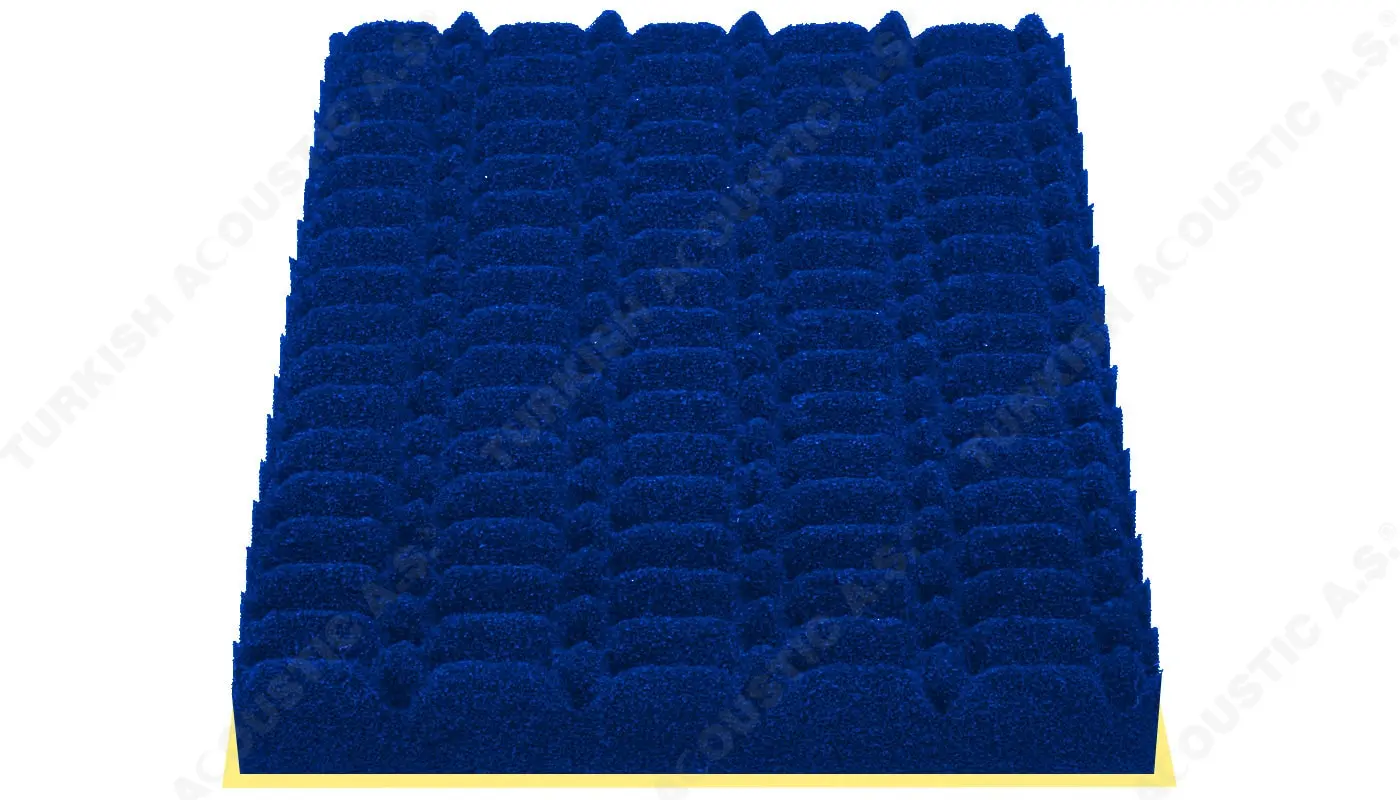

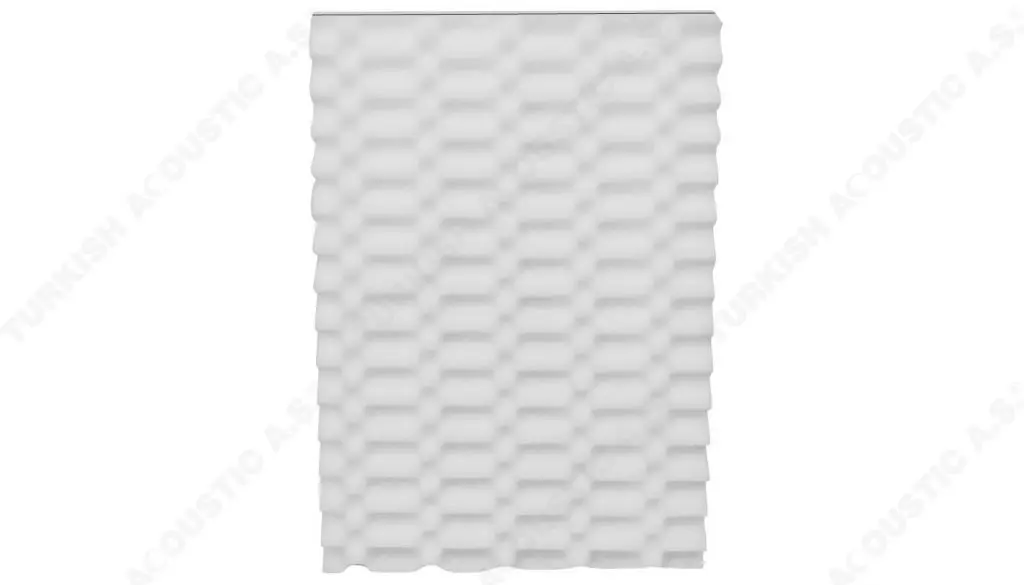

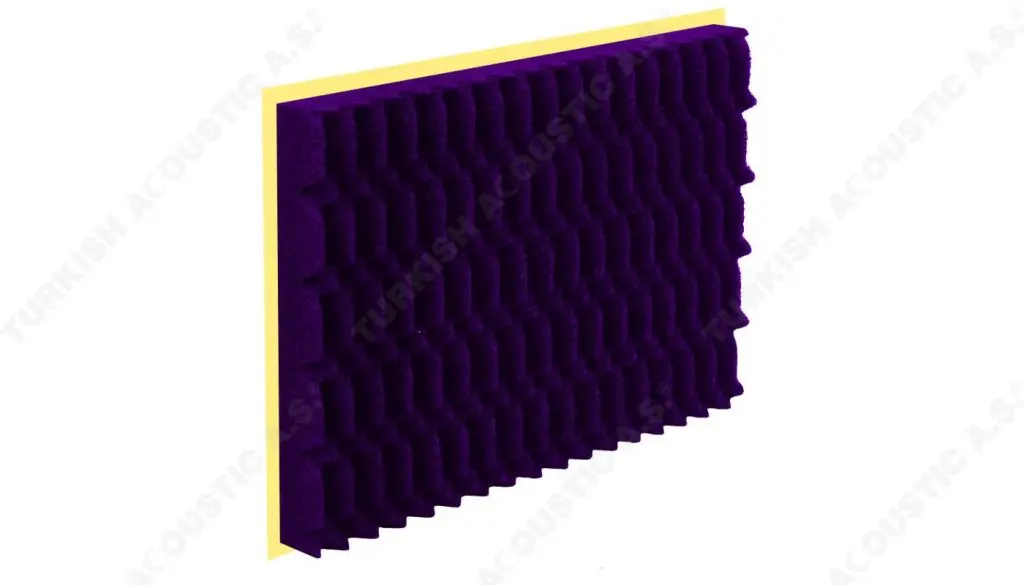

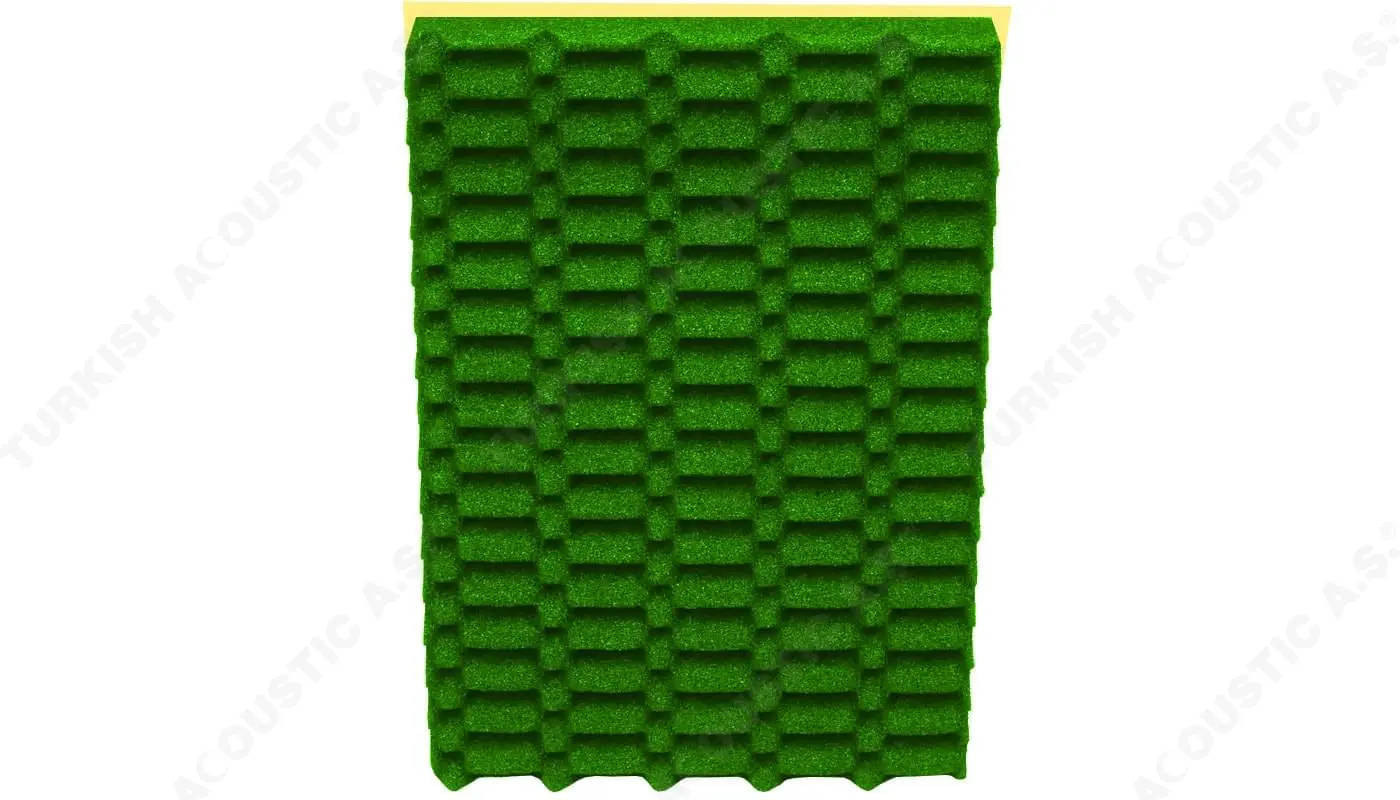

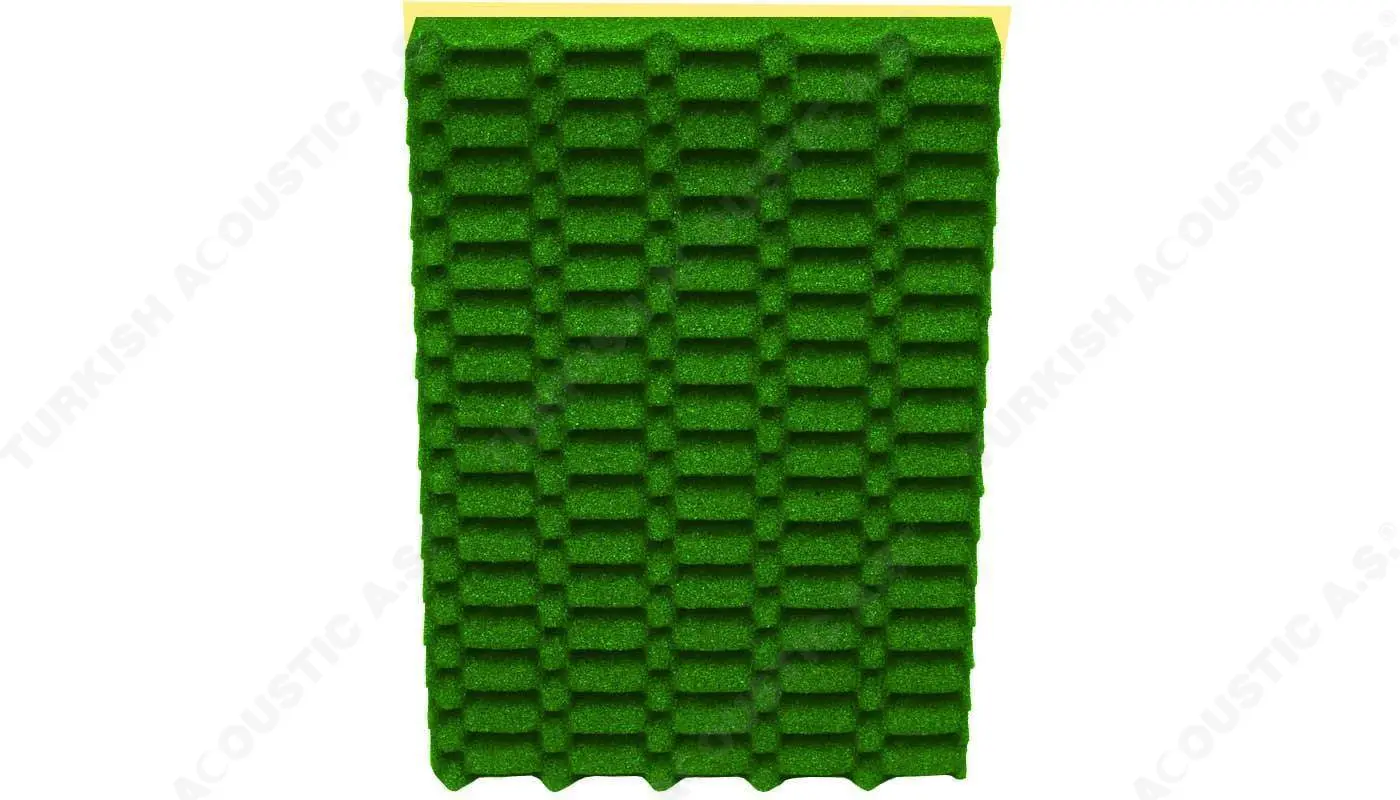

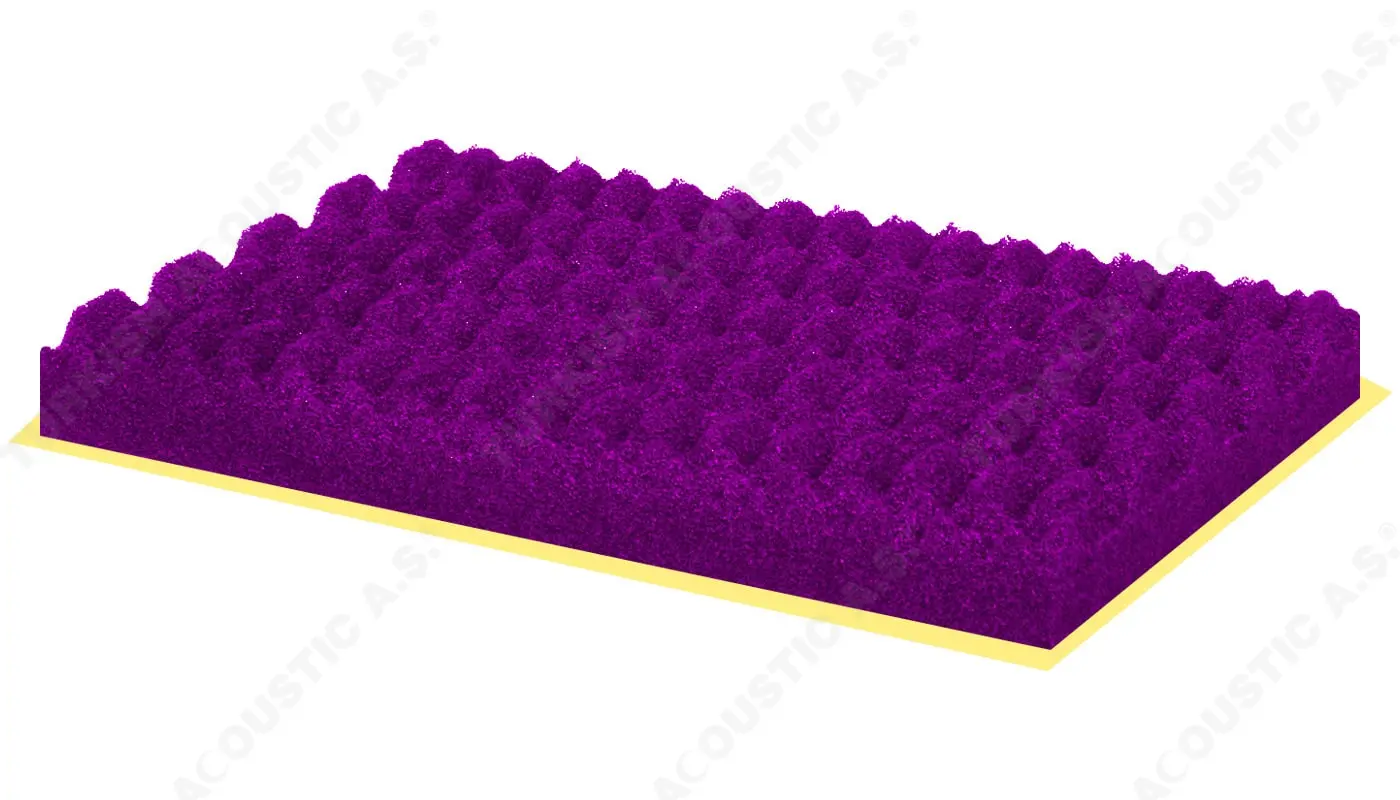

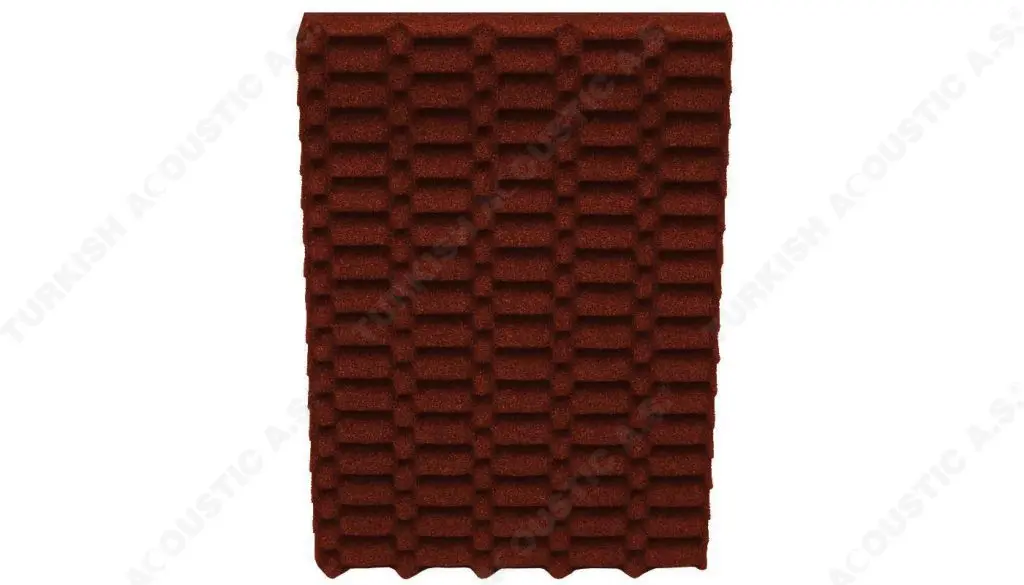

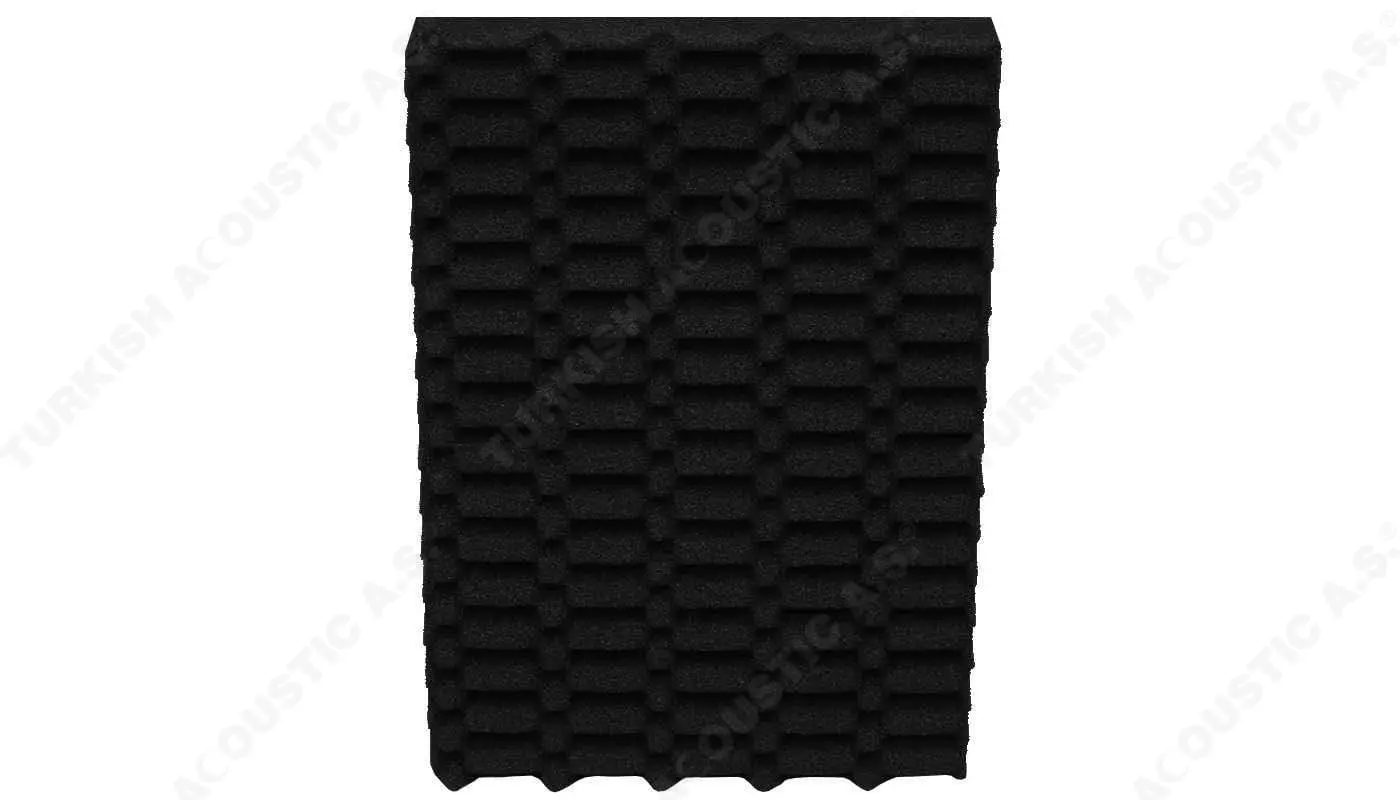

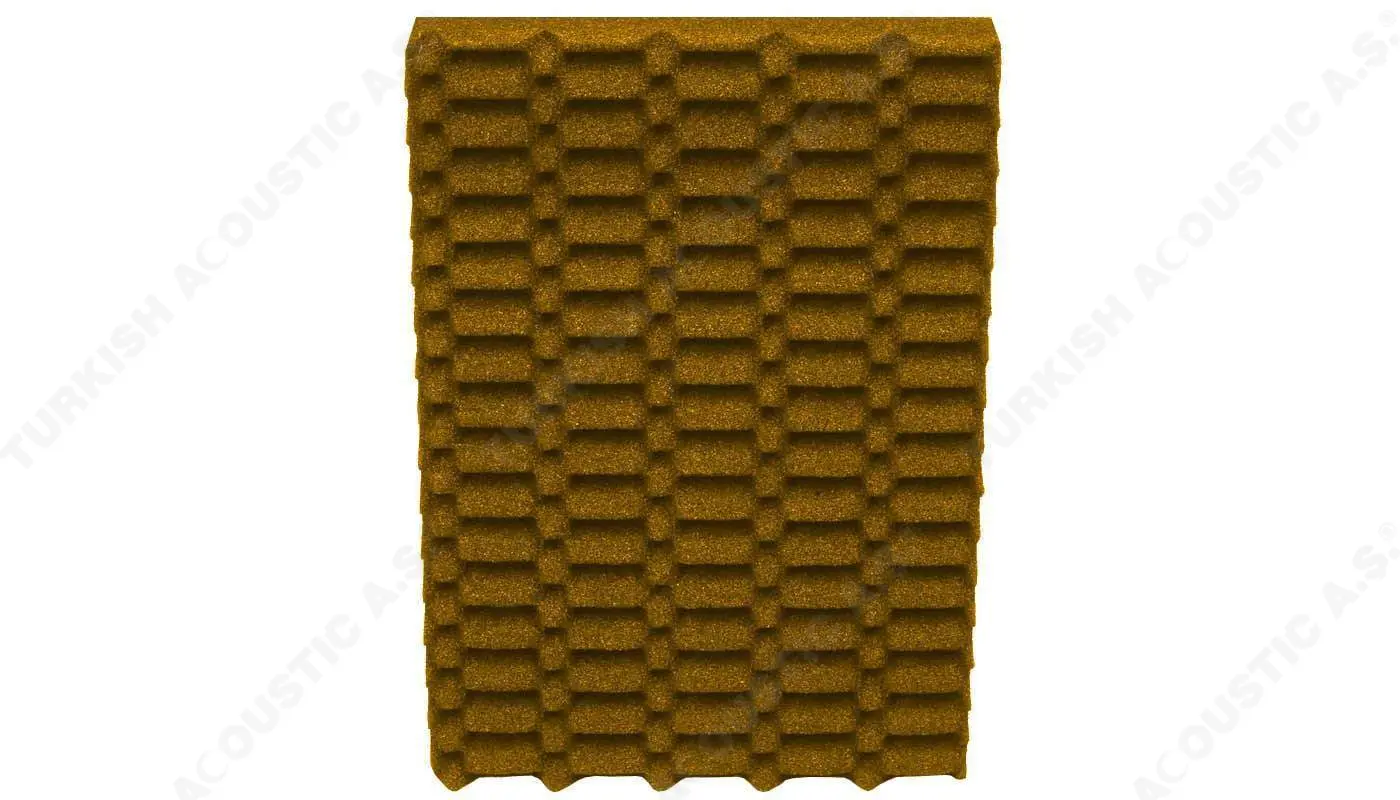

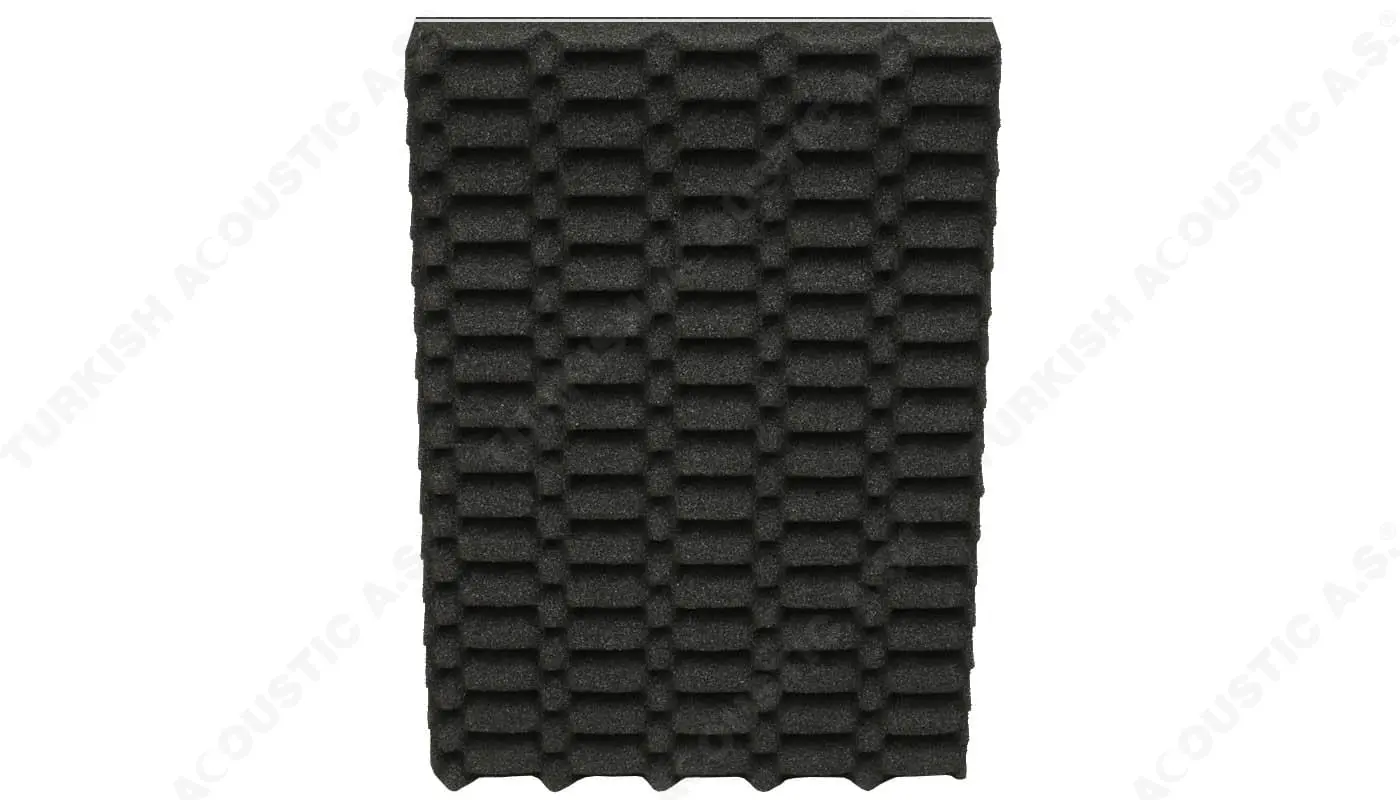

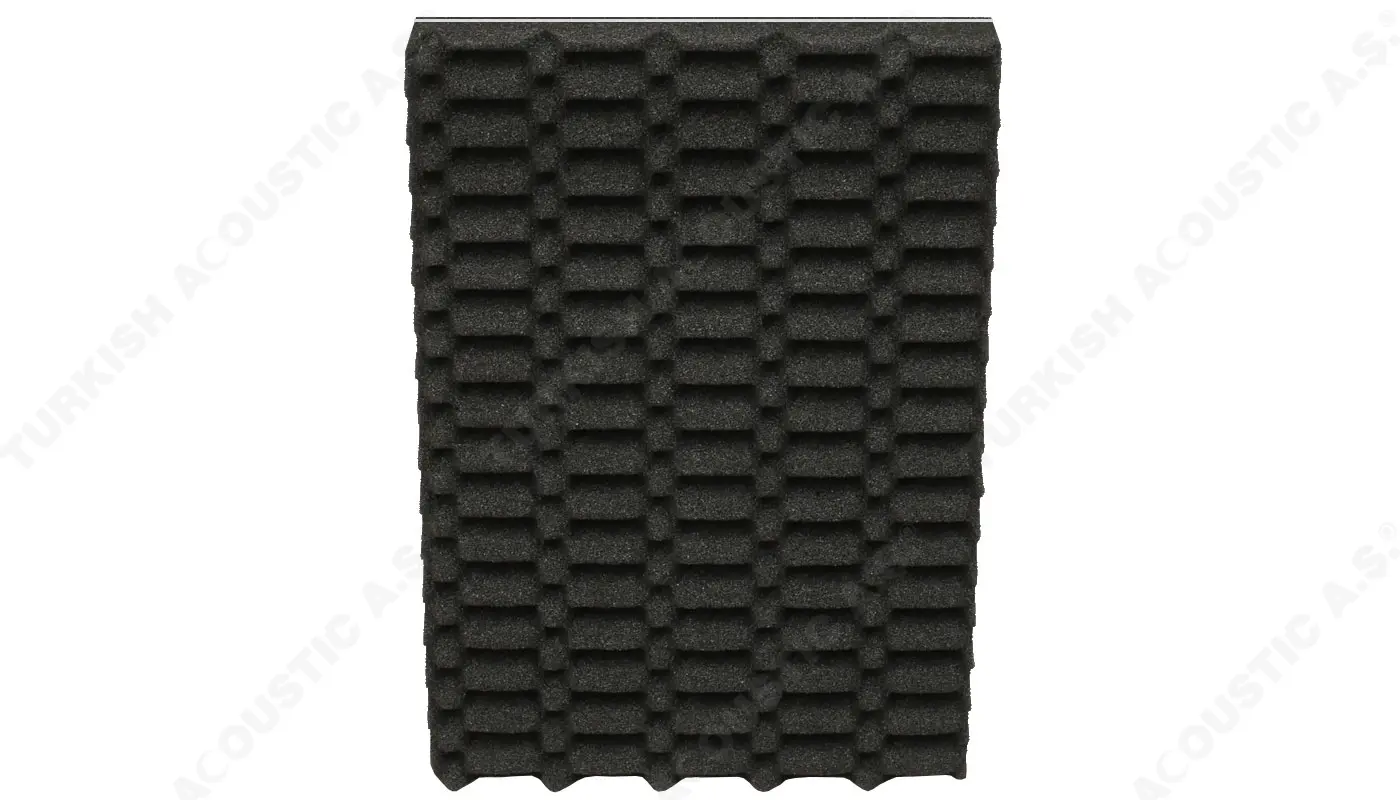

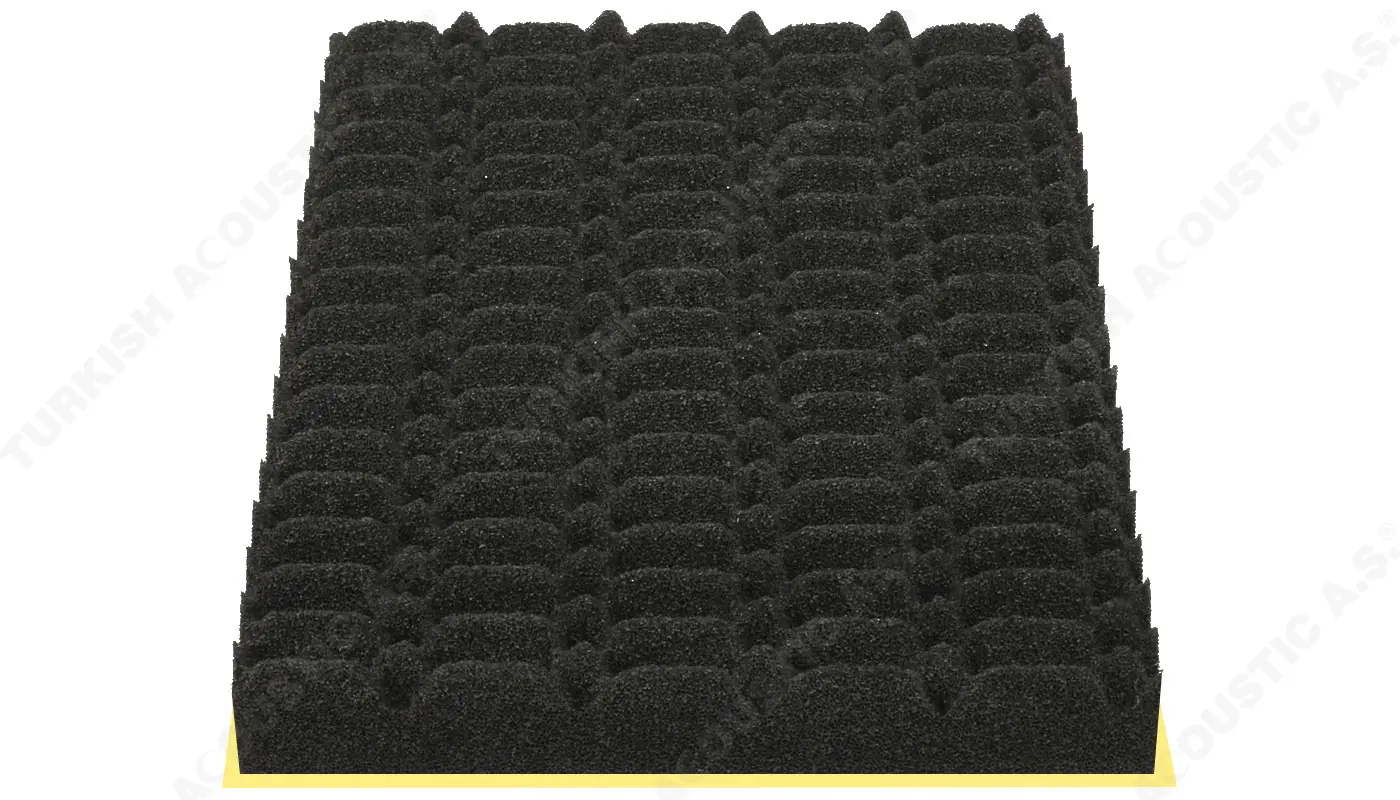

Fireproof Special Foam Color Types : Black (dark andesite gray) is sold as standard, colored production is possible.
Fireproof Special Foam Usage Areas : Music room, studio, generator cabin, radio broadcasting house, sports hall, entertainment venues.
Fireproof Special Foam Production : Production of special thickness 50 mm and above is possible. Custom cut to size is possible. Colors RAL chart
Fireproof Special Foam Fireproof : Non-flammable / non-flammable Firend ; It has BS476: class 0 and UNI 9175: 2008 M1 certificates in flammability.
Fireproof Special Foam Density : 50 to 60 Kg / M³ Special production is possible in desired density and thickness.
Note: 30 mm product is between 25 - 30 mm, 40 mm is in tolerable thicknesses between 35 - 40 mm.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Acoustic special sponges are in the form of 100 cm x 100 cm plates and their packages contain 10 plates, ie 10 m² of products. It is sold retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
