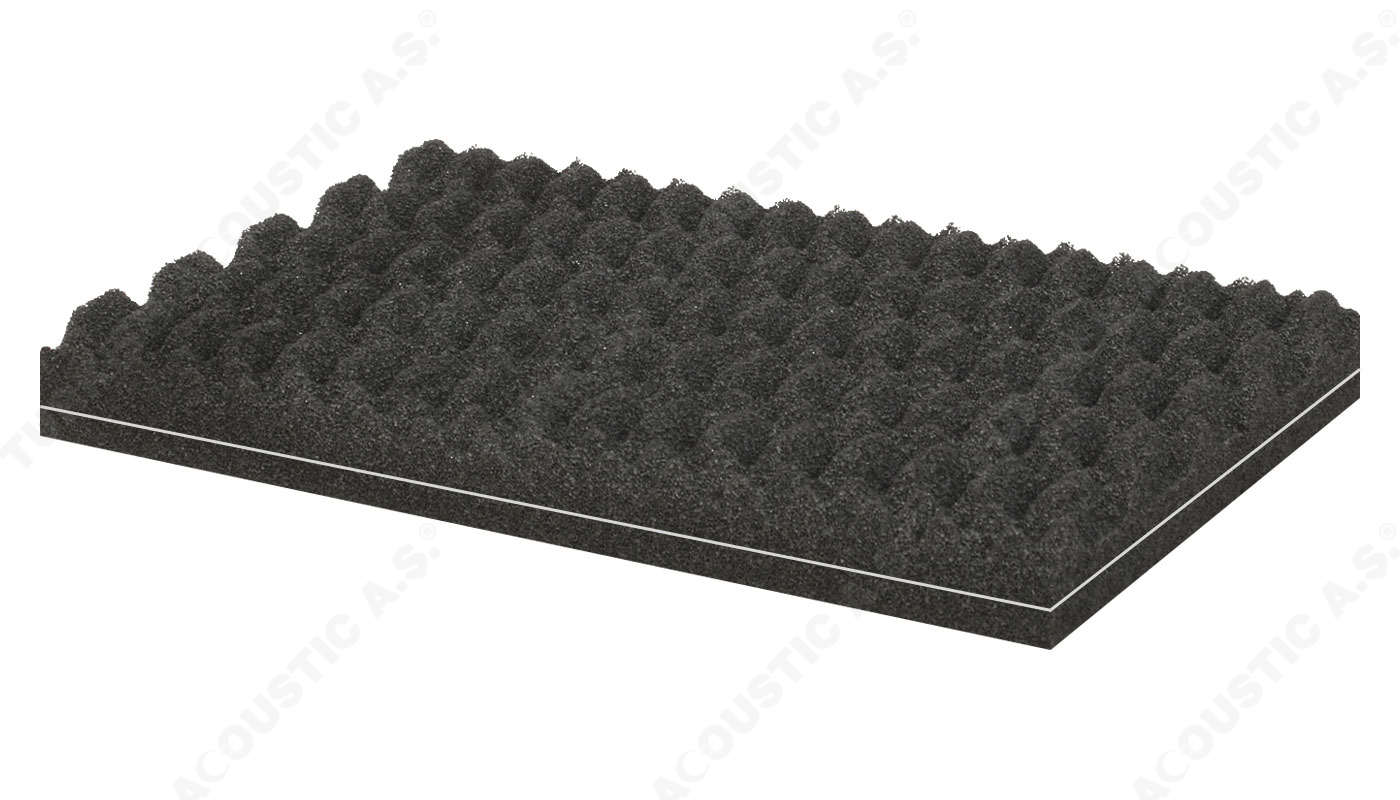

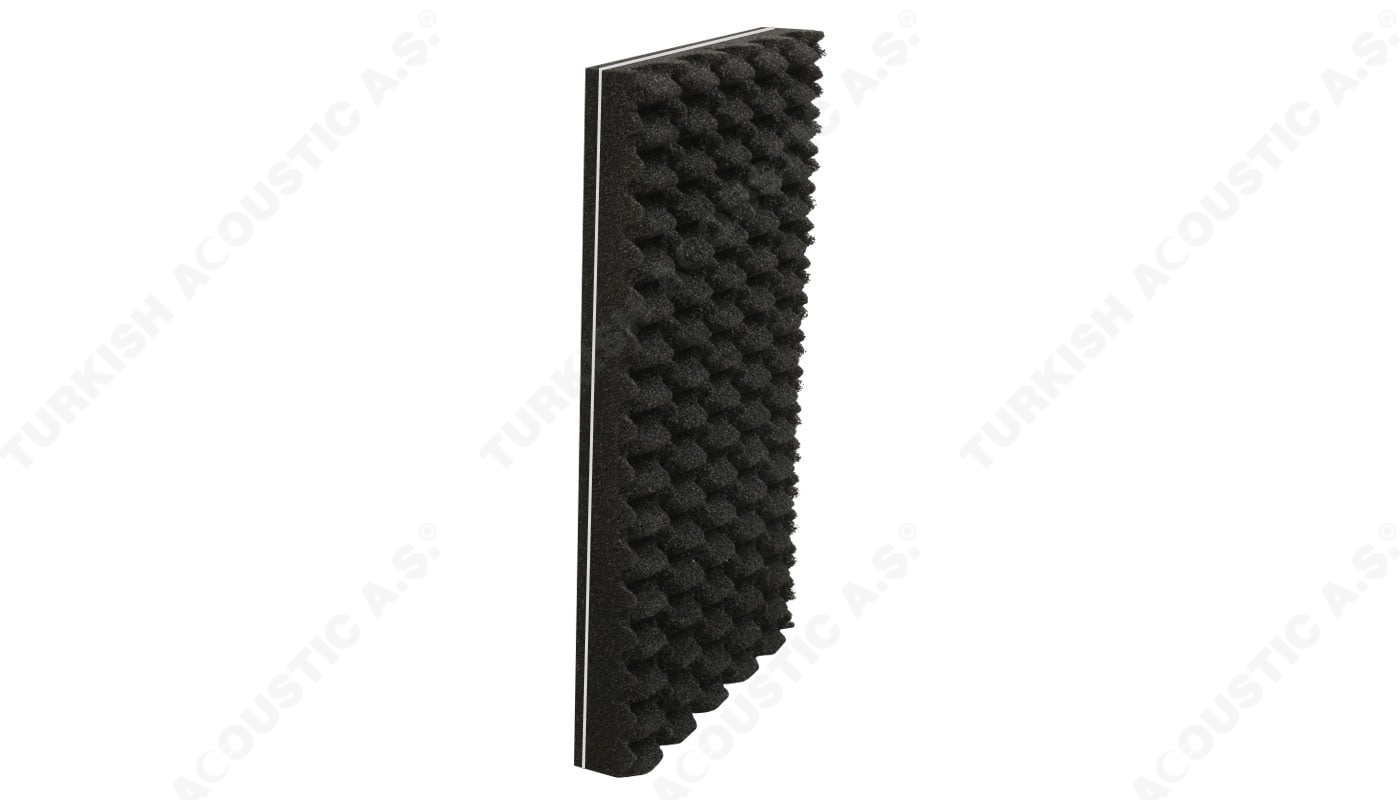

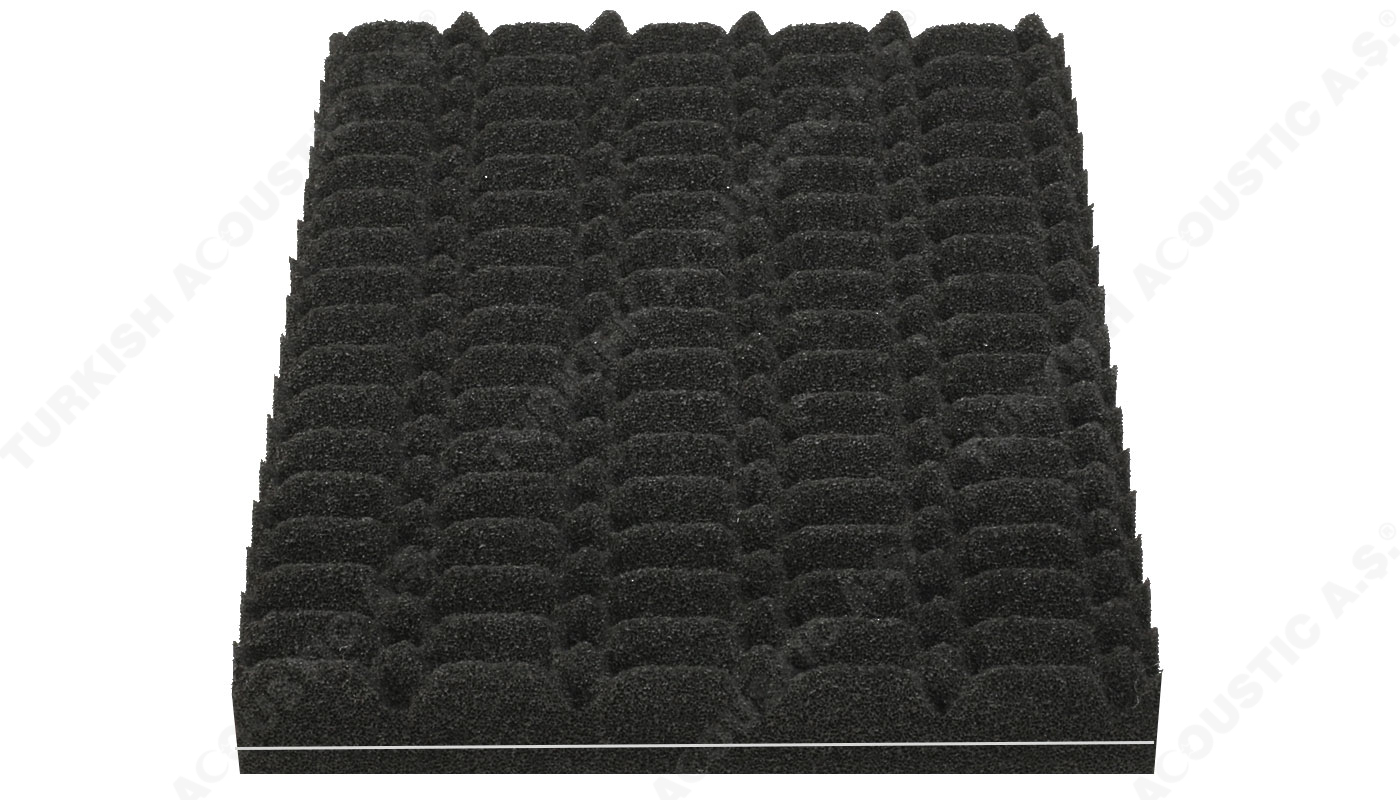

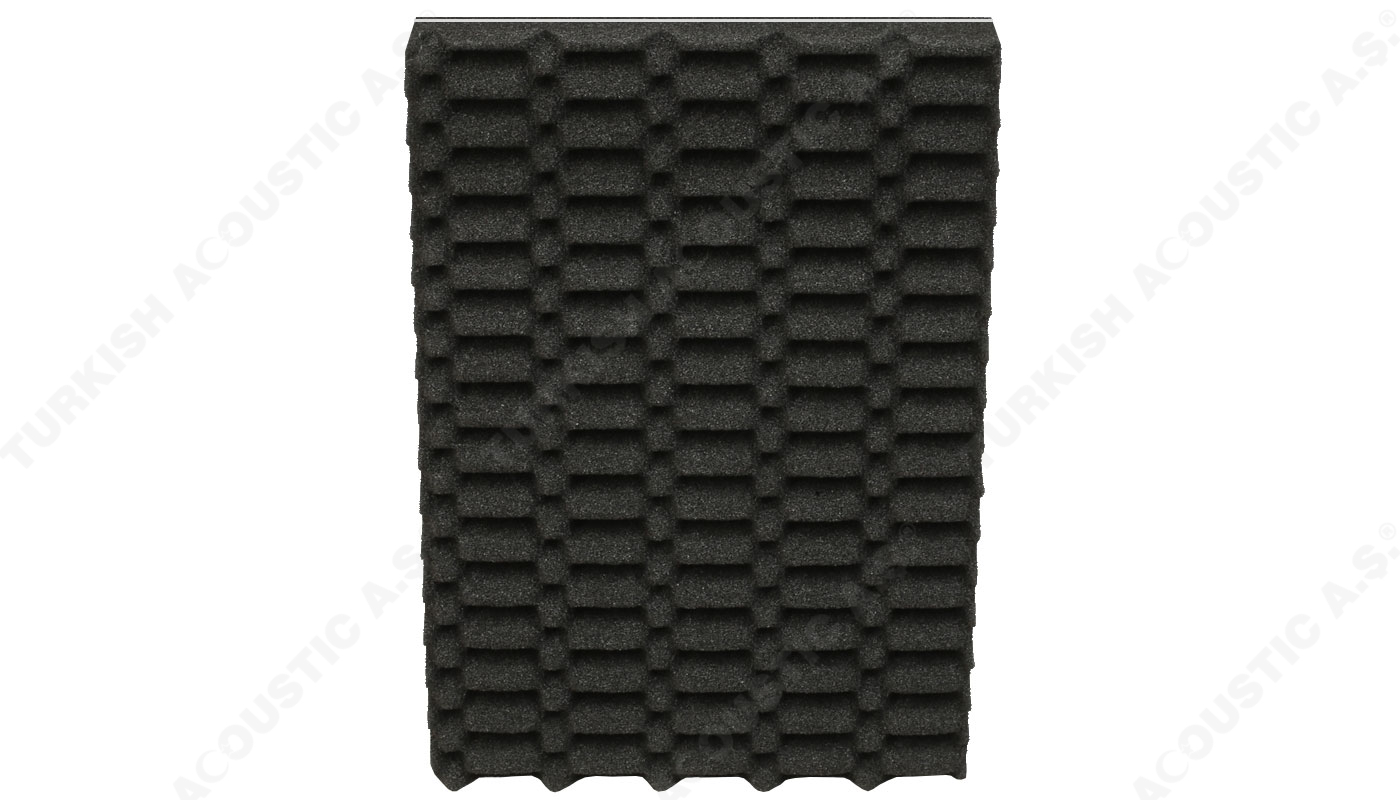

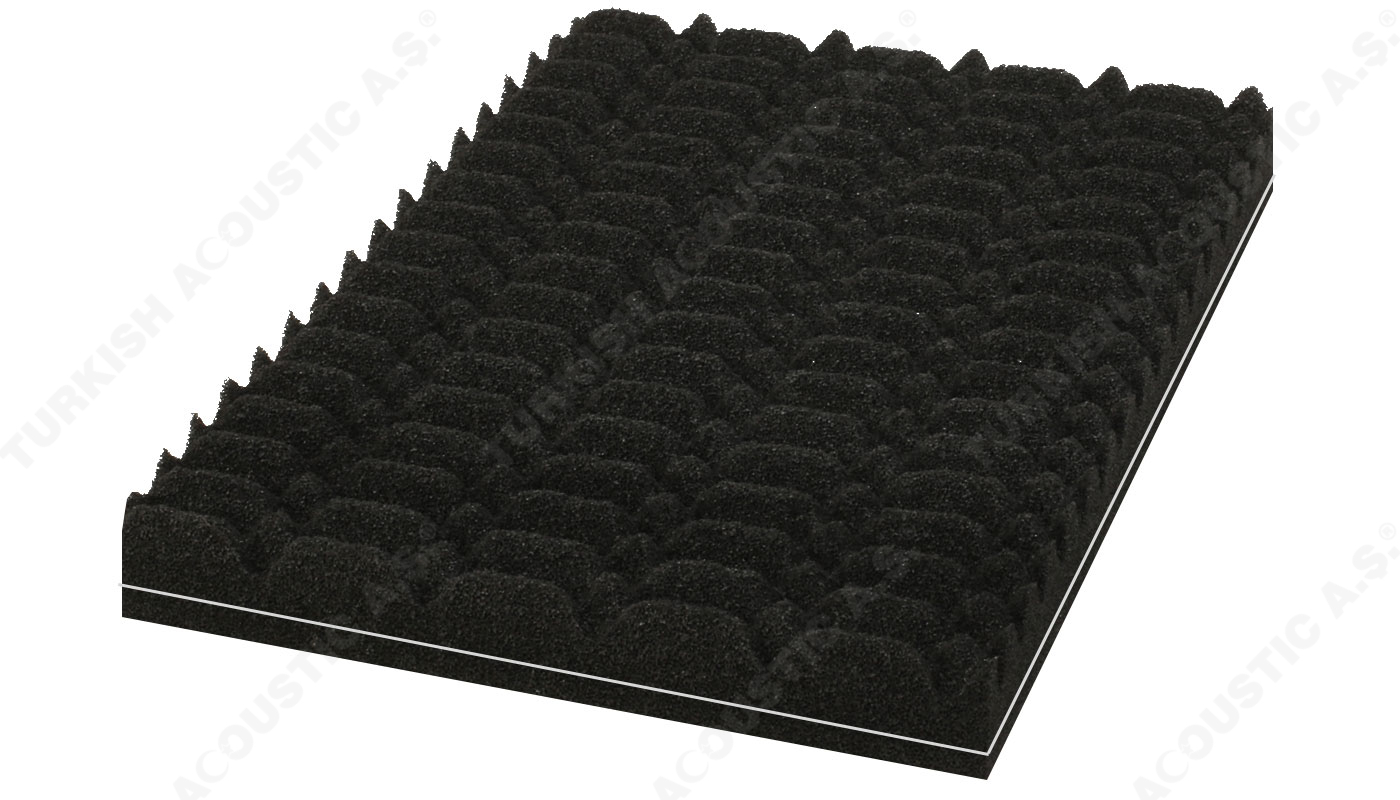

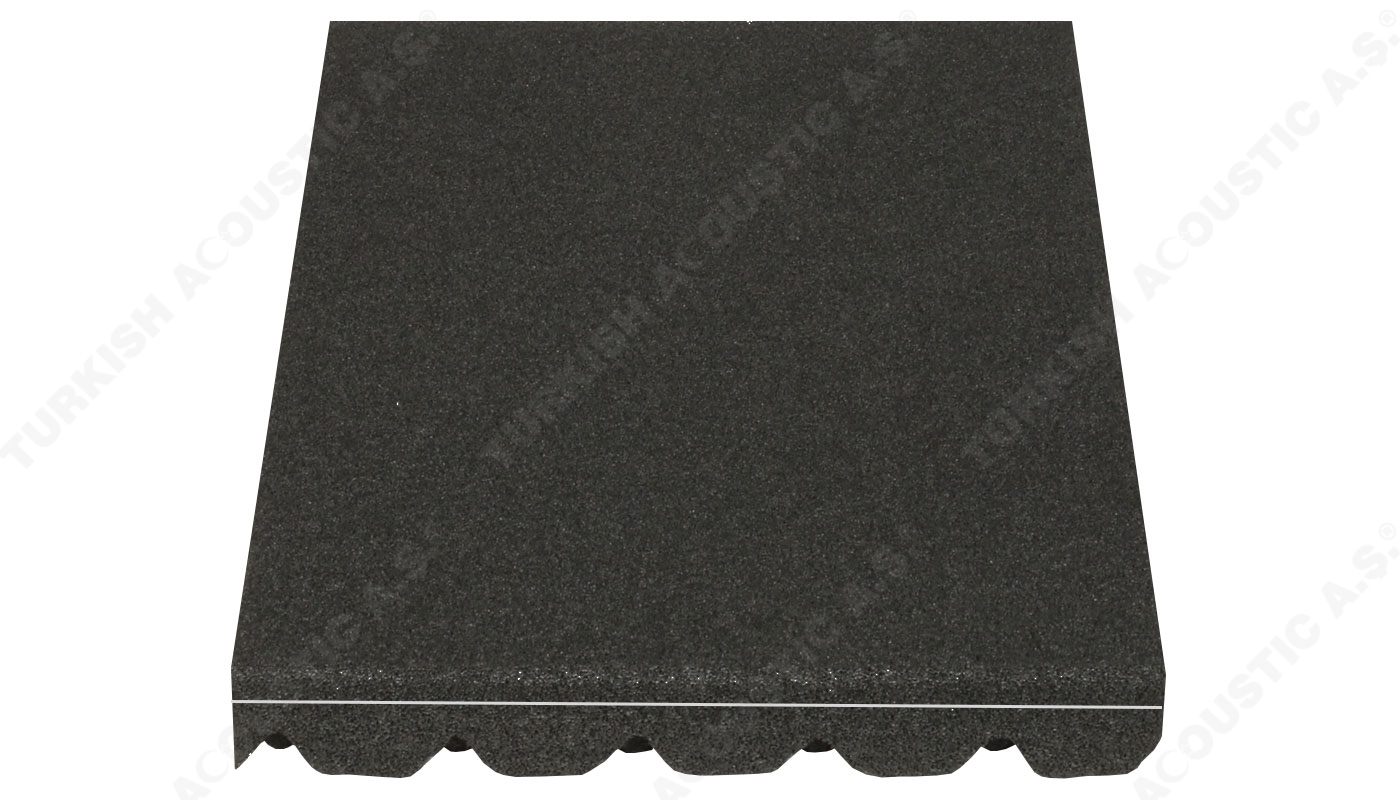

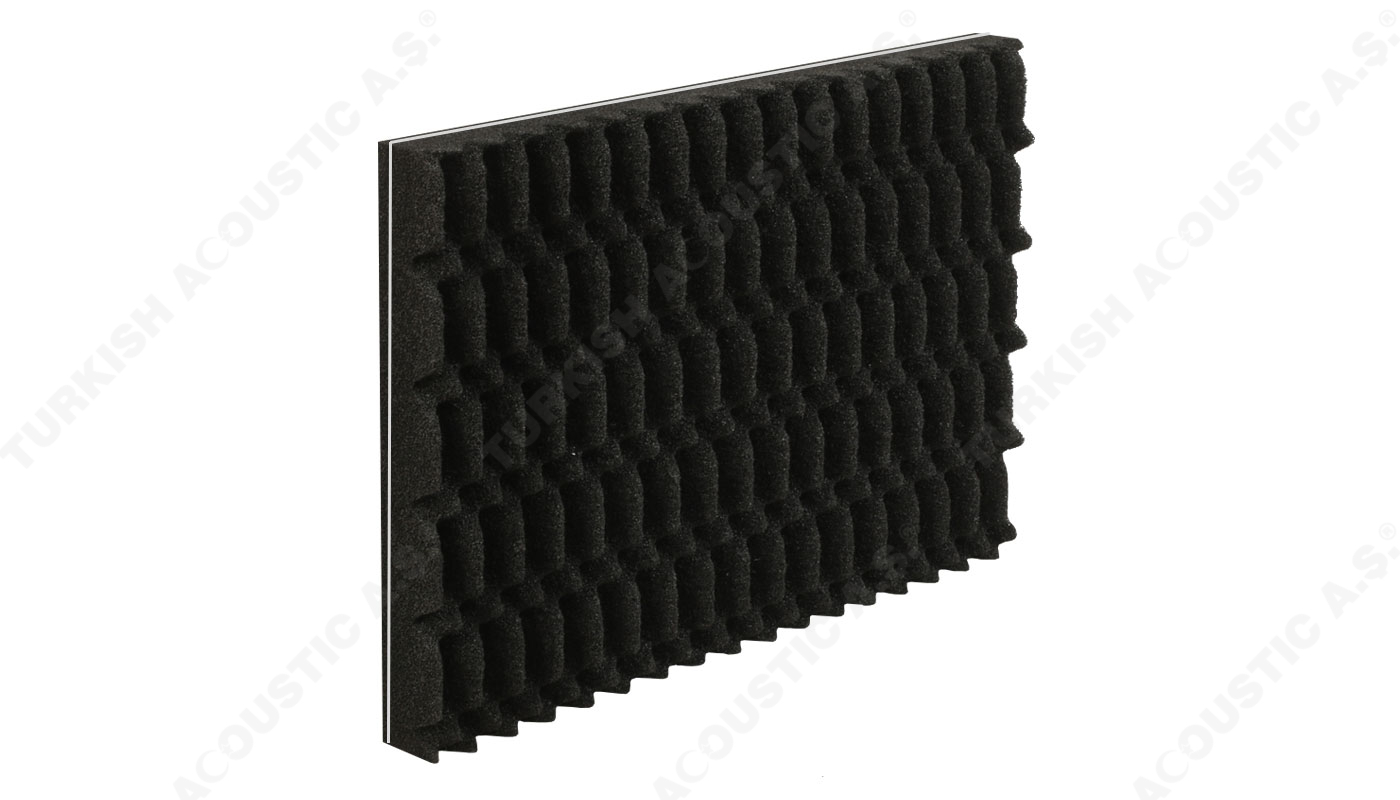

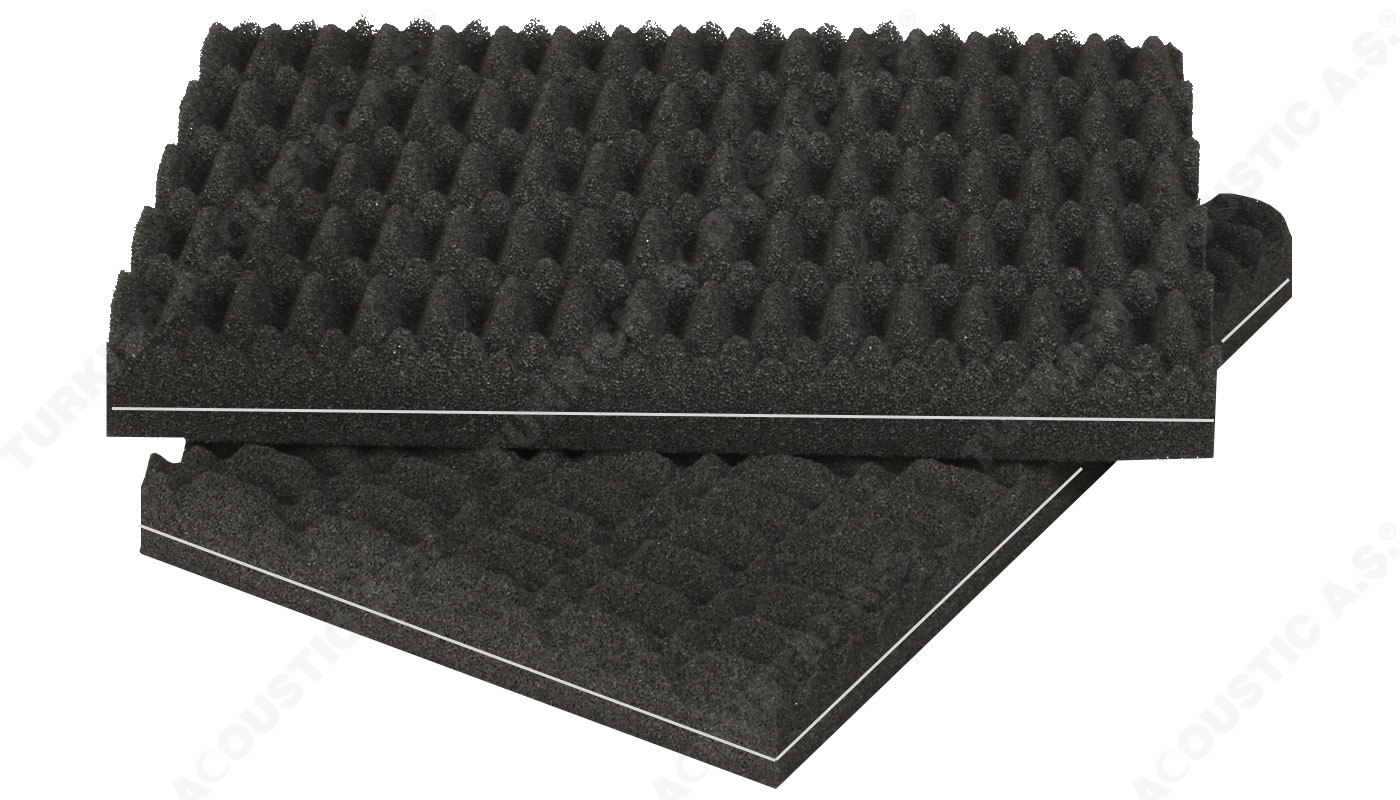

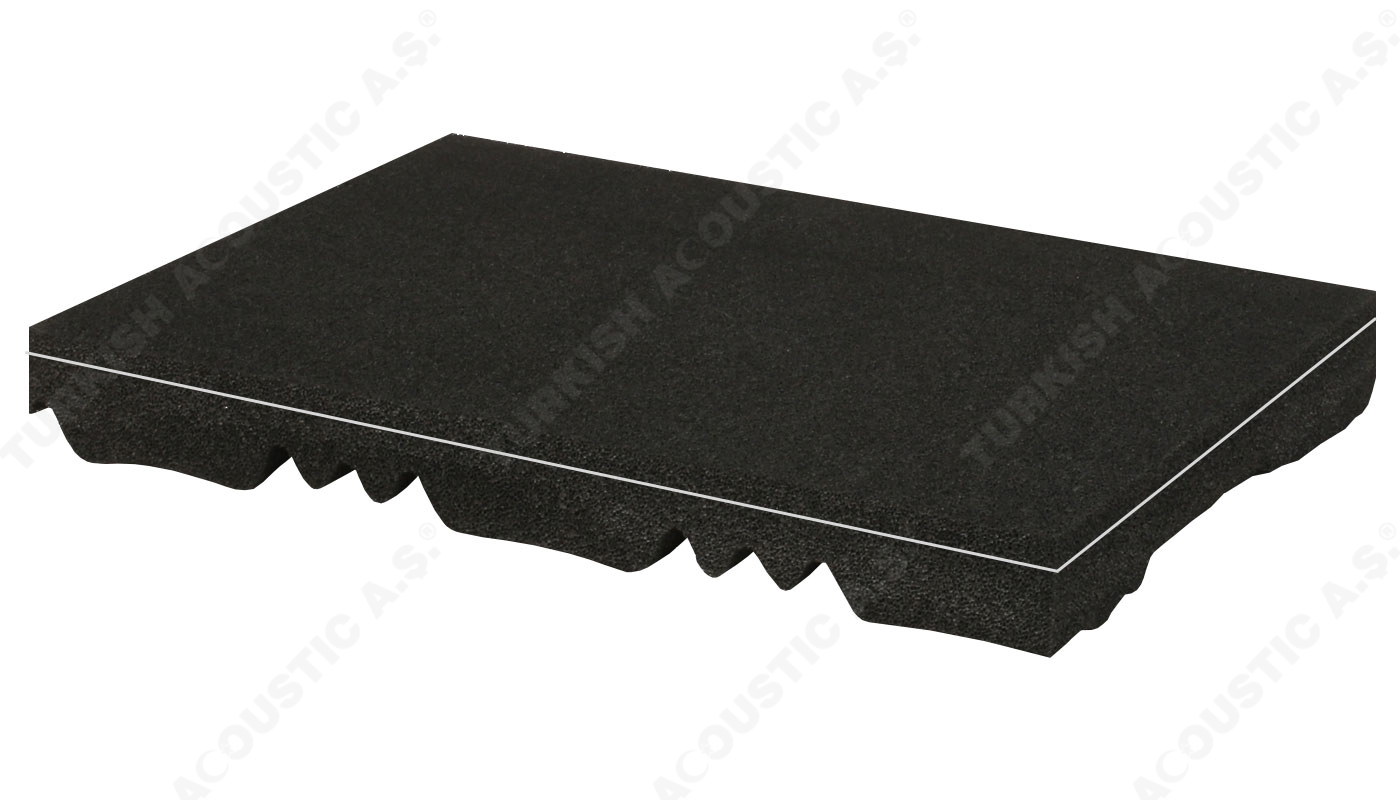

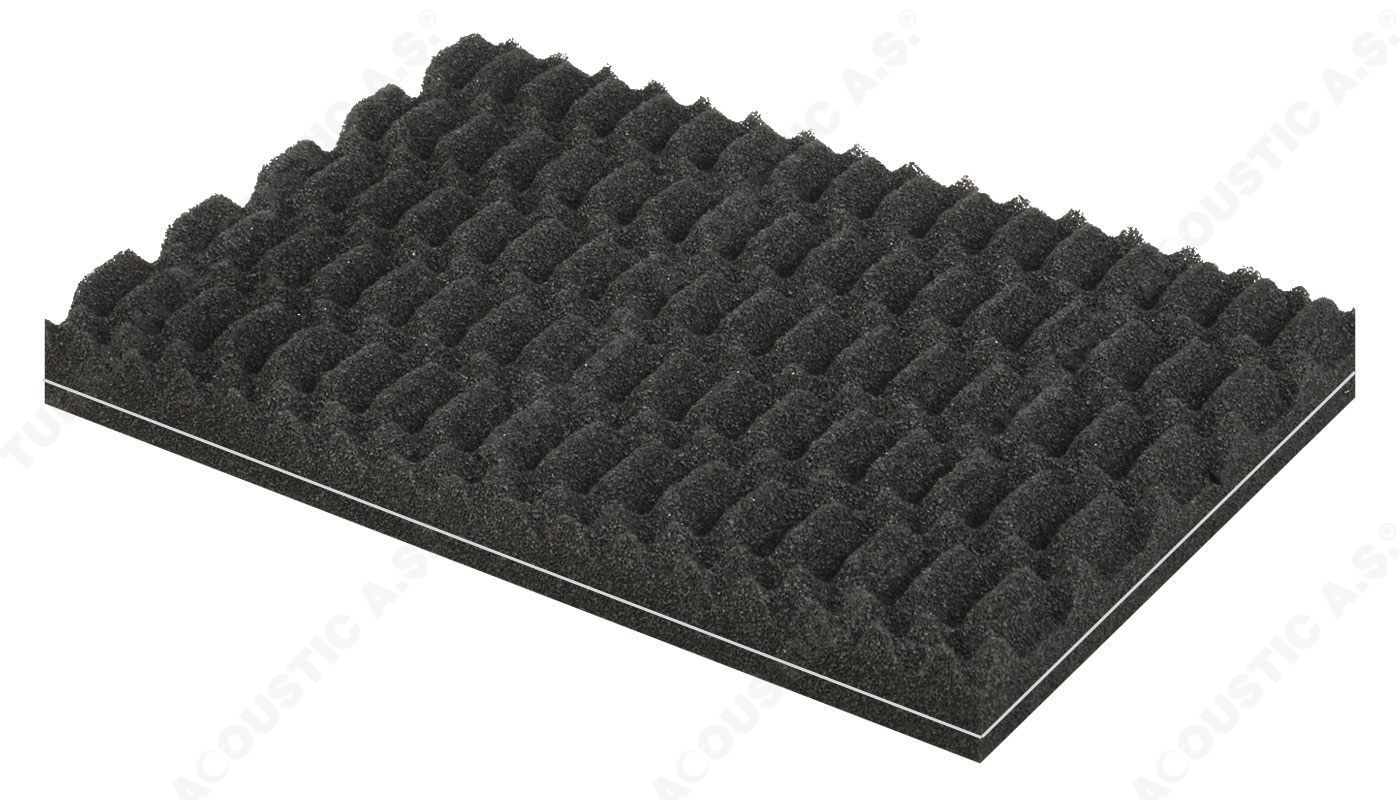

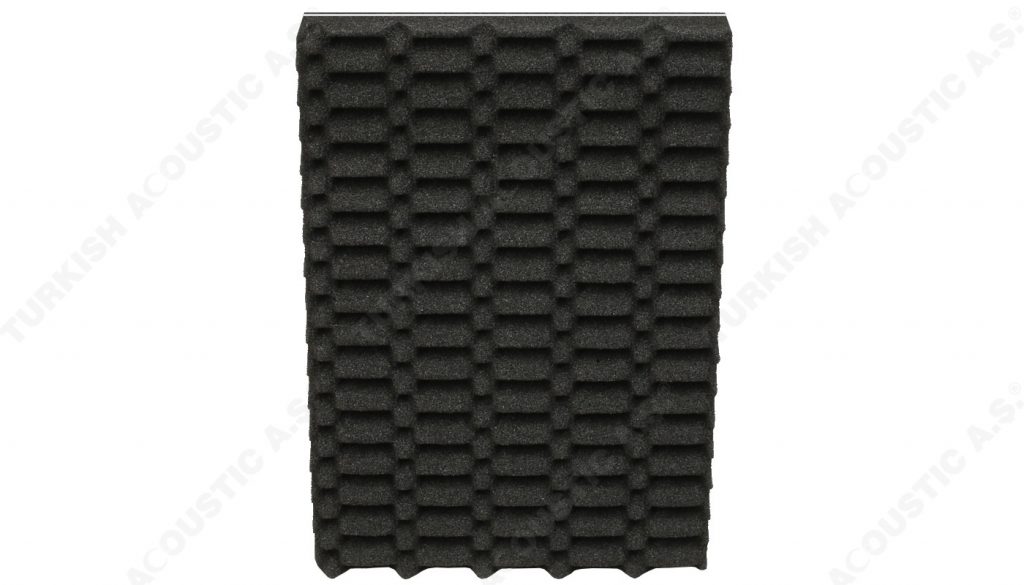

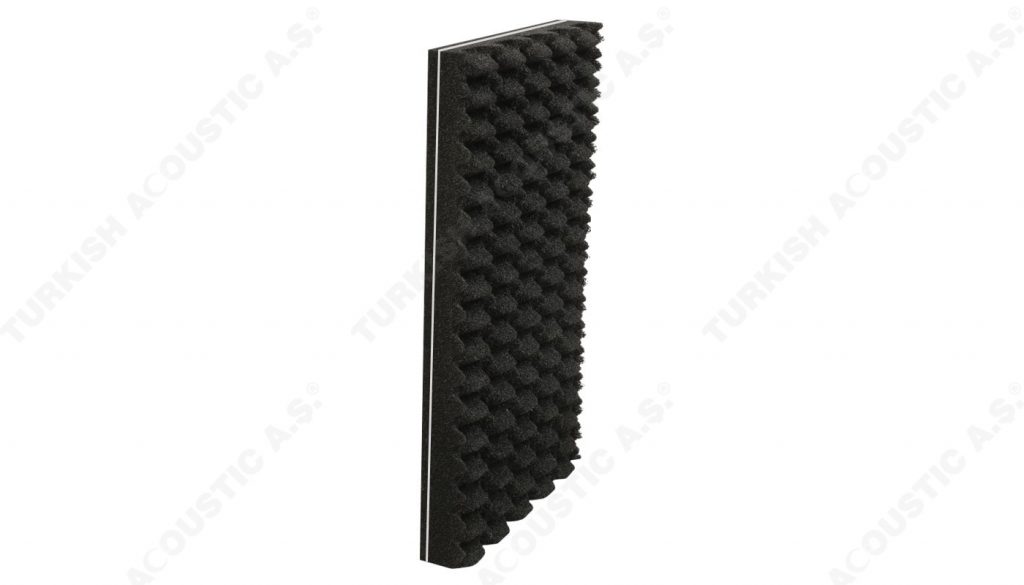

Barrier Special Sponge : Special barrier sponge provides highly efficient sound insulation thanks to its special texture / structure. Barrier special sponges provide highly effective sound insulation and sound insulation, as well as high acoustic properties and regulate the sound. Heavy lead barrier special sponge is an acoustic material that provides the best performance of the acoustic material class. Barrier acoustic special sponges are colored and self-adhesive if you wish, as well as by using heavy rubber EPDM barrier between them, the sound transmission loss is increased and insulation performance is increased. Acoustic sponges, also known as barrier specials (pyramid sponges), are acoustic sponges produced from polyurethane raw material with high sound absorption values. Acoustic special sponge, Non-flammable sponges offer effective solutions in acoustic regulation with their open pore and flexible structure. Sponges made of first class materials can be used in many areas. Acoustic special sponge, special barrier sponge model, which takes its place among special production sponges, has a flexible and easily applicable structure.
Barrier Special Sponge Dimensions : 100 cm x 100 cm Plate dimensions, 30 mm and 40 mm are offered for retail sale.
Special Barrier Sponge Package Contents : Special Barrier Sponges 100 cm x 100 cm sized plates are sold in 10 packages. 1 Pack 10 m² Sold.
Barrier Special Sponge Color Types : Black (dark andesite gray) are sold as standard, colored production is possible.
Barrier Special Sponge Usage Areas : Music room, studio, generator cabin, radio publishing house, gym, entertainment venues.
Barrier Special Foam Production : It is possible to produce special thickness 50 mm and above. Custom cut to size is possible. Colors RAL chart
Barrier Special Sponge Fireproof : Non-flammable / non-flammable Firend ; It has BS476: class 0 and UNI 9175: 2008 M1 certificates in flammability.
Barrier Special Sponge Density : 50 to 60 Kg / M³ It is possible to produce special production in desired density and thickness.
Note: 30 mm product is between 25 - 30 mm, 40 mm is in tolerable thicknesses between 35 - 40 mm.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Acoustic special sponges are in the form of 100 cm x 100 cm plates and their packages contain 10 plates, ie 10 m² of products. It is sold retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
