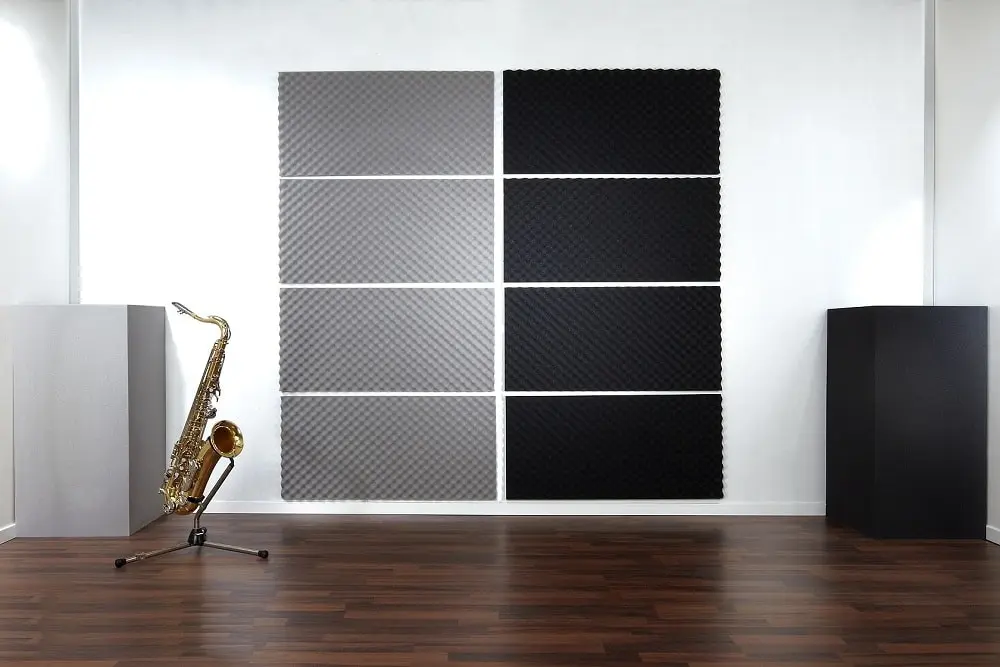

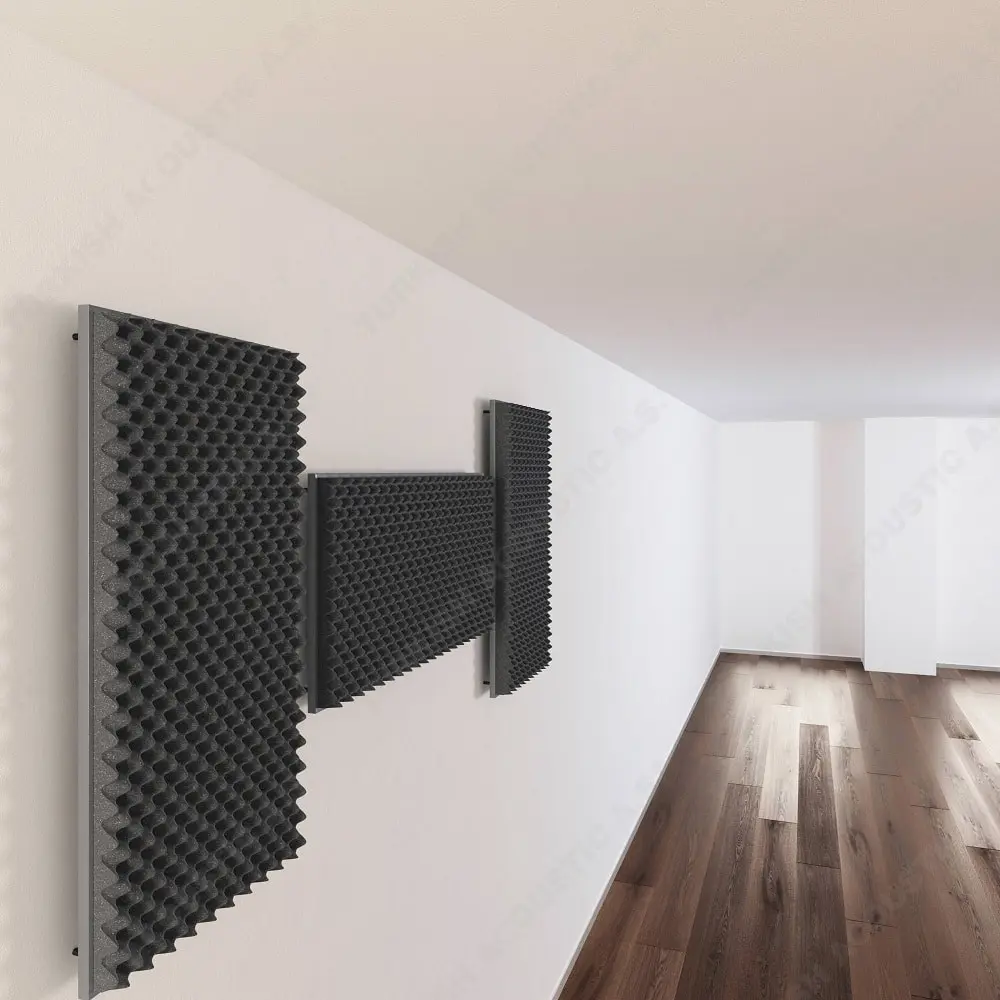

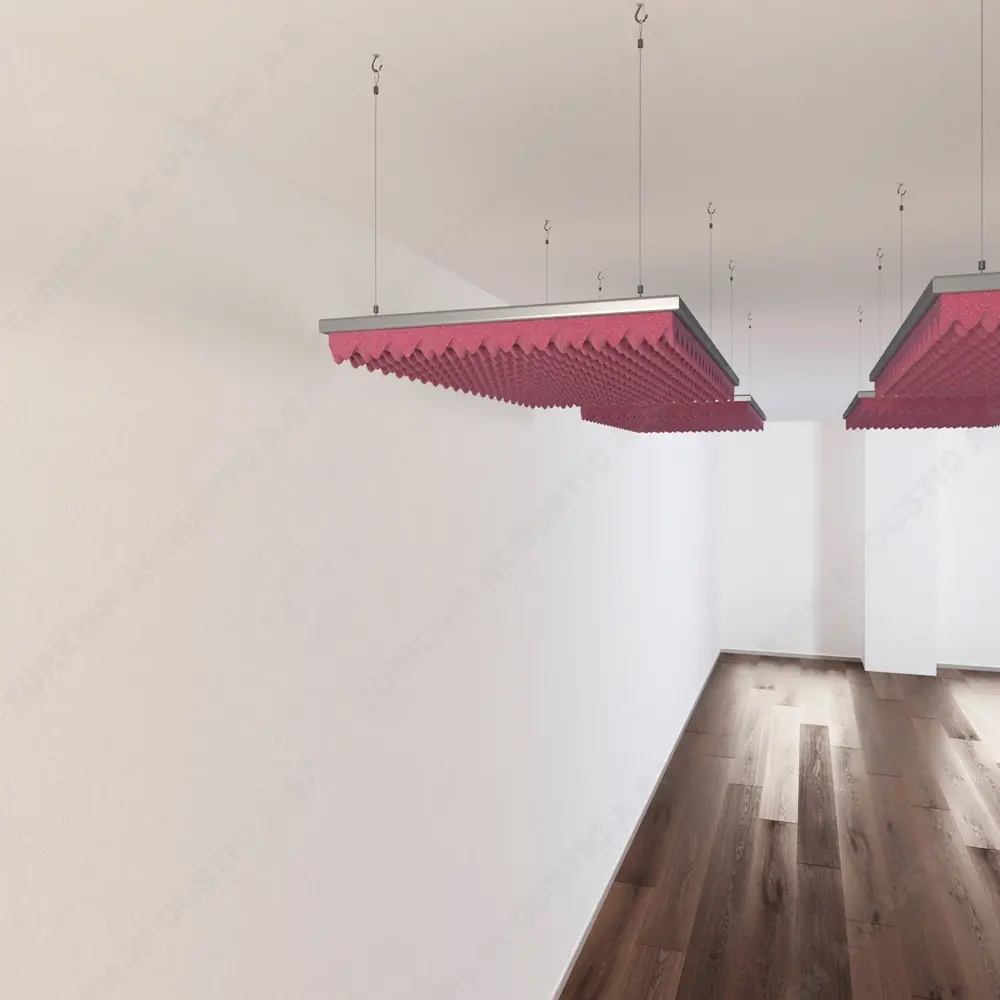

Application Images

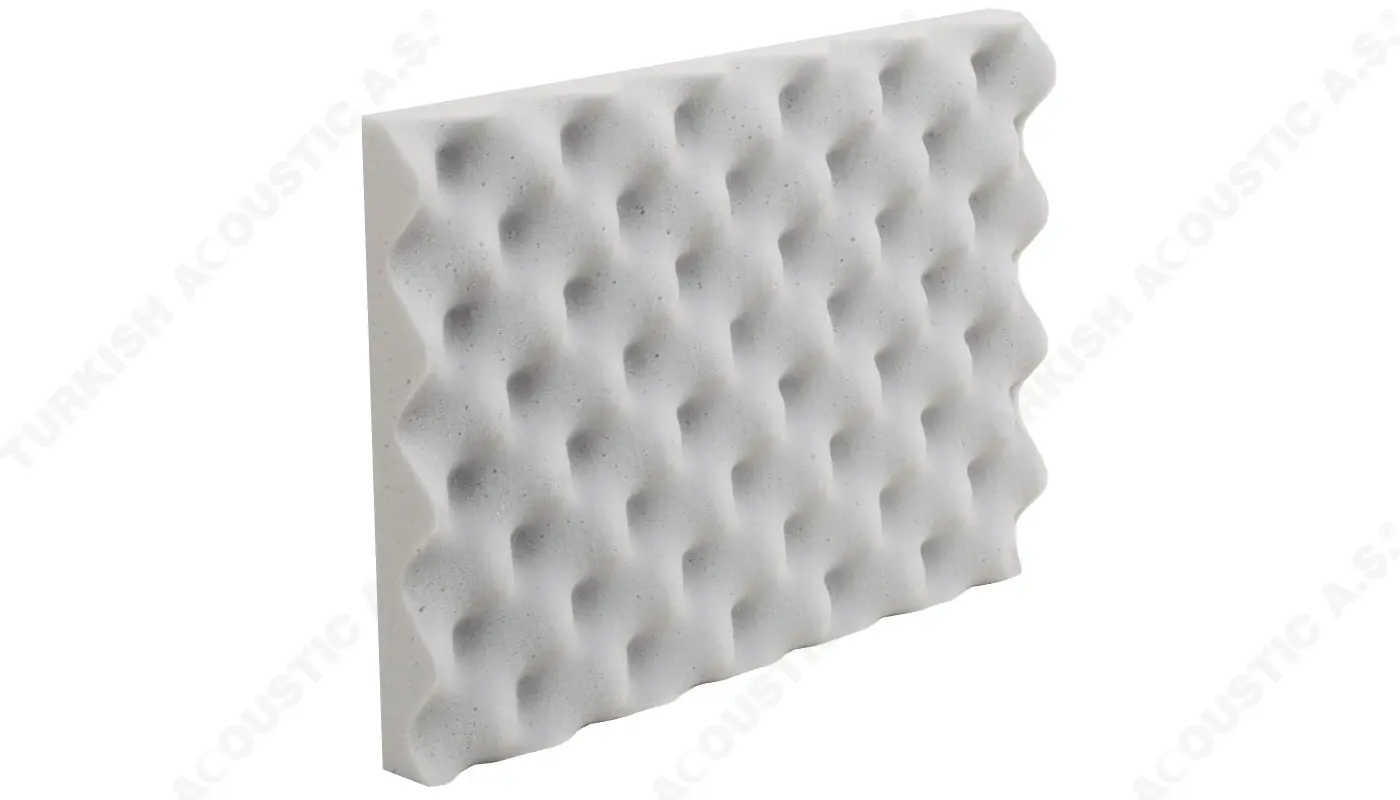

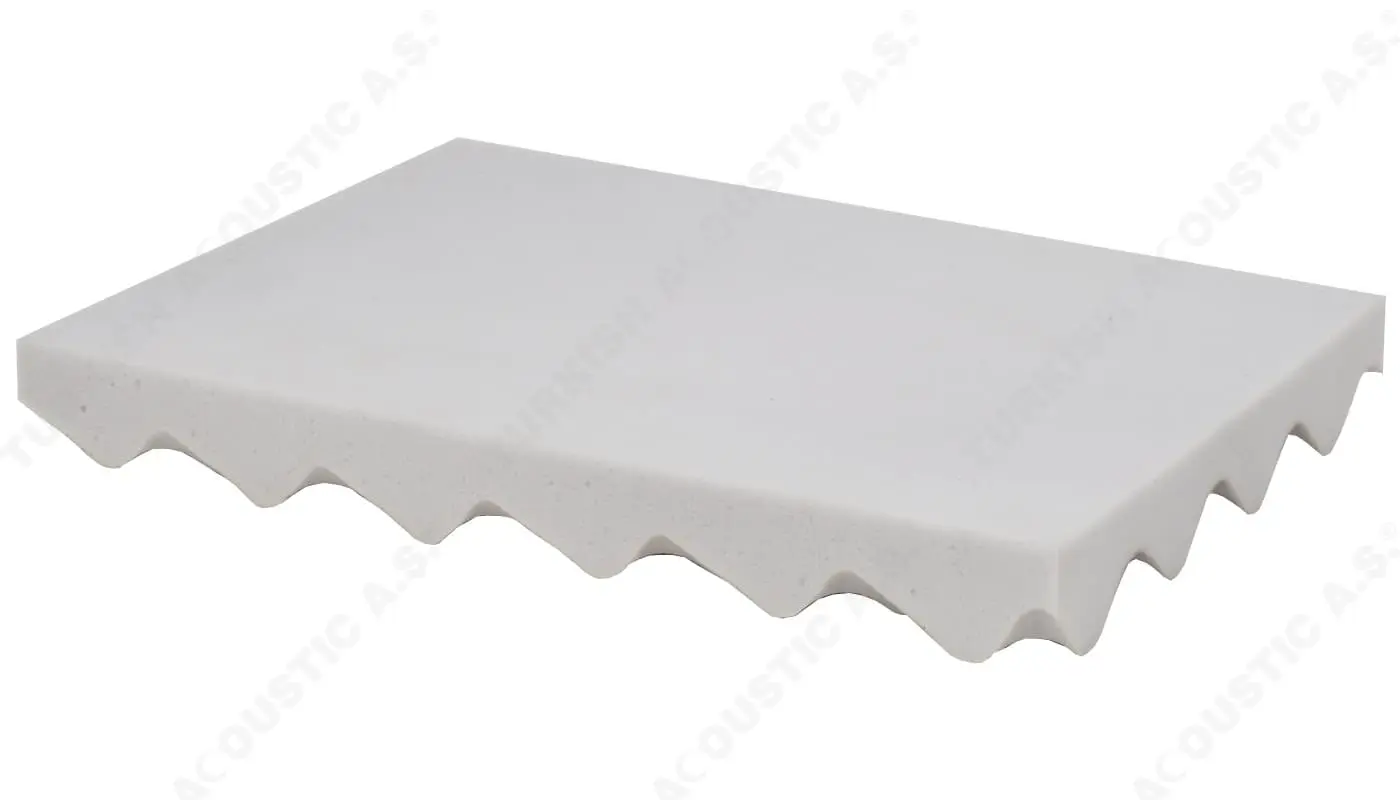

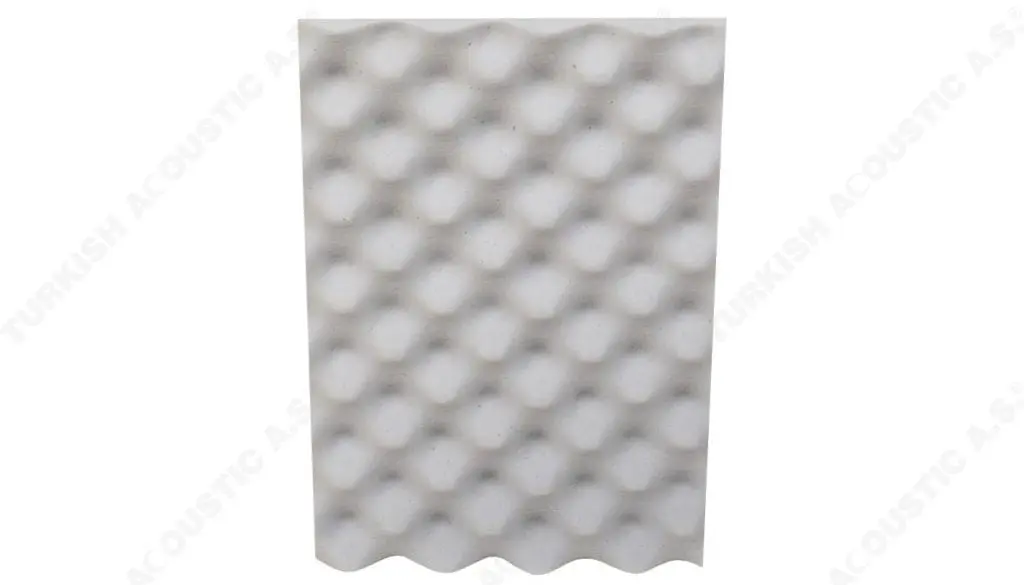

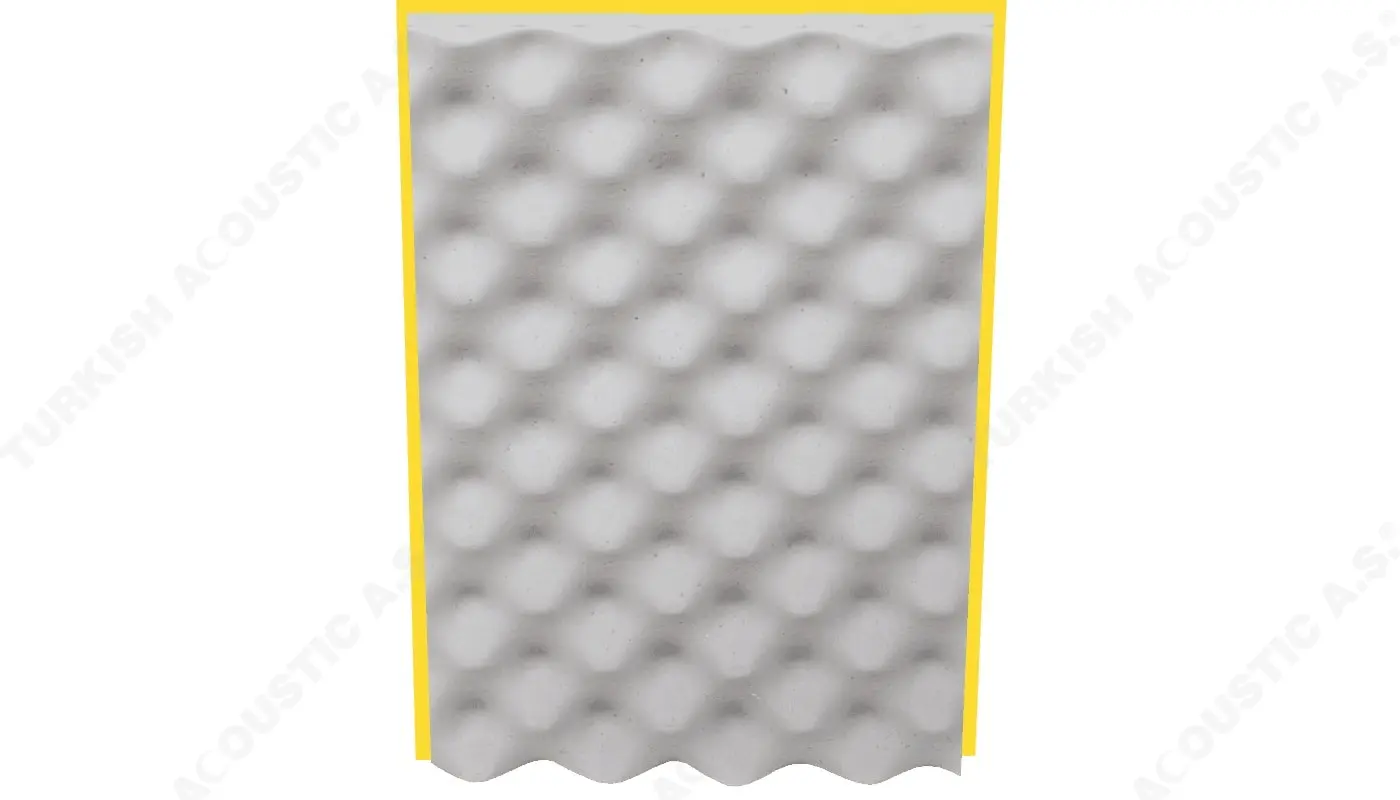

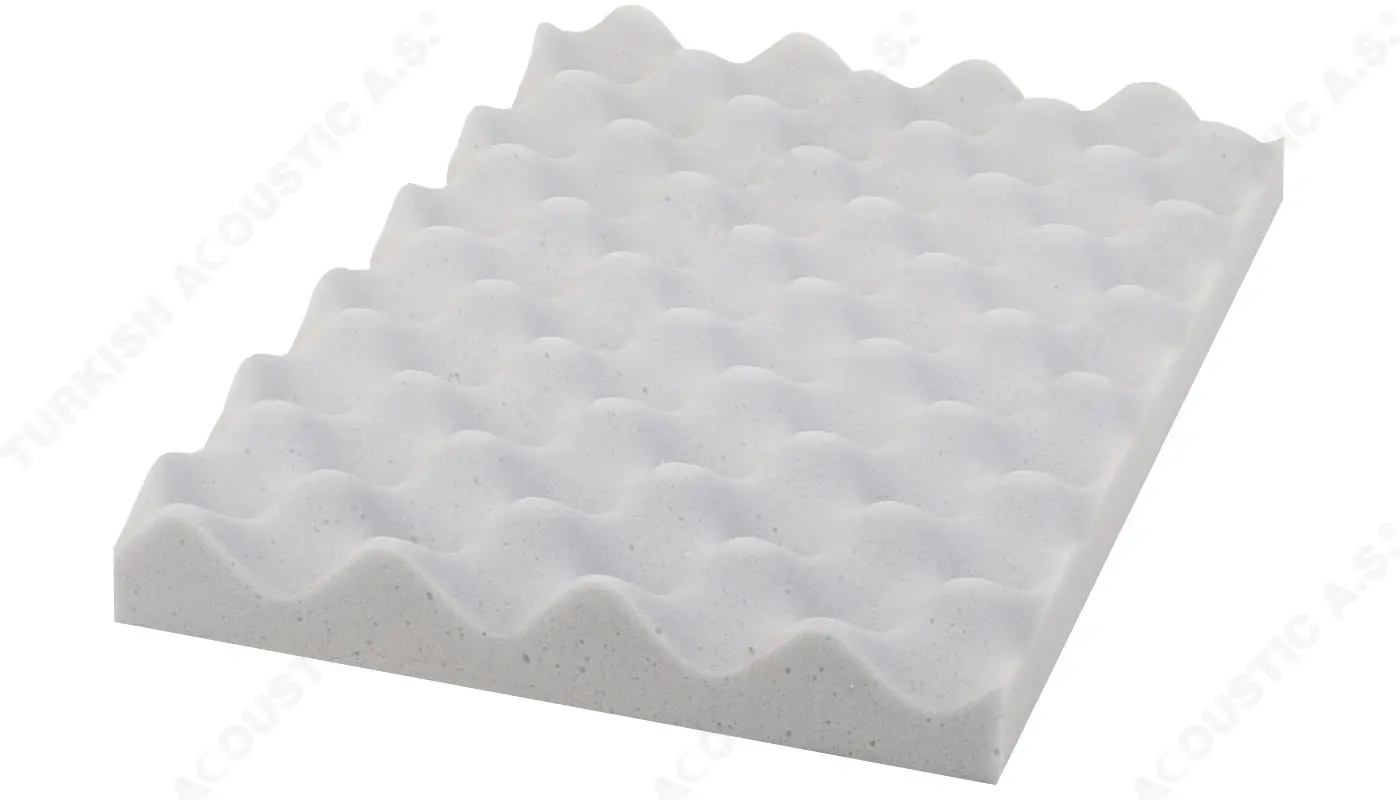

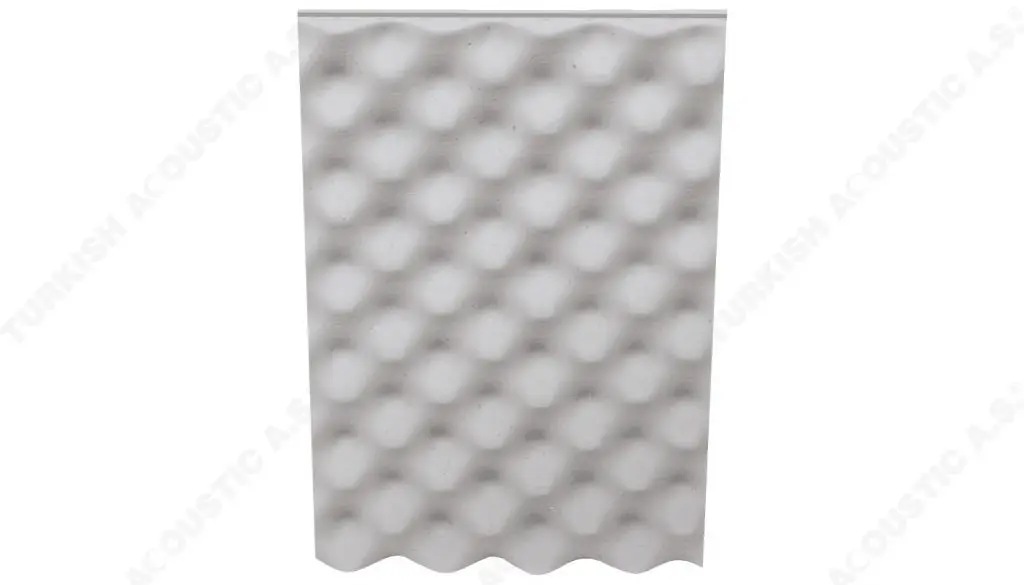

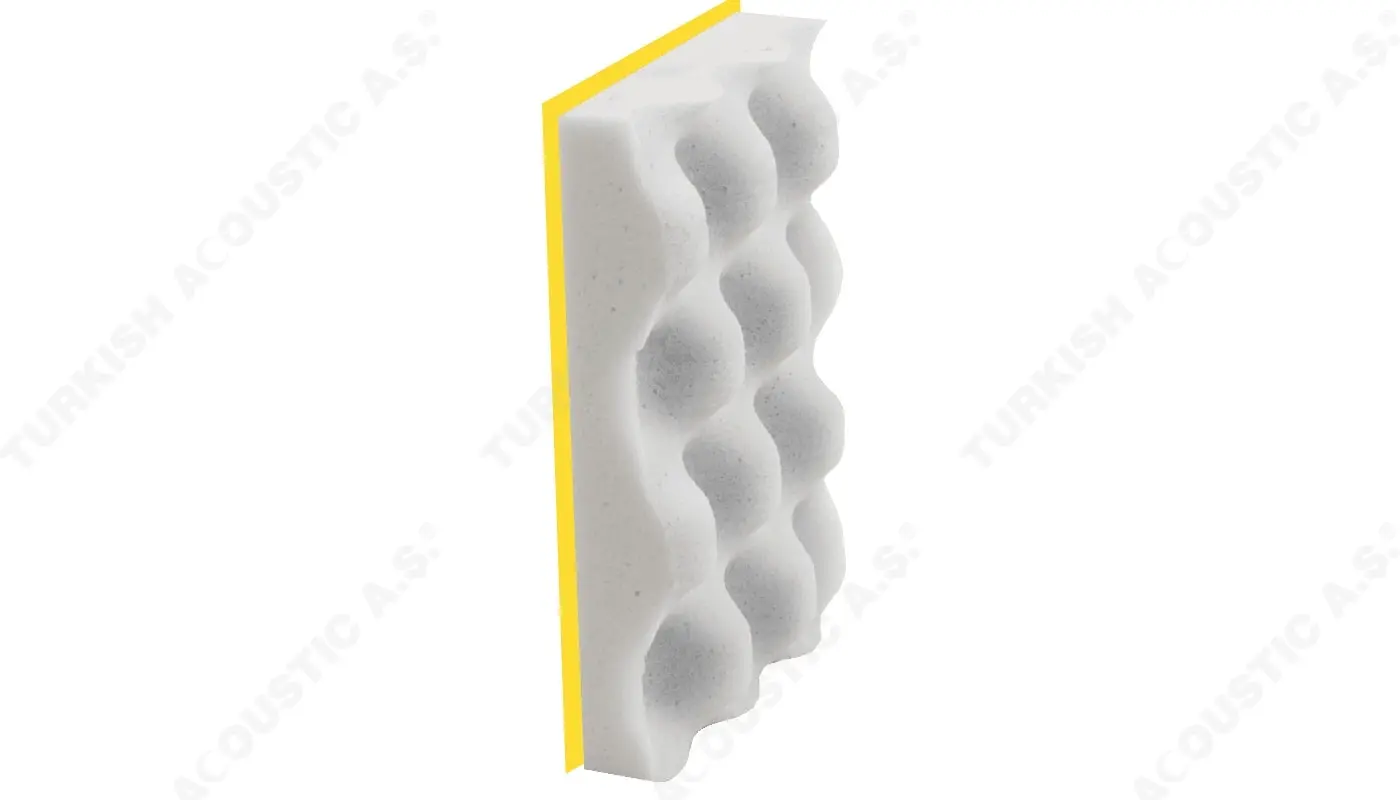

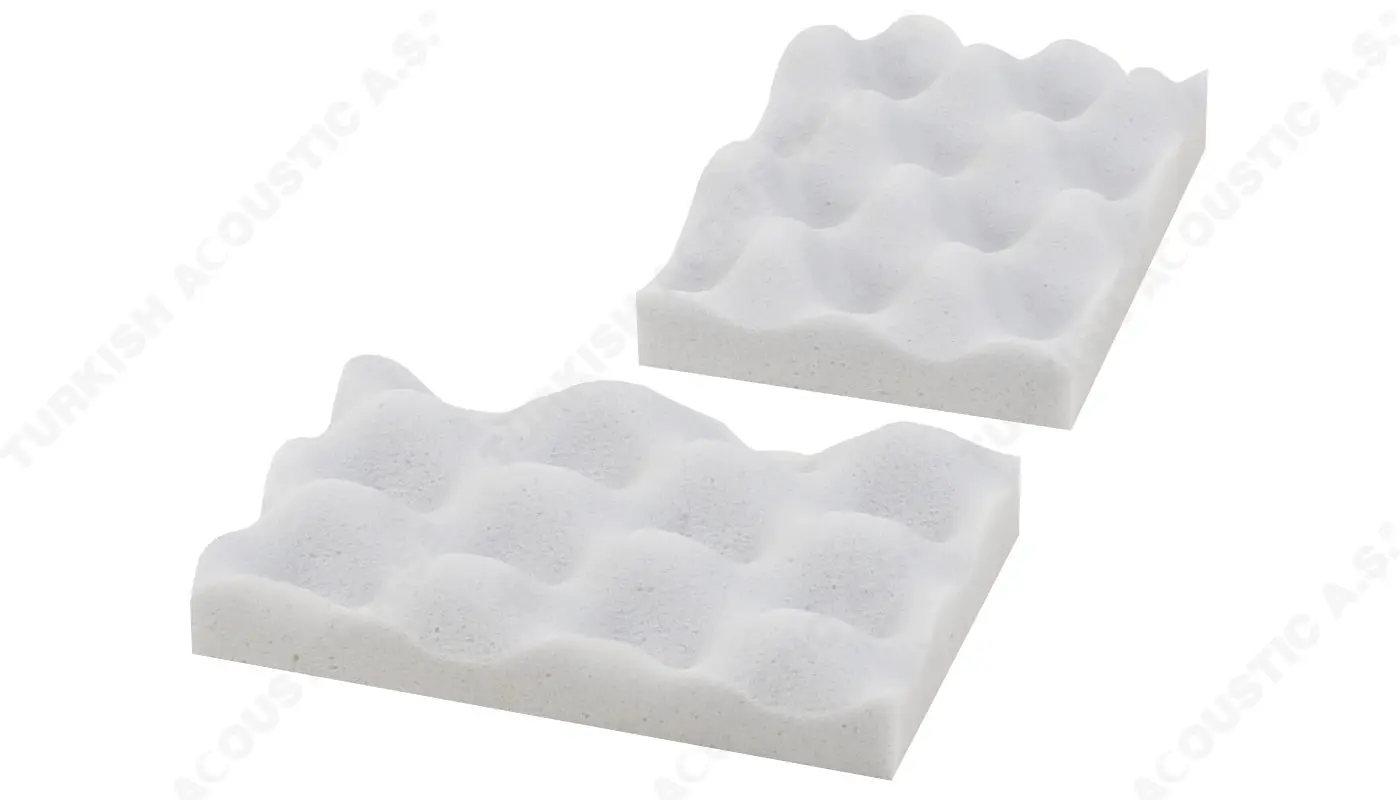

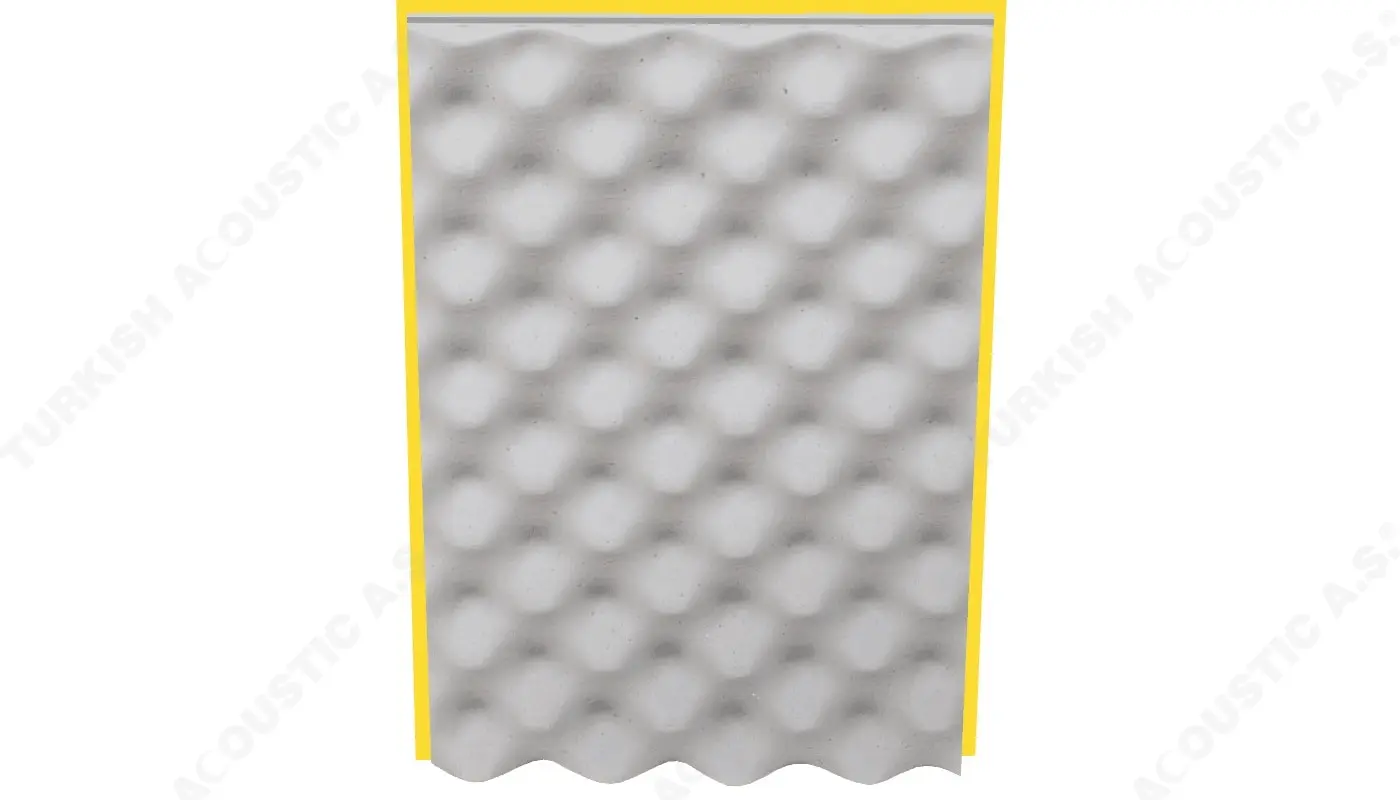

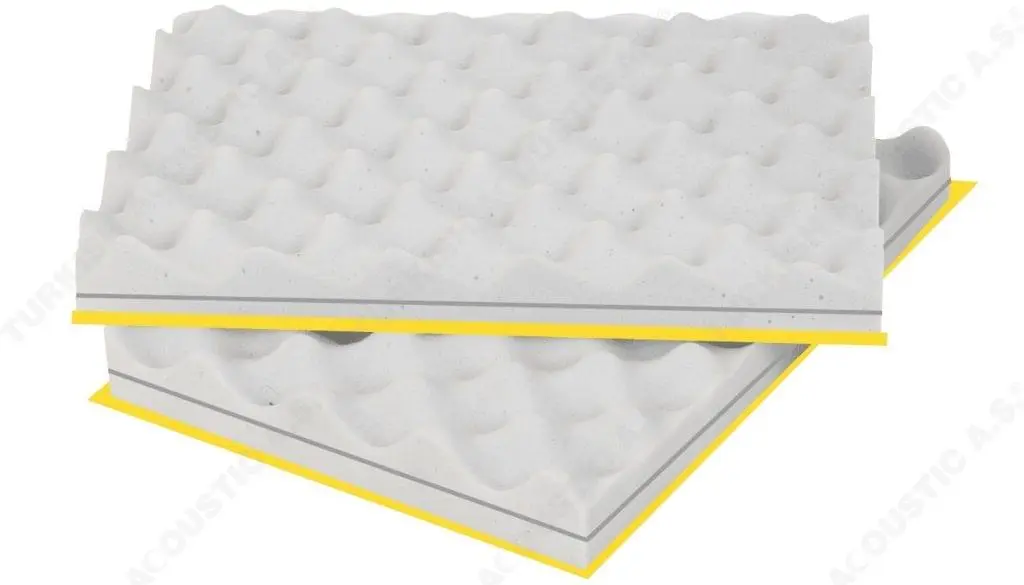

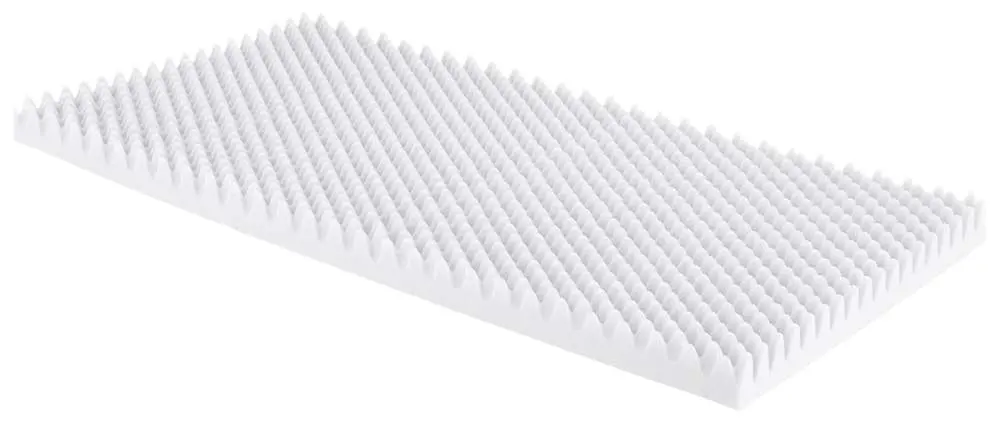

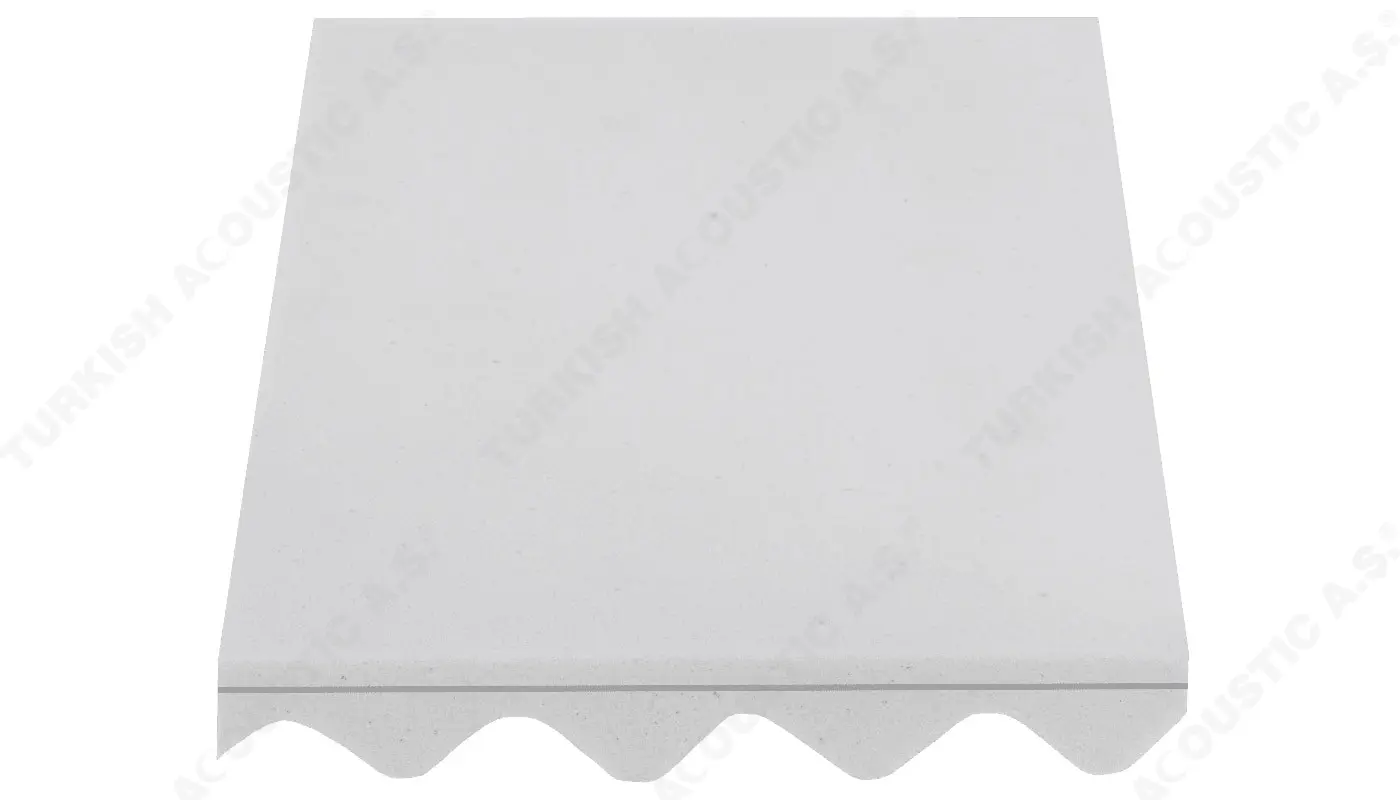

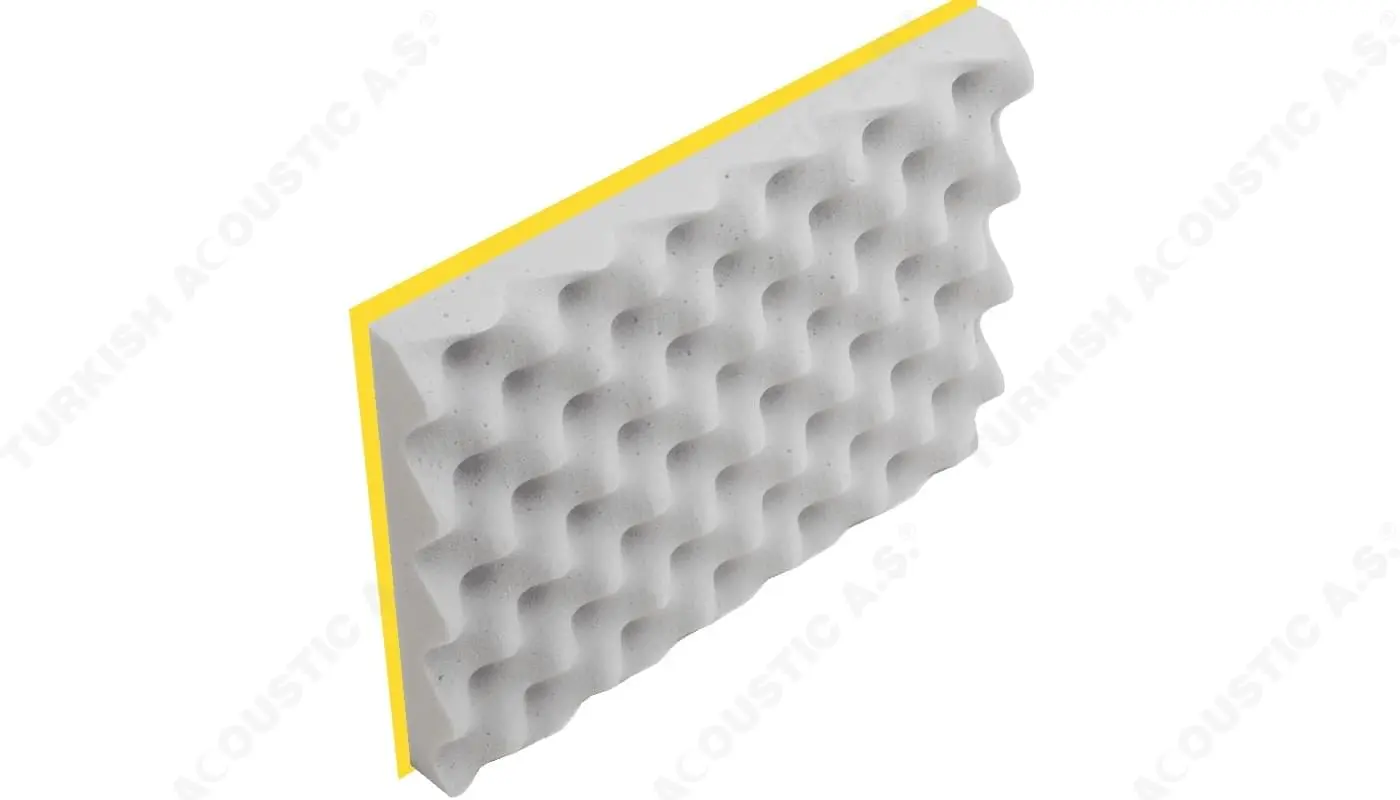

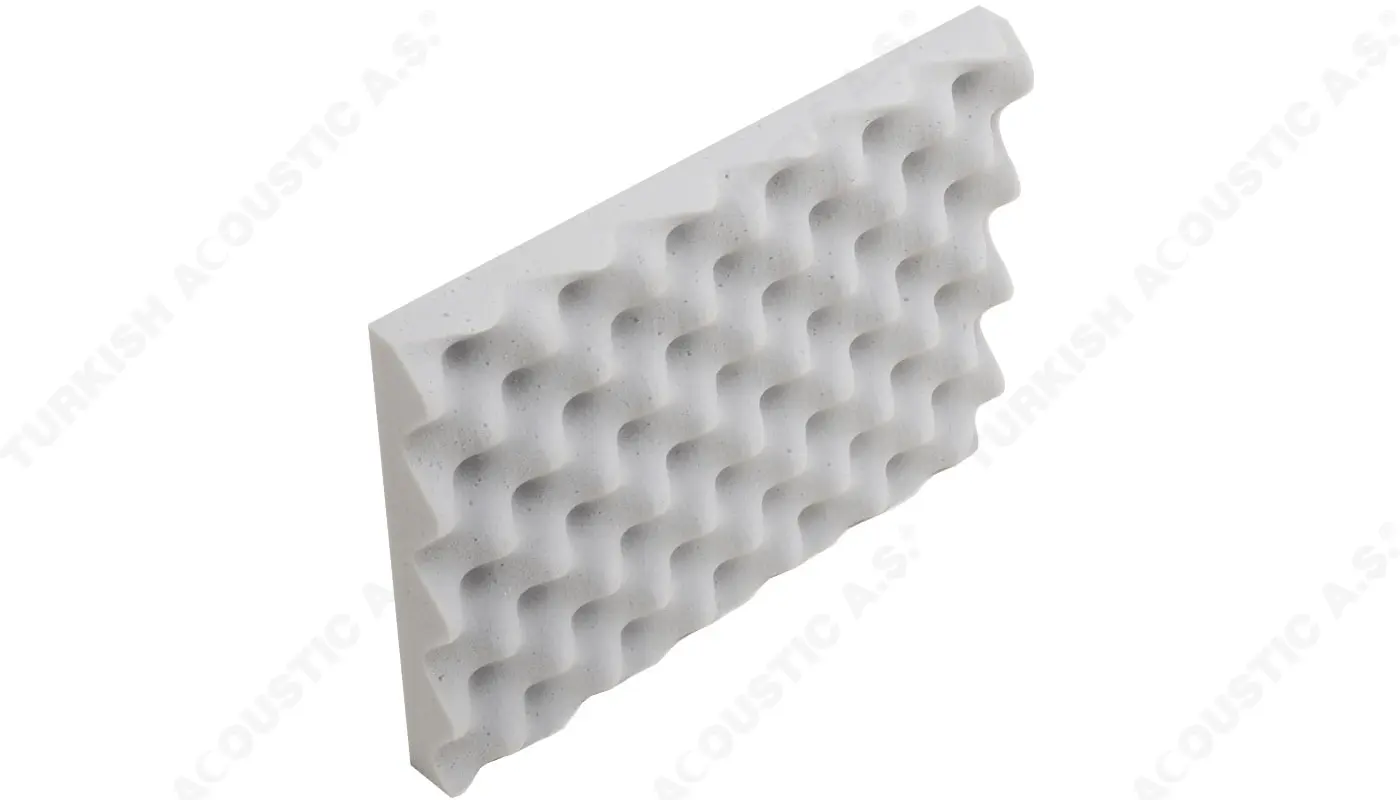

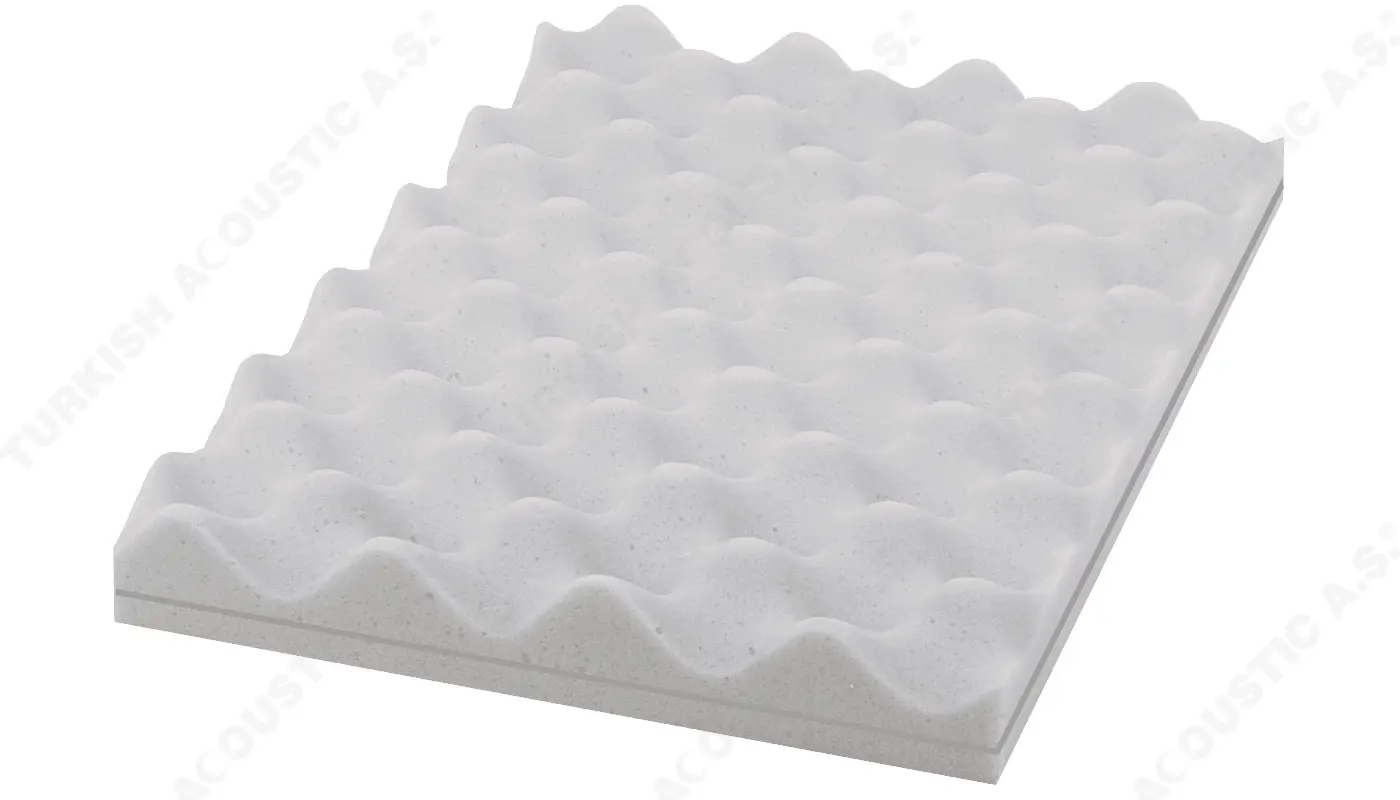

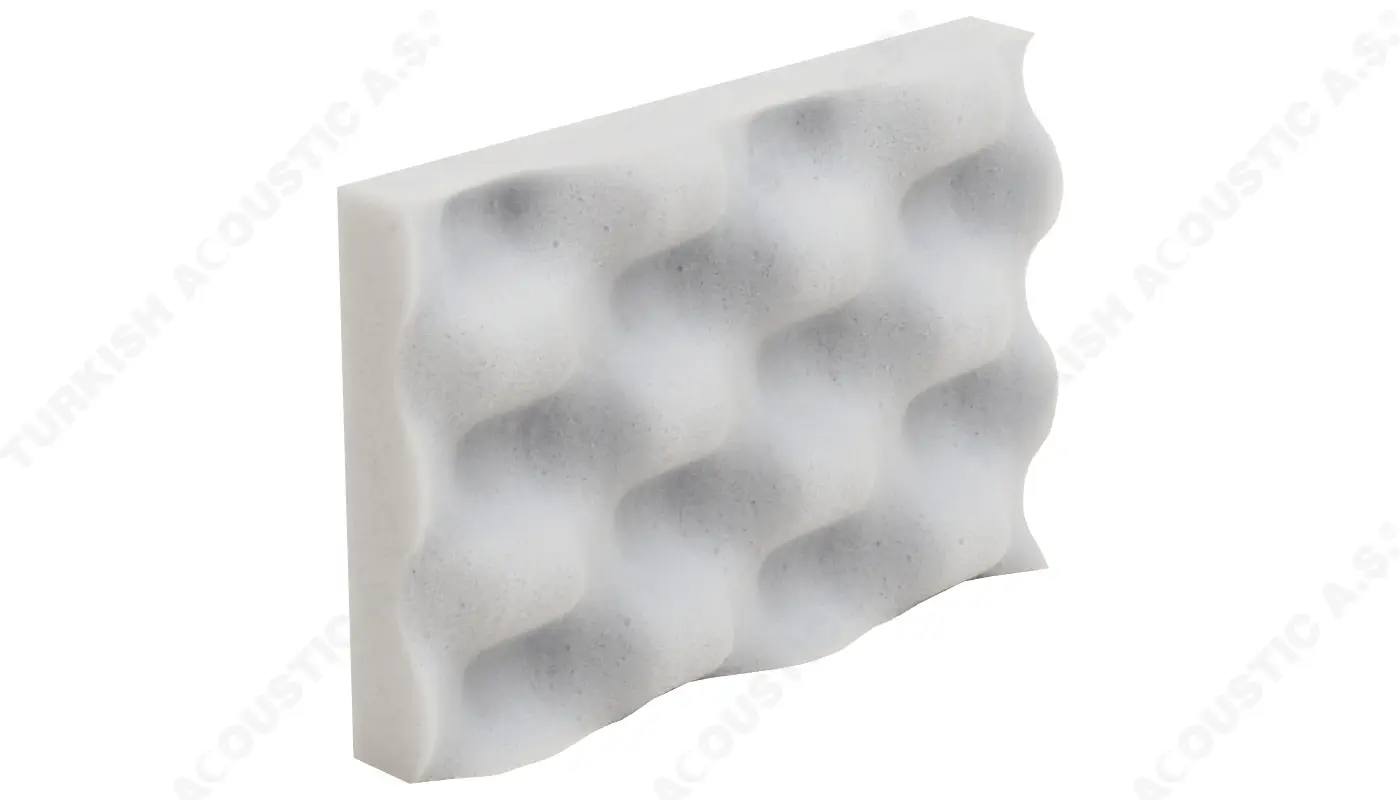

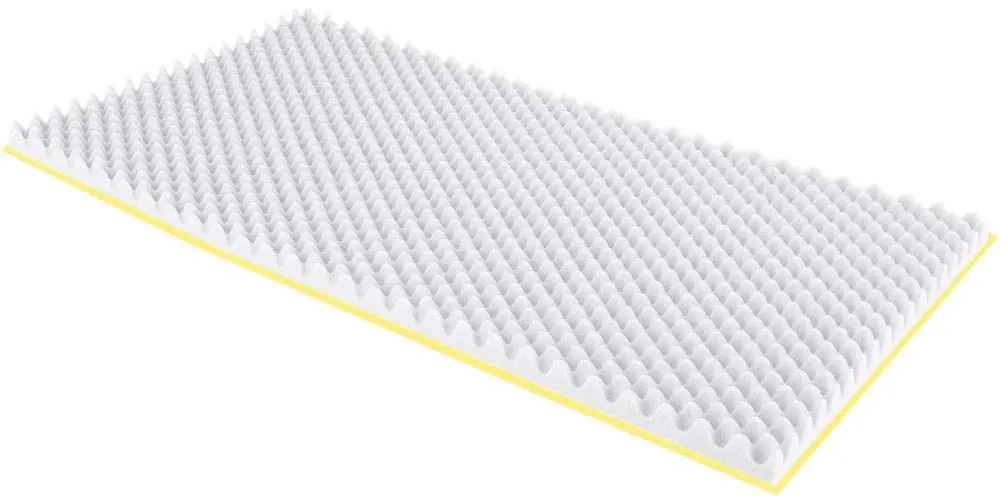

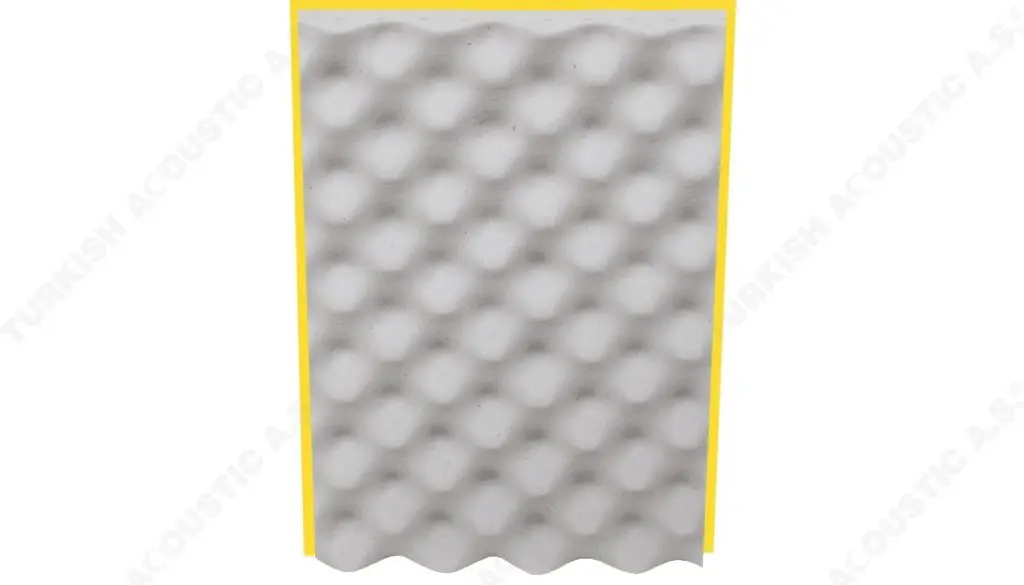

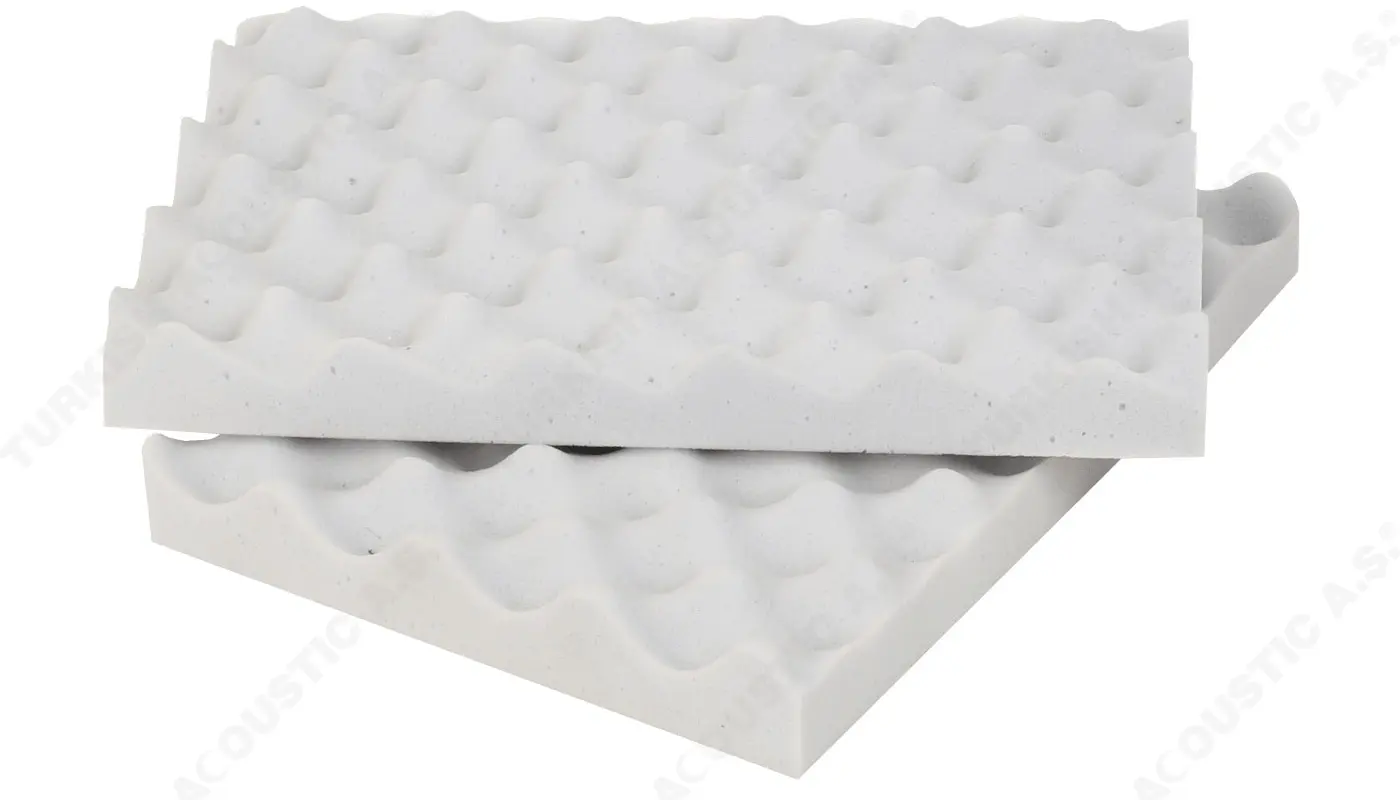

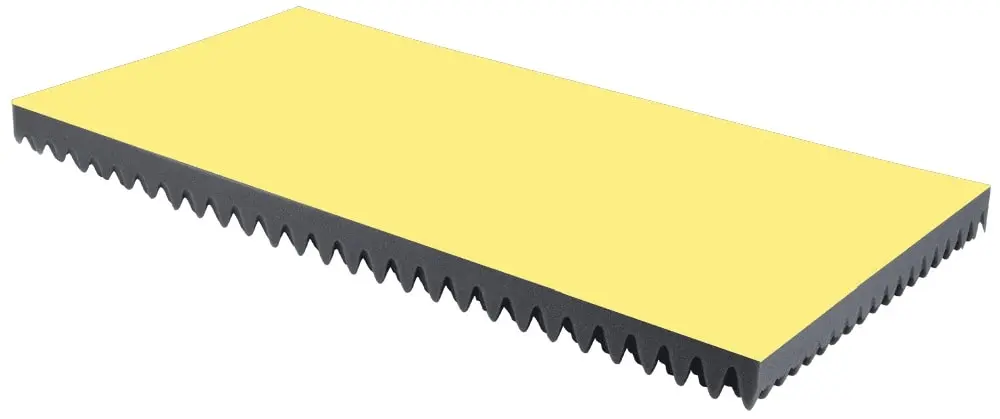

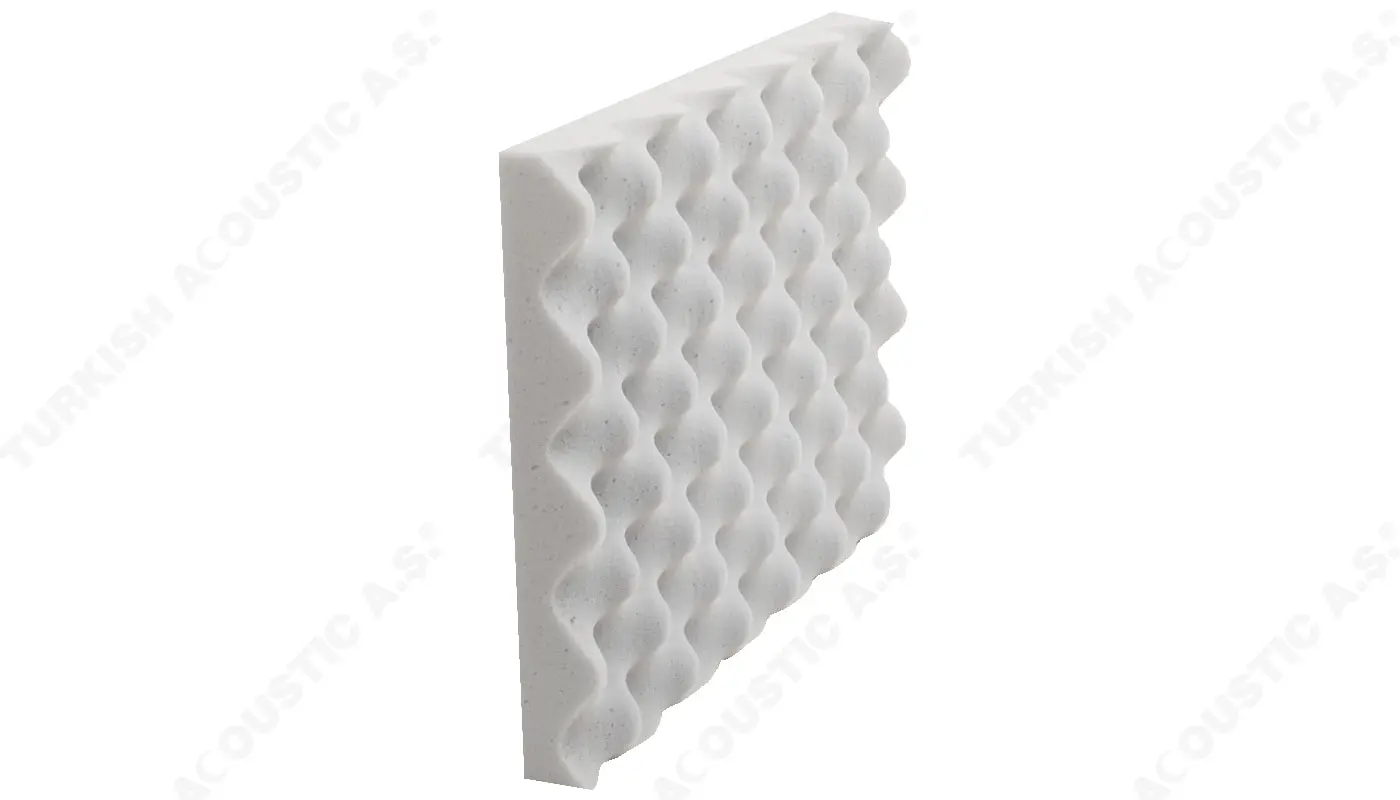

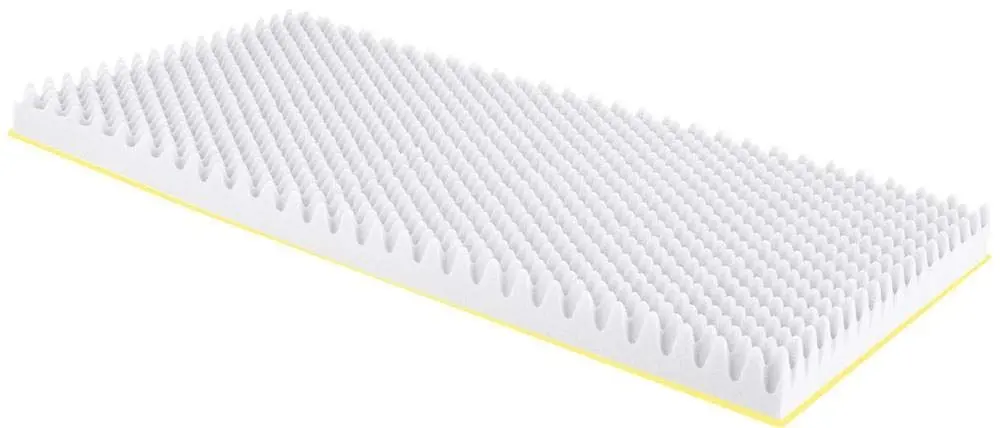

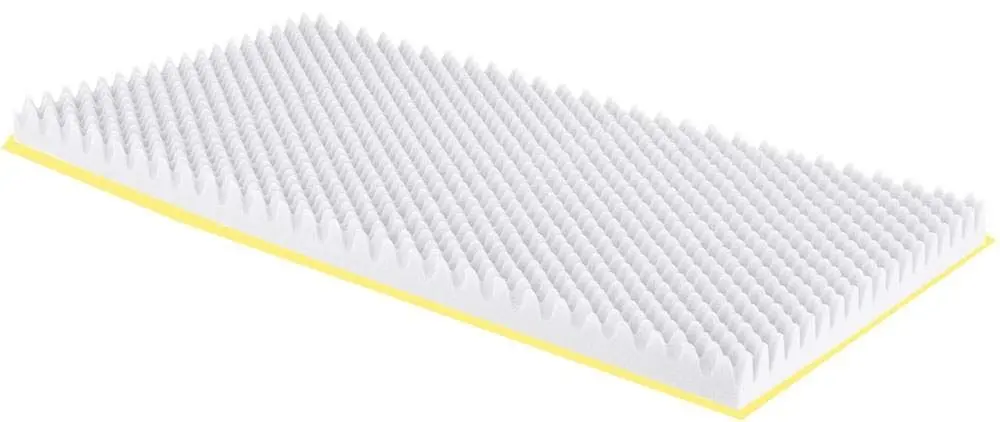

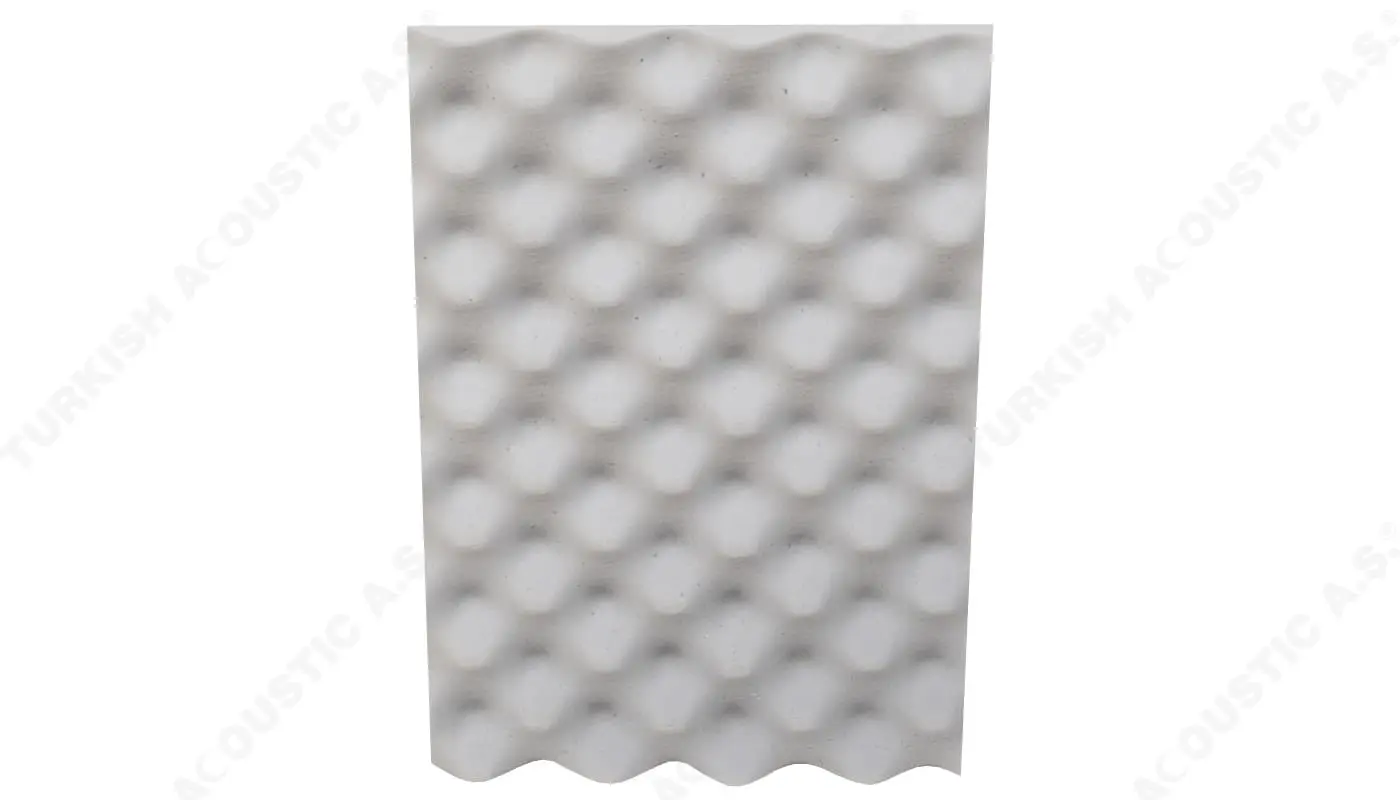

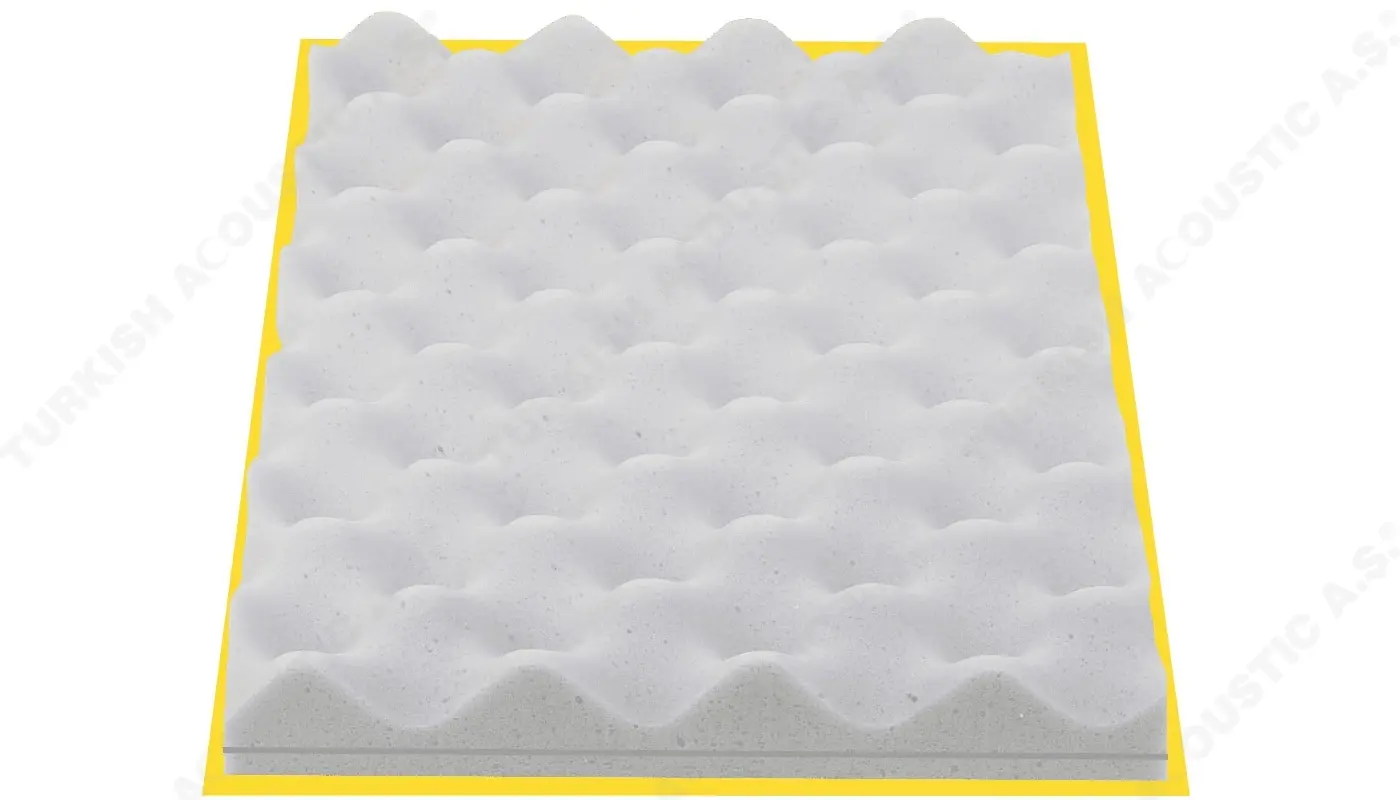

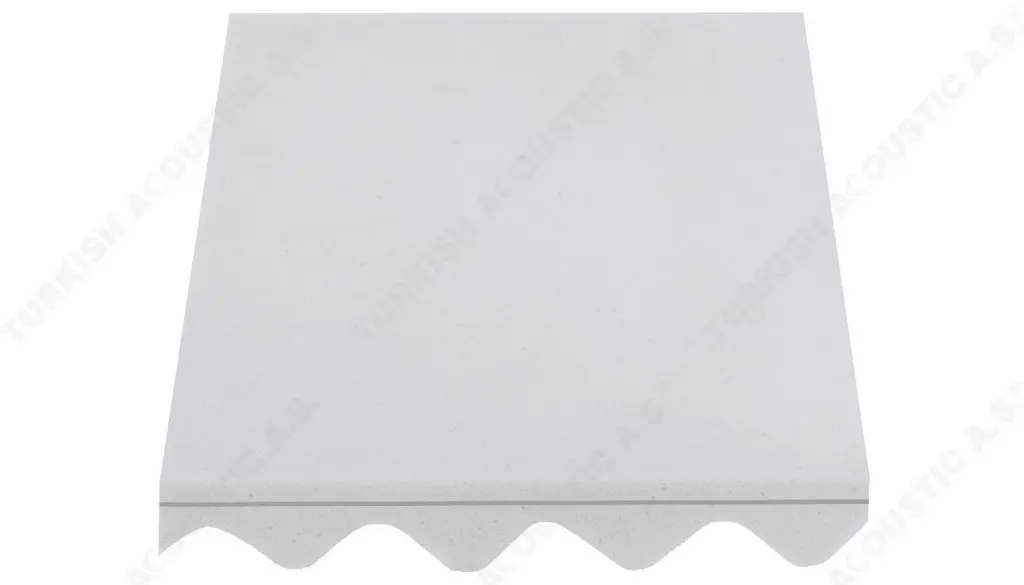

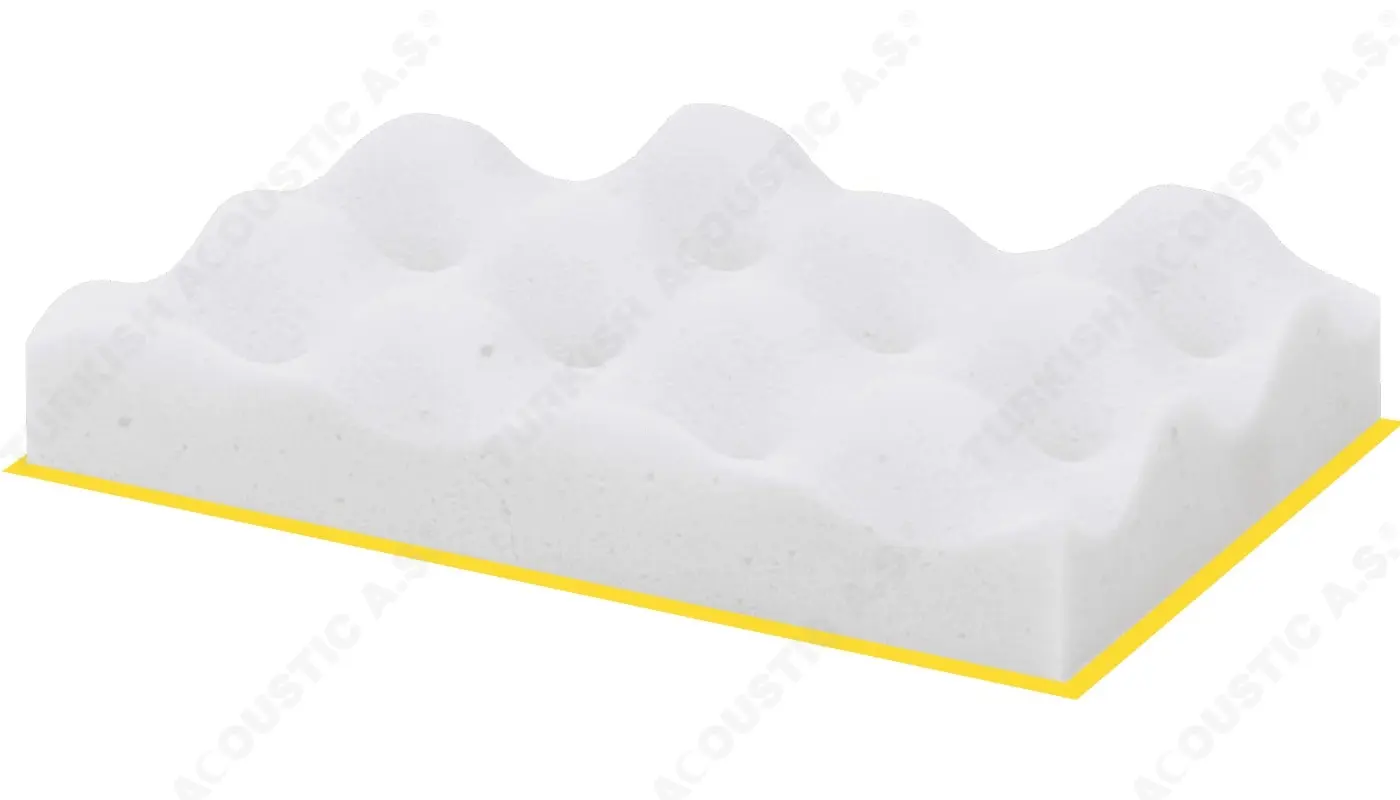

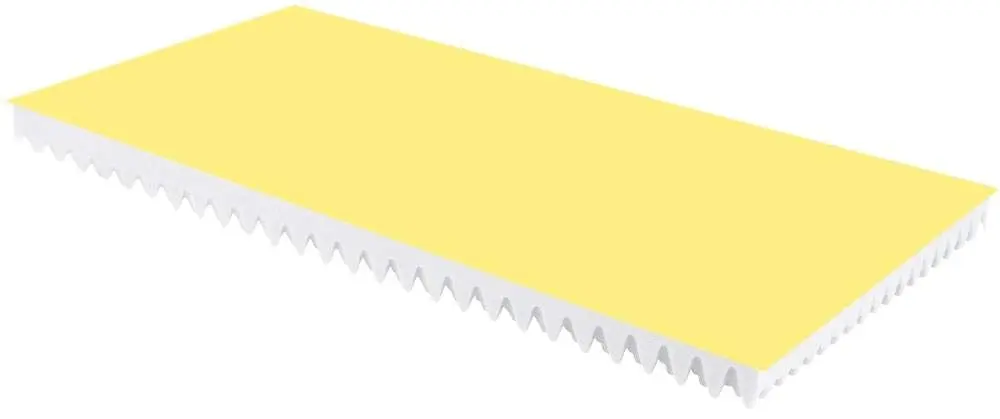

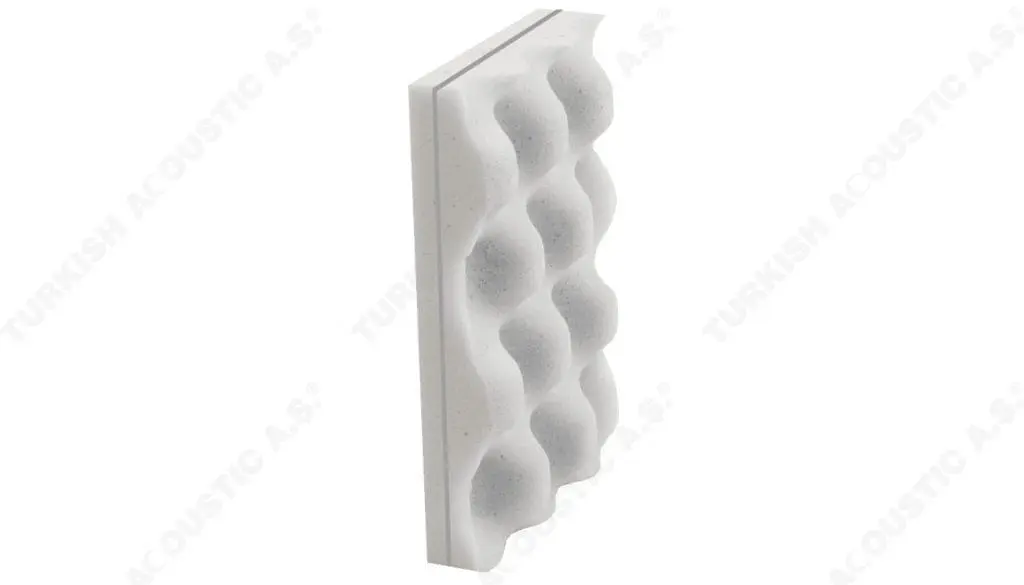

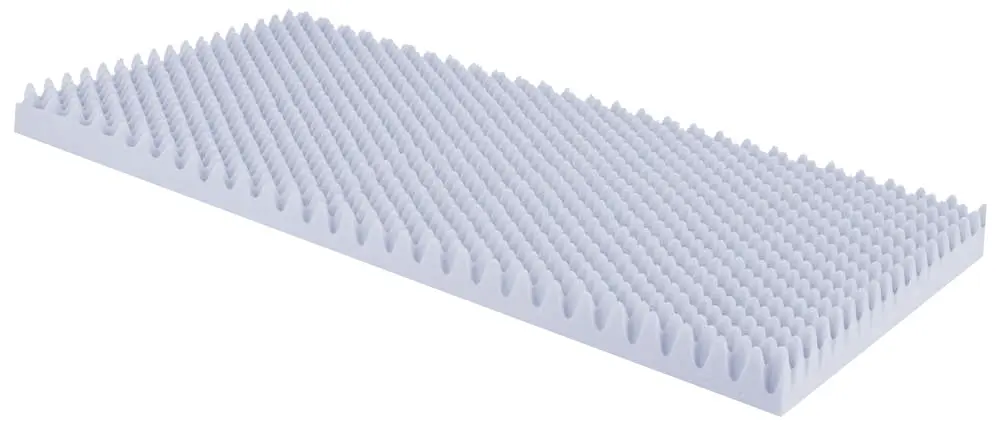

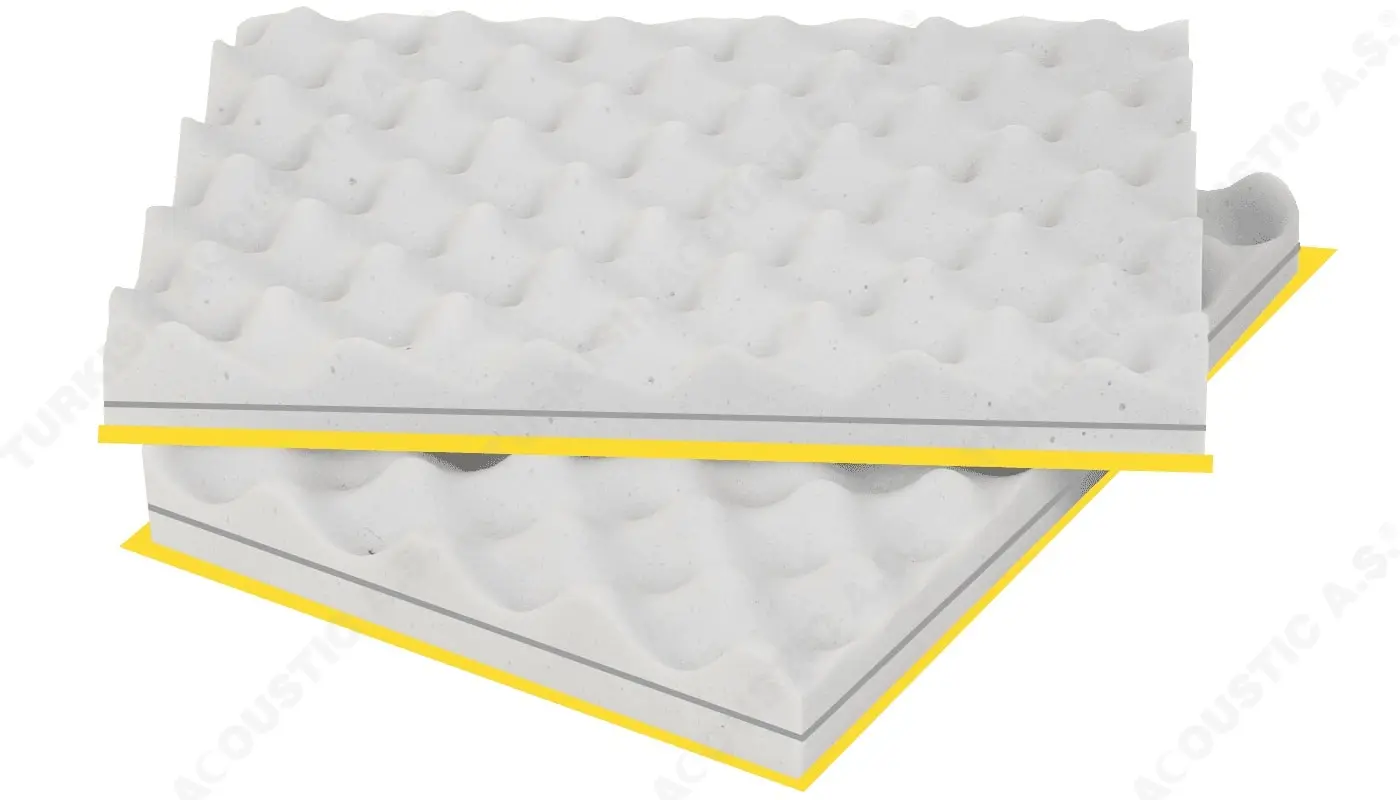

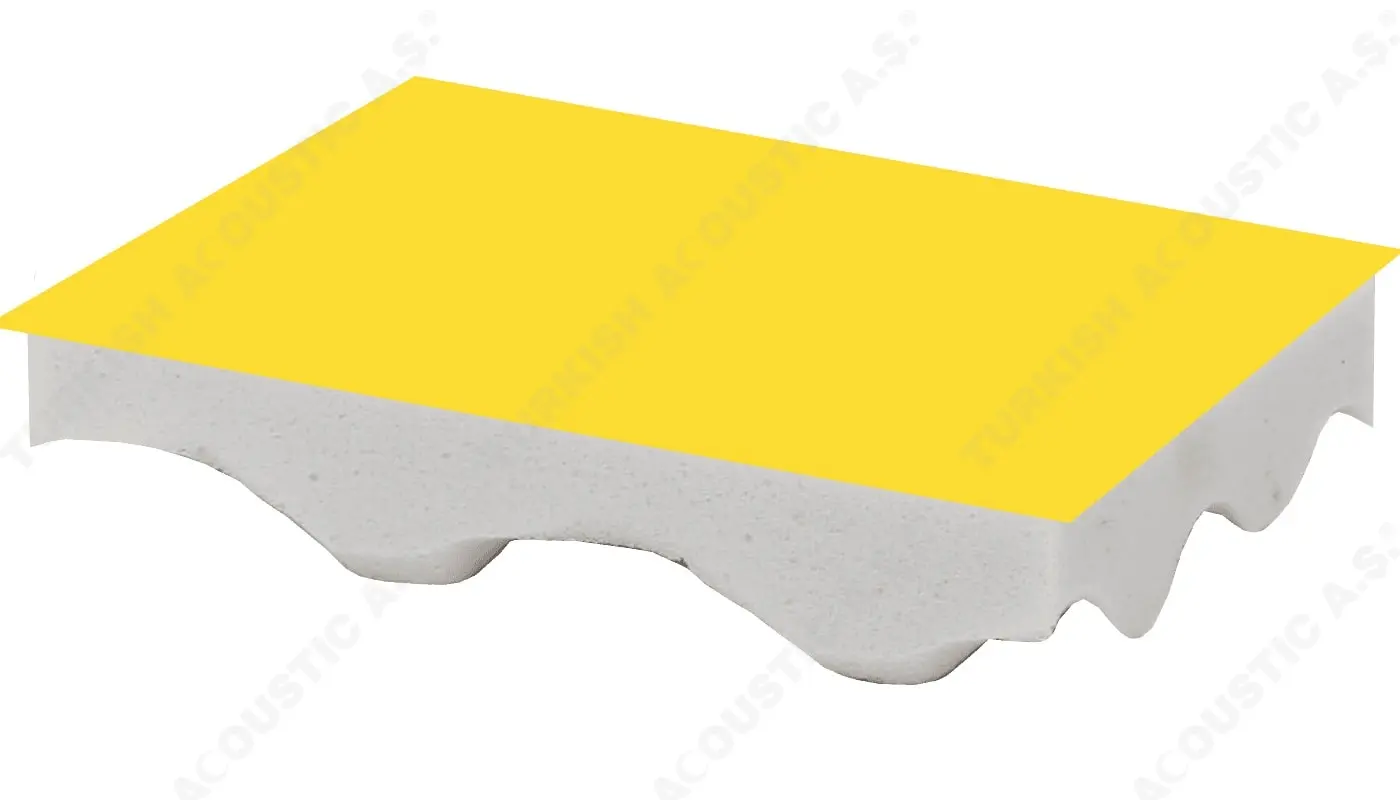

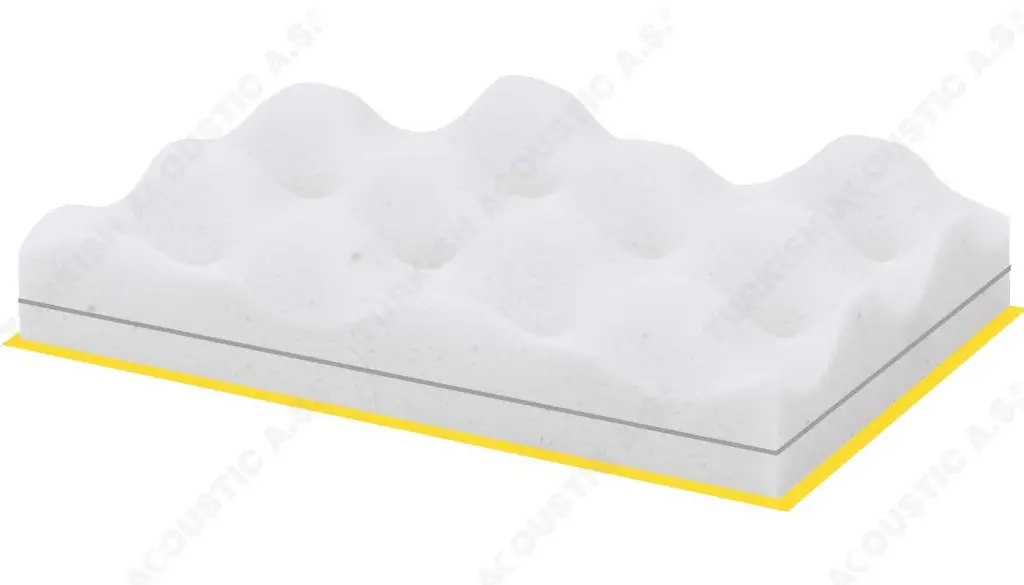

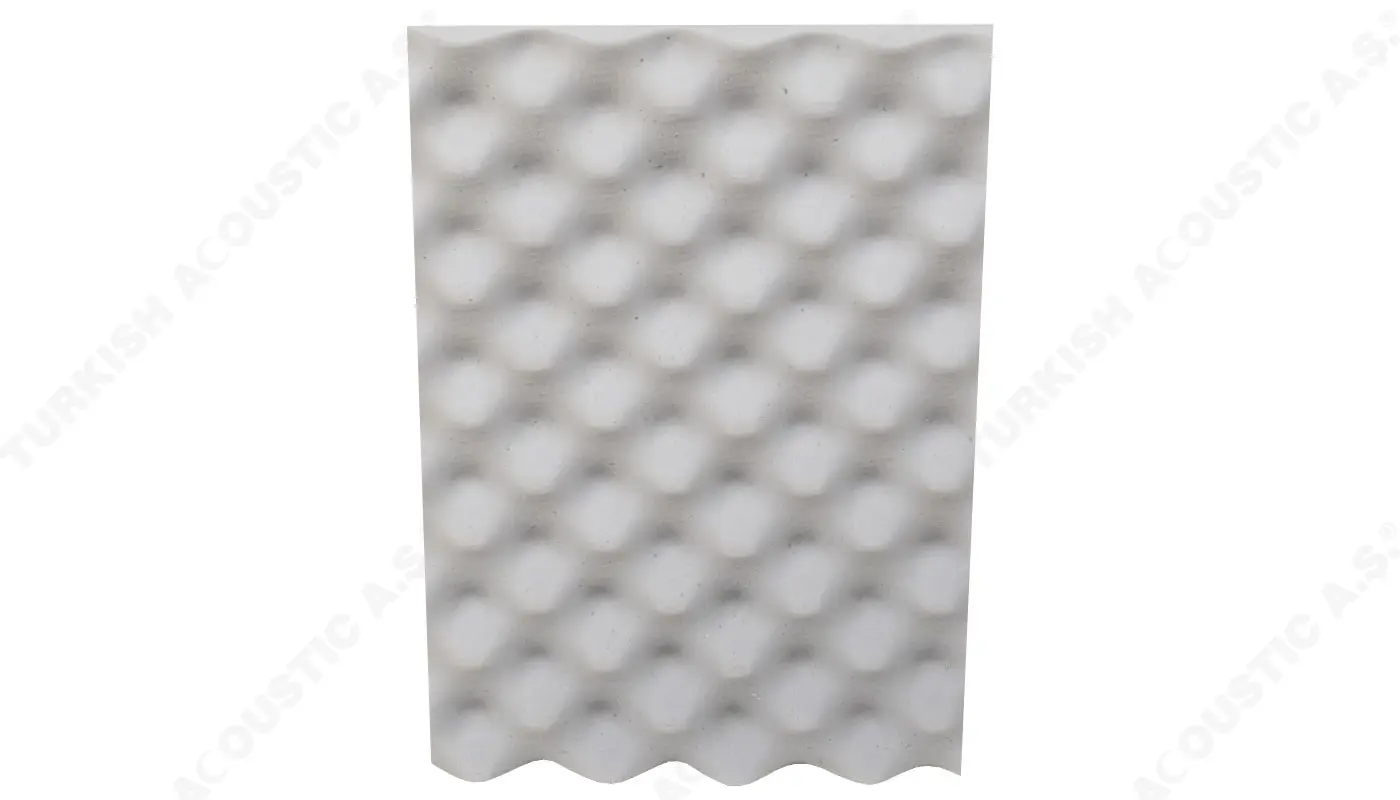

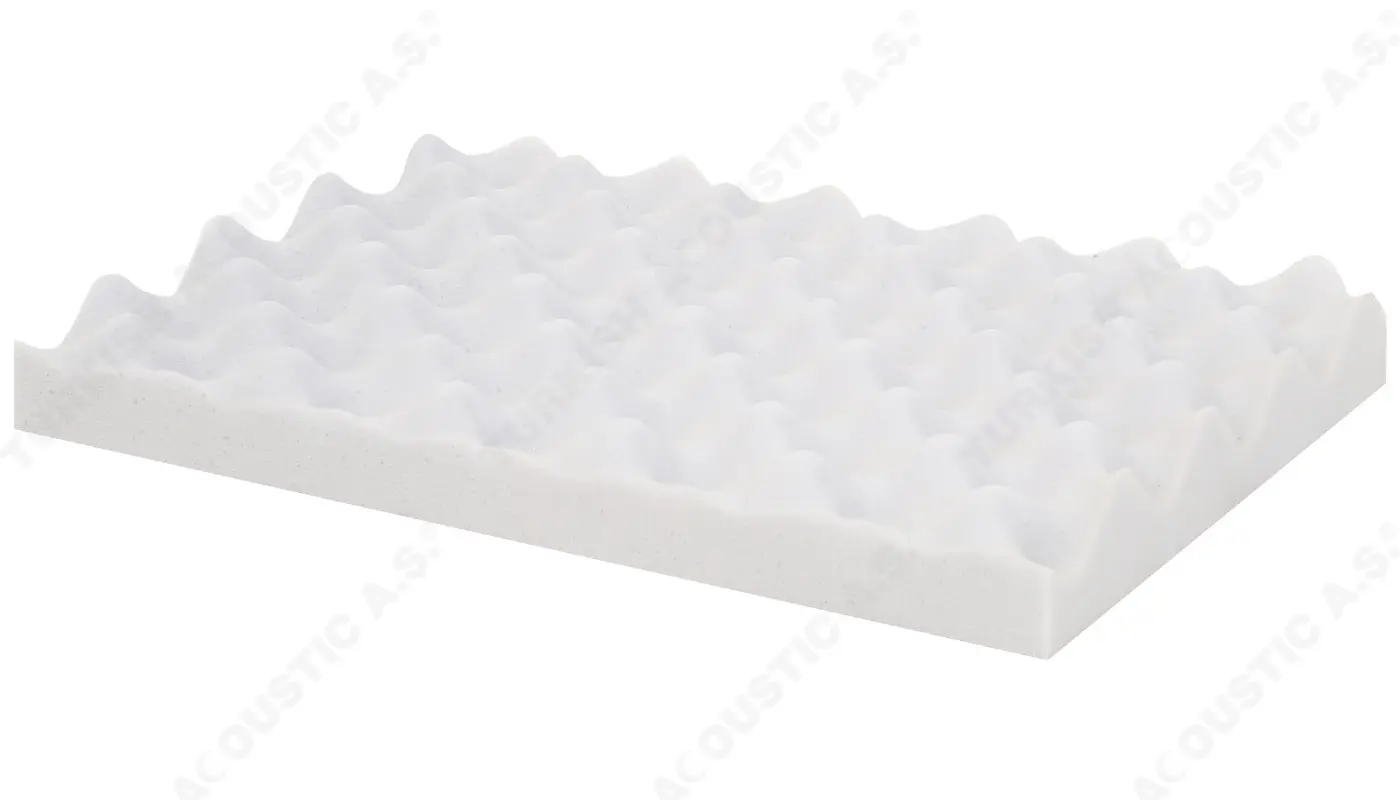

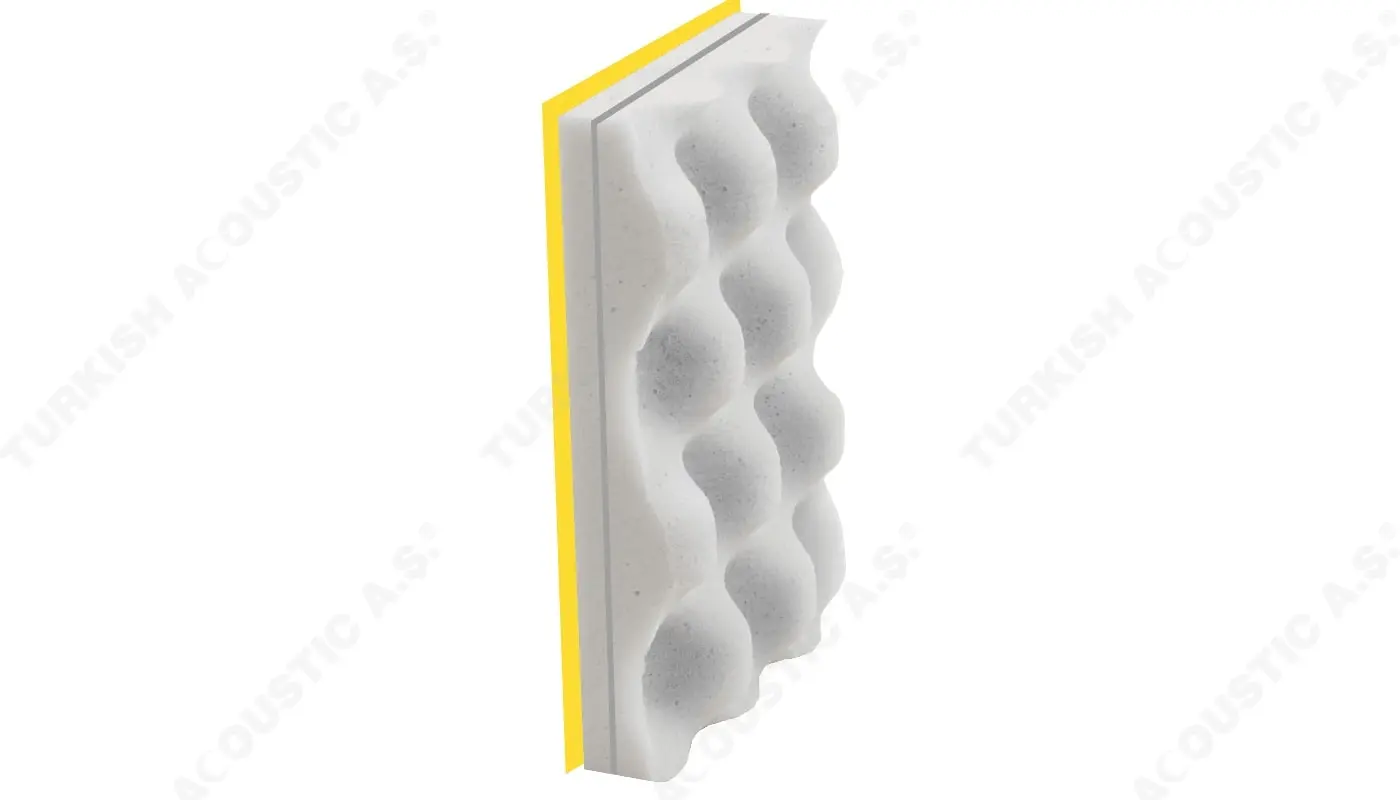

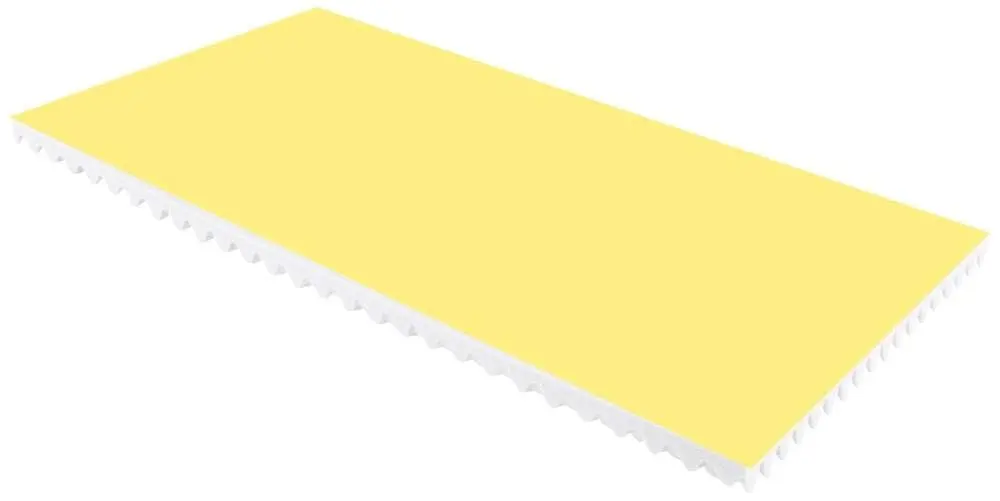

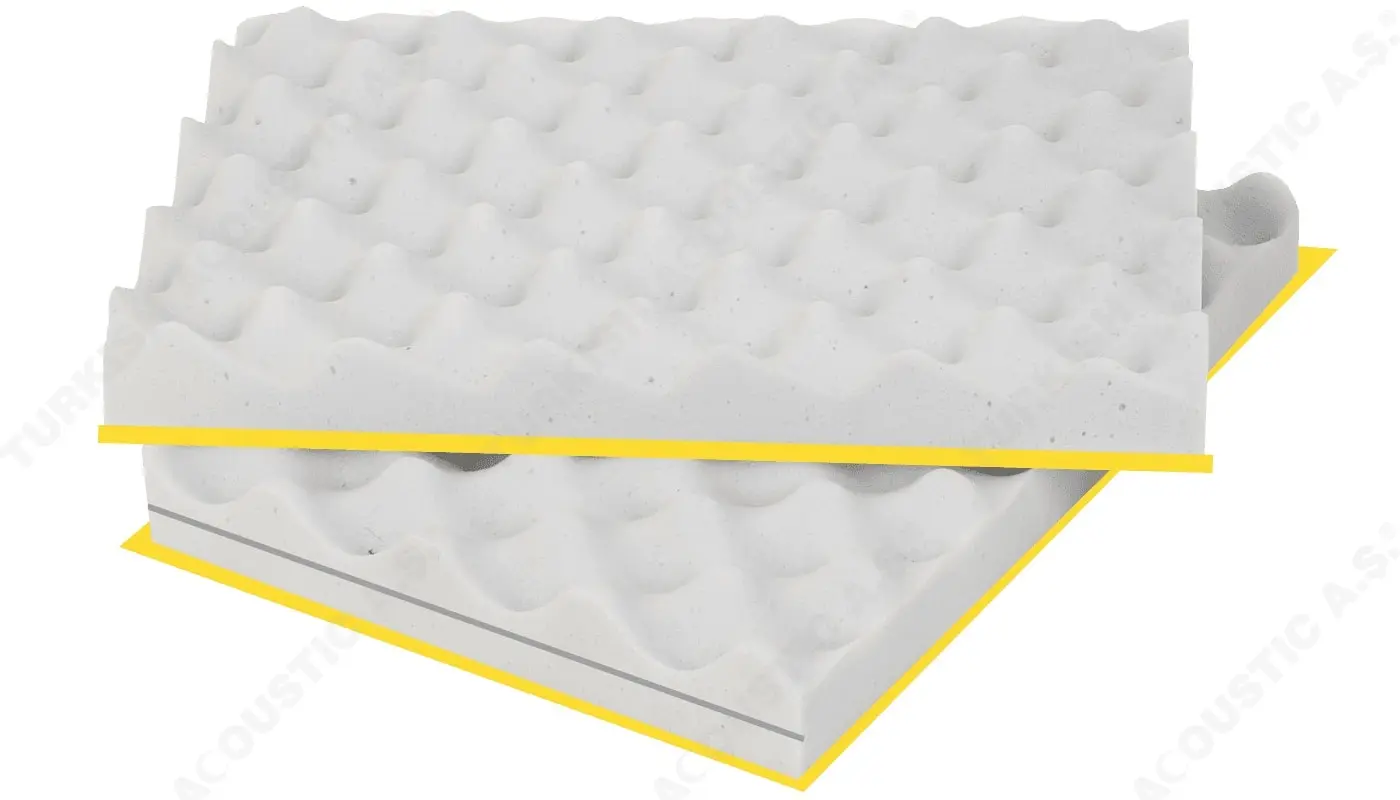

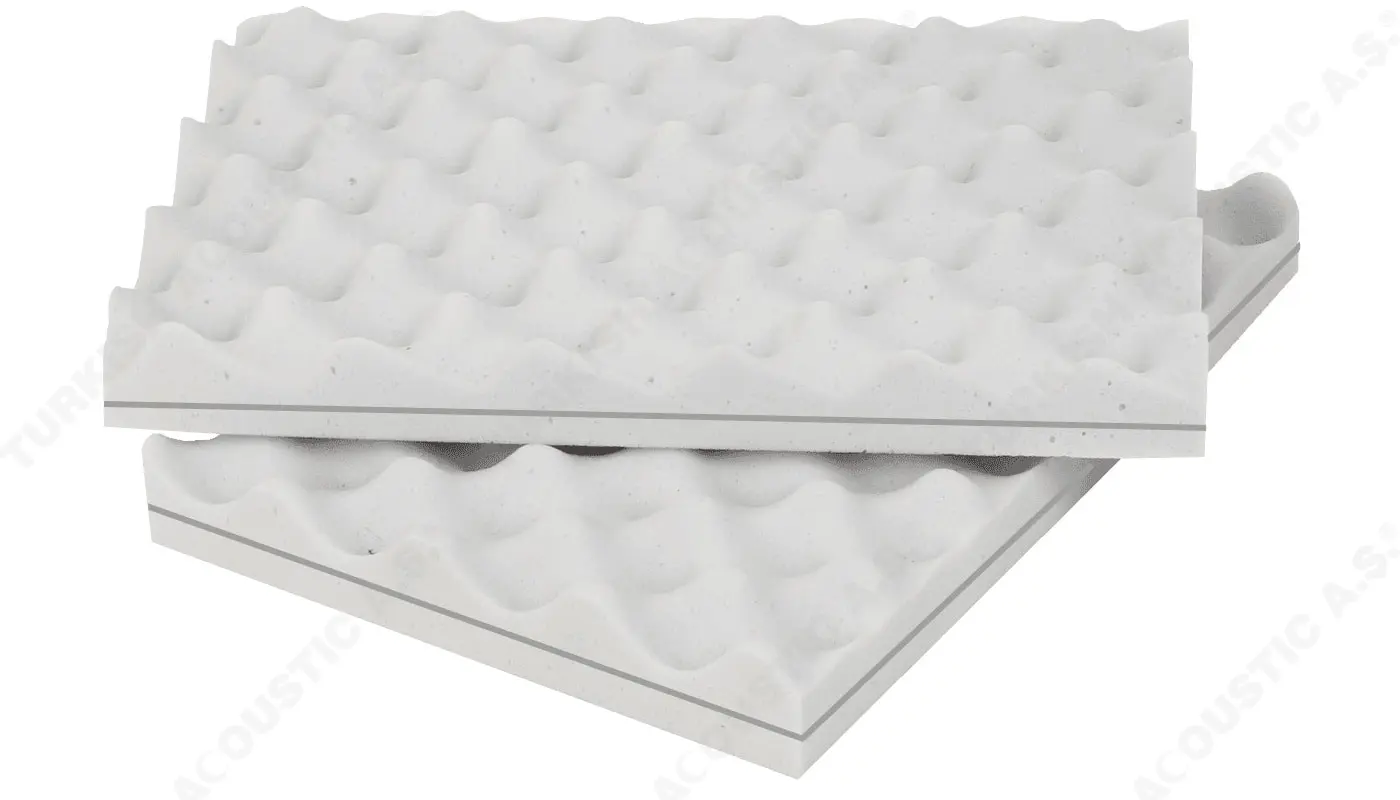

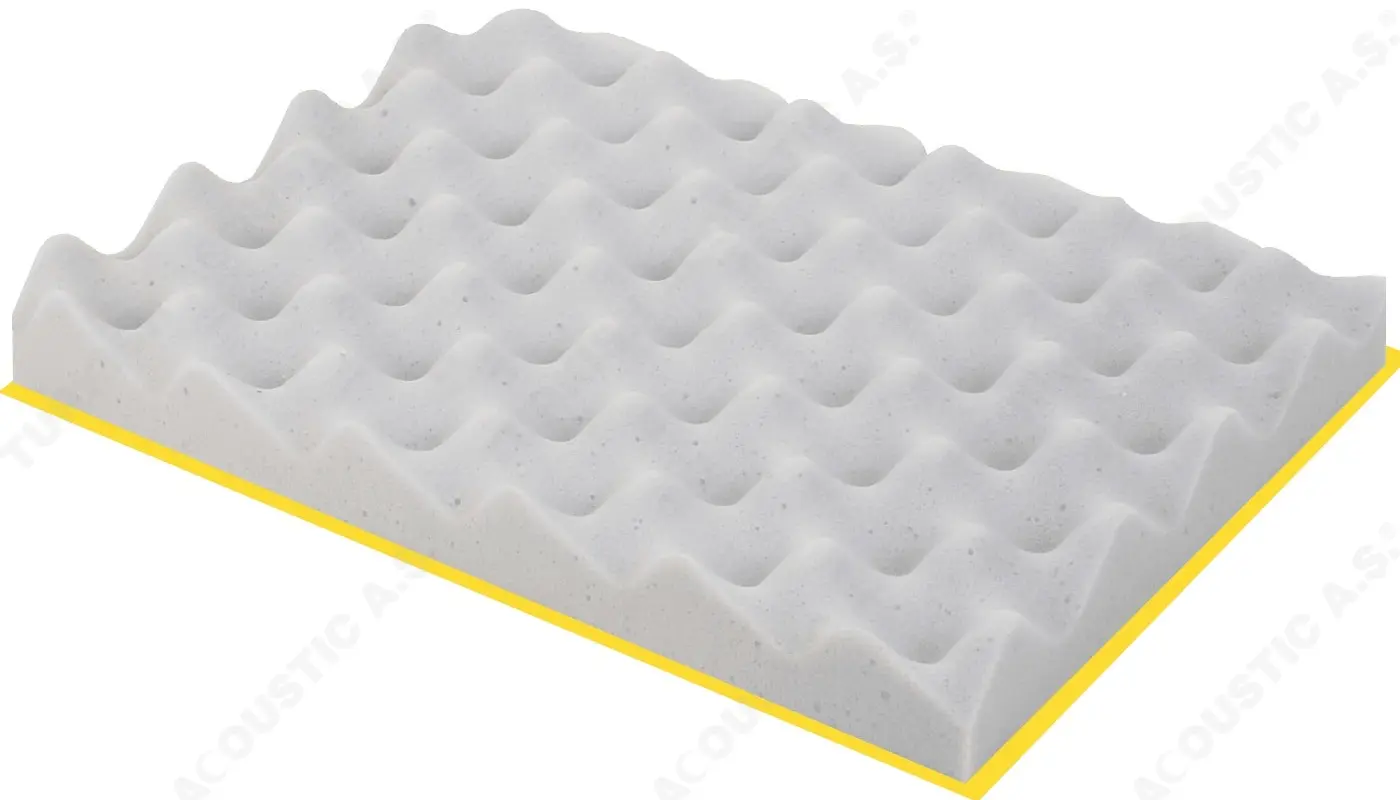

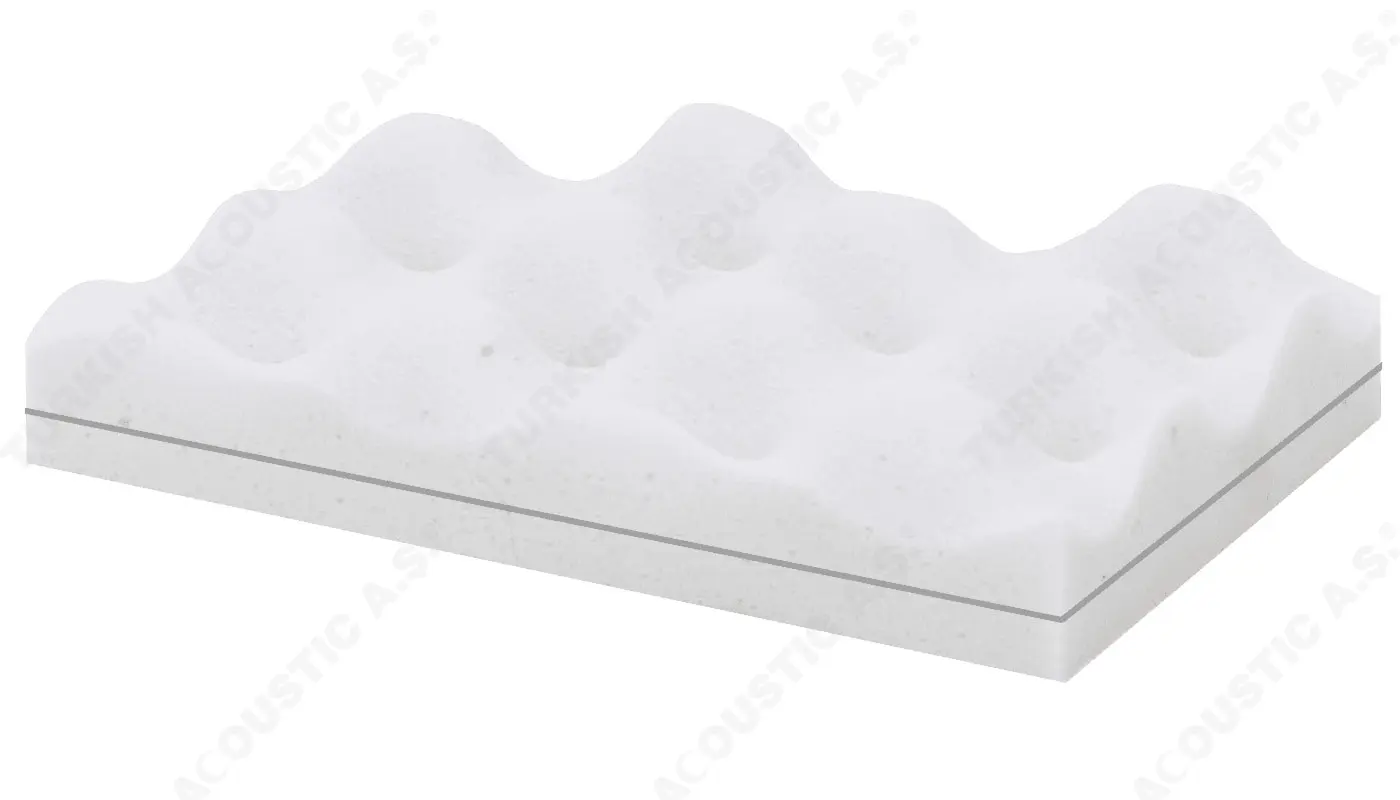

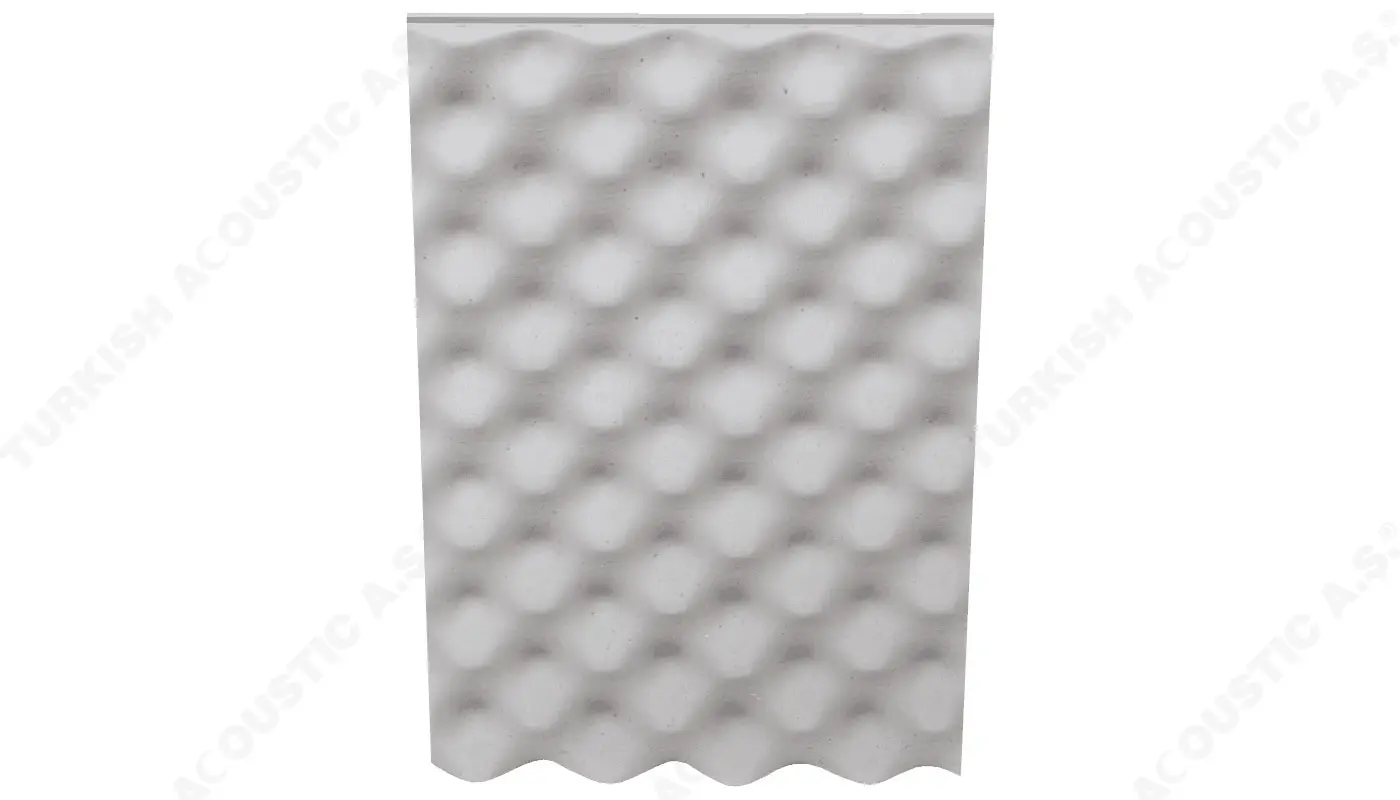

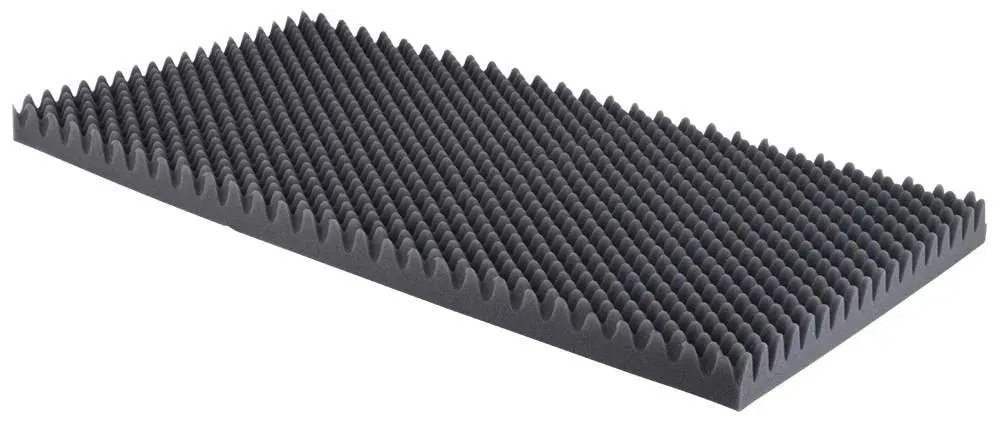

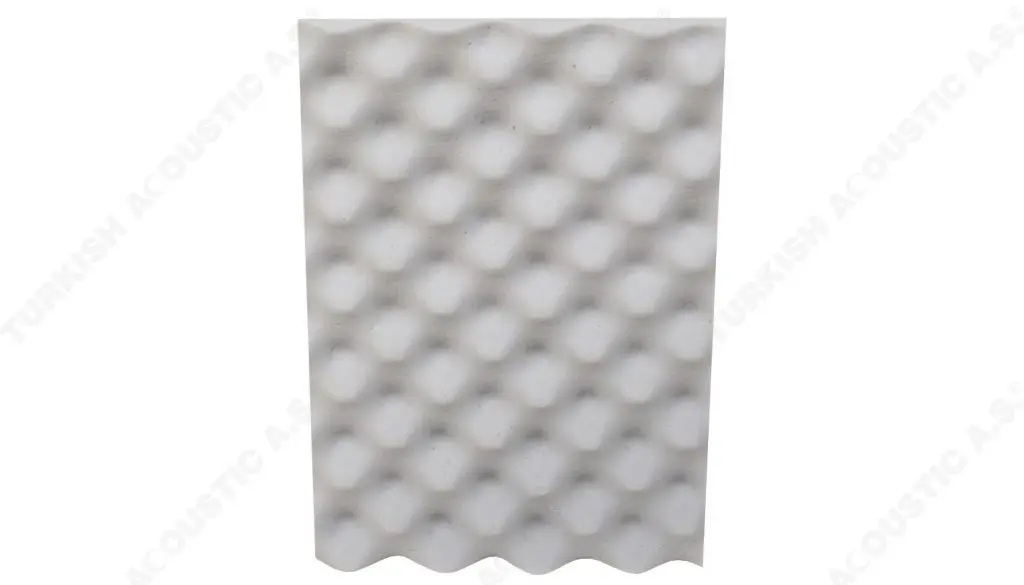

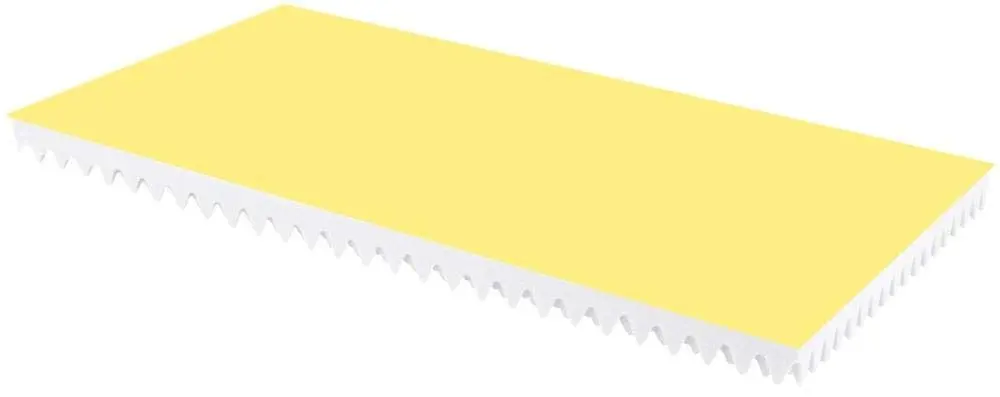

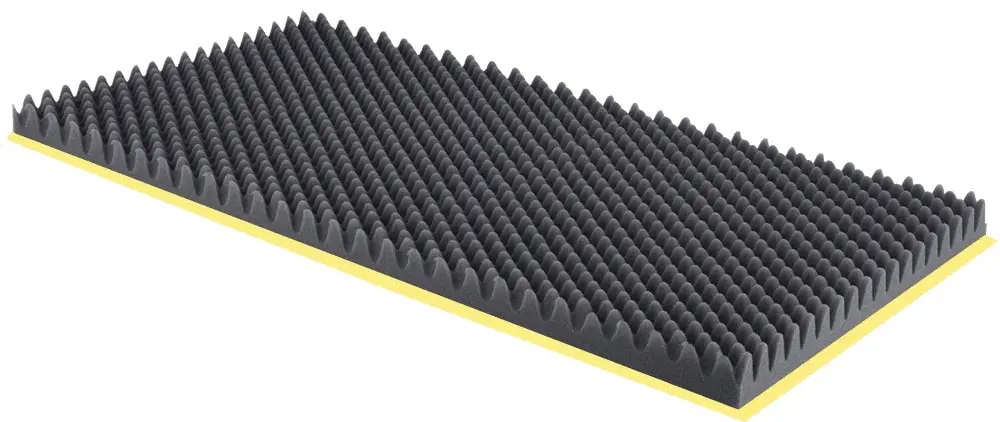

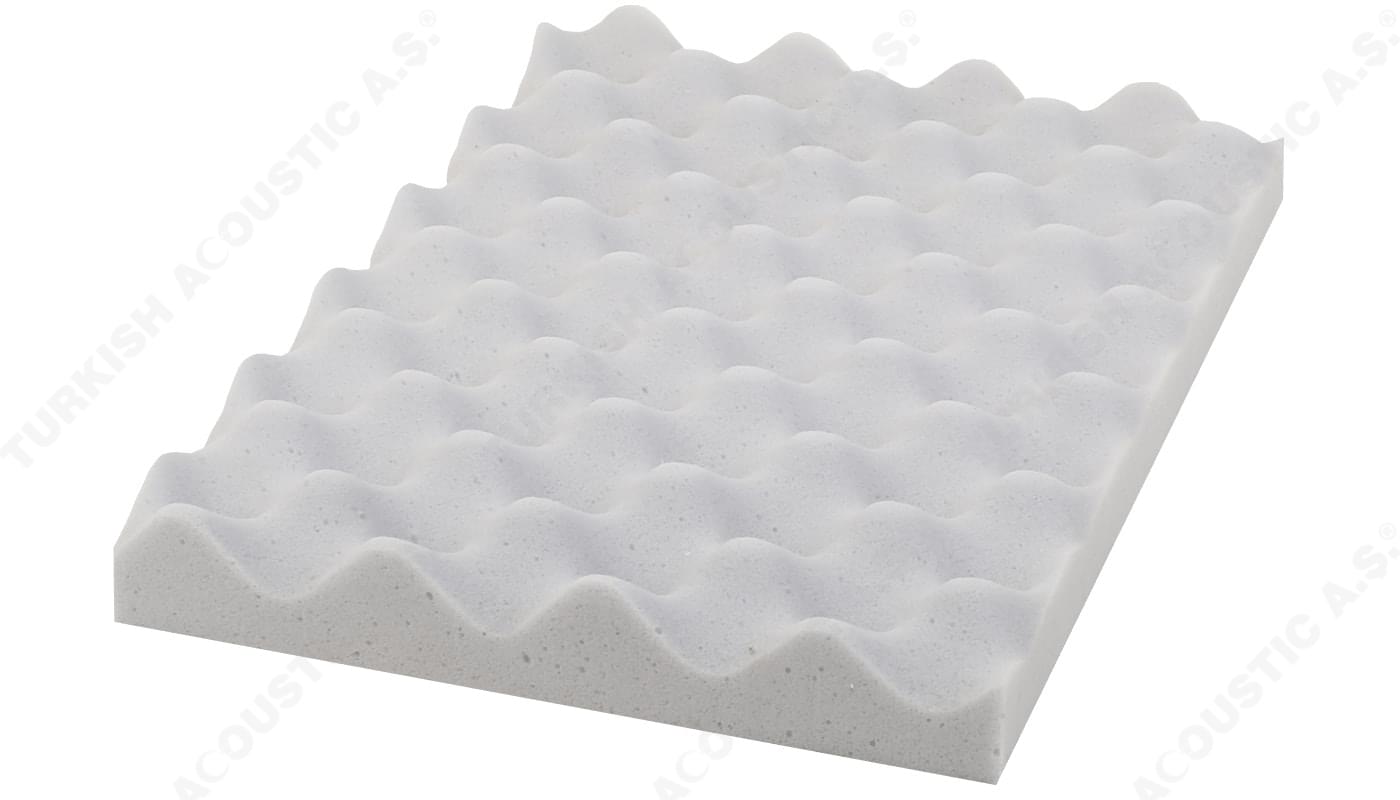

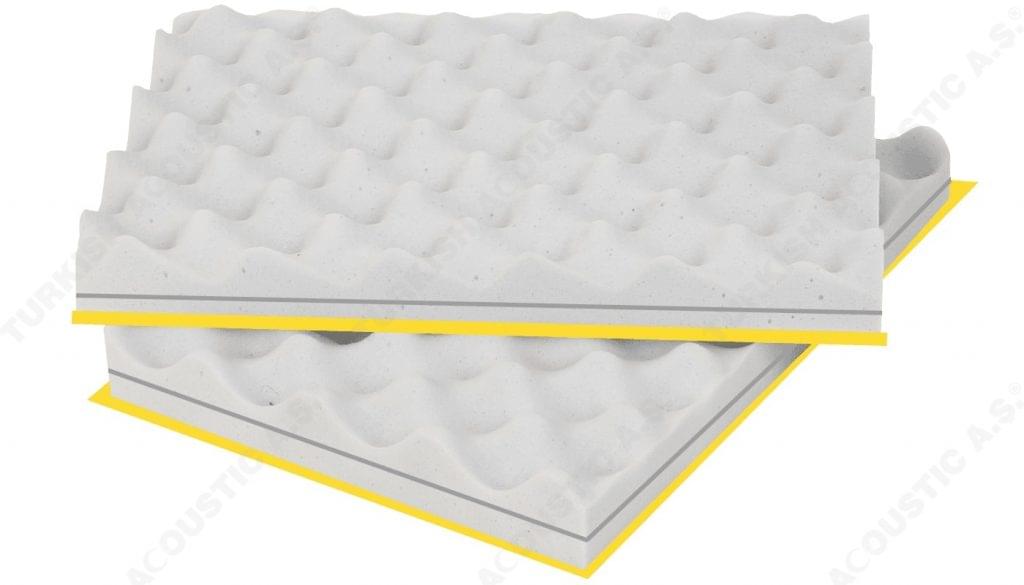

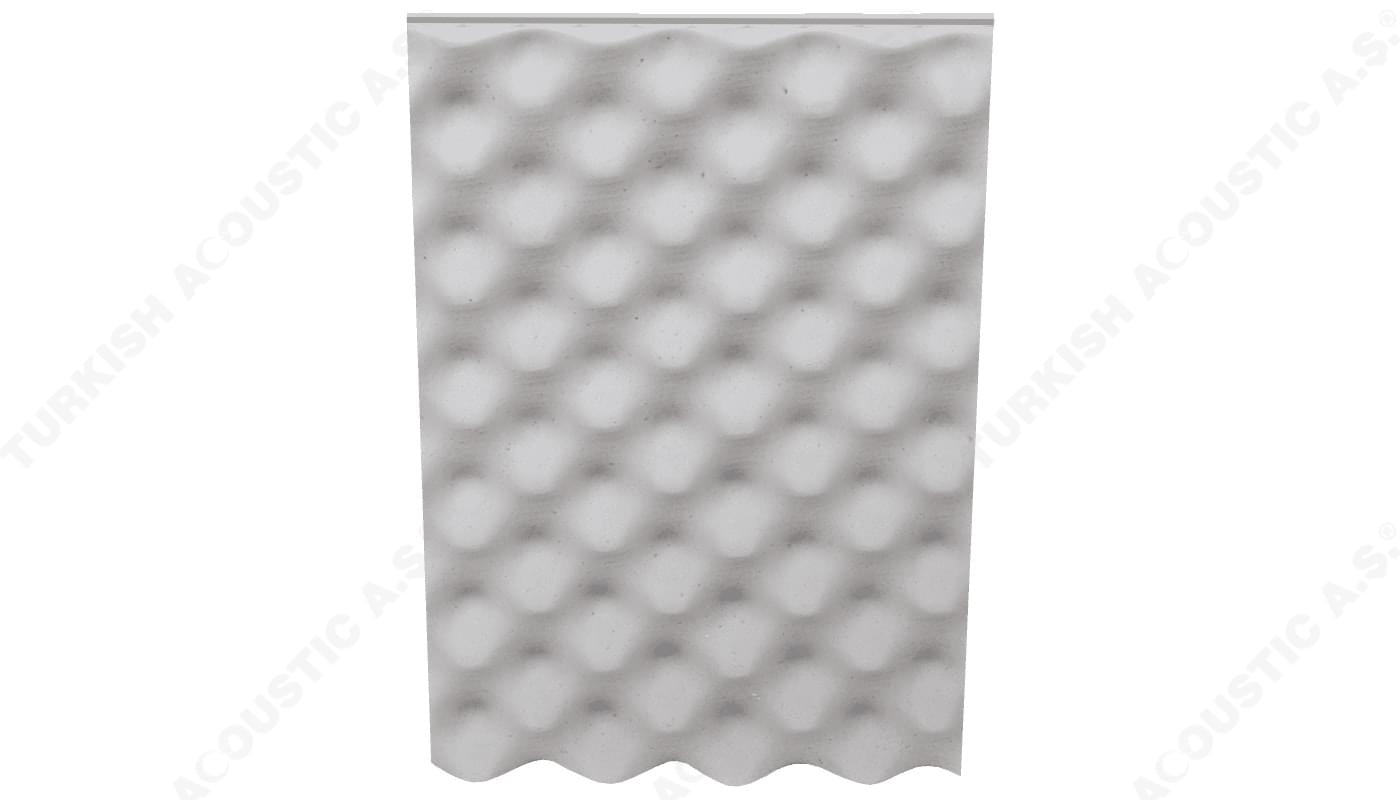

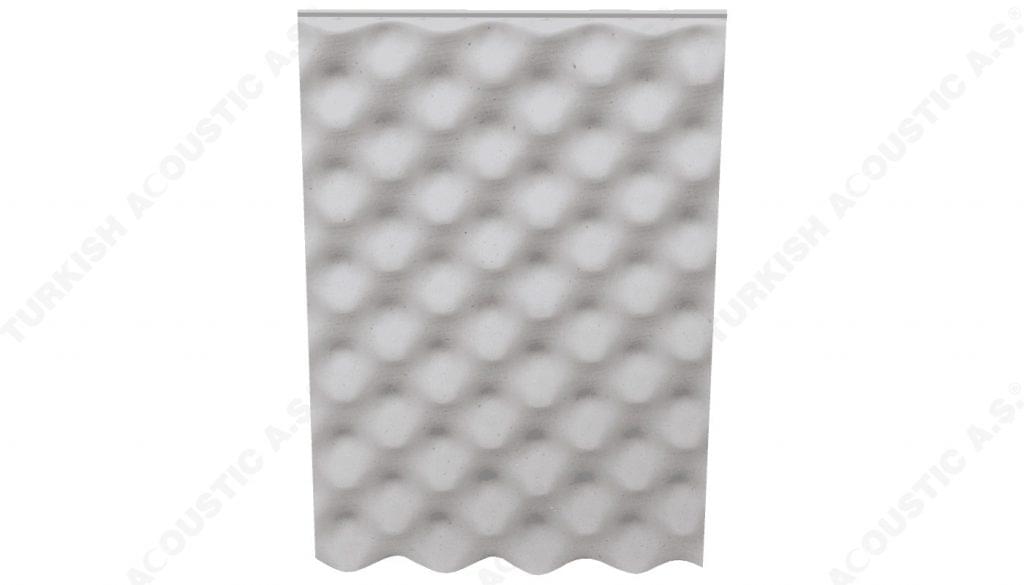

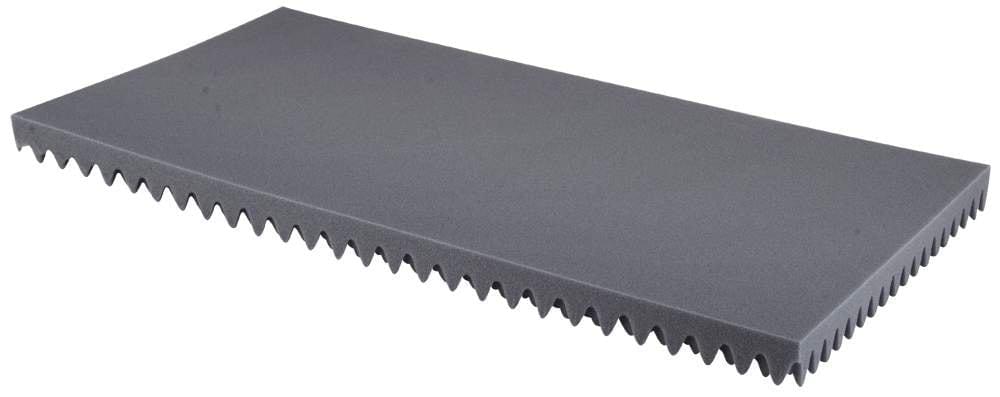

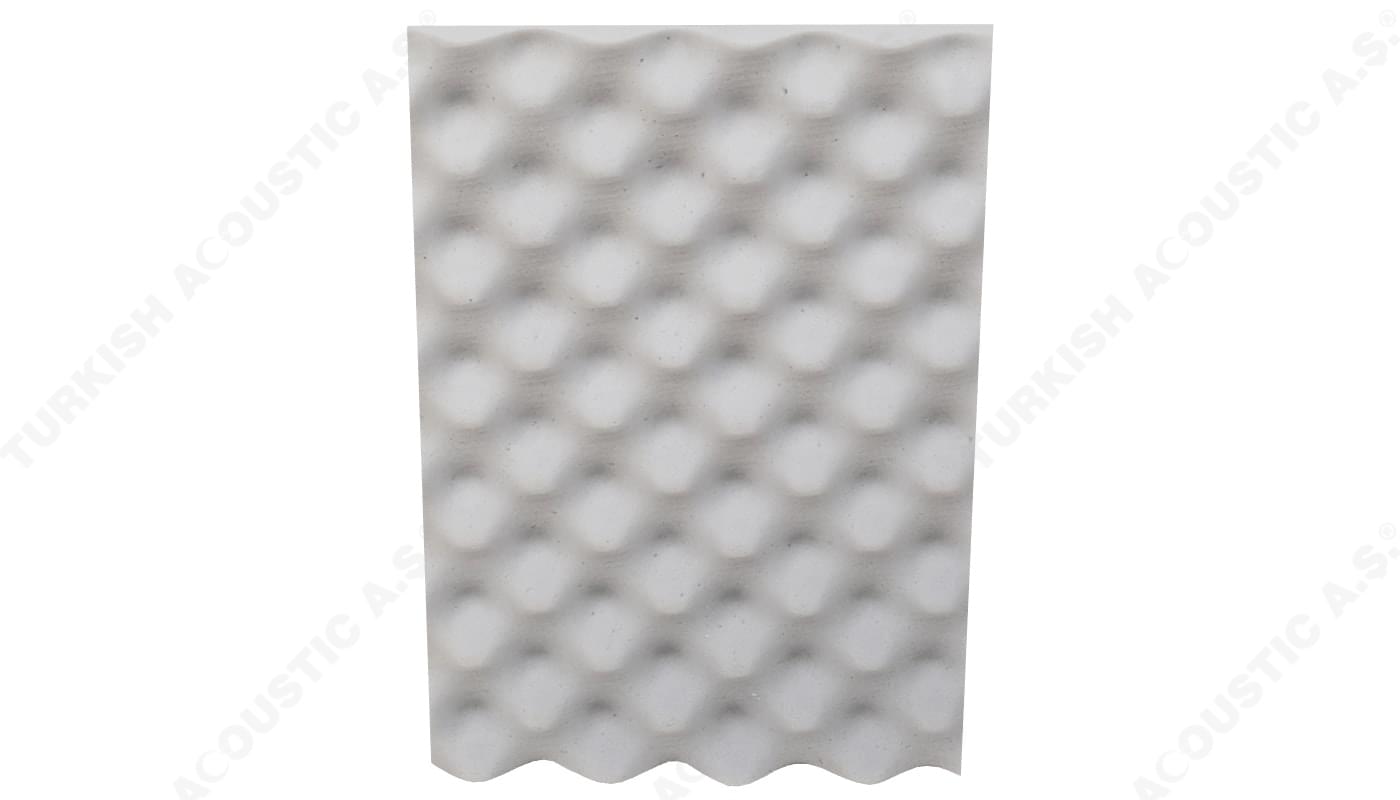

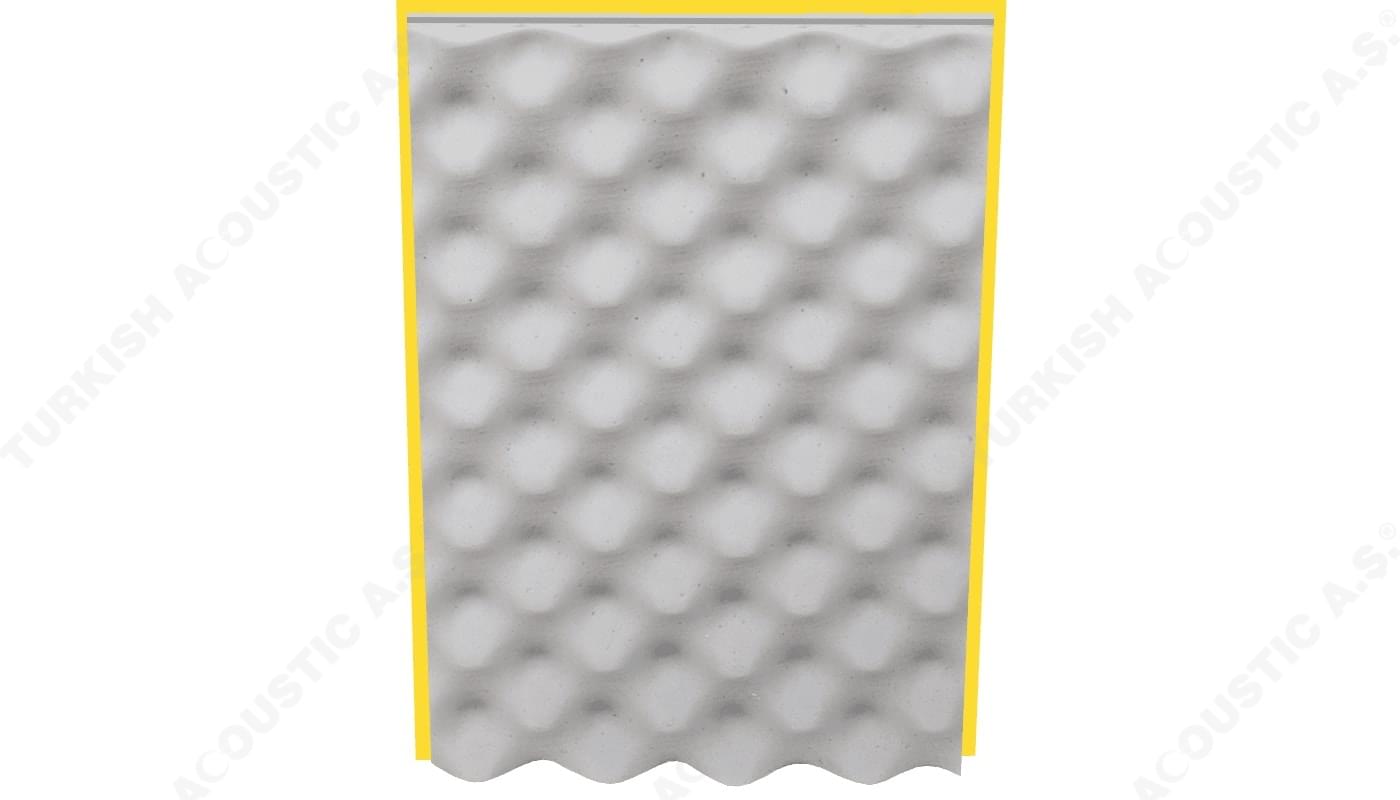

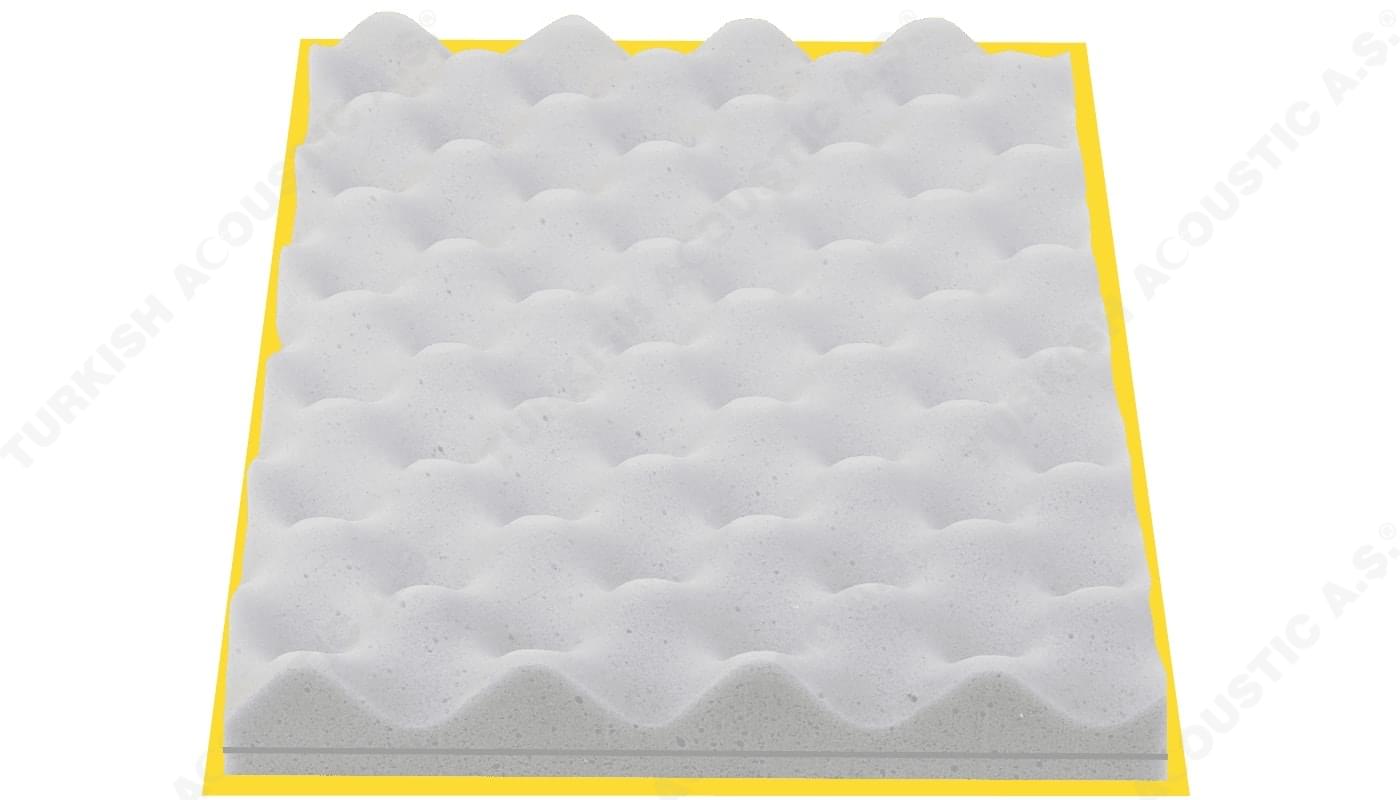

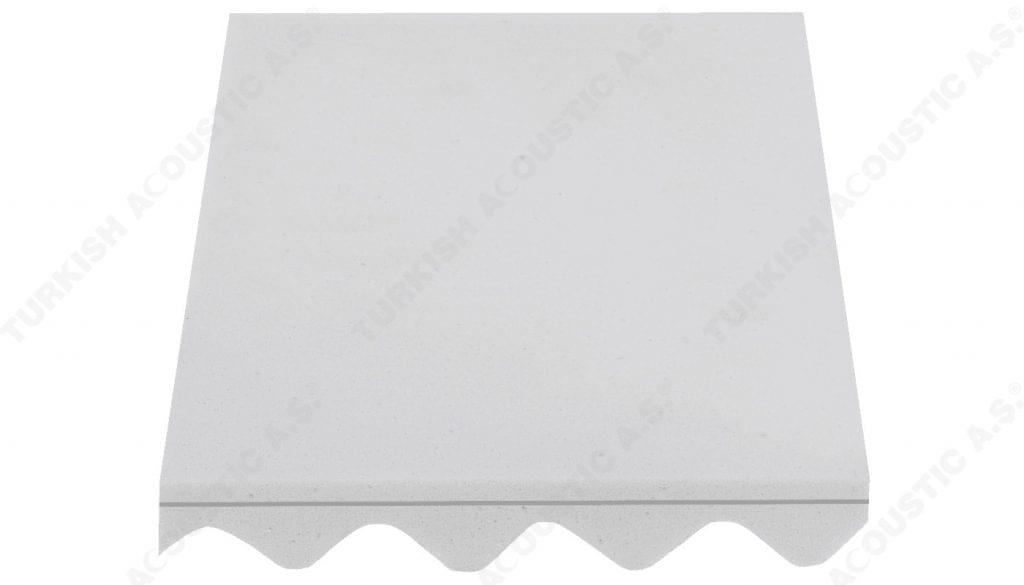

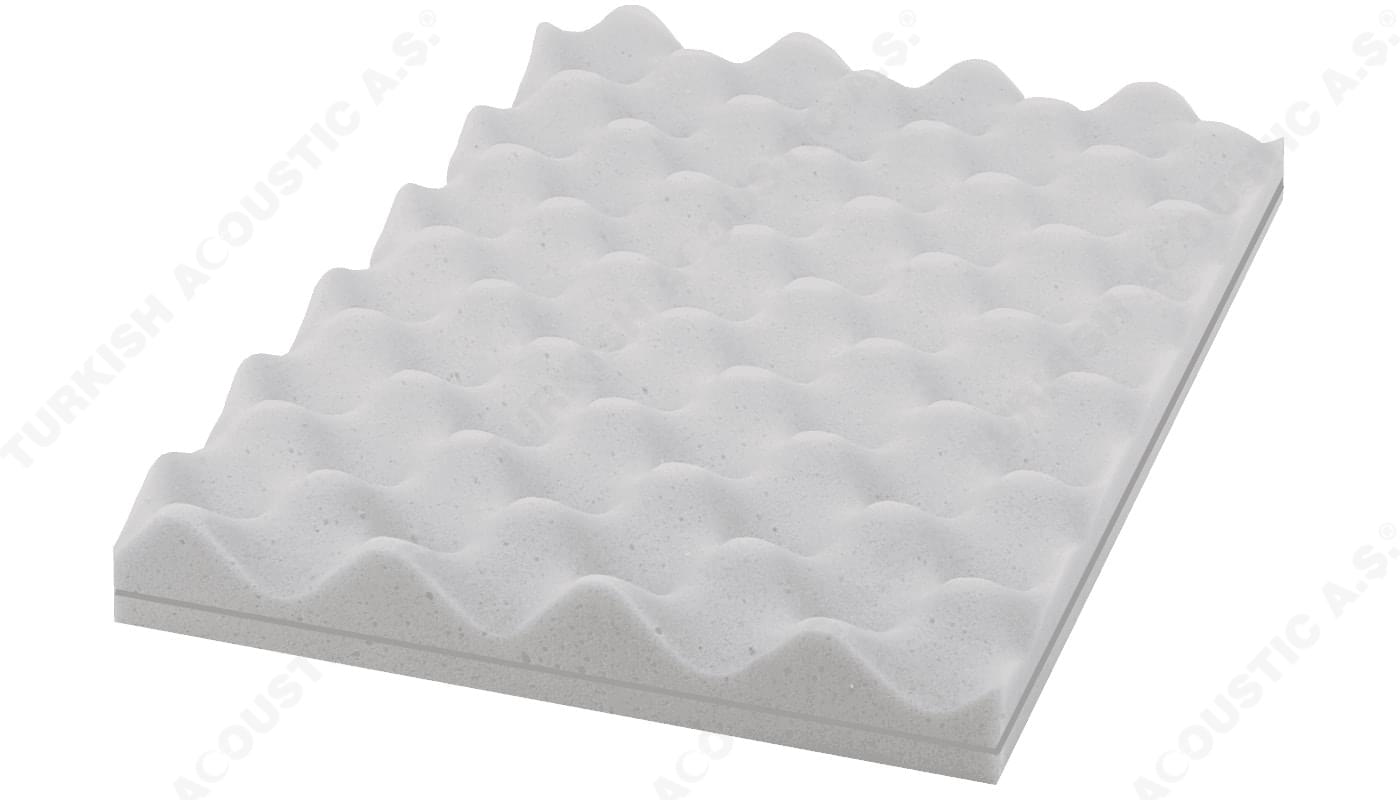

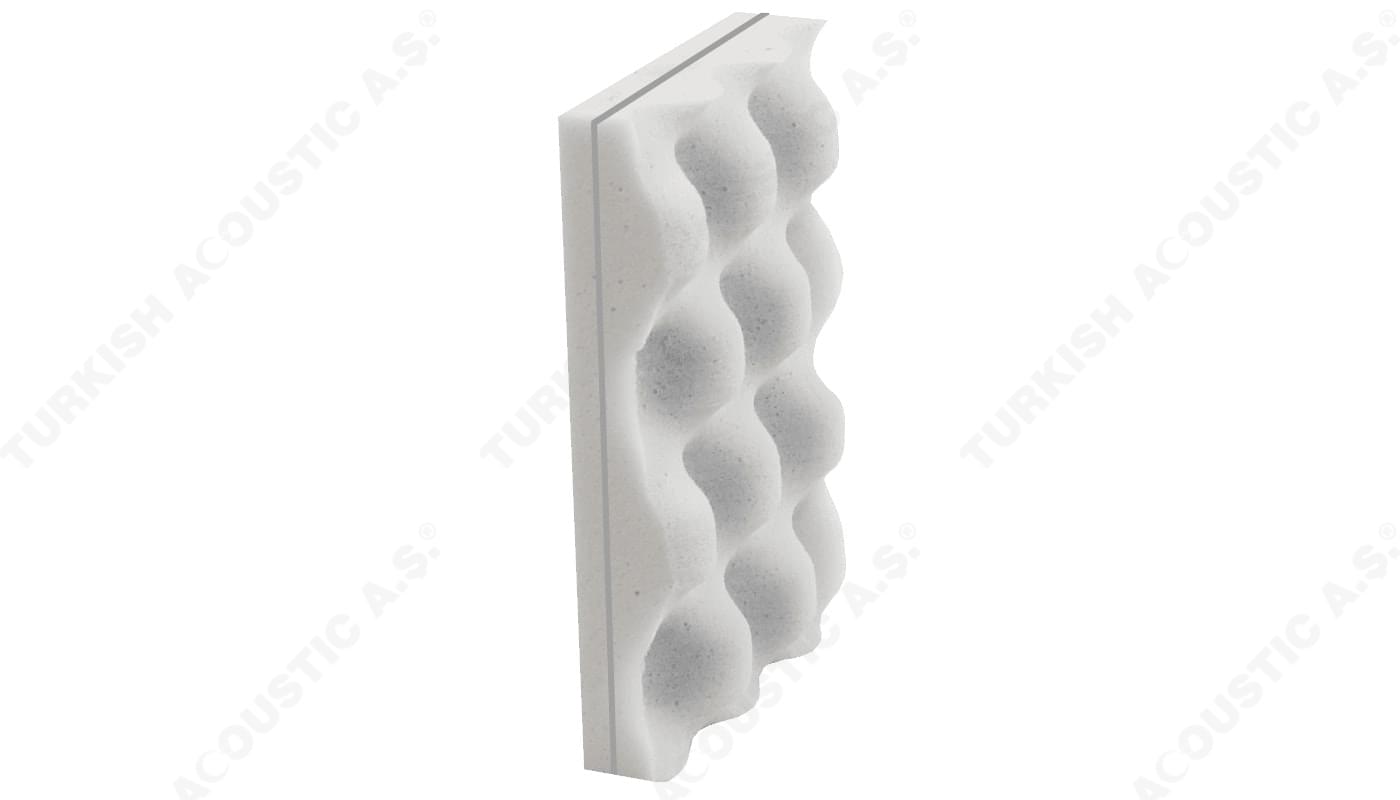

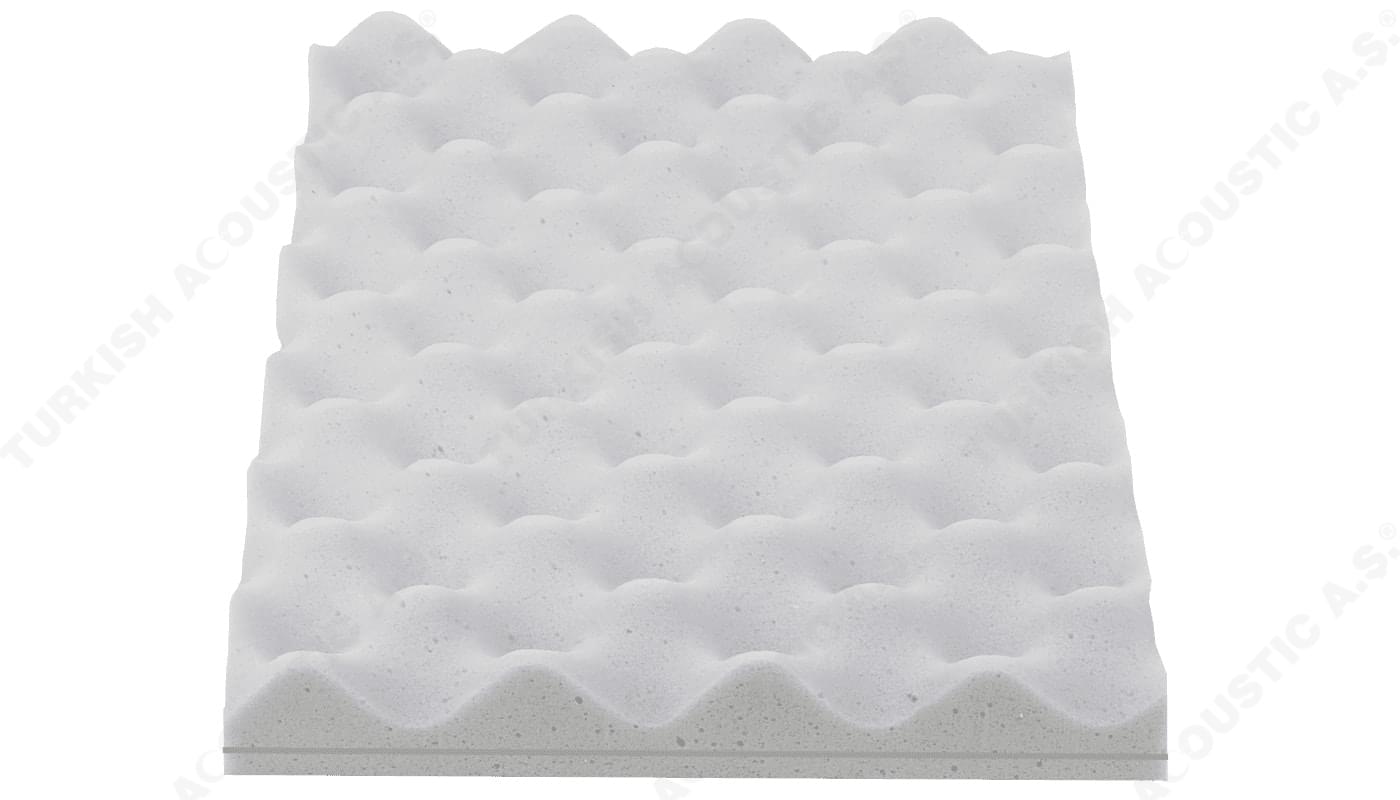

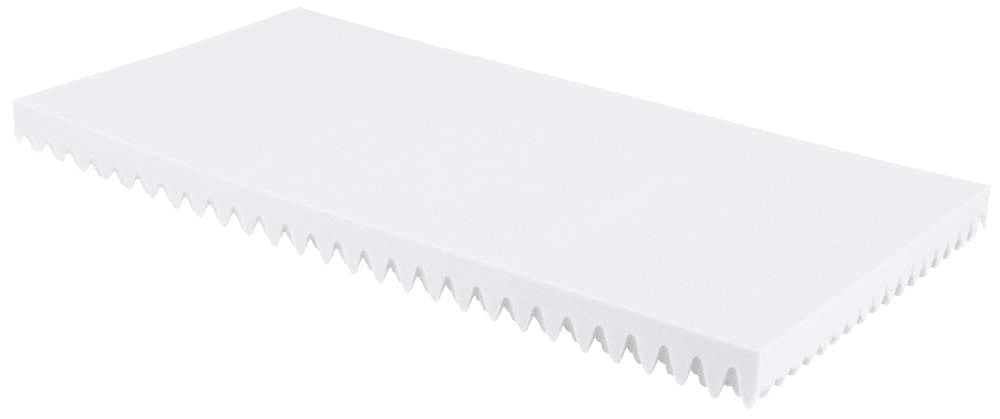

Basotect Egg Sponge: Basf basotect egg sponges (basf acoustic foams) are produced from 1250 mm x 2500 mm sponge slabs that we imported from Germany in desired dimensions and thicknesses. Basotect melamine egg sponges have high technology products and have low and high sound absorption properties. It is possible to produce melamine sponges in different shapes. Turkish Acoustic, which produces panels in any thickness and pattern, supplies sound insulation products to the leading companies in Turkey, such as THY and Karsan. Basotect melamine sponge, which Basf develops for Nasa shuttles and is a high technology and R&D study product, is an acoustic sound insulation material with high performance. Our product dimensions are 500 mm x 1250 mm. Thickness: 0,5 mm - 100 mm.

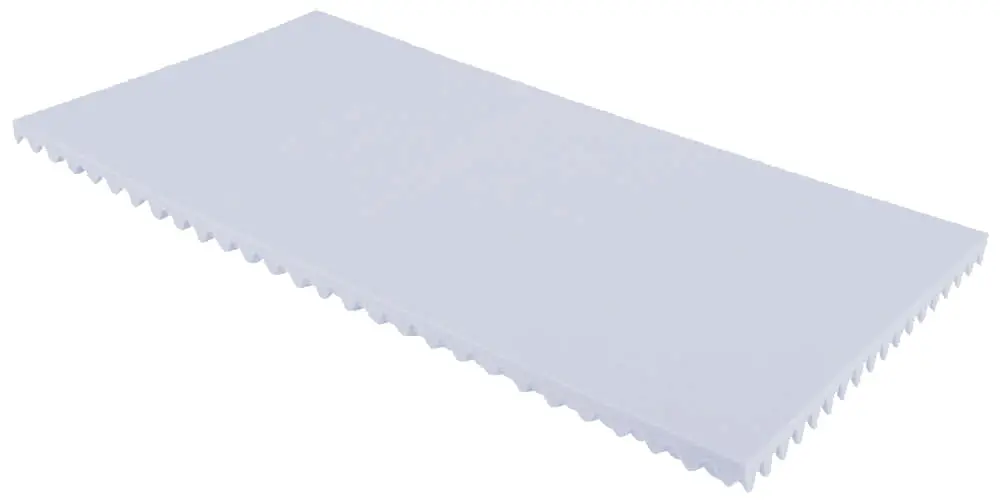

Basotect Egg Sponge Dimensions: 50 cm x 125 cm as plates / 30 mm and 40 mm standard thicknesses
Basotect Egg Sponge Package Content: Sold in 50 cm x 125 cm as plates / One package contains 40 pieces (25m²)

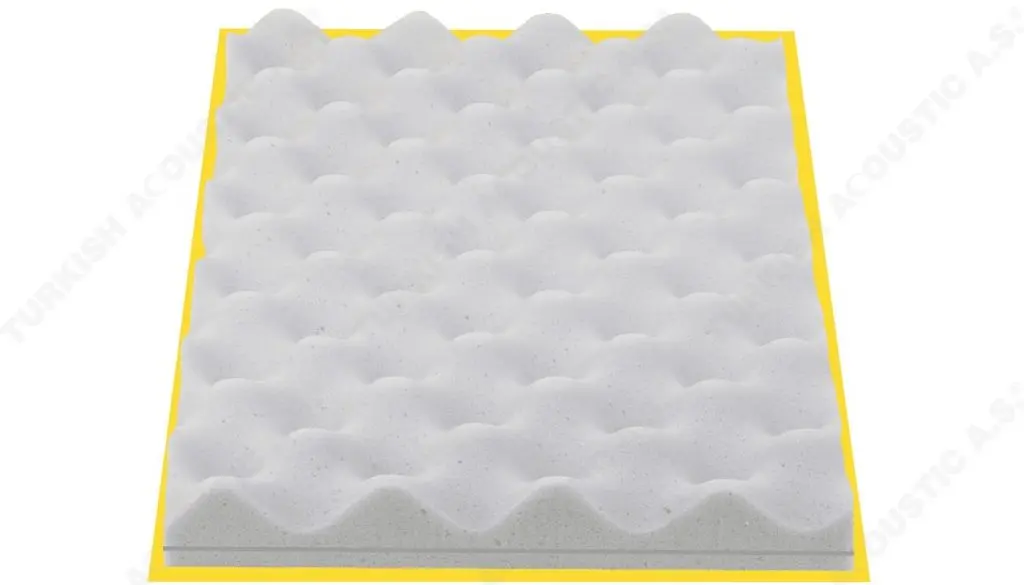

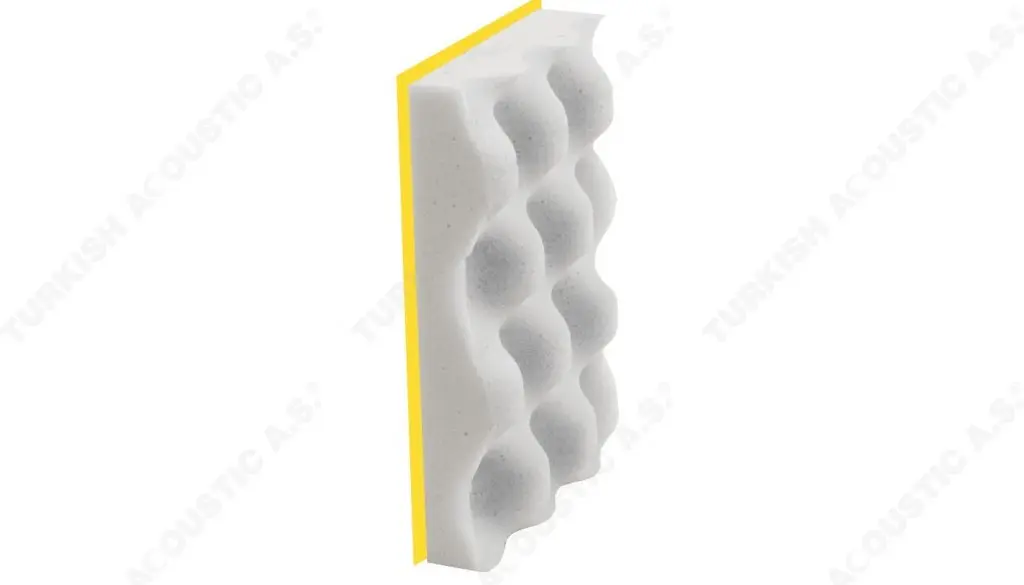

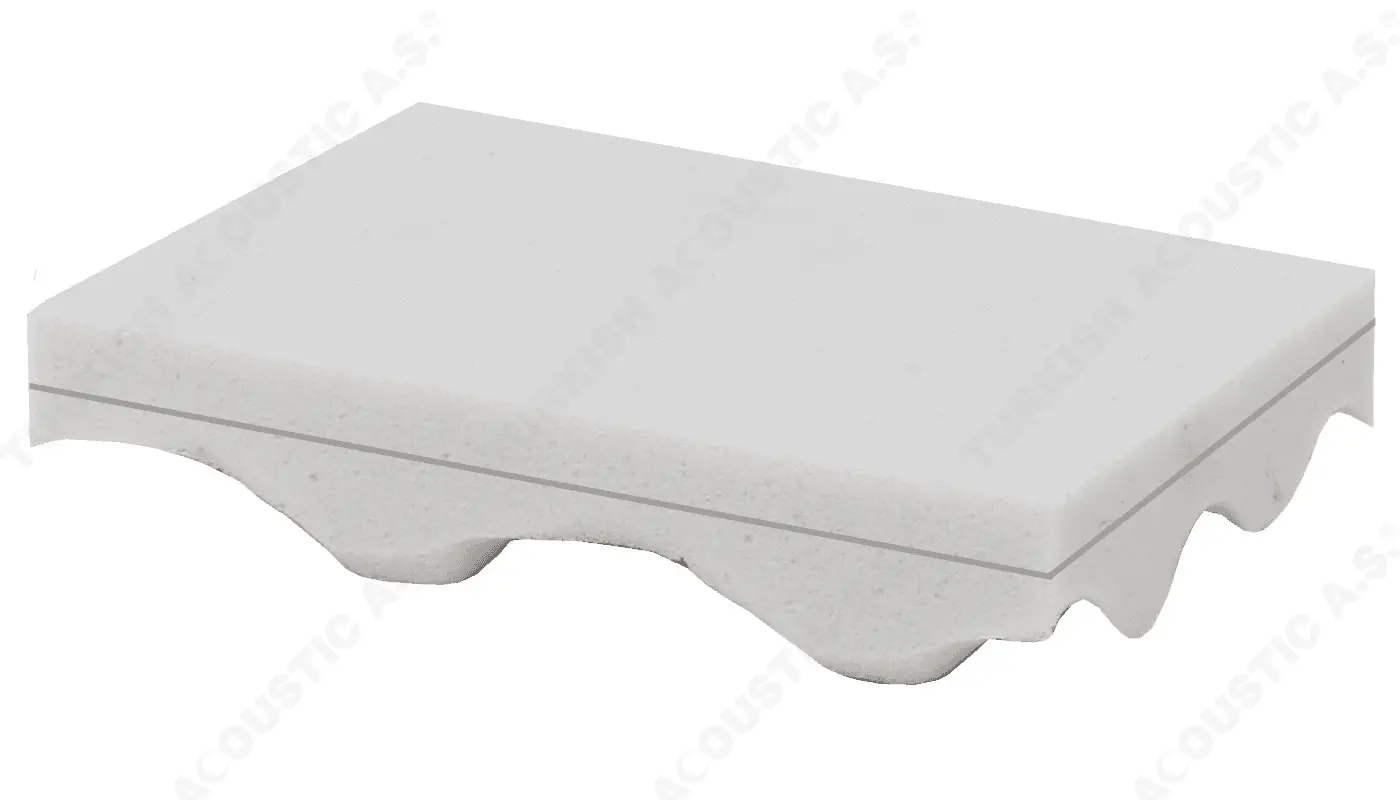

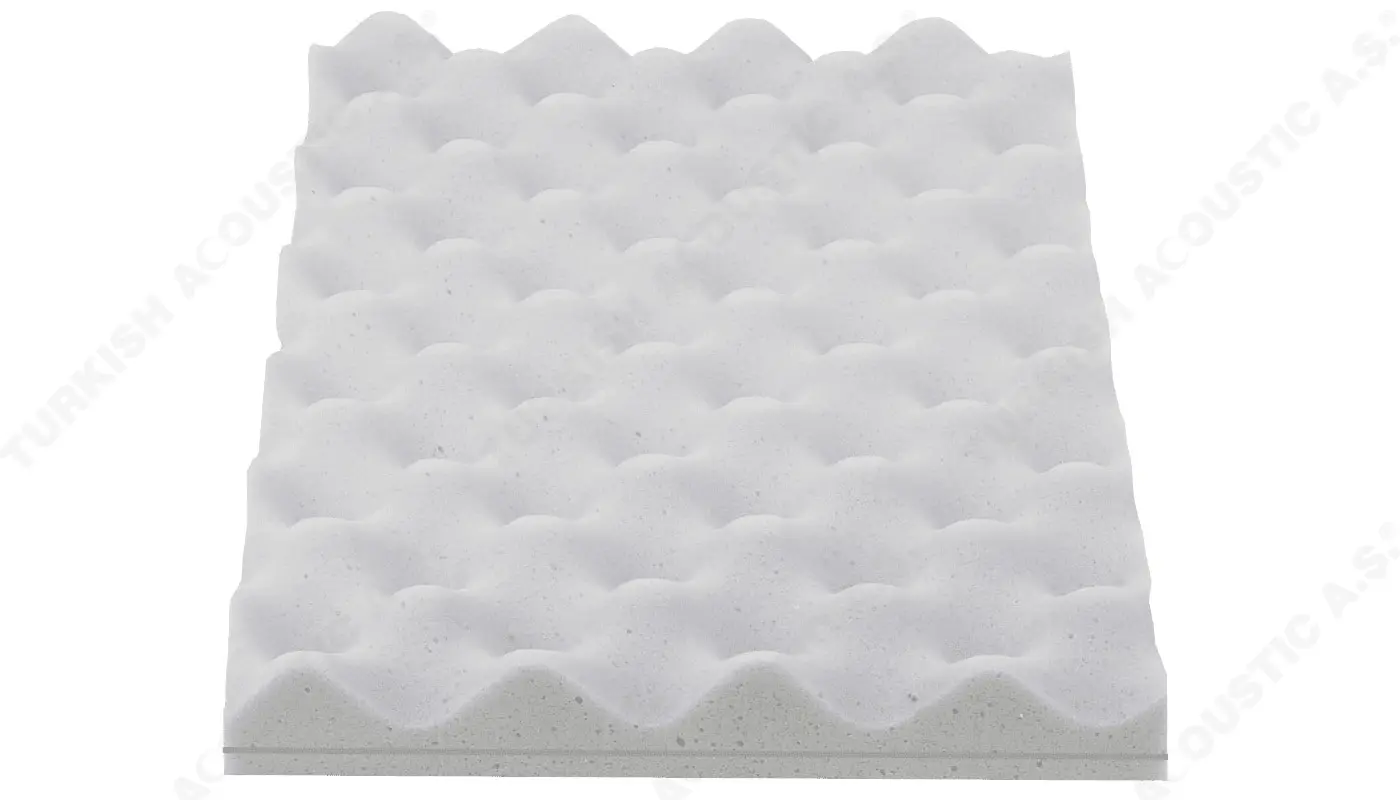

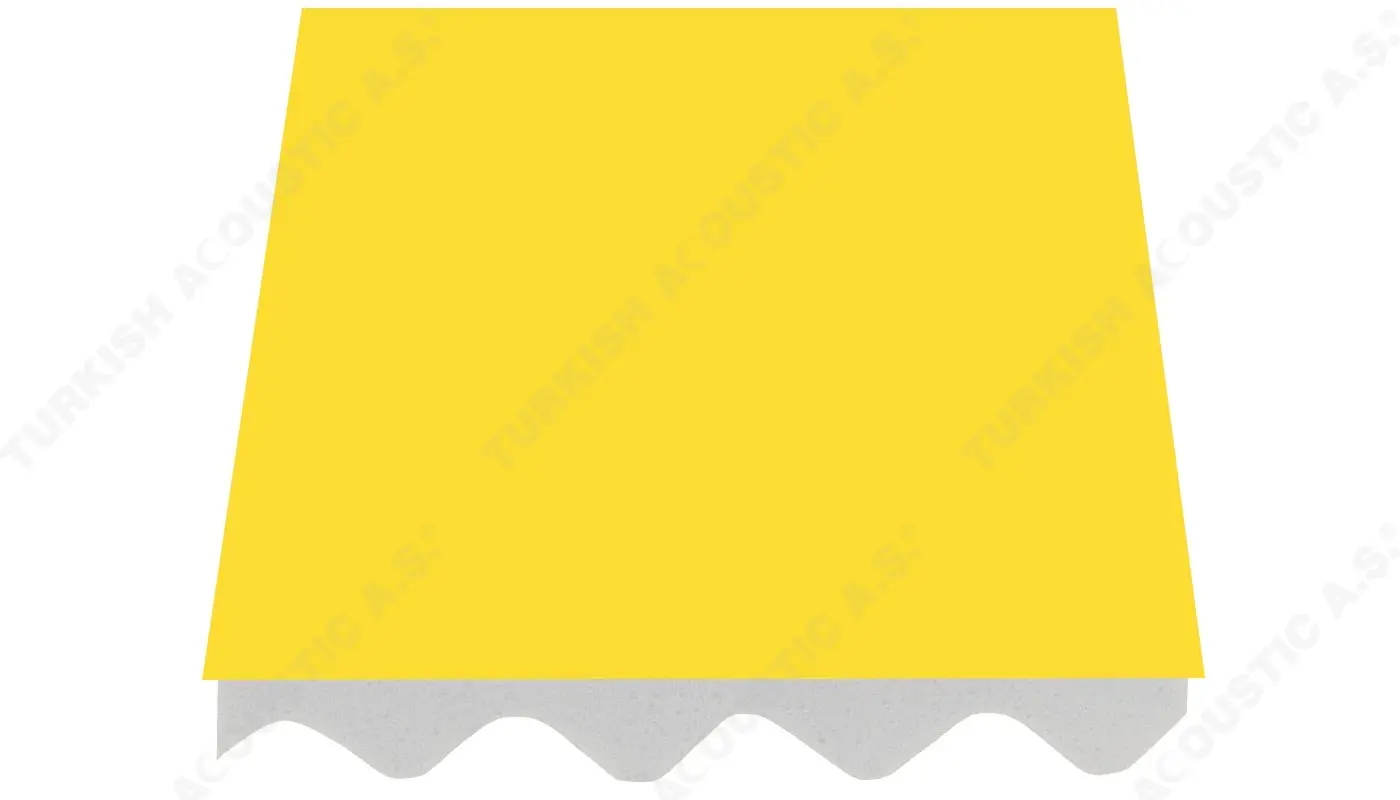

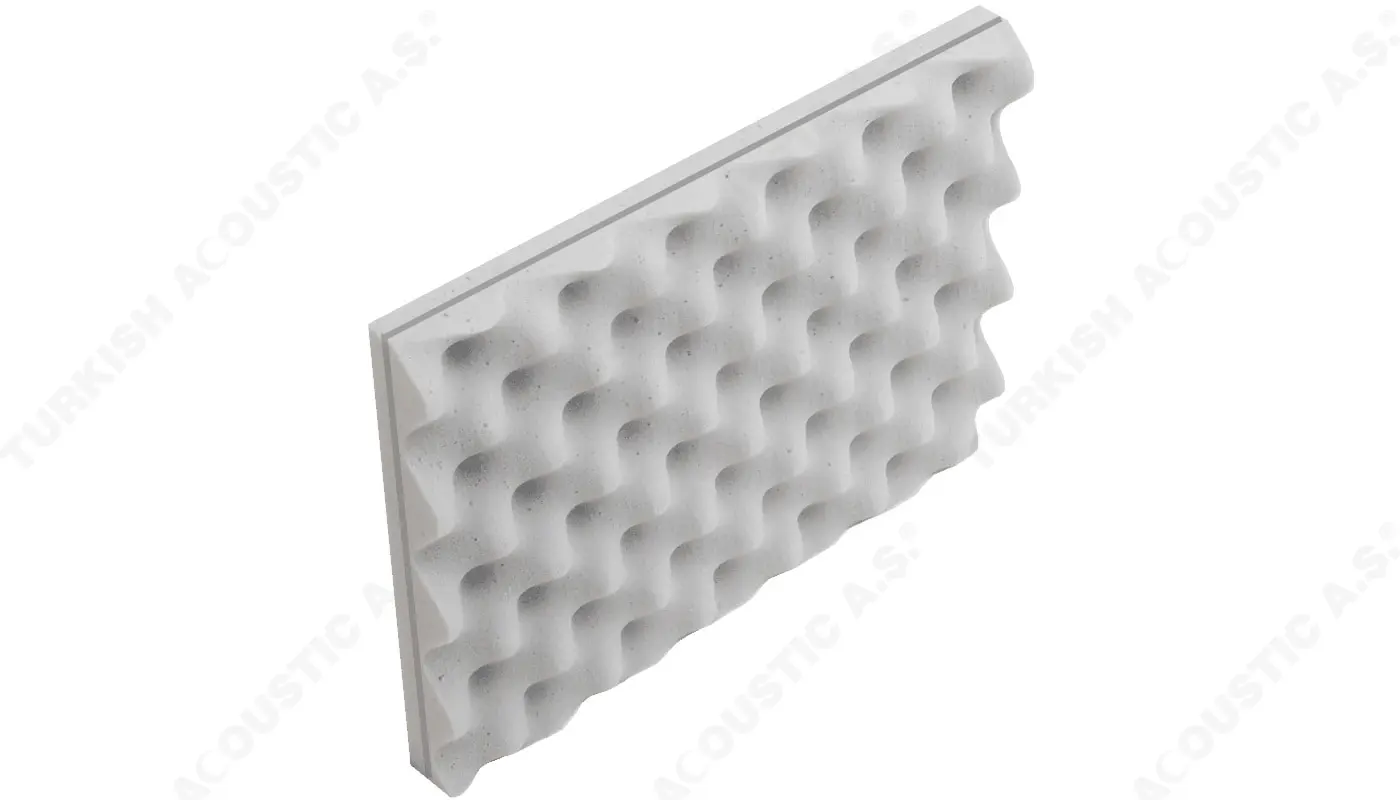

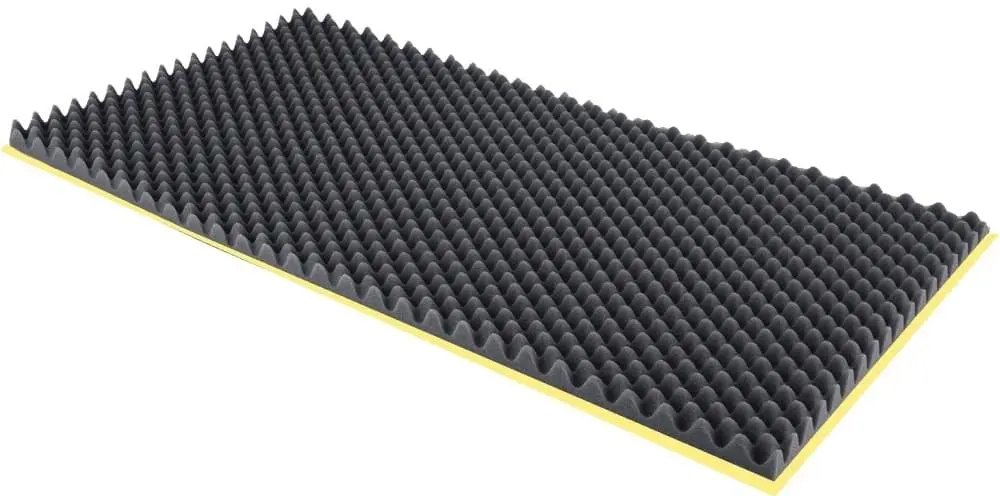

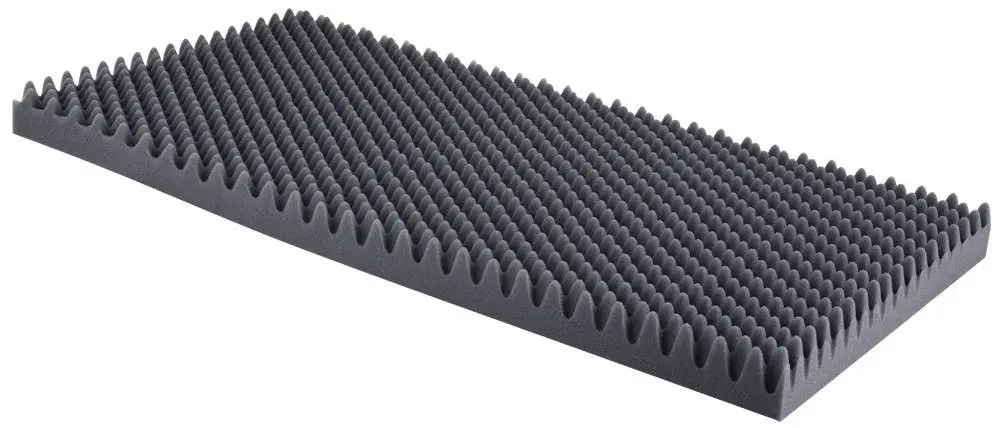

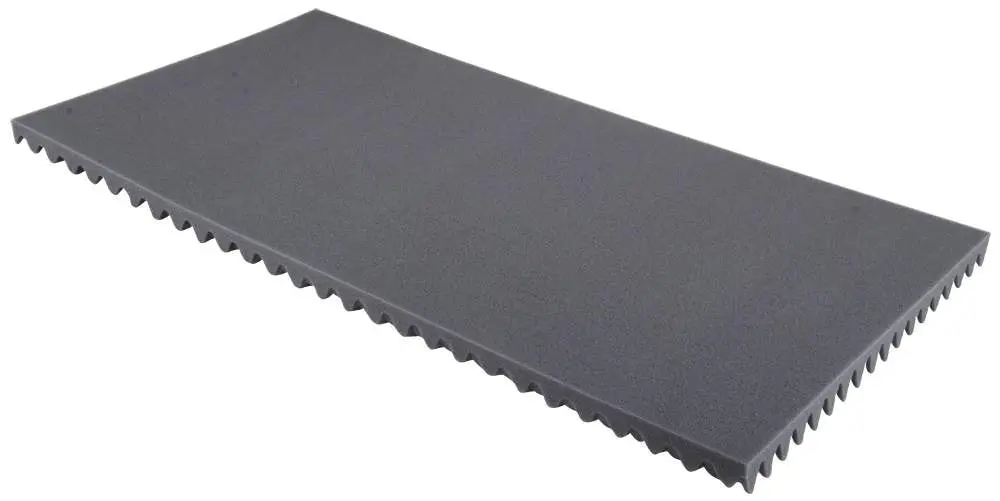

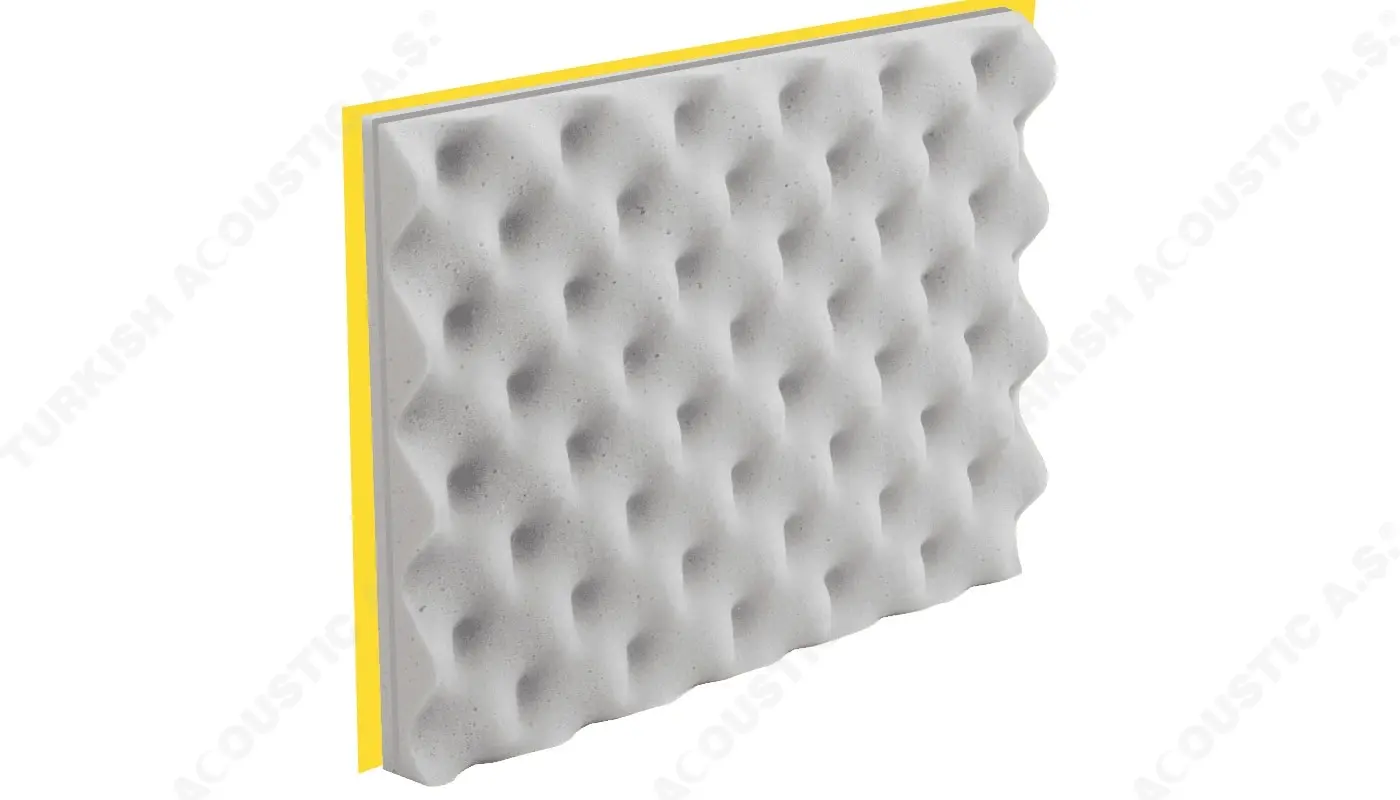

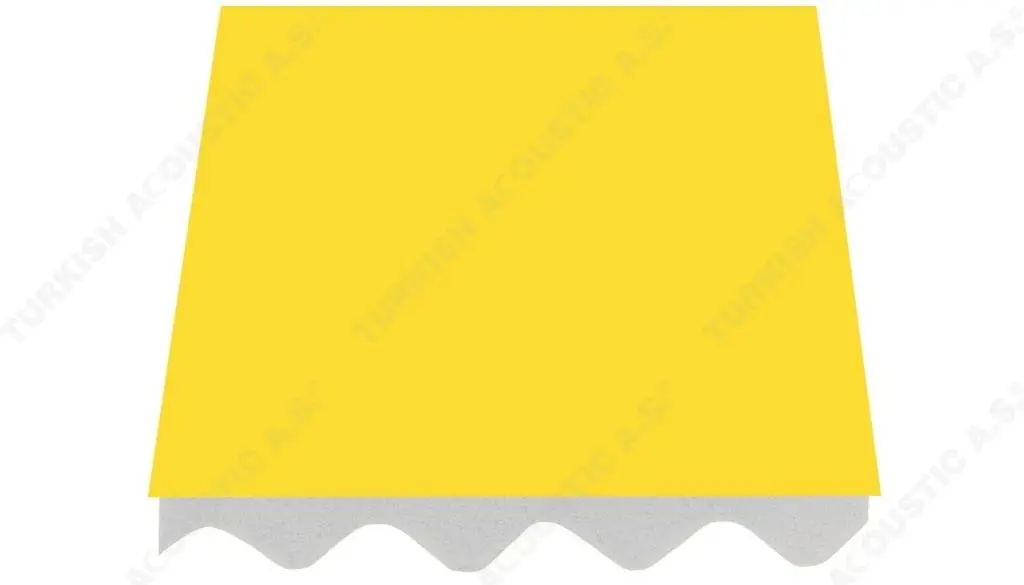

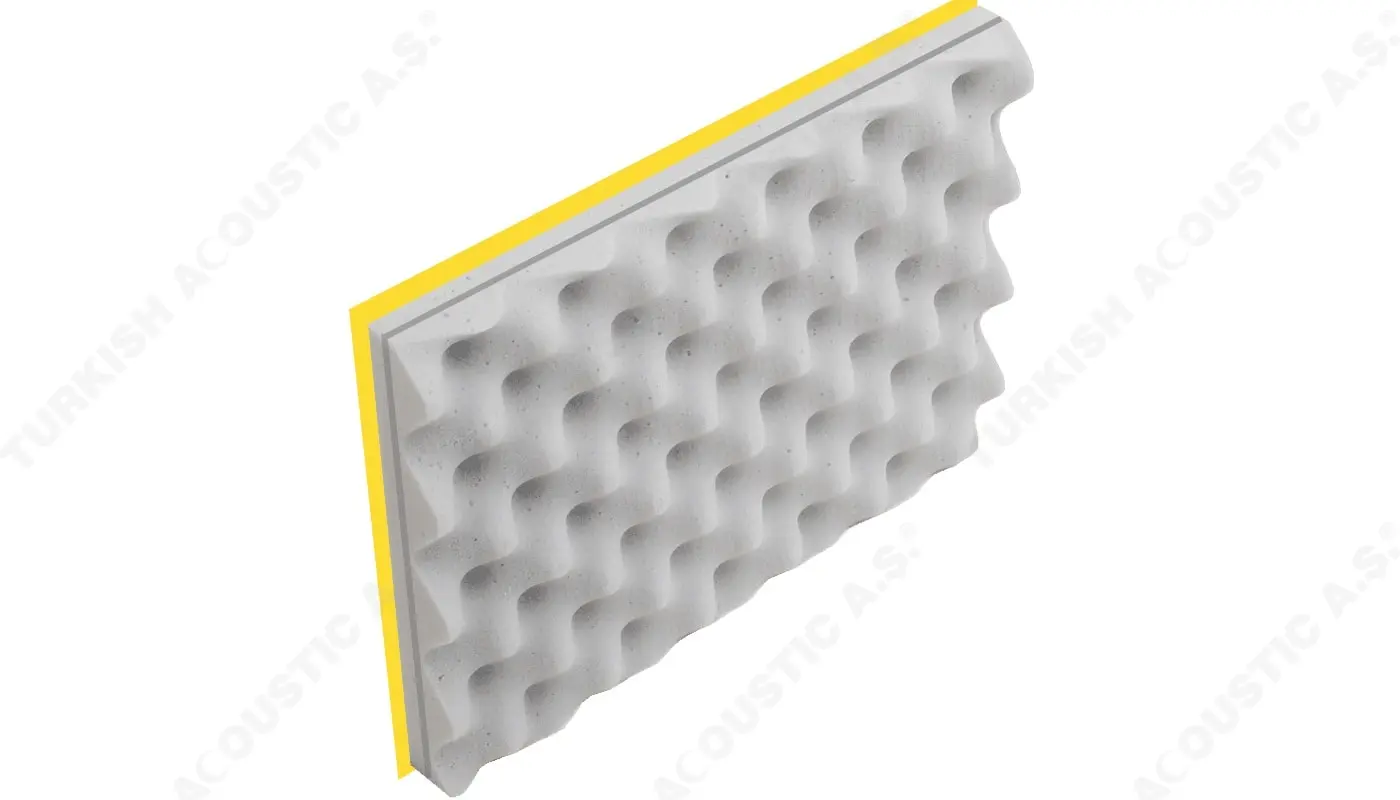

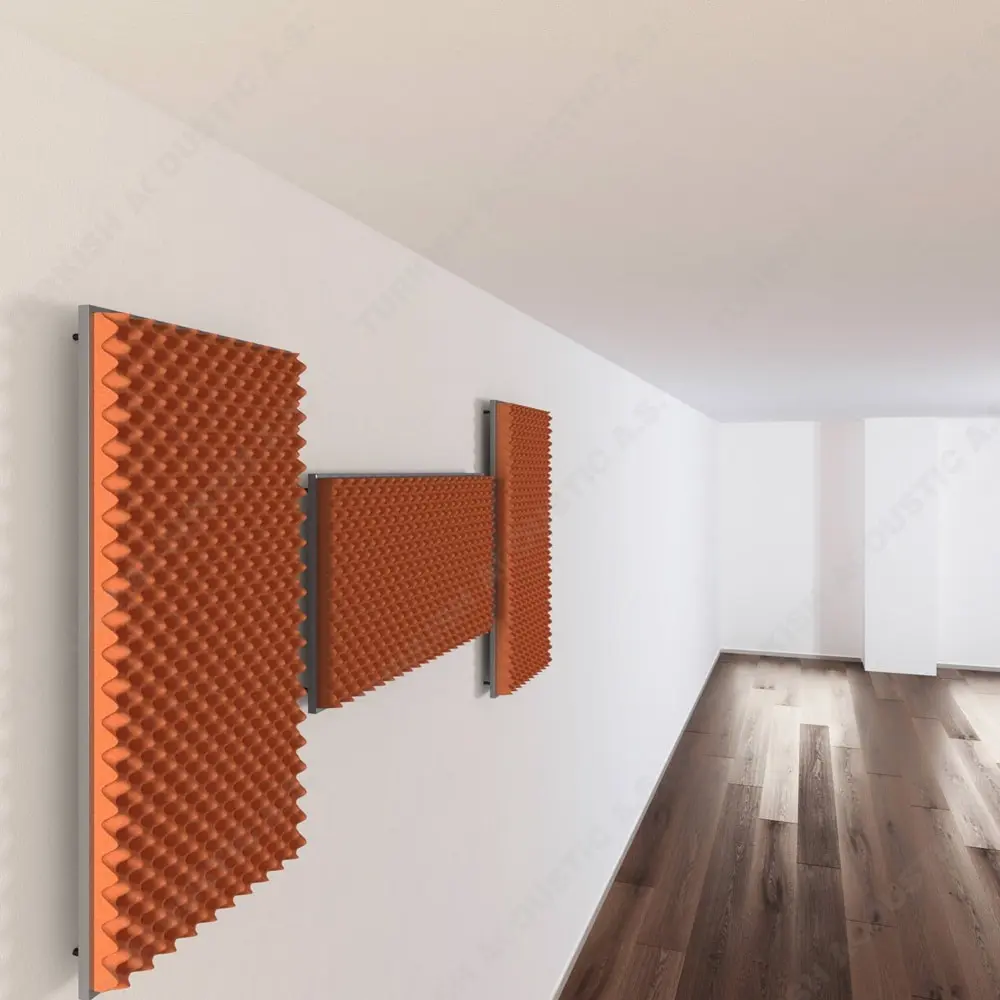

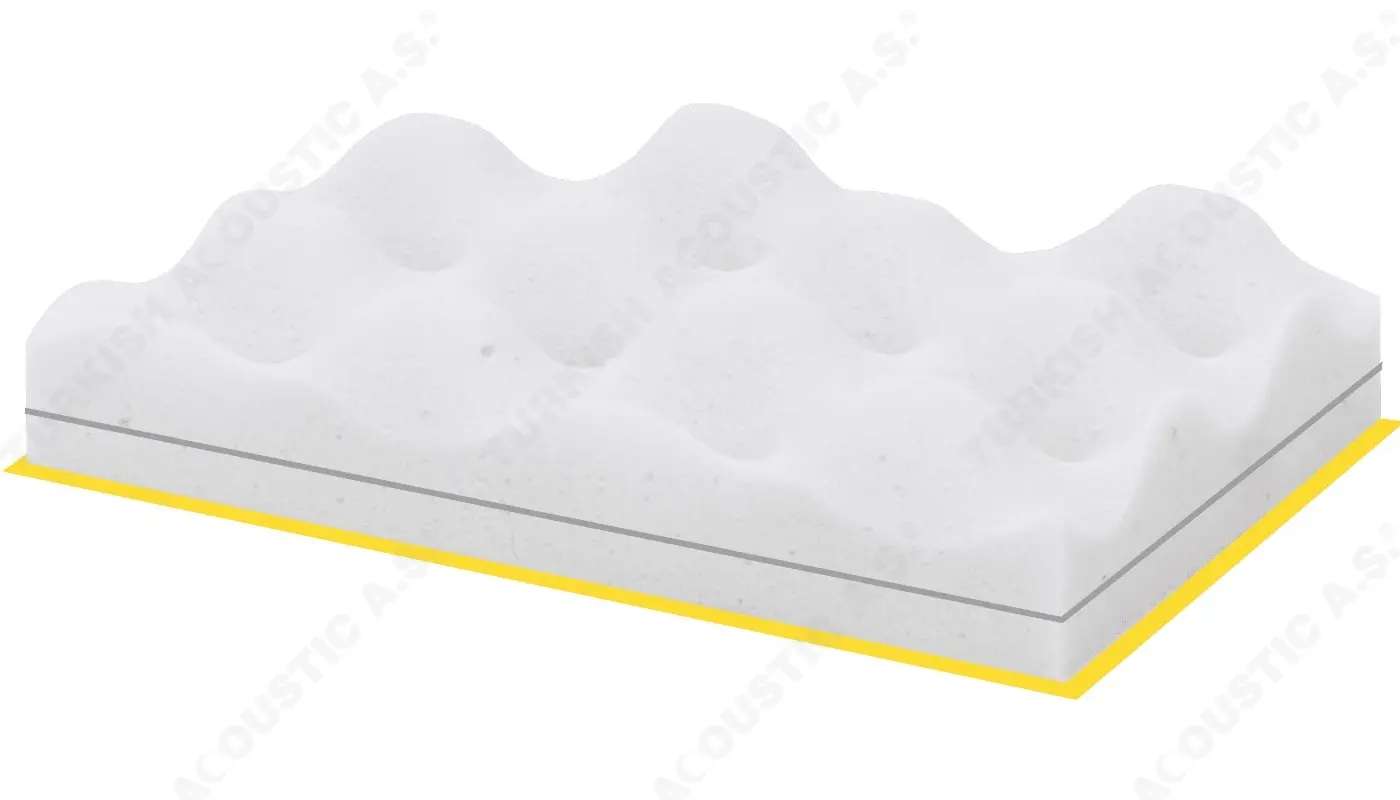

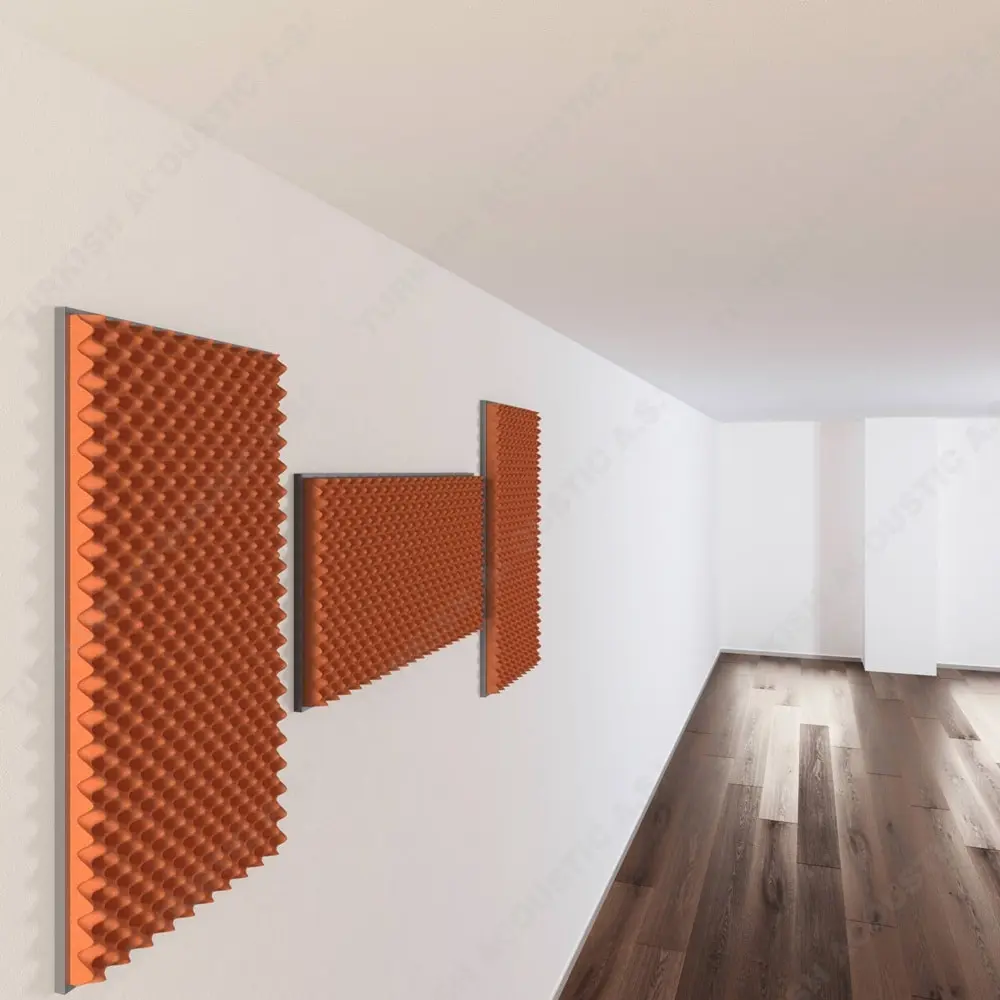

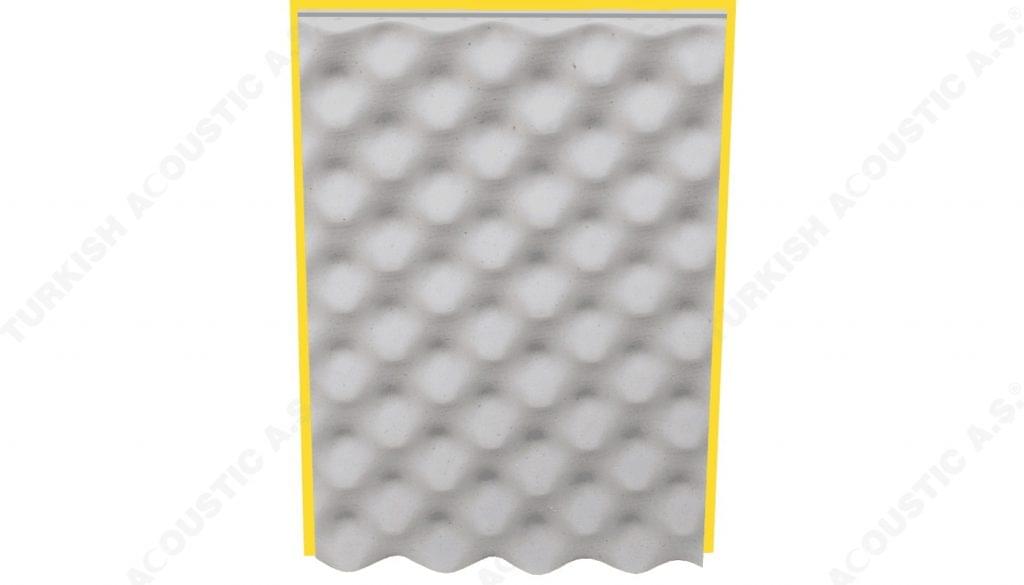

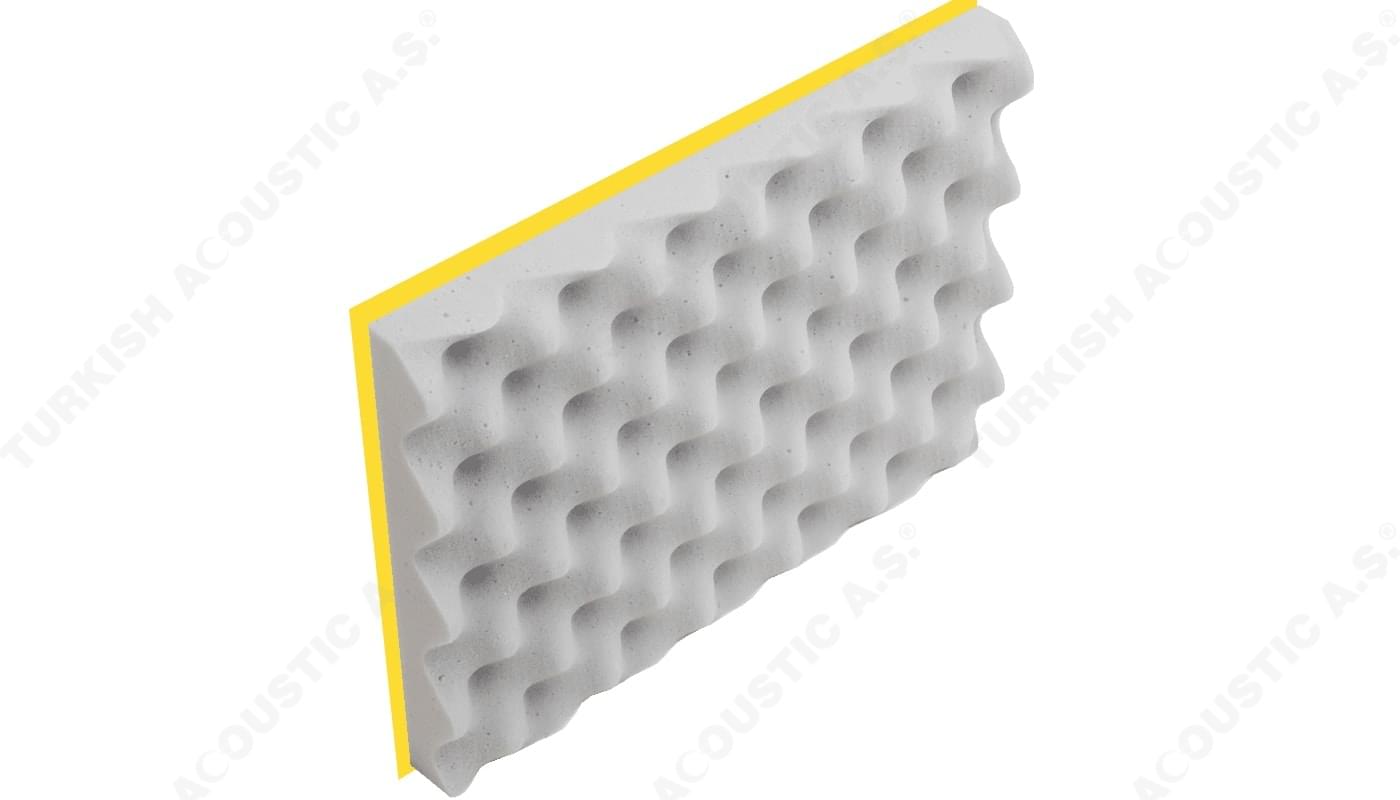

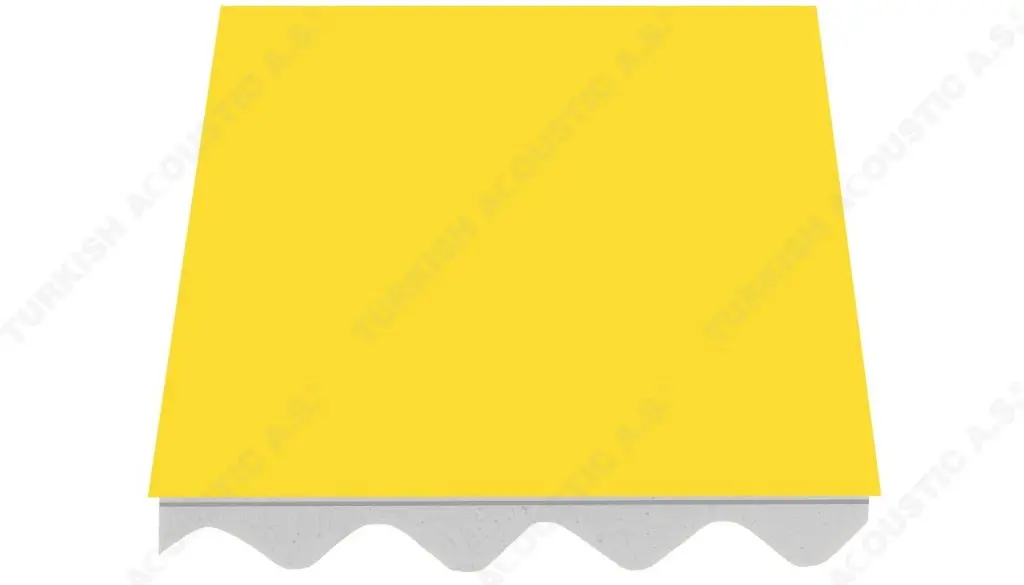

Basotect Egg Sponge Color Variations: White and light gray standard colors / Colored production available.

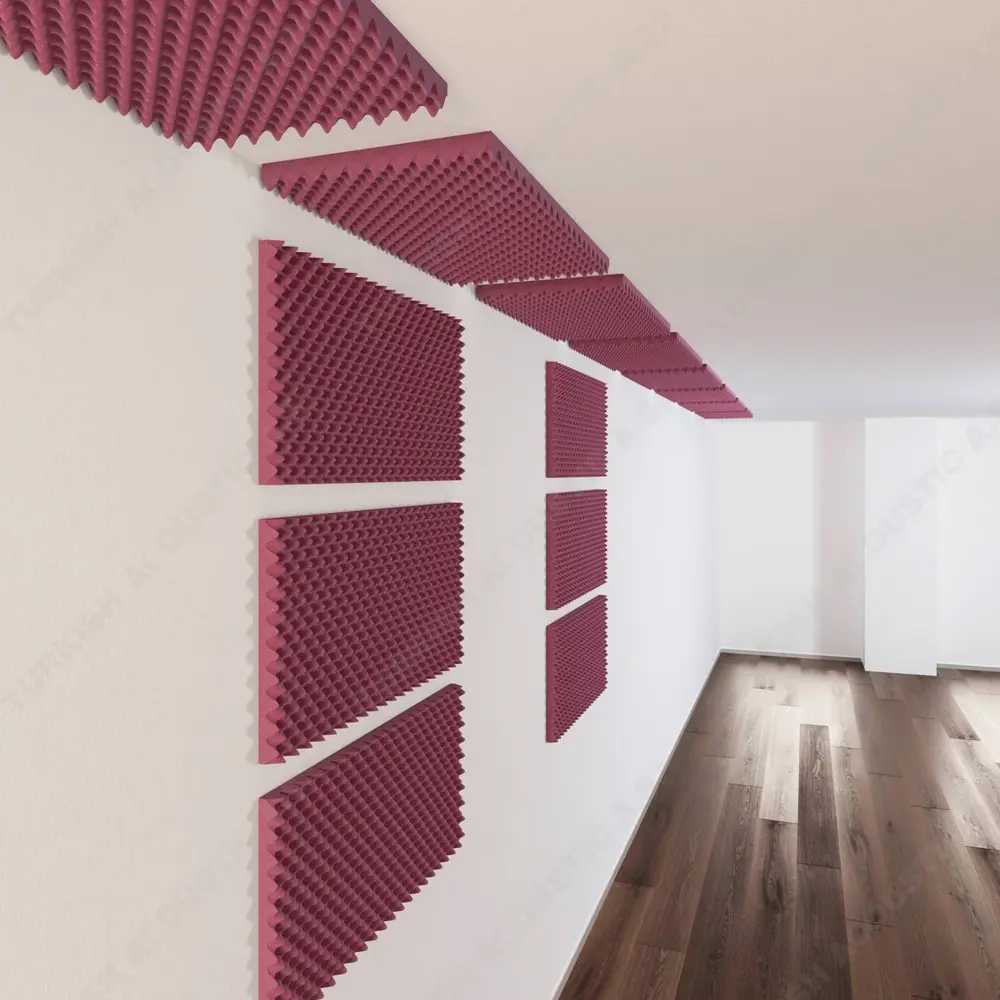

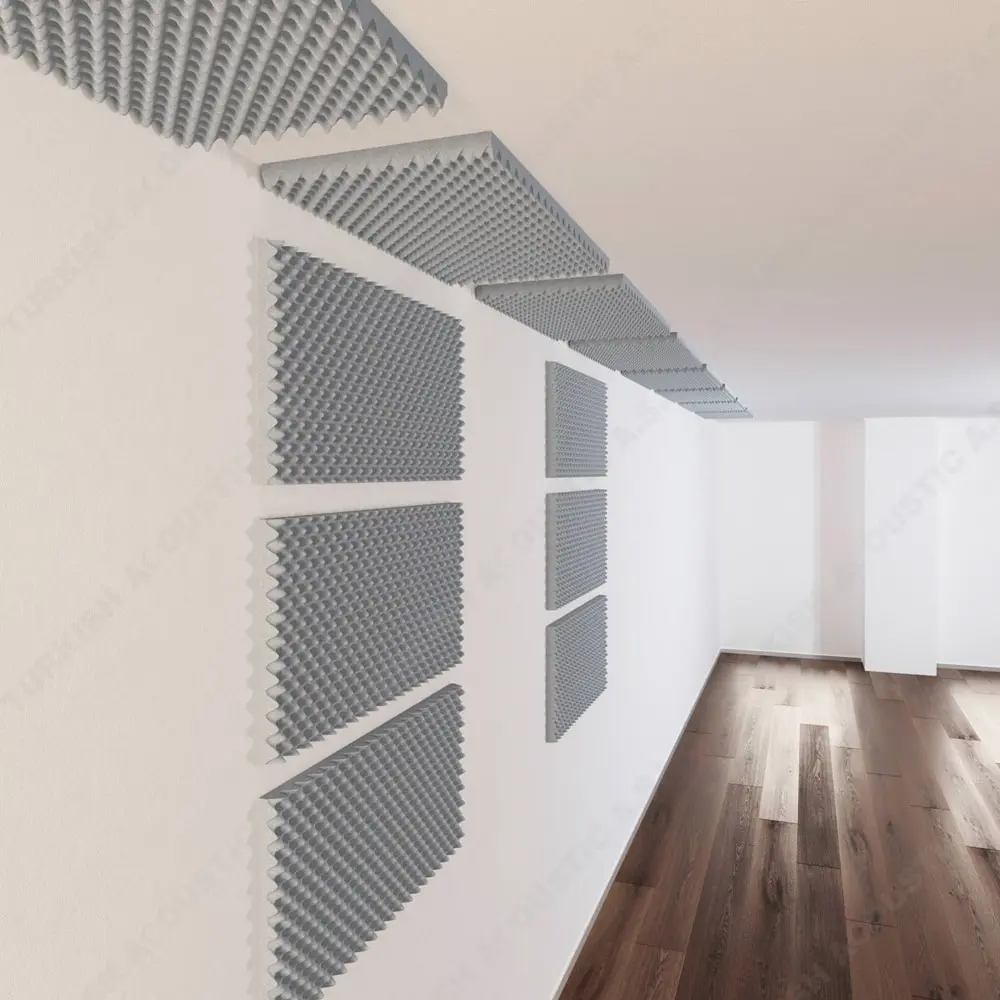

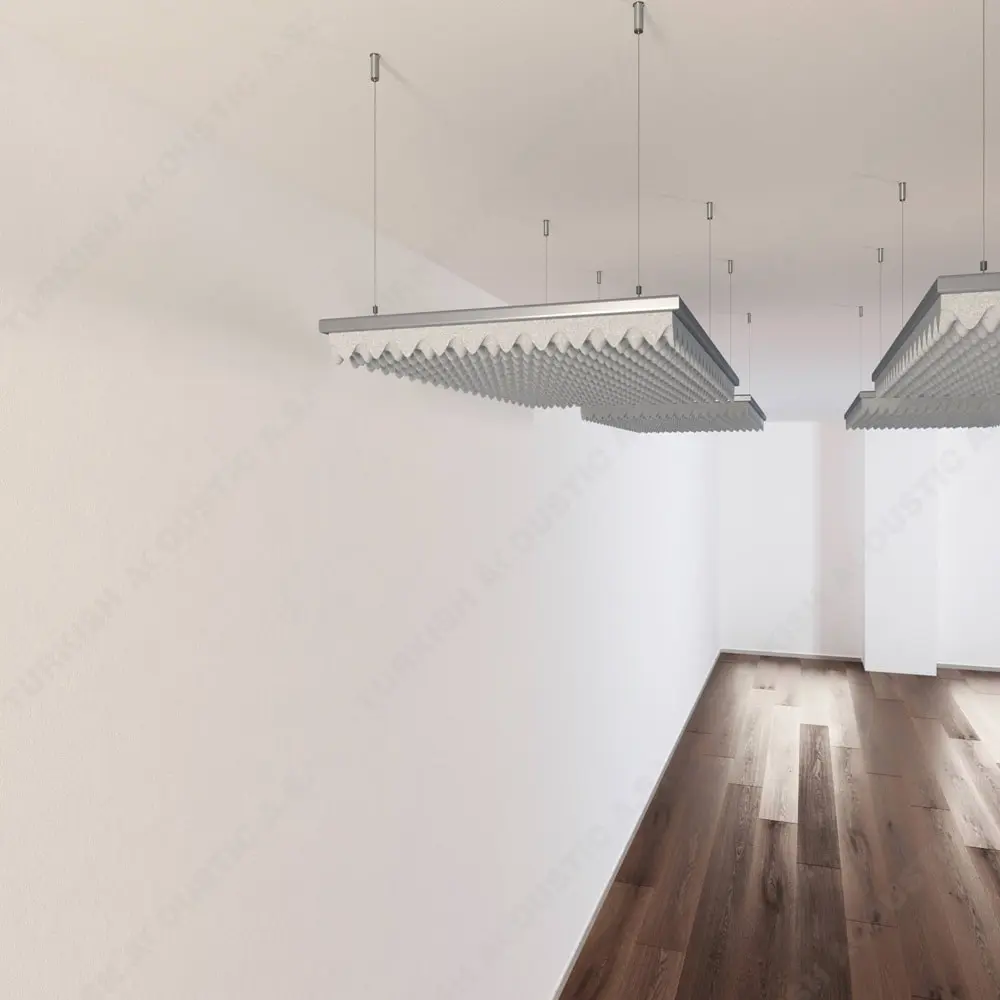

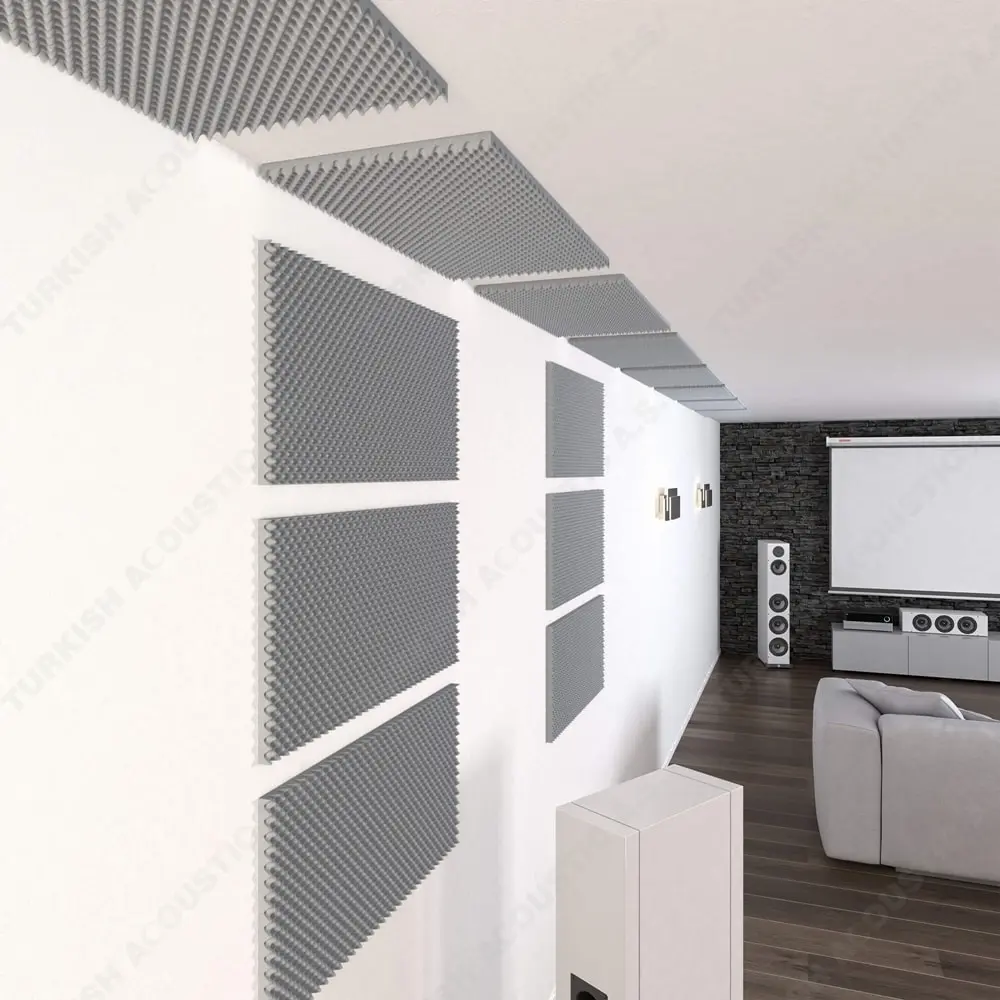

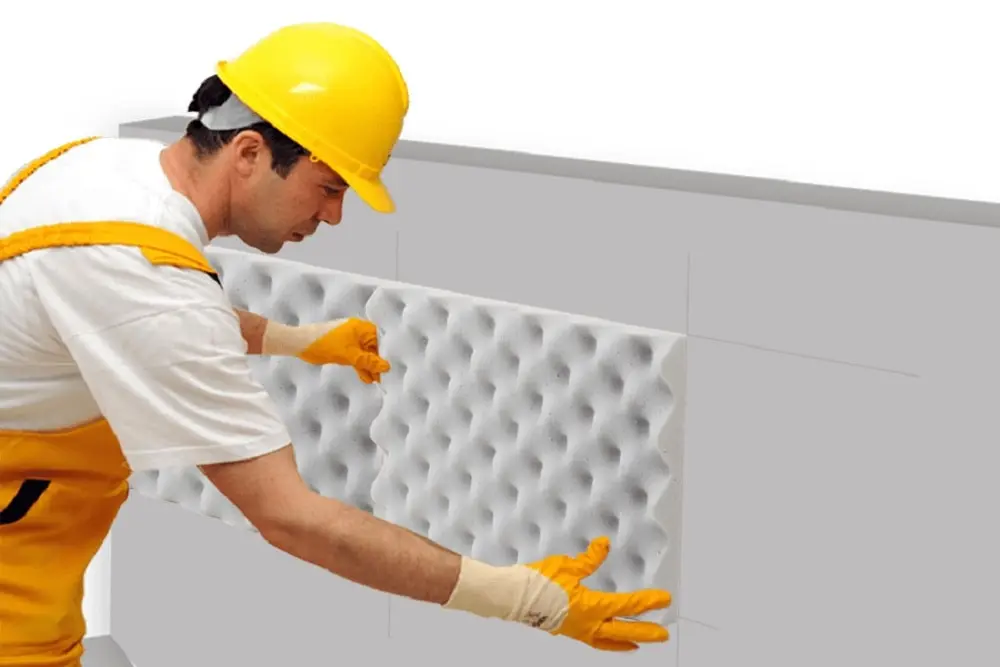

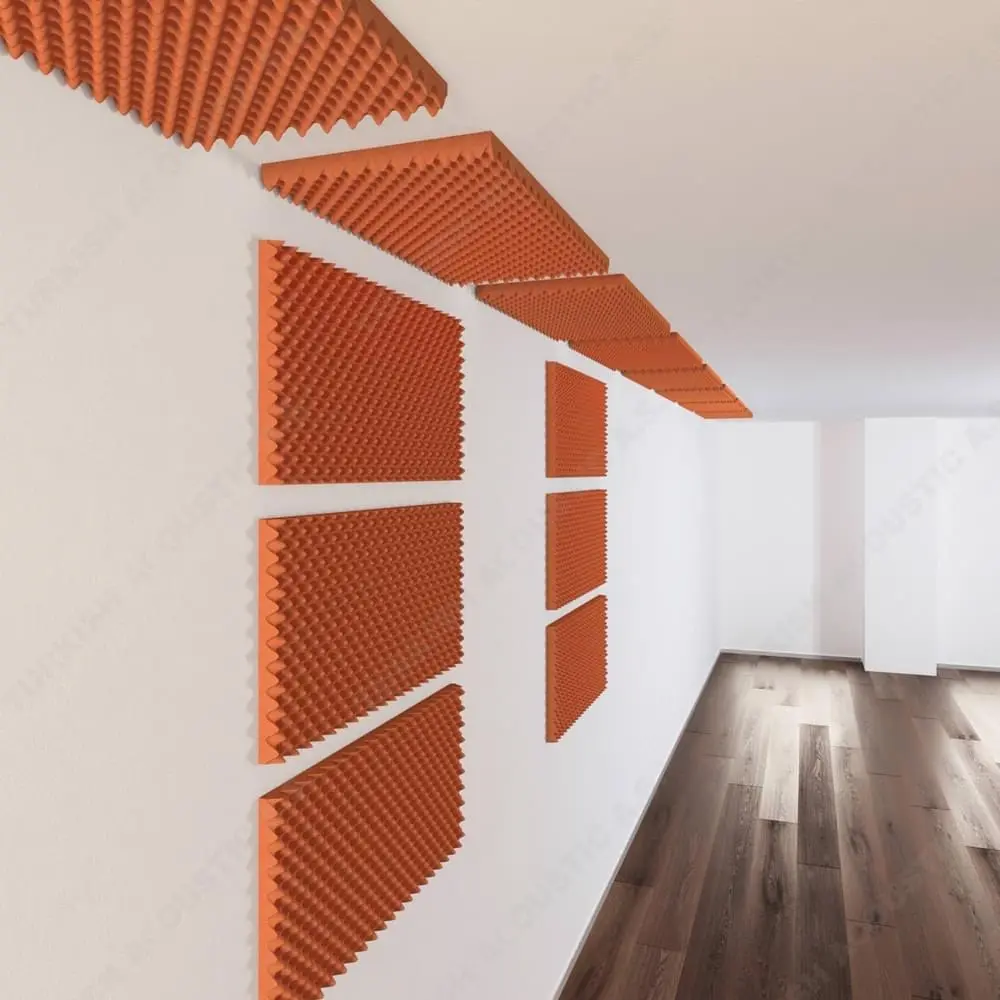

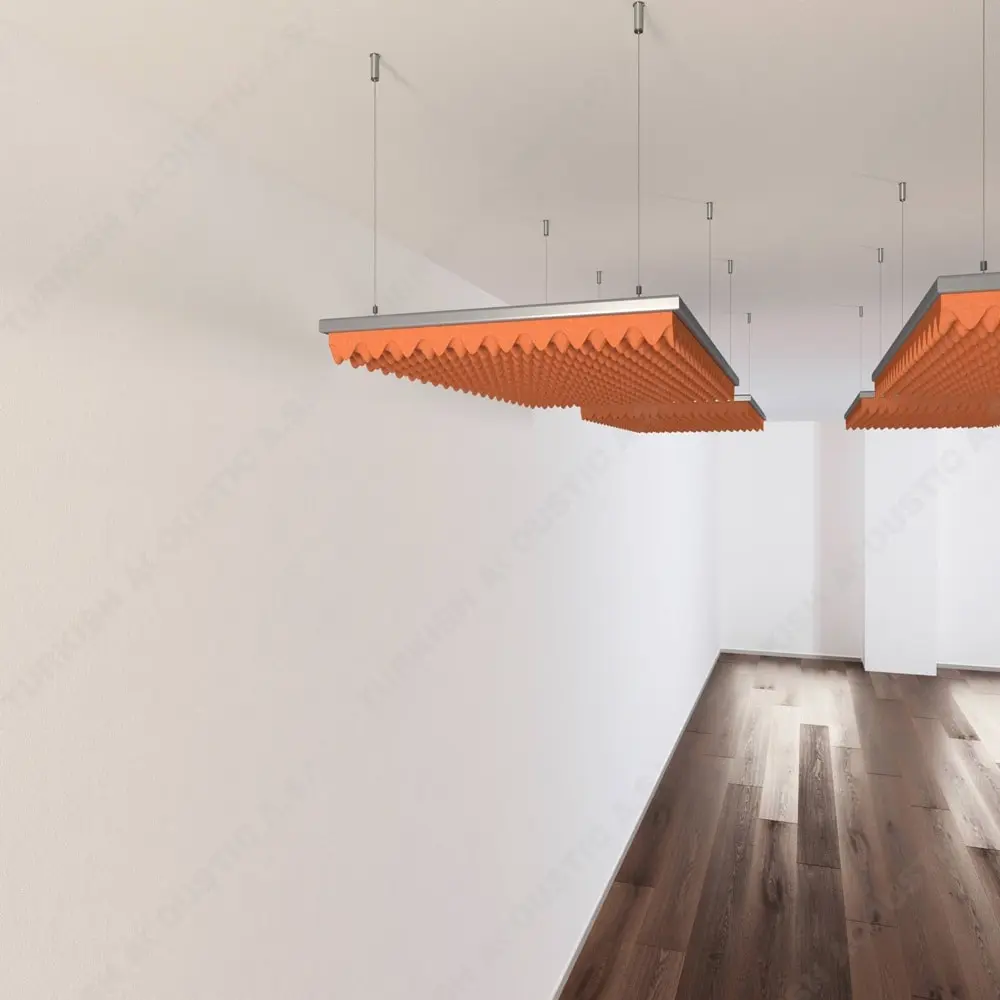

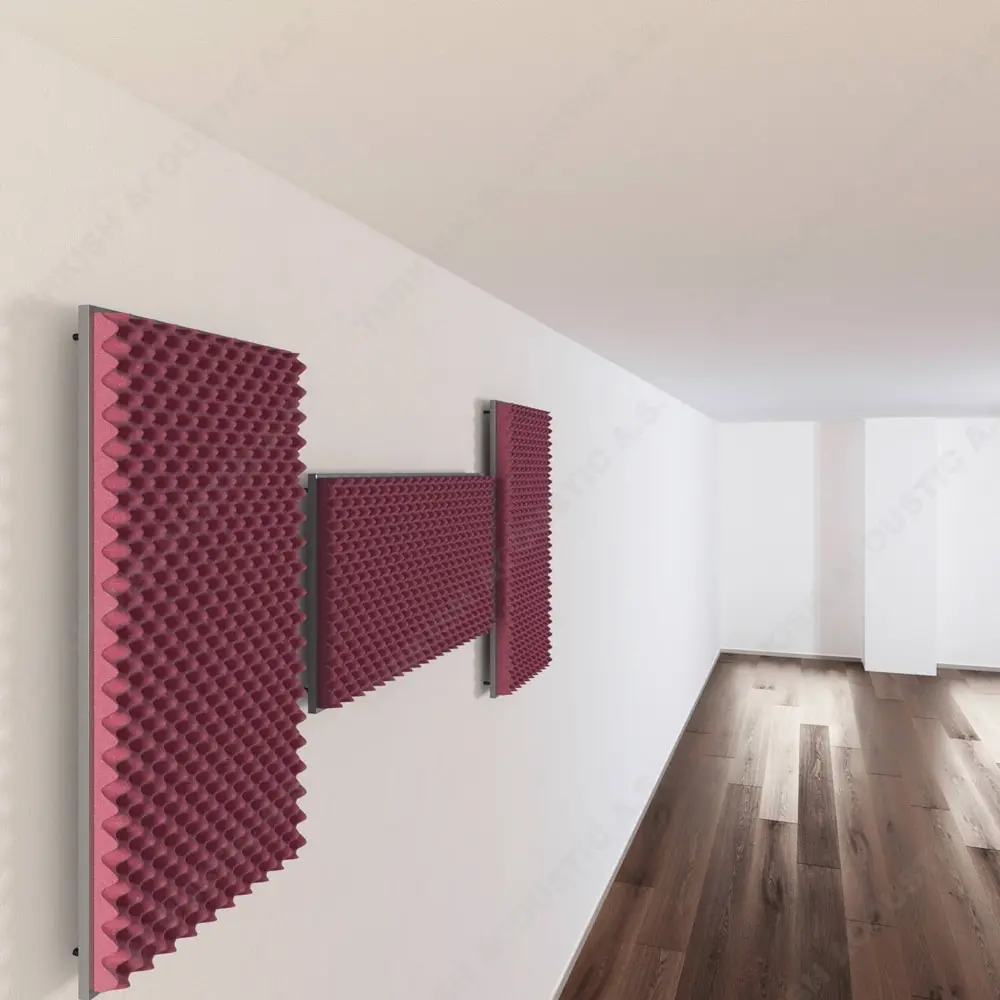

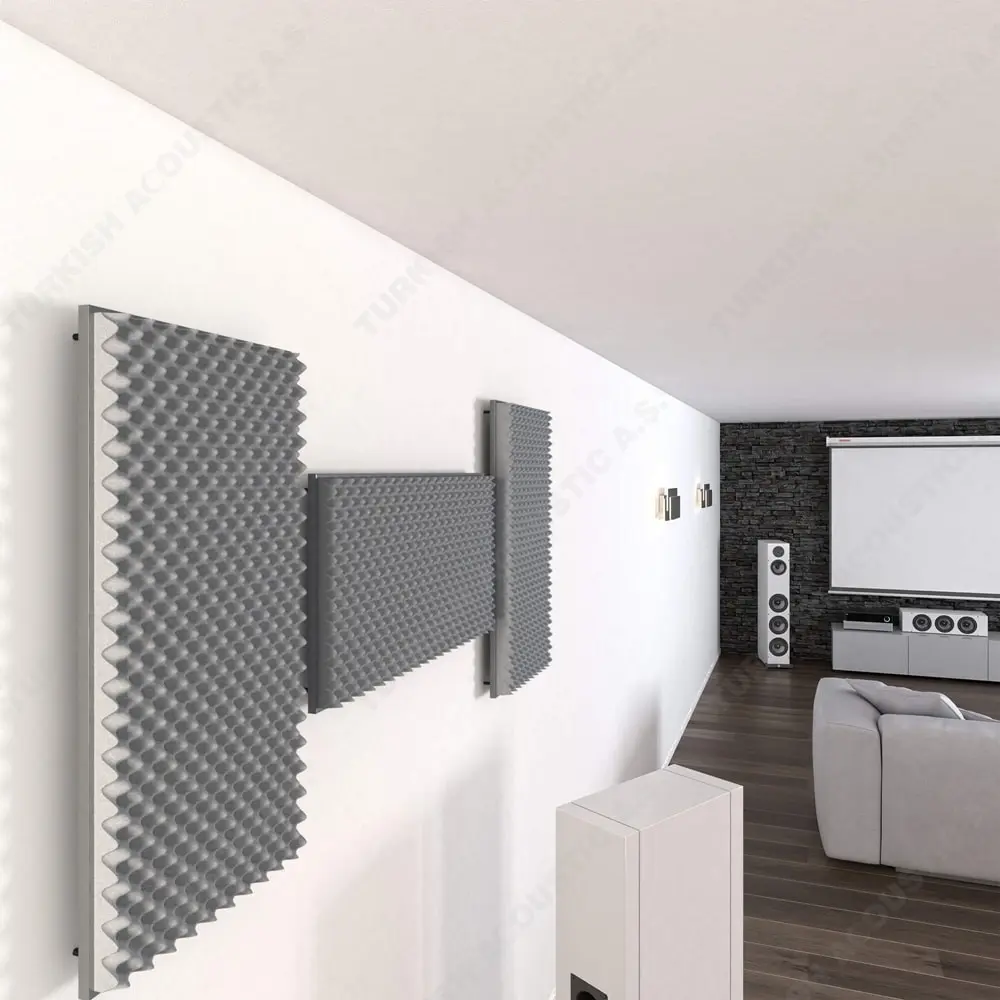

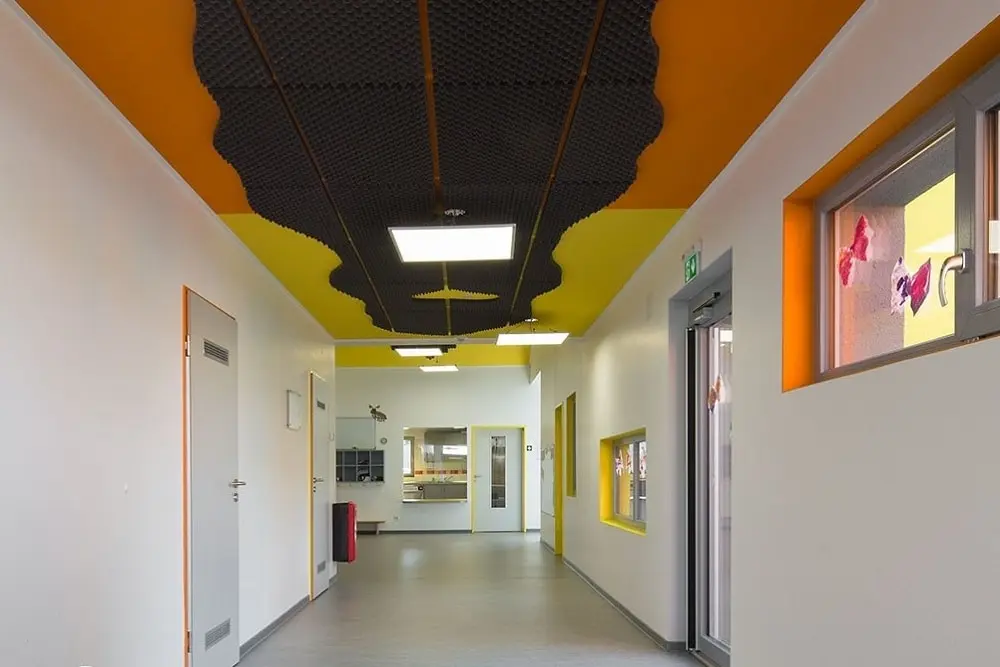

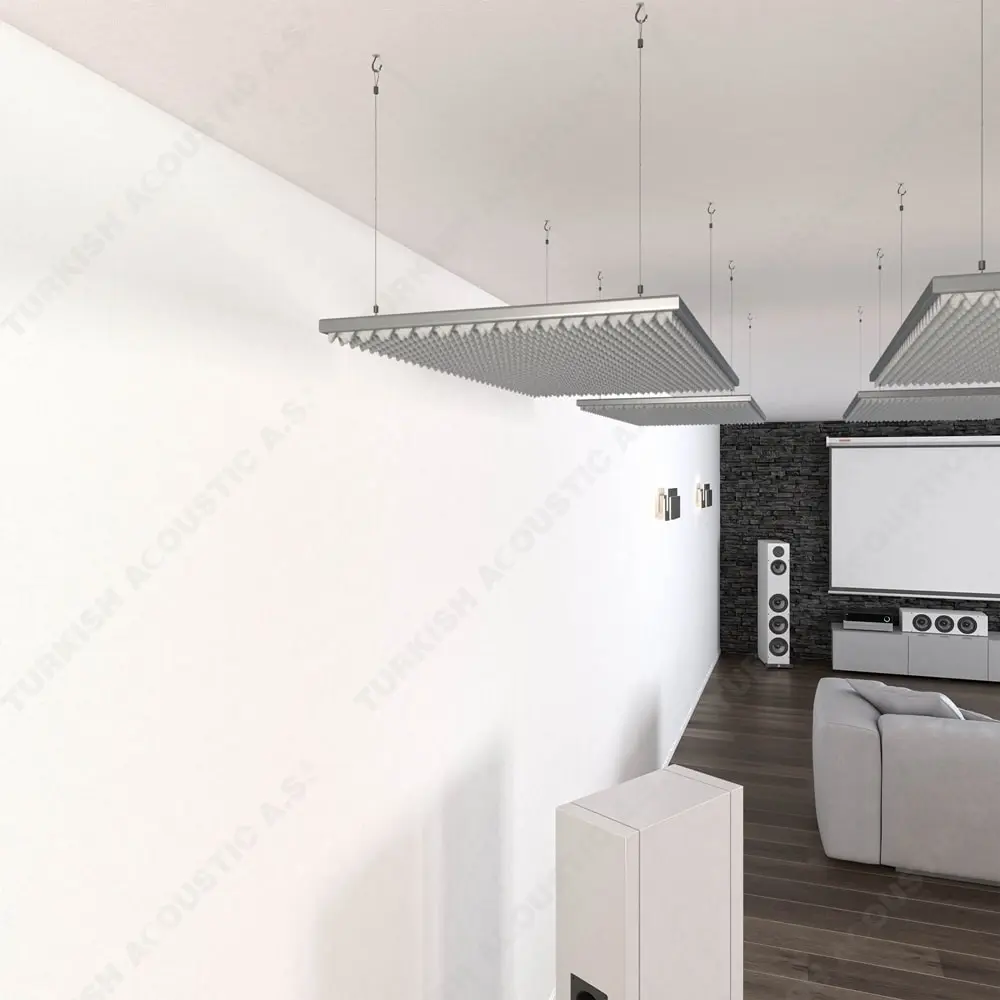

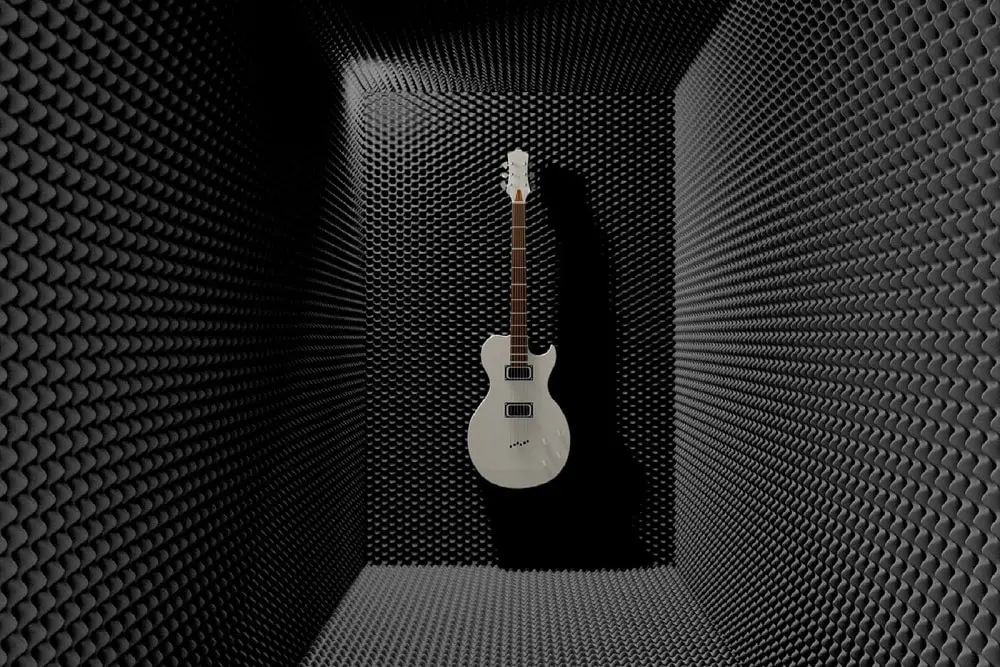

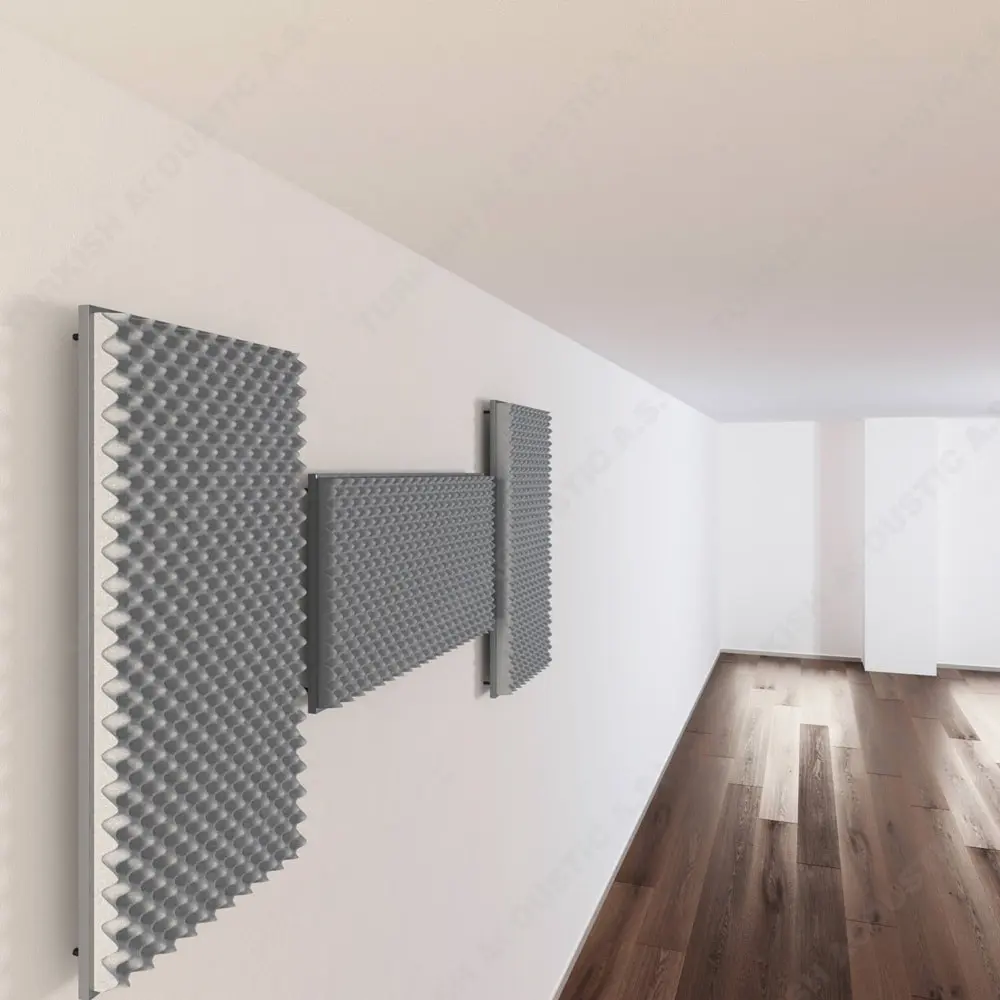

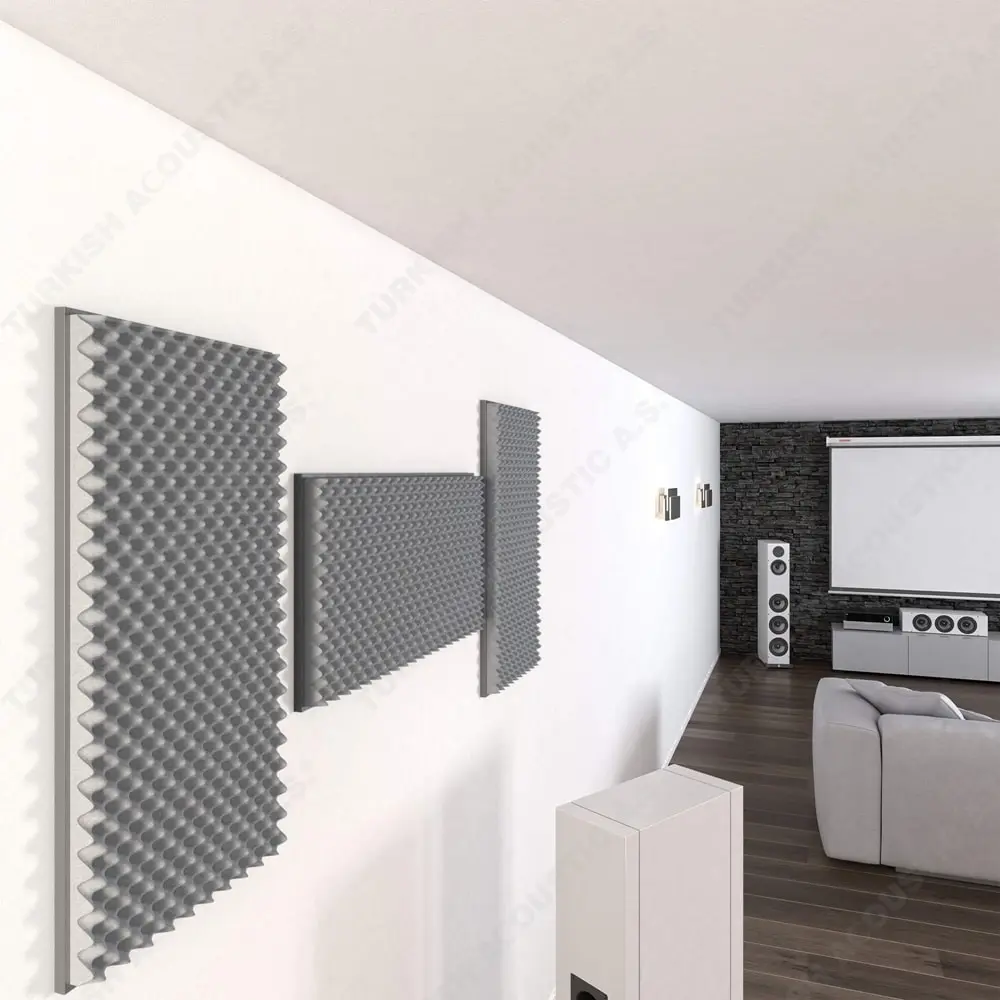

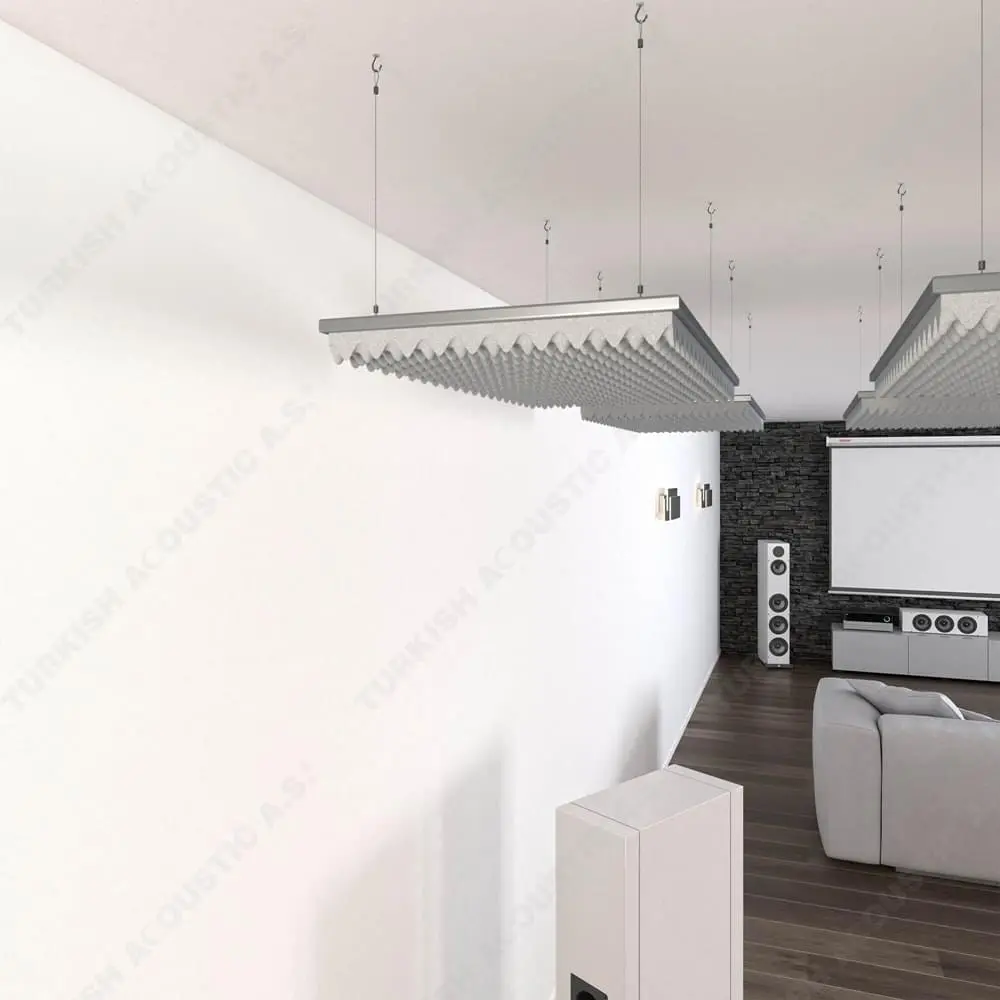

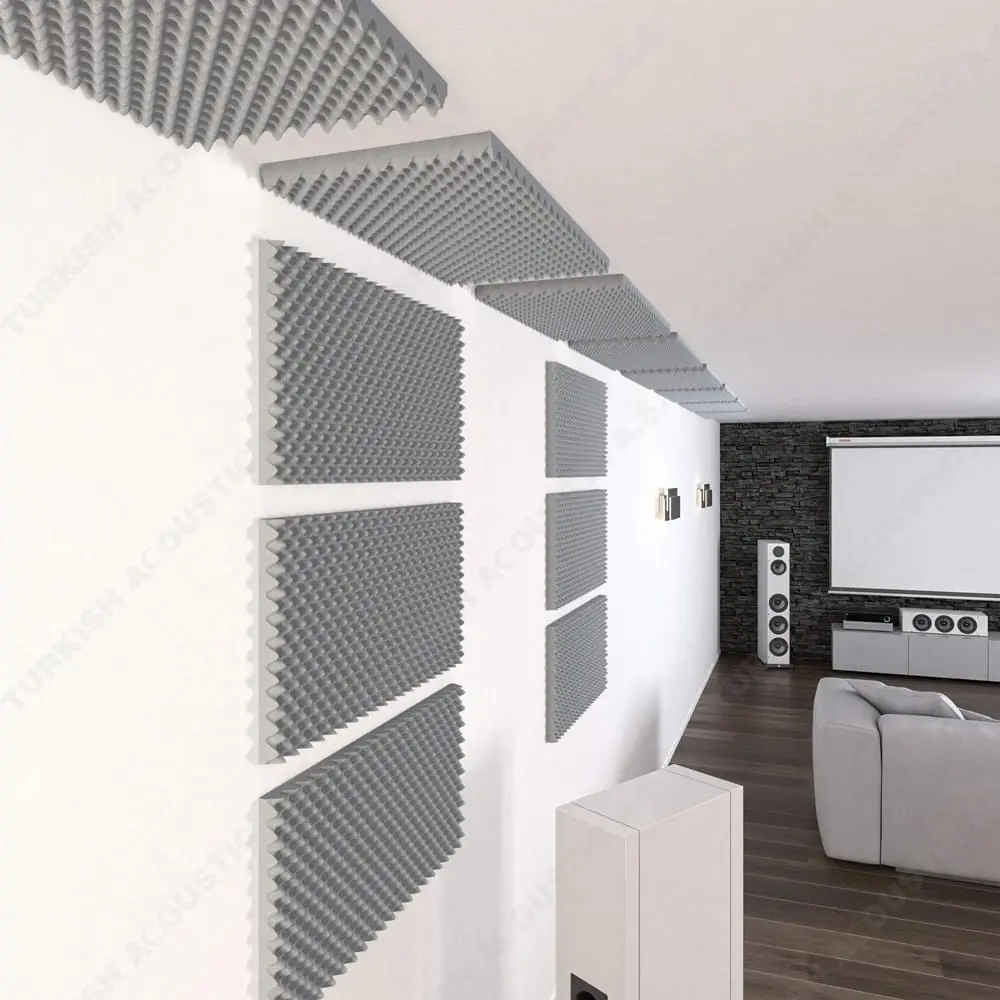

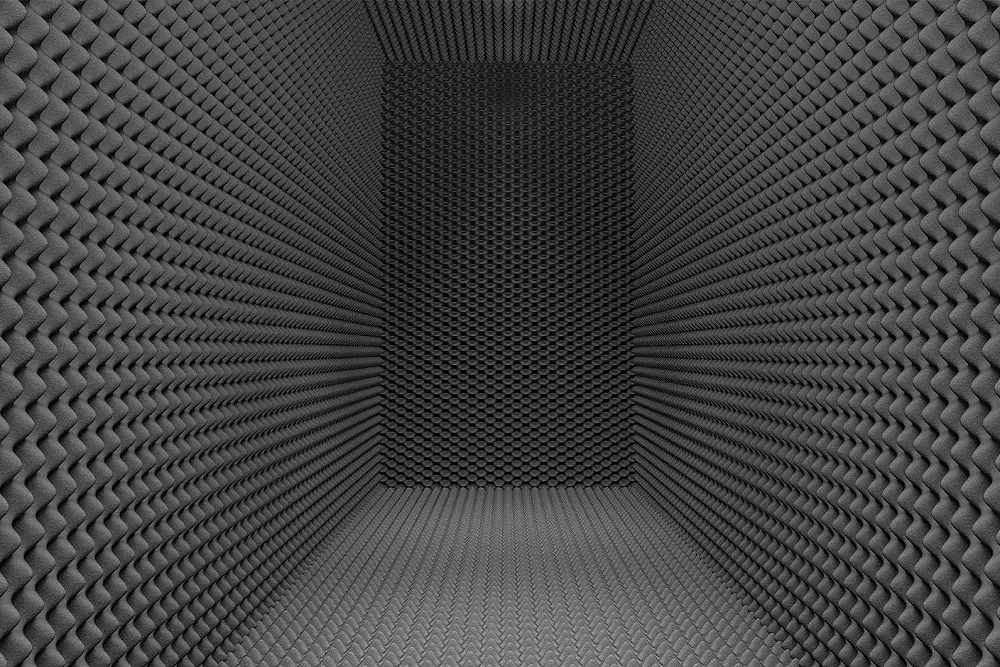

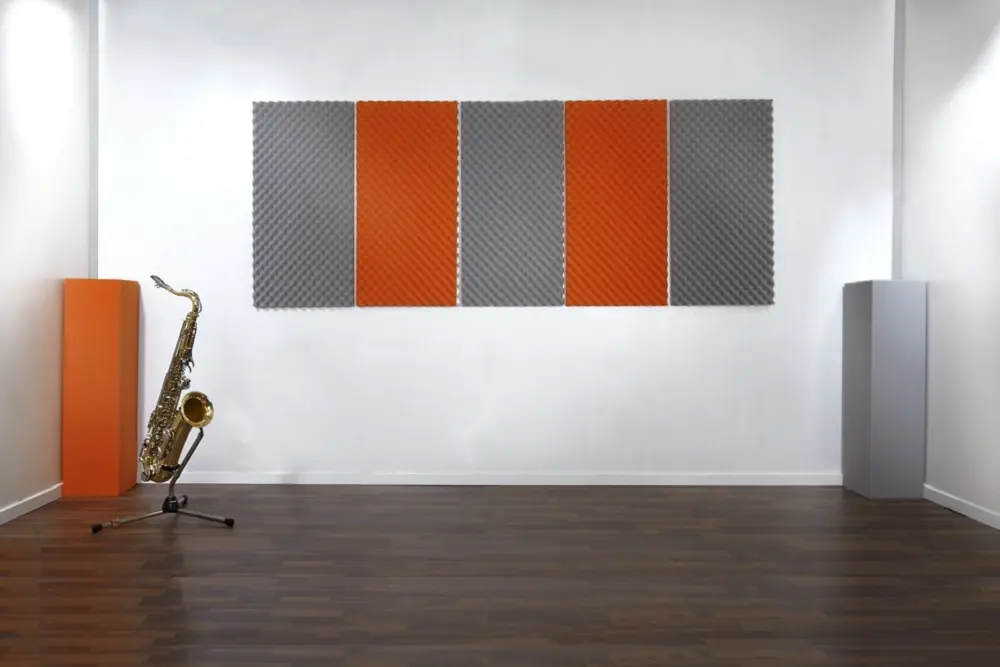

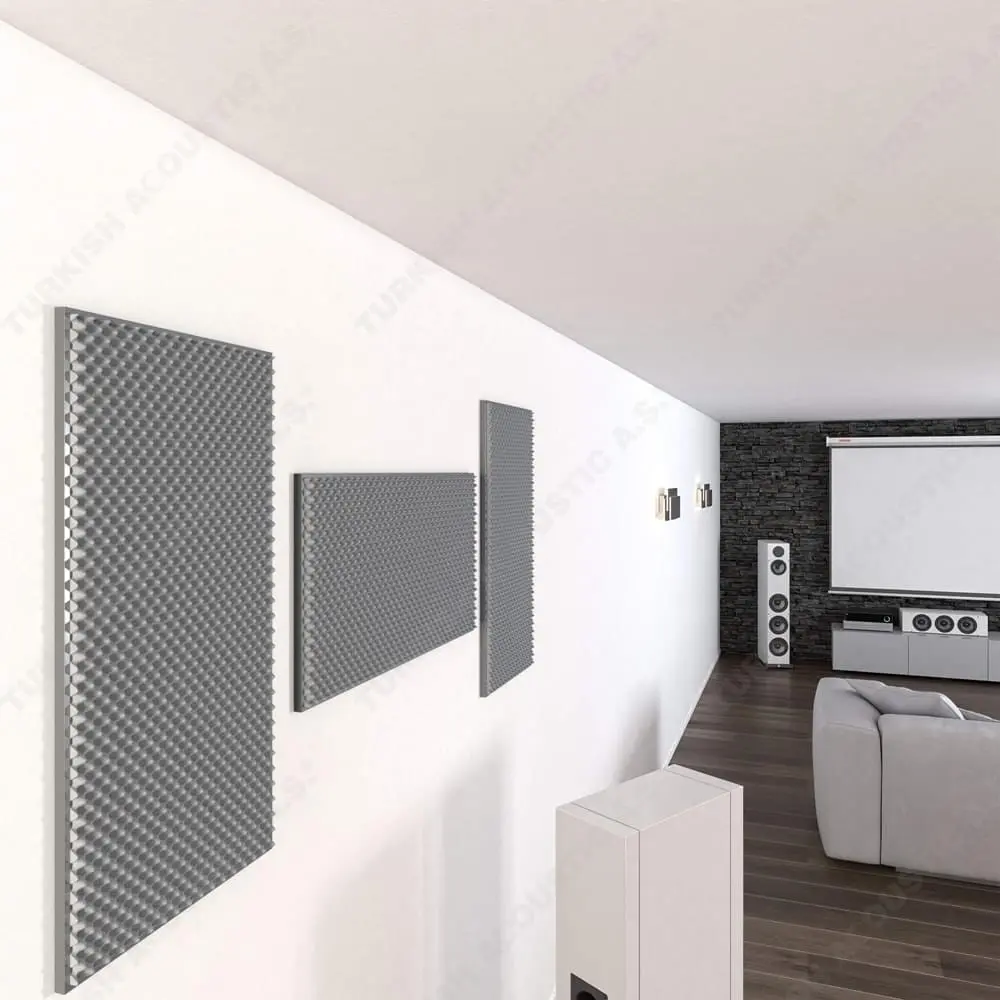

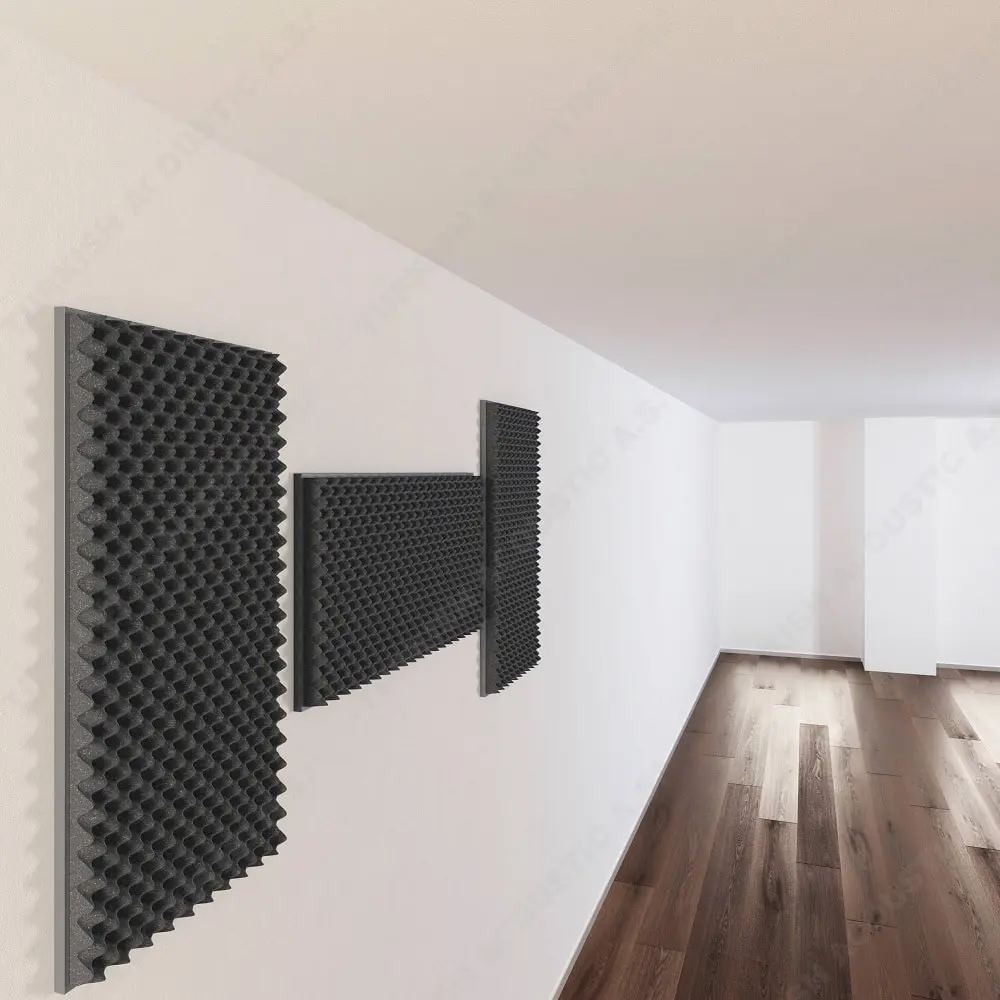

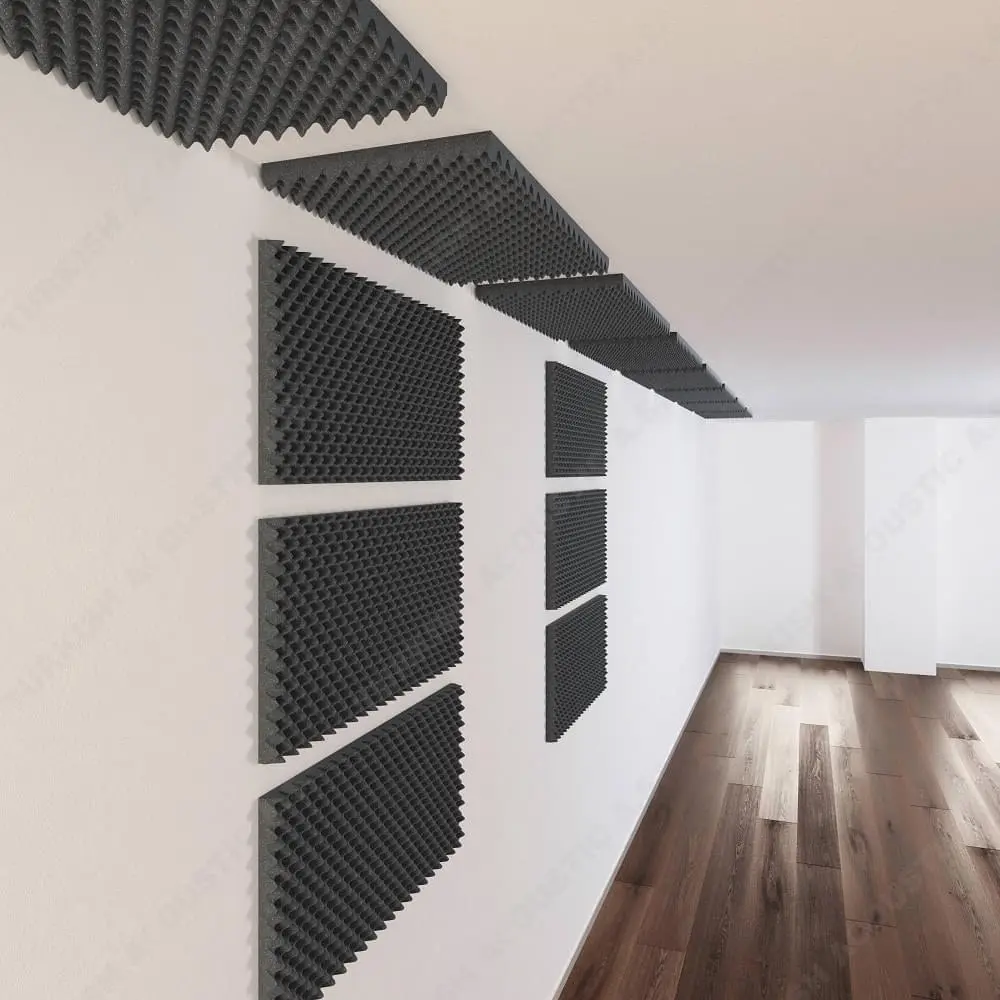

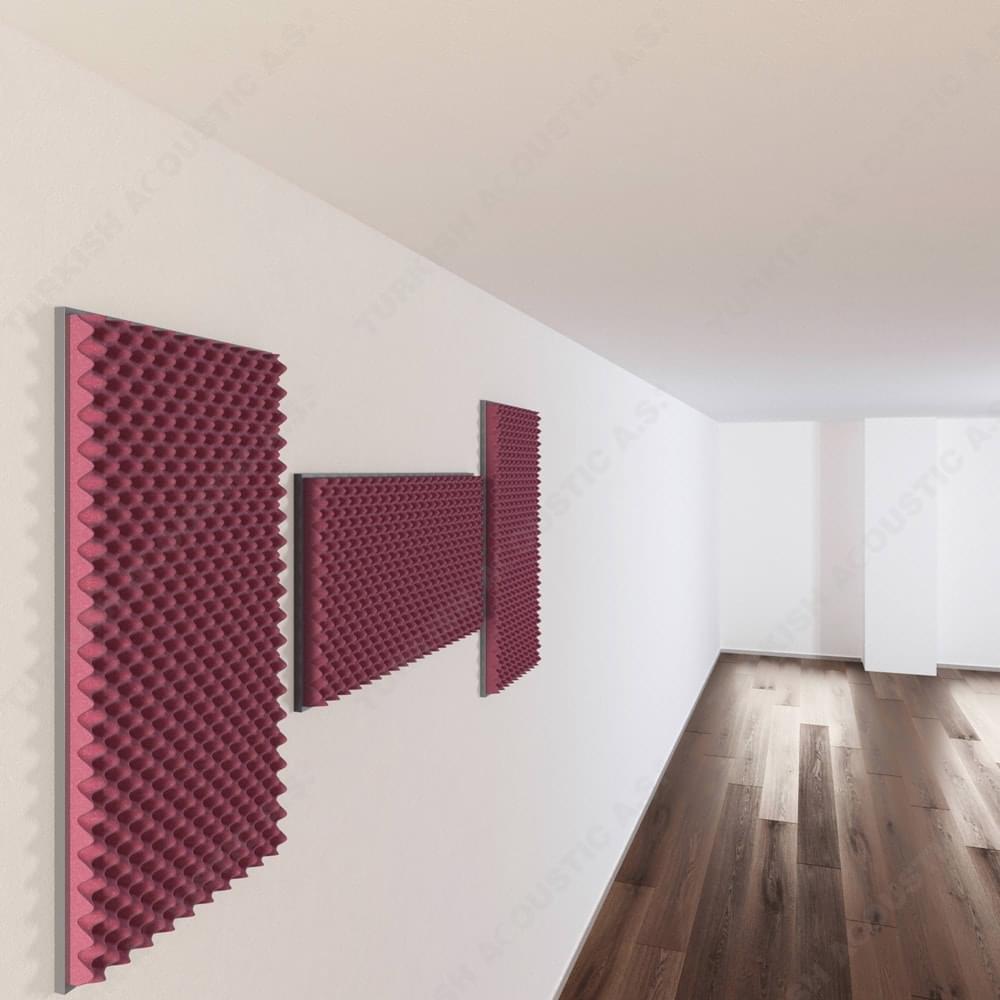

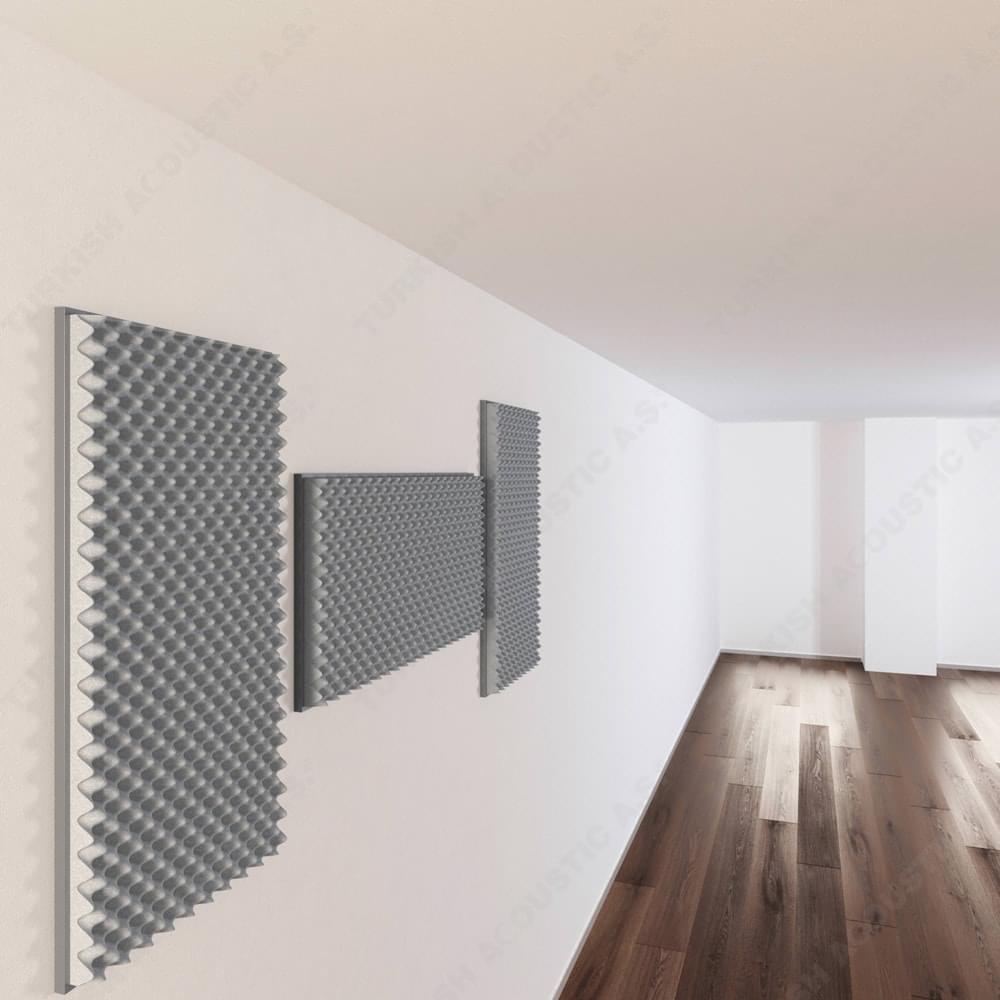

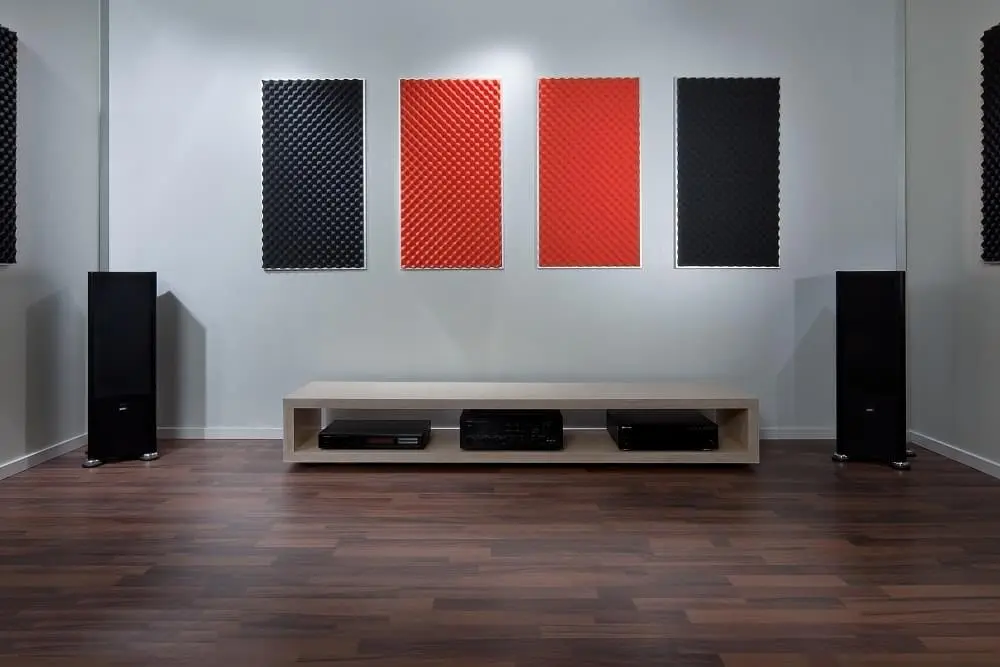

Basotect Egg Sponge Area of Usage: Music room, studio, DJ cabin, radio broadcast room, gymnasium, amusement centers.
Basotect Egg Sponge Production: Special production above 50 mm is available. The custom cut is possible. Colors RAL chart
Basotect Egg Sponge Nonflammability: The product has BS476: class 0 and Unı 9175: 2008 M1 certificates.
Basotect Egg Sponge Density: 10 - 20 Kg / M³ density / Production in desired density and thickness are available.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.

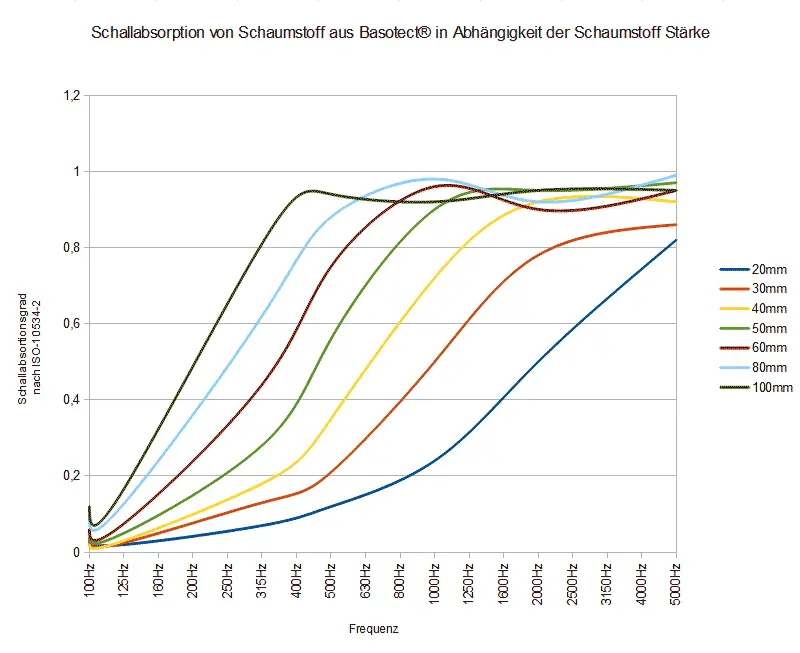

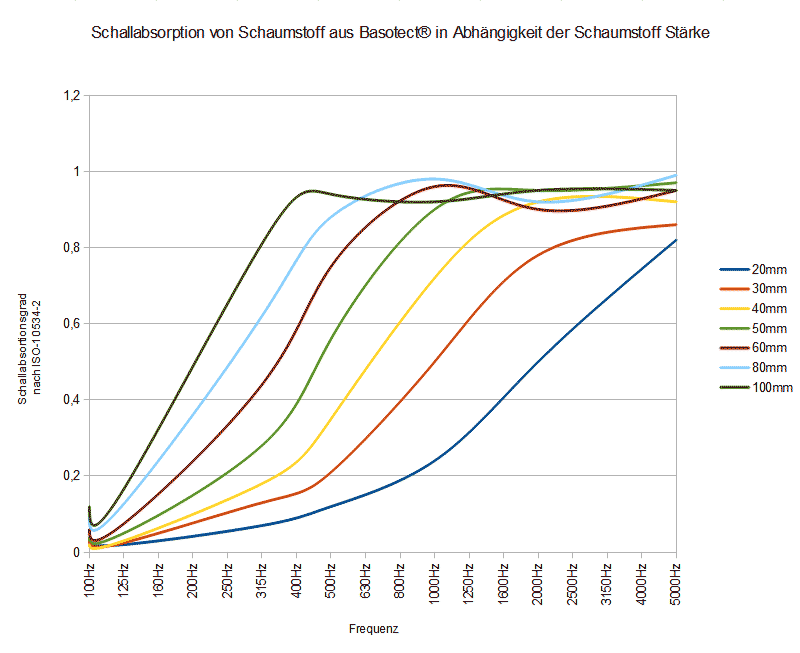

Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Basotect sponges are in 50 cm x 125 cm or 100 cm x 125 cm sizes as plates. One package contains 10 m². Sold in 30 and 40 mm standard thicknesses by retail and wholesale. Custom cut and thickness are available upon request. Contact our technical office for details.
