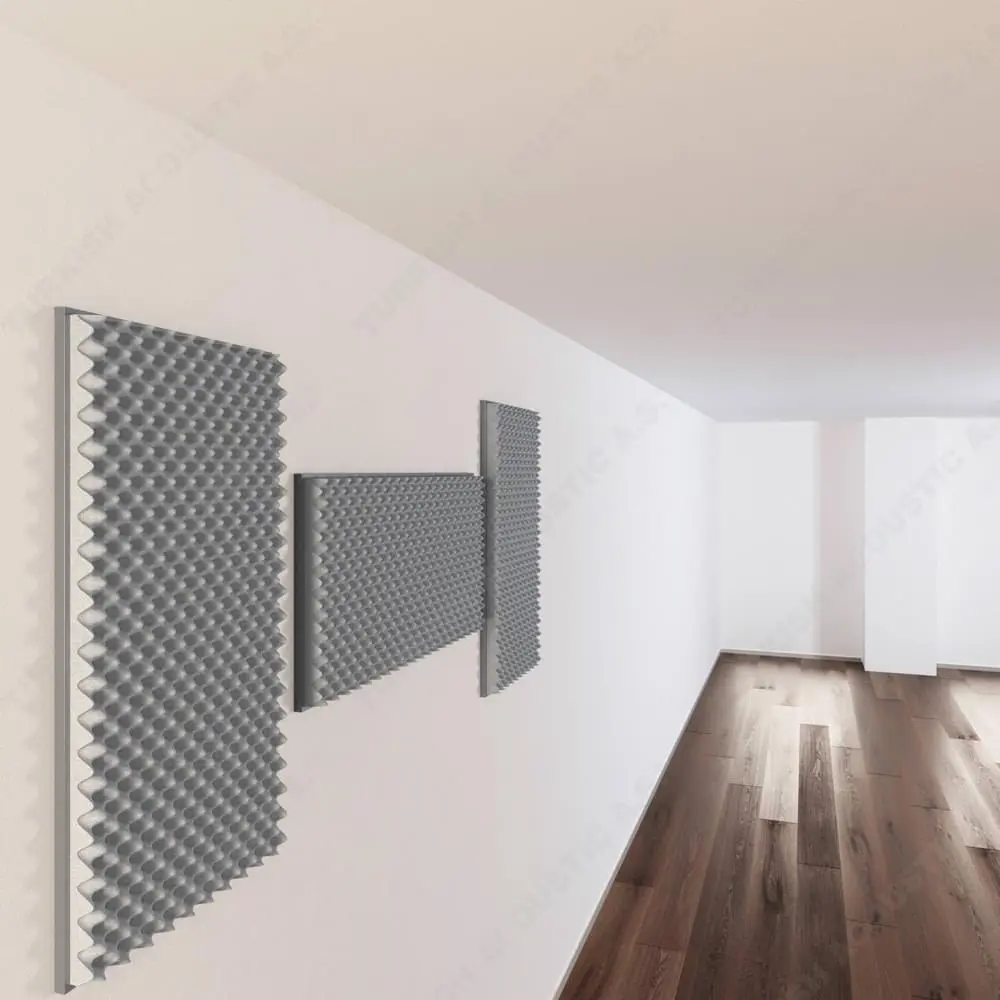

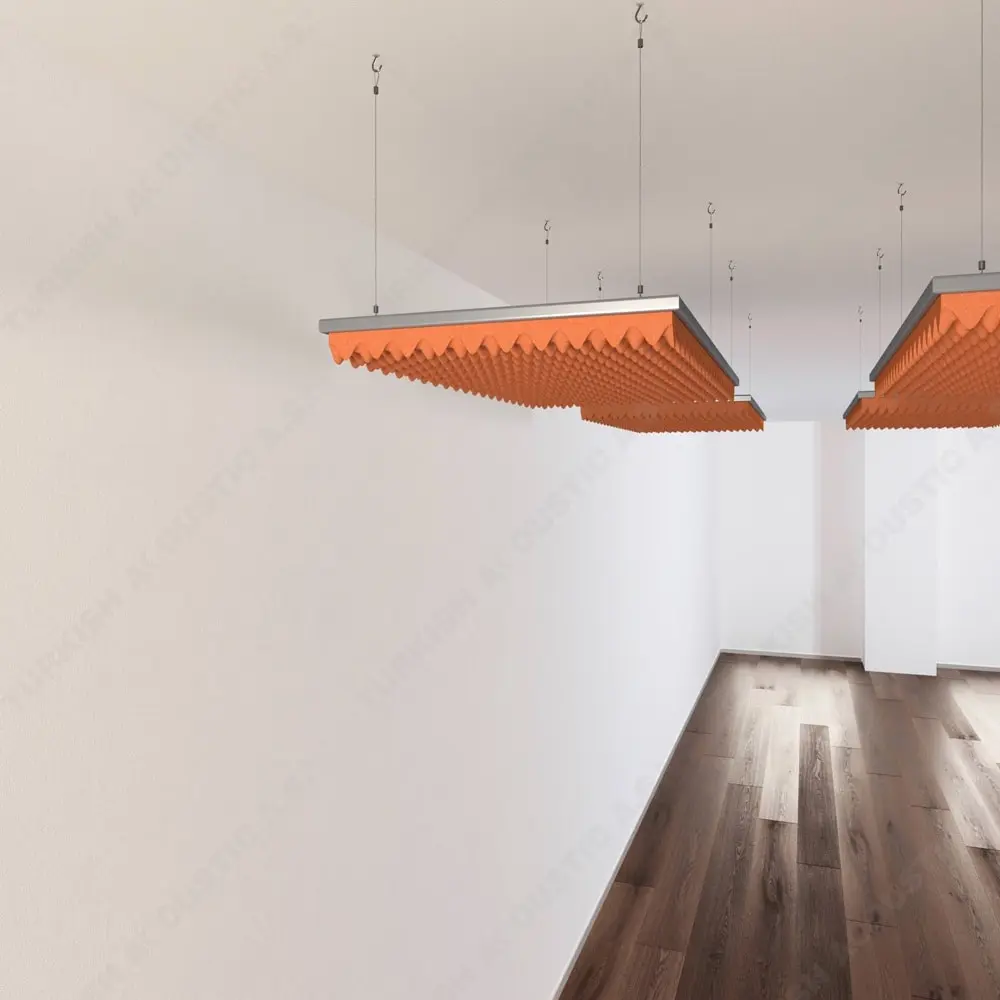

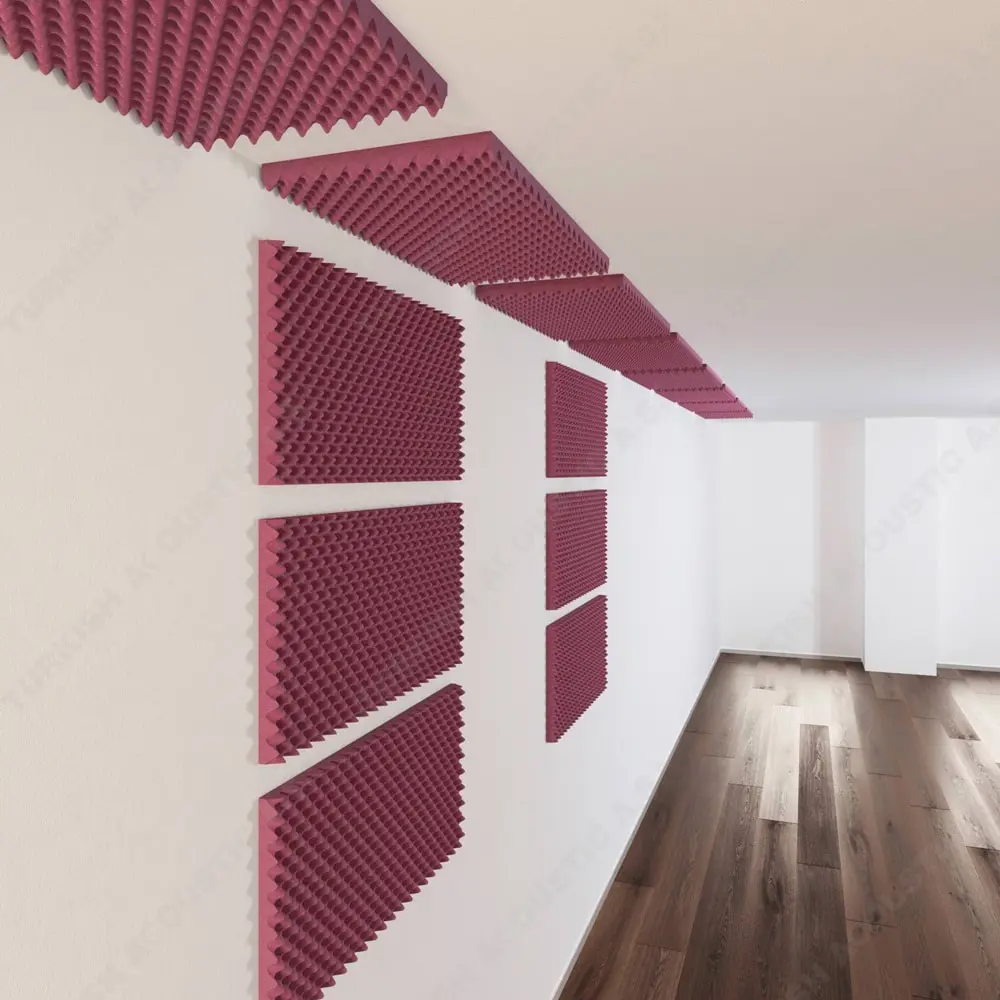

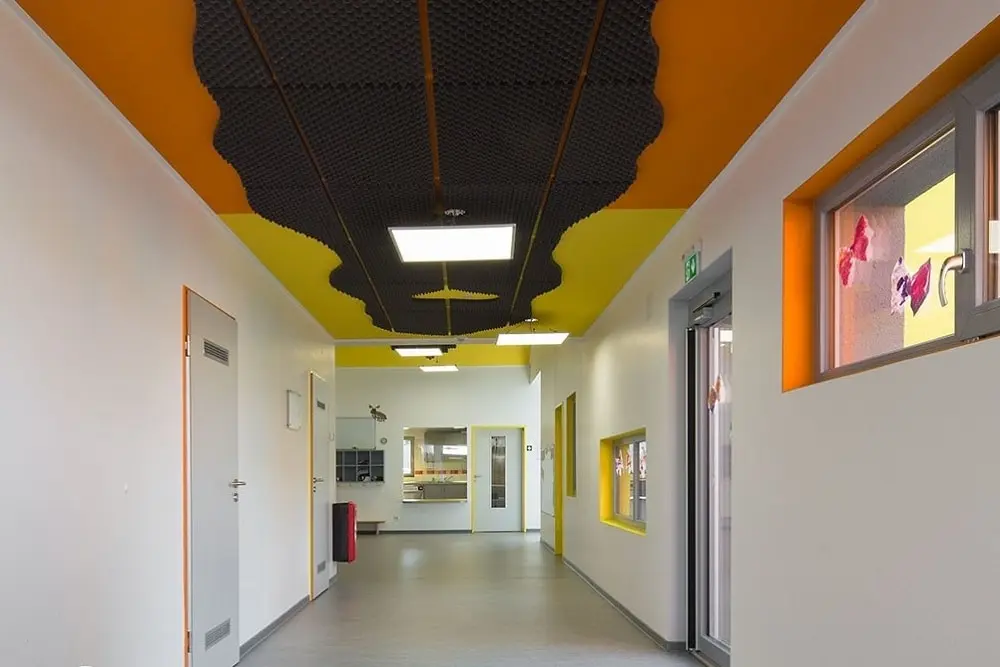

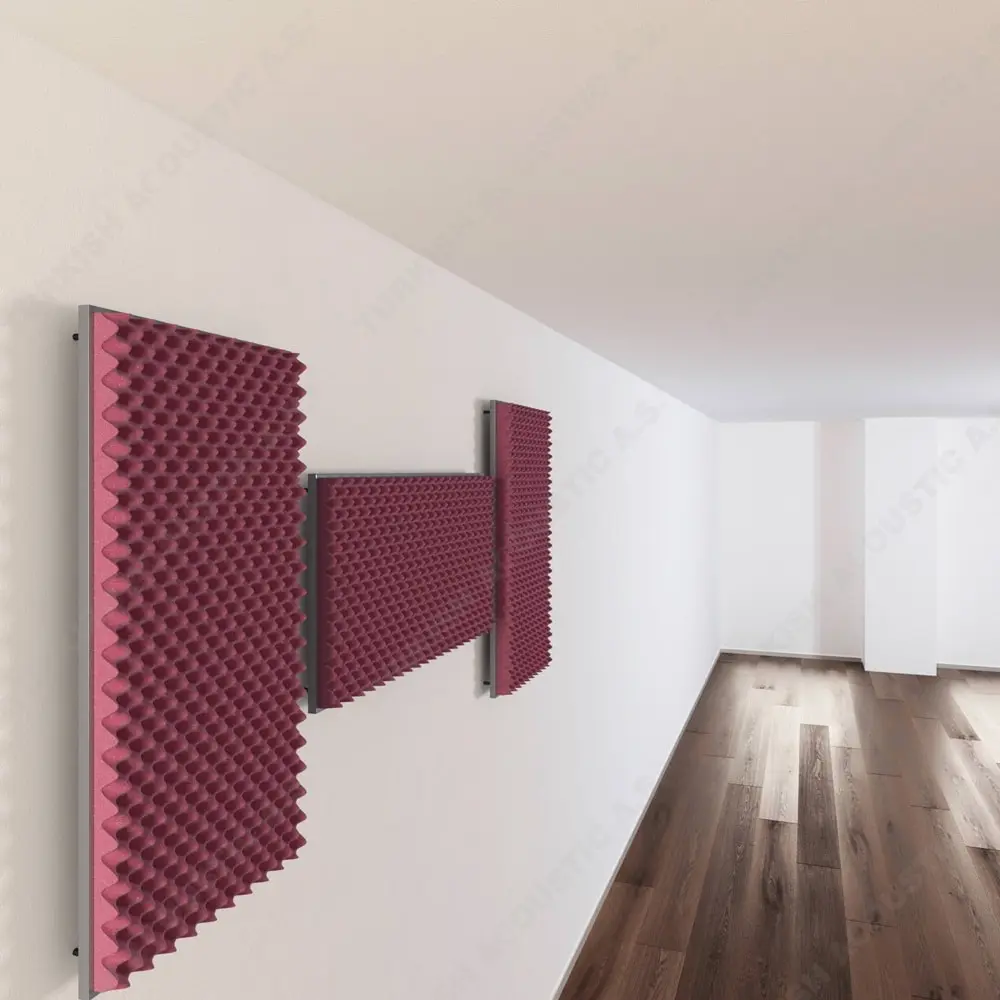

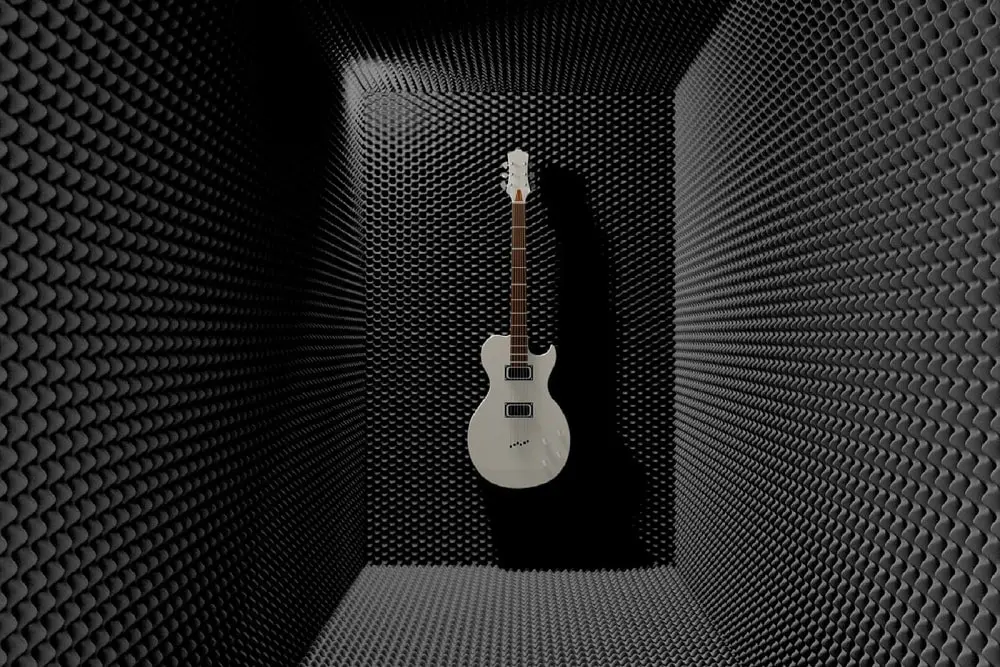

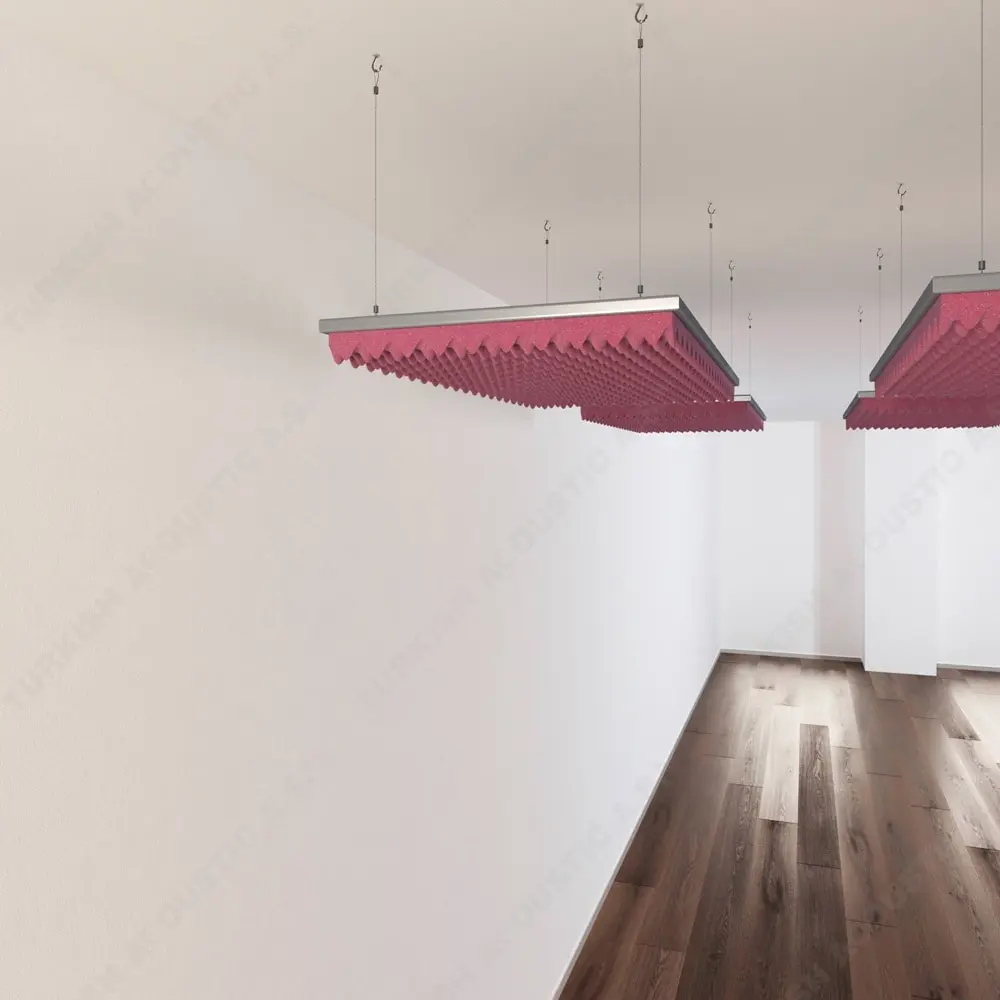

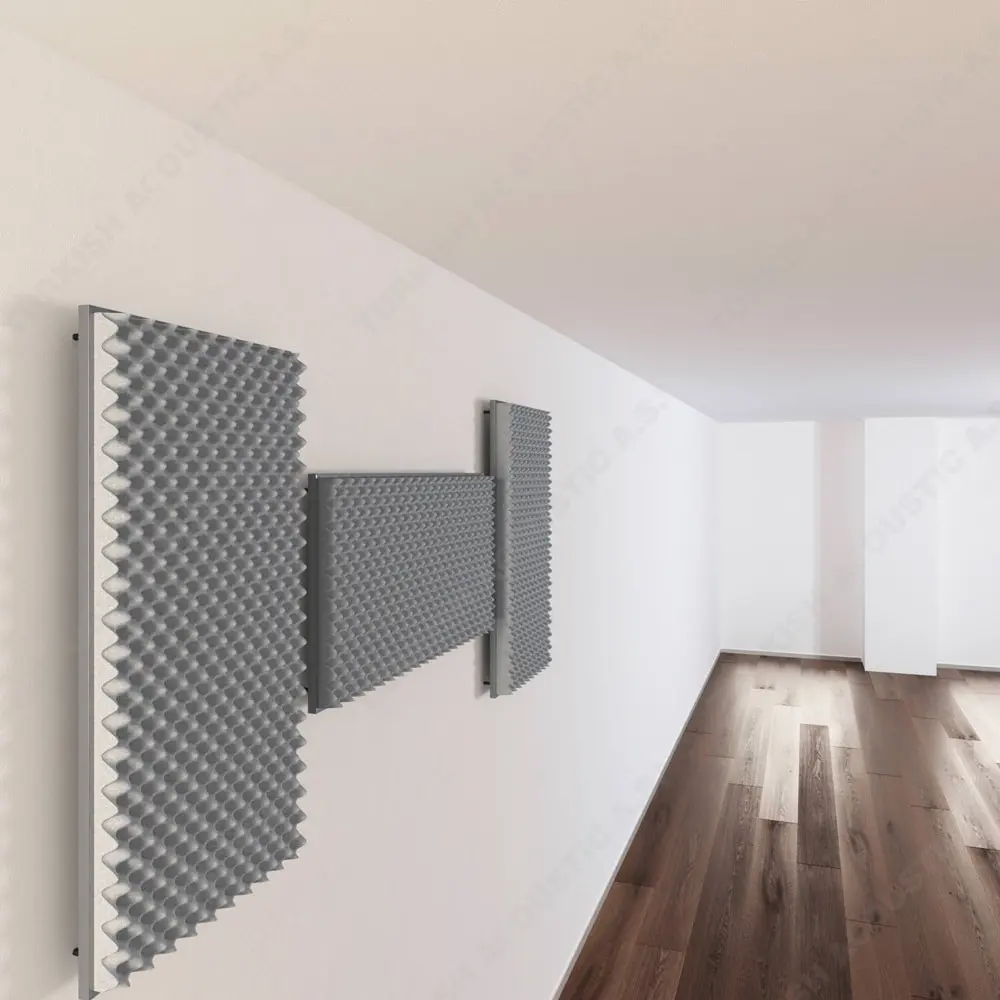

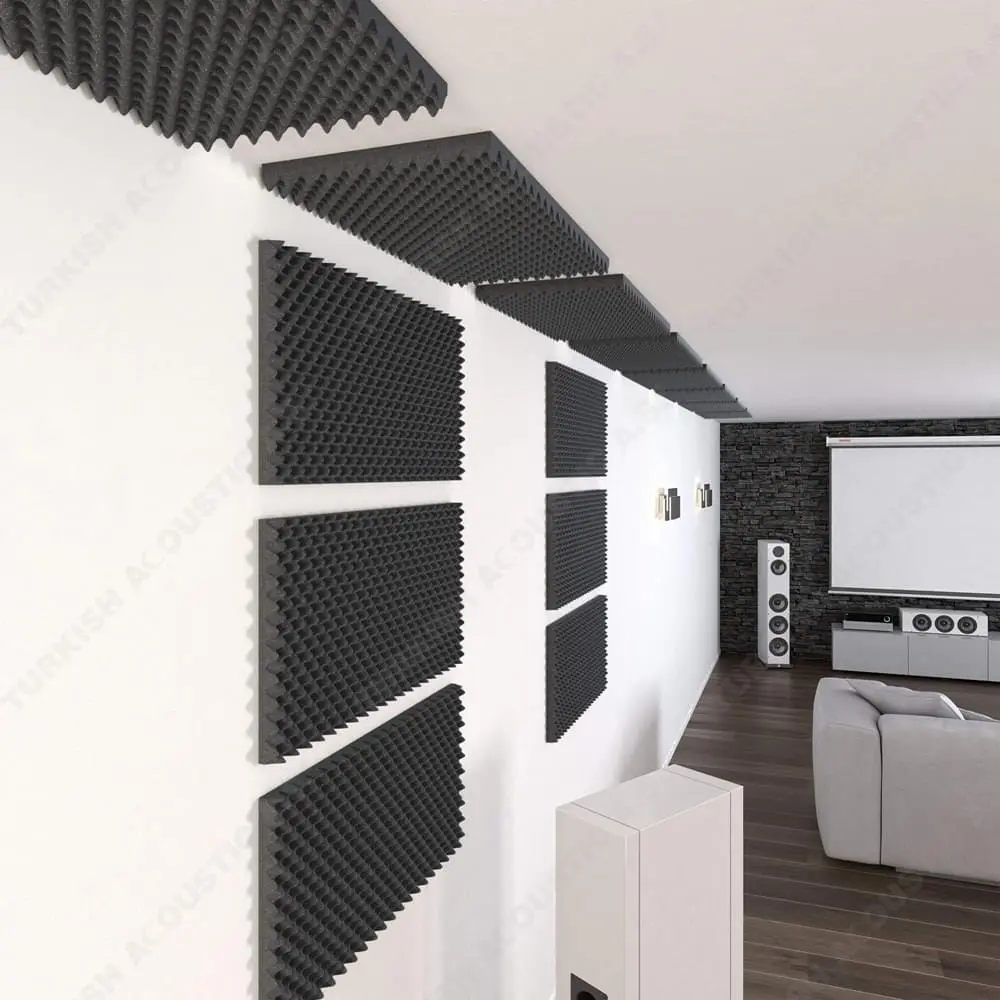

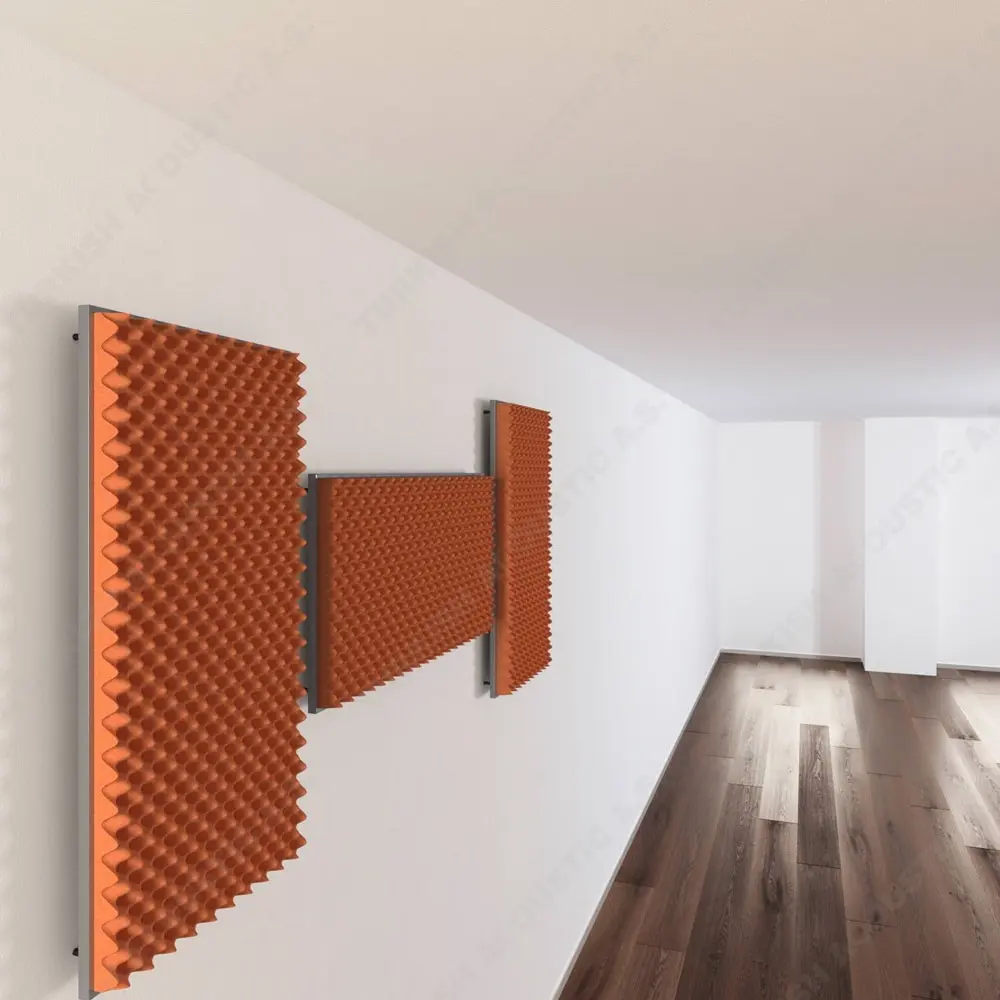

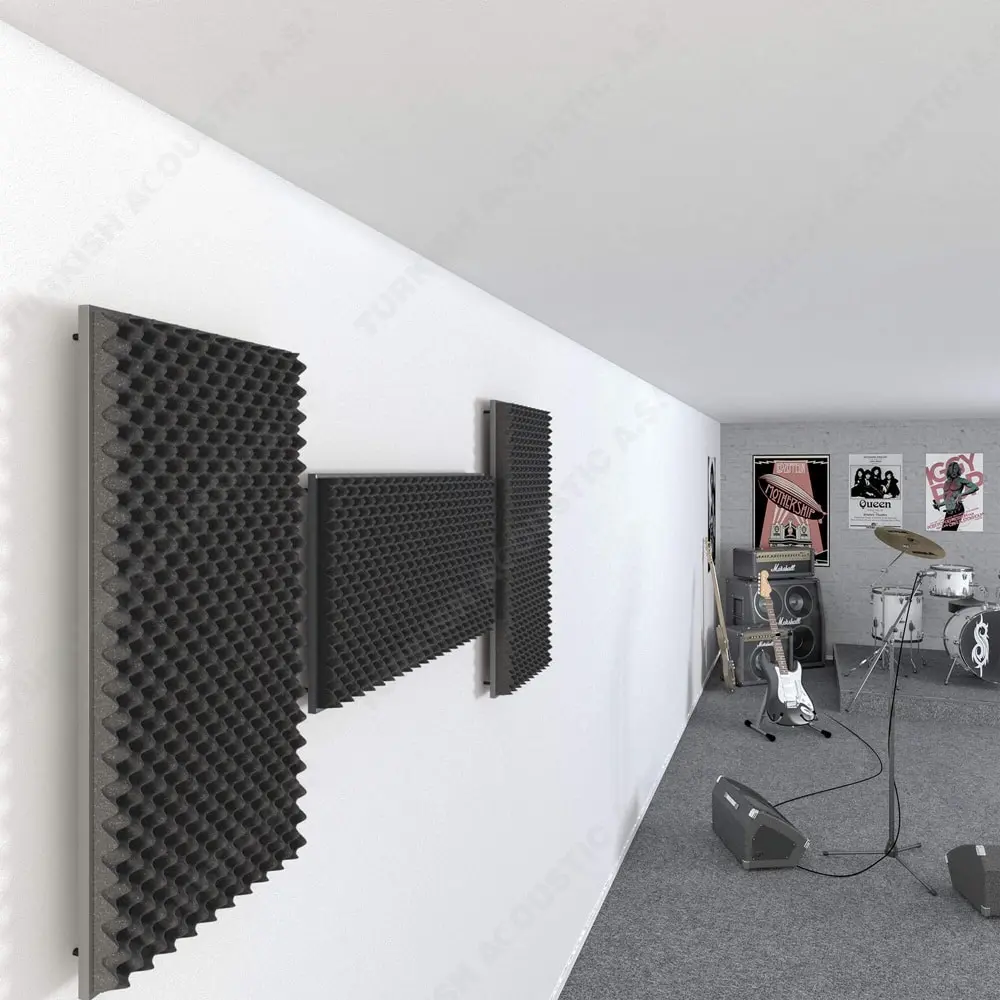

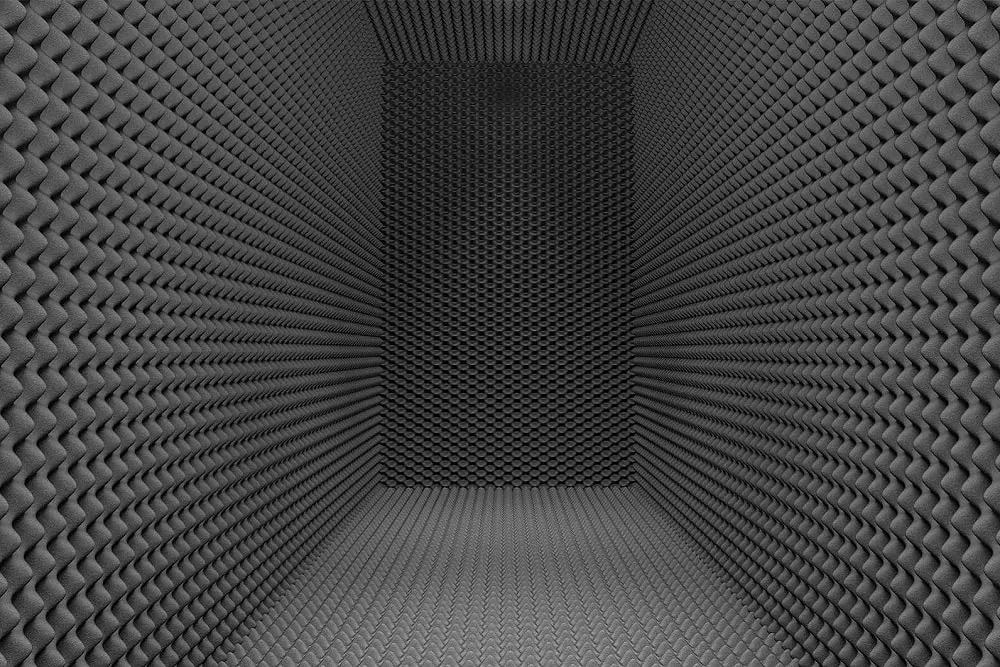

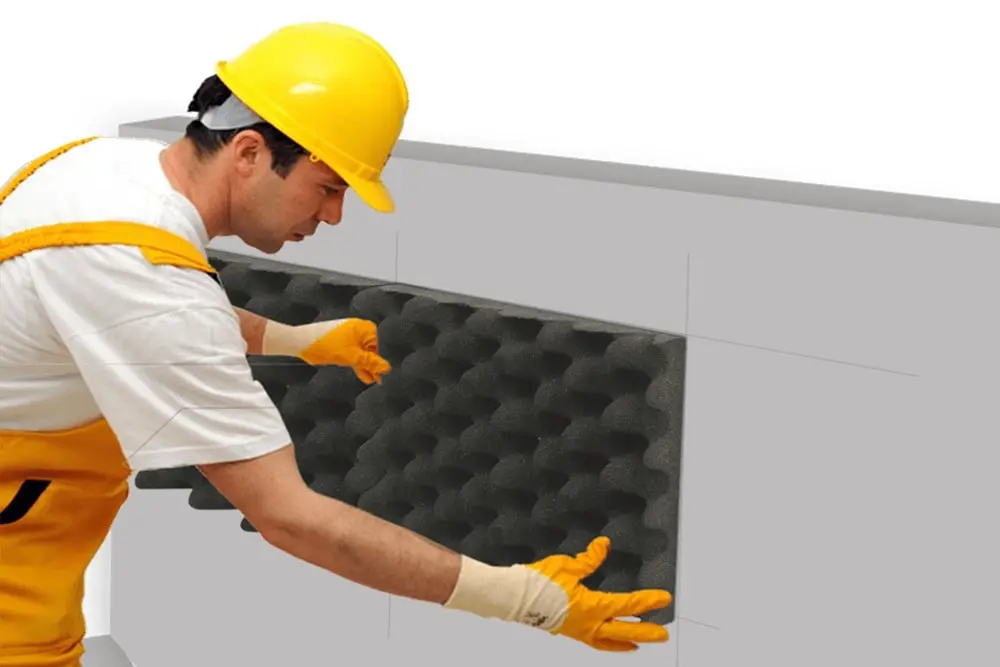

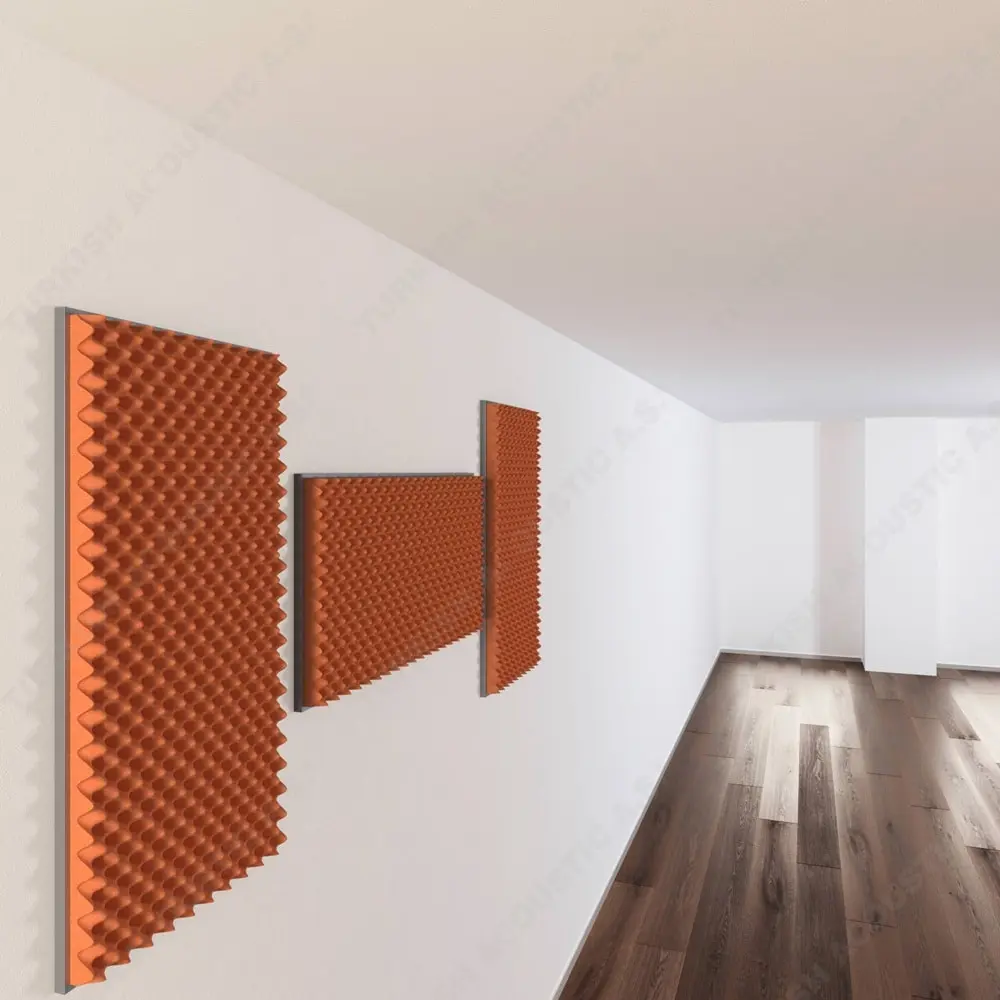

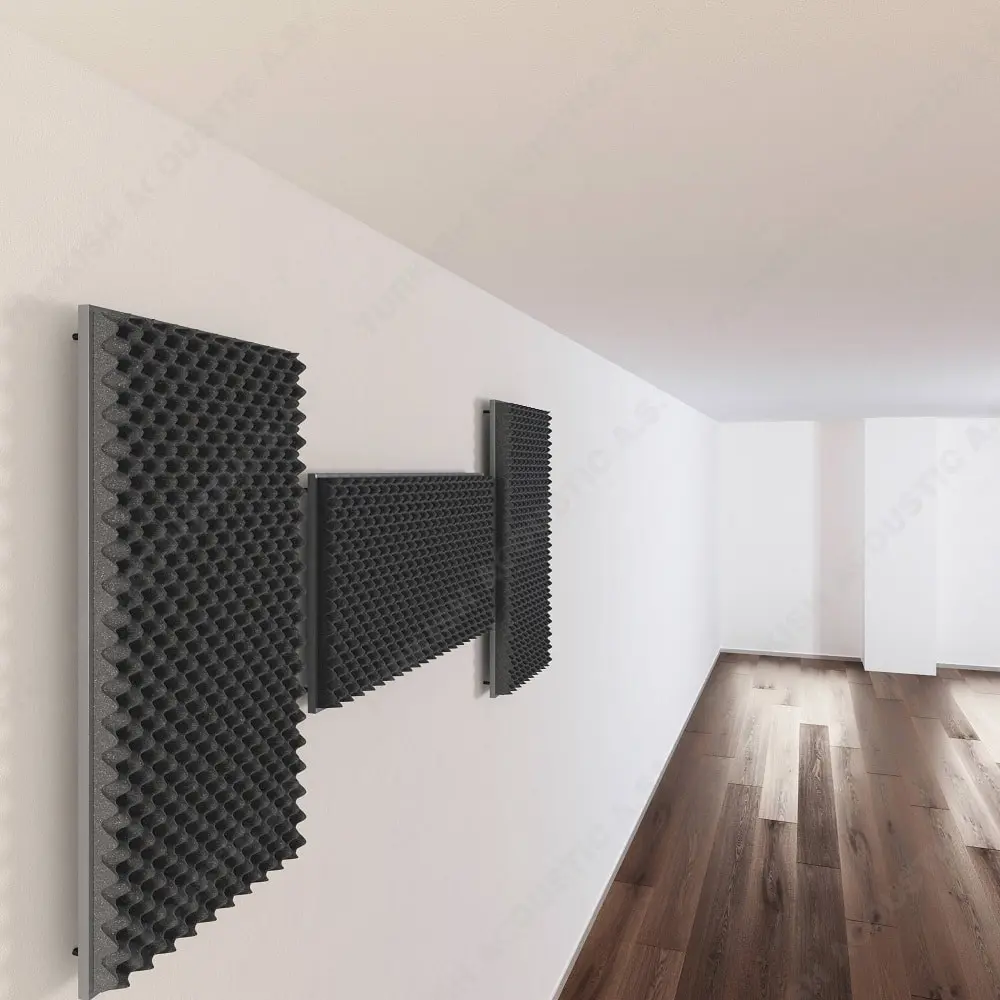

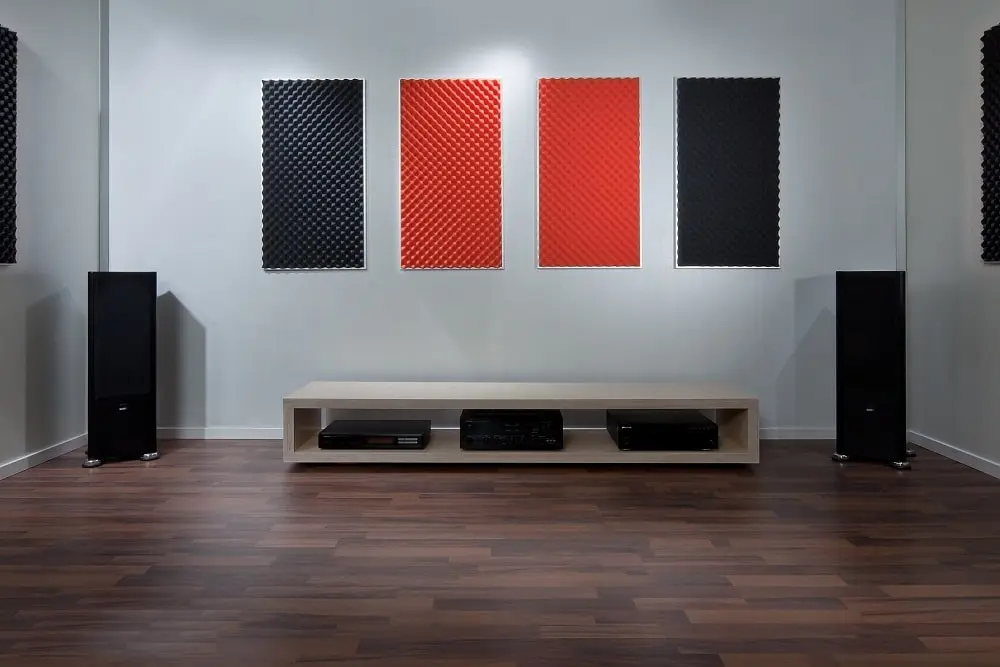

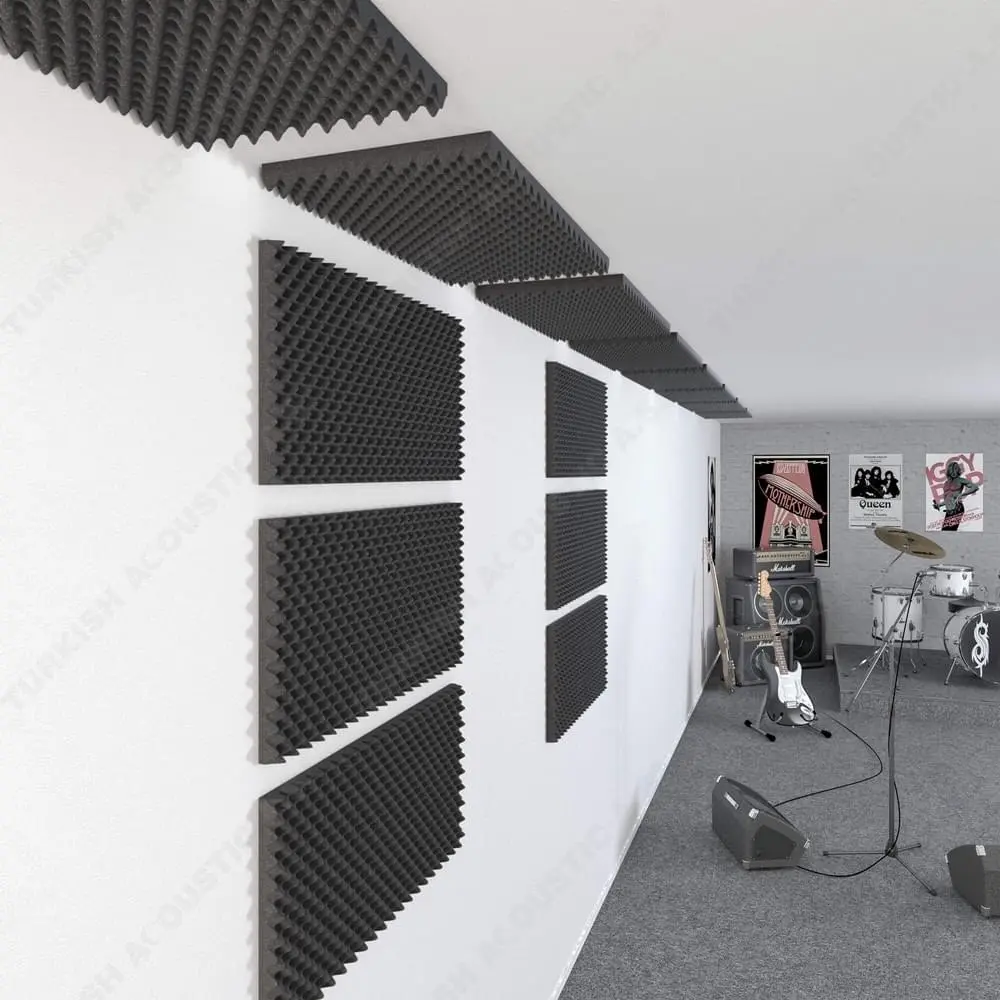

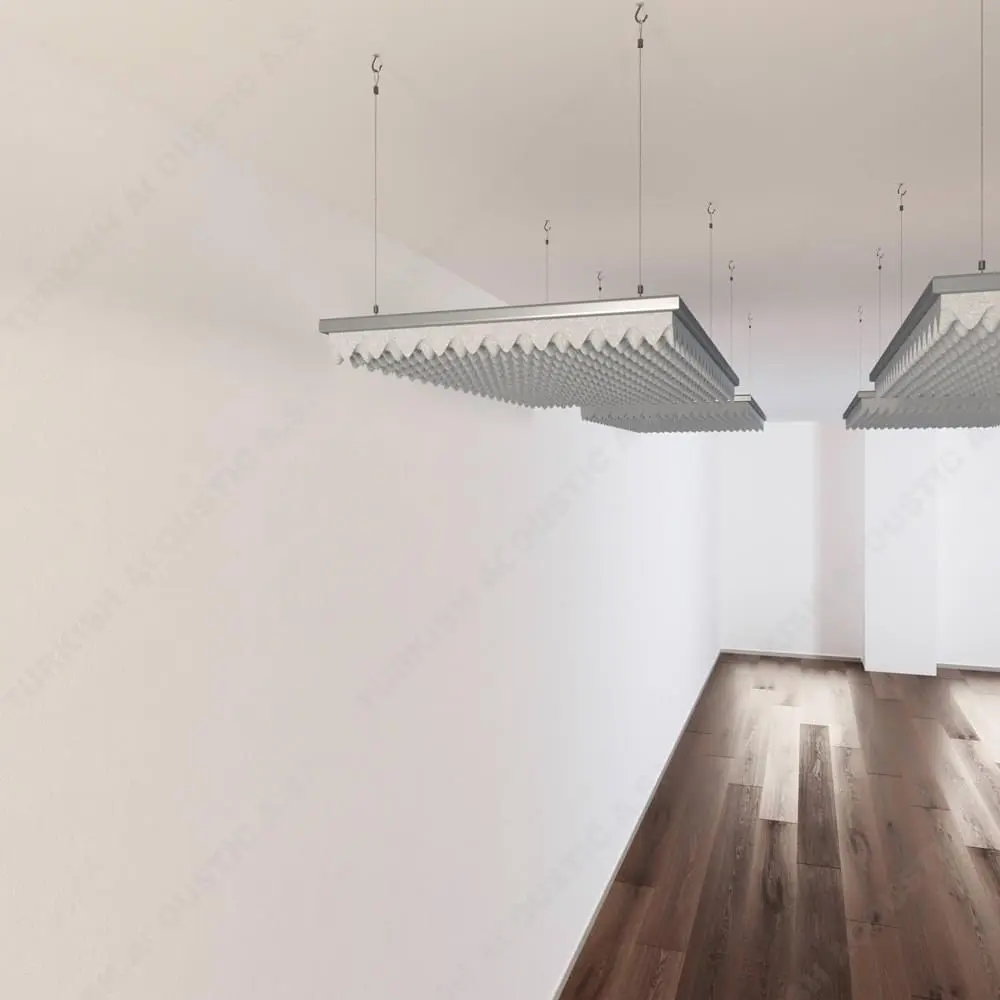

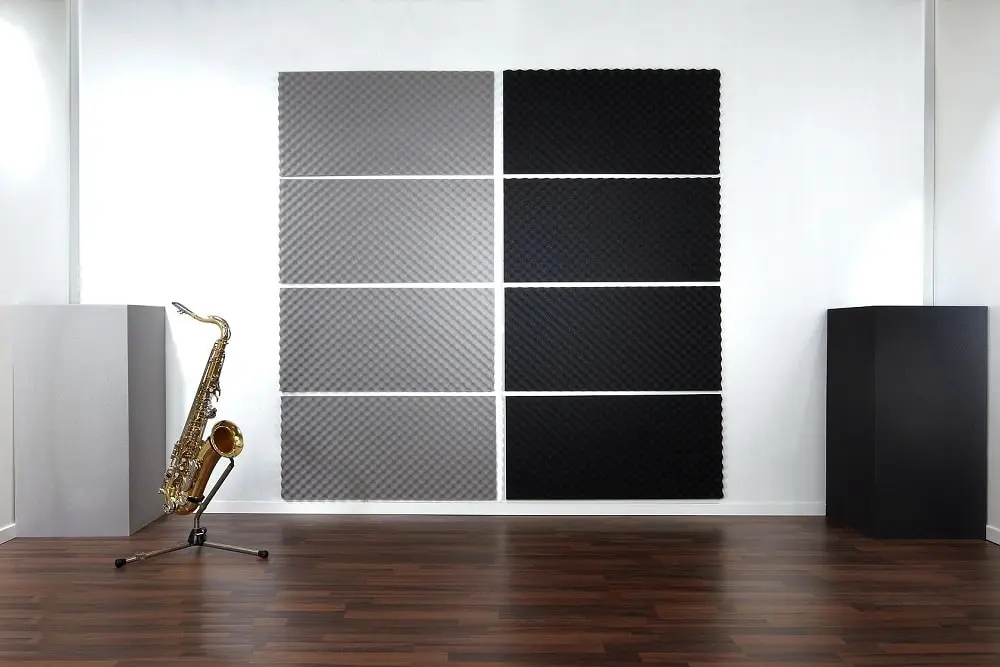

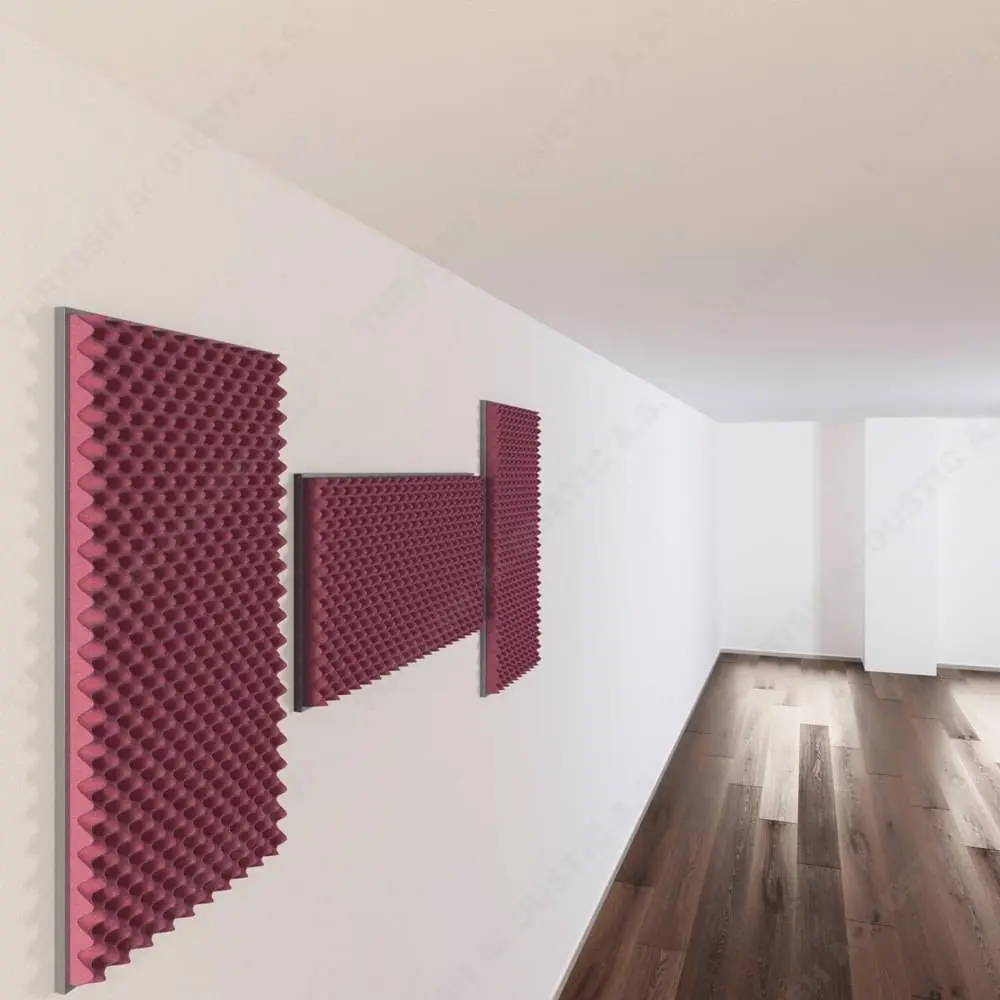

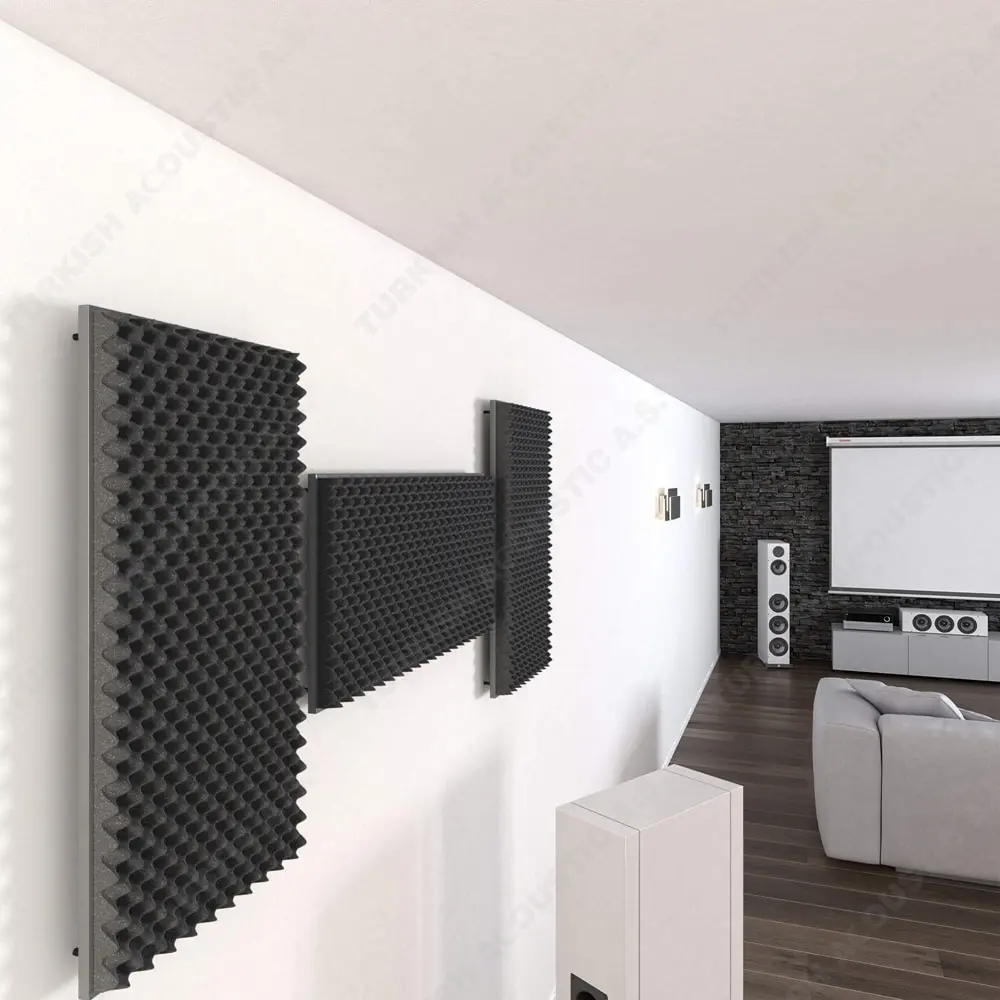

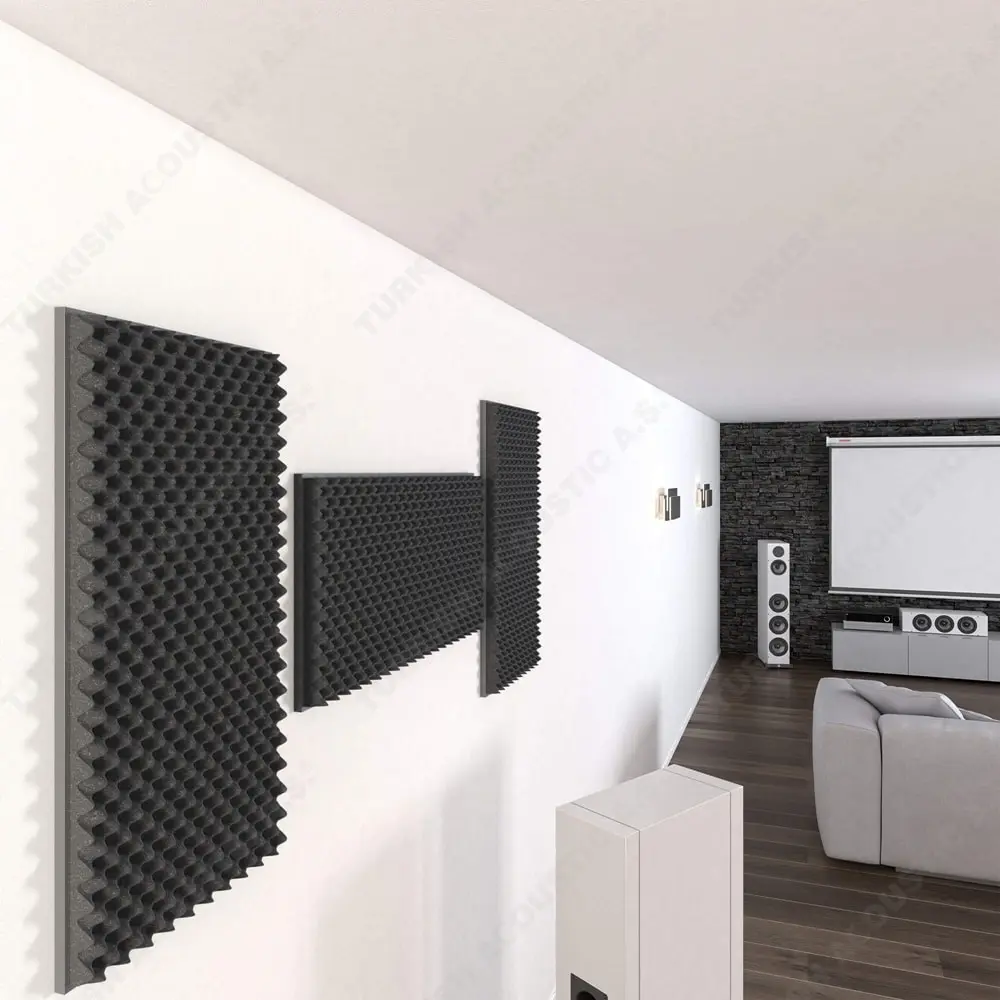

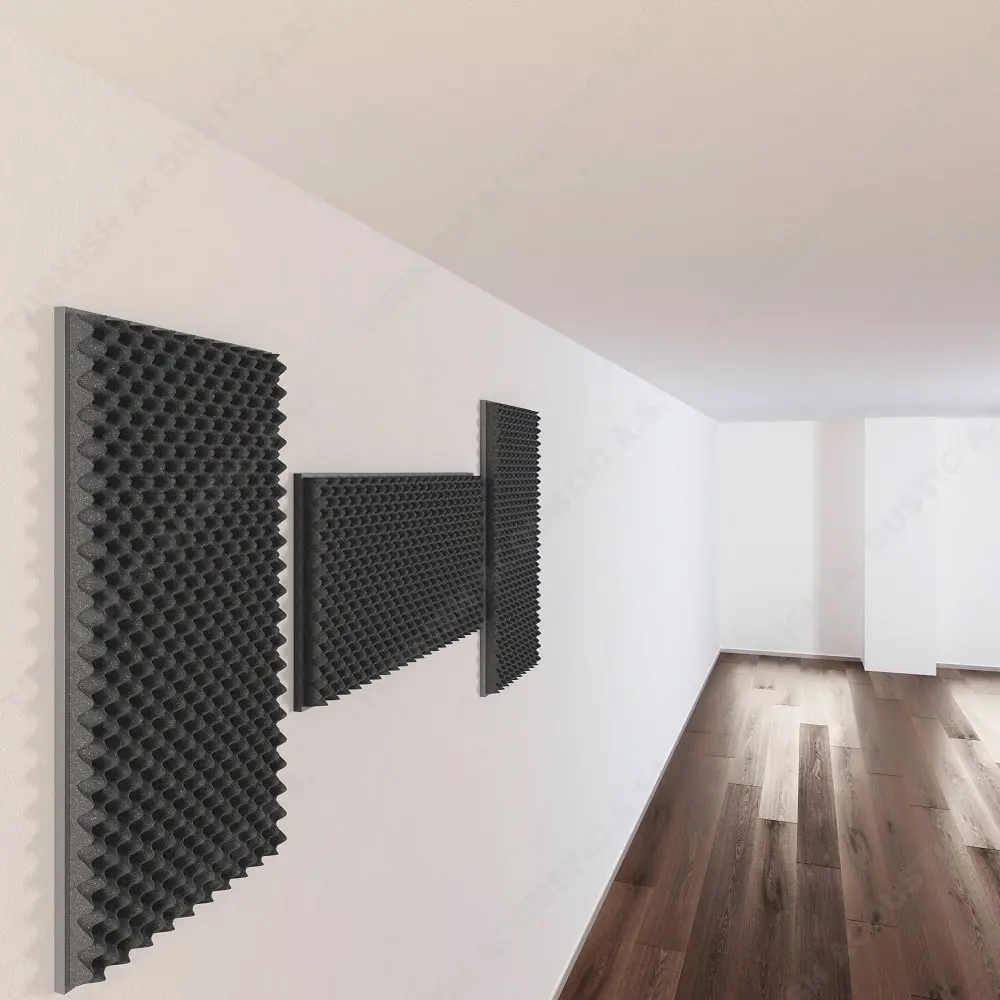

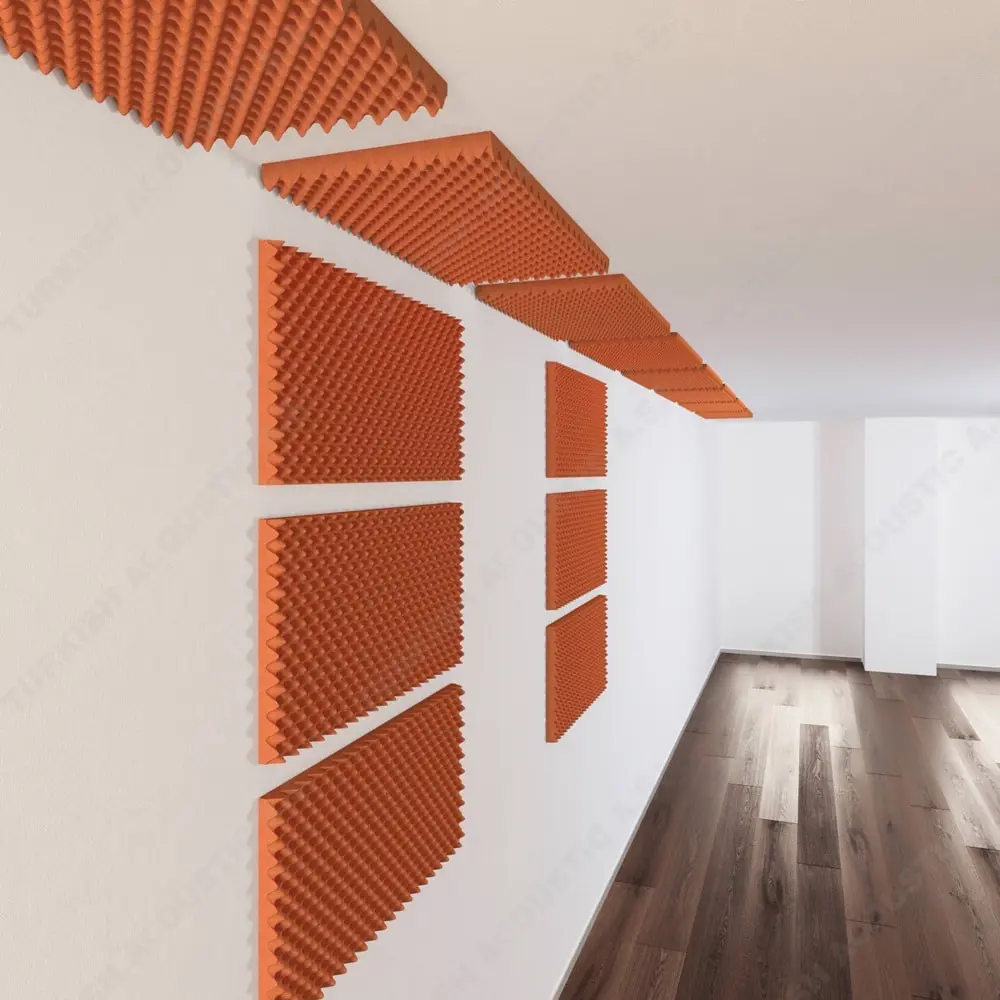

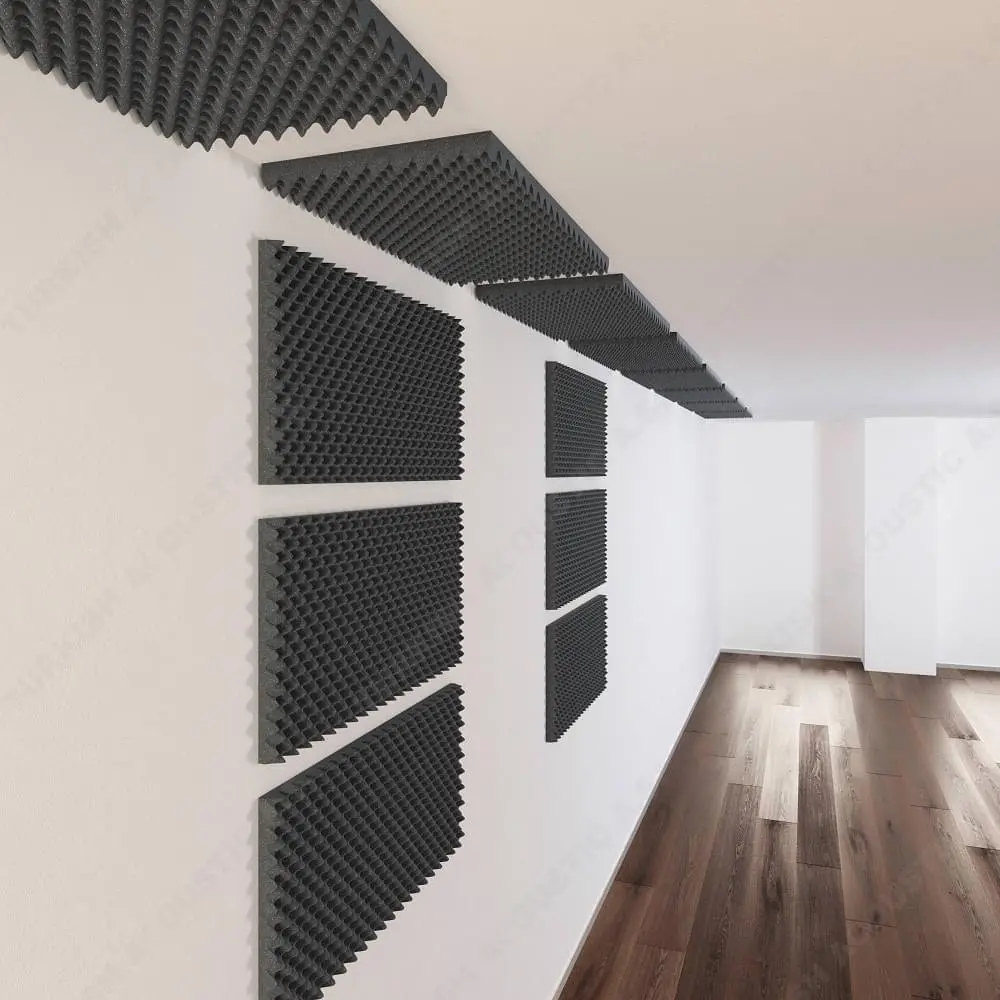

Application Images

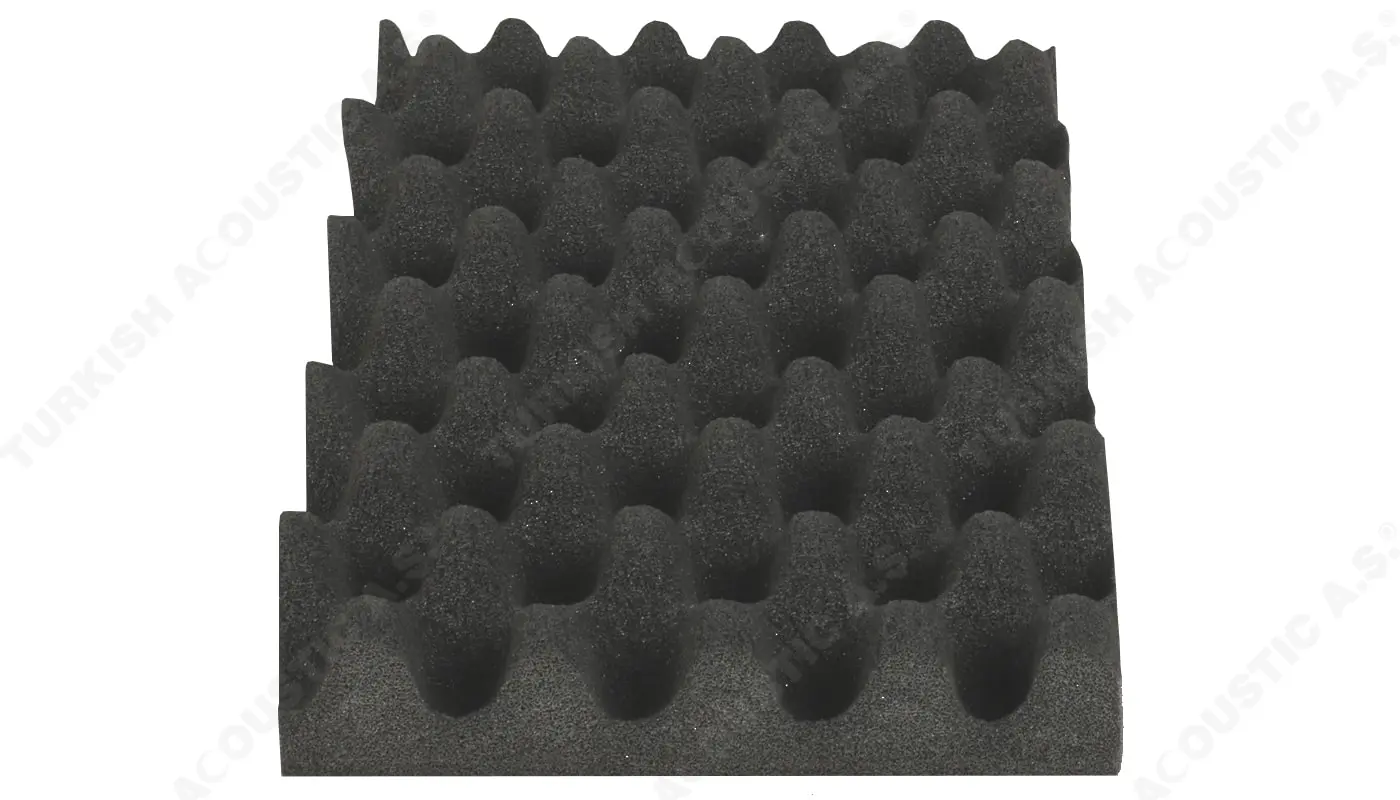

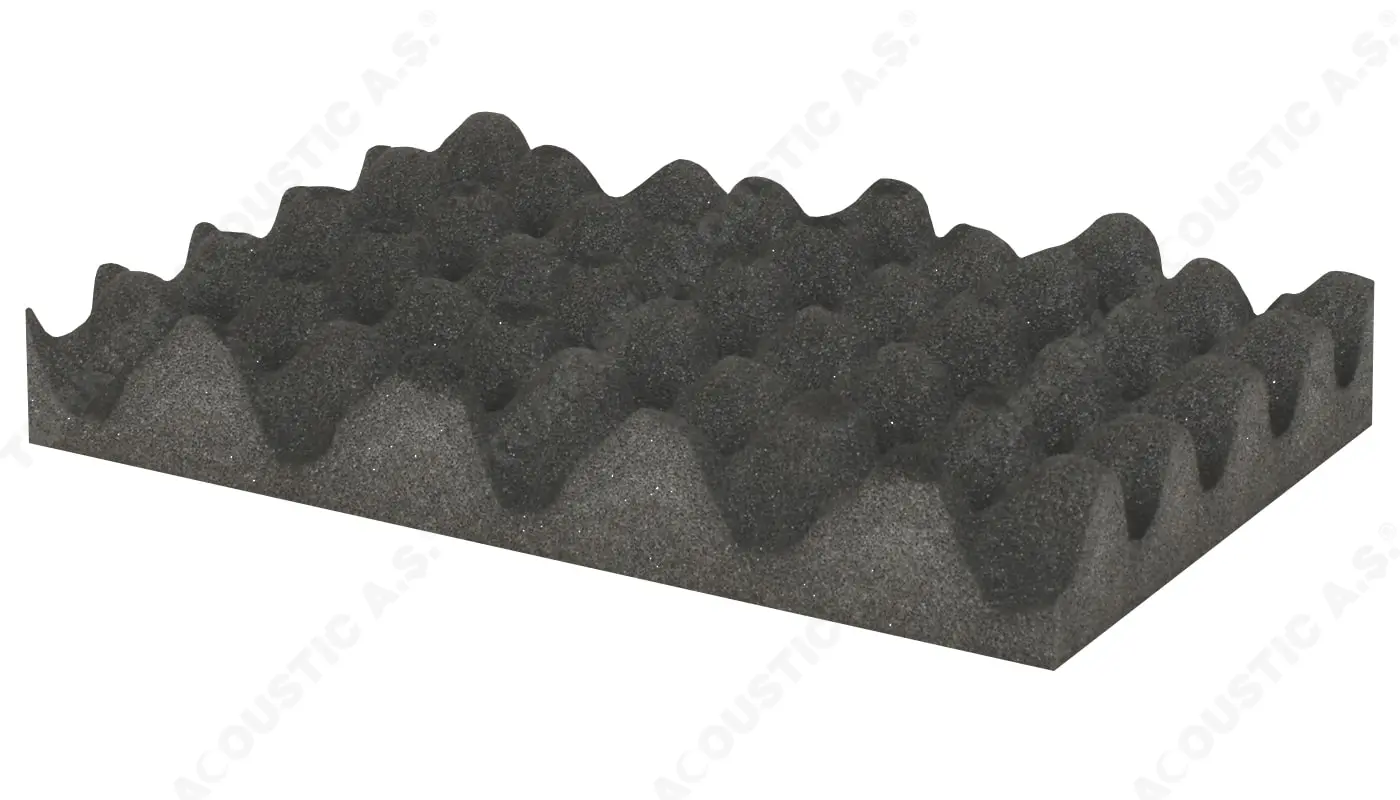

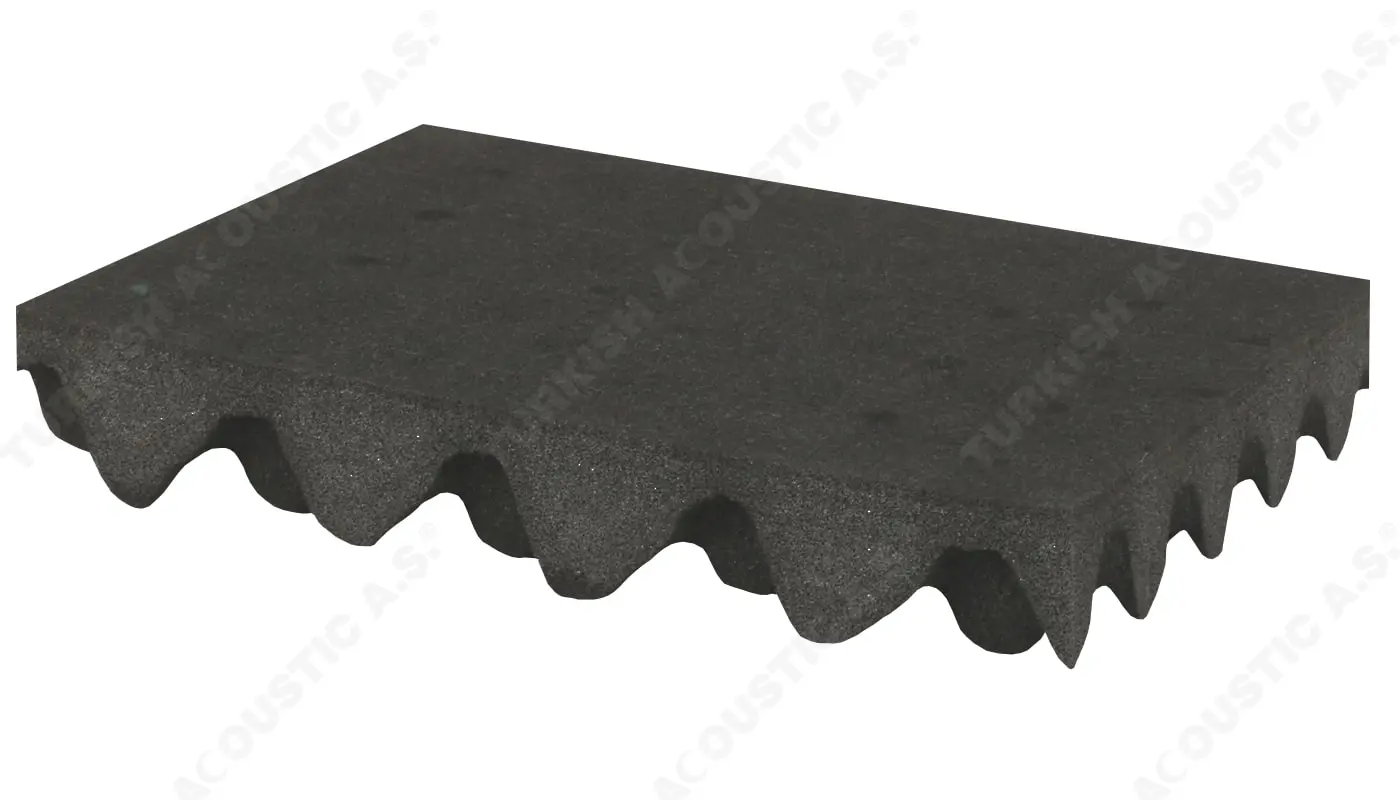

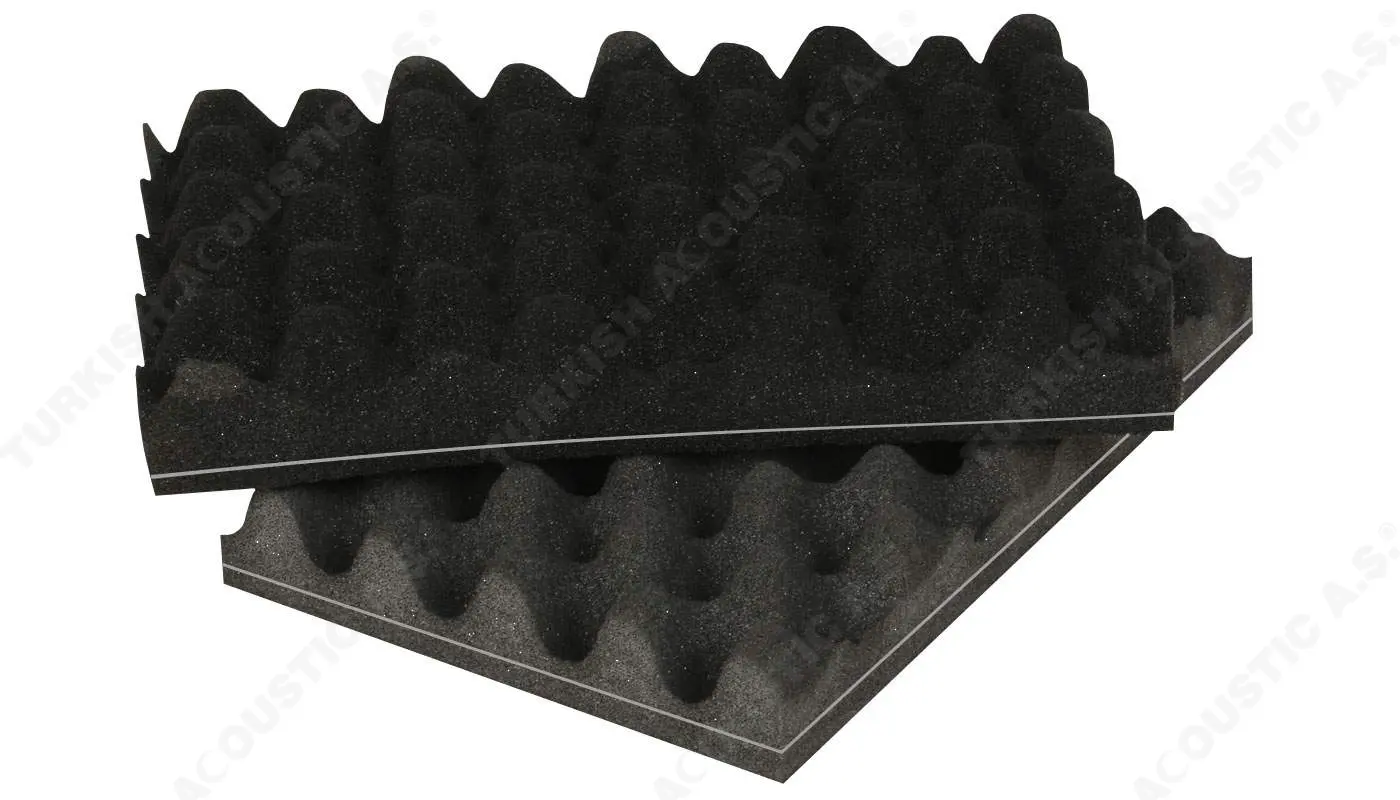

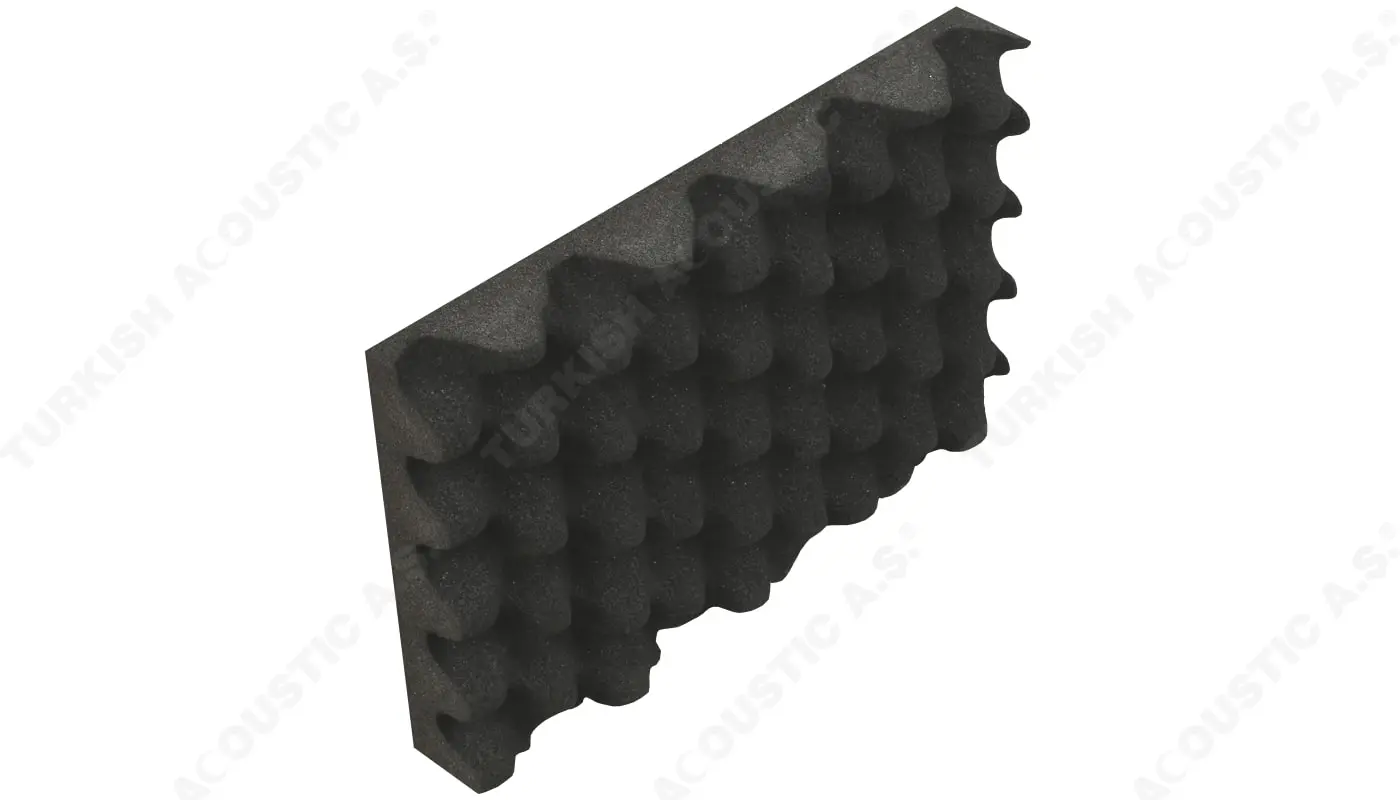

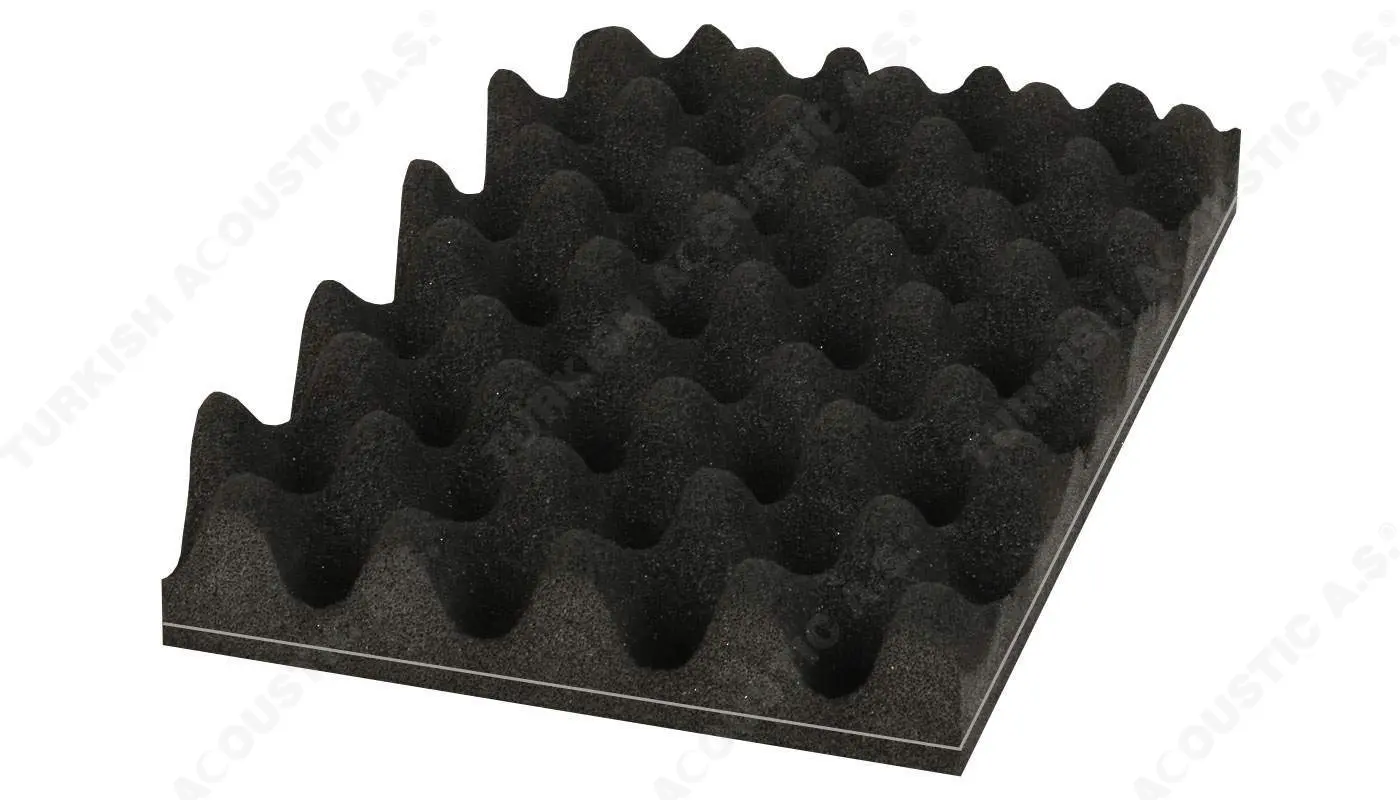

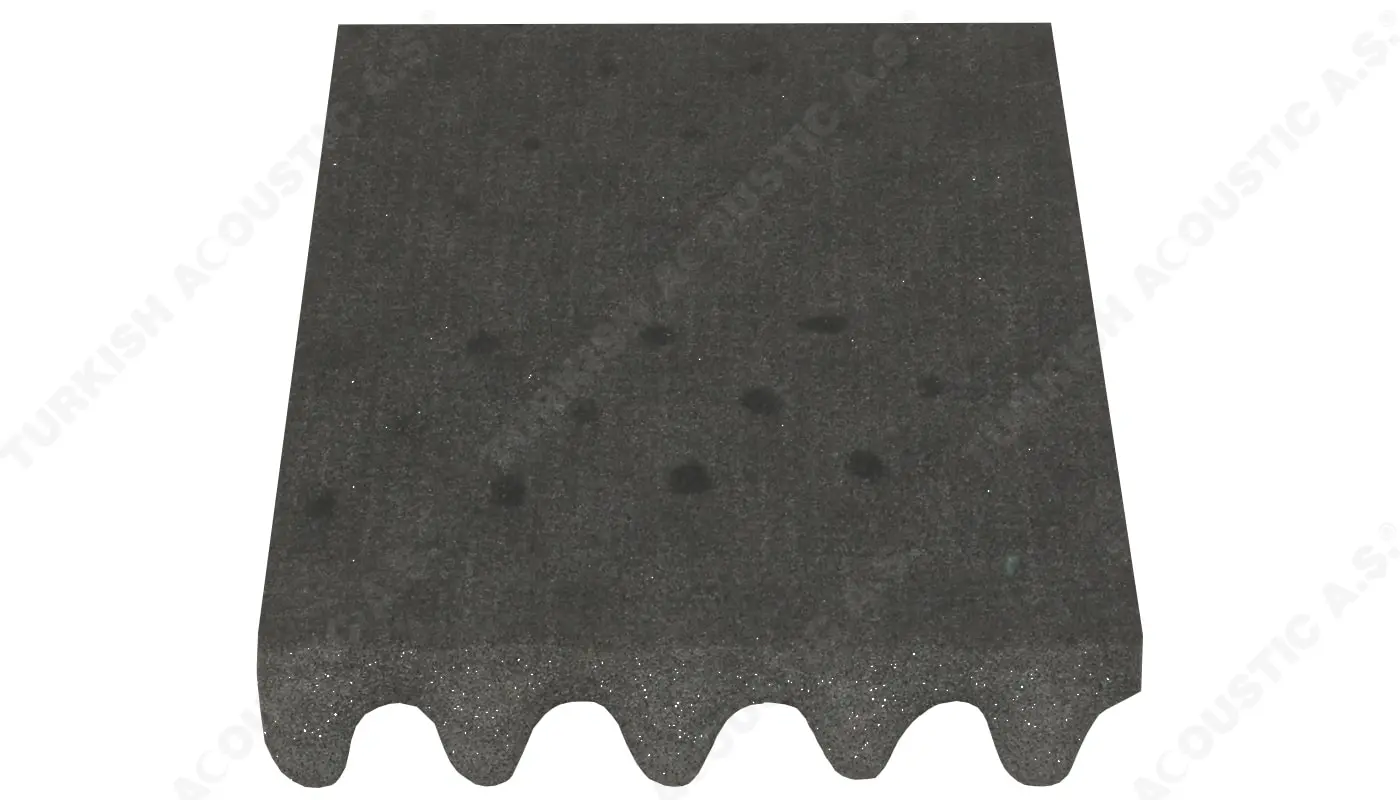

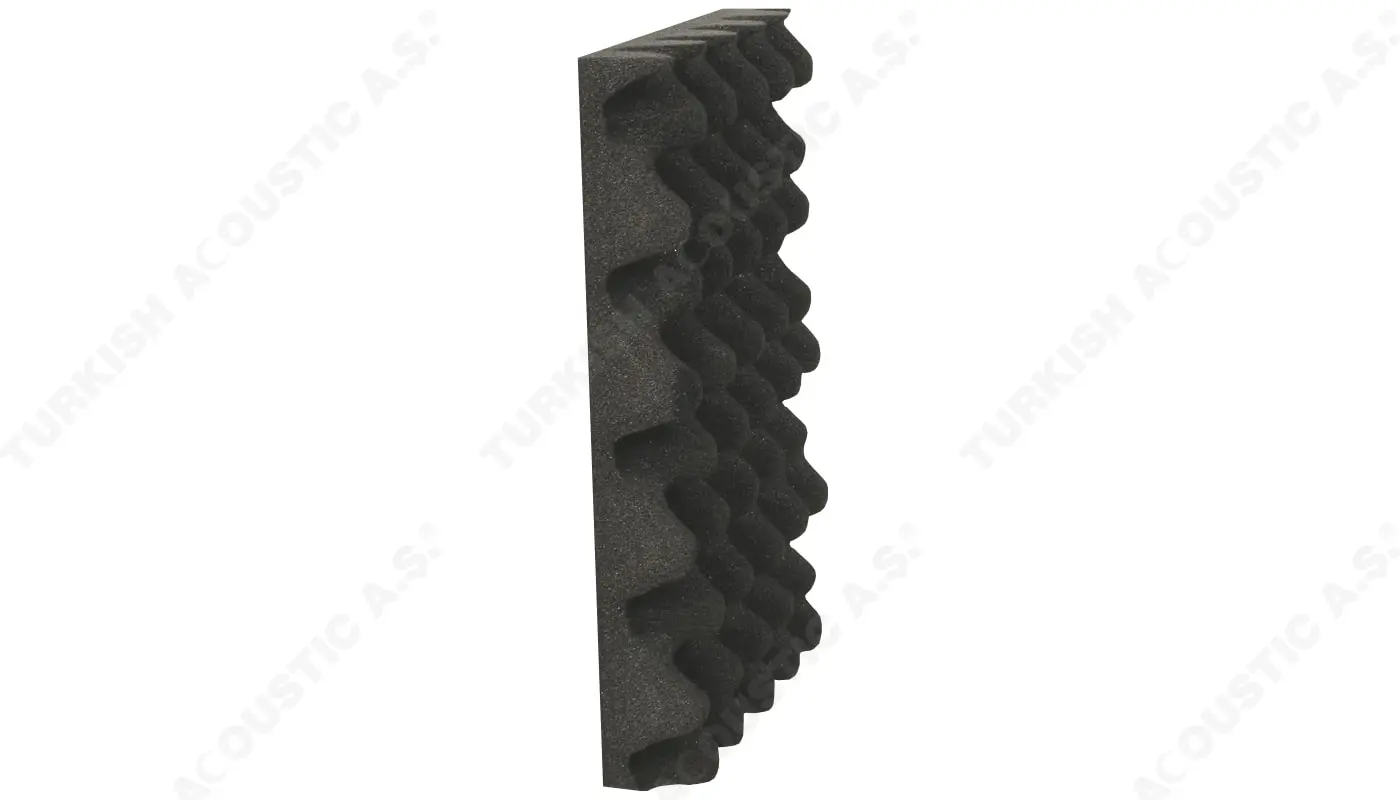

Viol Egg Foam Dimensions: 100 cm x 100 cm as plate, sold by retail in 30 mm and 40 mm thickness.
Viol Egg Foam Package Content: 100 cm x 100 cm as a plate. One package contains 10 pieces (10 m²).

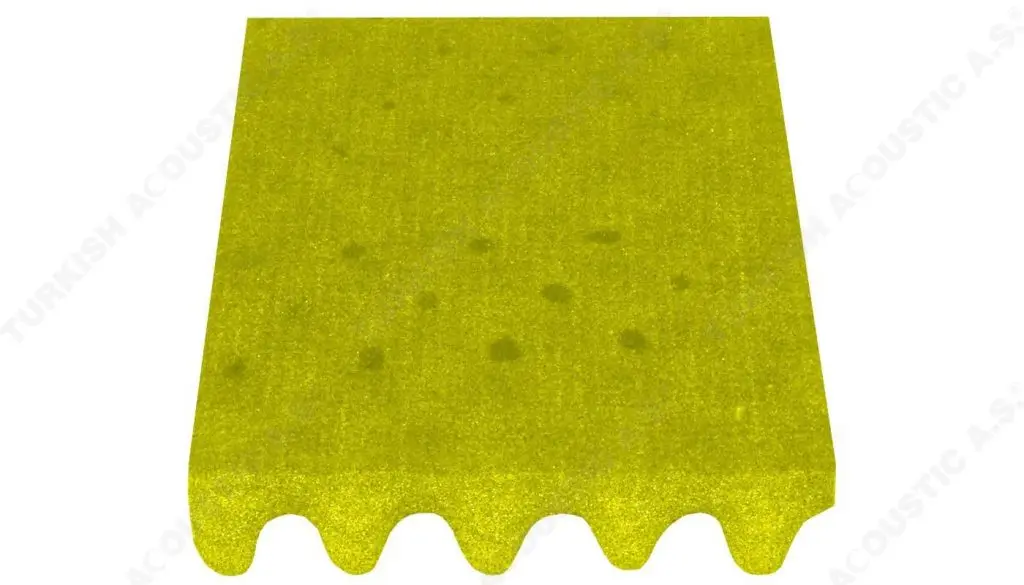

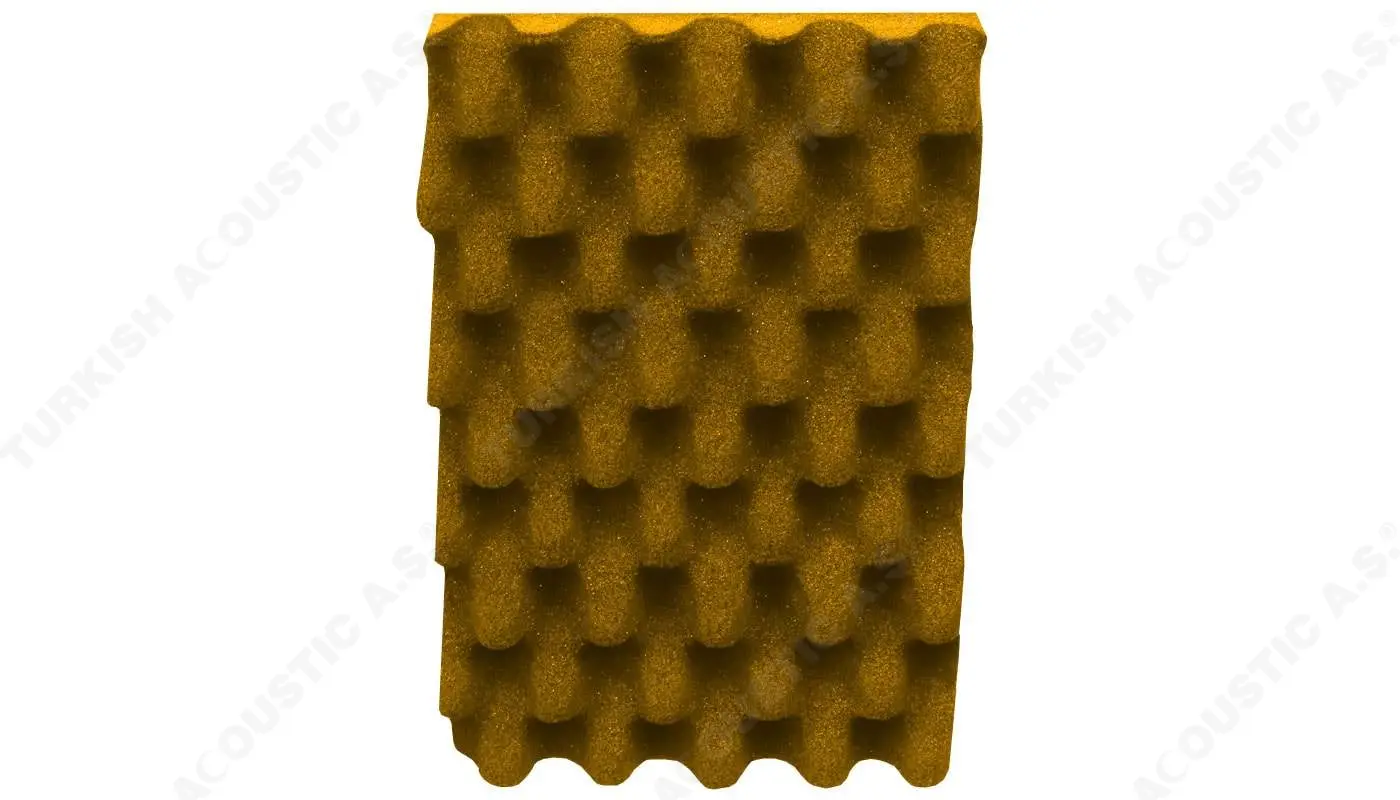

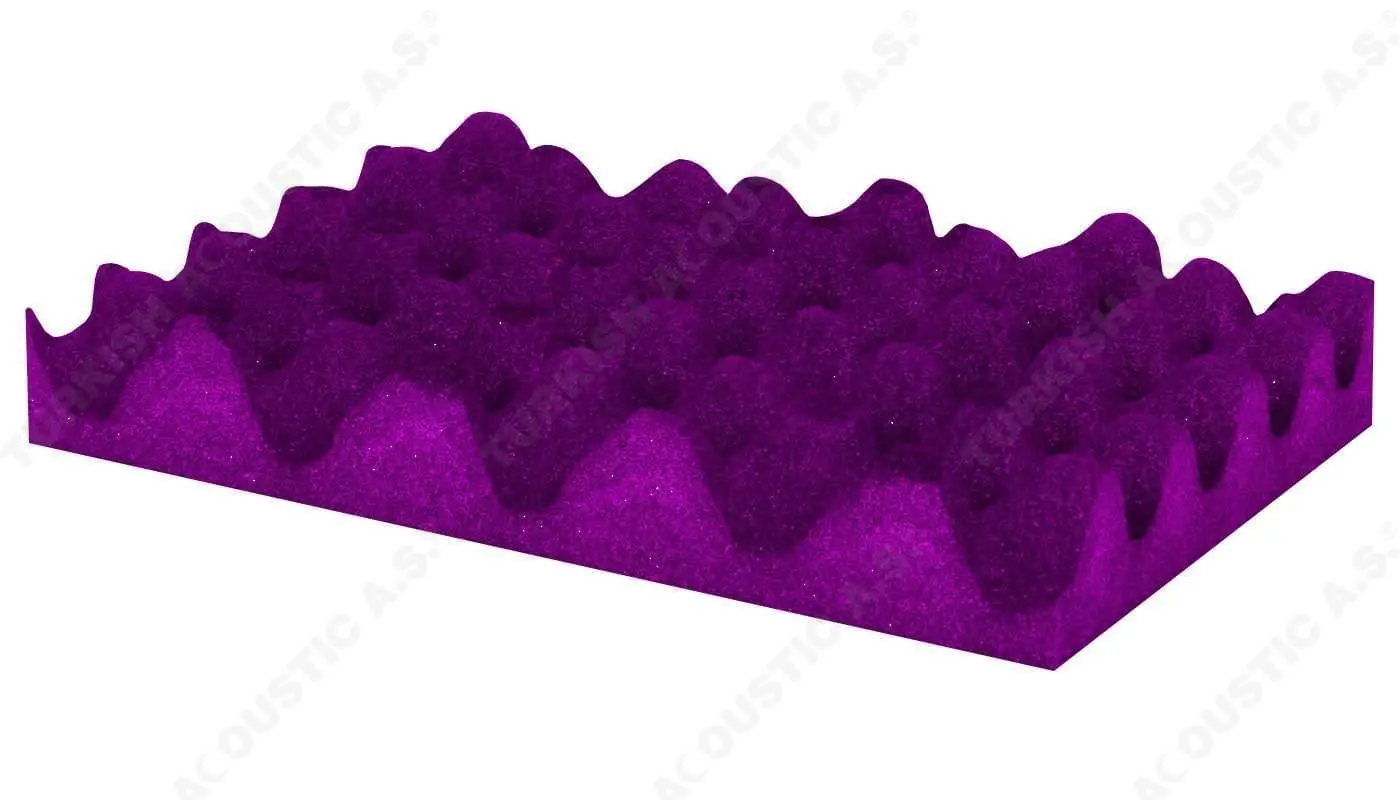

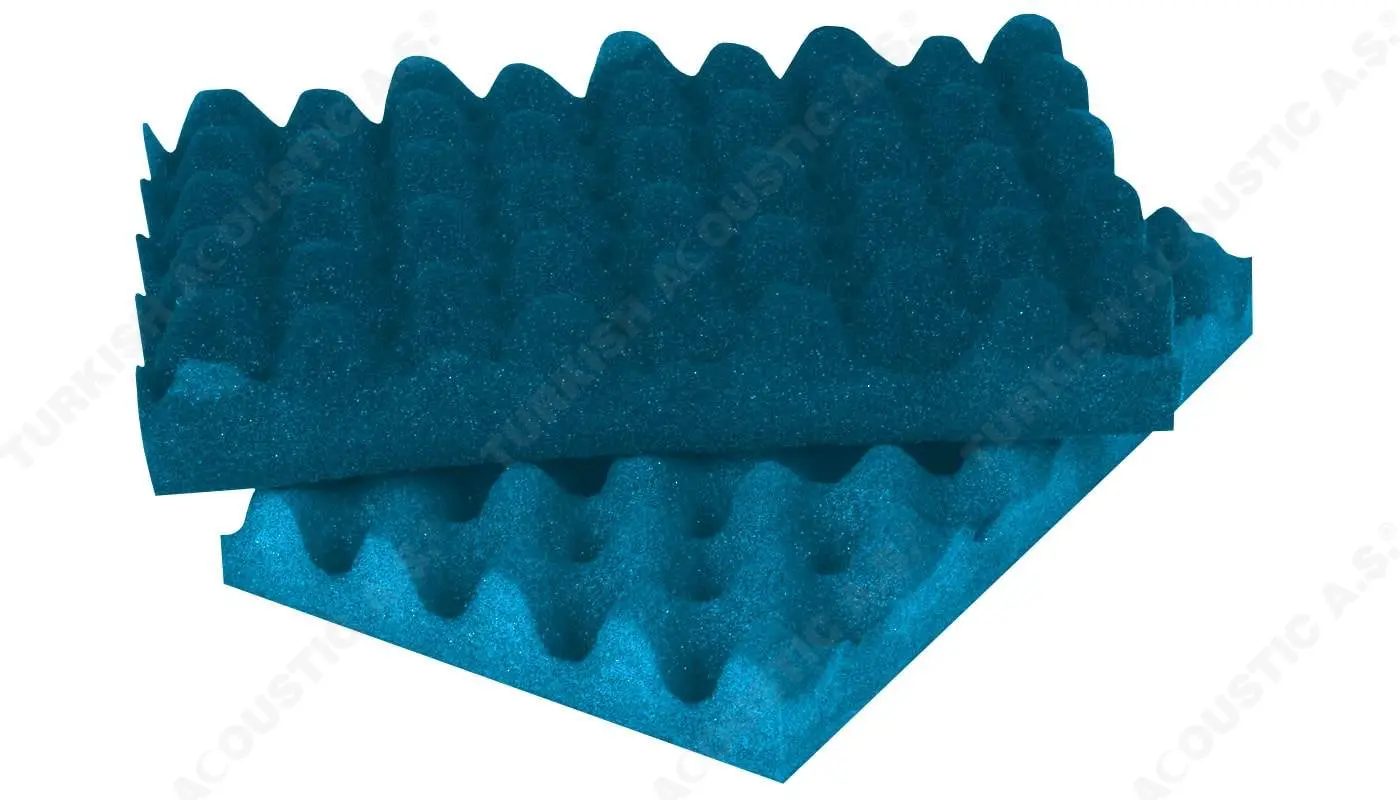

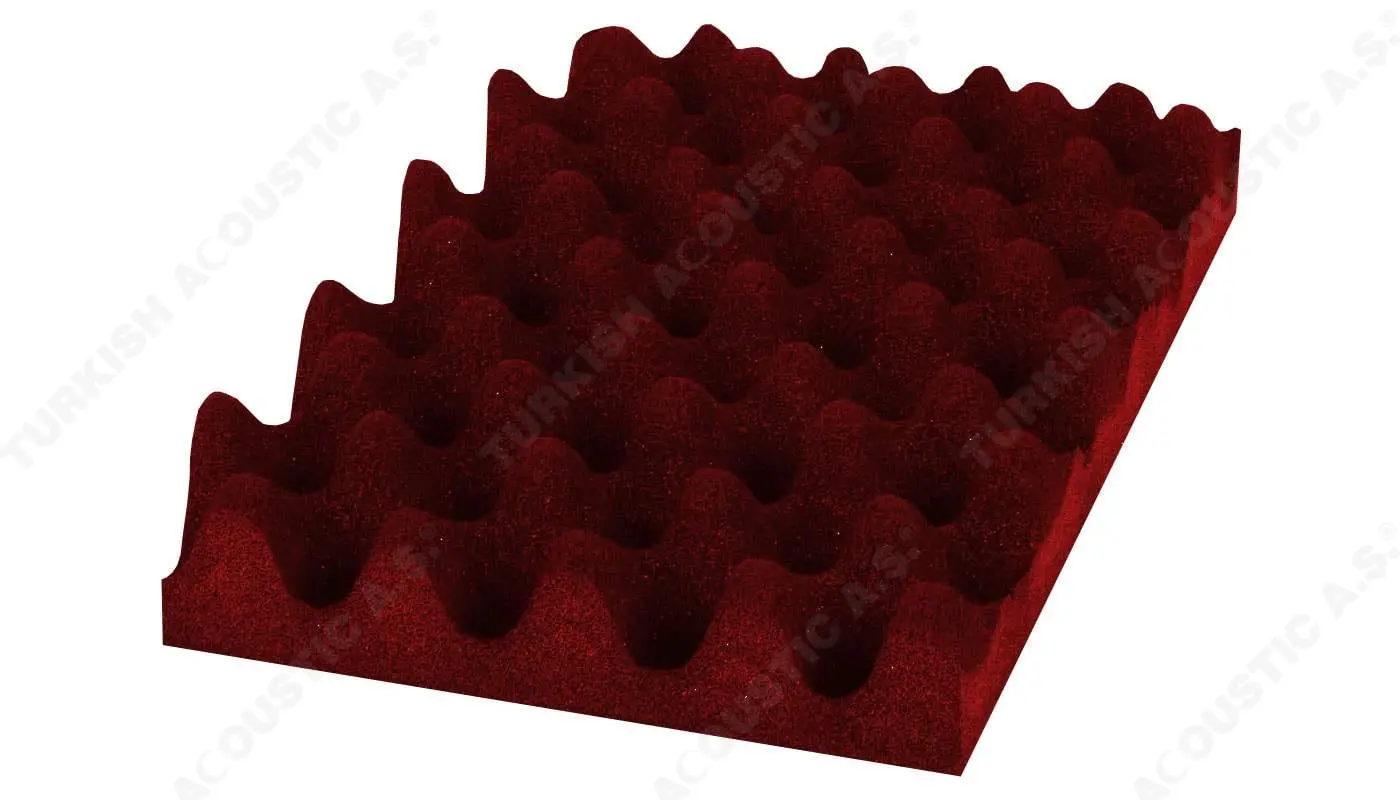

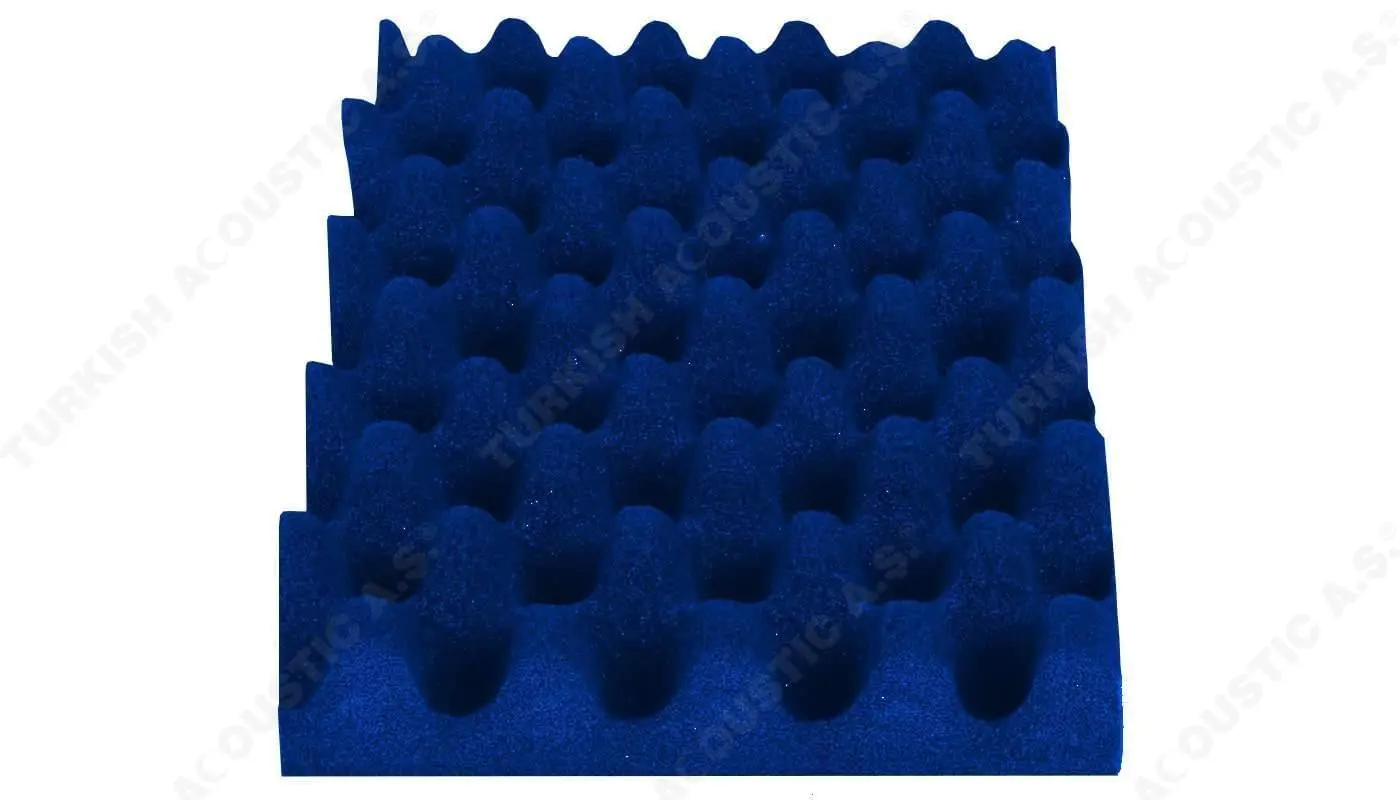

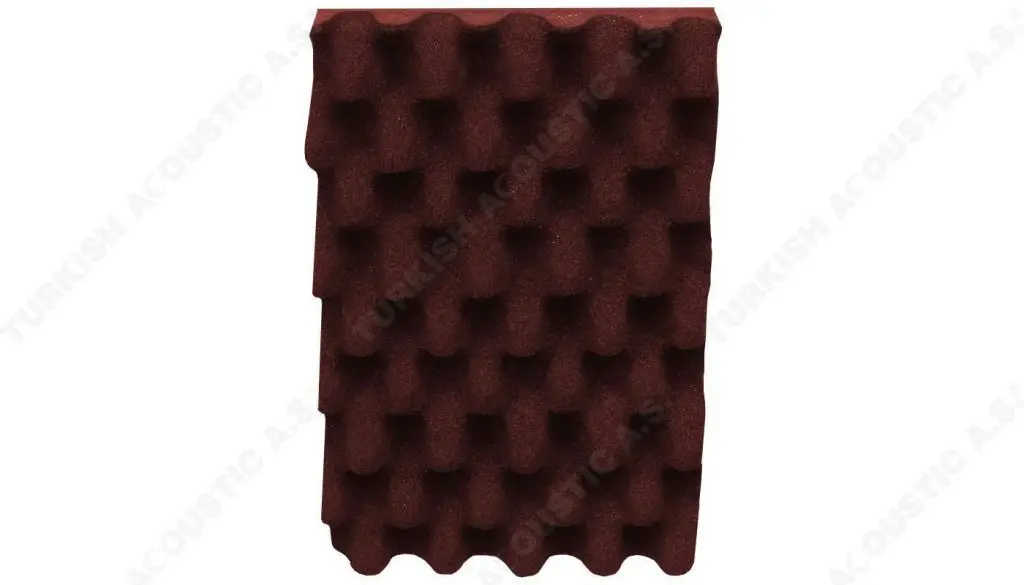

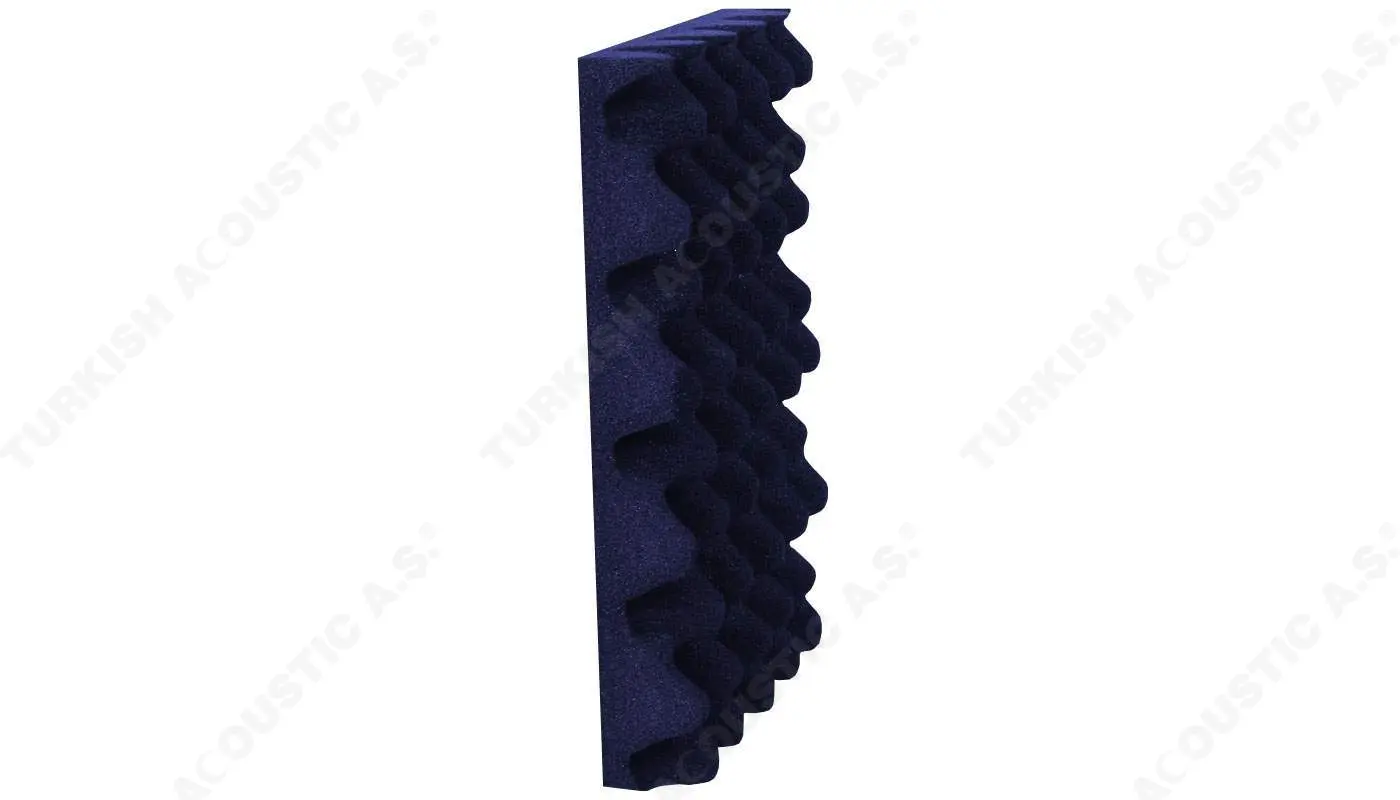

Viol Egg Foam Color Variations: Black (Dark Andesite Gray) as standard. Colored production is available.

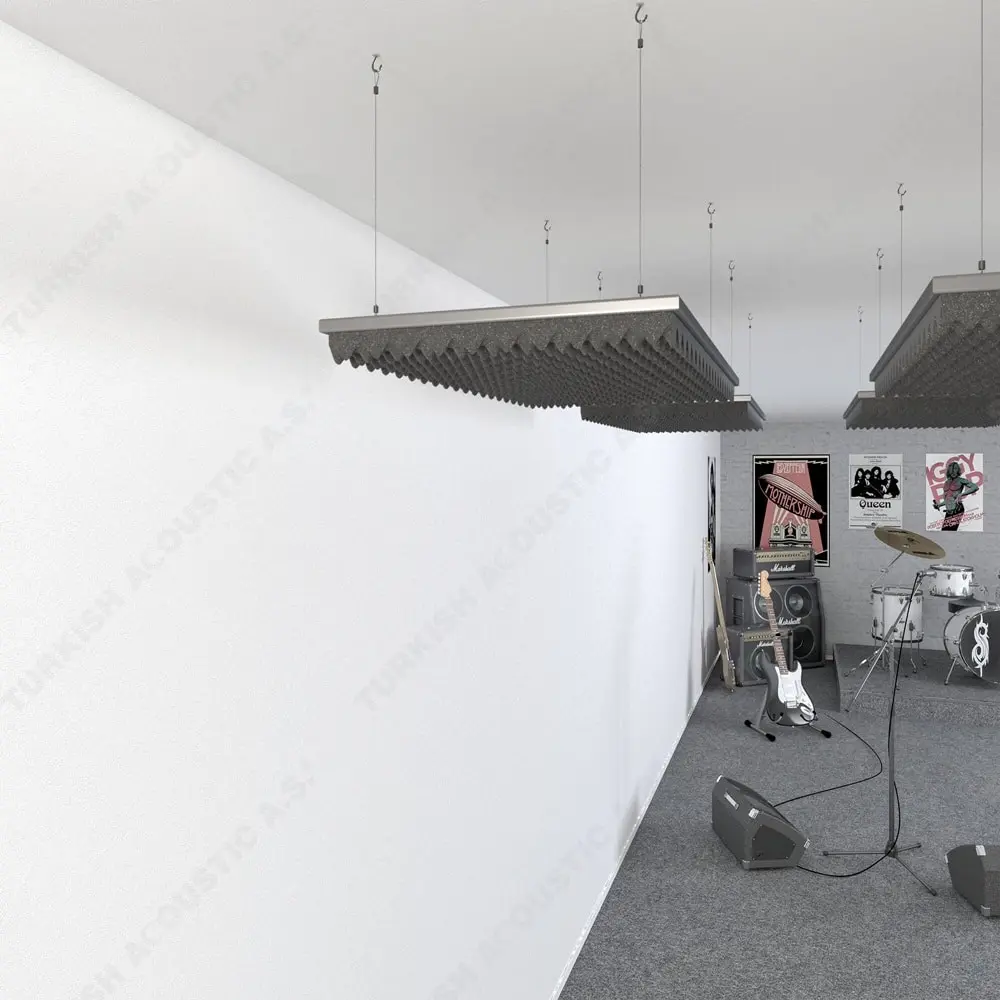

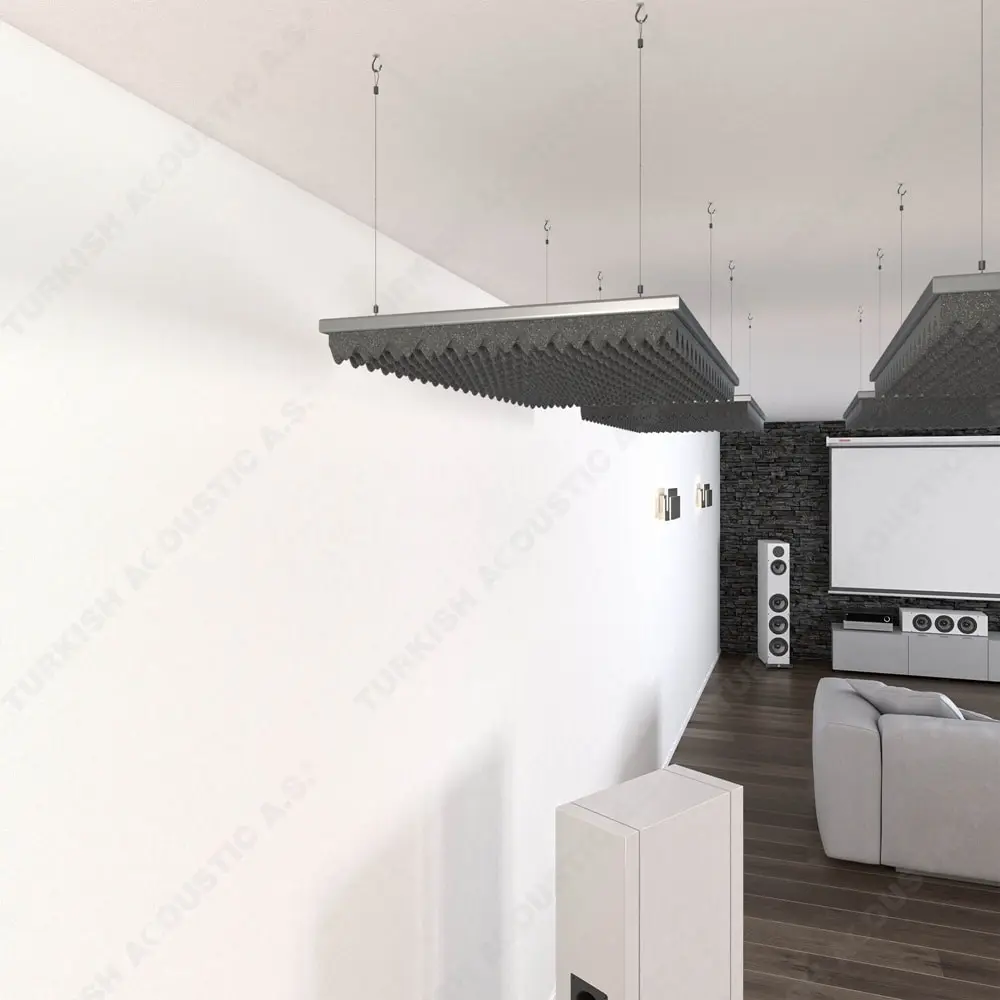

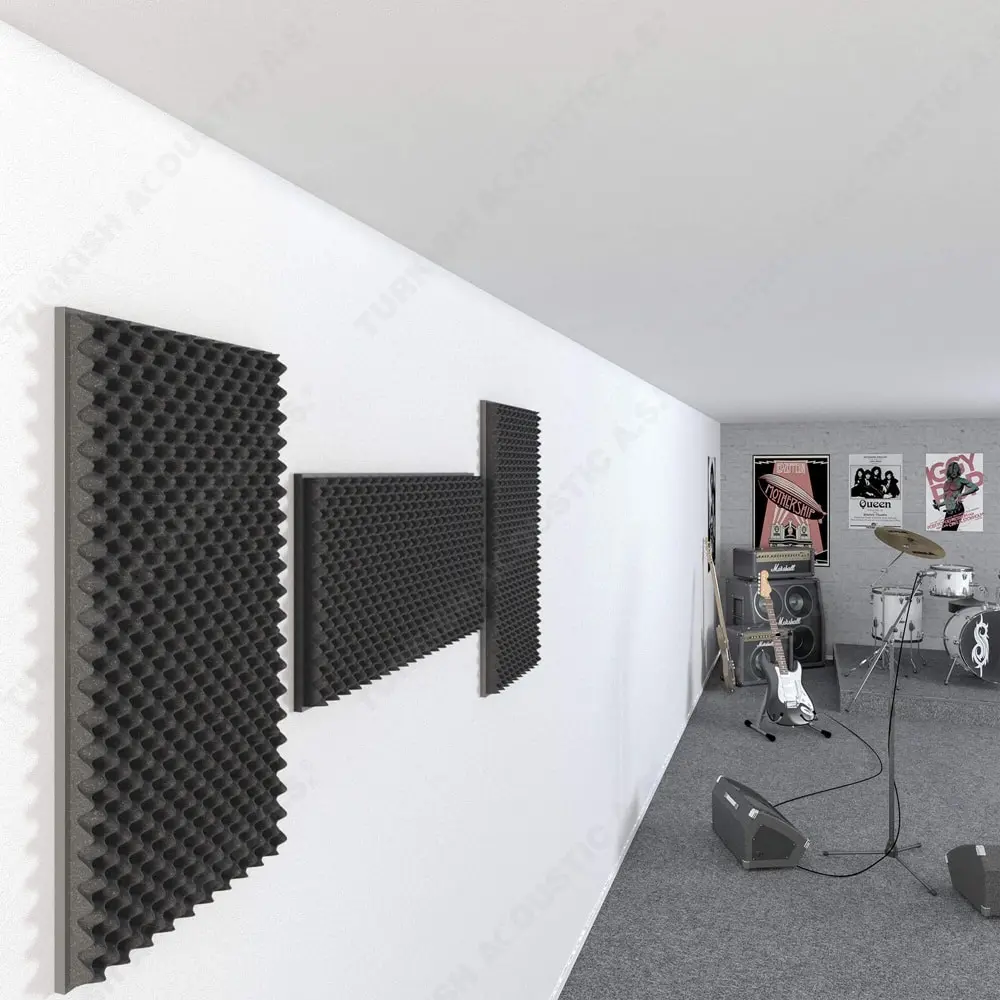

Viol Egg Foam Area of Usage: Music room, studio, generator room, radio broadcast room, gymnasium, amusement centers.
Viol Egg Foam Production: 50 mm and above custom thickness is available. The custom cut is possible. Colors RAL chart.

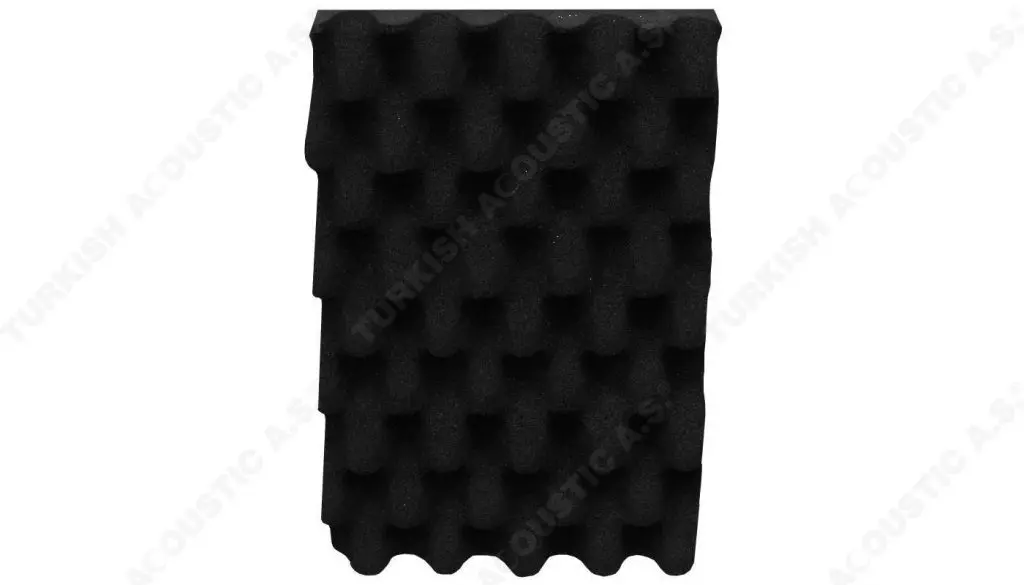

Viol Egg Foam Nonflammability: BS476: class 0 and Unı 9175:2008 M1 certificates are available in nonflammability
Viol Egg Foam Density: 30 and 60 Kg / M³ density / Production in desired density and thickness is available.
Tolerance: 30 mm product is between 25 – 30 mm, 40 mm product is between 35 – 40 mm.

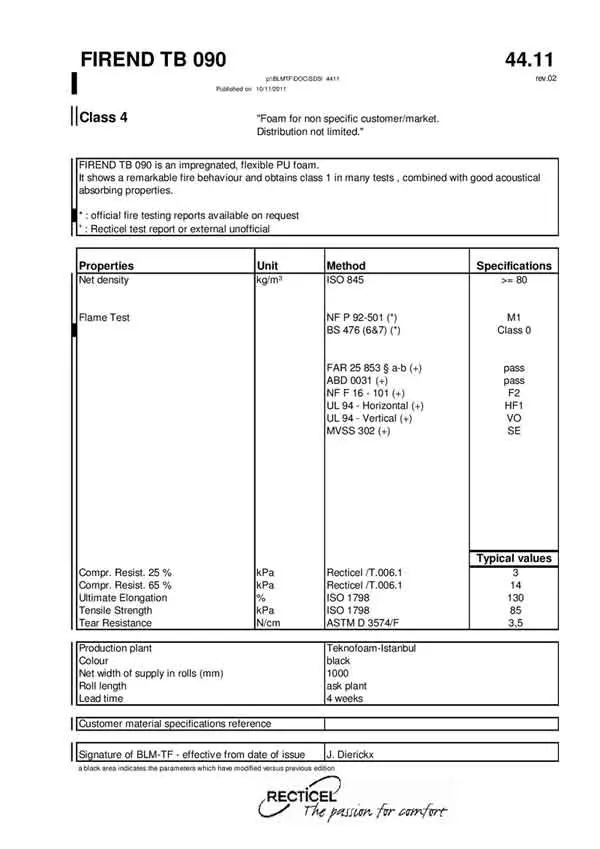

Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Thickness | Absorption Factor Suitable For DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Viol egg sponges are in 100 cm x 100 cm as plates. One package contains 10 plates (10m²). Sold in 30mm and 40mm standard thicknesses. Custom thickness and sizes are available upon request. Contact our technical office for details.
