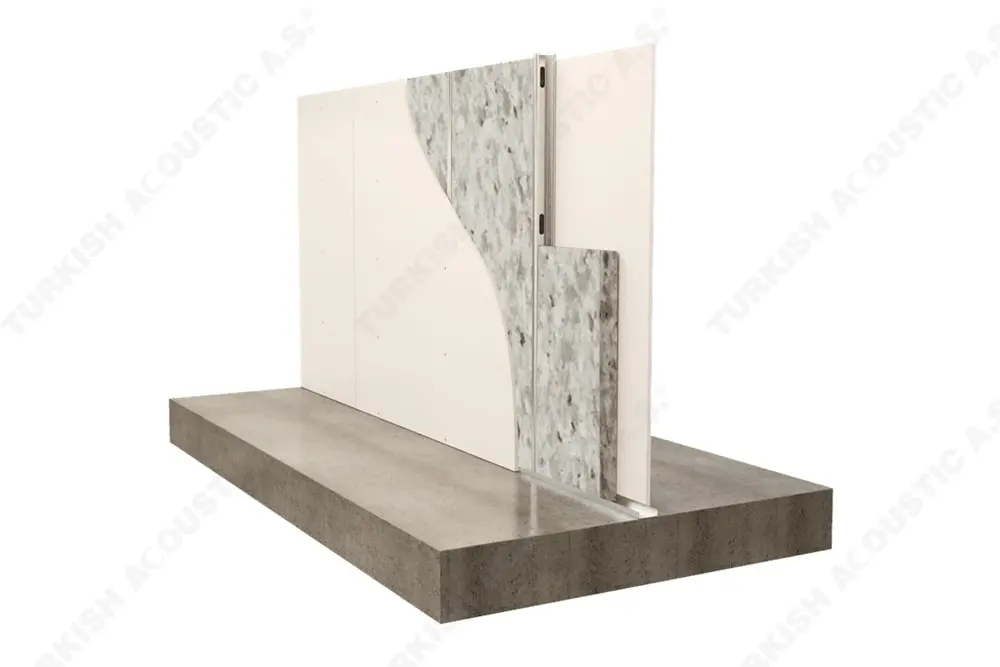

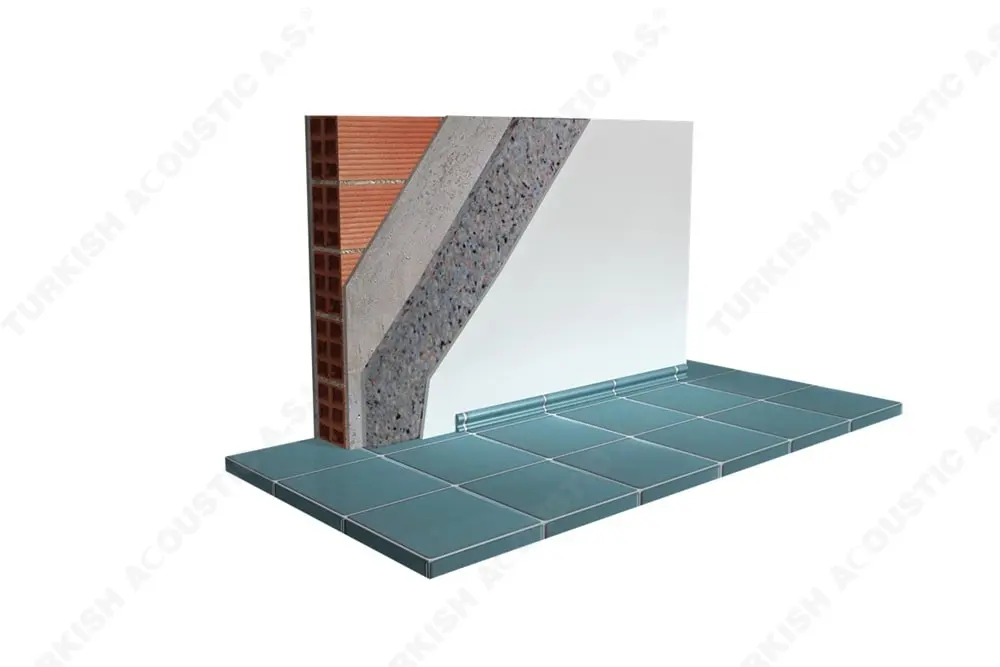

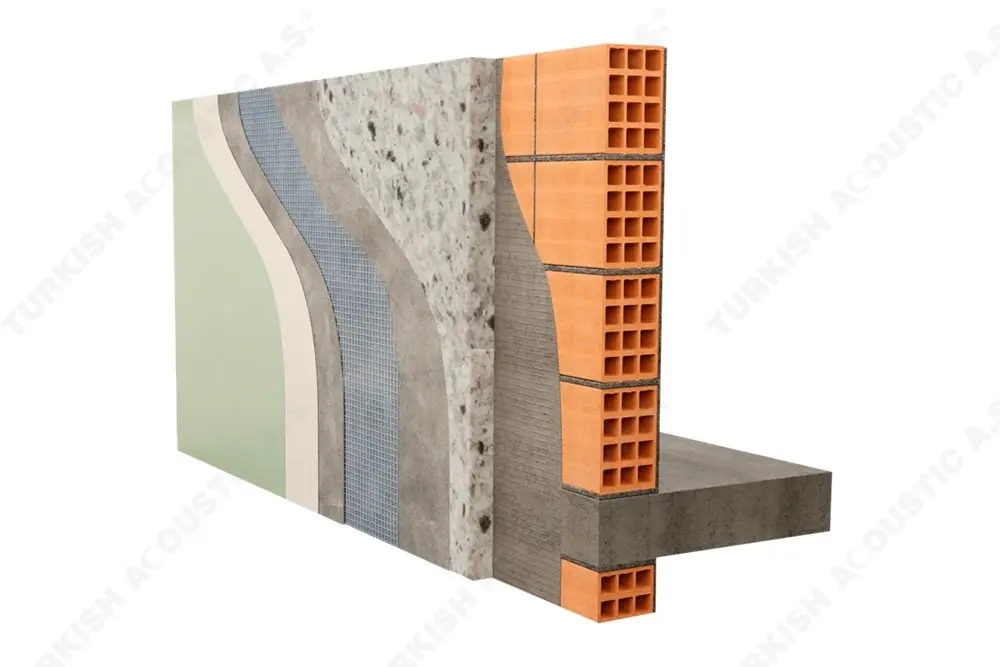

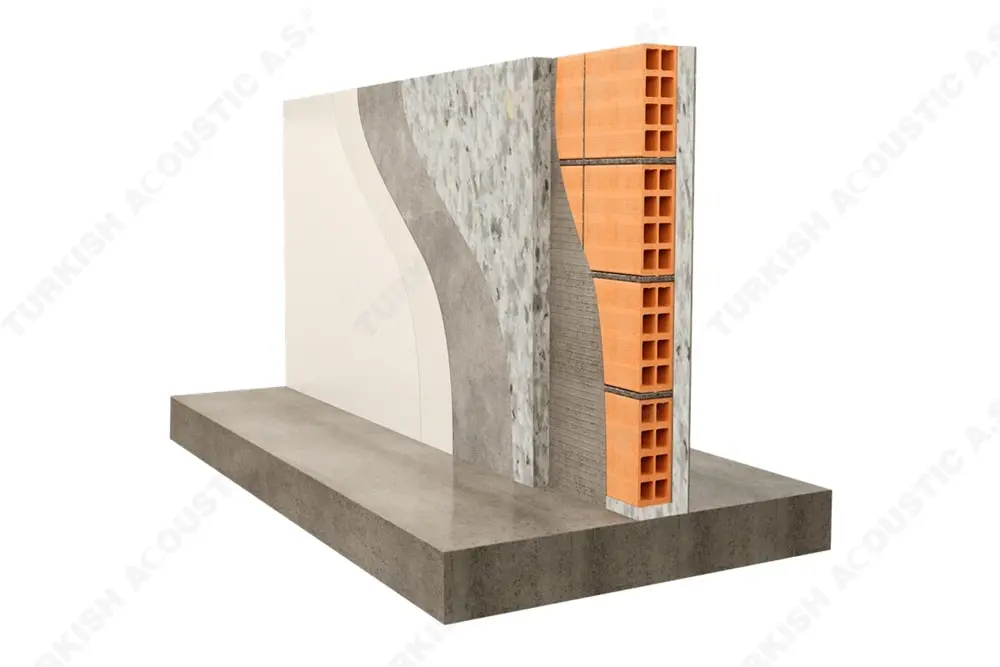

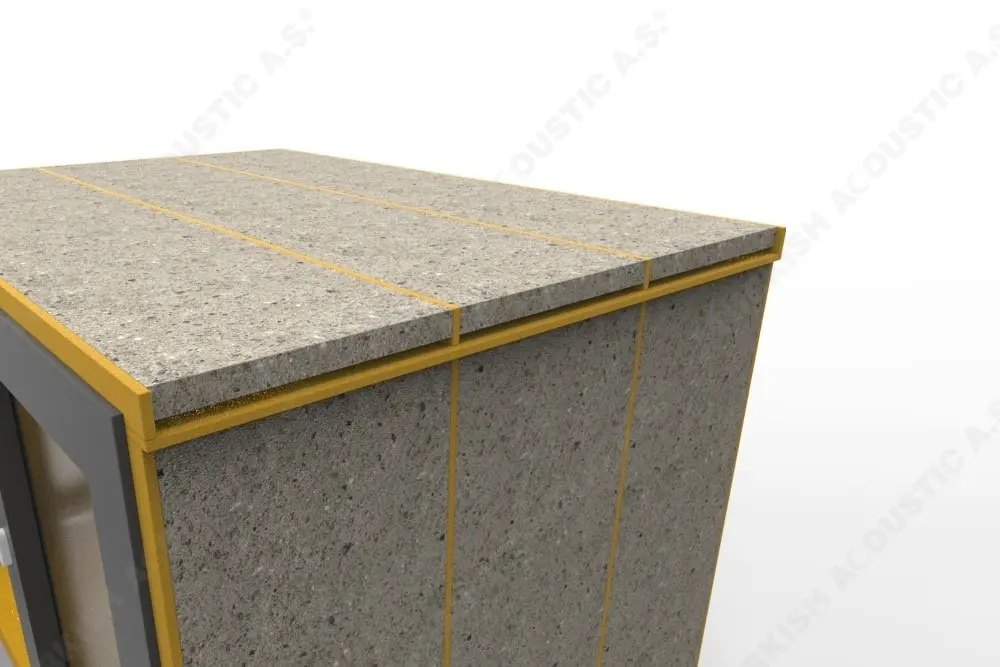

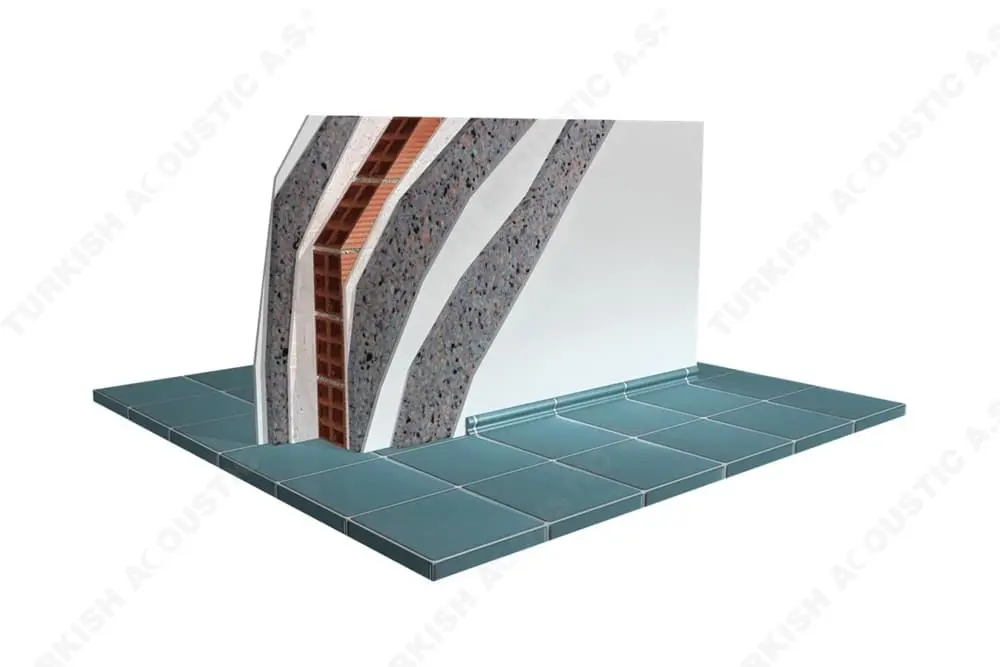

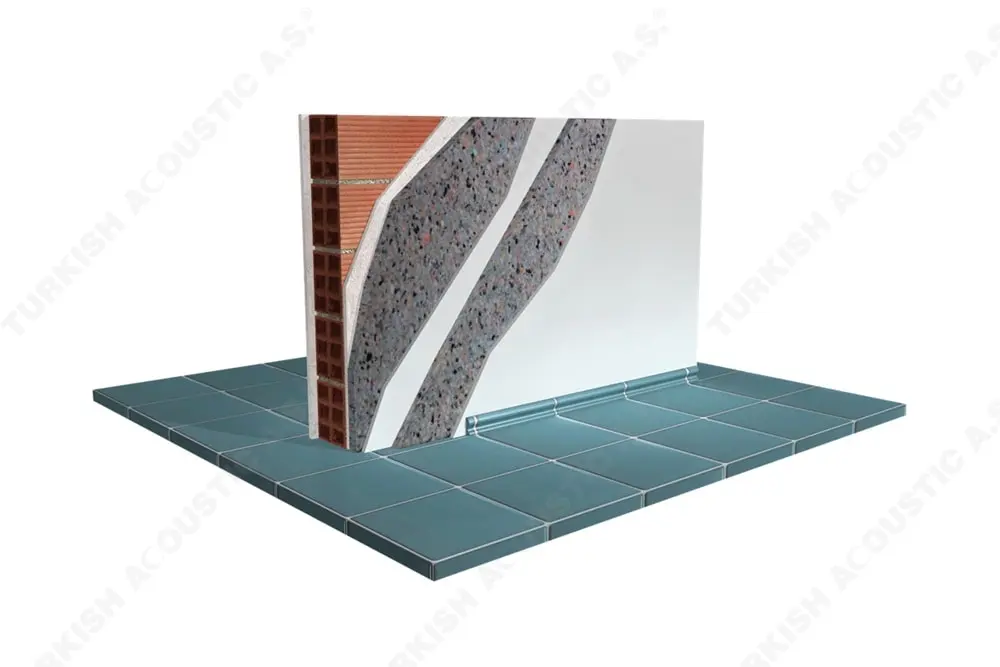

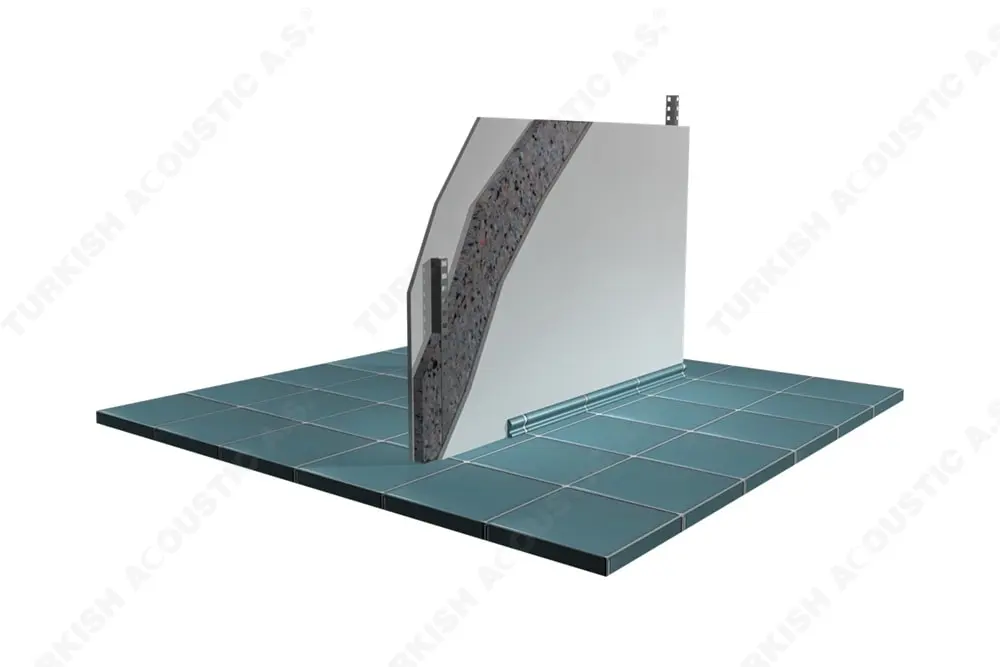

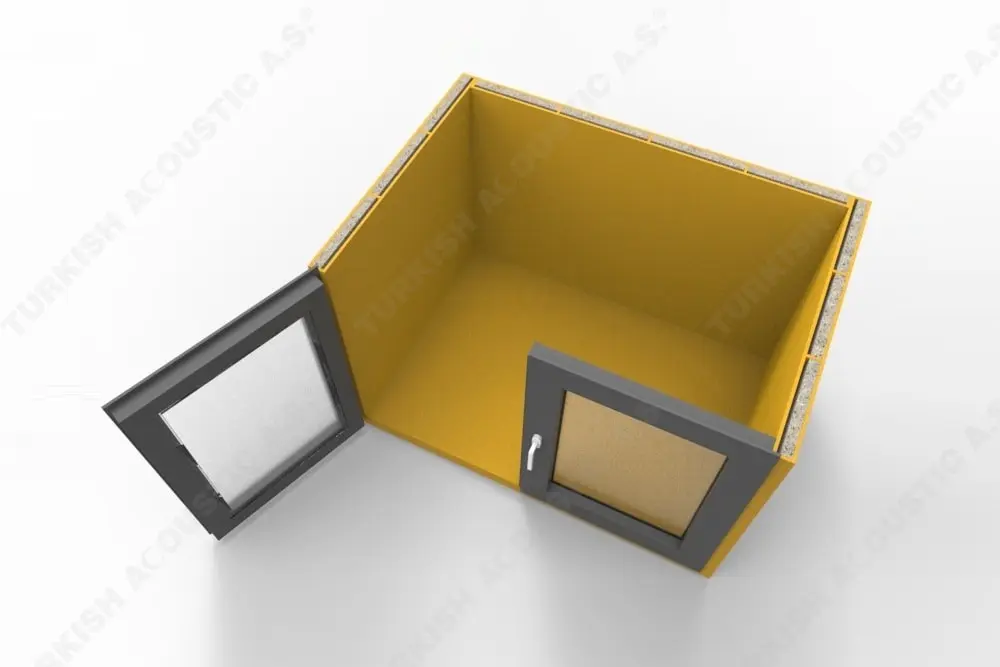

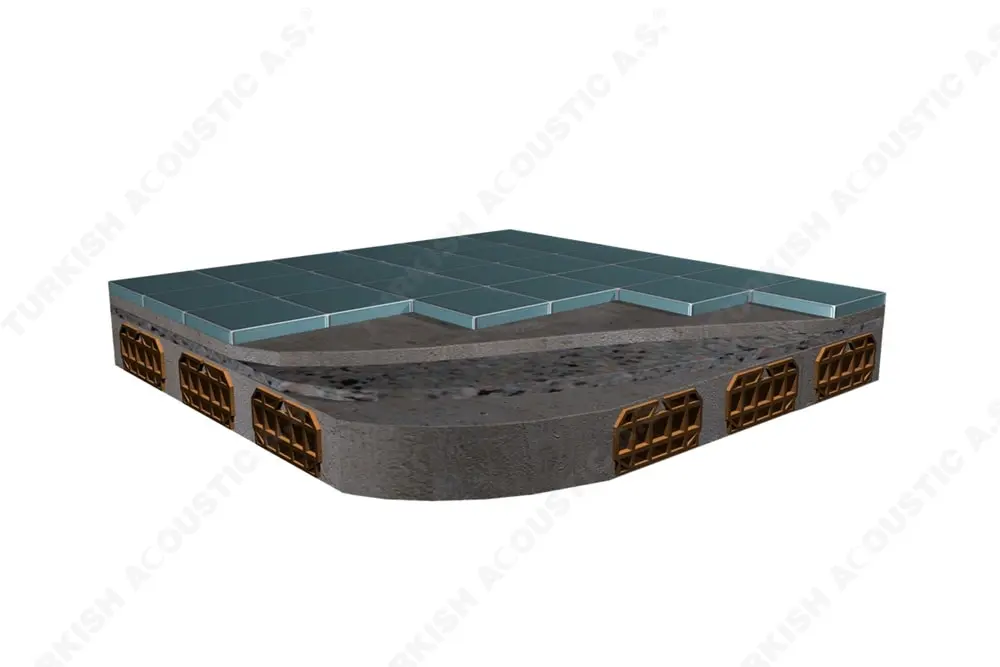

Application Images

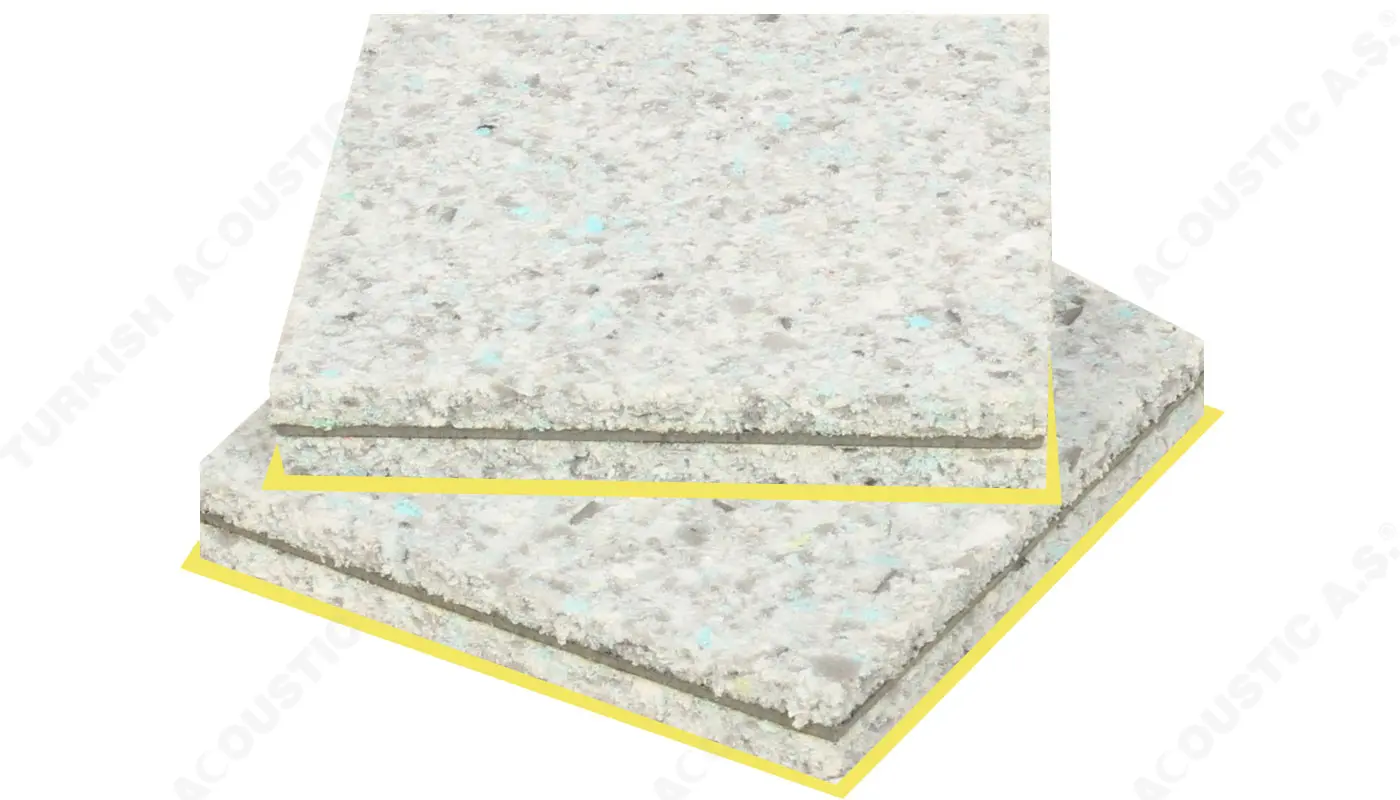

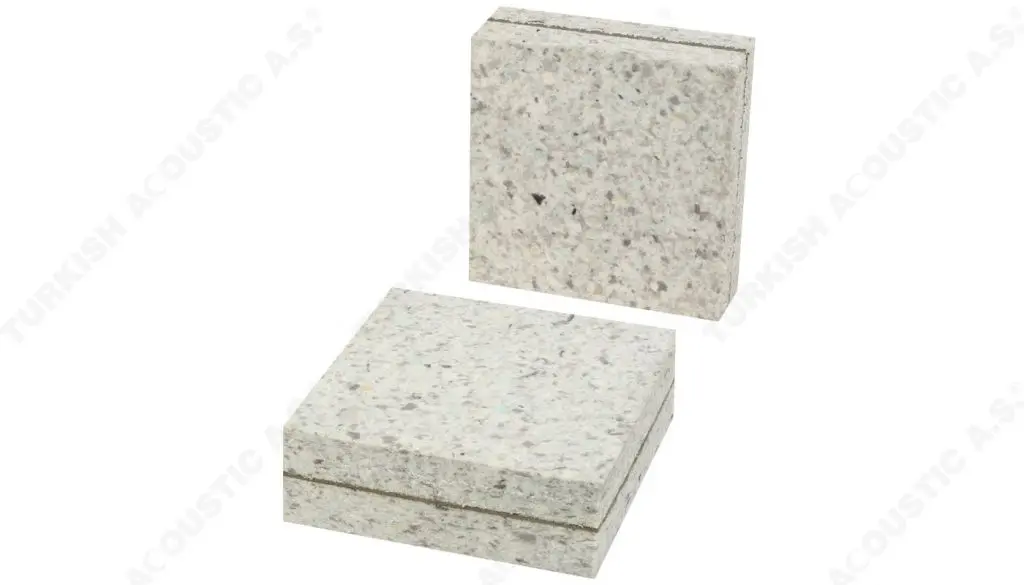

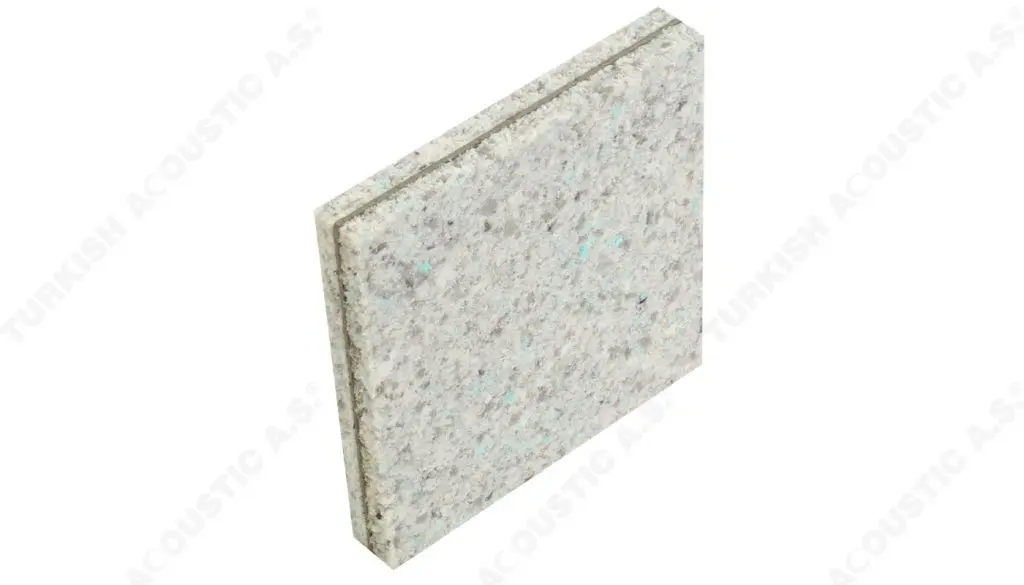

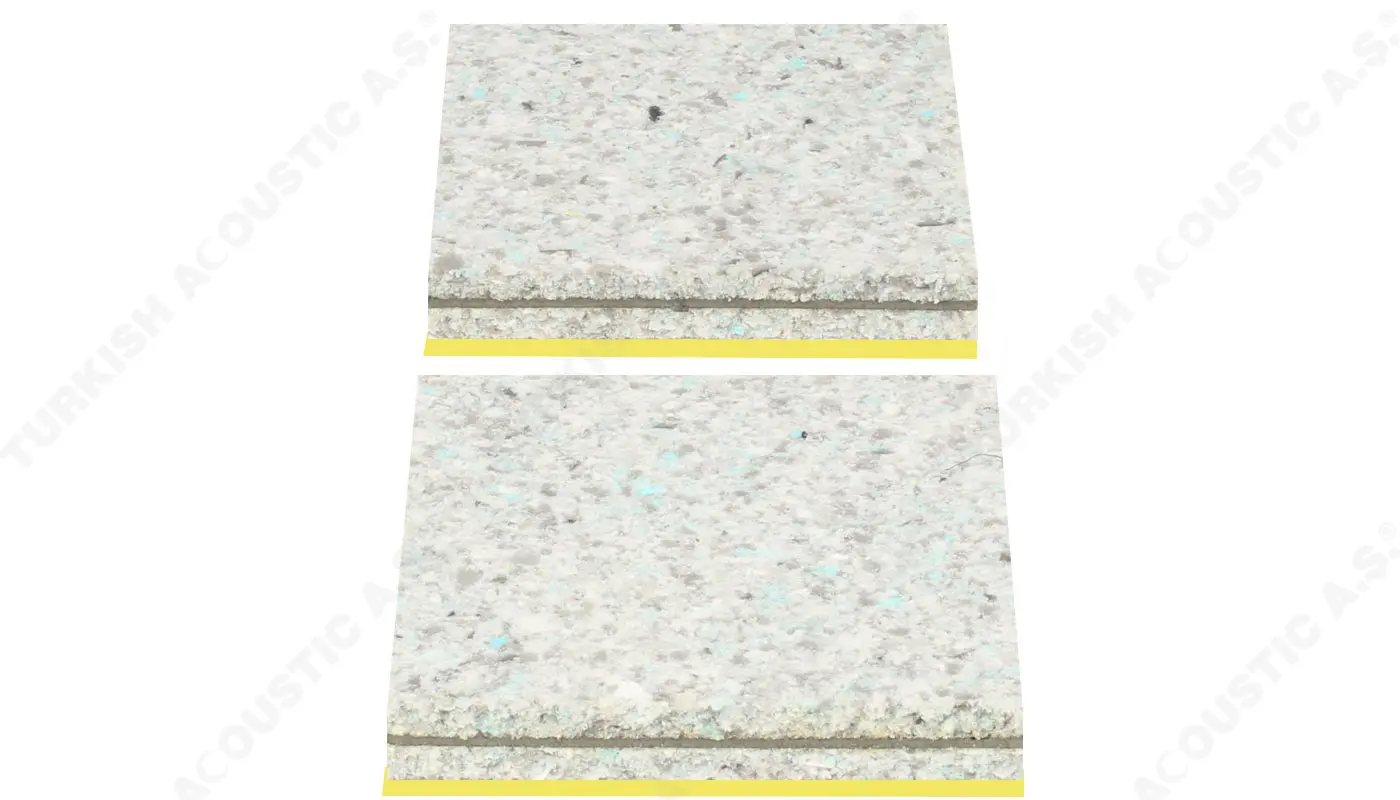

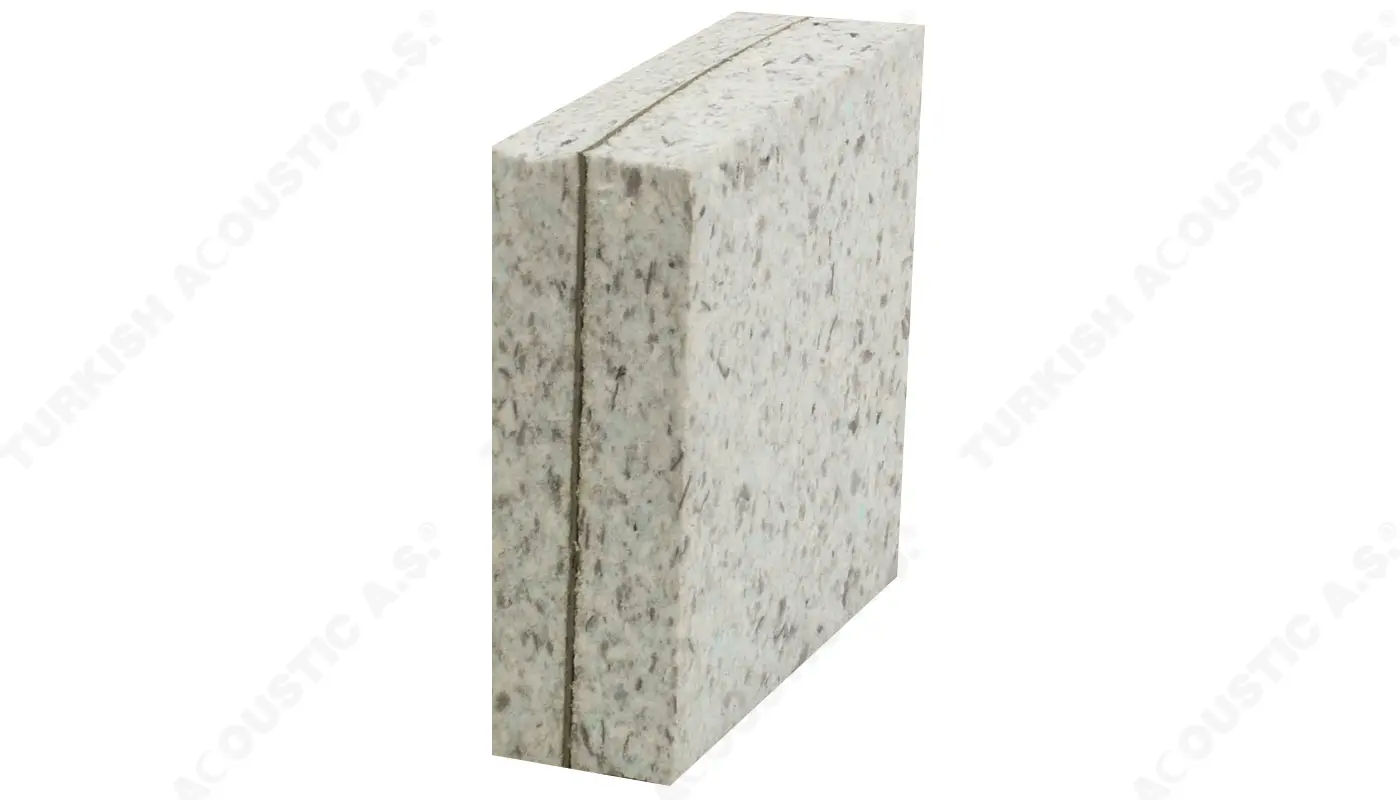

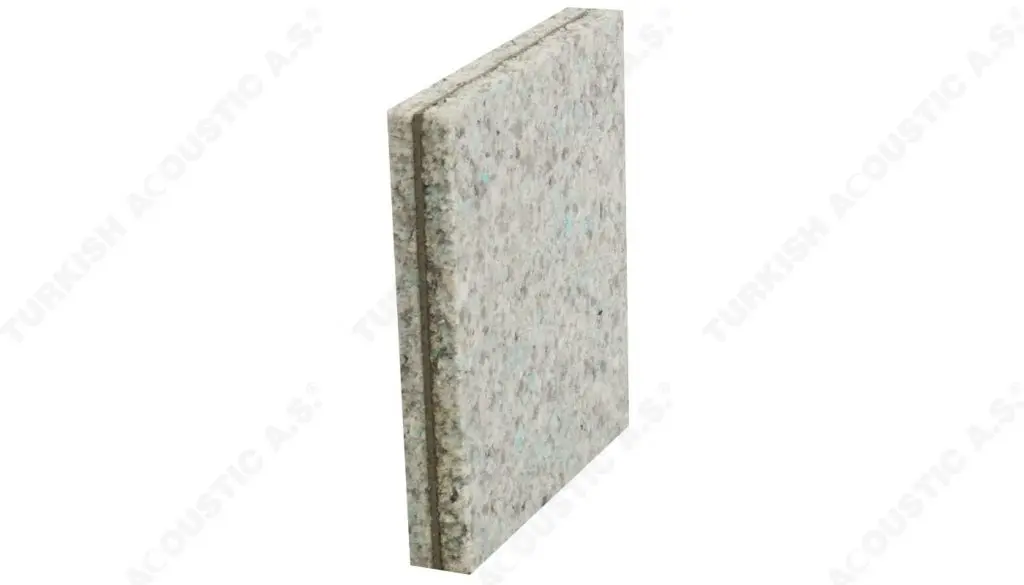

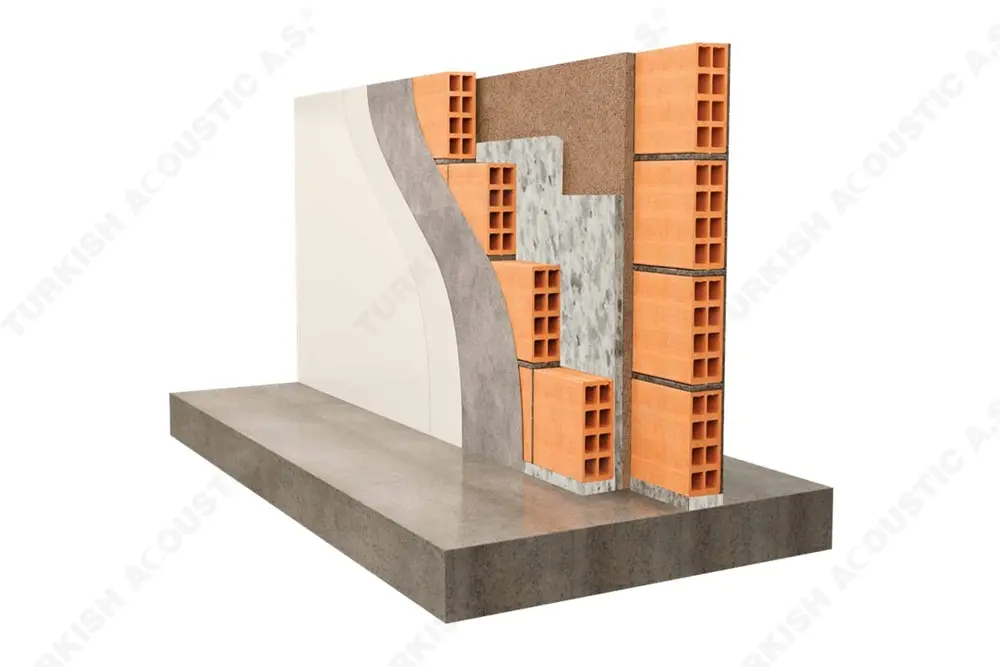

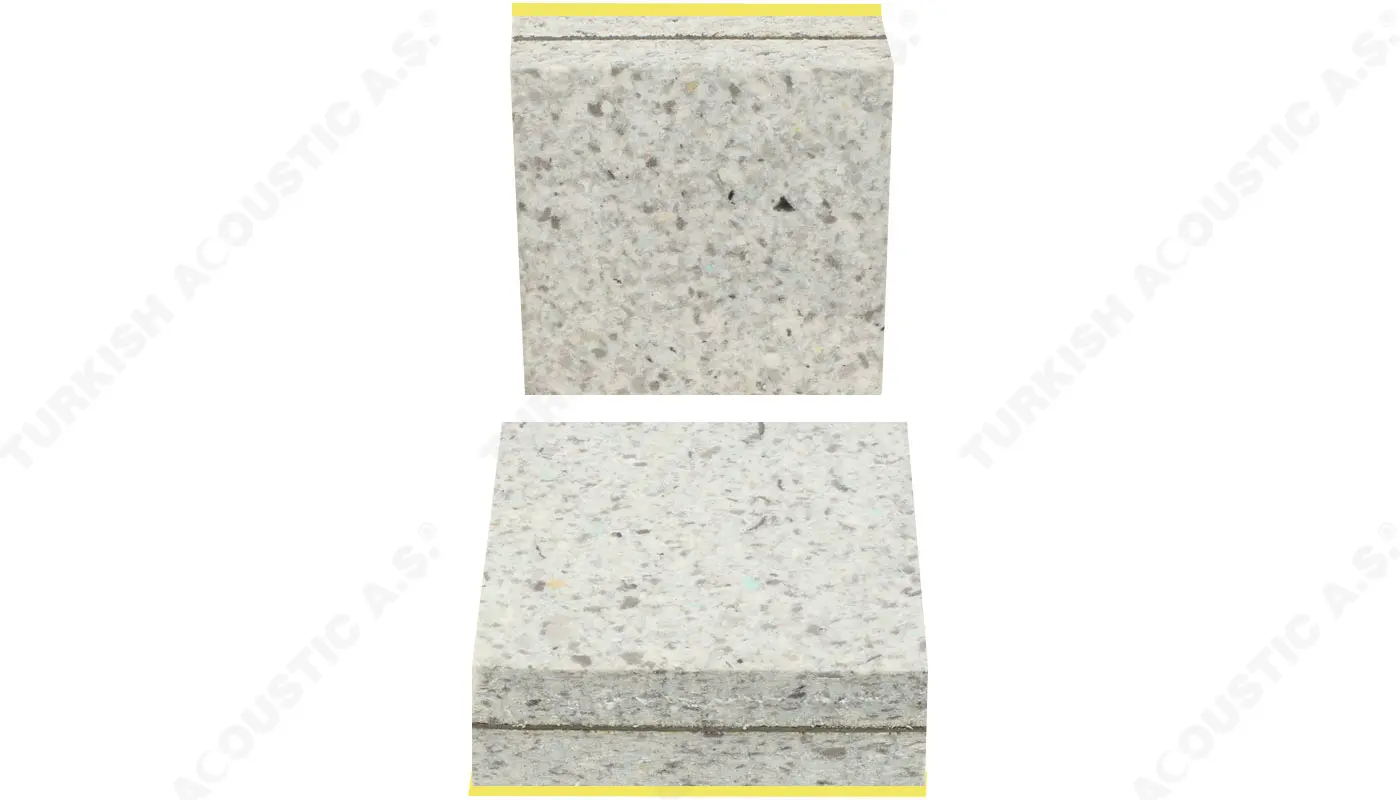

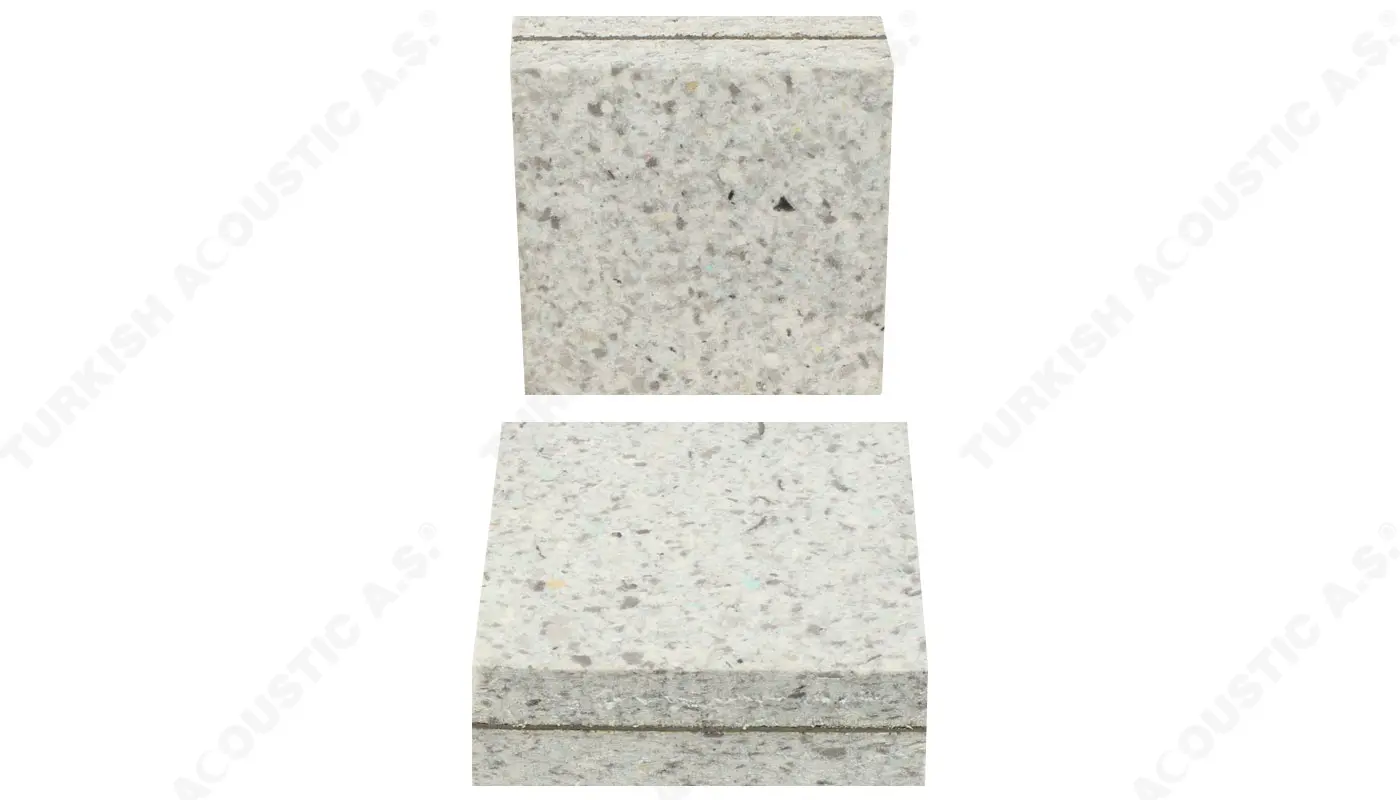

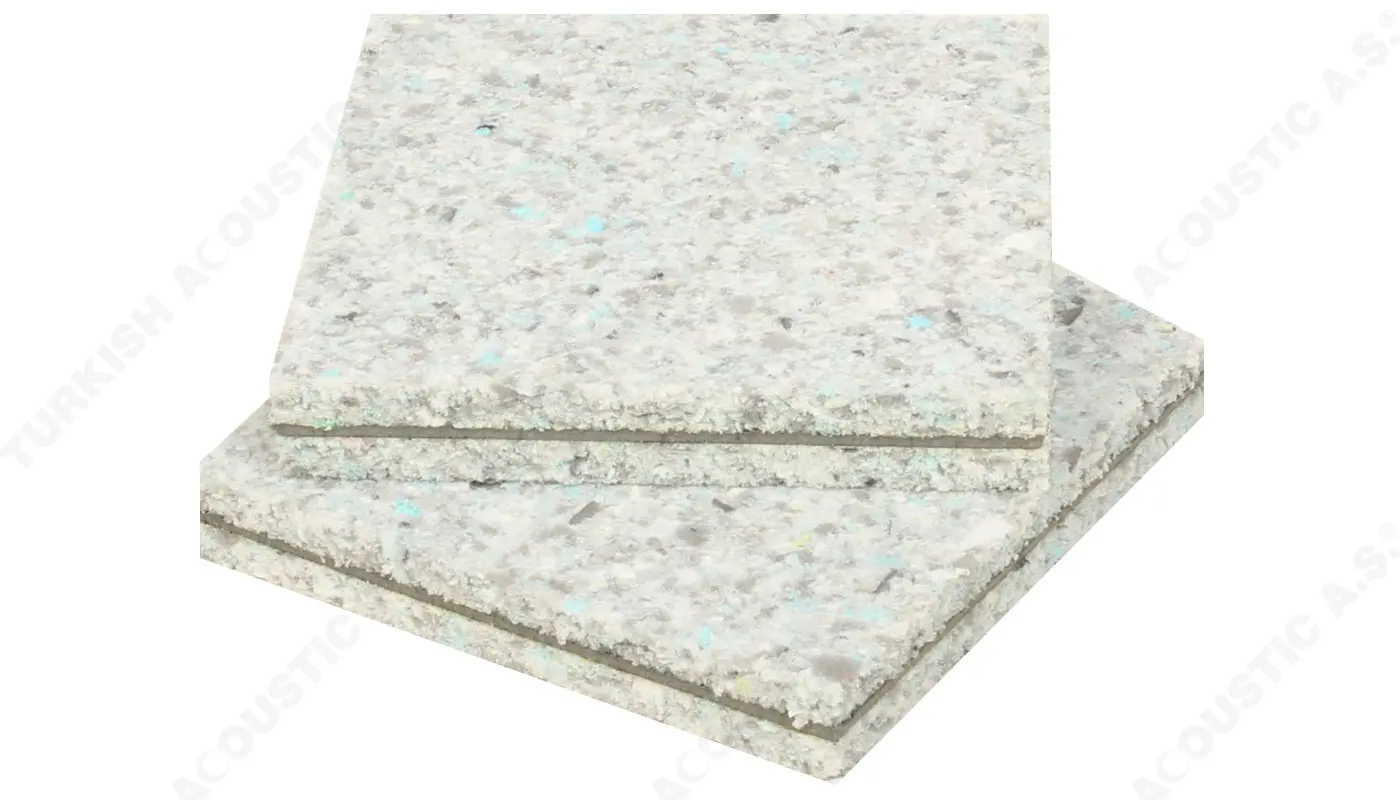

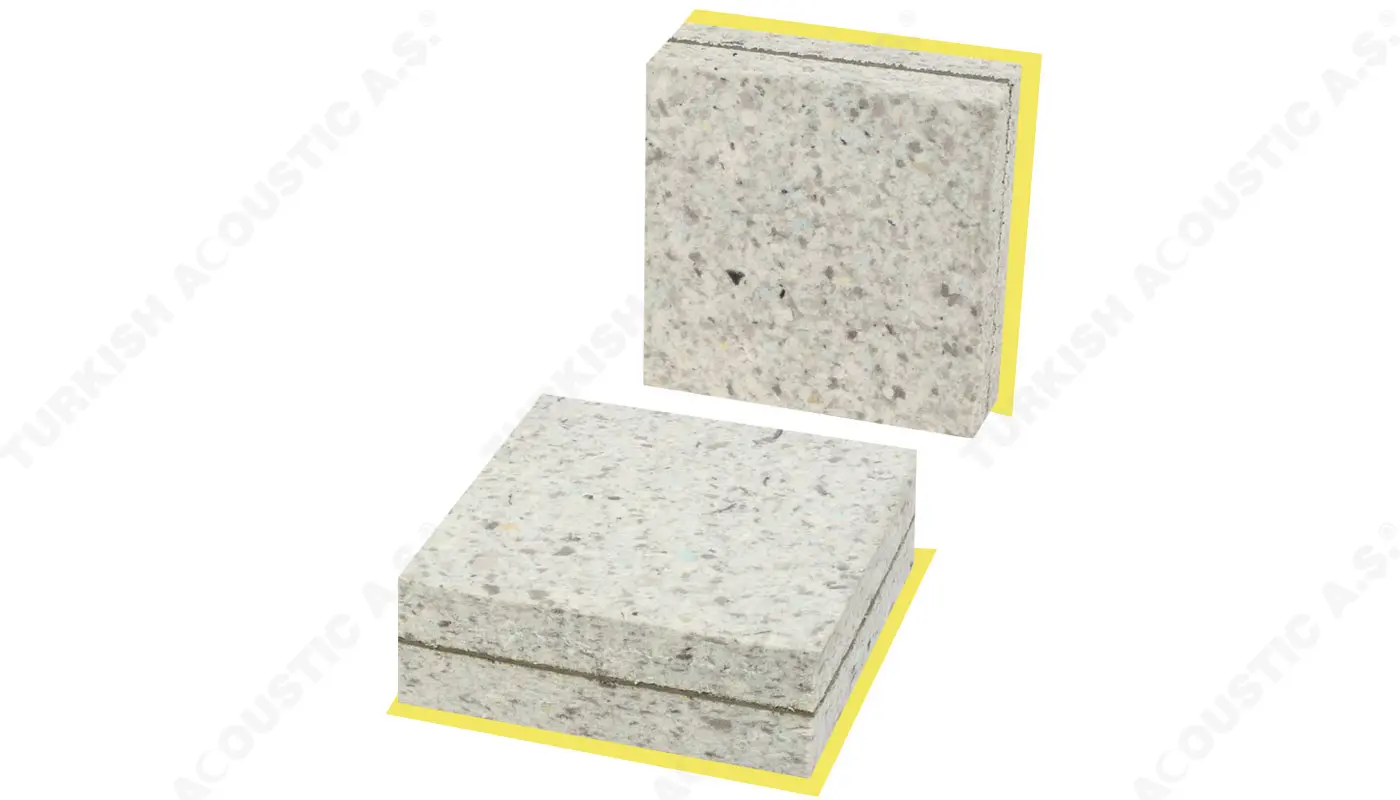

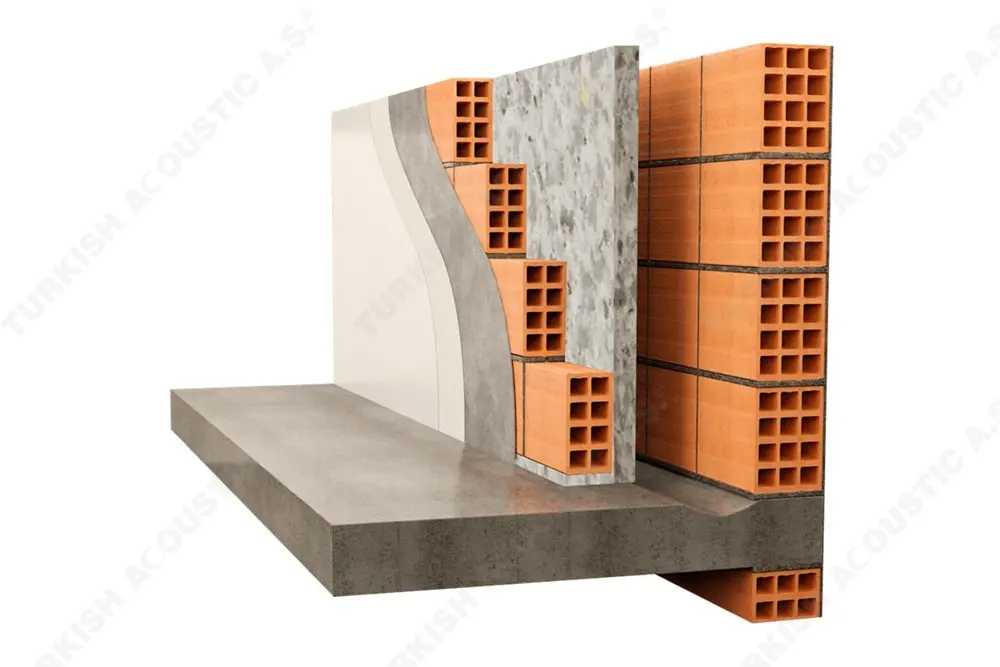

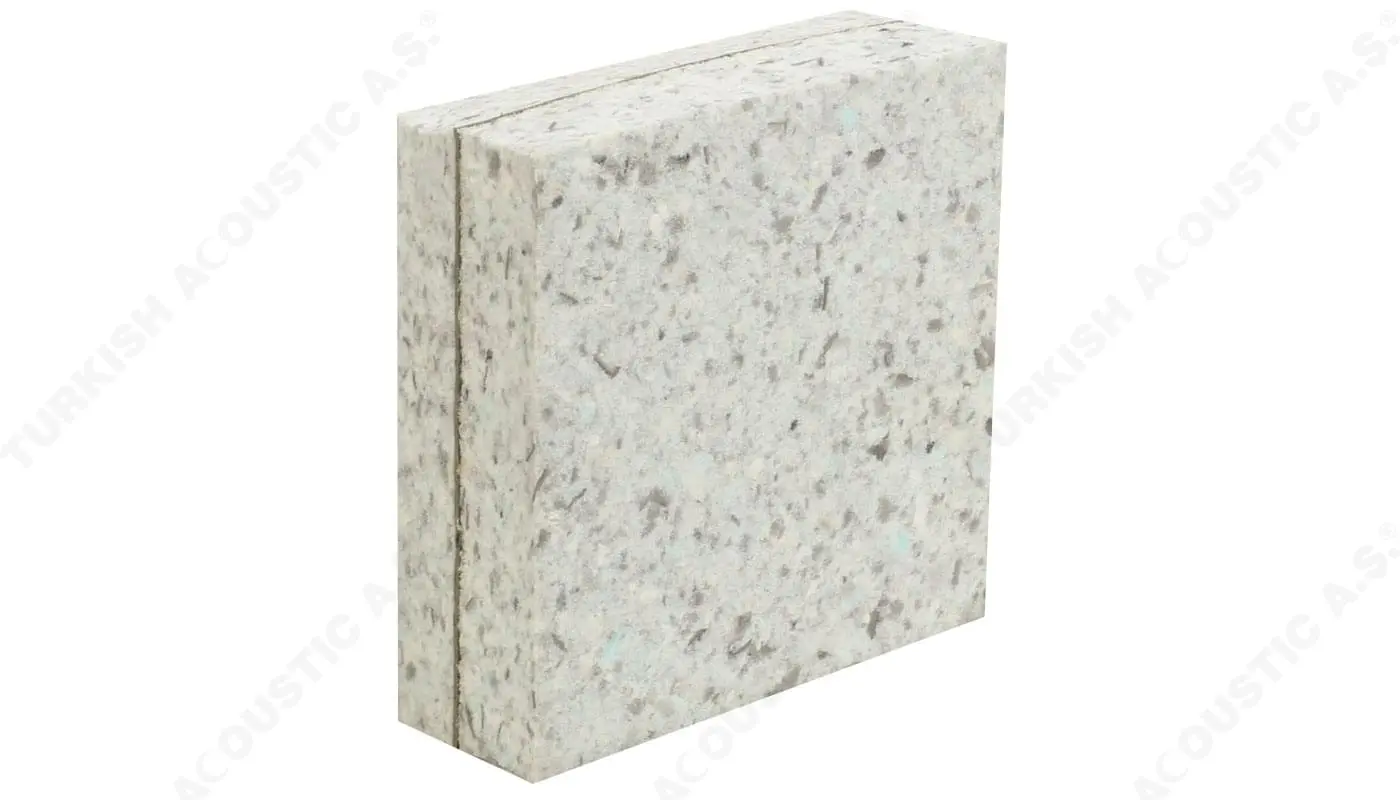

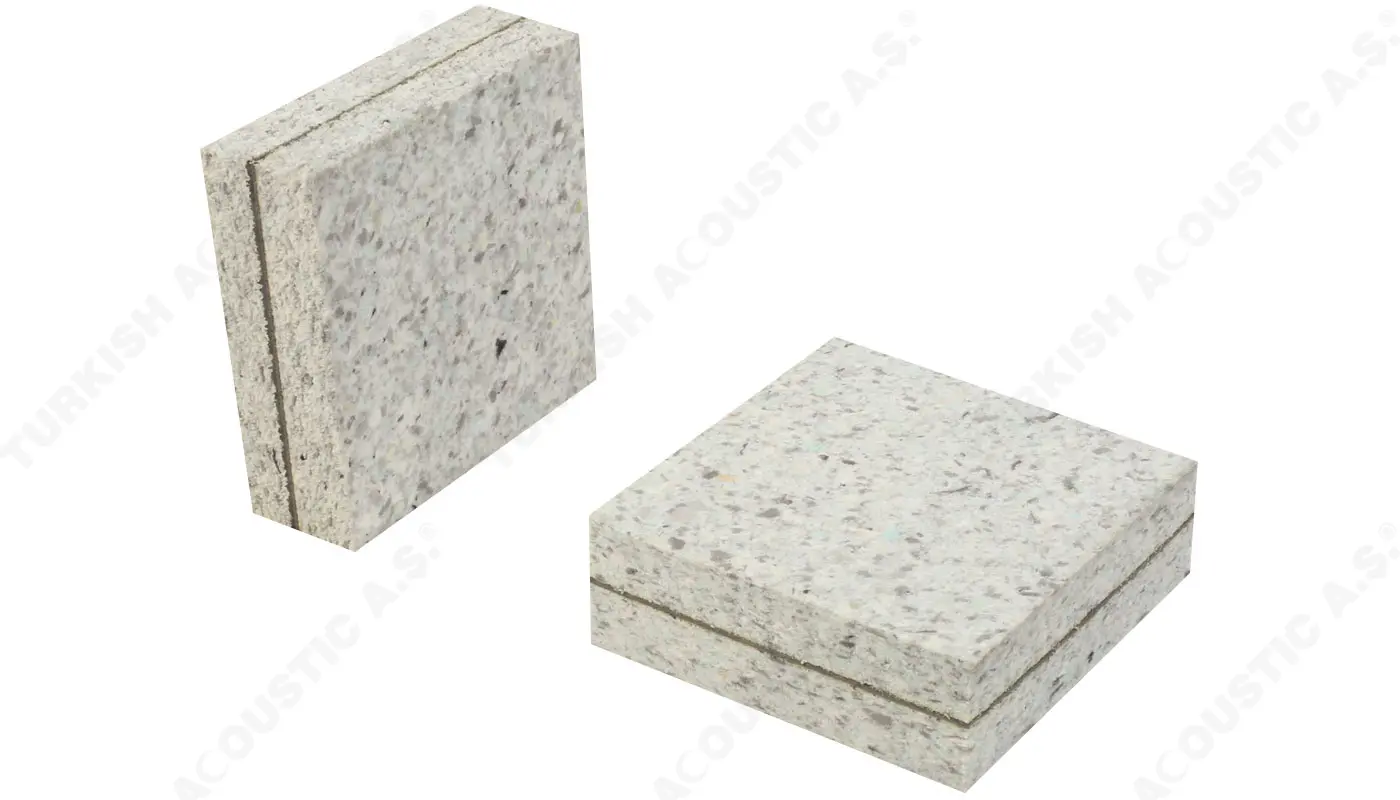

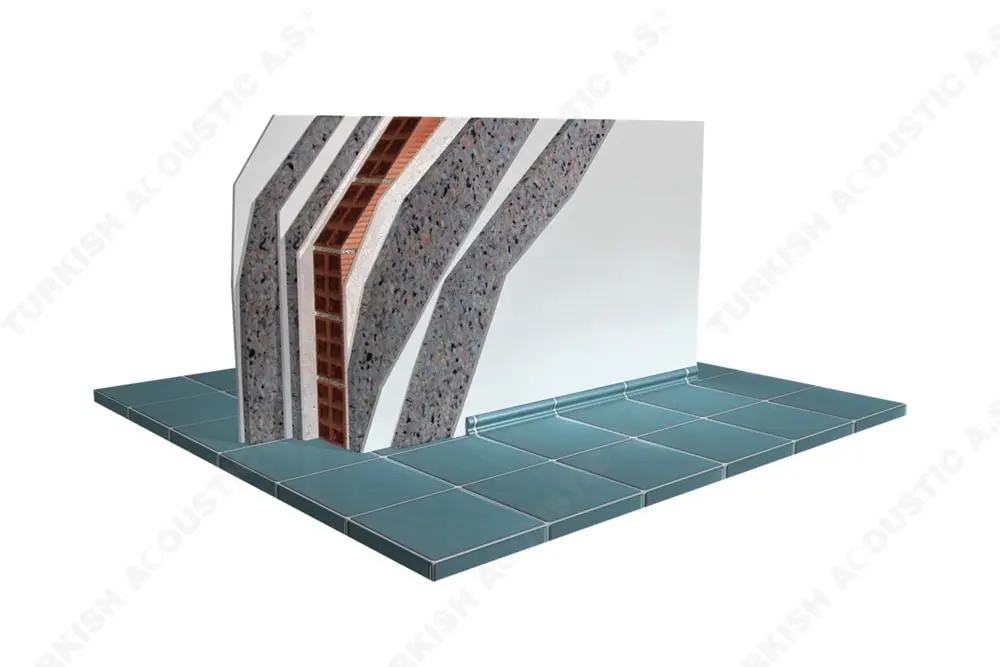

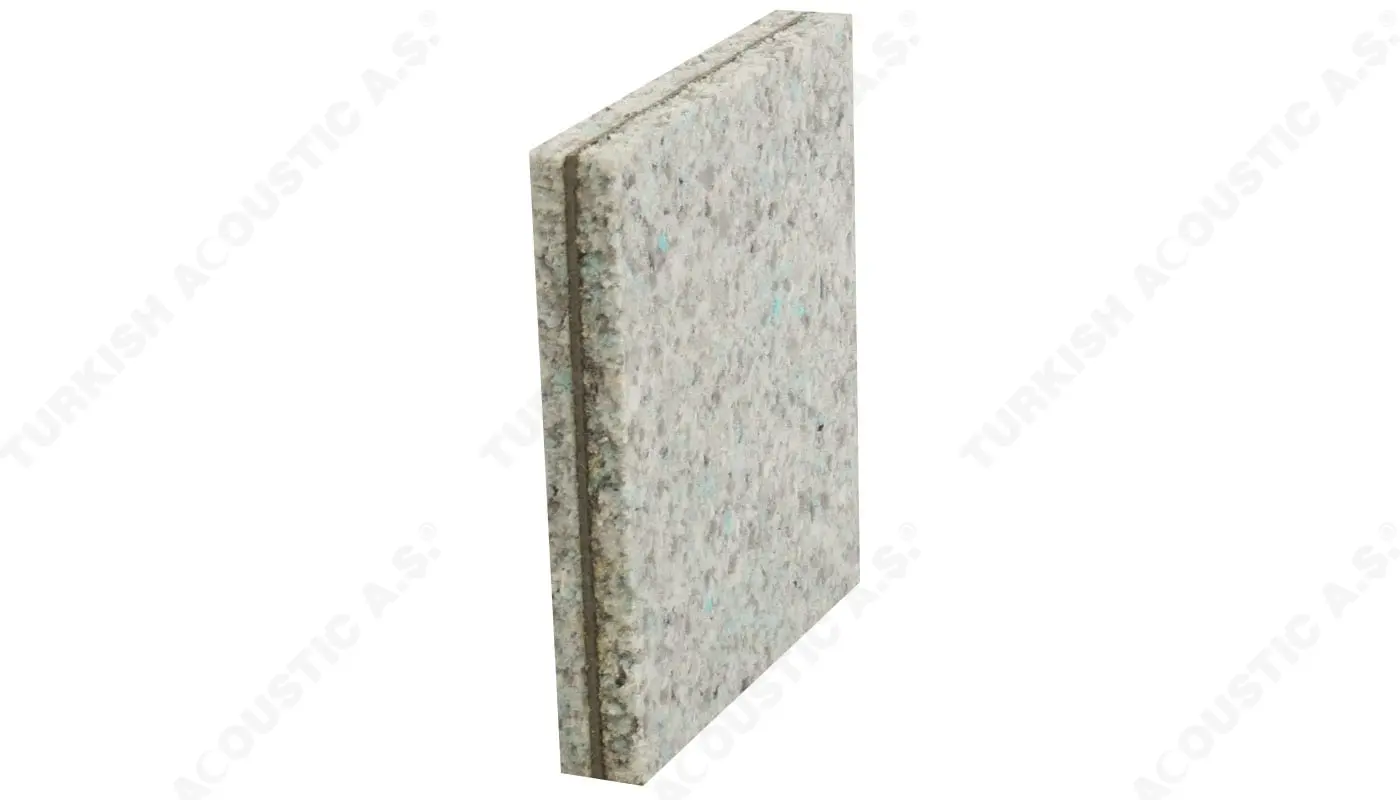

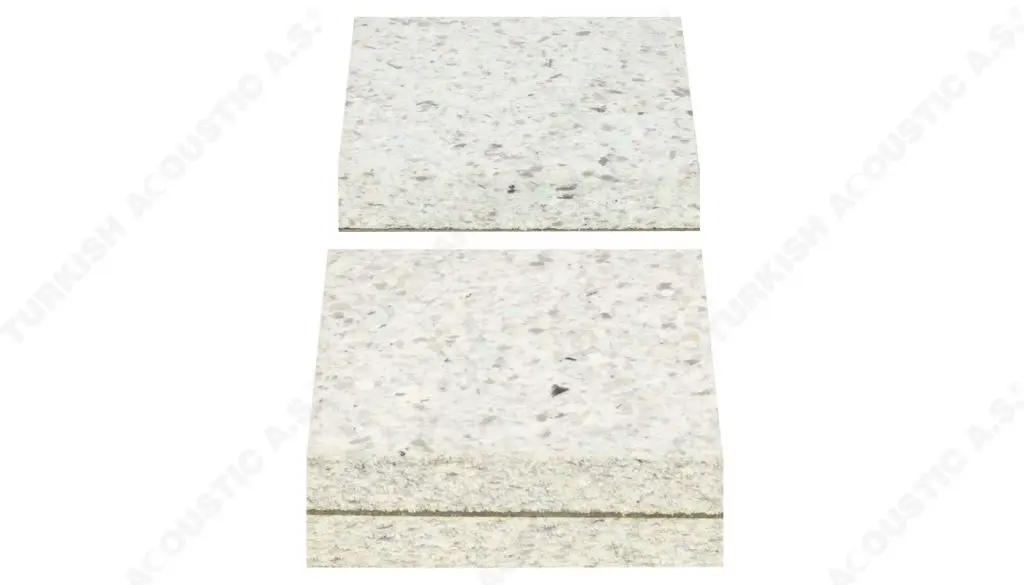

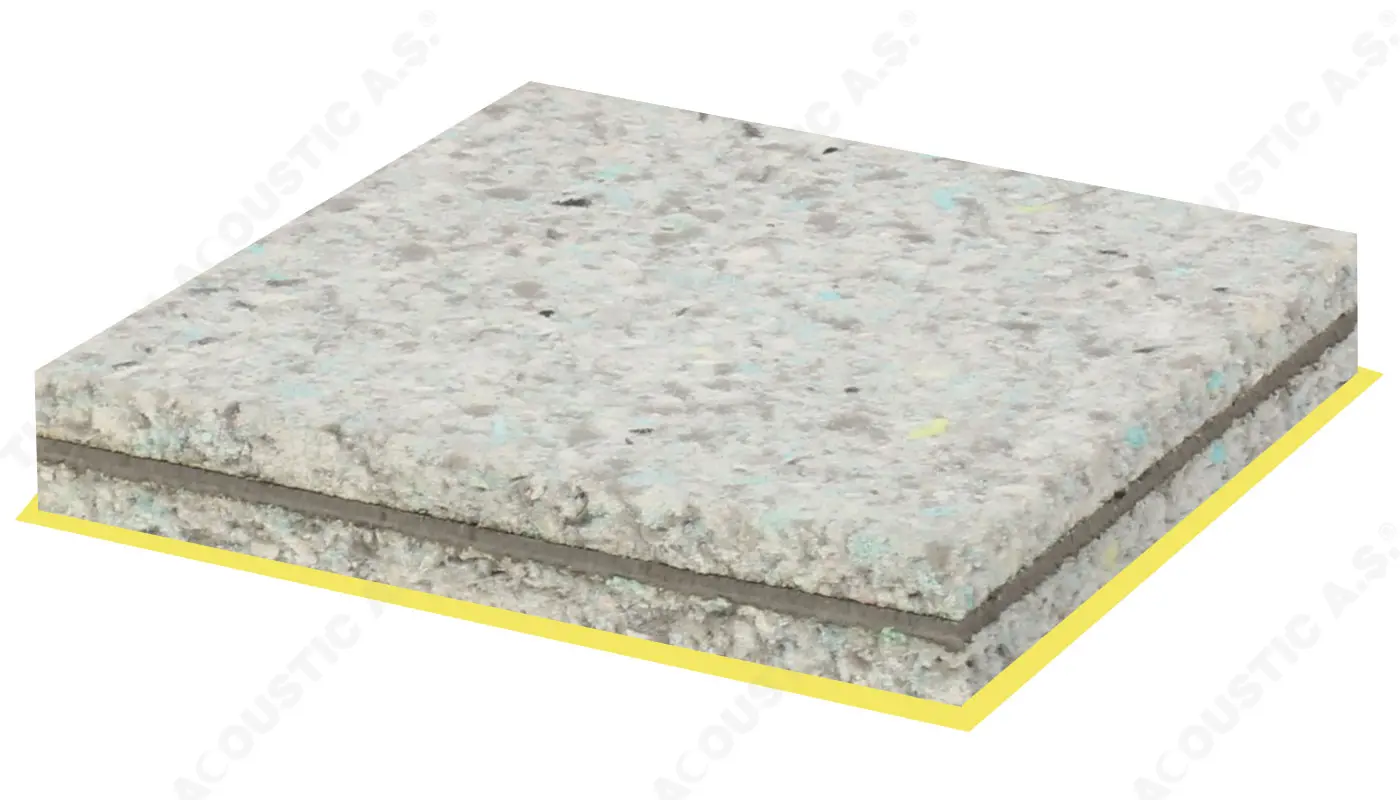

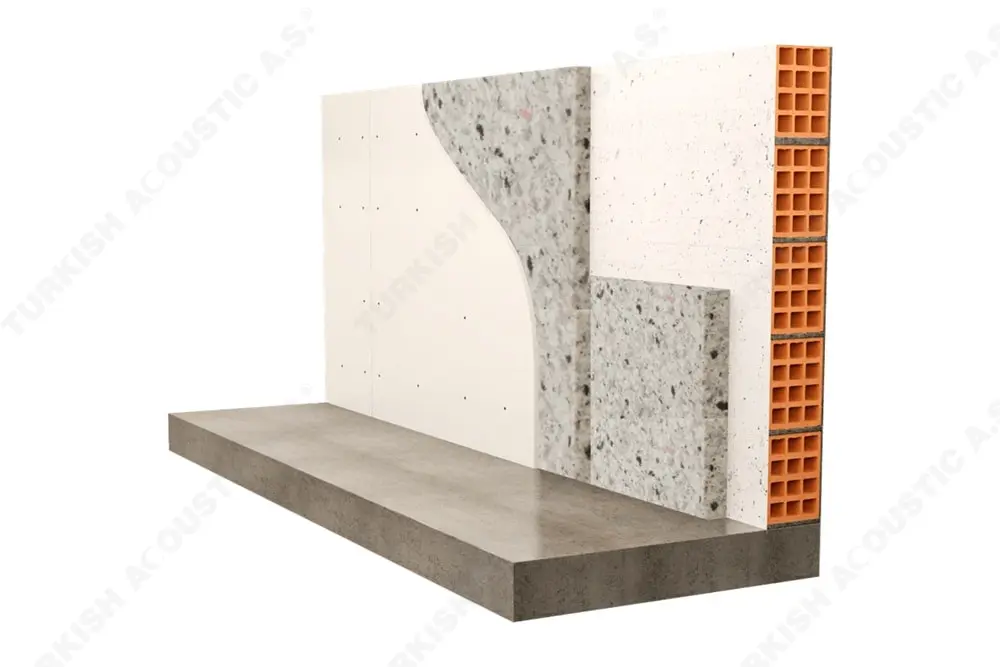

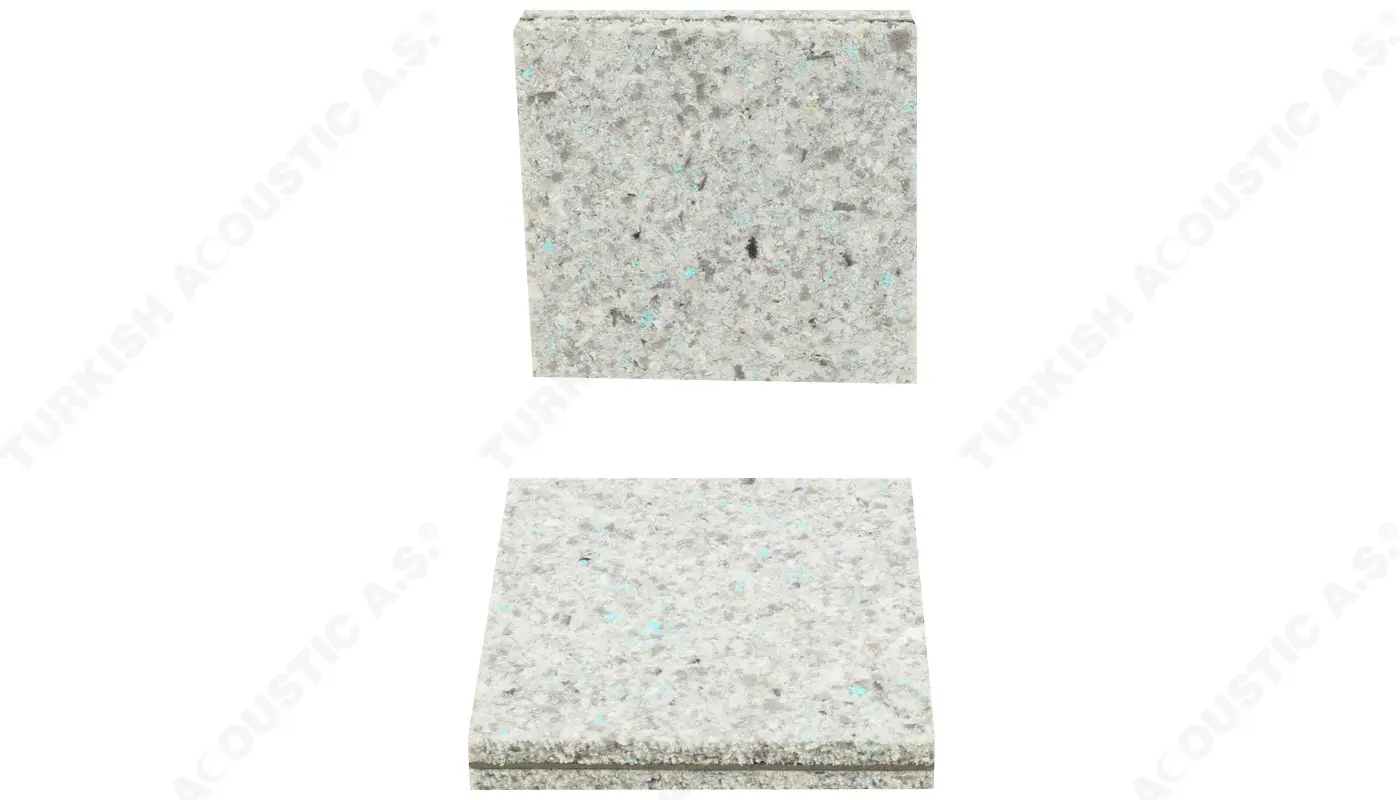

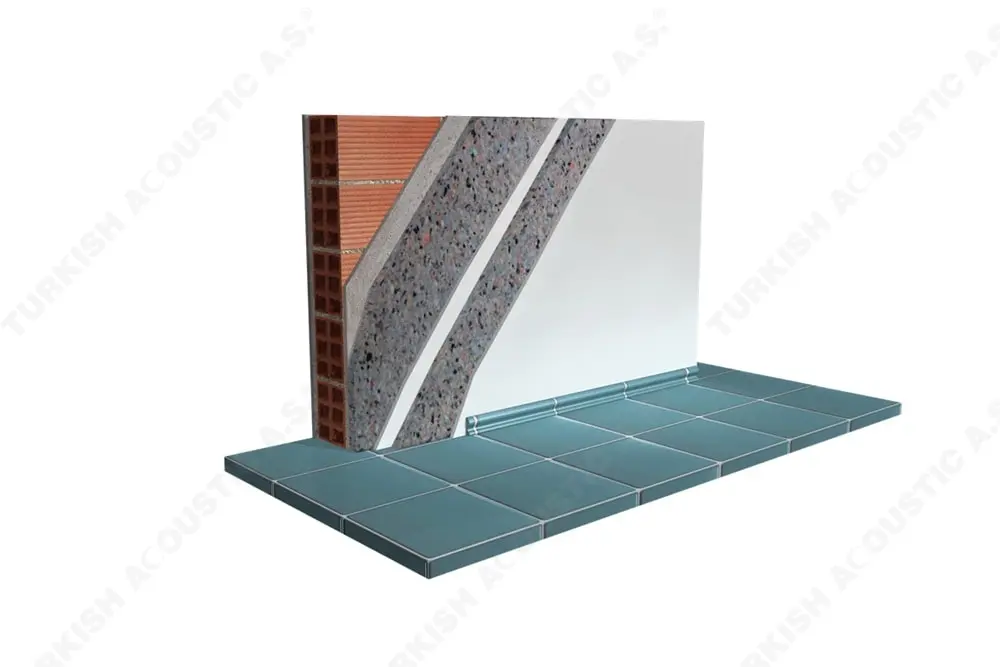

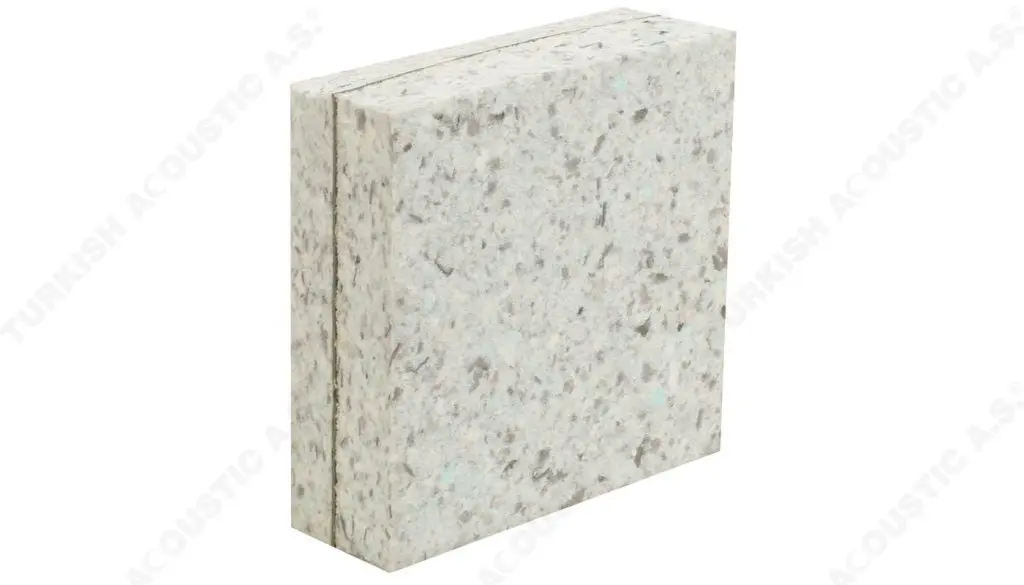

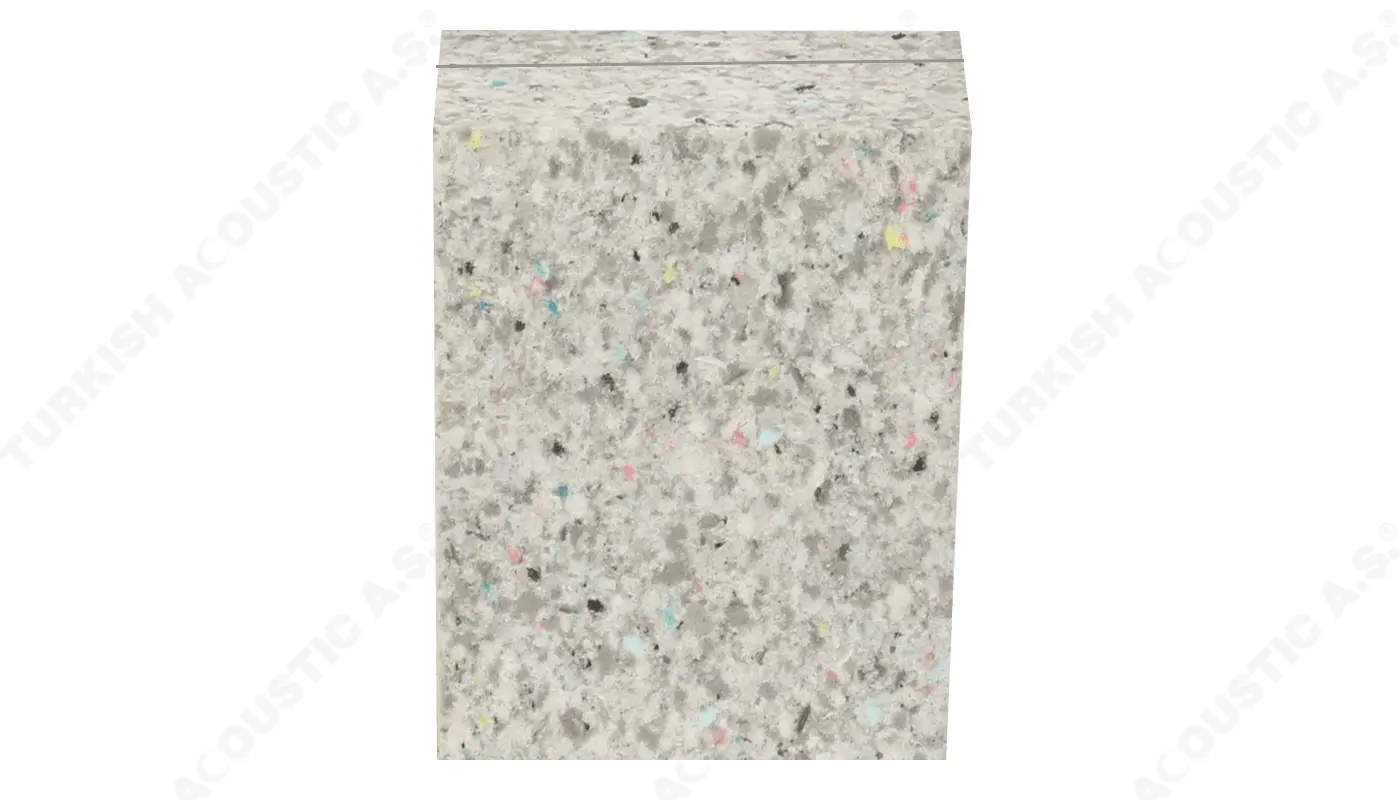

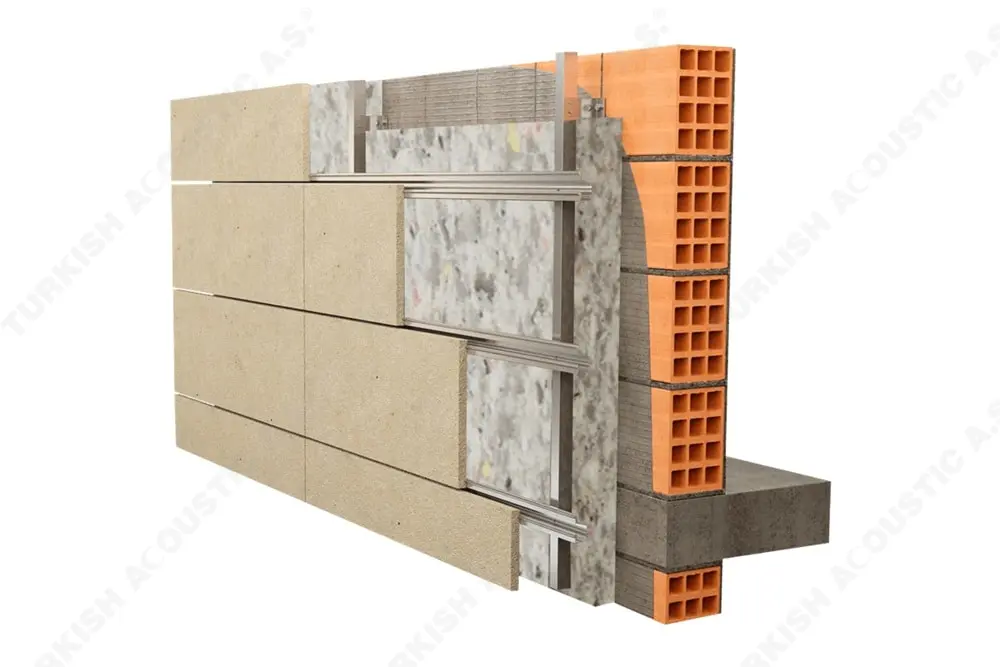

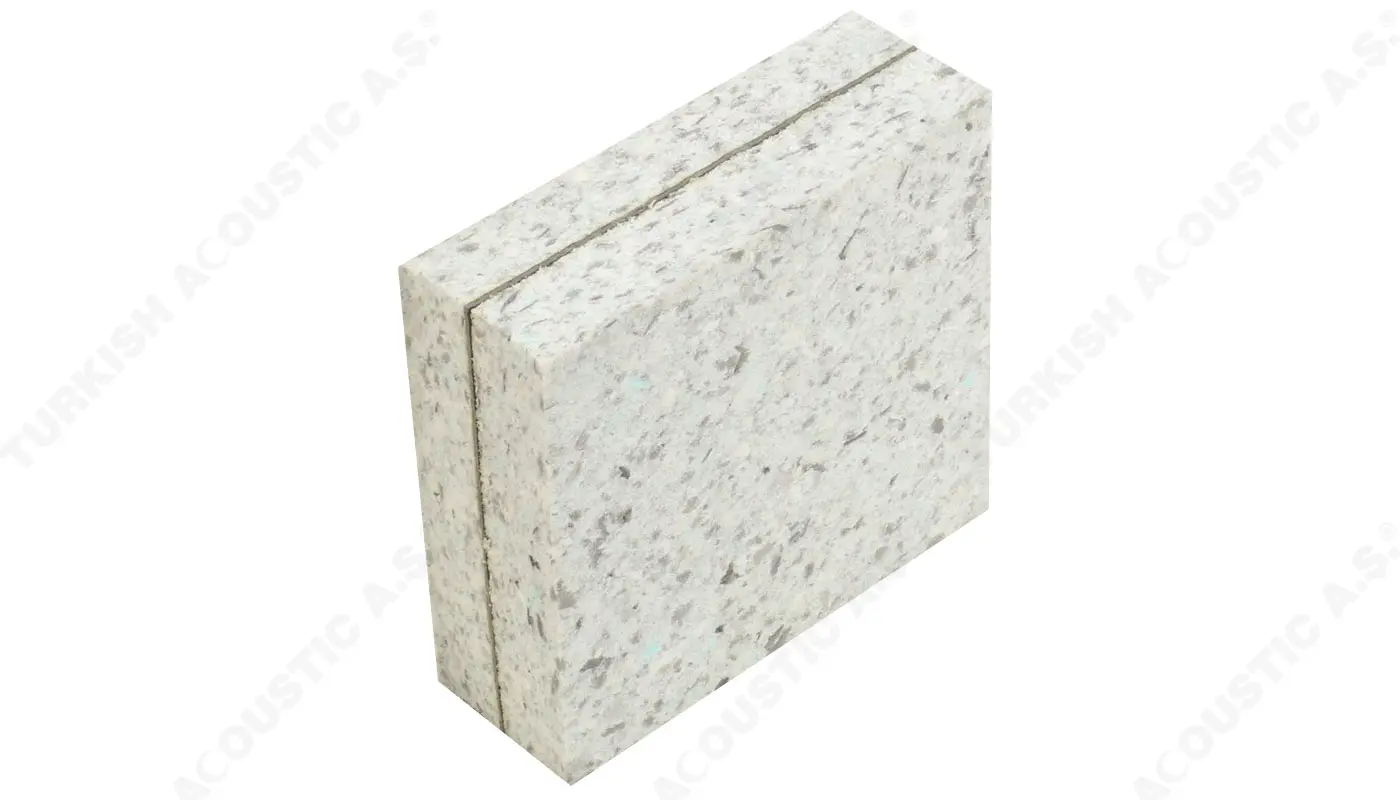

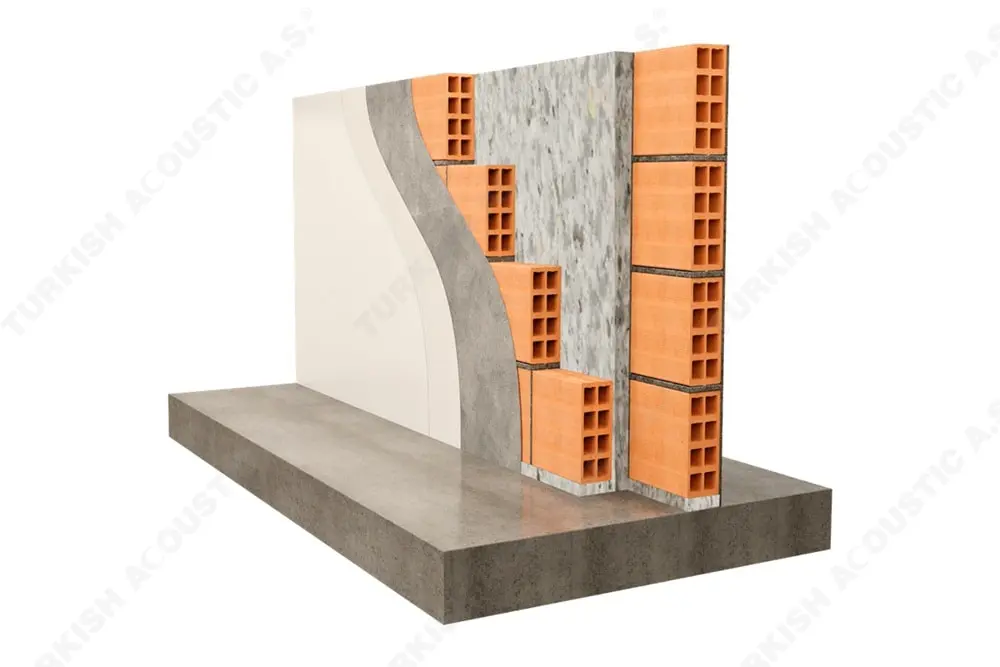

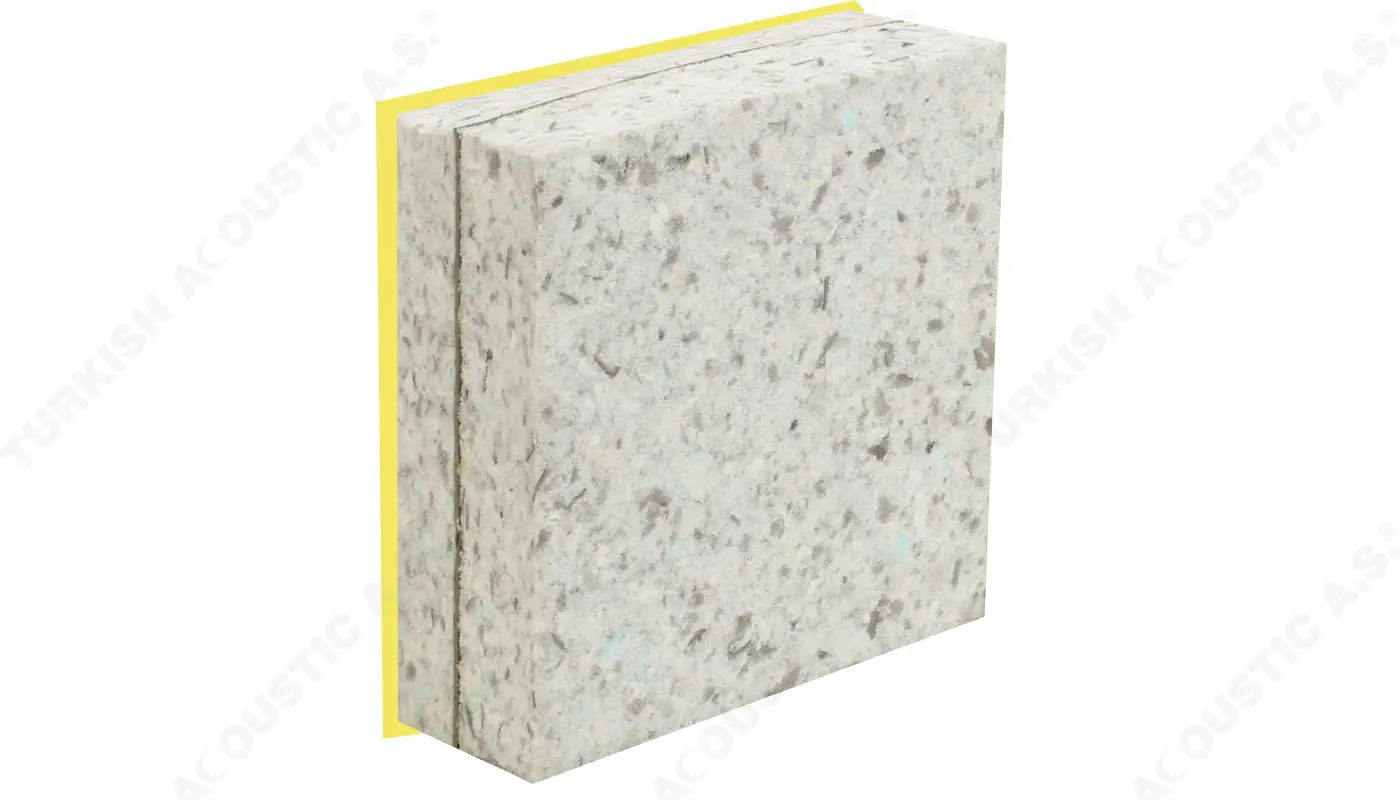

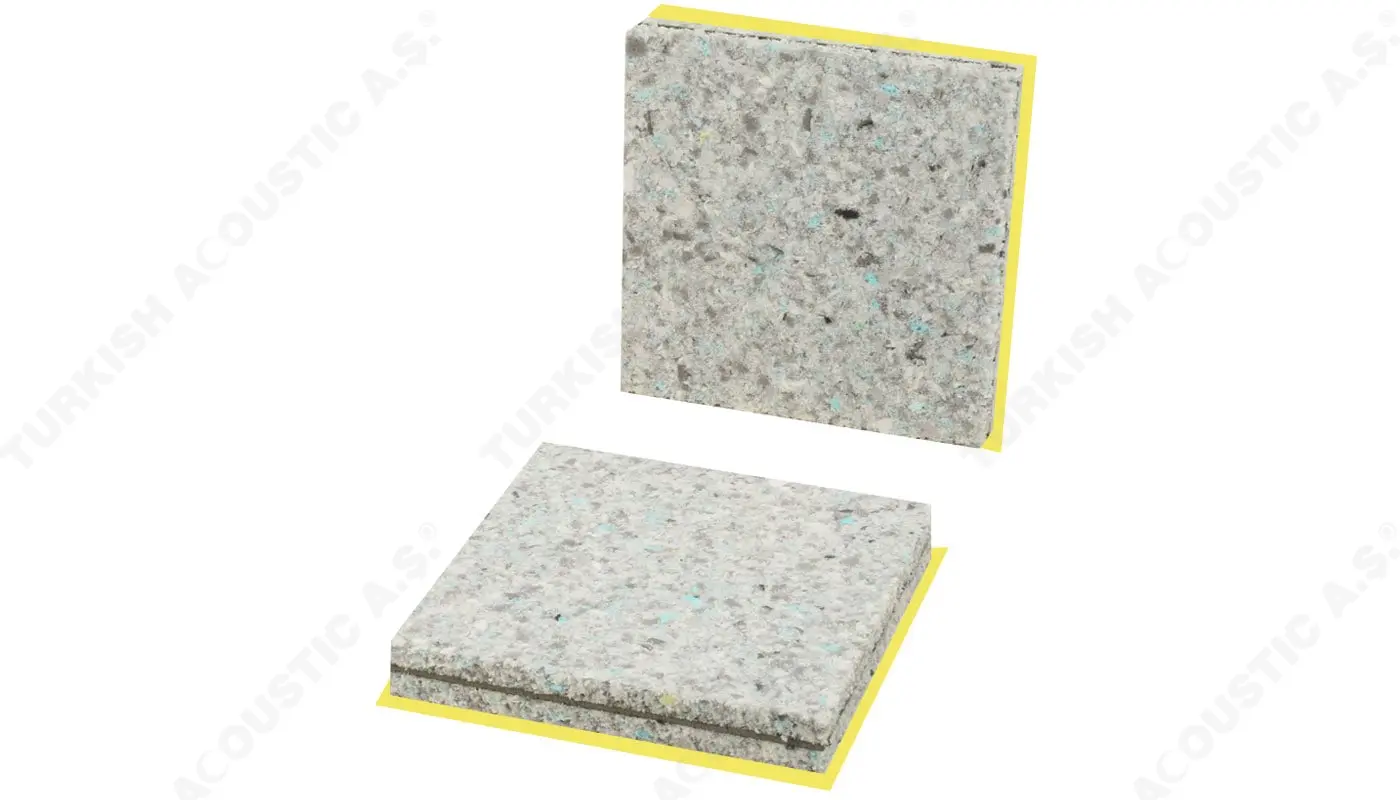

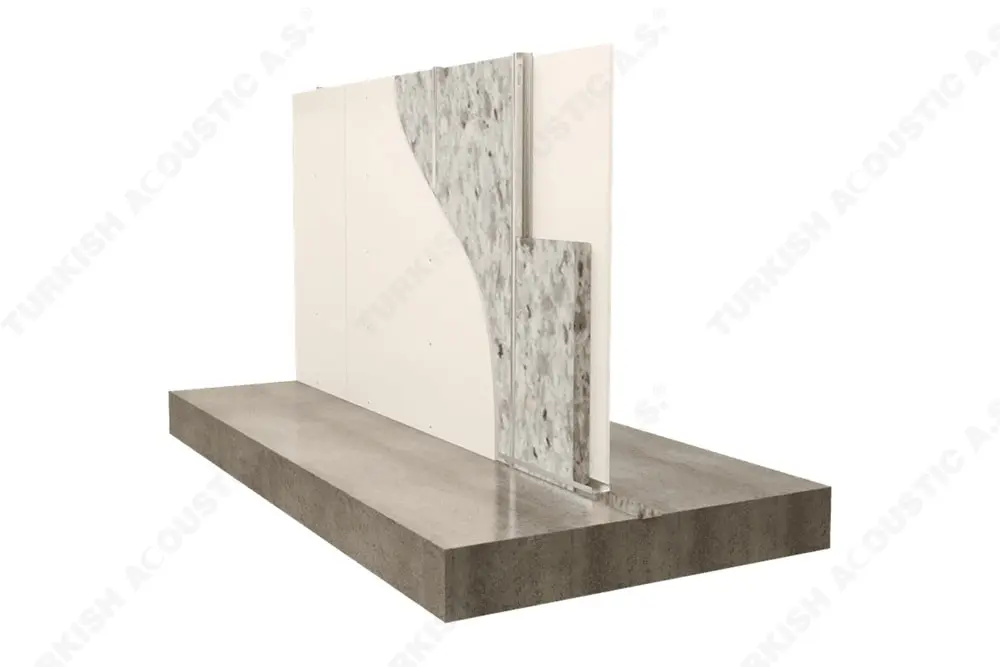

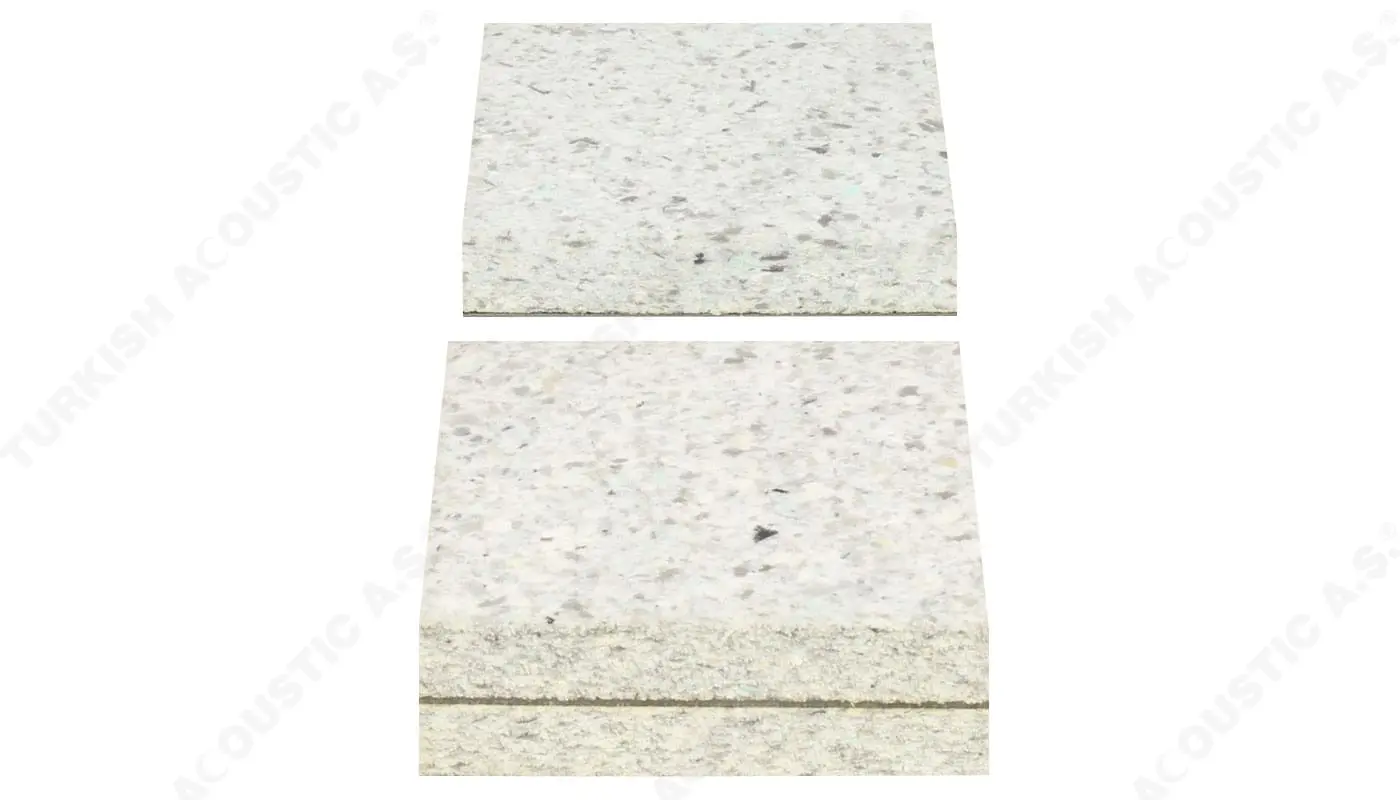

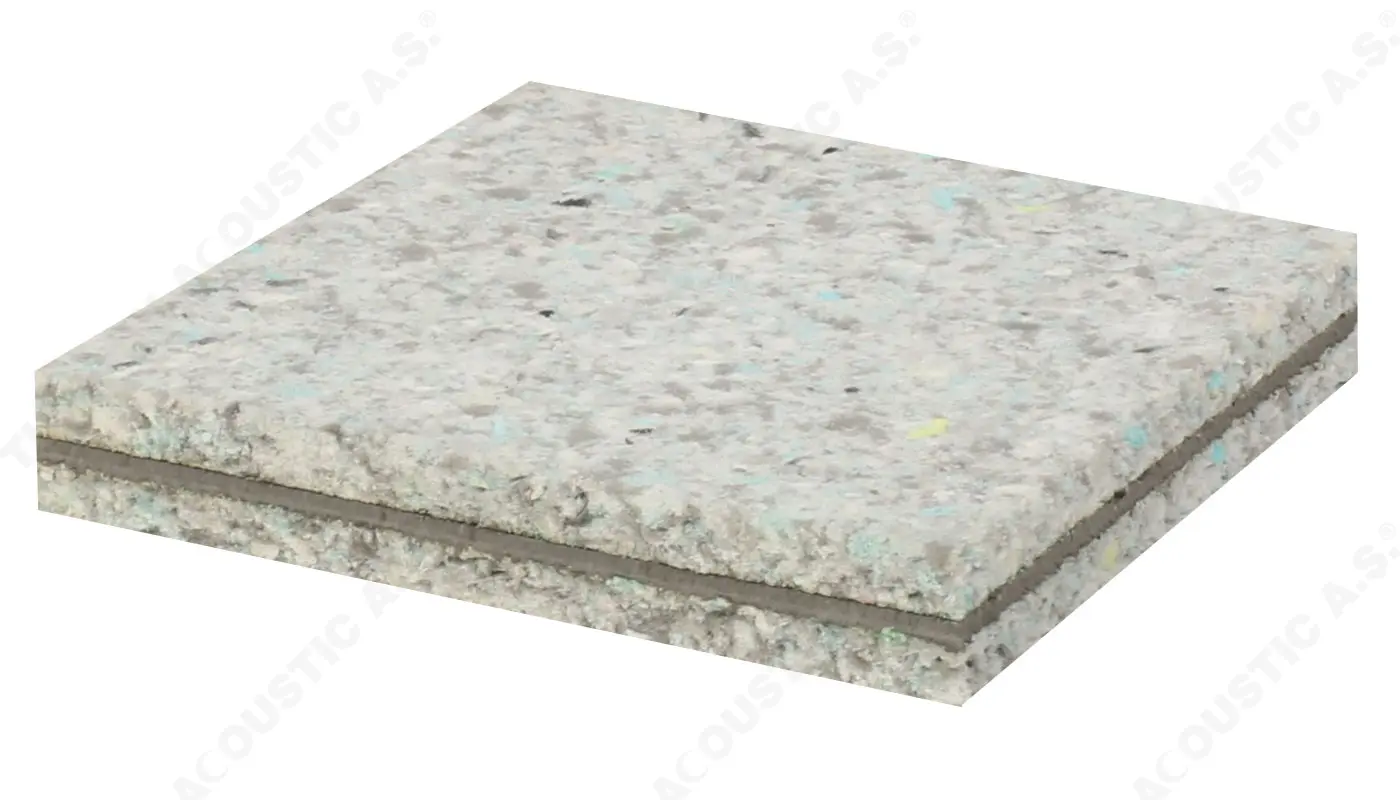

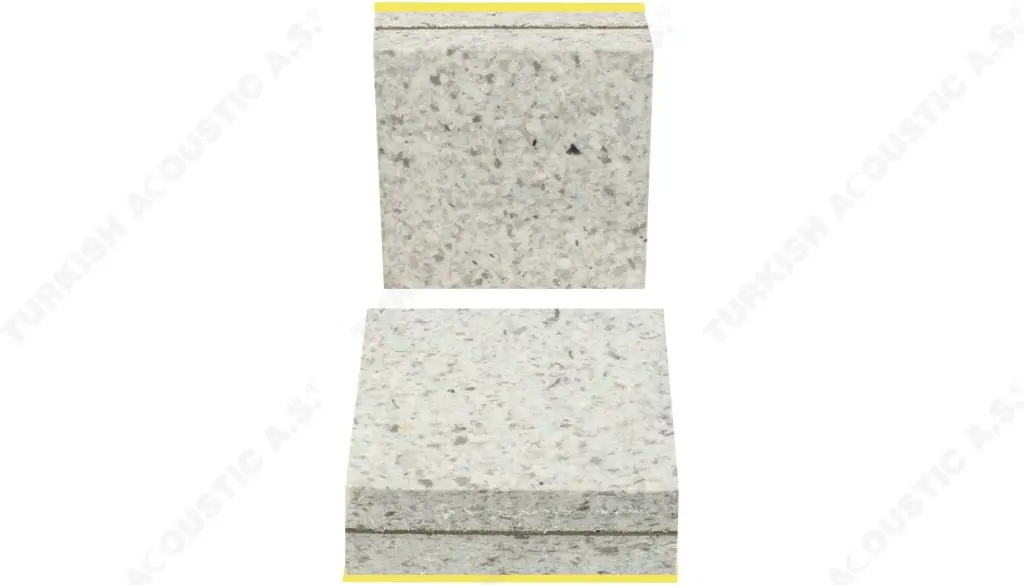

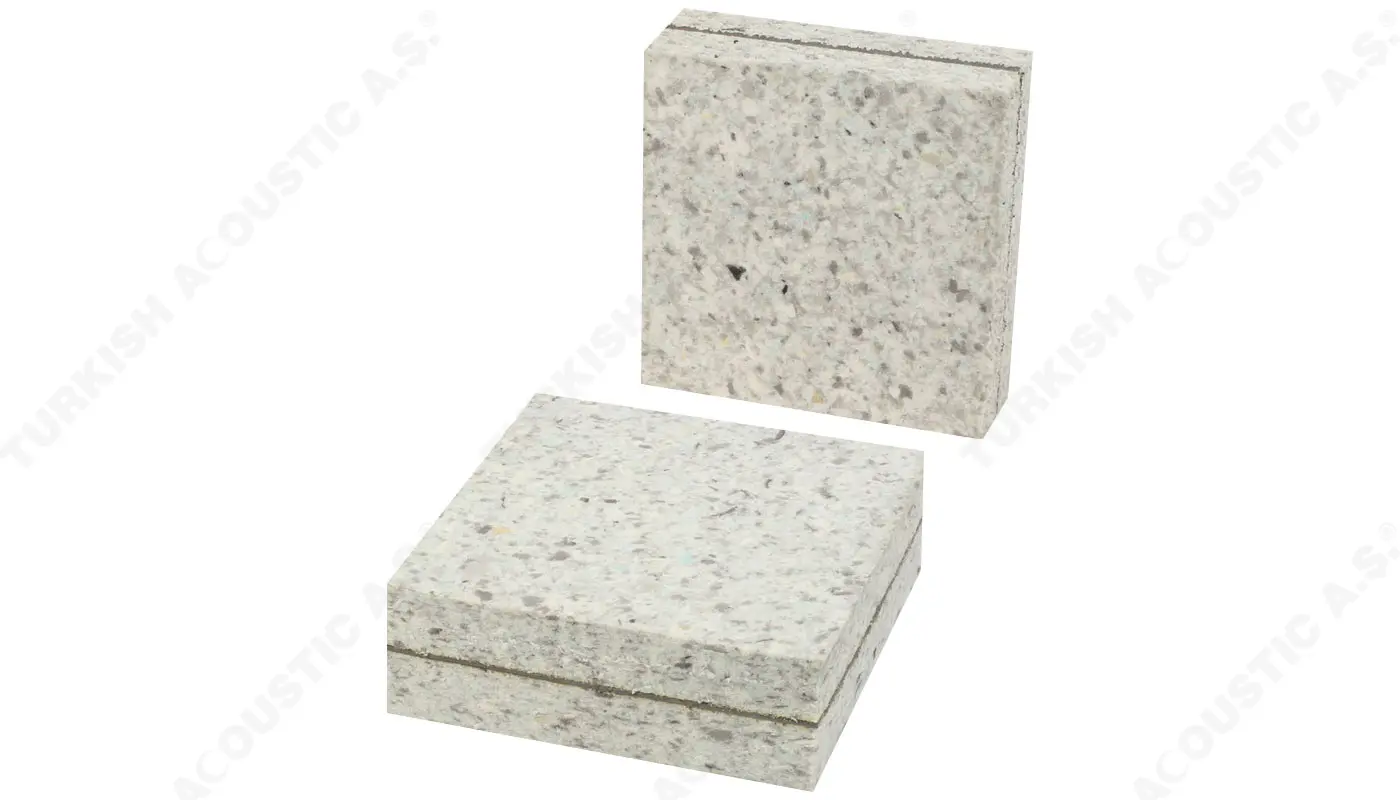

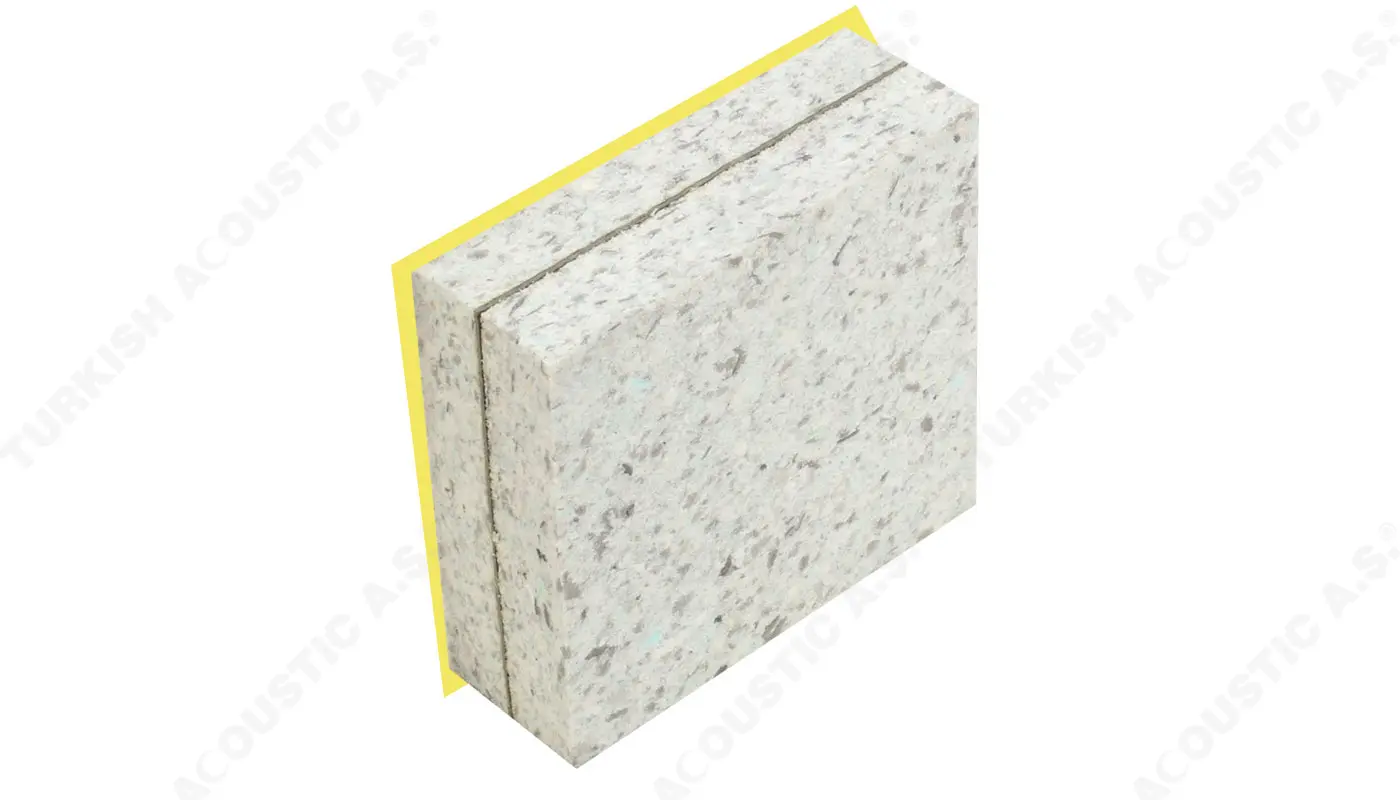

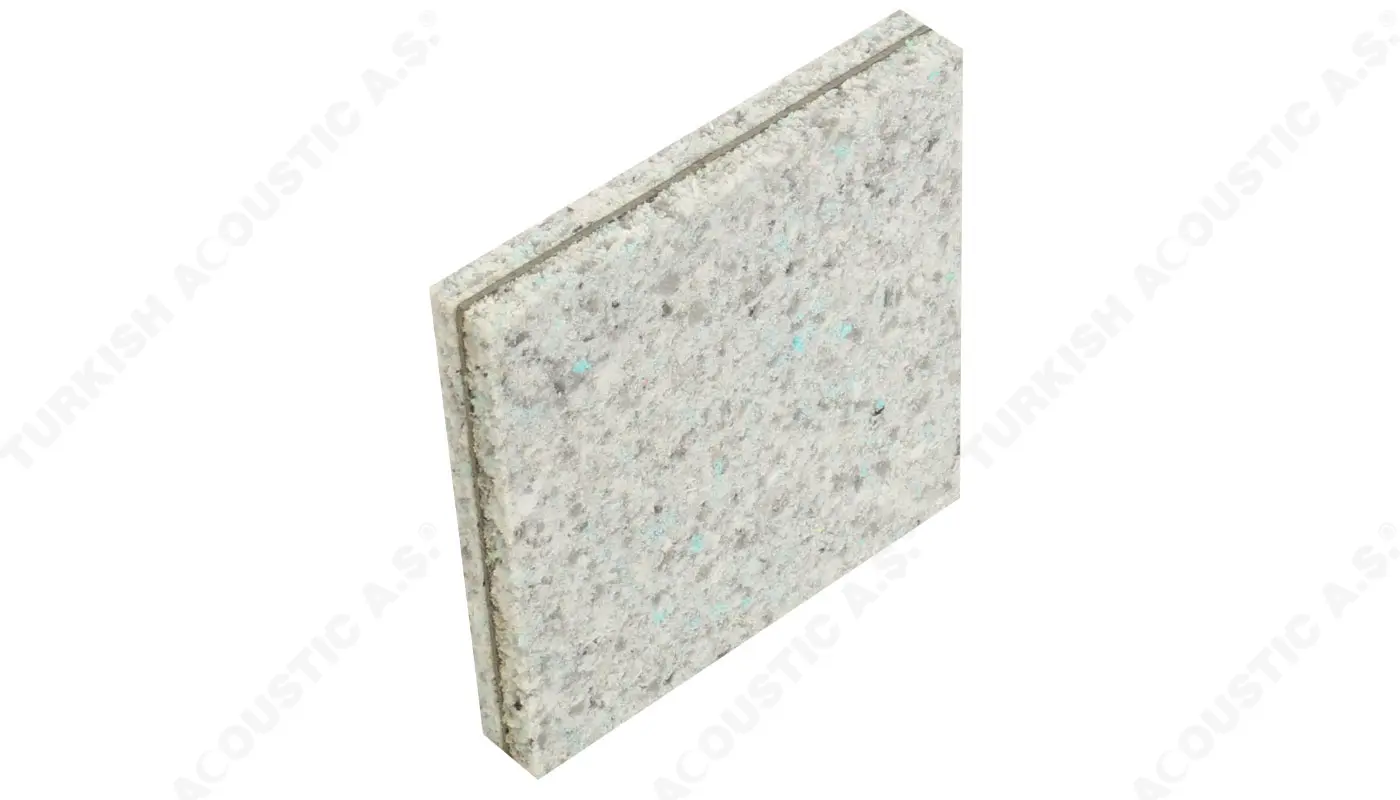

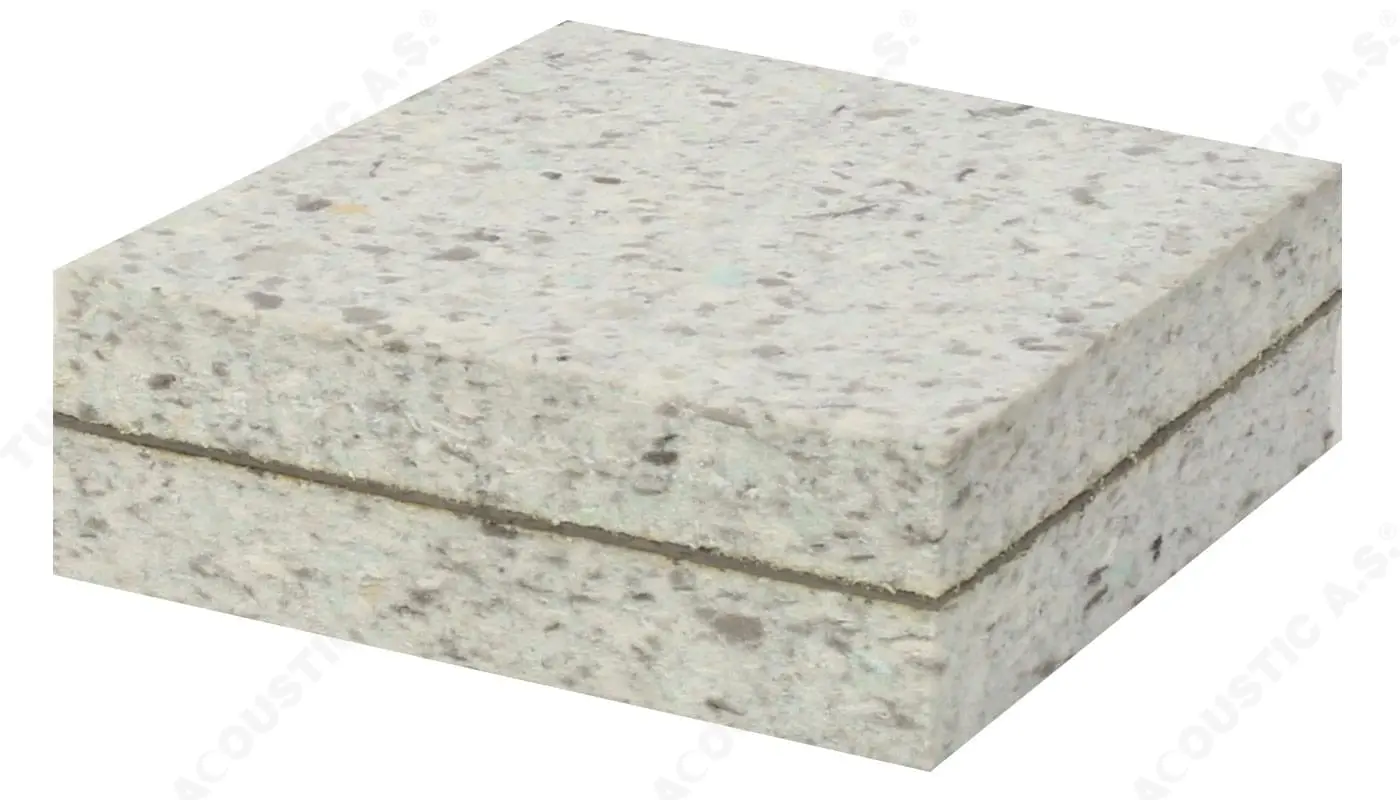

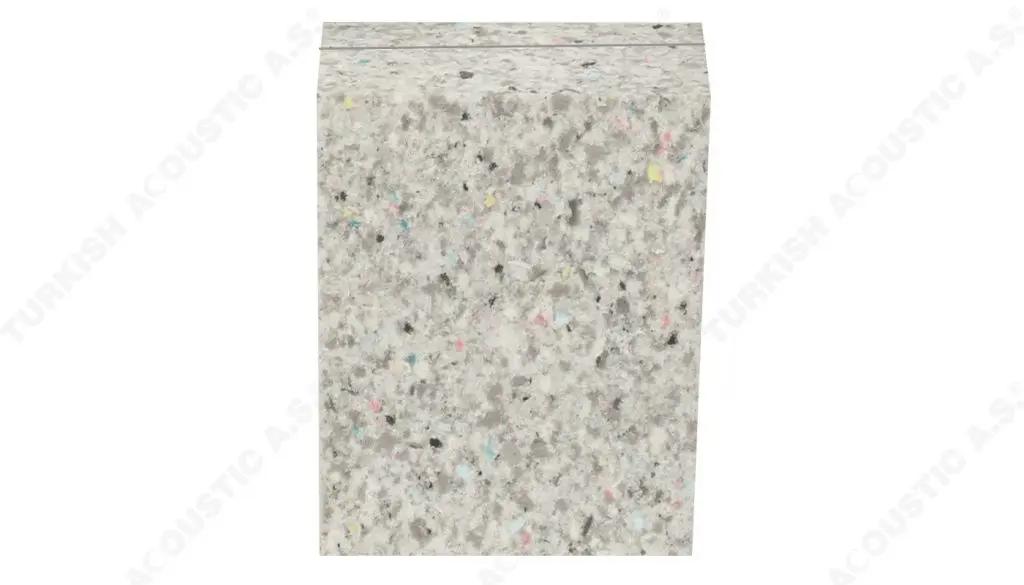

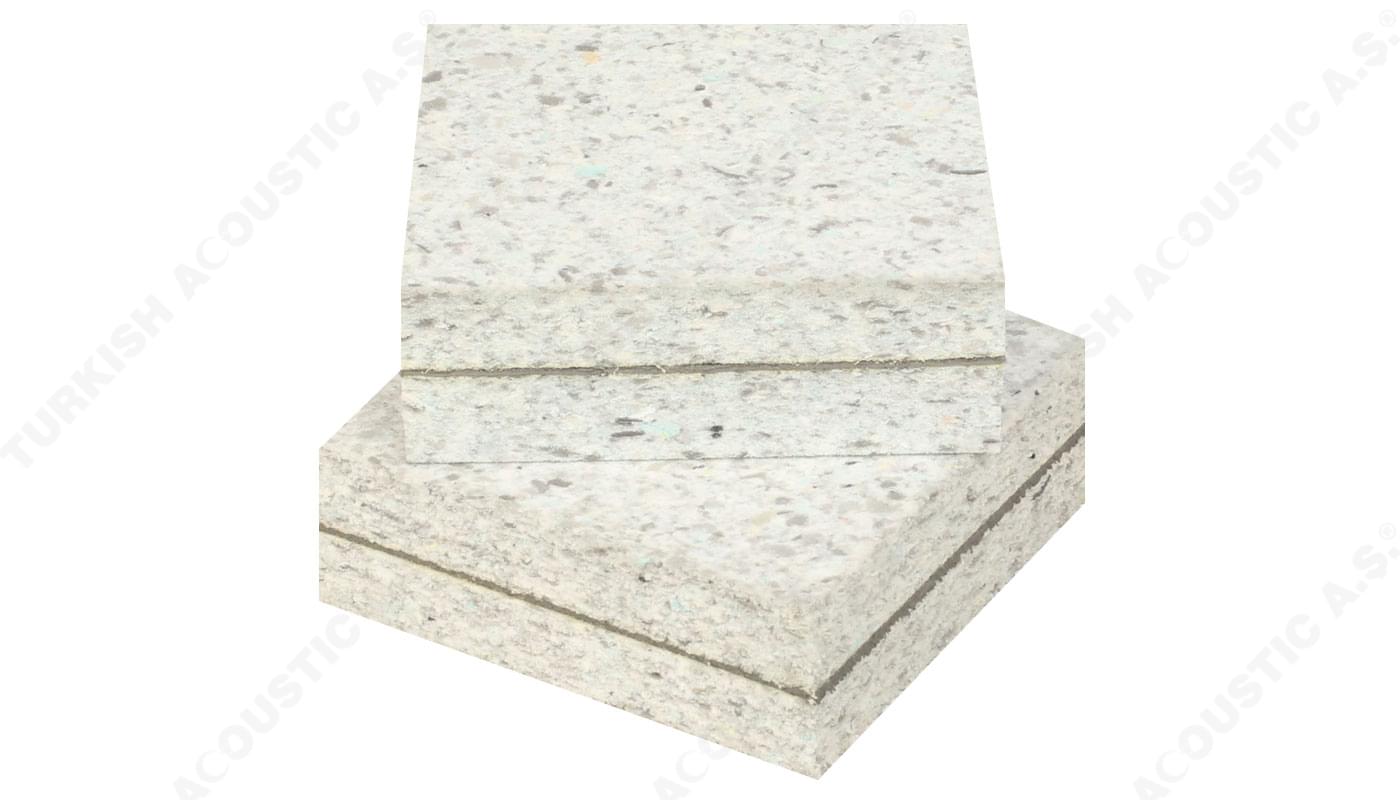

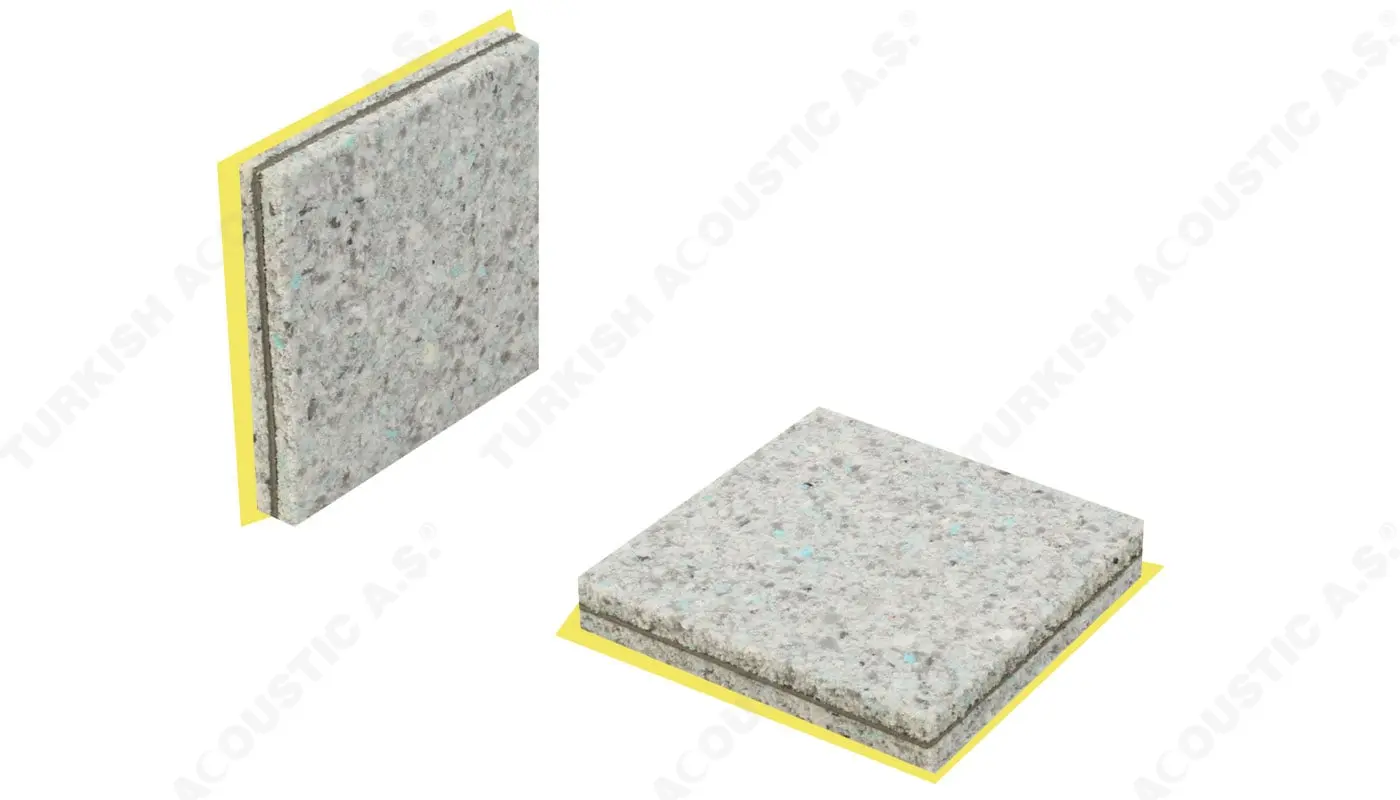

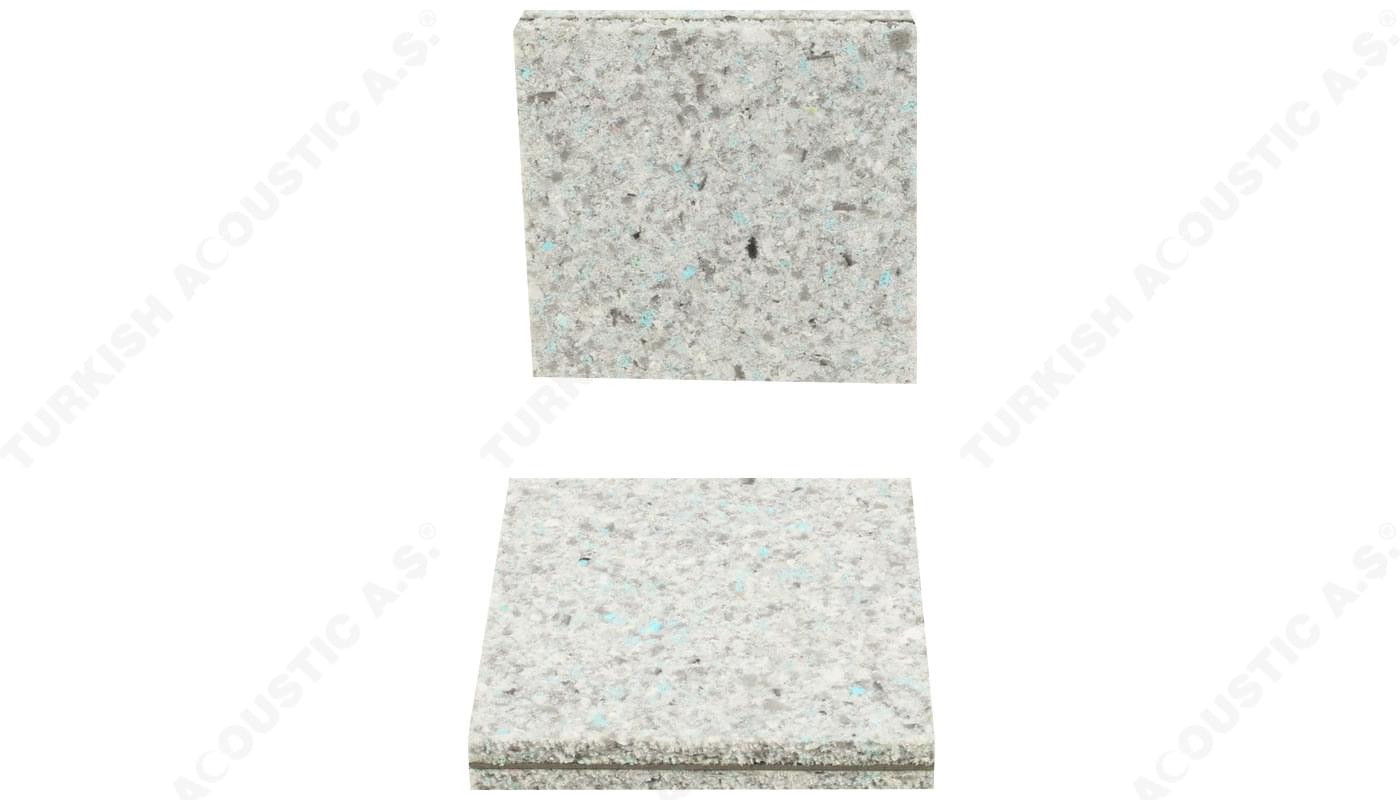

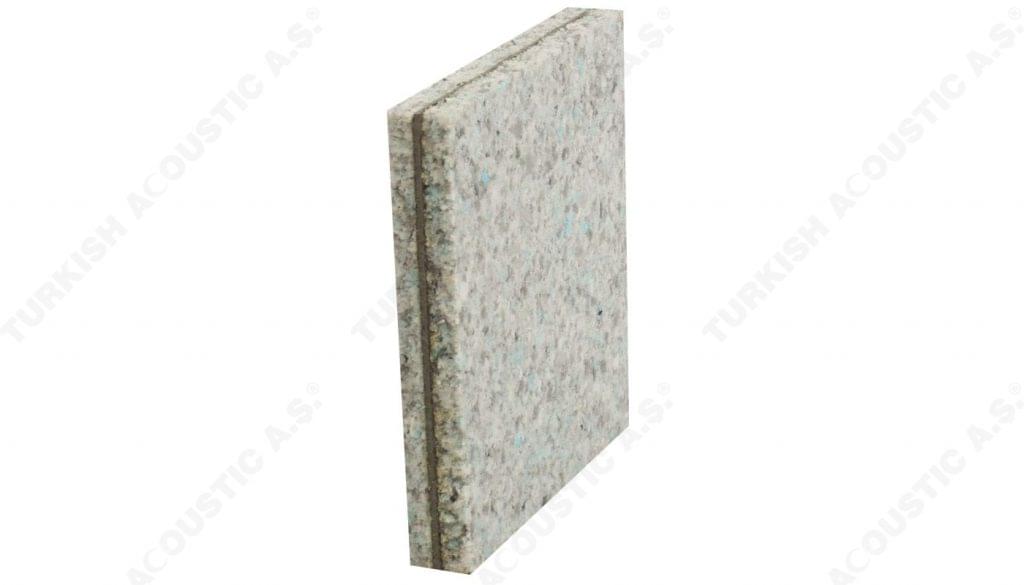

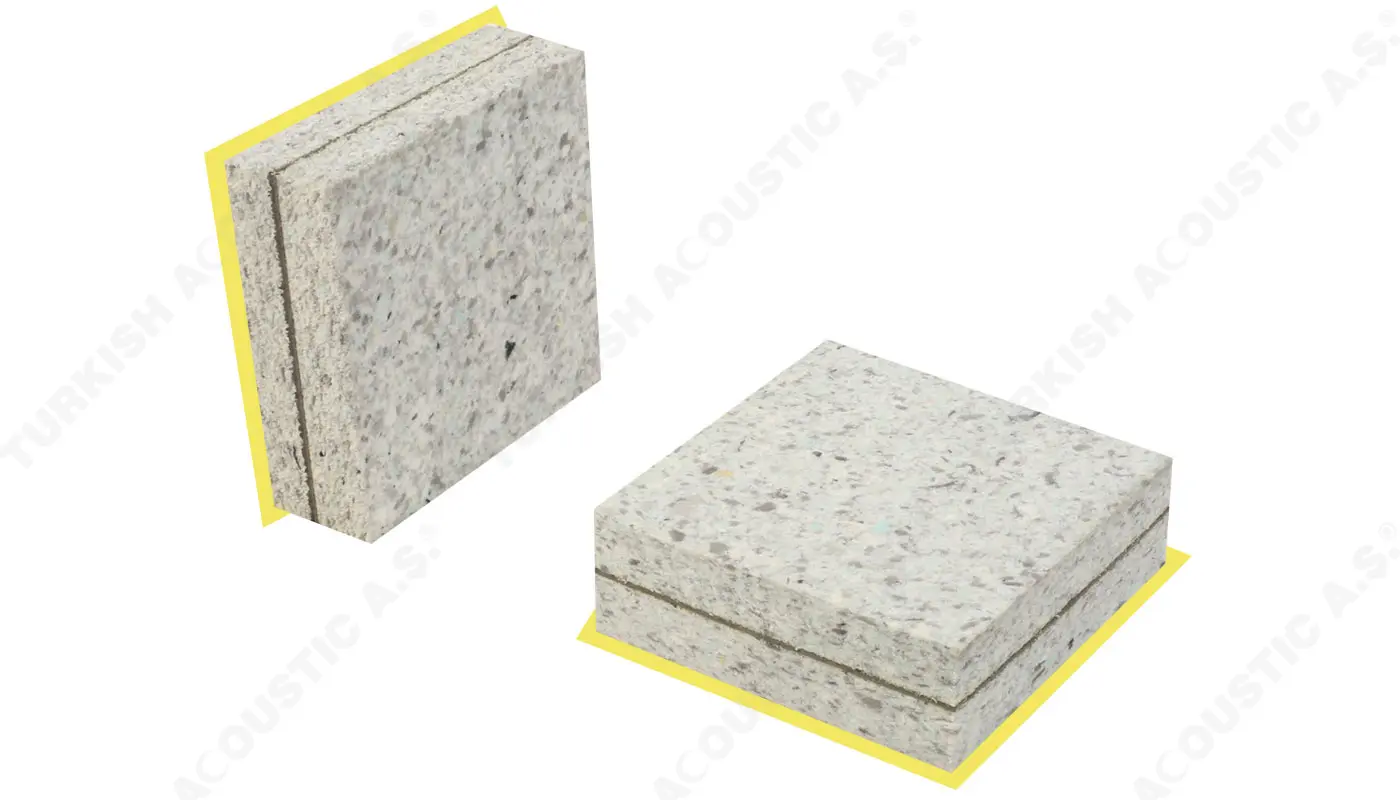

Barrier Bondex Sponge: Brief description of TURKİSH BOND Barrier bondex sponges, which we manufacture and sell / export as Turkish Acoustic; It provides superior and high sound insulation by placing Epdm-based heavy rubber sound barrier between two acoustic bondex sponges to increase the loss of sound transmission.With barrier bondex, you complete all insulation applications including ceiling, wall and floor with an effective and precise result. Barrier bondex sponge is a complementary sound insulation material, you should also use it in rubber sponge and acoustic sponge. Sound insulation is a system, although it is not with a single material, you should use these three products, depending on the decibel ratio of the place, one after the other in the required thickness. First, you should use bondex with barrier to the surface, then rubber sponge and acoustic fireproof sponges as finish material on it. You can find barrier bondex foam prices from the price list on our homepage. makes bondex sponge with barrier . Istanbul bondex sponge shop, bondex sponge manufacturing factory.

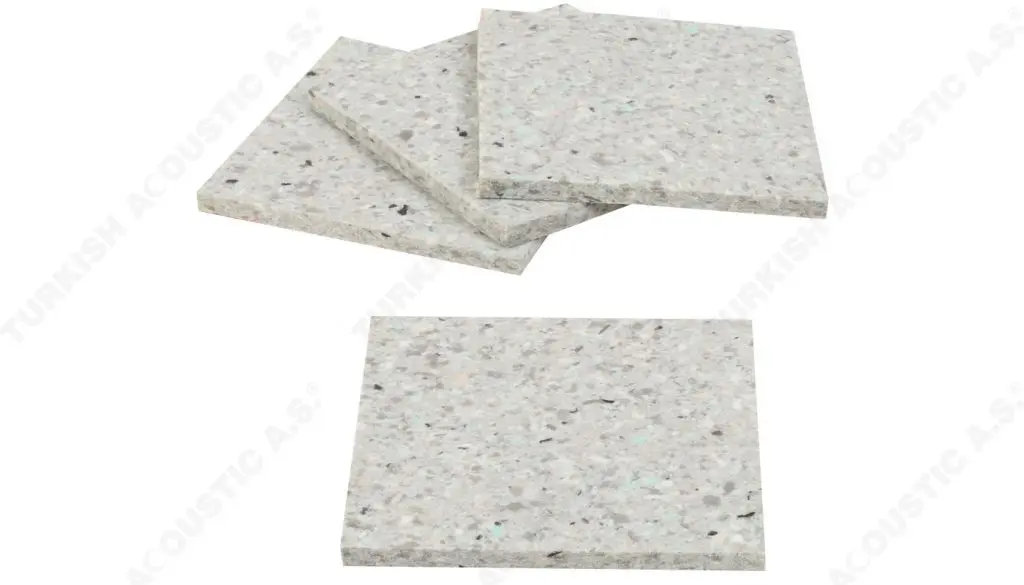

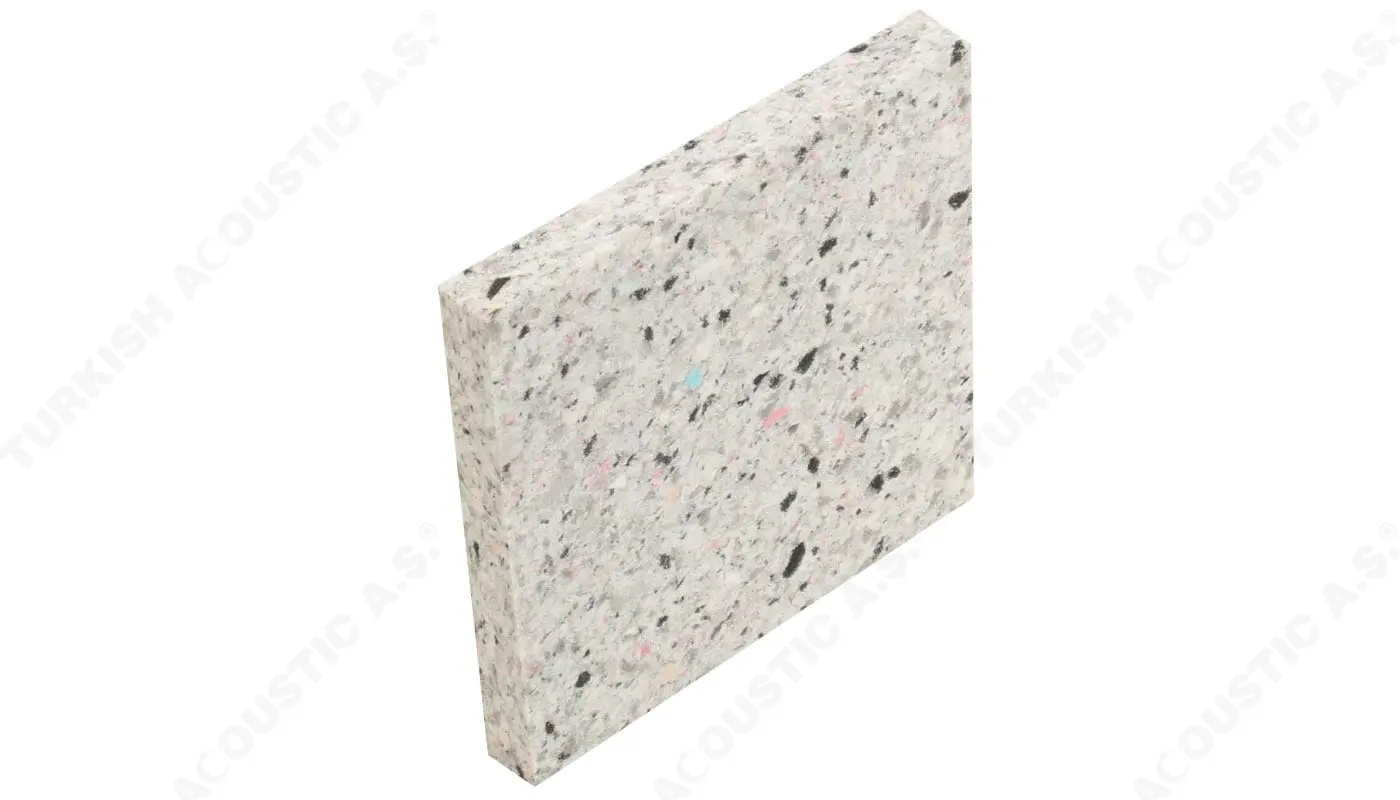

Barrier Bondex Sponge Dimensions: 100 cm x 100 cm Plate dimensions, 10 - 20 - 30 - 40 - 50 - 60 - 70 - 80 - 90 - 100 mm are offered for retail sale.
Bondex Sponge with Barrier Package Contents: Bondex sponges with barrier 100 cm x 100 cm size plates are sold in 10 packages. 1 Pack 10 m² Sold.

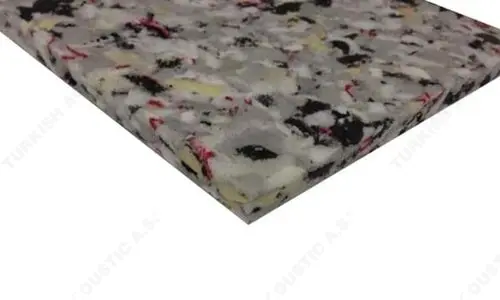

Barrier Bondex Sponge Color varieties: It is sold as standard in mosaic pattern granule mixed color.

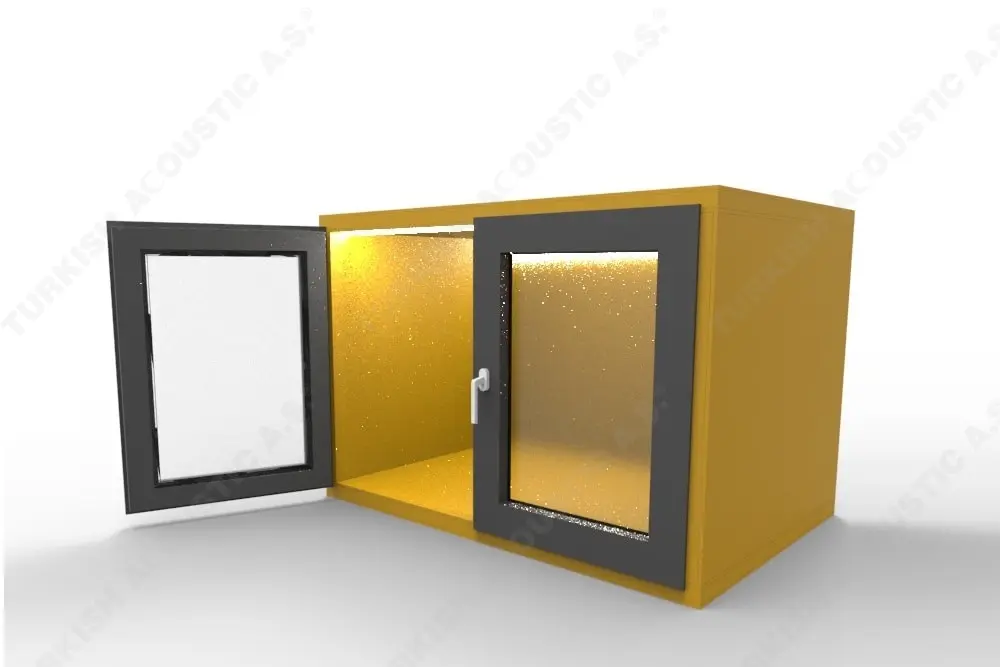

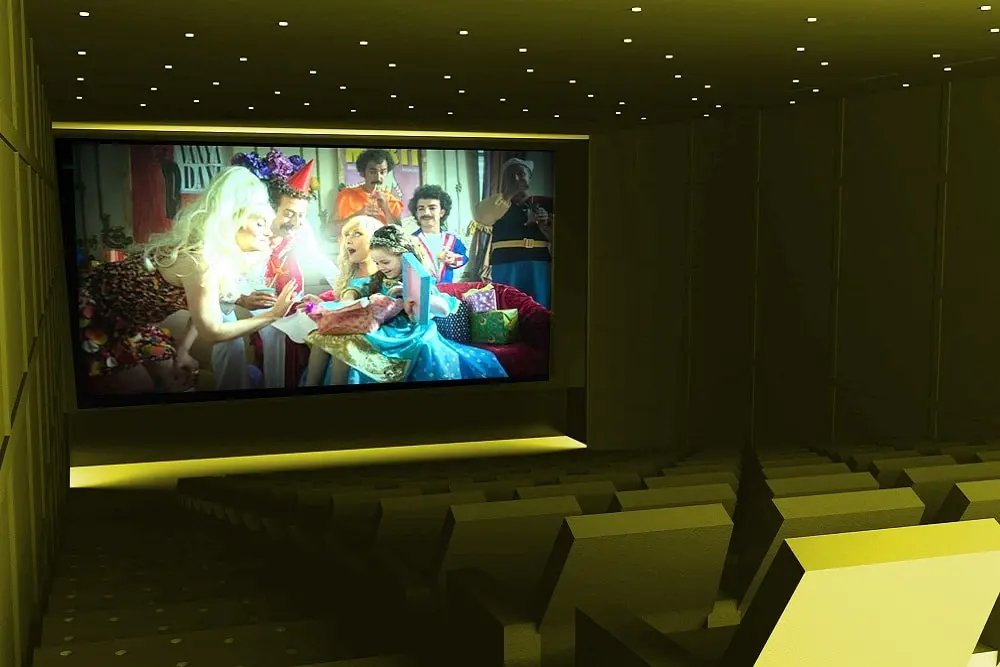

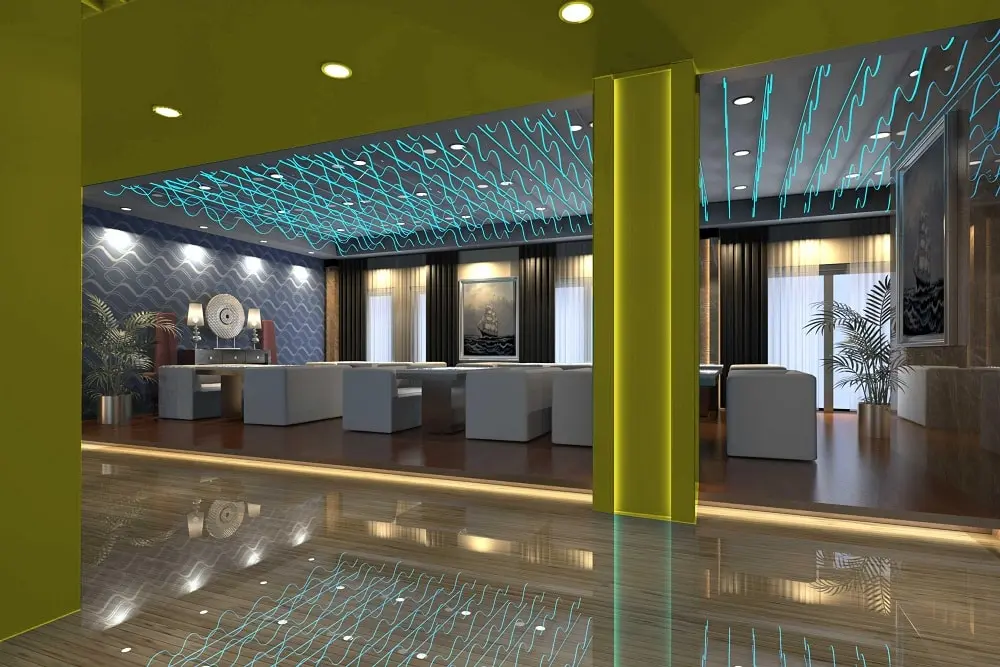

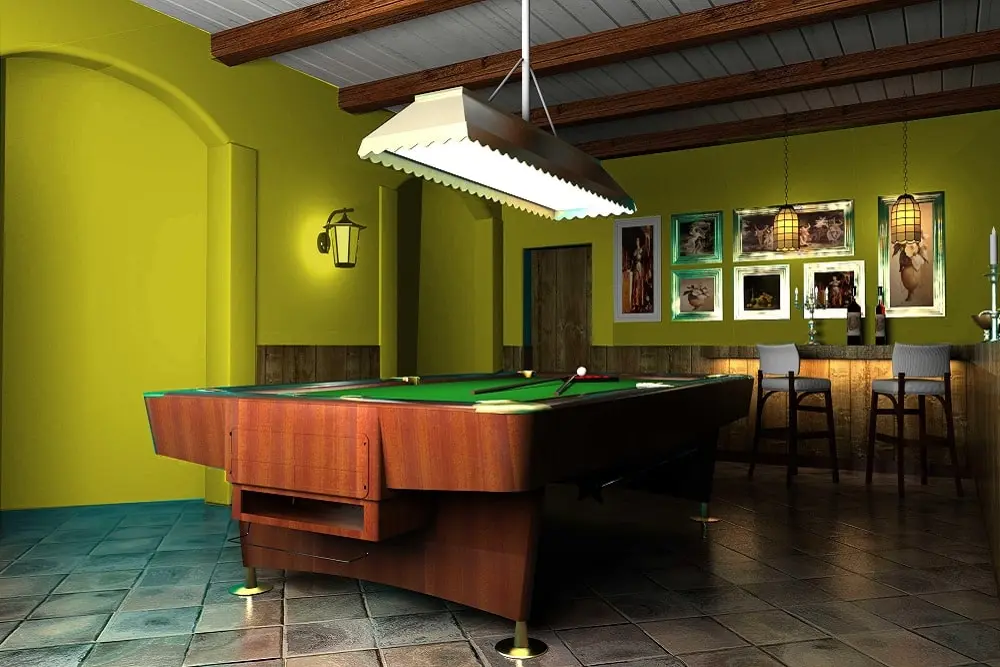

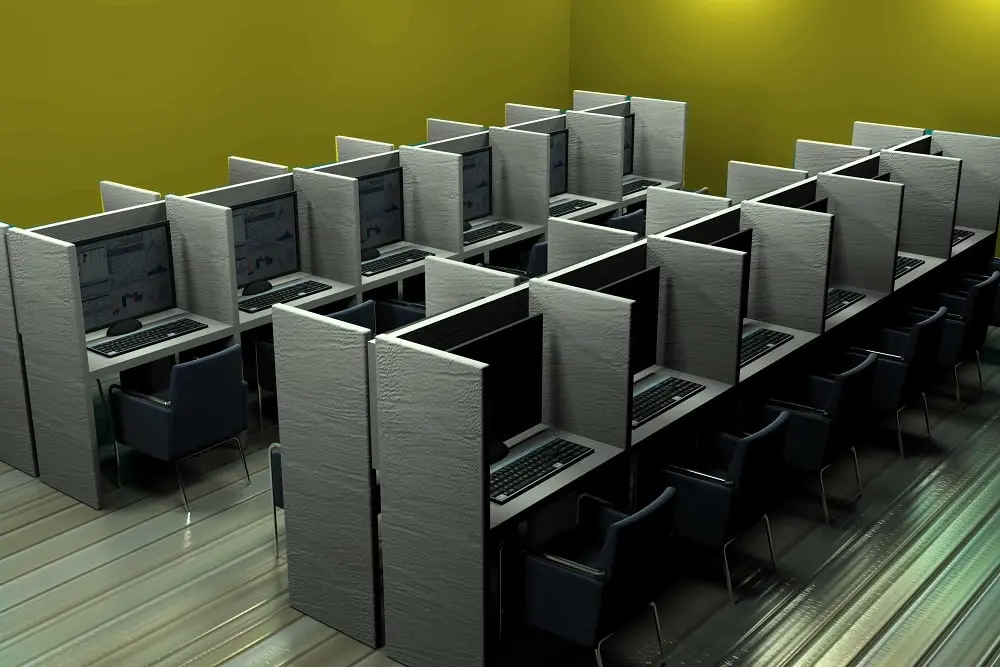

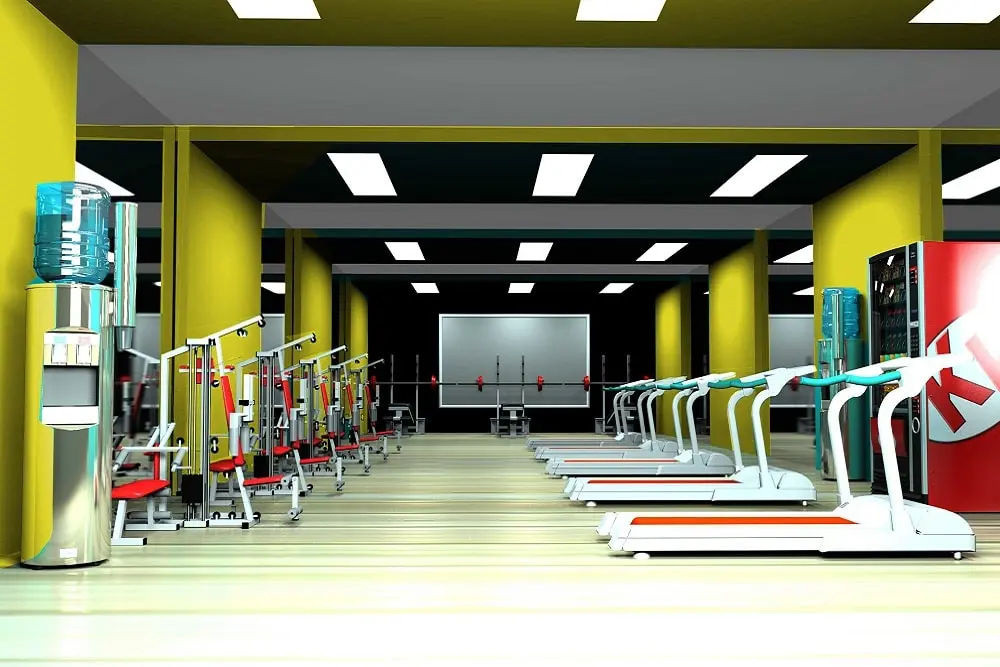

Barrier Bondex Foam Usage Areas: Music room, studio, generator cabin, radio broadcasting house, sports hall, entertainment venues.
Barrier Bondex Sponge Production: Production of special thickness 50 mm and above is possible. Custom cut to size is possible.
Barrier Bondex Sponge Fireproof: It has no flammability and non-flammability. See the fireproof sponges section.
Barrier Bondex Sponge Density: Standard density is 110 Kg / M³ and 180 Kg / M³ custom production is possible in the desired density and thickness.
Note: 30 mm product is between 25 - 30 mm, 40 mm is 35 - 40 mm, and 50 is in thicknesses with tolerances between 45 - 50 mm.

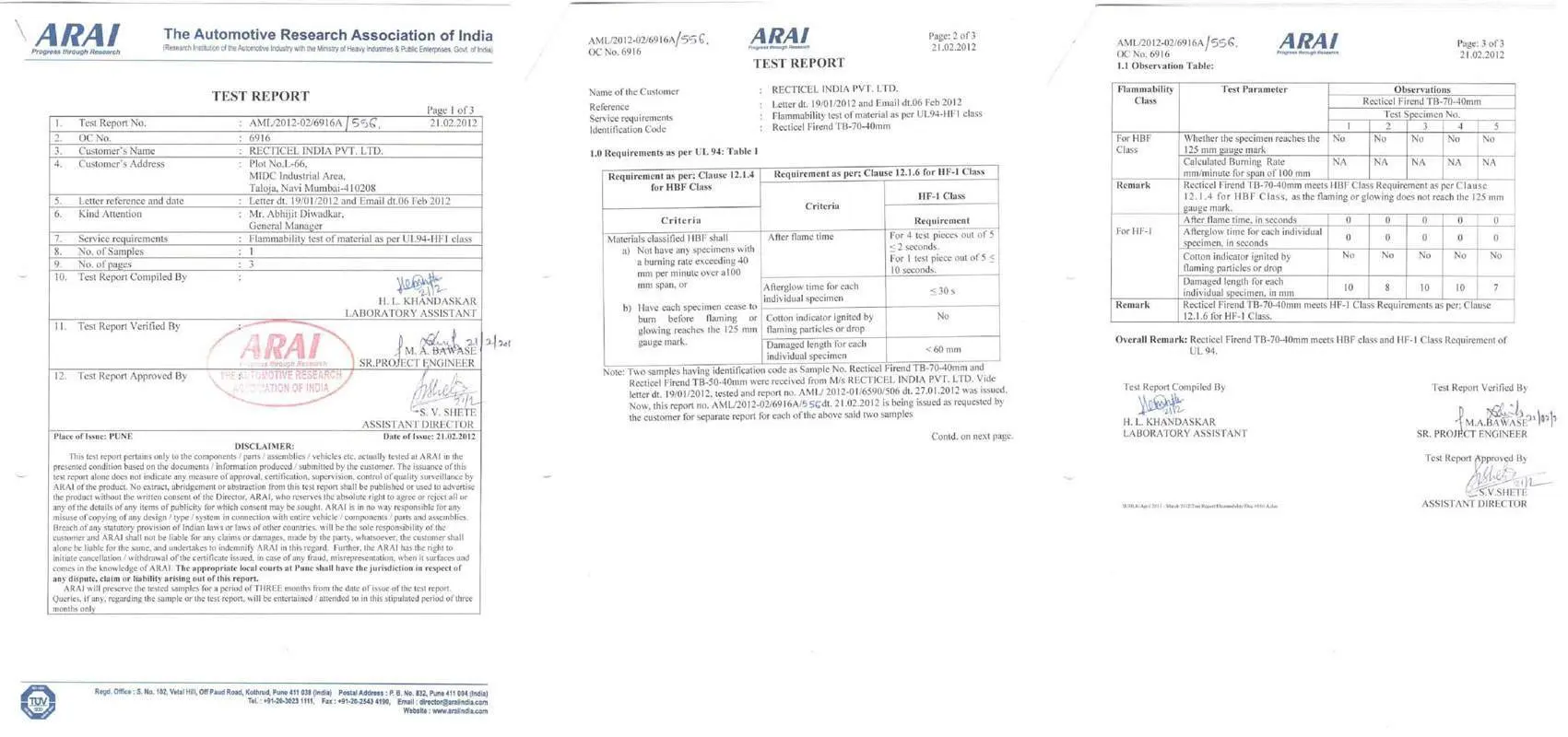

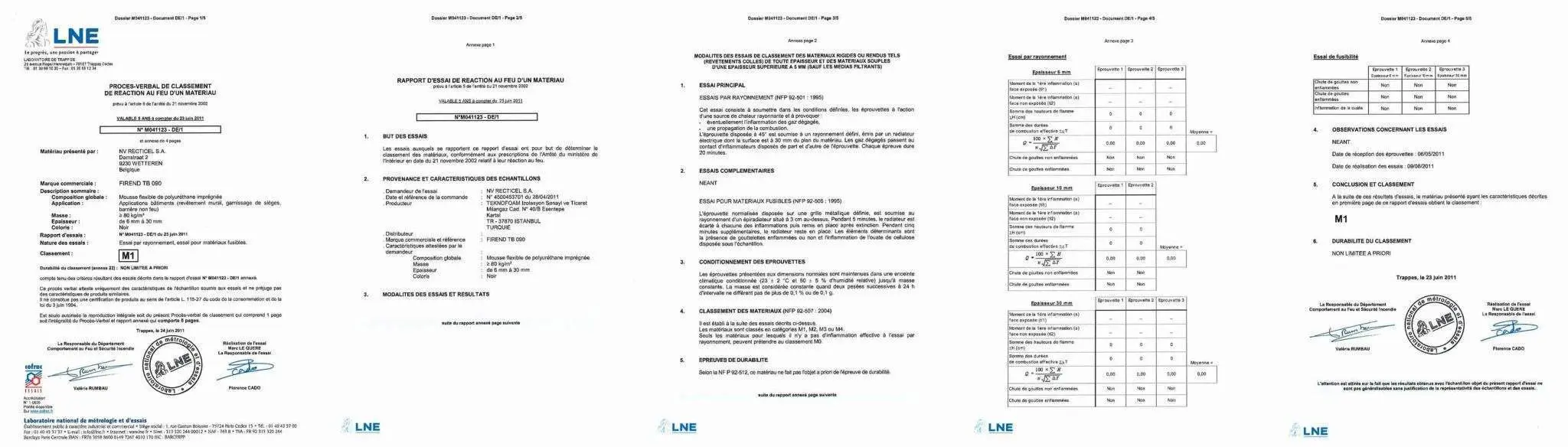

Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Bondex acoustic sponges are in the form of 100 cm x 100 cm plates, and their packages contain 10 plates, 10 m² of products. It is sold by retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
