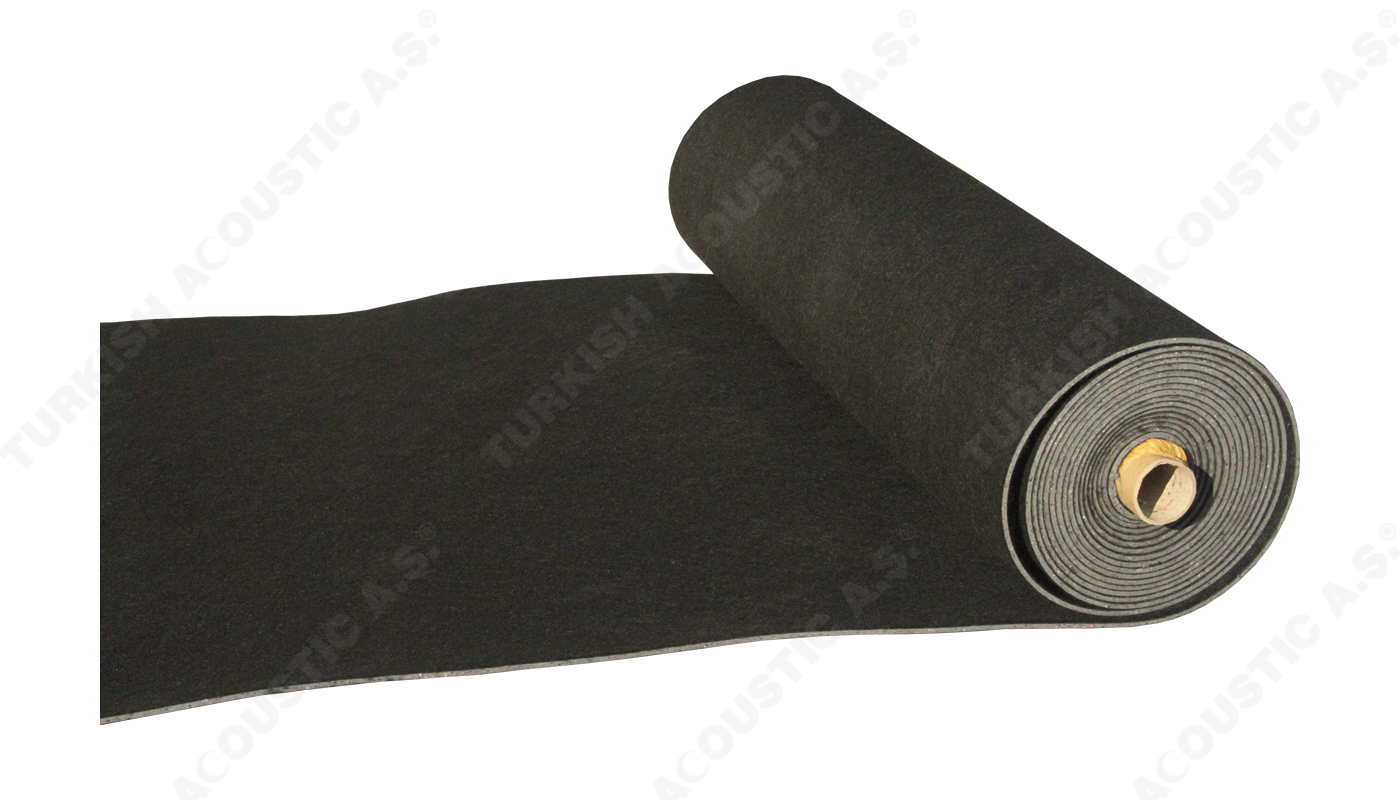

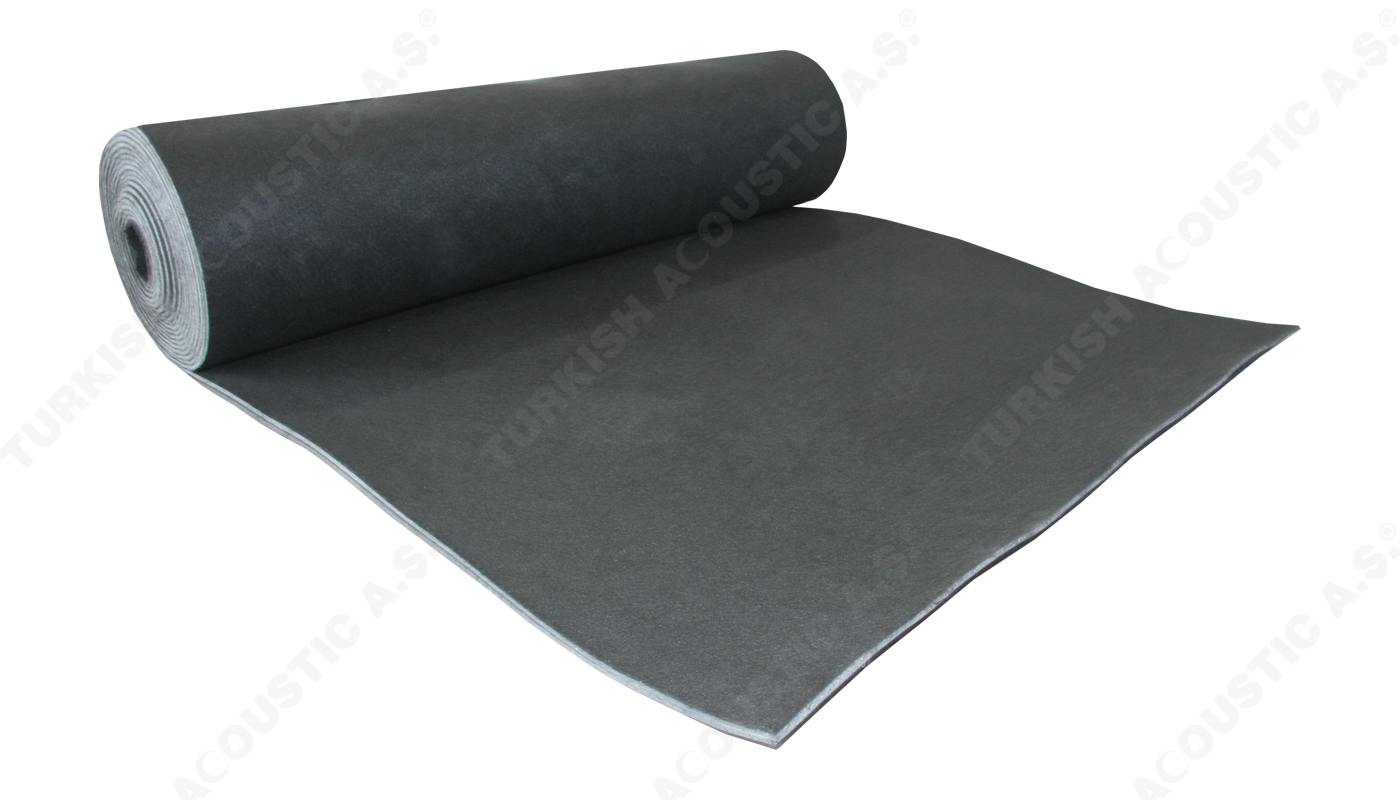

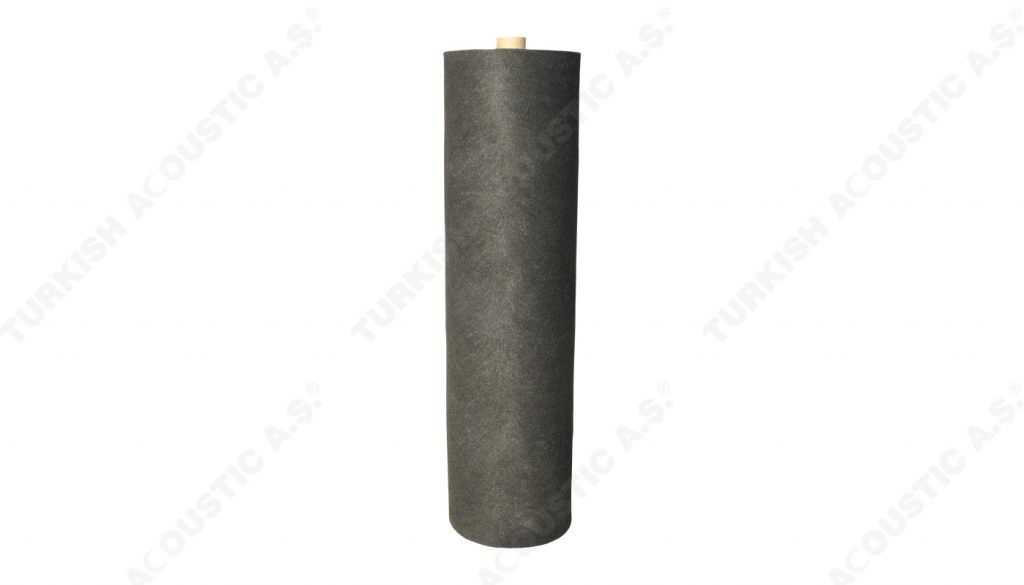

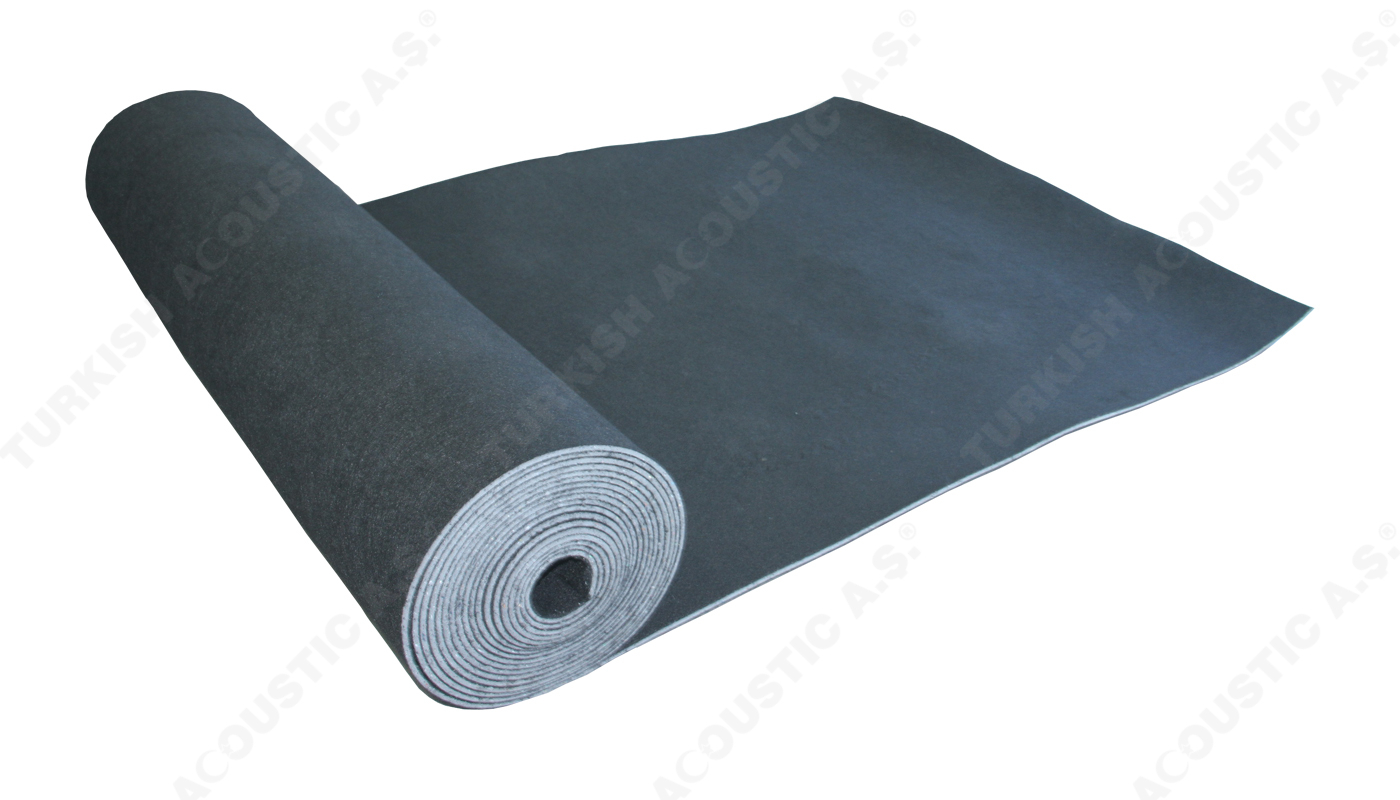

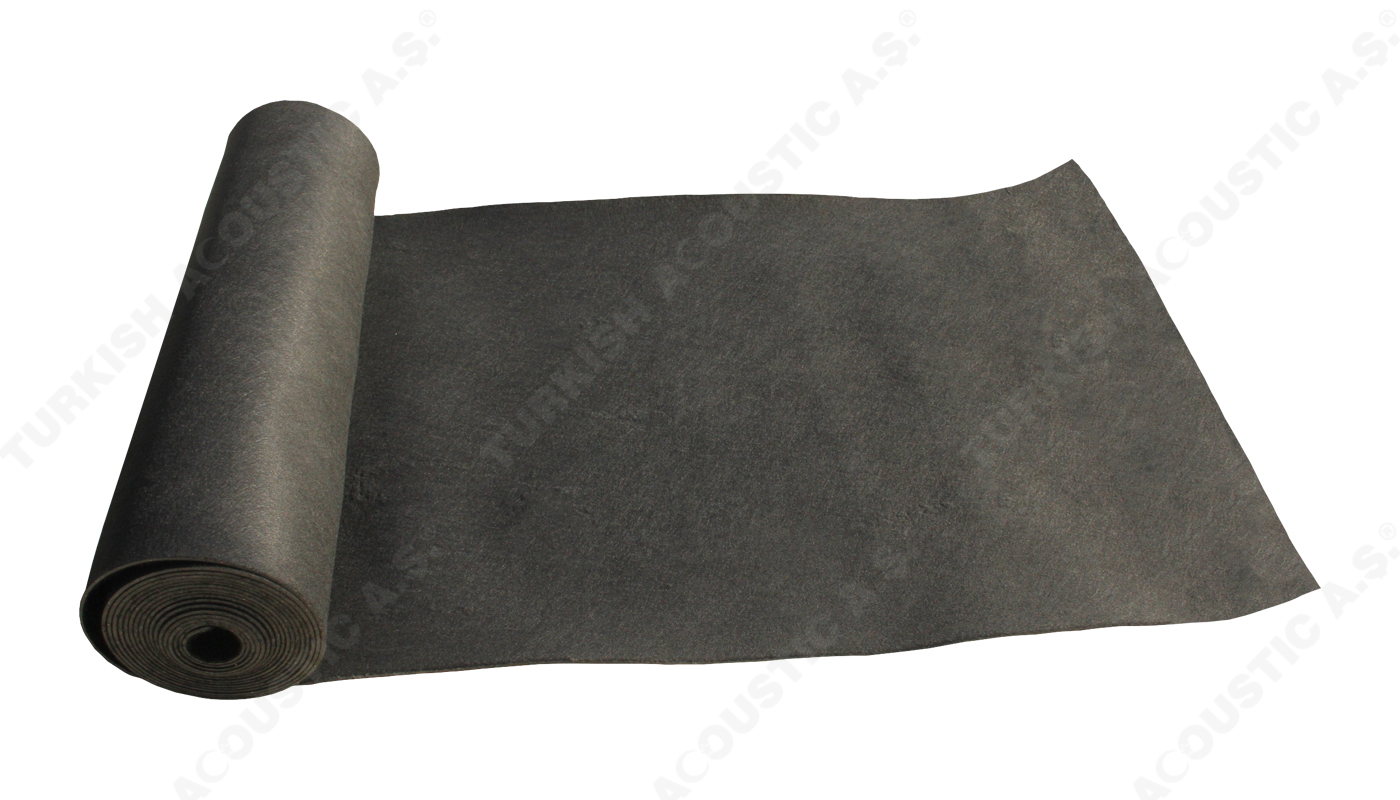

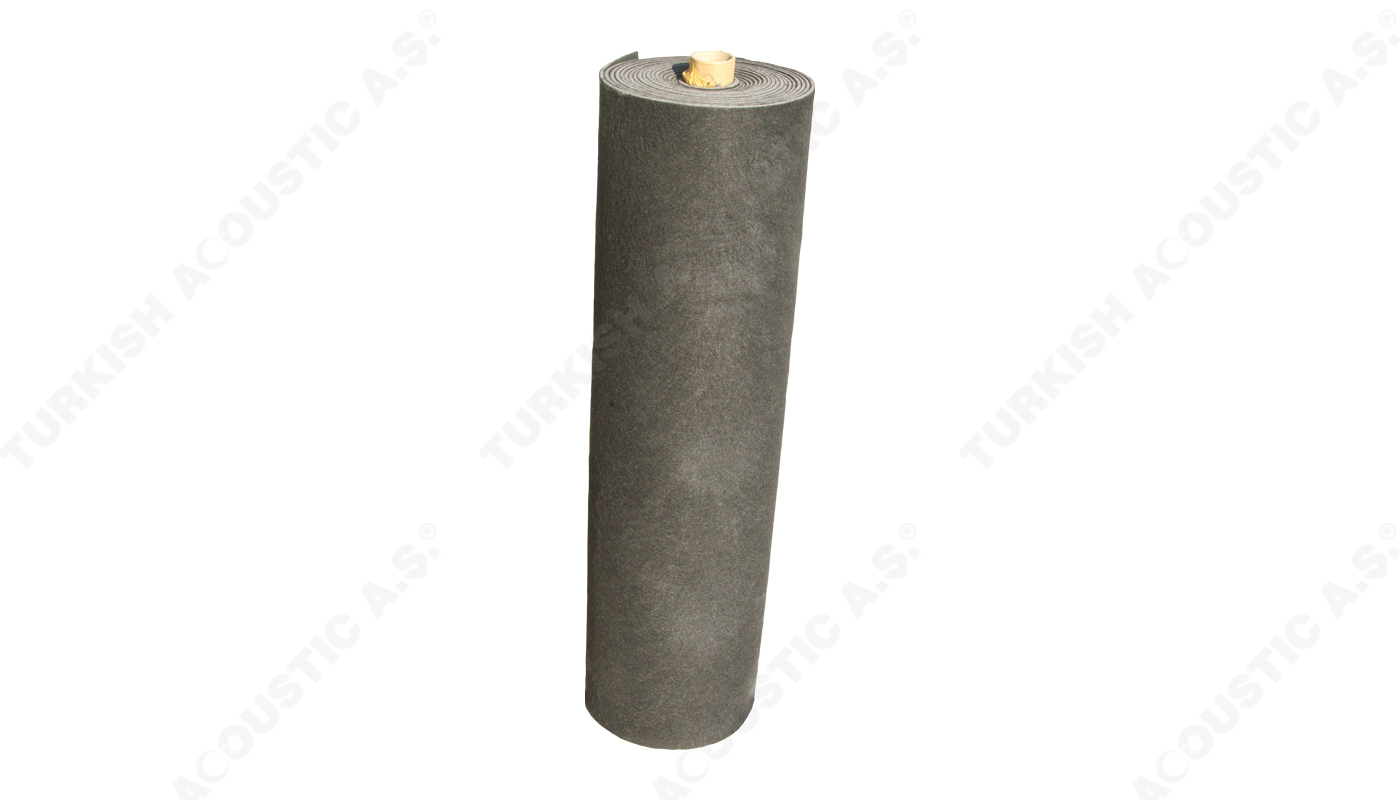

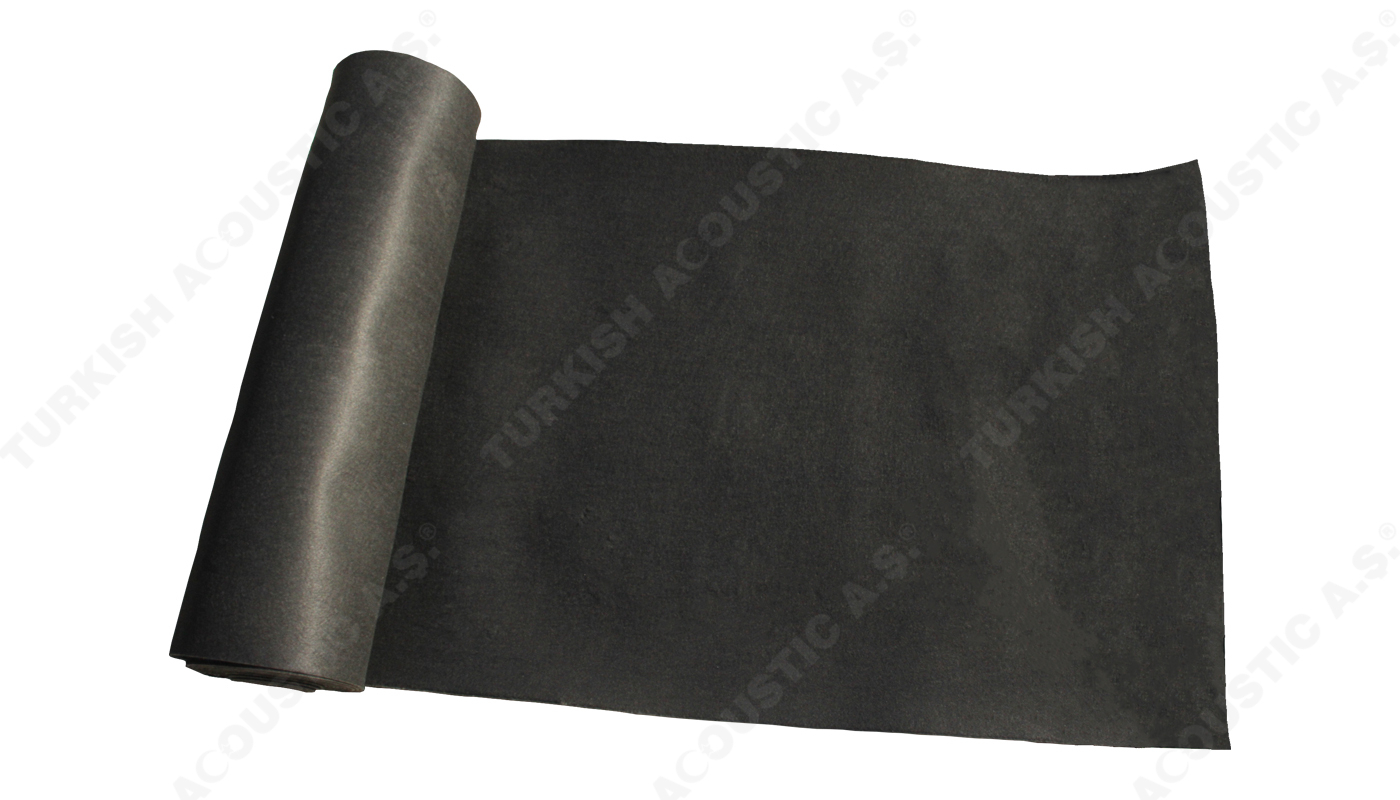

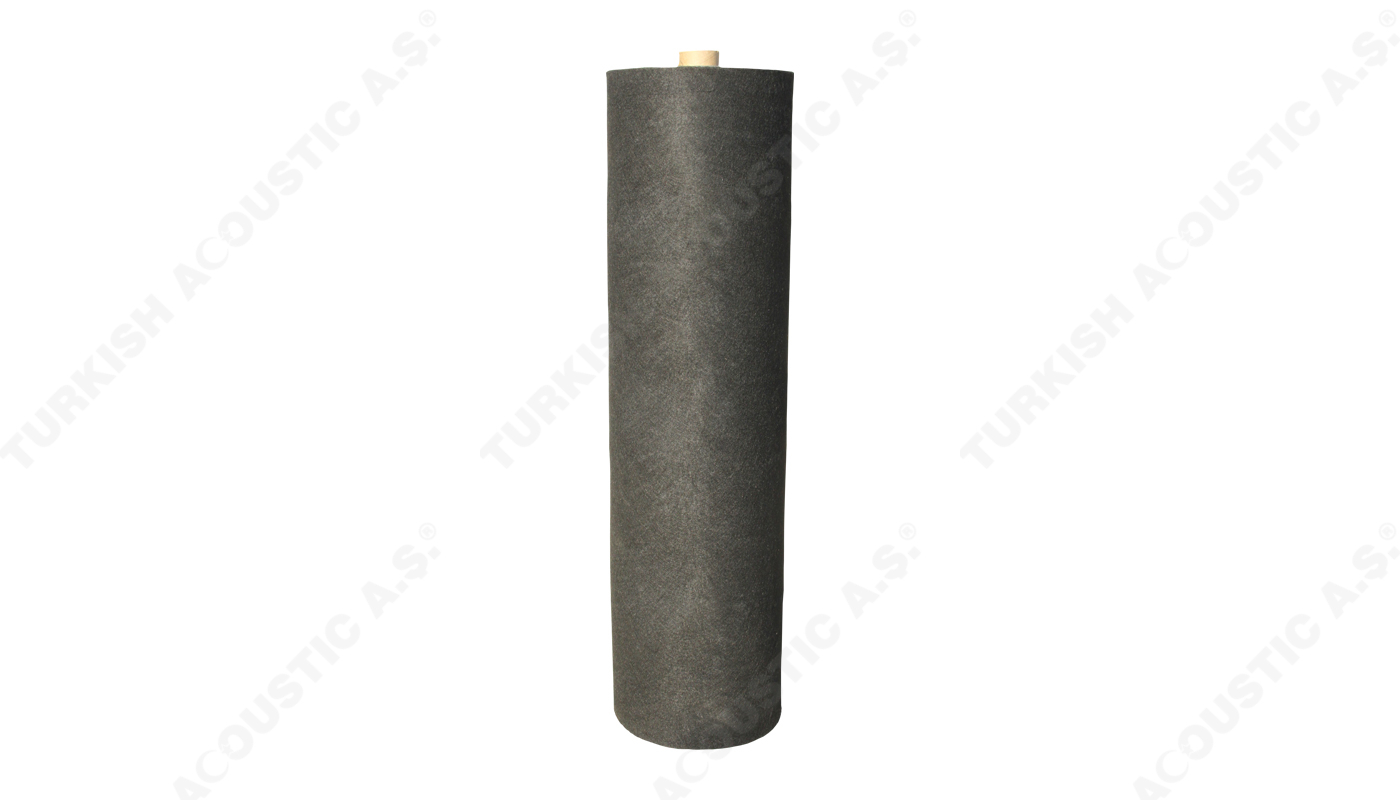

Felted Sound Barrier: It is an introduction and information article about sound barriers, technobar (sound barrier) product technical features and certifications, application areas as well as prices and types of sound insulation materials used to achieve sound transmission loss in sound insulation and insulation known as epdm-based heavy lead mudali. We carry out the production and sales marketing of our product in accordance with all public institutions and technical specifications. We export our felt sound barriers to all countries of the world. Acoustic Epdm-based heavy Felt sound insulation barriers are a professional sound insulation product and have high sound absorption (providing sound transmission loss) values. Rubber barriers, It is designed to prevent the transmission of sound from one environment to another with its special vibration-absorbing flexible structure for high intensity and high noise cutting performance. The felt barrier is installed in plasterboard ceilings and wall coverings to provide sound insulation and insulation. Turkish Acoustic Heavy Sound Barrier, EPDM heavy felt barriers used in the insulation of noise control / sound insulation provide excellent sound transmission loss. Acoustic sound barriers used in ceiling, wall and floor sound insulation are sold in thicknesses of 1.7 mm to 3 mm and density of 3.5 kg to 5 kg / m³. EPDM heavy felt barriers used in the insulation / sound insulation of noise control provide excellent sound transmission loss. Acoustic sound barriers used in ceiling, wall and floor sound insulation are sold in thicknesses of 1.7 mm to 3 mm and density of 3.5 kg to 5 kg / m³. EPDM heavy felt barriers used in the insulation / sound insulation of noise control provide excellent sound transmission loss. Acoustic sound barriers used in ceiling, wall and floor sound insulation are sold in thicknesses of 1.7 mm to 3 mm and density of 3.5 kg to 5 kg / m³.
Felted Sound Barrier Tensile Strength: Min. 150 (See product certifications section.)
Felted Sound Barrier Shore Value: It has a value between 85 and 100, it can be produced in different softness upon request.
Felted Sound Barrier Usage Areas: It is used to provide sound transmission loss in sound insulation and insulation.
Felted Sound Barrier Density: 1 mm 2 kg / m² - 2 mm 3.5 kg / m² - 2.5 mm 3 kg / m² - 3 mm 5 kg / m² - 5 mm 8 - 10 kg / m².
Felted Sound Barrier Package Quantity: Heavy felt sound insulation barrier membranes are sold as 1 mt x 10 mt. 1 roll 10 m² Sold.
Felted Sound Barrier Colors: Standard dark blackish color as black (dark andesite gray). Colors may differ depending on the boiler.
Felted Sound Barrier Options: It can be laminated with different acoustic sponges. It is produced in special thickness and density between 5 mm or 10 mm.
Felted Sound Barrier Non- flammability : It is non-flammable. It has all the certifications (see the Certificates section.)
Felted Sound Barrier Dimensions: 1000 mm x 10 meters (in the form of a flat rolled sheet) length. The product is 1 mt x 10 mt and can be produced as 100 cm x 500 cm upon request.
Note: The product with 2 mm is between 1.8 - 2.2 mm, and 3 mm is between 2.8 - 3.2 mm thicknesses with 10% tolerance. Product test reports and product certificates are in the certificates section within the article.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Barrier Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Sound insulation membranes are 100 cm wide and 10 to 5 meters long, and their packages contain 10 m² of products. It is sold in retail and wholesale as 2 mm and 3 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
